2007 CHEVROLET TRAIL BLAZER Owners Manual

Windows
{CAUTION:
Leaving children, helpless adults, or pets
in a vehicle with the windows closed is
dangerous. They can be overcome by the
extreme heat and suffer permanent
injuries or even death from heat stroke.
Never leave a child, a helpless adult, or a
pet alone in a vehicle, especially with the
windows closed in warm or hot weather.
105

Power Windows
{CAUTION:
Leaving children, helpless adults, or pets
in a vehicle with the windows closed is
dangerous. They can be overcome from
extreme heat in warm or hot weather and
suffer permanent injuries or even death
from heat stroke.
Leaving children in a vehicle with the
ignition key is dangerous for many
reasons, children or others could be badly
injured or even killed. They could operate
the power windows or other controls or
CAUTION: (Continued)
CAUTION: (Continued)
even make the vehicle move. The windows
will function with the keys in the ignition
and they could be seriously injured or
killed if caught in the path of a closing
window. Do not leave keys in a vehicle
with children.
When there are children in the rear seat use
the window lockout button to prevent
unintentional operation of the windows.
106

The controls for the power windows are located on
the armrest on each of the side doors. With
power windows, the switches operate the windows
when the ignition is in RUN, ACCESSORY or
when Retained Accessory Power (RAP) is active.
SeeRetained Accessory Power (RAP) on
page 113. The driver’s door also has a switch for
each of the passenger’s windows.Press down the top of the switch to lower the
window and pull up on the switch to raise the
window. If you hold the switch down for three to
seven seconds after the window has been
completely lowered or raised, the window will not
operate for about 15 seconds.
Express-Down Window
AUTO (Express-down):The driver’s and front
passenger’s window switches have an
express-down feature that allows you to lower the
window without holding the switch down. Press
down briey on the driver’s or front passenger’s
window switch labeled AUTO to activate the
express-down feature. Lightly tap the switch to
open the window slightly. The express-down
feature can be interrupted at any time by pressing
the top of the switch.
Window Lockout
o
(Lockout):Your vehicle has a lockout feature
to prevent passengers from operating the power
windows. The lockout switch is located in front of
the window switches on the driver’s door. A light in
the lockout switch will come on to show that the
switch has been activated. Press the lockout switch
again to return to normal operation.
107

Sun Visors
Sun Visors with Slide Rod
Your vehicle may have this feature. Pull the sun
visor down to block glare. Detach the sun visor from
the center mount and slide it along the rod from
side-to-side to cover the driver or passenger side of
the front window. Swing the sun visor to the side to
cover the side window. It can also be moved along
the rod from side-to-side in this position.
Sun Visors with Fixed Rod and Pull-out
Extension
Your vehicle may have this feature. Pull the sun
visor down to block glare. Pull the sun visor
extender out for additional coverage. Detach the
sun visor from the center mount and swing it to the
side to cover the side window.
Visor Vanity Mirror
Pull the sun visor down to expose the vanity mirror.
You may have to lift a cover to expose the mirror.
Lighted Visor Vanity Mirror
Your vehicle may have this feature. Pull the sun
visor down and lift the mirror cover to turn on
the lamps. The lamps will turn off when the cover
is closed.
Theft-Deterrent Systems
Vehicle theft is big business, especially in some
cities. Although your vehicle has a number of
theft-deterrent features, we know that nothing we
put on it can make it impossible to steal.
Content Theft-Deterrent
Your vehicle may have a content theft-deterrent
alarm system.
The security light is
located on the
instrument panel cluster.
108

To operate the system, do the following:
1. Open the door.
2. Lock the door with the power door lock switch
or the Remote Keyless Entry (RKE)
transmitter. The security light should ash.
3. Close all doors. The security light should turn
off after about 30 seconds. The alarm is not
armed until the security light turns off.
If a locked door is opened without the key or the
RKE transmitter, the alarm will go off. The
headlamps and parking lamps will ash for
two minutes, and the horn will sound for
30 seconds, then will turn off to save the
battery power.
Remember, the theft-deterrent system will not
activate if you lock the doors with a key or use the
manual door lock. It activates only if you use a
power door lock switch with the door open, or with
the RKE transmitter. You should also remember
that you can start your vehicle with the correct
ignition key if the alarm has been set off.To avoid setting off the alarm by accident, do the
following:
Always lock the vehicle using the door key
afterthe doors are closed.
Always unlock a door with a key, or use the
RKE transmitter. Unlocking a door any other
way will set off the alarm.
If you set off the alarm by accident, unlock any
door with the key. You can also turn off the alarm
by pressing unlock on the RKE transmitter.
The alarm will not stop if you try to unlock a door
any other way.
Testing the Alarm
To test the alarm, do the following:
1. From inside the vehicle, lower the driver’s
window and open the driver’s door.
2. Activate the system by locking the doors with
the power door lock switch while the door is
open, or with the RKE transmitter.
3. Get out of the vehicle, close the door and wait
for the security light to go out.
4. Then reach in through the window, unlock the
door with the manual door lock and open the
door. This should set off the alarm.
109

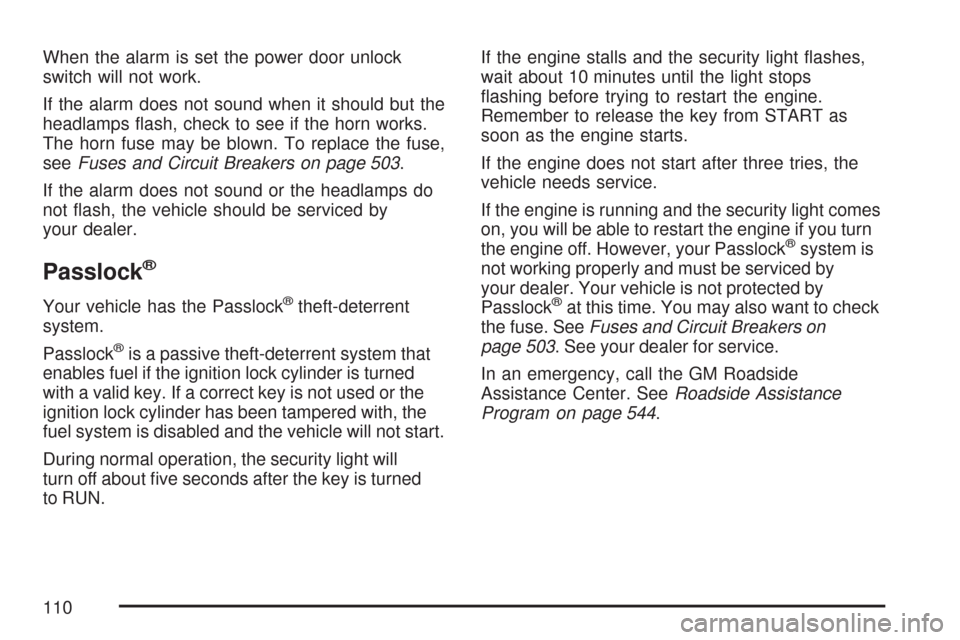

When the alarm is set the power door unlock
switch will not work.
If the alarm does not sound when it should but the
headlamps ash, check to see if the horn works.
The horn fuse may be blown. To replace the fuse,
seeFuses and Circuit Breakers on page 503.
If the alarm does not sound or the headlamps do
not ash, the vehicle should be serviced by
your dealer.
Passlock®
Your vehicle has the Passlock®theft-deterrent
system.
Passlock
®is a passive theft-deterrent system that
enables fuel if the ignition lock cylinder is turned
with a valid key. If a correct key is not used or the
ignition lock cylinder has been tampered with, the
fuel system is disabled and the vehicle will not start.
During normal operation, the security light will
turn off about ve seconds after the key is turned
to RUN.If the engine stalls and the security light ashes,
wait about 10 minutes until the light stops
ashing before trying to restart the engine.
Remember to release the key from START as
soon as the engine starts.
If the engine does not start after three tries, the
vehicle needs service.
If the engine is running and the security light comes
on, you will be able to restart the engine if you turn
the engine off. However, your Passlock
®system is
not working properly and must be serviced by
your dealer. Your vehicle is not protected by
Passlock
®at this time. You may also want to check
the fuse. SeeFuses and Circuit Breakers on
page 503. See your dealer for service.
In an emergency, call the GM Roadside
Assistance Center. SeeRoadside Assistance
Program on page 544.
110

Starting and Operating Your
Vehicle
New Vehicle Break-In
Notice:Your vehicle does not need an
elaborate break-in. But it will perform better in
the long run if you follow these guidelines:
Keep your speed at 55 mph (88 km/h)
or less for the rst 500 miles (805 km).
Do not drive at any one constant speed,
fast or slow, for the rst 500 miles
(805 km). Do not make full-throttle starts.
Avoid downshifting to brake, or slow,
the vehicle.
Avoid making hard stops for the rst
200 miles (322 km) or so. During this time
the new brake linings are not yet broken
in. Hard stops with new linings can
mean premature wear and earlier
replacement. Follow this breaking-in
guideline every time you get new brake
linings.
Do not tow a trailer during break-in.
SeeTowing a Trailer on page 368for the
trailer towing capabilities of your vehicle
and more information.
Following break-in, engine speed and load can
be gradually increased.
111

Ignition Positions
Use the key to turn the ignition switch to four
different positions.
A (LOCK):This position locks the ignition and
transmission. It is a theft-deterrent feature. You will
only be able to remove the key when the ignition
is turned to LOCK.Notice:If your key seems stuck in LOCK and
you cannot turn it, be sure you are using
the correct key; if so, is it all the way in? Turn
the key only with your hand. Using a tool to
force it could break the key or the ignition
switch. If none of these works, then your
vehicle needs service.
B (ACCESSORY):This position lets you use
things like the radio and the windshield wipers
when the engine is off.
Lengthy operation of features such as the radio in
the accessory ignition position may drain the
battery and prevent your vehicle from starting.
Do not operate your vehicle in the accessory
ignition position for a long period of time.
C (RUN):This is the position for driving.
The battery could be drained if you leave the key
in the ACCESSORY or RUN position with the
engine off. You may not be able to start your
vehicle if the battery is allowed to drain for
an extended period of time.
D (START):This position starts the engine.
112
