2007 CHEVROLET TRAIL BLAZER Owners Manual

Playing a CD
Insert a CD partway into the slot, label side up. The
player pulls it in, and READING displays. The CD
should begin playing. If you want to insert a CD with
the ignition off, rst press the eject button or the
DISPL knob.
If the ignition or radio is turned off with a CD in the
player it stays in the player. When the ignition or
radio is turned on, the CD starts to play where it
stopped, if it was the last selected audio source.
When the CD is inserted, the CD symbol displays.
As each new track starts to play, the track number
also displays.
The CD player can play the smaller 3 inch (8 cm)
single CDs with an adapter ring. Full-size CDs and
the smaller CDs are loaded in the same manner.
If playing a CD-R, the sound quality can be reduced
due to CD-R quality, the method of recording,
the quality of the music that has been recorded,
and the way the CD-R has been handled. There
can be an increase in skipping, difficulty in nding
tracks, and/or difficulty in loading and ejecting.
If these problems occur, check the bottom surface
of the CD. If the surface of the CD is damaged,such as cracked, broken, or scratched, the CD will
not play properly. If the surface of the CD is soiled,
seeCare of Your CDs and DVDs on page 302for
more information.
If there is no apparent damage, try a known
good CD.
Do not add any label to a CD, it could get
caught in the CD player. If a CD is recorded
on a personal computer and a description label
is needed, try labeling the top of the recorded
CD with a marking pen.
Notice:If a label is added to a CD, or more
than one CD is inserted into the slot at a time,
or an attempt is made to play scratched or
damaged CDs, the CD player could be
damaged. While using the CD player, use
only CDs in good condition without any label,
load one CD at a time, and keep the CD player
and the loading slot free of foreign materials,
liquids, and debris.
If an error displays, see “CD Messages” later
in this section.
1 FLD
x(Previous):This pushbutton does
not work while using a non-MP3 CD.
257

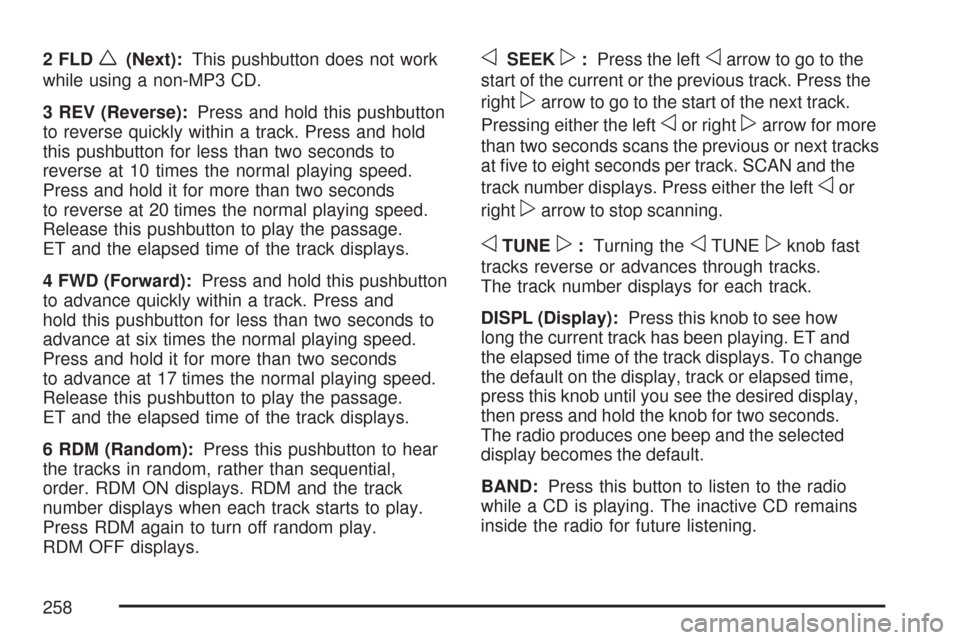

2 FLDw(Next):This pushbutton does not work
while using a non-MP3 CD.
3 REV (Reverse):Press and hold this pushbutton
to reverse quickly within a track. Press and hold
this pushbutton for less than two seconds to
reverse at 10 times the normal playing speed.
Press and hold it for more than two seconds
to reverse at 20 times the normal playing speed.
Release this pushbutton to play the passage.
ET and the elapsed time of the track displays.
4 FWD (Forward):Press and hold this pushbutton
to advance quickly within a track. Press and
hold this pushbutton for less than two seconds to
advance at six times the normal playing speed.
Press and hold it for more than two seconds
to advance at 17 times the normal playing speed.
Release this pushbutton to play the passage.
ET and the elapsed time of the track displays.
6 RDM (Random):Press this pushbutton to hear
the tracks in random, rather than sequential,
order. RDM ON displays. RDM and the track
number displays when each track starts to play.
Press RDM again to turn off random play.
RDM OFF displays.oSEEKp:Press the leftoarrow to go to the
start of the current or the previous track. Press the
right
parrow to go to the start of the next track.
Pressing either the left
oor rightparrow for more
than two seconds scans the previous or next tracks
at ve to eight seconds per track. SCAN and the
track number displays. Press either the left
oor
right
parrow to stop scanning.
oTUNEp:Turning theoTUNEpknob fast
tracks reverse or advances through tracks.
The track number displays for each track.
DISPL (Display):Press this knob to see how
long the current track has been playing. ET and
the elapsed time of the track displays. To change
the default on the display, track or elapsed time,
press this knob until you see the desired display,
then press and hold the knob for two seconds.
The radio produces one beep and the selected
display becomes the default.
BAND:Press this button to listen to the radio
while a CD is playing. The inactive CD remains
inside the radio for future listening.
258

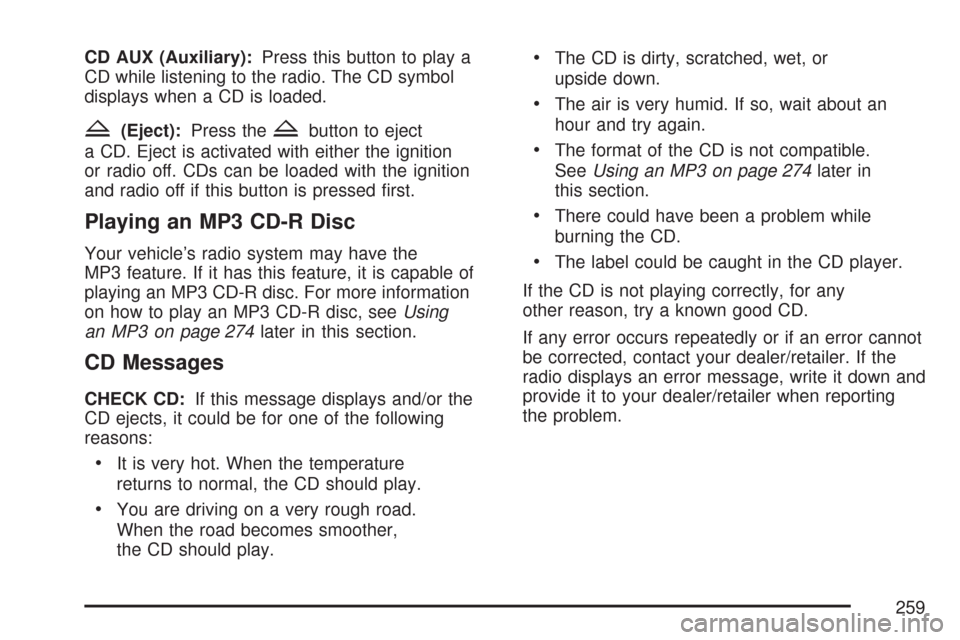

CD AUX (Auxiliary):Press this button to play a
CD while listening to the radio. The CD symbol
displays when a CD is loaded.
Z(Eject):Press theZbutton to eject
a CD. Eject is activated with either the ignition
or radio off. CDs can be loaded with the ignition
and radio off if this button is pressed rst.
Playing an MP3 CD-R Disc
Your vehicle’s radio system may have the
MP3 feature. If it has this feature, it is capable of
playing an MP3 CD-R disc. For more information
on how to play an MP3 CD-R disc, seeUsing
an MP3 on page 274later in this section.
CD Messages
CHECK CD:If this message displays and/or the
CD ejects, it could be for one of the following
reasons:
It is very hot. When the temperature
returns to normal, the CD should play.
You are driving on a very rough road.
When the road becomes smoother,
the CD should play.
The CD is dirty, scratched, wet, or
upside down.
The air is very humid. If so, wait about an
hour and try again.
The format of the CD is not compatible.
SeeUsing an MP3 on page 274later in
this section.
There could have been a problem while
burning the CD.
The label could be caught in the CD player.
If the CD is not playing correctly, for any
other reason, try a known good CD.
If any error occurs repeatedly or if an error cannot
be corrected, contact your dealer/retailer. If the
radio displays an error message, write it down and
provide it to your dealer/retailer when reporting
the problem.
259

Radio with Six-Disc CD
If your vehicle has the Bose®audio system,
your vehicle has six Bose®amplied speakers.
Radio Data System (RDS)
The audio system has a Radio Data System
(RDS). RDS features are available for use only
on FM stations that broadcast RDS information.
With RDS, the radio can do the following:
Seek to stations broadcasting the selected
type of programming
Receive announcements concerning local
and national emergencies
Display messages from radio stations
This system relies upon receiving specic
information from these stations and only works
when the information is available. In rare cases, a
radio station can broadcast incorrect information
that causes the radio features to work improperly.
If this happens, contact the radio station.
While the radio is tuned to an RDS station, the
station name or call letters display instead of
the frequency. RDS stations can also provide
the time of day, a program type (PTY) for current
programming, and the name of the program
being broadcast.
Base Radio Shown, Bose®Similar
260

XM™ Satellite Radio Service
XM™ is a satellite radio service that is based in
the 48 contiguous United States and Canada.
XM™ offers a large variety of coast-to-coast
channels including music, news, sports, talk,
traffic/weather (U.S. subscribers), and children’s
programming. XM™ provides digital quality
audio and text information that includes song title
and artist name. A service fee is required in
order to receive the XM™ service. For more
information, contact XM™; In the U.S. at
www.xmradio.com or call 1-800-852-XMXM (9696)
or in Canada at www.xmradio.ca or call
1-877-GET-XMSR (438-9677).
Playing the Radio
PWR (Power):Push this knob to turn the system
on and off.
oVOLUMEp:Turn theoVOLUMEpknob
clockwise or counterclockwise to increase or
to decrease the volume.INFO (Information):When the ignition is off,
press this knob to display the time.
For RDS, press the INFO knob to change what
displays while using RDS. The display options
are station name, RDS station frequency,
PTY, and the name of the program (if available).
For XM™ (if equipped), press the INFO knob
while in XM™ mode to retrieve four different
categories of information related to the current
song or channel: Artist, Song Title, Category
or PTY, Channel Number/Channel Name.
To change the default on the display, press the
INFO knob until you see the desired display, then
hold the knob until a beep sounds. The selected
display becomes the default.
AUTO VOL (Automatic Volume):With automatic
volume, the audio system adjusts automatically
to make up for road and wind noise as you
drive by increasing the volume as vehicle speed
increases.
261

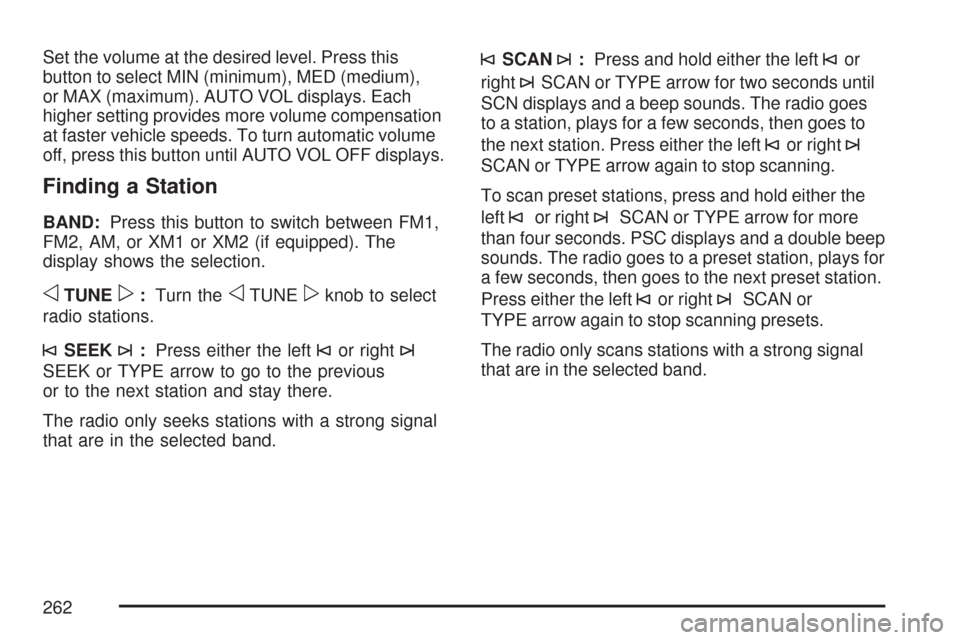

Set the volume at the desired level. Press this
button to select MIN (minimum), MED (medium),
or MAX (maximum). AUTO VOL displays. Each
higher setting provides more volume compensation
at faster vehicle speeds. To turn automatic volume
off, press this button until AUTO VOL OFF displays.
Finding a Station
BAND:Press this button to switch between FM1,
FM2, AM, or XM1 or XM2 (if equipped). The
display shows the selection.
oTUNEp:Turn theoTUNEpknob to select
radio stations.
©SEEK¨:Press either the left©or right¨
SEEK or TYPE arrow to go to the previous
or to the next station and stay there.
The radio only seeks stations with a strong signal
that are in the selected band.
©SCAN¨:Press and hold either the left©or
right
¨SCAN or TYPE arrow for two seconds until
SCN displays and a beep sounds. The radio goes
to a station, plays for a few seconds, then goes to
the next station. Press either the left
©or right¨
SCAN or TYPE arrow again to stop scanning.
To scan preset stations, press and hold either the
left
©or right¨SCAN or TYPE arrow for more
than four seconds. PSC displays and a double beep
sounds. The radio goes to a preset station, plays for
a few seconds, then goes to the next preset station.
Press either the left
©or right¨SCAN or
TYPE arrow again to stop scanning presets.
The radio only scans stations with a strong signal
that are in the selected band.
262

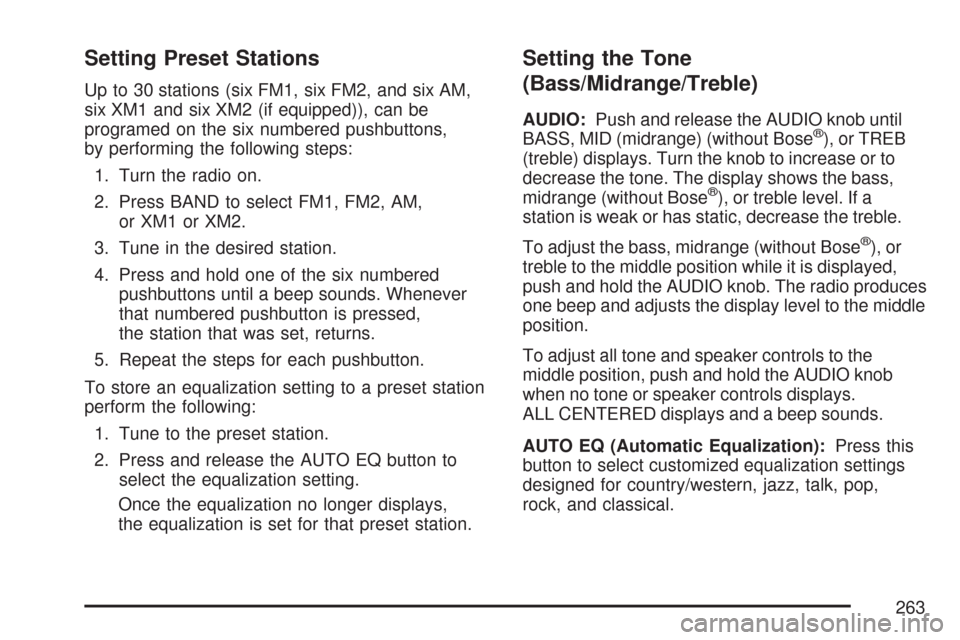

Setting Preset Stations
Up to 30 stations (six FM1, six FM2, and six AM,
six XM1 and six XM2 (if equipped)), can be
programed on the six numbered pushbuttons,
by performing the following steps:
1. Turn the radio on.
2. Press BAND to select FM1, FM2, AM,
or XM1 or XM2.
3. Tune in the desired station.
4. Press and hold one of the six numbered
pushbuttons until a beep sounds. Whenever
that numbered pushbutton is pressed,
the station that was set, returns.
5. Repeat the steps for each pushbutton.
To store an equalization setting to a preset station
perform the following:
1. Tune to the preset station.
2. Press and release the AUTO EQ button to
select the equalization setting.
Once the equalization no longer displays,
the equalization is set for that preset station.
Setting the Tone
(Bass/Midrange/Treble)
AUDIO:Push and release the AUDIO knob until
BASS, MID (midrange) (without Bose®), or TREB
(treble) displays. Turn the knob to increase or to
decrease the tone. The display shows the bass,
midrange (without Bose
®), or treble level. If a
station is weak or has static, decrease the treble.
To adjust the bass, midrange (without Bose
®), or
treble to the middle position while it is displayed,
push and hold the AUDIO knob. The radio produces
one beep and adjusts the display level to the middle
position.
To adjust all tone and speaker controls to the
middle position, push and hold the AUDIO knob
when no tone or speaker controls displays.
ALL CENTERED displays and a beep sounds.
AUTO EQ (Automatic Equalization):Press this
button to select customized equalization settings
designed for country/western, jazz, talk, pop,
rock, and classical.
263

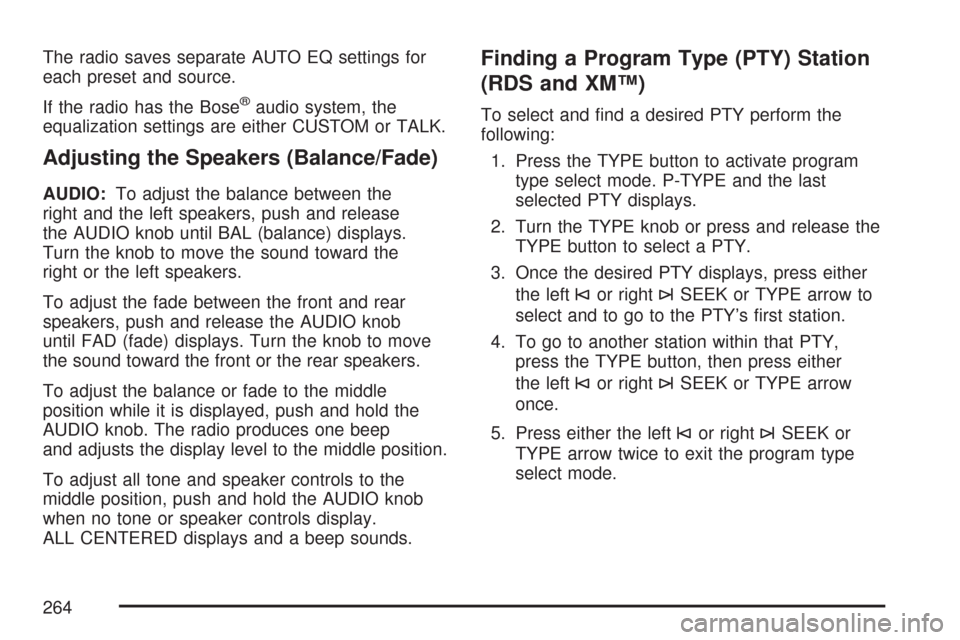

The radio saves separate AUTO EQ settings for
each preset and source.
If the radio has the Bose
®audio system, the
equalization settings are either CUSTOM or TALK.
Adjusting the Speakers (Balance/Fade)
AUDIO:To adjust the balance between the
right and the left speakers, push and release
the AUDIO knob until BAL (balance) displays.
Turn the knob to move the sound toward the
right or the left speakers.
To adjust the fade between the front and rear
speakers, push and release the AUDIO knob
until FAD (fade) displays. Turn the knob to move
the sound toward the front or the rear speakers.
To adjust the balance or fade to the middle
position while it is displayed, push and hold the
AUDIO knob. The radio produces one beep
and adjusts the display level to the middle position.
To adjust all tone and speaker controls to the
middle position, push and hold the AUDIO knob
when no tone or speaker controls display.
ALL CENTERED displays and a beep sounds.
Finding a Program Type (PTY) Station
(RDS and XM™)
To select and nd a desired PTY perform the
following:
1. Press the TYPE button to activate program
type select mode. P-TYPE and the last
selected PTY displays.
2. Turn the TYPE knob or press and release the
TYPE button to select a PTY.
3. Once the desired PTY displays, press either
the left
©or right¨SEEK or TYPE arrow to
select and to go to the PTY’s rst station.
4. To go to another station within that PTY,
press the TYPE button, then press either
the left
©or right¨SEEK or TYPE arrow
once.
5. Press either the left
©or right¨SEEK or
TYPE arrow twice to exit the program type
select mode.
264
