2007 CHEVROLET TRAIL BLAZER Owners Manual

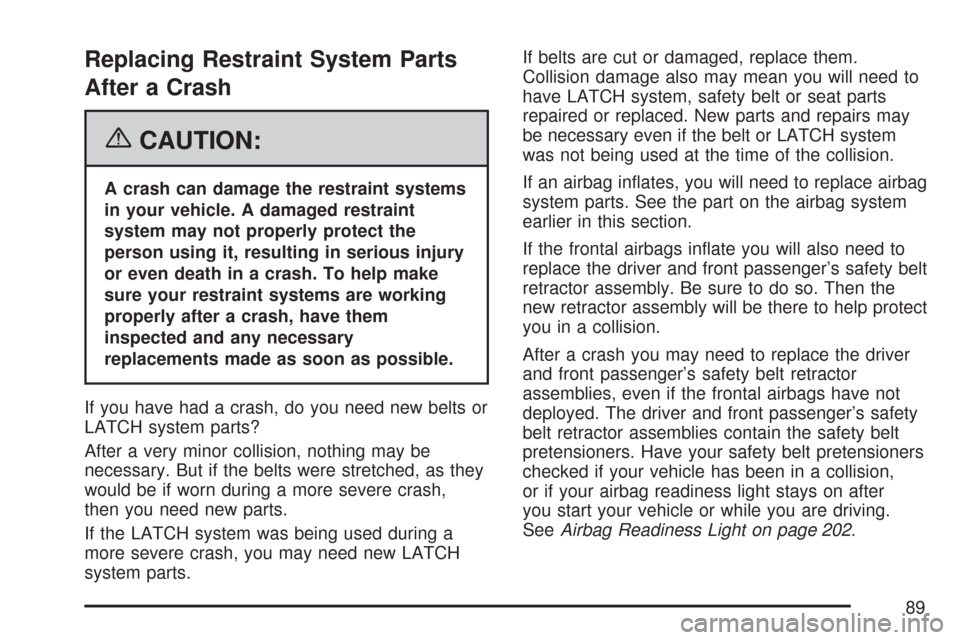

Replacing Restraint System Parts
After a Crash
{CAUTION:
A crash can damage the restraint systems
in your vehicle. A damaged restraint
system may not properly protect the
person using it, resulting in serious injury
or even death in a crash. To help make
sure your restraint systems are working
properly after a crash, have them
inspected and any necessary
replacements made as soon as possible.
If you have had a crash, do you need new belts or
LATCH system parts?
After a very minor collision, nothing may be
necessary. But if the belts were stretched, as they
would be if worn during a more severe crash,
then you need new parts.
If the LATCH system was being used during a
more severe crash, you may need new LATCH
system parts.If belts are cut or damaged, replace them.
Collision damage also may mean you will need to
have LATCH system, safety belt or seat parts
repaired or replaced. New parts and repairs may
be necessary even if the belt or LATCH system
was not being used at the time of the collision.
If an airbag inates, you will need to replace airbag
system parts. See the part on the airbag system
earlier in this section.
If the frontal airbags inate you will also need to
replace the driver and front passenger’s safety belt
retractor assembly. Be sure to do so. Then the
new retractor assembly will be there to help protect
you in a collision.
After a crash you may need to replace the driver
and front passenger’s safety belt retractor
assemblies, even if the frontal airbags have not
deployed. The driver and front passenger’s safety
belt retractor assemblies contain the safety belt
pretensioners. Have your safety belt pretensioners
checked if your vehicle has been in a collision,
or if your airbag readiness light stays on after
you start your vehicle or while you are driving.
SeeAirbag Readiness Light on page 202.
89

✍NOTES
90

Keys.............................................................. 93
Remote Keyless Entry (RKE) System.......... 95
Remote Keyless Entry (RKE) System
Operation................................................. 96
Doors and Locks.......................................... 98
Door Locks................................................. 98
Power Door Locks....................................... 99
Delayed Locking........................................ 100
Programmable Automatic Door Locks........ 100
Rear Door Security Locks......................... 103
Lockout Protection..................................... 103
Liftgate/Liftglass......................................... 104
Windows...................................................... 105
Power Windows........................................ 106
Sun Visors................................................ 108
Theft-Deterrent Systems............................. 108
Content Theft-Deterrent............................. 108
Passlock
®.................................................. 110Starting and Operating Your Vehicle......... 111
New Vehicle Break-In................................ 111
Ignition Positions....................................... 112
Retained Accessory Power (RAP)............. 113
Starting the Engine.................................... 113
Adjustable Throttle and Brake Pedal.......... 115
Engine Coolant Heater.............................. 116
Active Fuel Management™........................ 117
Automatic Transmission Operation............. 117
Four-Wheel Drive...................................... 121
Parking Brake........................................... 126
Shifting Into Park (P)................................. 127
Shifting Out of Park (P)............................. 129
Parking Over Things That Burn................. 129
Engine Exhaust......................................... 130
Running the Engine While Parked............. 131
Section 2 Features and Controls
91

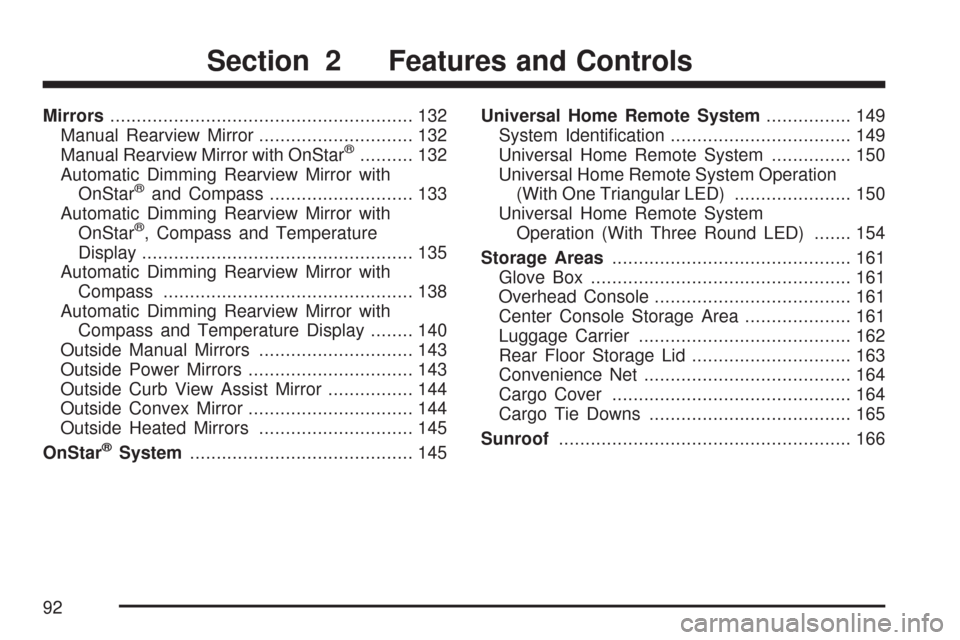

Mirrors......................................................... 132
Manual Rearview Mirror............................. 132
Manual Rearview Mirror with OnStar
®.......... 132
Automatic Dimming Rearview Mirror with
OnStar
®and Compass........................... 133
Automatic Dimming Rearview Mirror with
OnStar
®, Compass and Temperature
Display................................................... 135
Automatic Dimming Rearview Mirror with
Compass............................................... 138
Automatic Dimming Rearview Mirror with
Compass and Temperature Display........ 140
Outside Manual Mirrors............................. 143
Outside Power Mirrors............................... 143
Outside Curb View Assist Mirror................ 144
Outside Convex Mirror............................... 144
Outside Heated Mirrors............................. 145
OnStar
®System.......................................... 145Universal Home Remote System................ 149
System Identication.................................. 149
Universal Home Remote System............... 150
Universal Home Remote System Operation
(With One Triangular LED)...................... 150
Universal Home Remote System
Operation (With Three Round LED)....... 154
Storage Areas............................................. 161
Glove Box................................................. 161
Overhead Console..................................... 161
Center Console Storage Area.................... 161
Luggage Carrier........................................ 162
Rear Floor Storage Lid.............................. 163
Convenience Net....................................... 164
Cargo Cover............................................. 164
Cargo Tie Downs...................................... 165
Sunroof....................................................... 166
Section 2 Features and Controls
92

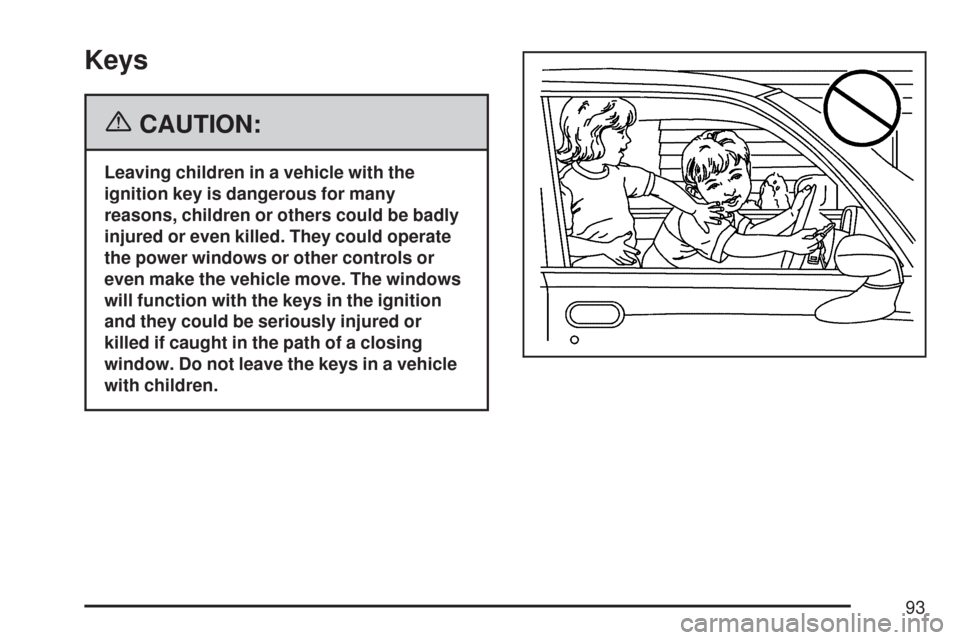

Keys
{CAUTION:
Leaving children in a vehicle with the
ignition key is dangerous for many
reasons, children or others could be badly
injured or even killed. They could operate
the power windows or other controls or
even make the vehicle move. The windows
will function with the keys in the ignition
and they could be seriously injured or
killed if caught in the path of a closing
window. Do not leave the keys in a vehicle
with children.
93

This vehicle has keys
that can be used for the
ignition and door lock
that will t with
either side up.
When a new vehicle is delivered, the dealer
provides the owner with a pair of identical keys
and a key code number.The key code number tells your dealer or a
qualied locksmith how to make extra keys. Keep
this number in a safe place. If you lose your
keys, you will be able to have new ones made
easily using this number. Your selling dealer
should also have this number.
Notice:If you ever lock your keys in your
vehicle, you may have to damage the vehicle
to get in. Be sure you have spare keys.
If you ever do get locked out of your vehicle,
call the GM Roadside Assistance Center.
SeeRoadside Assistance Program on page 544.
94

Remote Keyless Entry (RKE)
System
If the vehicle has the Remote Keyless Entry (RKE)
system, it operates on a radio frequency subject
to Federal Communications Commission (FCC)
Rules and with Industry Canada.
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions:
1. This device may not cause interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation of the device.
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions:
1. This device may not cause interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation of the device.Changes or modications to this system by other
than an authorized service facility could void
authorization to use this equipment.
At times you may notice a decrease in range. This
is normal for any RKE system. If the transmitter
does not work or if you have to stand closer
to your vehicle for the transmitter to work, try this:
Check the distance. You may be too far
from your vehicle. You may need to stand
closer during rainy or snowy weather.
Check the location. Other vehicles or objects
may be blocking the signal. Take a few steps
to the left or right, hold the transmitter
higher, and try again.
Check to determine if battery replacement is
necessary. See “Battery Replacement”
underRemote Keyless Entry (RKE) System
Operation on page 96.
If you are still having trouble, see your
dealer/retailer or a qualied technician
for service.
95

Remote Keyless Entry (RKE)
System Operation
If your vehicle has this feature, you can lock and
unlock your doors from about 3 feet (1 m) up
to 30 feet (9 m) away using the RKE transmitter
supplied with your vehicle.
K(Unlock):Press
unlock for the driver’s
door to unlock
automatically, the
parking lamps to ash
and the interior lights to
go on. Press the unlock
button a second time
within three seconds to
unlock all the doors.
You can program different feedback settings
through the Driver Information Center (DIC).
For more information seeDriver Information
Center (DIC) on page 220.
Q(Lock):Press lock to lock all the doors.
Press lock again within three seconds and the
horn will chirp.
L(Panic):Press the horn symbol to make the
horn sound. The headlamps and taillamps
will ash for up to 30 seconds. This can be turned
off by pressing the horn button again, by waiting
for 30 seconds, or by starting the vehicle.
Matching Transmitter(s) to Your
Vehicle
Each RKE transmitter is coded to prevent another
transmitter from unlocking your vehicle. If a
transmitter is lost or stolen, a replacement can be
purchased through your dealer. Remember to
bring any remaining transmitters with you when
you go to your dealer. When the dealer matches
the replacement transmitter to your vehicle,
any remaining transmitters must also be matched.
Once your dealer has coded the new transmitter,
the lost transmitter will not unlock your vehicle.
Each vehicle can have a maximum of four
transmitters matched to it.
96
