2007 CHEVROLET IMPALA Owners Manual

A booster seat (F-G) is a child restraint designed
to improve the t of the vehicle’s safety belt
system. Some booster seats have a shoulder belt
positioner, and some high-back booster seats
have a ve-point harness. A booster seat can
also help a child to see out the window.
Q:How Should I Use a Child Restraint?
A:A child restraint system is any device designed
for use in a motor vehicle to restrain, seat,
or position children. A built-in child restraint
system is a permanent part of the motor
vehicle. An add-on child restraint system is
a portable one, which is purchased by
the vehicle’s owner. To help reduce injuries,
an add-on child restraint must be secured
in the vehicle. With built-in or add-on
child restraints, the child has to be secured
within the child restraint.
When choosing an add-on child restraint,
be sure the child restraint is designed to
be used in a vehicle. If it is, it will have a
label saying that it meets federal motor
vehicle safety standards. Then follow the
instructions for the restraint. You may
nd these instructions on the restraint itself
or in a booklet, or both.
49

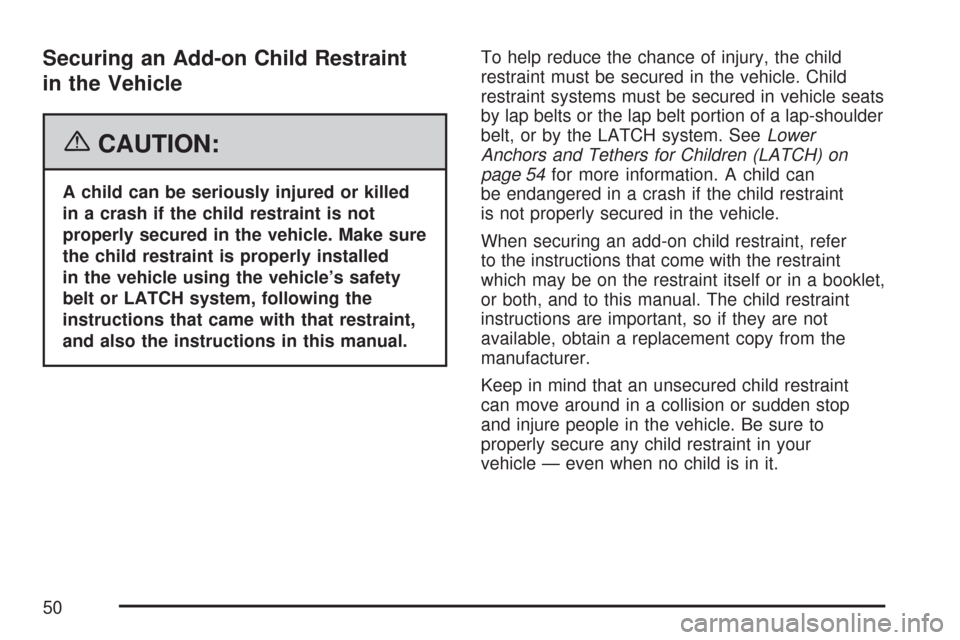

Securing an Add-on Child Restraint
in the Vehicle
{CAUTION:
A child can be seriously injured or killed
in a crash if the child restraint is not
properly secured in the vehicle. Make sure
the child restraint is properly installed
in the vehicle using the vehicle’s safety
belt or LATCH system, following the
instructions that came with that restraint,
and also the instructions in this manual.To help reduce the chance of injury, the child
restraint must be secured in the vehicle. Child
restraint systems must be secured in vehicle seats
by lap belts or the lap belt portion of a lap-shoulder
belt, or by the LATCH system. SeeLower
Anchors and Tethers for Children (LATCH) on
page 54for more information. A child can
be endangered in a crash if the child restraint
is not properly secured in the vehicle.
When securing an add-on child restraint, refer
to the instructions that come with the restraint
which may be on the restraint itself or in a booklet,
or both, and to this manual. The child restraint
instructions are important, so if they are not
available, obtain a replacement copy from the
manufacturer.
Keep in mind that an unsecured child restraint
can move around in a collision or sudden stop
and injure people in the vehicle. Be sure to
properly secure any child restraint in your
vehicle — even when no child is in it.
50

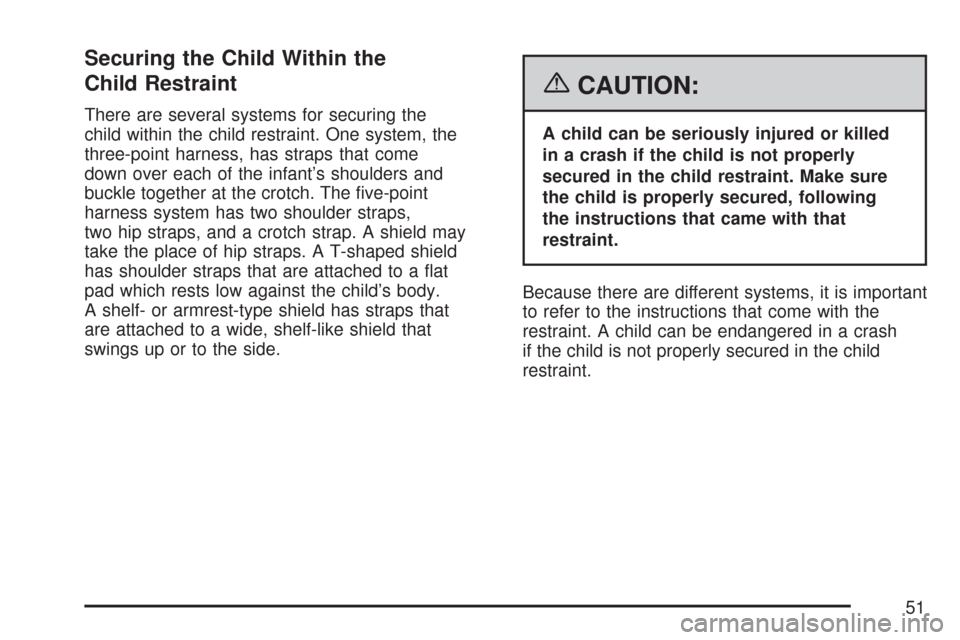

Securing the Child Within the
Child Restraint
There are several systems for securing the
child within the child restraint. One system, the
three-point harness, has straps that come
down over each of the infant’s shoulders and
buckle together at the crotch. The ve-point
harness system has two shoulder straps,
two hip straps, and a crotch strap. A shield may
take the place of hip straps. A T-shaped shield
has shoulder straps that are attached to a at
pad which rests low against the child’s body.
A shelf- or armrest-type shield has straps that
are attached to a wide, shelf-like shield that
swings up or to the side.
{CAUTION:
A child can be seriously injured or killed
in a crash if the child is not properly
secured in the child restraint. Make sure
the child is properly secured, following
the instructions that came with that
restraint.
Because there are different systems, it is important
to refer to the instructions that come with the
restraint. A child can be endangered in a crash
if the child is not properly secured in the child
restraint.
51

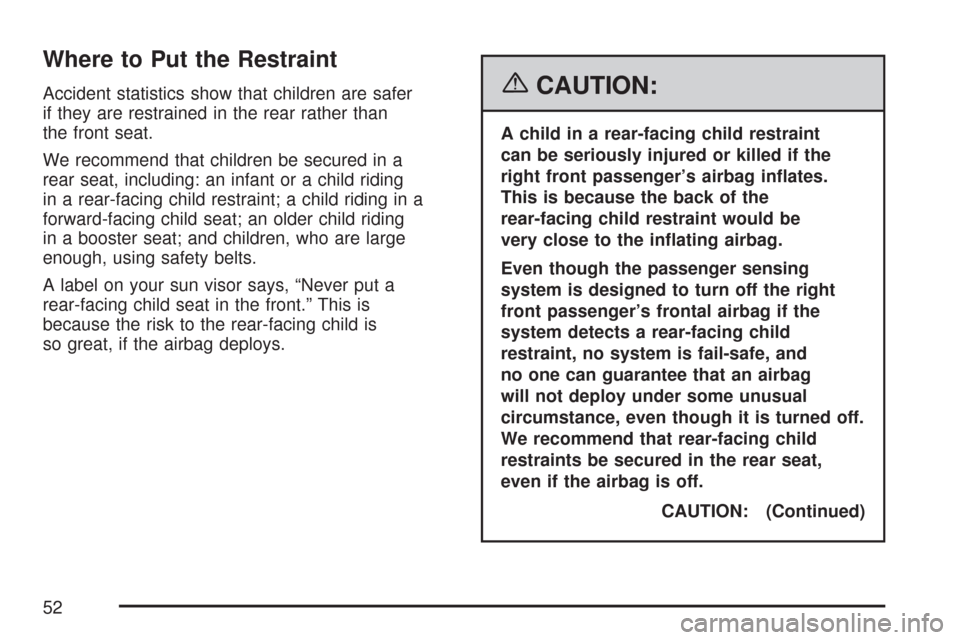

Where to Put the Restraint
Accident statistics show that children are safer
if they are restrained in the rear rather than
the front seat.
We recommend that children be secured in a
rear seat, including: an infant or a child riding
in a rear-facing child restraint; a child riding in a
forward-facing child seat; an older child riding
in a booster seat; and children, who are large
enough, using safety belts.
A label on your sun visor says, “Never put a
rear-facing child seat in the front.” This is
because the risk to the rear-facing child is
so great, if the airbag deploys.{CAUTION:
A child in a rear-facing child restraint
can be seriously injured or killed if the
right front passenger’s airbag inates.
This is because the back of the
rear-facing child restraint would be
very close to the inating airbag.
Even though the passenger sensing
system is designed to turn off the right
front passenger’s frontal airbag if the
system detects a rear-facing child
restraint, no system is fail-safe, and
no one can guarantee that an airbag
will not deploy under some unusual
circumstance, even though it is turned off.
We recommend that rear-facing child
restraints be secured in the rear seat,
even if the airbag is off.
CAUTION: (Continued)
52

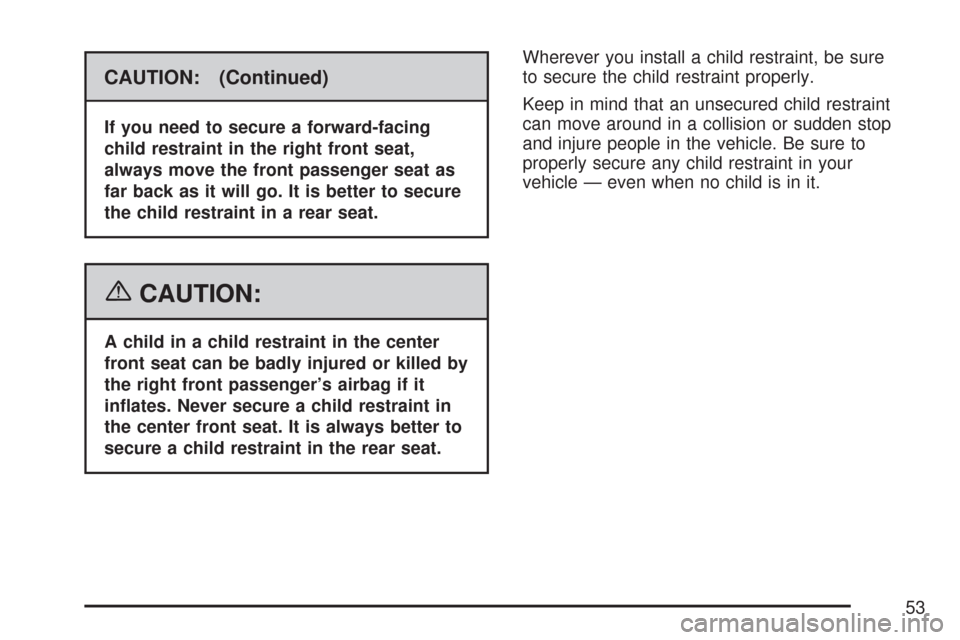

CAUTION: (Continued)
If you need to secure a forward-facing
child restraint in the right front seat,
always move the front passenger seat as
far back as it will go. It is better to secure
the child restraint in a rear seat.
{CAUTION:
A child in a child restraint in the center
front seat can be badly injured or killed by
the right front passenger’s airbag if it
inates. Never secure a child restraint in
the center front seat. It is always better to
secure a child restraint in the rear seat.Wherever you install a child restraint, be sure
to secure the child restraint properly.
Keep in mind that an unsecured child restraint
can move around in a collision or sudden stop
and injure people in the vehicle. Be sure to
properly secure any child restraint in your
vehicle — even when no child is in it.
53

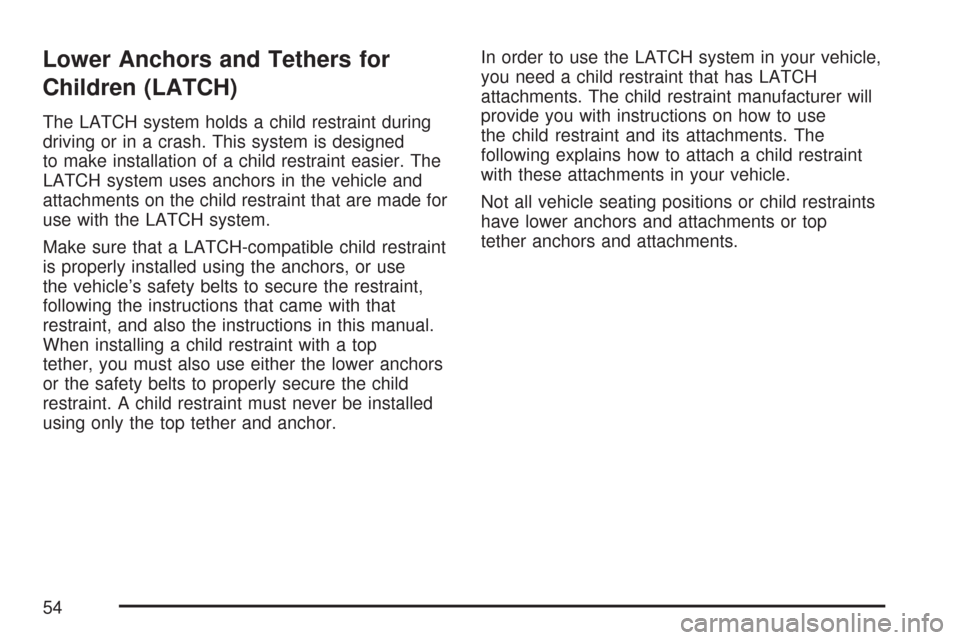

Lower Anchors and Tethers for
Children (LATCH)
The LATCH system holds a child restraint during
driving or in a crash. This system is designed
to make installation of a child restraint easier. The
LATCH system uses anchors in the vehicle and
attachments on the child restraint that are made for
use with the LATCH system.
Make sure that a LATCH-compatible child restraint
is properly installed using the anchors, or use
the vehicle’s safety belts to secure the restraint,
following the instructions that came with that
restraint, and also the instructions in this manual.
When installing a child restraint with a top
tether, you must also use either the lower anchors
or the safety belts to properly secure the child
restraint. A child restraint must never be installed
using only the top tether and anchor.In order to use the LATCH system in your vehicle,
you need a child restraint that has LATCH
attachments. The child restraint manufacturer will
provide you with instructions on how to use
the child restraint and its attachments. The
following explains how to attach a child restraint
with these attachments in your vehicle.
Not all vehicle seating positions or child restraints
have lower anchors and attachments or top
tether anchors and attachments.
54

Lower Anchors
Lower anchors (A) are metal bars built into the
vehicle. There are two lower anchors for each
LATCH seating position that will accommodate a
child restraint with lower attachments (B).
Top Tether Anchor
A top tether (A, C) anchors the top of the child
restraint to the vehicle. A top tether anchor is built
into the vehicle. The top tether attachment (B)
on the child restraint connects to the top tether
anchor in the vehicle in order to reduce the forward
movement and rotation of the child restraint
during driving or in a crash.
55

Your child restraint may have a single tether (A)
or a dual tether (C). Either will have a single
attachment (B) to secure the top tether to
the anchor.
Some child restraints that have a top tether
are designed for use with or without the top tether
being attached. Others require the top tether
always to be attached. In Canada, the law
requires that forward-facing child restraints have
a top tether, and that the tether be attached.
In the United States, some child restraints also
have a top tether. Be sure to read and follow
the instructions for your child restraint.
If the child restraint does not have a top tether,
one can be obtained, in kit form, for many
child restraints. Ask the child restraint
manufacturer whether or not a kit is available.Lower Anchor and Top Tether Anchor
Locations
i(Top Tether Anchor):
Seating positions with
top tether anchors.
j(Lower Anchor):
Seating positions with
two lower anchors.
To assist you in locating
the lower anchors,
each seating position
with lower anchors
has two labels, near
the crease between
the seatback and
the seat cushion.
Rear Seat
56
