2007 CHEVROLET IMPALA power steering fluid

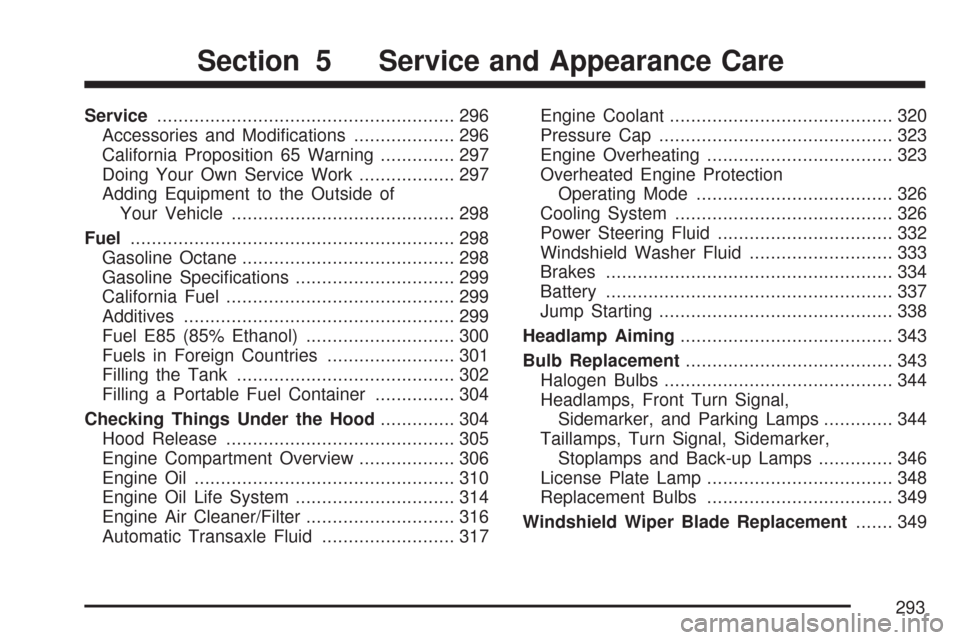

Service........................................................ 296
Accessories and Modications................... 296
California Proposition 65 Warning.............. 297
Doing Your Own Service Work.................. 297
Adding Equipment to the Outside of
Your Vehicle.......................................... 298
Fuel............................................................. 298
Gasoline Octane........................................ 298
Gasoline Specications.............................. 299
California Fuel........................................... 299
Additives................................................... 299
Fuel E85 (85% Ethanol)............................ 300
Fuels in Foreign Countries........................ 301
Filling the Tank......................................... 302
Filling a Portable Fuel Container............... 304
Checking Things Under the Hood.............. 304
Hood Release........................................... 305
Engine Compartment Overview.................. 306
Engine Oil................................................. 310
Engine Oil Life System.............................. 314
Engine Air Cleaner/Filter............................ 316
Automatic Transaxle Fluid......................... 317Engine Coolant.......................................... 320
Pressure Cap............................................ 323
Engine Overheating................................... 323
Overheated Engine Protection
Operating Mode..................................... 326
Cooling System......................................... 326
Power Steering Fluid................................. 332
Windshield Washer Fluid........................... 333
Brakes...................................................... 334
Battery...................................................... 337
Jump Starting............................................ 338
Headlamp Aiming........................................ 343
Bulb Replacement....................................... 343
Halogen Bulbs........................................... 344
Headlamps, Front Turn Signal,
Sidemarker, and Parking Lamps............. 344
Taillamps, Turn Signal, Sidemarker,
Stoplamps and Back-up Lamps.............. 346
License Plate Lamp................................... 348
Replacement Bulbs................................... 349
Windshield Wiper Blade Replacement....... 349
Section 5 Service and Appearance Care
293

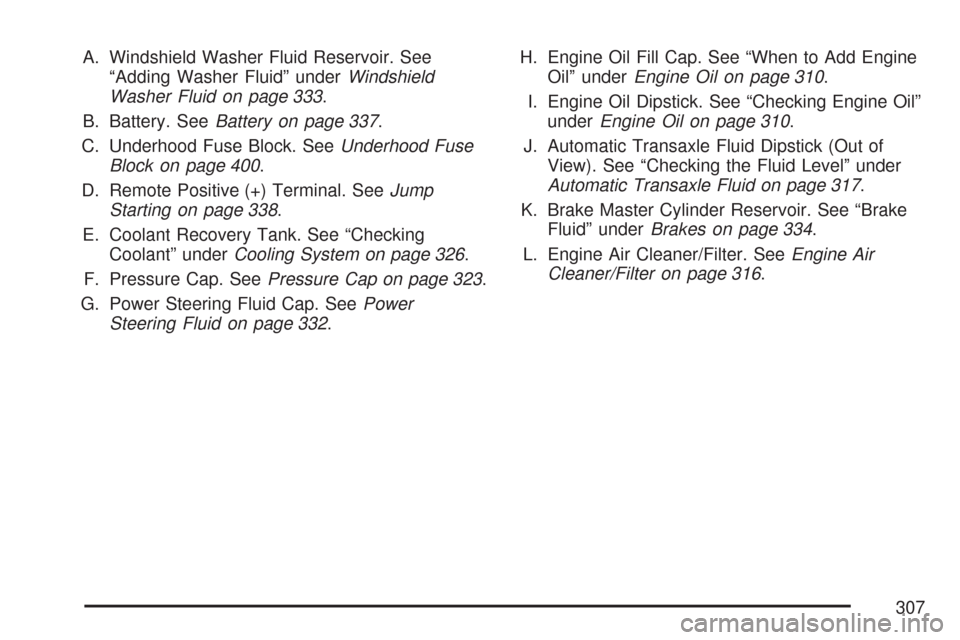

A. Windshield Washer Fluid Reservoir. See
“Adding Washer Fluid” underWindshield
Washer Fluid on page 333.
B. Battery. SeeBattery on page 337.
C. Underhood Fuse Block. SeeUnderhood Fuse
Block on page 400.
D. Remote Positive (+) Terminal. SeeJump
Starting on page 338.
E. Coolant Recovery Tank. See “Checking
Coolant” underCooling System on page 326.
F. Pressure Cap. SeePressure Cap on page 323.
G. Power Steering Fluid Cap. SeePower
Steering Fluid on page 332.H. Engine Oil Fill Cap. See “When to Add Engine
Oil” underEngine Oil on page 310.
I. Engine Oil Dipstick. See “Checking Engine Oil”
underEngine Oil on page 310.
J. Automatic Transaxle Fluid Dipstick (Out of
View). See “Checking the Fluid Level” under
Automatic Transaxle Fluid on page 317.
K. Brake Master Cylinder Reservoir. See “Brake
Fluid” underBrakes on page 334.
L. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 316.
307

A. Windshield Washer Fluid Reservoir. See
“Adding Washer Fluid” underWindshield
Washer Fluid on page 333.
B. Battery. SeeBattery on page 337.
C. Underhood Fuse Block. SeeUnderhood Fuse
Block on page 400.
D. Remote Positive (+) Terminal. SeeJump
Starting on page 338.
E. Pressure Cap. SeePressure Cap on page 323.
F. Power Steering Fluid Cap. SeePower
Steering Fluid on page 332.
G. Engine Oil Dipstick. See “Checking Engine Oil”
underEngine Oil on page 310.H. Engine Oil Fill Cap. See “When to Add Engine
Oil” underEngine Oil on page 310.
I. Automatic Transaxle Fluid Dipstick (Out of
View). See “Checking the Fluid Level” under
Automatic Transaxle Fluid on page 317.
J. Brake Master Cylinder Reservoir. See “Brake
Fluid” underBrakes on page 334.
K. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 316.
L. Coolant Recovery Tank. See “Checking
Coolant” underCooling System on page 326.
309

Power Steering Fluid
The power steering uid
reservoir is located
toward the rear of the
engine compartment on
the passenger’s side
of the vehicle. See
Engine Compartment
Overview on page 306
for reservoir location.
When to Check Power Steering Fluid
It is not necessary to regularly check power
steering uid unless you suspect there is a leak
in the system or you hear an unusual noise.
A uid loss in this system could indicate a problem.
Have the system inspected and repaired.
How to Check Power Steering Fluid
To check the power steering uid, do the following:
1. Turn the key off and let the engine
compartment cool down.
2. Wipe the cap and the top of the
reservoir clean.
3. Unscrew the cap and wipe the dipstick with a
clean rag.
4. Replace the cap and completely tighten it.
5. Remove the cap again and look at the
uid level on the dipstick.
The uid level should be somewhere within the
cross-hatched area on the dipstick. If the uid is at
the ADD mark, you should add uid.
What to Use
To determine what kind of uid to use, see
Recommended Fluids and Lubricants on page 417.
Always use the proper uid. Failure to use the
proper uid can cause leaks and damage hoses
and seals.
332

Usage Fluid/Lubricant
Windshield
WasherGM Optikleen
®Washer Solvent.
Power Steering
SystemGM Power Steering Fluid
(GM Part No. U.S. 89021184,
in Canada 89021186).
Automatic
TransmissionDEXRON
®-VI Automatic
Transmission Fluid.
Key Lock
CylindersMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241,
in Canada 10953474).
Usage Fluid/Lubricant
Hood Latch
Assembly,
Secondary
Latch, Pivots,
Spring
Anchor, and
Release PawlLubriplate Lubricant Aerosol
(GM Part No. U.S. 12346293,
in Canada 992723) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
Hood and
Door HingesMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241,
in Canada 10953474).
Weatherstrip
ConditioningWeatherstrip Lubricant
(GM Part No. U.S. 3634770,
in Canada 10953518) or
Dielectric Silicone Grease
(GM Part No. U.S. 12345579,
in Canada 992887).
418

Audio System.............................................. 215
Audio Steering Wheel Controls................. 243
Backglass Antenna................................... 246
Care of Your CD Player........................... 245
Care of Your CDs.................................... 245
Radio with CD................................219, 225
Setting the Time...................................... 216
Theft-Deterrent Feature............................ 243
Understanding Radio Reception............... 244
XM™ Satellite Radio Antenna System...... 246
Automatic Door Lock................................... 100
Automatic Transaxle
Fluid........................................................ 317
Operation................................................. 116
B
Backglass Antenna...................................... 246
Battery........................................................ 337
Electric Power Management..................... 165
Run-Down Protection............................... 166
Before Leaving on a Long Trip.................... 269Brake
Emergencies............................................ 255
Parking.................................................... 120
Brakes........................................................ 334
System Warning Light.............................. 181
Braking....................................................... 252
Braking in Emergencies............................... 255
Break-In, New Vehicle................................. 111
Bulb Replacement....................................... 343
Halogen Bulbs......................................... 344
Headlamp Aiming..................................... 343
Headlamps, Front Turn Signal,
Sidemarker, and Parking Lamps........... 344
License Plate Lamps................................ 348
Replacement Bulbs.................................. 349
Taillamps, Turn Signal, Sidemarker,
Stoplamps, and Back-Up Lamps........... 346
Buying New Tires........................................ 366
446

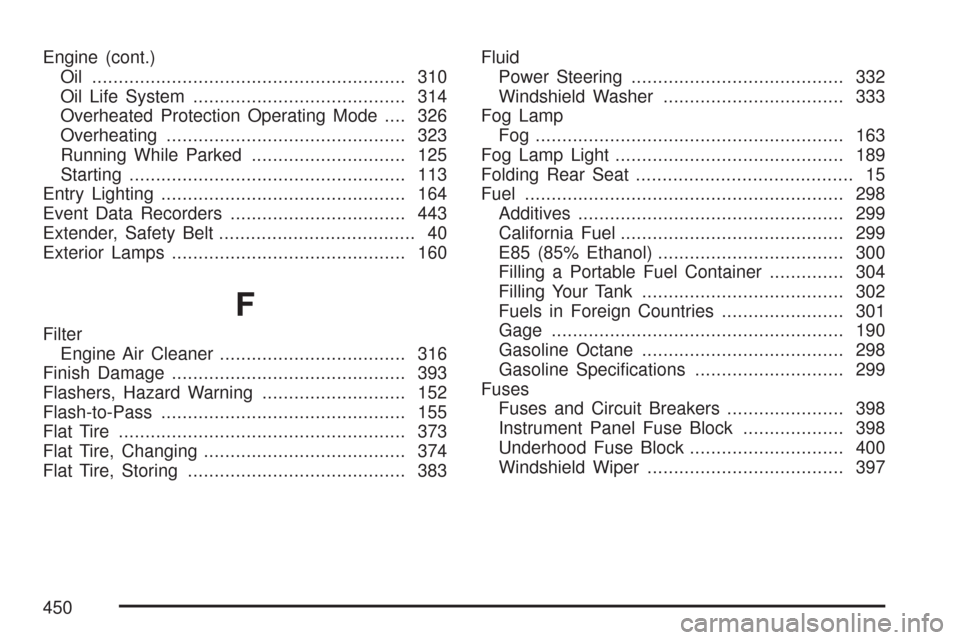

Engine (cont.)
Oil ........................................................... 310
Oil Life System........................................ 314
Overheated Protection Operating Mode.... 326
Overheating............................................. 323
Running While Parked............................. 125
Starting.................................................... 113
Entry Lighting.............................................. 164
Event Data Recorders................................. 443
Extender, Safety Belt..................................... 40
Exterior Lamps............................................ 160
F
Filter
Engine Air Cleaner................................... 316
Finish Damage............................................ 393
Flashers, Hazard Warning........................... 152
Flash-to-Pass.............................................. 155
Flat Tire...................................................... 373
Flat Tire, Changing...................................... 374
Flat Tire, Storing......................................... 383Fluid
Power Steering........................................ 332
Windshield Washer.................................. 333
Fog Lamp
Fog .......................................................... 163
Fog Lamp Light........................................... 189
Folding Rear Seat......................................... 15
Fuel............................................................ 298
Additives.................................................. 299
California Fuel.......................................... 299
E85 (85% Ethanol)................................... 300
Filling a Portable Fuel Container.............. 304
Filling Your Tank...................................... 302
Fuels in Foreign Countries....................... 301
Gage....................................................... 190
Gasoline Octane...................................... 298
Gasoline Specications............................ 299
Fuses
Fuses and Circuit Breakers...................... 398
Instrument Panel Fuse Block................... 398
Underhood Fuse Block............................. 400
Windshield Wiper..................................... 397
450

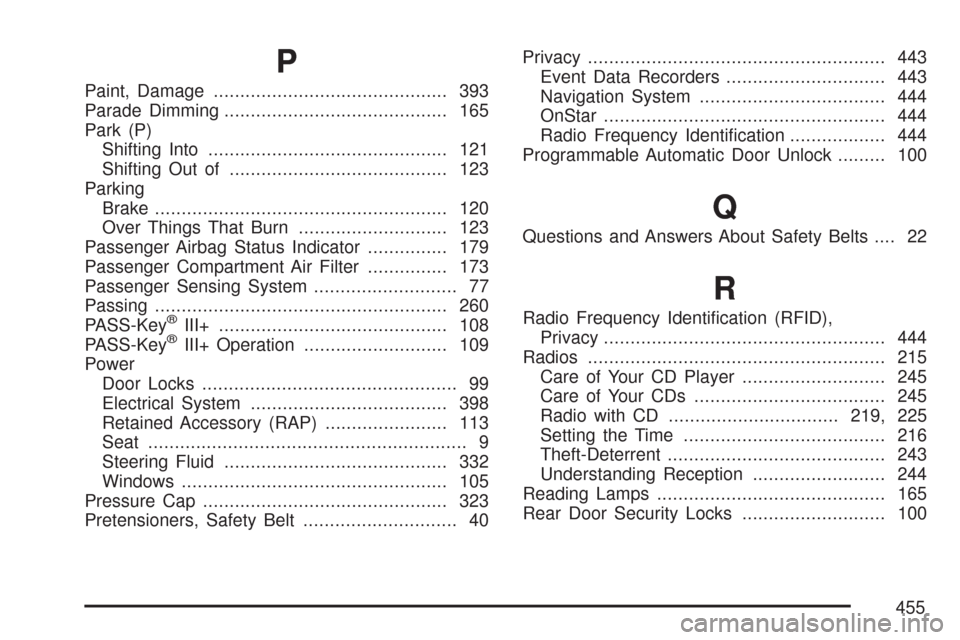

P
Paint, Damage............................................ 393
Parade Dimming.......................................... 165
Park (P)
Shifting Into............................................. 121
Shifting Out of......................................... 123
Parking
Brake....................................................... 120
Over Things That Burn............................ 123
Passenger Airbag Status Indicator............... 179
Passenger Compartment Air Filter............... 173
Passenger Sensing System........................... 77
Passing....................................................... 260
PASS-Key
®III+........................................... 108
PASS-Key®III+ Operation........................... 109
Power
Door Locks................................................ 99
Electrical System..................................... 398
Retained Accessory (RAP)....................... 113
Seat............................................................ 9
Steering Fluid.......................................... 332
Windows.................................................. 105
Pressure Cap.............................................. 323
Pretensioners, Safety Belt............................. 40Privacy........................................................ 443
Event Data Recorders.............................. 443
Navigation System................................... 444
OnStar..................................................... 444
Radio Frequency Identication.................. 444
Programmable Automatic Door Unlock......... 100
Q
Questions and Answers About Safety Belts.... 22
R
Radio Frequency Identication (RFID),
Privacy..................................................... 444
Radios........................................................ 215
Care of Your CD Player........................... 245
Care of Your CDs.................................... 245
Radio with CD................................219, 225
Setting the Time...................................... 216
Theft-Deterrent......................................... 243
Understanding Reception......................... 244
Reading Lamps........................................... 165
Rear Door Security Locks........................... 100
455
