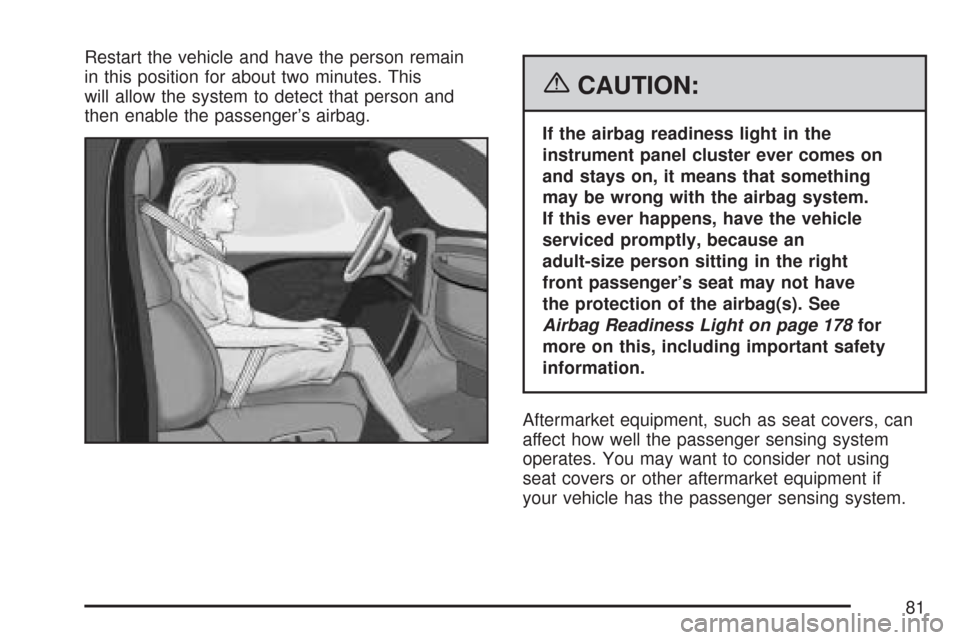

Restart the vehicle and have the person remain
in this position for about two minutes. This
will allow the system to detect that person and
then enable the passenger’s airbag.
{CAUTION:
If the airbag readiness light in the
instrument panel cluster ever comes on
and stays on, it means that something
may be wrong with the airbag system.
If this ever happens, have the vehicle
serviced promptly, because an
adult-size person sitting in the right
front passenger’s seat may not have
the protection of the airbag(s). See
Airbag Readiness Light on page 178for
more on this, including important safety
information.
Aftermarket equipment, such as seat covers, can
affect how well the passenger sensing system
operates. You may want to consider not using
seat covers or other aftermarket equipment if
your vehicle has the passenger sensing system.
81

SeeAdding Equipment to Your Airbag-Equipped
Vehicle on page 83for more information about
modications that can affect how the system
operates.
{CAUTION:
Stowing of articles under the passenger’s
seat or between the passenger’s seat
cushion and seatback may interfere with
the proper operation of the passenger
sensing system.
Servicing Your Airbag-Equipped
Vehicle
Airbags affect how your vehicle should be
serviced. There are parts of the airbag
system in several places around your vehicle.You do not want the system to inate while
someone is working on your vehicle. Your dealer/
retailer and the service manual have information
about servicing your vehicle and the airbag system.
To purchase a service manual, seeService
Publications Ordering Information on page 441.
{CAUTION:
For up to 10 seconds, after the ignition is
turned off and the battery is disconnected,
an airbag can still inate during improper
service. You can be injured if you are
close to an airbag when it inates. Avoid
yellow connectors. They are probably part
of the airbag system. Be sure to follow
proper service procedures, and make
sure the person performing work for you
is qualied to do so.
The airbag system does not need regular
maintenance.
82

Adding Equipment to Your
Airbag-Equipped Vehicle
Q:Is there anything I might add to the front
or sides of the vehicle that could keep the
airbags from working properly?
A:Yes. If you add things that change your
vehicle’s frame, bumper system, height,
front end or side sheet metal, they may keep
the airbag system from working properly.
Also, the airbag system may not work properly
if you relocate any of the airbag sensors.
If you have any questions about this,
you should contact Customer Assistance
before you modify your vehicle. The phone
numbers and addresses for Customer
Assistance are in Step Two of the Customer
Satisfaction Procedure in this manual.
SeeCustomer Satisfaction Procedure
on page 426.
Q:Because I have a disability, I have to get
my vehicle modied. How can I nd out
whether this will affect my airbag system?
A:Changing or moving any parts of the
front seats, safety belts, the airbag sensing
and diagnostic module, steering wheel,
instrument panel, ceiling headliner, ceiling
and pillar garnish trim, roof-mounted airbag
modules, or airbag wiring can affect the
operation of the airbag system. If you
have questions, call Customer Assistance.
The phone numbers and addresses for
Customer Assistance are in Step Two of
the Customer Satisfaction Procedure in this
manual. SeeCustomer Satisfaction Procedure
on page 426.
83

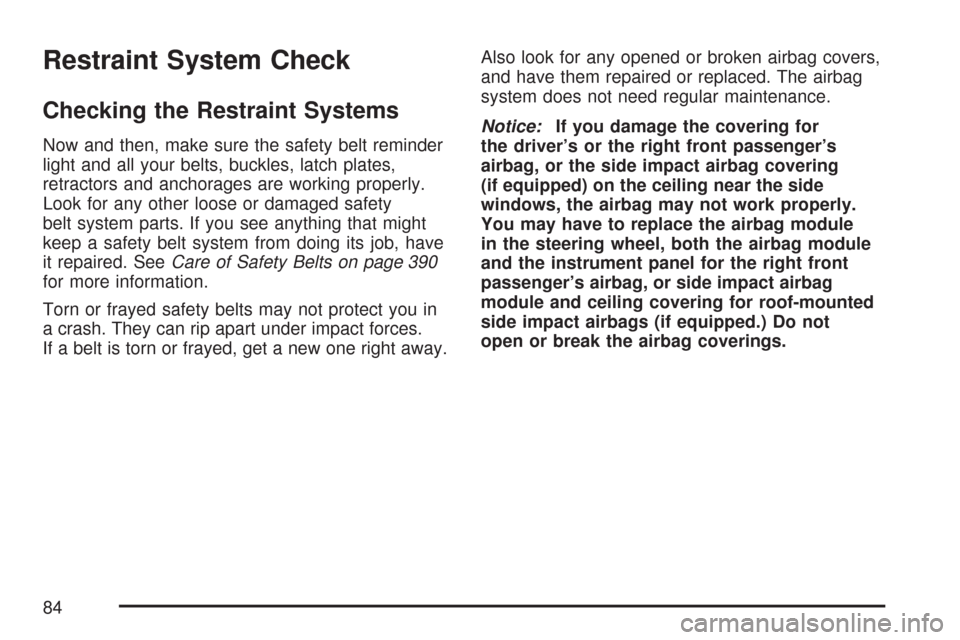

Restraint System Check
Checking the Restraint Systems
Now and then, make sure the safety belt reminder
light and all your belts, buckles, latch plates,
retractors and anchorages are working properly.
Look for any other loose or damaged safety
belt system parts. If you see anything that might
keep a safety belt system from doing its job, have
it repaired. SeeCare of Safety Belts on page 390
for more information.
Torn or frayed safety belts may not protect you in
a crash. They can rip apart under impact forces.
If a belt is torn or frayed, get a new one right away.Also look for any opened or broken airbag covers,
and have them repaired or replaced. The airbag
system does not need regular maintenance.
Notice:If you damage the covering for
the driver’s or the right front passenger’s
airbag, or the side impact airbag covering
(if equipped) on the ceiling near the side
windows, the airbag may not work properly.
You may have to replace the airbag module
in the steering wheel, both the airbag module
and the instrument panel for the right front
passenger’s airbag, or side impact airbag
module and ceiling covering for roof-mounted
side impact airbags (if equipped.) Do not
open or break the airbag coverings.
84

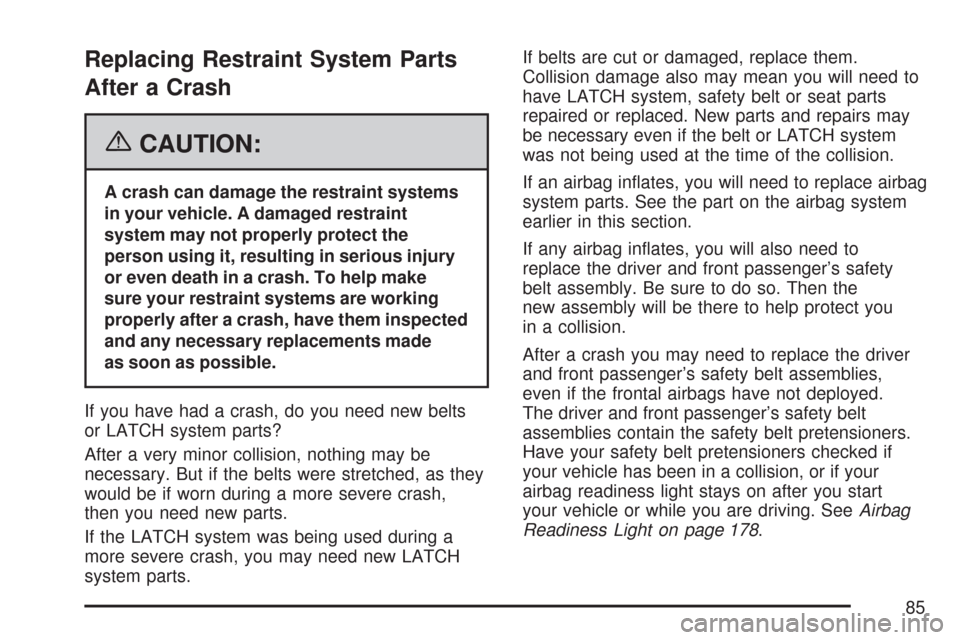

Replacing Restraint System Parts
After a Crash
{CAUTION:
A crash can damage the restraint systems
in your vehicle. A damaged restraint
system may not properly protect the
person using it, resulting in serious injury
or even death in a crash. To help make
sure your restraint systems are working
properly after a crash, have them inspected
and any necessary replacements made
as soon as possible.
If you have had a crash, do you need new belts
or LATCH system parts?
After a very minor collision, nothing may be
necessary. But if the belts were stretched, as they
would be if worn during a more severe crash,
then you need new parts.
If the LATCH system was being used during a
more severe crash, you may need new LATCH
system parts.If belts are cut or damaged, replace them.
Collision damage also may mean you will need to
have LATCH system, safety belt or seat parts
repaired or replaced. New parts and repairs may
be necessary even if the belt or LATCH system
was not being used at the time of the collision.
If an airbag inates, you will need to replace airbag
system parts. See the part on the airbag system
earlier in this section.
If any airbag inates, you will also need to
replace the driver and front passenger’s safety
belt assembly. Be sure to do so. Then the
new assembly will be there to help protect you
in a collision.
After a crash you may need to replace the driver
and front passenger’s safety belt assemblies,
even if the frontal airbags have not deployed.
The driver and front passenger’s safety belt
assemblies contain the safety belt pretensioners.
Have your safety belt pretensioners checked if
your vehicle has been in a collision, or if your
airbag readiness light stays on after you start
your vehicle or while you are driving. SeeAirbag
Readiness Light on page 178.
85

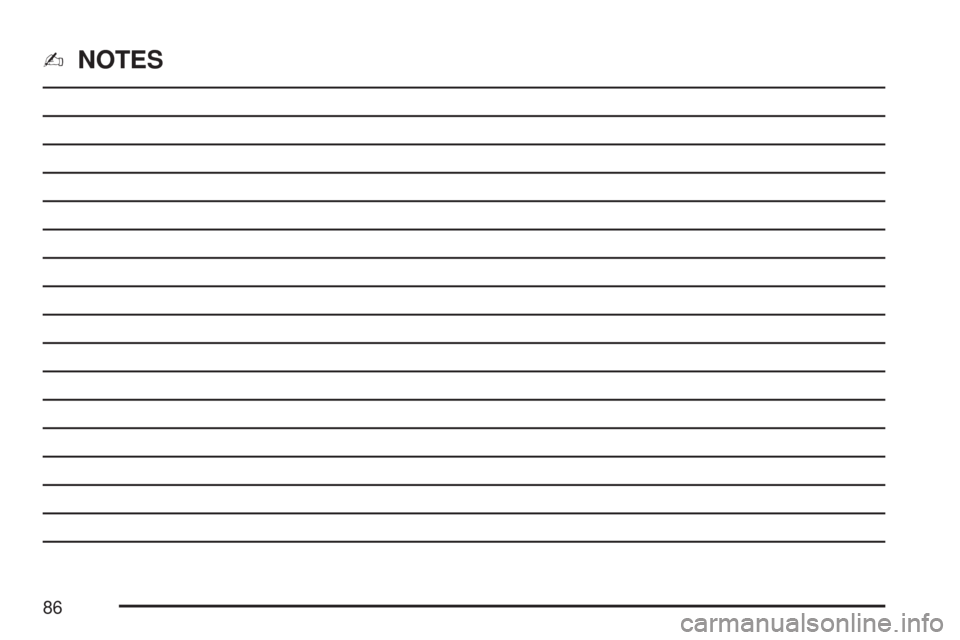

✍NOTES
86

Keys.............................................................. 89
Remote Keyless Entry (RKE) System.......... 90
Remote Keyless Entry (RKE)
System Operation.................................... 91
Doors and Locks.......................................... 98
Door Locks................................................. 98
Power Door Locks....................................... 99
Automatic Door Lock................................. 100
Programmable Automatic Door Unlock....... 100
Rear Door Security Locks......................... 100
Lockout Protection..................................... 101
Trunk........................................................ 102
Windows...................................................... 104
Power Windows........................................ 105
Sun Visors................................................ 107
Theft-Deterrent Systems............................. 107
Content Theft-Deterrent............................. 107
PASS-Key
®III+......................................... 108
PASS-Key®III+ Operation......................... 109Starting and Operating Your Vehicle......... 111
New Vehicle Break-In................................ 111
Ignition Positions....................................... 112
Retained Accessory Power (RAP)............. 113
Starting the Engine.................................... 113
Engine Coolant Heater.............................. 115
Active Fuel Management™
(3.9L V6 and 5.3L V8 Engines).............. 116
Automatic Transaxle Operation.................. 116
Parking Brake........................................... 120
Shifting Into Park (P)................................. 121
Shifting Out of Park (P)............................. 123
Parking Over Things That Burn................. 123
Engine Exhaust......................................... 124
Running the Engine While Parked............. 125
Mirrors......................................................... 126
Manual Rearview Mirror............................. 126
Manual Rearview Mirror with OnStar
®....... 126
Automatic Dimming Rearview Mirror
with OnStar
®.......................................... 126
Outside Power Mirrors............................... 127
Outside Convex Mirror............................... 127
Section 2 Features and Controls
87

OnStar®System.......................................... 128
Universal Home Remote System................ 132
System Identication.................................. 132
Universal Home Remote System............... 133
Universal Home Remote System Operation
(With One Triangular LED)...................... 133
Universal Home Remote System
Operation (With Three Round LED)....... 137Storage Areas............................................. 144
Glove Box................................................. 144
Cupholder(s).............................................. 144
Sunglasses Storage Compartment............. 144
Center Console Storage Area.................... 144
Rear Storage Area.................................... 144
Rear Seat Armrest.................................... 144
Convenience Net....................................... 145
Sunroof....................................................... 145
Section 2 Features and Controls
88
