Manual Operation
Turn the right knob clockwise or counterclockwise
to direct the airow inside of the vehicle.
To change the current mode, select one of the
following:
H(Vent):This mode directs air to the instrument
panel outlets.
)(Bi-Level):This mode directs half of the air to
the instrument panel outlets and the other half
to the oor outlets.
6(Floor):This mode directs most of the air to
the oor outlets, with some of the air directed
to the windshield and side window outlets.
In this mode, the system will automatically
select Outside Air.
The right knob can also be used to select defog
or defrost mode. For more information, see
“Defogging and Defrosting” later in this section.
By positioning the right knob between two modes,
a combination of those two modes is selected.
The air conditioning compressor will operate
unless the outside temperature is 40°F (4°C)
or below.
9(Fan):Turn the left knob clockwise or
counterclockwise to increase or decrease the
fan speed. If the airow seems low when the
fan is at the highest setting, the passenger
compartment air lter may need to be replaced.
For more information, seePassenger
Compartment Air Filter on page 173and
Scheduled Maintenance on page 408.
Single Zone
169

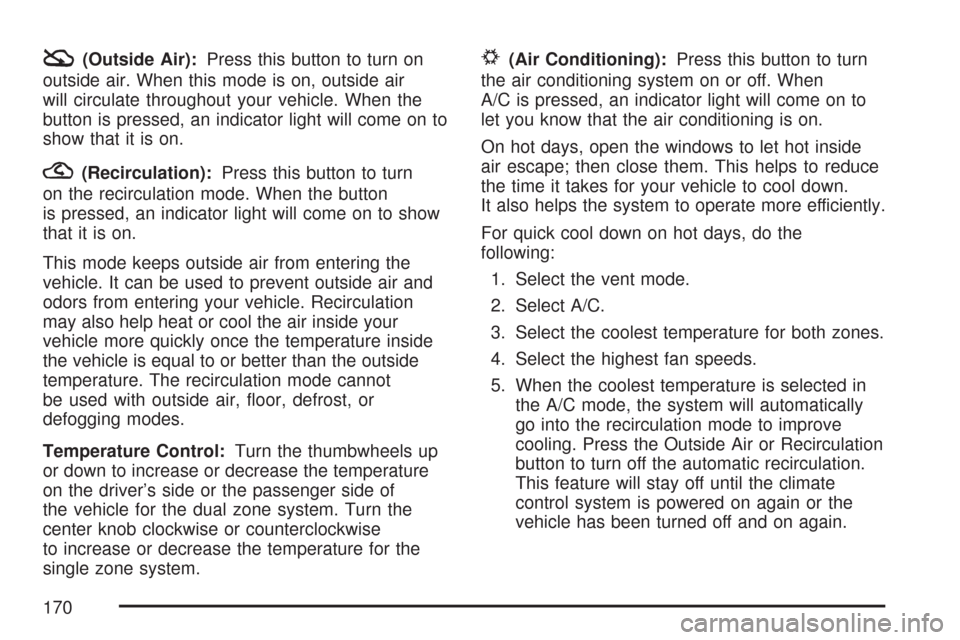

:(Outside Air):Press this button to turn on
outside air. When this mode is on, outside air
will circulate throughout your vehicle. When the
button is pressed, an indicator light will come on to
show that it is on.
?(Recirculation):Press this button to turn
on the recirculation mode. When the button
is pressed, an indicator light will come on to show
that it is on.
This mode keeps outside air from entering the
vehicle. It can be used to prevent outside air and
odors from entering your vehicle. Recirculation
may also help heat or cool the air inside your
vehicle more quickly once the temperature inside
the vehicle is equal to or better than the outside
temperature. The recirculation mode cannot
be used with outside air, oor, defrost, or
defogging modes.
Temperature Control:Turn the thumbwheels up
or down to increase or decrease the temperature
on the driver’s side or the passenger side of
the vehicle for the dual zone system. Turn the
center knob clockwise or counterclockwise
to increase or decrease the temperature for the
single zone system.
#(Air Conditioning):Press this button to turn
the air conditioning system on or off. When
A/C is pressed, an indicator light will come on to
let you know that the air conditioning is on.
On hot days, open the windows to let hot inside
air escape; then close them. This helps to reduce
the time it takes for your vehicle to cool down.
It also helps the system to operate more efficiently.
For quick cool down on hot days, do the
following:
1. Select the vent mode.
2. Select A/C.
3. Select the coolest temperature for both zones.
4. Select the highest fan speeds.
5. When the coolest temperature is selected in
the A/C mode, the system will automatically
go into the recirculation mode to improve
cooling. Press the Outside Air or Recirculation
button to turn off the automatic recirculation.
This feature will stay off until the climate
control system is powered on again or the
vehicle has been turned off and on again.
170

Using these settings together for long periods of
time may cause the air inside of your vehicle
to become too dry. To prevent this from
happening, after the air inside of your vehicle has
cooled, turn the recirculation mode off.
The air conditioning system removes moisture
from the air, so you may sometimes notice a small
amount of water dripping underneath your
vehicle while idling or after turning off the engine.
This is normal.
Defogging and Defrosting
Fog on the inside of the windows is a result of
high humidity (moisture) condensing on the
cool window glass. This can be minimized if the
climate control system is used properly. There are
two modes to clear fog or frost from your
windshield. Use the defog mode to clear the
windows of fog or moisture and warm the
passengers. Use the defrost mode to remove fog
or frost from the windshield more quickly.Do not drive the vehicle until all the windows
are clear.
Turn the right knob clockwise to select the defog
or defrost mode.
-(Defog):This mode directs air equally to the
windshield and the oor outlets. When defog
is selected, the system turns off recirculation and
runs the air conditioning compressor unless
the outside temperature is below 40°F (4°C).
0(Defrost):This mode directs most of the air to
the windshield with some air to the side window
vents and the oor vents. When defrost is selected,
the system will automatically force outside air into
the vehicle. The air conditioning compressor will run
automatically in this setting, unless the outside
temperature is below 40°F (4°C).
171

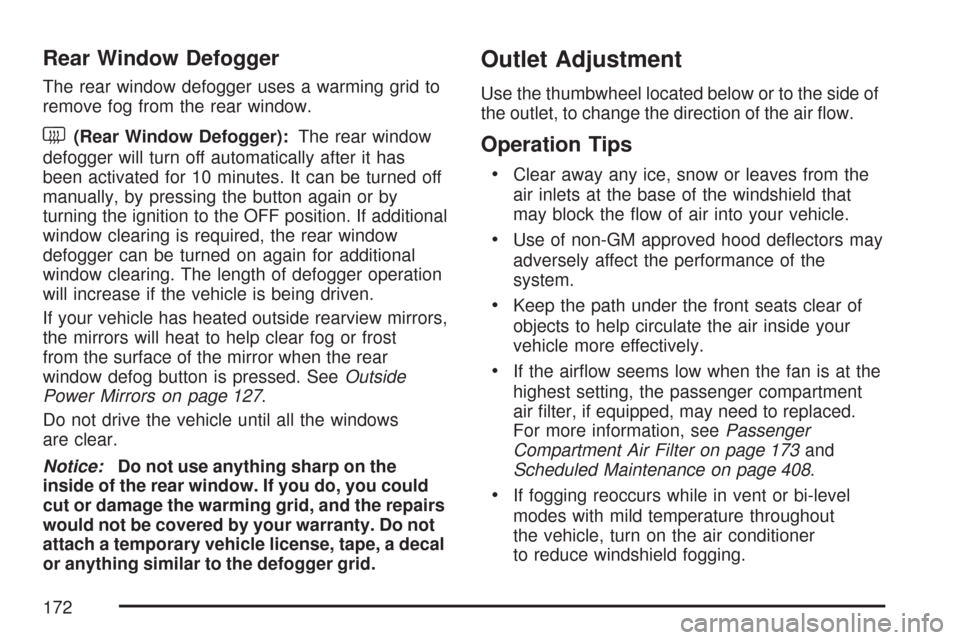

Rear Window Defogger
The rear window defogger uses a warming grid to
remove fog from the rear window.
<(Rear Window Defogger):The rear window
defogger will turn off automatically after it has
been activated for 10 minutes. It can be turned off
manually, by pressing the button again or by
turning the ignition to the OFF position. If additional
window clearing is required, the rear window
defogger can be turned on again for additional
window clearing. The length of defogger operation
will increase if the vehicle is being driven.
If your vehicle has heated outside rearview mirrors,
the mirrors will heat to help clear fog or frost
from the surface of the mirror when the rear
window defog button is pressed. SeeOutside
Power Mirrors on page 127.
Do not drive the vehicle until all the windows
are clear.
Notice:Do not use anything sharp on the
inside of the rear window. If you do, you could
cut or damage the warming grid, and the repairs
would not be covered by your warranty. Do not
attach a temporary vehicle license, tape, a decal
or anything similar to the defogger grid.
Outlet Adjustment
Use the thumbwheel located below or to the side of
the outlet, to change the direction of the air ow.
Operation Tips
Clear away any ice, snow or leaves from the
air inlets at the base of the windshield that
may block the ow of air into your vehicle.
Use of non-GM approved hood deectors may
adversely affect the performance of the
system.
Keep the path under the front seats clear of
objects to help circulate the air inside your
vehicle more effectively.
If the airow seems low when the fan is at the
highest setting, the passenger compartment
air lter, if equipped, may need to replaced.
For more information, seePassenger
Compartment Air Filter on page 173and
Scheduled Maintenance on page 408.
If fogging reoccurs while in vent or bi-level
modes with mild temperature throughout
the vehicle, turn on the air conditioner
to reduce windshield fogging.
172

Passenger Compartment Air Filter
This vehicle has a passenger compartment
particulate air lter. It is located underneath the
hood just below the windshield wiper arm on
the passenger’s side of the vehicle, under the air
inlet grille.
The lter traps most of the pollen from air entering
the Climate Control System. Like your engine’s
air cleaner/lter, it may need to be changed
periodically to ensure system performance. For
information on how often to change the passenger
compartment air lter, seeScheduled Maintenance
on page 408.
To change the passenger compartment air lter,
use the following steps:
1. Turn off the ignition when the windshield
wipers are in the up position.
2. Raise the vehicle hood.
3. Peel back the hood weatherstrip from the
passenger’s side of the vehicle halfway
to center.4. Remove the air inlet grille retainers.
5. Lift the air inlet grille and disconnect the
washer hose at the quick-connect.
6. Remove the air inlet grille.
7. Remove the water deector plate.
8. Remove the old passenger compartment
air lter.
9. Reverse the steps to install the new air lter.
For best climate control system performance,
be sure to re-install the air lter.
For the type of lter to use, seeNormal
Maintenance Replacement Parts on page 419.
173

Warning Lights, Gages, and
Indicators
This part describes the warning lights and
gages on your vehicle. The pictures help to
locate them.
Warning lights and gages can signal that
something is wrong before it becomes serious
enough to cause an expensive repair or
replacement. Paying attention to the warning lights
and gages could also save you or others from
injury.
Warning lights come on when there may be or
is a problem with one of your vehicle’s functions.
As the details show on the next few pages,
some warning lights come on briey when you
start the engine just to let you know they are
working. If you are familiar with this section,
you should not be alarmed when this happens.Gages can indicate when there may be or is a
problem with one of your vehicle’s functions. Often
gages and warning lights work together to let you
know when there is a problem with your vehicle.
When one of the warning lights comes on and
stays on as you are driving, or when one of the
gages shows there may be a problem, check
the section that tells you what to do about
it. Please follow this manual’s advice. Waiting to
do repairs can be costly and even dangerous.
So please get to know your vehicle’s warning lights
and gages. They can be a big help.
Your vehicle may also have a Driver Information
Center (DIC) that works along with the warning
lights and gages. SeeDriver Information
Center (DIC) on page 190for more information.
174

Instrument Panel Cluster
Your instrument panel cluster is designed to let you know at a glance how your vehicle is running. You
will know how fast you are going, about how much fuel is in your tank and many other things you need to
drive safely and economically.
United States Uplevel shown, Base and Canada similar
175

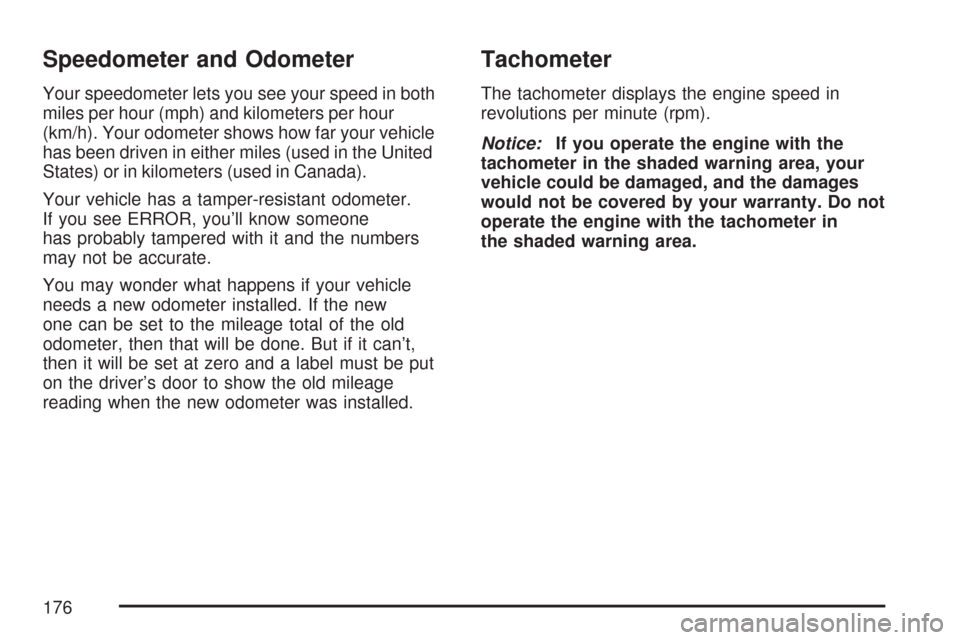

Speedometer and Odometer
Your speedometer lets you see your speed in both
miles per hour (mph) and kilometers per hour
(km/h). Your odometer shows how far your vehicle
has been driven in either miles (used in the United
States) or in kilometers (used in Canada).
Your vehicle has a tamper-resistant odometer.
If you see ERROR, you’ll know someone
has probably tampered with it and the numbers
may not be accurate.
You may wonder what happens if your vehicle
needs a new odometer installed. If the new
one can be set to the mileage total of the old
odometer, then that will be done. But if it can’t,
then it will be set at zero and a label must be put
on the driver’s door to show the old mileage
reading when the new odometer was installed.
Tachometer
The tachometer displays the engine speed in
revolutions per minute (rpm).
Notice:If you operate the engine with the
tachometer in the shaded warning area, your
vehicle could be damaged, and the damages
would not be covered by your warranty. Do not
operate the engine with the tachometer in
the shaded warning area.
176
