2007 CHEVROLET CORVETTE Owners Manual

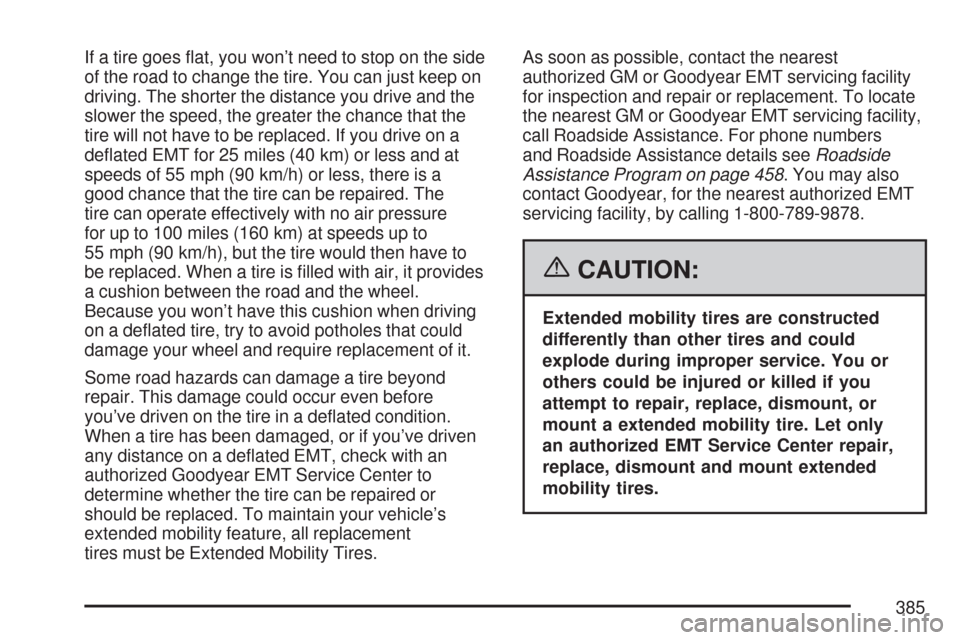

If a tire goes at, you won’t need to stop on the side
of the road to change the tire. You can just keep on
driving. The shorter the distance you drive and the
slower the speed, the greater the chance that the
tire will not have to be replaced. If you drive on a
deated EMT for 25 miles (40 km) or less and at
speeds of 55 mph (90 km/h) or less, there is a
good chance that the tire can be repaired. The
tire can operate effectively with no air pressure
for up to 100 miles (160 km) at speeds up to
55 mph (90 km/h), but the tire would then have to
be replaced. When a tire is lled with air, it provides
a cushion between the road and the wheel.
Because you won’t have this cushion when driving
on a deated tire, try to avoid potholes that could
damage your wheel and require replacement of it.
Some road hazards can damage a tire beyond
repair. This damage could occur even before
you’ve driven on the tire in a deated condition.
When a tire has been damaged, or if you’ve driven
any distance on a deated EMT, check with an
authorized Goodyear EMT Service Center to
determine whether the tire can be repaired or
should be replaced. To maintain your vehicle’s
extended mobility feature, all replacement
tires must be Extended Mobility Tires.As soon as possible, contact the nearest
authorized GM or Goodyear EMT servicing facility
for inspection and repair or replacement. To locate
the nearest GM or Goodyear EMT servicing facility,
call Roadside Assistance. For phone numbers
and Roadside Assistance details seeRoadside
Assistance Program on page 458. You may also
contact Goodyear, for the nearest authorized EMT
servicing facility, by calling 1-800-789-9878.
{CAUTION:
Extended mobility tires are constructed
differently than other tires and could
explode during improper service. You or
others could be injured or killed if you
attempt to repair, replace, dismount, or
mount a extended mobility tire. Let only
an authorized EMT Service Center repair,
replace, dismount and mount extended
mobility tires.
385

The valve stems on your extended mobility
tires have sensors that are part of the Tire
Pressure Monitor (TPM). SeeTire Pressure
Monitor System on page 389. The TPM sensors
contain batteries which are designed to last
for 10 years under normal driving conditions.
See your dealer if you ever need to have a
wheel replaced, or if the sensors ever need
replacement.
Notice:Using liquid sealants can damage
the tire valves and tire pressure monitor
sensors in your extended mobility tires.
This damage would not be covered by
warranty. Don’t use liquid sealants in
your extended mobility tires.Ination - Tire Pressure
Tires need the correct amount of air pressure
to operate effectively.
Notice:Do not let anyone tell you that
under-ination or over-ination is all right.
It is not. If your tires do not have enough air
(under-ination), you can get the following:
Too much exing
Too much heat
Tire overloading
Premature or irregular wear
Poor handling
Reduced fuel economy
If your tires have too much air (over-ination),
you can get the following:
Unusual wear
Poor handling
Rough ride
Needless damage from road hazards
A Tire and Loading Information label is attached to
the vehicle’s b-pillar. This label lists your vehicle’s
original equipment tires and shows the correct
ination pressures for your tires when they are cold.
386

The recommended cold tire ination pressure,
shown on the label, is the minimum amount of
air pressure needed to support your vehicle’s
maximum load carrying capacity.
For additional information regarding how much
weight your vehicle can carry, and an example of
the Tire and Loading Information label, seeLoading
Your Vehicle on page 309. How you load your
vehicle affects vehicle handling and ride comfort,
never load your vehicle with more weight than it
was designed to carry.
When to Check
Check your tires once a month or more.
How to Check
Use a good quality pocket-type gage to check tire
pressure. You cannot tell if your tires are properly
inated simply by looking at them. Radial tires
may look properly inated even when they’re
under-inated. Check the tire’s ination pressure
when the tires are cold. Cold means your vehicle
has been sitting for at least three hours or driven
no more than 1 mile (1.6 km).Remove the valve cap from the tire valve stem.
Press the tire gage rmly onto the valve to
get a pressure measurement. If the cold tire
ination pressure matches the recommended
pressure on the Tire and Loading Information
label, no further adjustment is necessary. If the
ination pressure is low, add air until you reach
the recommended amount.
If you overll the tire, release air by pushing on
the metal stem in the center of the tire valve.
Re-check the tire pressure with the tire gage.
Be sure to put the valve caps back on the valve
stems. They help prevent leaks by keeping out
dirt and moisture.
Tire Pressure Monitor System
Your vehicle has a Tire Pressure Monitor (TPM)
that sends tire pressure information to the Driver
Information Center (DIC). Using the DIC control
buttons, the driver is able to check tire pressure
levels in all four tires. SeeTire Pressure Monitor
System on page 389andDIC Controls and
Displays on page 208for additional information.
387

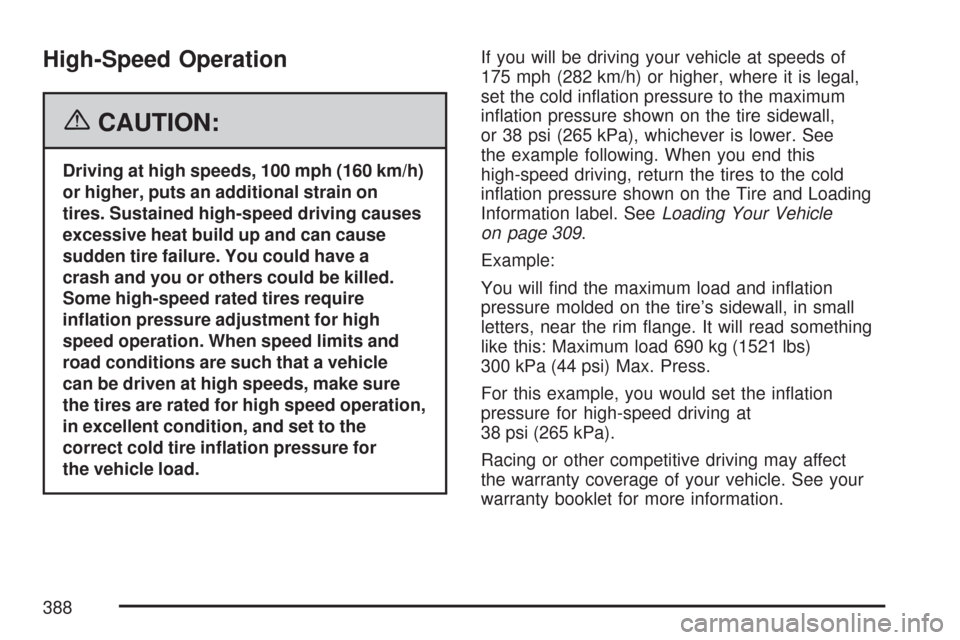

High-Speed Operation
{CAUTION:
Driving at high speeds, 100 mph (160 km/h)
or higher, puts an additional strain on
tires. Sustained high-speed driving causes
excessive heat build up and can cause
sudden tire failure. You could have a
crash and you or others could be killed.
Some high-speed rated tires require
ination pressure adjustment for high
speed operation. When speed limits and
road conditions are such that a vehicle
can be driven at high speeds, make sure
the tires are rated for high speed operation,
in excellent condition, and set to the
correct cold tire ination pressure for
the vehicle load.If you will be driving your vehicle at speeds of
175 mph (282 km/h) or higher, where it is legal,
set the cold ination pressure to the maximum
ination pressure shown on the tire sidewall,
or 38 psi (265 kPa), whichever is lower. See
the example following. When you end this
high-speed driving, return the tires to the cold
ination pressure shown on the Tire and Loading
Information label. SeeLoading Your Vehicle
on page 309.
Example:
You will nd the maximum load and ination
pressure molded on the tire’s sidewall, in small
letters, near the rim ange. It will read something
like this: Maximum load 690 kg (1521 lbs)
300 kPa (44 psi) Max. Press.
For this example, you would set the ination
pressure for high-speed driving at
38 psi (265 kPa).
Racing or other competitive driving may affect
the warranty coverage of your vehicle. See your
warranty booklet for more information.
388

Tire Pressure Monitor System
The Tire Pressure Monitor System (TPMS) uses
radio and sensor technology to check tire pressure
levels. TPMS sensors are mounted onto each
tire and wheel assembly. The TPMS sensors
monitor the air pressure in your vehicle’s tires
and transmit tire pressure readings to a receiver
located in the vehicle.
The TPMS is designed to alert the driver if a
low pressure condition exists. Using the Driver
Information Center (DIC), tire pressure levels can
be viewed by the driver. For additional information
and details about the DIC operation and displays
seeDIC Controls and Displays on page 208
andDIC Warnings and Messages on page 214.
When a low tire pressure condition is detected,
the TPMS will illuminate the low tire pressure
warning symbol located in the instrument panel
cluster. A DIC message to check the pressure in a
specic tire will also appear on the DIC display.The low tire pressure warning symbol on the
instrument panel cluster and the LOW TIRE
PRESSURE message on the DIC display will
appear at each ignition cycle until the tires
are inated to the correct ination pressure.
You may notice, during cooler weather conditions,
that the low tire pressure warning light and the
DIC warning message will appear when the vehicle
is rst started and then turn off as you start to
drive the vehicle. This could be an early indicator
that the tire pressures are getting low and
need to be inated to the proper pressure.
Each tire, including the spare (if provided), should
be checked monthly when cold and inated to
the ination pressure recommended by the
vehicle manufacturer on the vehicle placard or
tire ination pressure label. (If your vehicle
has tires of a different size than the size indicated
on the vehicle placard or tire ination pressure
label, you should determine the proper tire
ination pressure for those tires.)
389

As an added safety
feature, your vehicle
has been equipped
with a tire pressure
monitoring system
(TPMS) that illuminates
a low tire pressure
telltale when one
or more of your
tires is signicantly
under-inated.
Accordingly, when the low tire pressure telltale
illuminates, you should stop and check your
tires as soon as possible, and inate them to
the proper pressure. Driving on a signicantly
under-inated tire causes the tire to overheat
and can lead to tire failure. Under-ination also
reduces fuel efficiency and tire tread life, and may
affect the vehicle’s handling and stopping ability.Please note that the TPMS is not a substitute for
proper tire maintenance, and it is the driver’s
responsibility to maintain correct tire pressure,
even if under-ination has not reached the
level to trigger illumination of the TPMS low
tire pressure telltale.
Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate when the
system is not operating properly. The TPMS
malfunction indicator is combined with the low
tire pressure telltale. When the system detects a
malfunction, the telltale will ash for approximately
one minute and then remain continuously
illuminated. This sequence will continue upon
subsequent vehicle start-ups as long as the
malfunction exists.
390

When the malfunction indicator is illuminated,
the system may not be able to detect or signal
low tire pressure as intended. TPMS malfunctions
may occur for a variety of reasons, including
the installation of replacement or alternate tires or
wheels on the vehicle that prevent the TPMS
from functioning properly. Always check the TPMS
malfunction telltale after replacing one or more
tires or wheels on your vehicle to ensure that the
replacement or alternate tires and wheels allow
the TPMS to continue to function properly.
A Tire and Loading Information label, attached to
your vehicle, shows the size of your vehicle’s
original equipment tires and the correct ination
pressure for your vehicle’s tires when they
are cold. SeeLoading Your Vehicle on page 309,
for an example of the tire information label and
its location on your vehicle. Also seeInation - Tire
Pressure on page 386.Your vehicle’s TPMS can alert you about a
low or high tire pressure condition but it does
not replace normal tire maintenance. See
Ination - Tire Pressure on page 386and
When It Is Time for New Tires on page 393.
The SERVICE TIRE MONITOR message,
in the DIC, is displayed when the TPMS is
malfunctioning. For example, one or more
TPMS sensors may be inoperable or missing.
Also, the active handling system will be affected,
seeActive Handling System on page 283.
See your dealer for service.
391

TPMS Sensor Identication Codes
Each TPMS sensor has a unique identication
code. Any time you replace one or more of the
TPMS sensors, the identication codes will need
to be matched to the new tire/wheel position.
The sensors are matched, to the tire/wheel
positions, in the following order: driver’s side front
tire, passenger’s side front tire, passenger’s side
rear tire, and driver’s side rear tire using a TPMS
diagnostic tool. See your GM dealer for service.
Federal Communications
Commission (FCC) and Industry
and Science Canada
The Tire Pressure Monitor System (TPMS)
operates on a radio frequency and complies
with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
1. This device may not cause harmful
interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation.The Tire Pressure Monitor System (TPMS)
operates on a radio frequency and complies
with RSS-210 of Industry and Science
Canada. Operation is subject to the following
two conditions:
1. This device may not cause interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation of the device.
Changes or modications to this system by other
than an authorized service facility could void
authorization to use this equipment.
392
