2007 CHEVROLET CORVETTE Owners Manual

When to Add Engine Oil (Z06 Only)
If the oil is below the cross-hatched area at the
tip of the dipstick, you need to add at least
one quart/liter of oil through the oil ll cap opening
in the oil tank. But you must use the right kind.
This section explains what kind of oil to use.
For engine oil crankcase capacity, seeCapacities
and Specications on page 426.
SeeRacing or Other Competitive Driving on
page 292for additional information on engine oil.
Notice:Do not add too much oil. If the
engine has so much oil that the oil level
gets above the cross-hatched area that
shows the proper operating range, the
engine could be damaged.SeeEngine
Compartment Overview
on page 330for
the location of the
external engine oil
tank and ll cap.
Be sure to add enough oil to put the level
somewhere in the proper operating range.
Push the dipstick all the way back into the
oil tank when you are through.
Changing Engine Oil and Filter
(Z06 Only)
Z06 models have a racetrack-ready dry sump
engine lubrication system. This high-performance
system operates differently than a standard
engine lubrication system and requires a special
procedure when changing the engine oil and lter.
Follow this procedure closely when changing
the engine oil and lter.
337

A. Engine Oil Drain Plug
B. Seal
1. Remove the two engine oil drain plugs
from the bottom of the engine oil pan.
One drain plug drains the external oil tank
via the oil transfer supply line. The other
drain plug drains residual oil from the
crankcase sump. Allow the oil to drain.2. Once the oil has been drained from the
engine, remove the engine oil lter and
allow the oil to drain.
3. Re-install both drain plugs and tighten them
to 18 lb ft (25
Y).
4. Replace the oil lter and tighten it to
18 lb ft (25
Y). SeeNormal Maintenance
Replacement Parts on page 445for the
correct lter.
5. Oil is lled through the opening in the top
of the external engine oil tank. Remove the
oil ll cap.
6. Add eight quarts (7.6 L) of oil to the oil tank.
SeeCapacities and Specications on
page 426.
7. Install the oil ll cap and insert the dipstick,
if removed.
8. Start the engine and let it run at idle for at
least 15 seconds. This will circulate the
fresh engine oil through the lubrication system.
9. Shut off the engine and check the oil level
as described under “Checking Engine Oil
(Z06 Only).”
338

What Kind of Engine Oil to Use
Look for three things:
GM4718M
Your vehicle’s engine requires a special oil
meeting GM Standard GM4718M. Oils meeting
this standard may be identied as synthetic.
However, not all synthetic oils will meet
this GM standard. Look for and use only an
oil that meets GM Standard GM4718M.Notice:If you use oils that do not have the
GM4718M Standard designation, you can cause
engine damage not covered by your warranty.
SAE 5W-30
As shown in the viscosity chart, SAE 5W-30
is best for your vehicle.
These numbers on an oil container show
its viscosity, or thickness. Do not use other
viscosity oils such as SAE 20W-50.
Oils meeting these
requirements
should have the
starburst symbol
on the container.
This symbol indicates
that the oil has
been certied by the
American Petroleum
Institute (API).
Look for this on the oil container, and use only
those oils that are identied as meeting GM
Standard GM4718M and have the starburst
symbol on the front of the oil container.
339

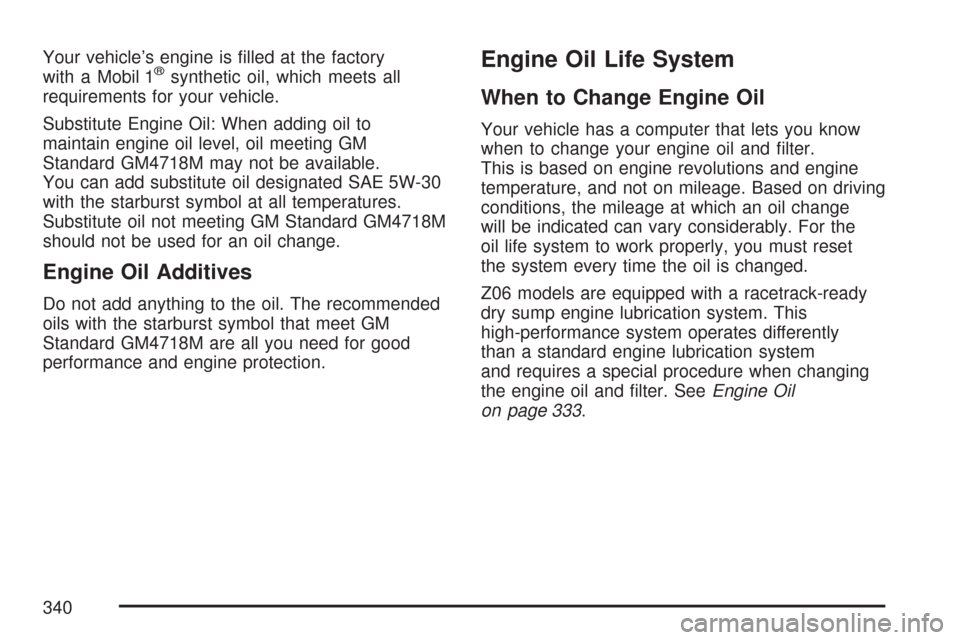

Your vehicle’s engine is lled at the factory
with a Mobil 1®synthetic oil, which meets all
requirements for your vehicle.
Substitute Engine Oil: When adding oil to
maintain engine oil level, oil meeting GM
Standard GM4718M may not be available.
You can add substitute oil designated SAE 5W-30
with the starburst symbol at all temperatures.
Substitute oil not meeting GM Standard GM4718M
should not be used for an oil change.
Engine Oil Additives
Do not add anything to the oil. The recommended
oils with the starburst symbol that meet GM
Standard GM4718M are all you need for good
performance and engine protection.
Engine Oil Life System
When to Change Engine Oil
Your vehicle has a computer that lets you know
when to change your engine oil and lter.
This is based on engine revolutions and engine
temperature, and not on mileage. Based on driving
conditions, the mileage at which an oil change
will be indicated can vary considerably. For the
oil life system to work properly, you must reset
the system every time the oil is changed.
Z06 models are equipped with a racetrack-ready
dry sump engine lubrication system. This
high-performance system operates differently
than a standard engine lubrication system
and requires a special procedure when changing
the engine oil and lter. SeeEngine Oil
on page 333.
340

When the system has calculated that oil life has
been diminished, it will indicate that an oil change
is necessary. A CHANGE ENGINE OIL message
will come on. Change your oil as soon as possible
within the next 600 miles (1 000 km). It is
possible that, if you are driving under the best
conditions, the oil life system may not indicate
that an oil change is necessary for over a
year. However, your engine oil and lter must
be changed at least once a year and at this
time the system must be reset. Your dealer
has GM-trained service people who will perform
this work using genuine GM parts and reset
the system. It is also important to check your
oil regularly and keep it at the proper level.
If the system is ever reset accidentally, you
must change your oil at 3,000 miles (5 000 km)
since your last oil change. Remember to reset
the oil life system whenever the oil is changed.How to Reset the Engine Oil Life
System
The Engine Oil Life System calculates when to
change your engine oil and lter based on vehicle
use. Anytime your oil is changed, reset the
system so it can calculate when the next oil
change is required. If a situation occurs where
you change your oil prior to a CHANGE ENGINE
OIL message being turned on, reset the system.
To reset the CHANGE ENGINE OIL message
after an oil change, do the following:
1. Press the TRIP button so the OIL LIFE
percentage is displayed.
2. Press RESET and hold for two seconds.
OIL LIFE REMAINING 100% will appear.
If the CHANGE ENGINE OIL message comes
back on when you start your vehicle, the engine
oil life system has not reset. Repeat the procedure.
341

What to Do with Used Oil
Used engine oil contains certain elements that may
be unhealthy for your skin and could even cause
cancer. Do not let used oil stay on your skin for
very long. Clean your skin and nails with soap and
water, or a good hand cleaner. Wash or properly
dispose of clothing or rags containing used engine
oil. See the manufacturer’s warnings about the
use and disposal of oil products.
Used oil can be a threat to the environment. If you
change your own oil, be sure to drain all the oil from
the lter before disposal. Never dispose of oil by
putting it in the trash, pouring it on the ground, into
sewers, or into streams or bodies of water. Instead,
recycle it by taking it to a place that collects used
oil. If you have a problem properly disposing of
your used oil, ask your dealer, a service station,
or a local recycling center for help.
Engine Air Cleaner/Filter
SeeEngine Compartment Overview on page 330
for the location of the engine air cleaner/lters.Notice:If you spray water into the engine
air cleaner/lter intake and water enters
the engine air cleaner/lter housing, you
could damage your vehicle’s engine.
The repairs would not be covered by your
warranty. Do not spray water into the engine
air cleaner/lter intake and/or housing.
If you are cleaning your vehicle with the hood
open, take care not to spray water directly
into either end of the air cleaner/lter housing,
as shown in the illustration, as this could damage
your vehicle’s engine.
342

When to Inspect the Engine
Air Cleaner/Filters
Inspect the air cleaner/lters at the MaintenanceII
intervals and replace them at the rst oil change
after each 50,000 mile (83 000 km) interval.
SeeScheduled Maintenance on page 433for
more information. If you are driving in dusty/dirty
conditions, inspect the lters at each engine
oil change.
How to Inspect the Engine
Air Cleaner/Filters (6.0L V8 Engine)
To inspect the air cleaner/lters, remove the lters
from the vehicle and lightly shake the lters to
release loose dust and dirt. If the lters remain
caked with dirt, new lters are required.
To inspect or replace the engine air cleaner/lters,
do the following:1. Pull the latches on each side of the cover to
open, then move the latches up and out of
the way.
2. Push the air cleaner/lter cover toward the front
of the vehicle and then pull it up and away.
3. Inspect or replace the lter. SeeNormal
Maintenance Replacement Parts on page 445.
4. Reverse Steps 1 and 2 to replace the
air cleaner/lter cover.
5. Repeat the procedure for the second
air cleaner/lter.
343

How to Inspect the Engine
Air Cleaner/Filters (7.0L V8 Engine)
To inspect the air cleaner/lters, remove the lters
from the vehicle and lightly shake the lters to
release loose dust and dirt. If the lters remain
caked with dirt, new lters are required.
To inspect or replace the engine air cleaner/lters,
do the following:
1. Remove the screws holding the lter element
in place.
2. Pull on latches found on either side of the lter.3. Inspect or replace the lter. SeeNormal
Maintenance Replacement Parts on page 445.
4. Reverse Steps 1 and 2 to replace the
air cleaner/lter cover.
{CAUTION:
Operating the engine with the
air cleaner/lter off can cause you or
others to be burned. The air cleaner not
only cleans the air; it helps to stop ames
if the engine backres. If it is not there
and the engine backres, you could be
burned. Do not drive with it off, and be
careful working on the engine with the
air cleaner/lter off.
Notice:If the air cleaner/lter is off, a backre
can cause a damaging engine re. And, dirt
can easily get into your engine, which will
damage it. Always have the air cleaner/lter
in place when you are driving.
344
