2007 CHEVROLET CORVETTE Owners Manual

5. After entering all of the switch positions, again,
rmly press and release all three buttons at the
same time. The indicator lights will turn on.
6. Press and hold the button you would like
to use to control the garage door until the
garage door moves. The indicator light above
the selected button should slowly blink.
You may need to hold the button from
ve to 55 seconds.
7. Immediately release the button when the
garage door moves. The indicator light will
blink rapidly until programming is complete.
8. Press and release the same button again.
The garage door should move, conrming
that programming is successful and complete.
To program another Fixed Code device such as an
additional garage door opener, a security device,
or home automation device, repeat Steps 1-8,
choosing a different button in Step 6 than what
you used for the garage door opener.
Using Universal Home Remote
Press and hold the appropriate button for at least
half of a second. The indicator light will come
on while the signal is being transmitted.
Reprogramming Universal Home
Remote Buttons
You can reprogram any of the three buttons by
repeating the instructions.
Erasing Universal Home Remote
Buttons
You should erase the programmed buttons when
you sell or terminate your lease.
To erase either Rolling Code or Fixed Code on the
Universal Home Remote device, do the following:
1. Press and hold the two outside buttons at the
same time for approximately 20 seconds, until
the indicator lights, located directly above
the buttons, begin to blink rapidly.
2. Once the indicator lights begin to blink,
release both buttons. The codes from all
buttons will be erased.
For help or information on the Universal Home
Remote System, call the customer assistance
phone number underCustomer Assistance
Offices on page 456.
129

Storage Areas
Glove Box
To open the glove box, lift up on the lever.
Use the key to lock and unlock. The glove box
has a light inside.
Cupholder(s)
There are two cupholders located on the center
console next to the shift lever. To access, place
your thumb on the left side of the lid and slide the
handle to the right.
Center Console Storage Area
To use this storage area, pull up the lid on the
driver’s side front edge of the console and swing it
to the passenger side.
Your vehicle may have a lock on the center
console storage area. Use the key to lock and
unlock the console. Do not leave the key in
the lock, or it could be damaged when the
driver sits down.
Floor Mats
The oor mats are designed to remain in position
under your feet and out of reach of the accelerator
pedal. The driver side oor mat is held in place by
two locator pins and the passenger side is held in
place by one.
Make sure that the driver side oor mat is properly
placed on the oor so that it does not block the
movement of the accelerator pedal.
To remove a oor mat,
pull up on the rear of
the mat to disconnect
it from the locator pins.
To reinstall the oor mats, line up the openings in
the oor mat over the locator pins and push it
down into place.
130

Rear Storage Area
There are two rear storage compartments in the
oor of the rear hatch/trunk area.
Your vehicle has two storage compartment lids.
To access a storage compartment, pull up to open
the lid. The lids cannot be removed.For Z06 models the right rear compartment stores
the battery and cannot be used for storage.
Notice:Do not store heavy or sharp objects
in the rear storage compartments located in the
hatch/trunk area. If you do, the objects could
damage the underbody.
Rear Trunk Partition
For vehicles with the power convertible top option
only, there is a trunk partition to keep cargo from
getting in the way of the convertible top. The trunk
partition must be in place for the top to move. If the
trunk partition is not properly in place the ATTACH
TRUNK PARTITION Driver Information Center
(DIC) message will display and you will not be able
to remove the convertible top. SeeDIC Warnings
and Messages on page 214for more information.
The trunk partition is a at carpeted board with a
horizontal ap that can be attached to the top
of the trunk to divide the storage compartment
or stored at when not in use.
Convertible shown, Coupe similar
131

Pull the divider up and snap it onto the snaps on
both sides of the trunk.
Convenience Net
If your vehicle has this feature it is on the back
wall of the rear area of the vehicle.
Put small loads, like grocery bags, in the net. It
can help keep them from falling over during sharp
turns or quick starts and stops. The convenience
net is not for larger, heavier loads.
You can unhook the net and place it in one of the
rear storage compartments when not in use.
Cargo Cover
If your vehicle has this feature, the security shade
can provide hidden storage in the rear area of
the vehicle. The shade is also helpful in blocking
the glare from the removable roof when it is
stored in the rear compartment.
132

Using the Cargo Cover
1. Hook the elastic
loops on the front
corners (A) of
the shade to the
T-nuts located
on the front corners
of the rear hatch
frame.
2. Hook the elastic loops on the rear corners (B)
of the shade to the hooks recessed inside the
rear hatch frame, near the rear corners.3. Grasp the loop at the rear center of the shade
and wrap it around the striker assembly.
4. Push the loop to the
top of the striker
(base plate).
133

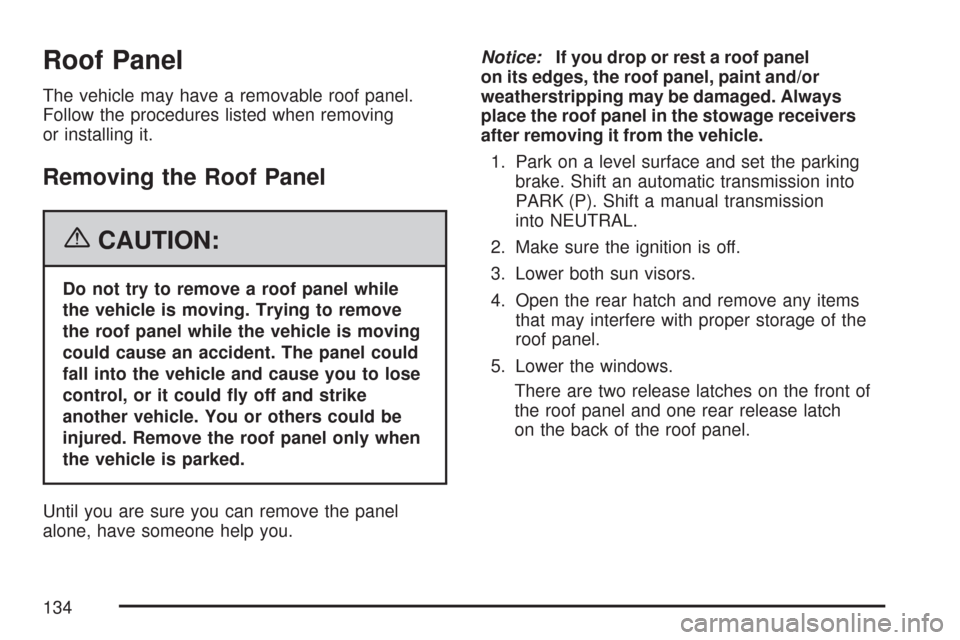

Roof Panel
The vehicle may have a removable roof panel.
Follow the procedures listed when removing
or installing it.
Removing the Roof Panel
{CAUTION:
Do not try to remove a roof panel while
the vehicle is moving. Trying to remove
the roof panel while the vehicle is moving
could cause an accident. The panel could
fall into the vehicle and cause you to lose
control, or it could y off and strike
another vehicle. You or others could be
injured. Remove the roof panel only when
the vehicle is parked.
Until you are sure you can remove the panel
alone, have someone help you.Notice:If you drop or rest a roof panel
on its edges, the roof panel, paint and/or
weatherstripping may be damaged. Always
place the roof panel in the stowage receivers
after removing it from the vehicle.
1. Park on a level surface and set the parking
brake. Shift an automatic transmission into
PARK (P). Shift a manual transmission
into NEUTRAL.
2. Make sure the ignition is off.
3. Lower both sun visors.
4. Open the rear hatch and remove any items
that may interfere with proper storage of the
roof panel.
5. Lower the windows.
There are two release latches on the front of
the roof panel and one rear release latch
on the back of the roof panel.
134

6. To unlock the release latches on the front of
the roof panel, grasp each handle with your
ngers and pull it outward.The driver’s side handle moves toward the
driver’s door. The passenger’s side handle
moves toward the passenger’s door.
Driver’s Side Front Roof Panel Release LatchDriver’s Side Rear Roof Panel Release Hatch
135

7. To unlock the rear of
the roof panel’s rear
release latch, press
the back of the
release handle (B).
Then press the
button on the front
of the release
handle, (A) with
your thumb.
Pull down the latch lever with your ngers.
8. Stand on one side of the vehicle, and if
necessary, have someone stand on the
other side. Together, carefully lift the front
edge of the roof panel up and forward.
9. When the roof panel is loosened from the
vehicle, one person should grasp the roof
panel as close to the center as possible and
lift it away from the vehicle.Storing the Roof Panel
{CAUTION:
If a roof panel is not stored properly, it
could be thrown about the vehicle in a
crash or sudden maneuver. People in the
vehicle could be injured. Whenever you
store a roof panel in the vehicle, always
be sure that it is stored securely in the
proper location.
136
