2007 CHEVROLET CORVETTE Owners Manual

Rear Window Defogger
The rear window defogger uses a warming grid to
remove fog or frost from the rear window.
The rear window defogger will only work when the
engine is running.
=(Rear Window Defogger):Press this button
to turn the rear window defogger on. Be sure
to clear as much snow from the rear window as
possible. An indicator light in the button will come
on to let you know that the rear window defogger
is activated.
The rear window defogger will turn off about
10 minutes after the button is pressed when
traveling less than 30 mph (48 km/h). If turned
on again, the defogger will only run for about
ve minutes before turning off. The defogger can
also be turned off by pressing the button again
or by turning off the engine.Your vehicle has heated outside rearview mirrors.
The mirrors will heat to help clear fog or frost
from the surface of the mirrors when the
rear window defog button is pressed.
If your vehicle has the power convertible top, the
rear window defogger and heated mirrors are
automatically disabled when the power convertible
top is moving or down.
Notice:Do not use anything sharp on the
inside of the rear window. If you do, you could
cut or damage the warming grid, and the
repairs would not be covered by your warranty.
Do not attach a temporary vehicle license,
tape, a decal or anything similar to the
defogger grid.
185

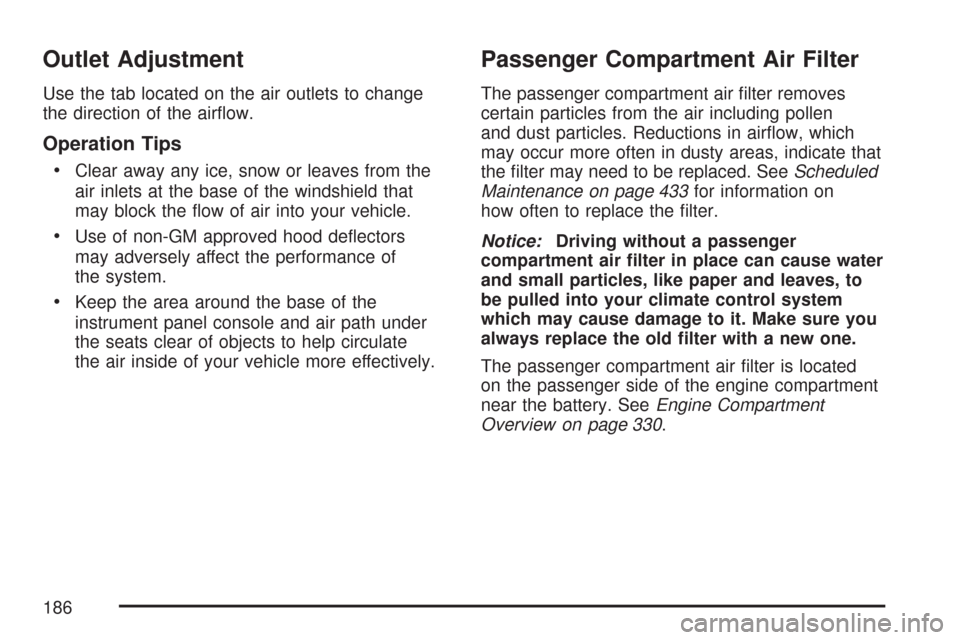

Outlet Adjustment
Use the tab located on the air outlets to change
the direction of the airow.
Operation Tips

Clear away any ice, snow or leaves from the
air inlets at the base of the windshield that
may block the ow of air into your vehicle.
Use of non-GM approved hood deectors
may adversely affect the performance of
the system.
Keep the area around the base of the
instrument panel console and air path under
the seats clear of objects to help circulate
the air inside of your vehicle more effectively.
Passenger Compartment Air Filter
The passenger compartment air lter removes
certain particles from the air including pollen
and dust particles. Reductions in airow, which
may occur more often in dusty areas, indicate that
the lter may need to be replaced. SeeScheduled
Maintenance on page 433for information on
how often to replace the lter.
Notice:Driving without a passenger
compartment air lter in place can cause water
and small particles, like paper and leaves, to
be pulled into your climate control system
which may cause damage to it. Make sure you
always replace the old lter with a new one.
The passenger compartment air lter is located
on the passenger side of the engine compartment
near the battery. SeeEngine Compartment
Overview on page 330.
186

To check or replace the air lter, do the following:
1. Undo the passenger compartment air lter
housing cover retainer clips (A).
2. Remove the passenger compartment air lter
housing cover.3. Remove the passenger compartment air lter
from the housing.
4. Insert the new lter into the housing.
5. Reinstall the passenger compartment air lter
housing cover.
6. Attach the passenger compartment air lter
housing cover retainer clips.
187

Warning Lights, Gages, and
Indicators
This part describes the warning lights and gages
on your vehicle. The pictures help to locate them.
Warning lights and gages can signal that something
is wrong before it becomes serious enough to
cause an expensive repair or replacement. Paying
attention to the warning lights and gages could also
save you or others from injury.
Warning lights come on when there may be or
is a problem with one of your vehicle’s functions.
As the details show on the next few pages,
some warning lights come on briey when you
start the engine just to let you know they are
working. If you are familiar with this section,
you should not be alarmed when this happens.Gages can indicate when there may be or is a
problem with one of your vehicle’s functions.
Often gages and warning lights work together to
let you know when there is a problem with
your vehicle.
When one of the warning lights comes on and
stays on as you are driving, or when one of
the gages shows there may be a problem, check
the section that tells you what to do about it.
Please follow this manual’s advice. Waiting to
do repairs can be costly and even dangerous.
So please get to know your vehicle’s warning lights
and gages. They can be a big help.
Your vehicle may also have a Driver Information
Center (DIC) that works along with the warning
lights and gages. SeeDriver Information Center
(DIC) on page 207for more information.
188

Instrument Panel Cluster
Your instrument panel cluster and Driver Information Center (DIC) are designed to let you know at a glance
how the vehicle is running. You will know how fast you are going, about how much fuel you have left and
many other things you will need to know to drive safely and economically. The instrument panel cluster
indicator warning lights, gages and DIC messages are explained on the following pages.
United States Manual Transmission shown, Canada, Automatic Transmission and Z06 Model similar
189

Speedometer and Odometer
Your speedometer lets you see your speed in
either miles per hour (mph) or kilometers per
hour (km/h). For more information see “Personal
Options” underDIC Vehicle Personalization
on page 234.
To read the odometer with the ignition off, turn
on the parking lamps.
You may wonder what happens if your vehicle
needs a new odometer installed. The mileage
total of the new odometer will be set to the original
miles (kilometers) of the old odometer. See your
dealer if the odometer must be replaced in
your vehicle.
Tachometer
The tachometer displays the engine speed in
thousands of revolutions per minute (rpm).
Notice:Fuel will shut off at about 6600 rpm
for the base model and 7100 rpm for the
Z06 model. If you continue to drive your vehicle
at the fuel shut off rpm, you could damage
your engine. Be sure to operate your vehicle
below the fuel shut off rpm or reduce your
rpm quickly when the fuel shuts off.
Safety Belt Reminder Light
When the ignition is turned on, a chime will come
on for several seconds to remind people to
fasten their safety belts, unless the driver’s safety
belt is already buckled.
The safety belt light will
also come on and stay
on for several seconds,
then it will ash for
several more.
This chime and light will be repeated if the driver
remains unbuckled and the vehicle is in motion.
If the driver’s belt is already buckled, neither
the chime nor the light will come on.
190

Airbag Readiness Light
There is an airbag readiness light on the
instrument panel, which shows a deployed
airbag symbol. The system checks the airbag’s
electrical system for malfunctions. The light
tells you if there is an electrical problem. The
system check includes the airbag modules,
the wiring and the diagnostic module. For more
information on the airbag system, seeAirbag
System on page 50.
This light will come on
when you start your
vehicle, and it will ash
for a few seconds. Then
the light should go out.
This means the system
is ready.
If the airbag readiness light stays on after you
start the vehicle or comes on when you are driving,
your airbag system may not work properly.
Have your vehicle serviced right away.{CAUTION:
If the airbag readiness light stays on after
you start your vehicle, it means the airbag
system may not be working properly. The
airbags in your vehicle may not inate in
a crash, or they could even inate without
a crash. To help avoid injury to yourself
or others, have your vehicle serviced right
away if the airbag readiness light stays
on after you start your vehicle.
The airbag readiness light should ash for a
few seconds when you turn the vehicle on. If the
light does not come on then, have it xed so it
will be ready to warn you if there is a problem.
191

Passenger Airbag Status Indicator
Your rearview mirror has a passenger airbag
status indicator.When the vehicle is started, the passenger airbag
status indicator will light ON and OFF, or the
symbol for on and off, for several seconds as a
system check. Then, after several more seconds,
the status indicator will light either ON or OFF,
or either the on or off symbol, to let you know
the status of the passenger’s frontal airbag
and side impact airbag (if equipped).
Your vehicle has a label on the sun visor that
says, “Never put a rear-facing child seat in
the front.” This is because the risk to the
rear-facing child is so great if the airbag deploys.
United States
Canada
192
