2007 CHEVROLET CORVETTE Owners Manual

Micro-Relays Usage
34 Horn
35 Air Conditioning Compressor
36 Windshield Washer
37 Park, Position Lamps
38 Front Fog Lamp
39 High-Beam Headlamp
46 Headlamp Washer
55 Fuel Pump
Mini-Relays Usage
40 Rear Defog
41 Windshield Wiper High/Low
42 Windshield Wiper Run/Accessory
43 Crank
44 Powertrain Ignition 1
45 Windshield Wiper On/Off
47 Low-Beam Headlamp
Spare Fuses Usage
48 Spare
49 Spare
50 Spare
51 Spare
52 Spare
53 Spare
54 Fuse Puller
Diodes Usage
§Diode 1
§Wiper
§Diode 2
425

Capacities and Specications
The following approximate capacities are given in English and metric conversions.
SeeRecommended Fluids and Lubricants on page 443for more information.
ApplicationCapacities
English Metric
Air Conditioning Refrigerant R134aFor the air conditioning system refrigerant
charge amount, see the refrigerant
caution label located under the hood.
See your dealer for more information.
Cooling System 12.6 qt 11.9 L
Engine Oil with Filter
6.0 L V8 Engine 5.5 qt 5.2 L
6.0 L V8 Engine Performance Package (Z51) 6.0 qt 5.7 L
7.0 L V8 Engine 8.0 qt 7.6 L
Fuel Tank 18.0 gal 68.0 L
Transmission Fluid
Automatic Transmission
(Pan Removal and Filter Replacement)6.5 qt 6.2 L
Manual Transmission – Base 3.6 qt 3.5 L
426

ApplicationCapacities
English Metric
Manual Transmission – Z51 4.2 qt 4.0 L
Manual Transmission – Z06 4.5 qt 4.3 L
Wheel Nut Torque 100 lb ft
140Y
All capacities are approximate. When adding, be sure to ll to the appropriate level, as recommended
in this manual. Recheck uid level after lling
Engine Specications
Engine VIN Code Transmission Spark Plug Gap Firing Order
6.0 L V8 (LS2) UAutomatic
Manual0.040 inch
(1.016 mm)1–8–7–2–6–5–4–3
7.0 L V8 (LS7) E Manual0.040 inch
(1.016 mm)1–8–7–2–6–5–4–3
Engine Data
Engine Horsepower Torque Displacement Compression Ratio
6.0 L V8 (LS2) 400 @ 6000 rpm 400 lb ft @ 4400 rpm 6.0 L 10.9:1
7.0 L V8 (LS7) 505 @ 6300 rpm 470 lb ft @ 4800 rpm 7.0 L 11.0:1
427

✍NOTES
428

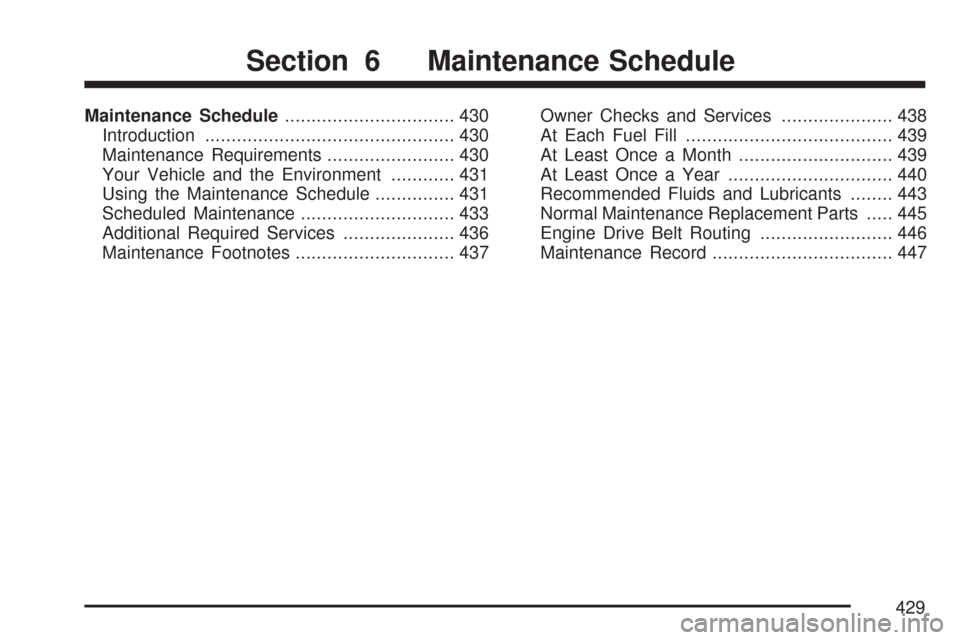

Maintenance Schedule................................ 430
Introduction............................................... 430
Maintenance Requirements........................ 430
Your Vehicle and the Environment............ 431
Using the Maintenance Schedule............... 431
Scheduled Maintenance............................. 433
Additional Required Services..................... 436
Maintenance Footnotes.............................. 437Owner Checks and Services..................... 438
At Each Fuel Fill....................................... 439
At Least Once a Month............................. 439
At Least Once a Year............................... 440
Recommended Fluids and Lubricants........ 443
Normal Maintenance Replacement Parts..... 445
Engine Drive Belt Routing......................... 446
Maintenance Record.................................. 447
Section 6 Maintenance Schedule
429

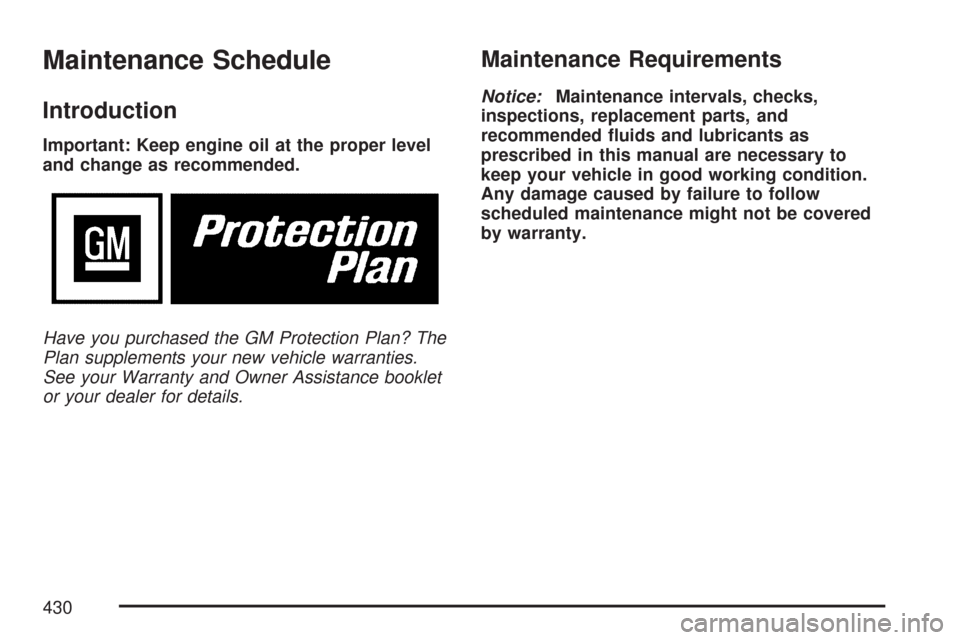

Maintenance Schedule
Introduction
Important: Keep engine oil at the proper level
and change as recommended.
Have you purchased the GM Protection Plan? The
Plan supplements your new vehicle warranties.
See your Warranty and Owner Assistance booklet
or your dealer for details.
Maintenance Requirements
Notice:Maintenance intervals, checks,
inspections, replacement parts, and
recommended uids and lubricants as
prescribed in this manual are necessary to
keep your vehicle in good working condition.
Any damage caused by failure to follow
scheduled maintenance might not be covered
by warranty.
430

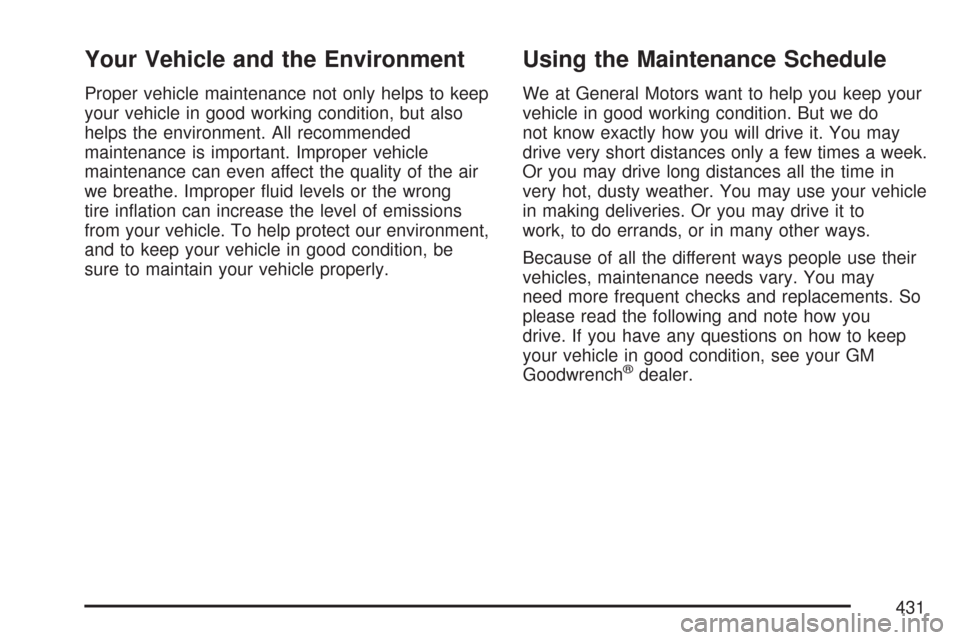

Your Vehicle and the Environment
Proper vehicle maintenance not only helps to keep
your vehicle in good working condition, but also
helps the environment. All recommended
maintenance is important. Improper vehicle
maintenance can even affect the quality of the air
we breathe. Improper uid levels or the wrong
tire ination can increase the level of emissions
from your vehicle. To help protect our environment,
and to keep your vehicle in good condition, be
sure to maintain your vehicle properly.
Using the Maintenance Schedule
We at General Motors want to help you keep your
vehicle in good working condition. But we do
not know exactly how you will drive it. You may
drive very short distances only a few times a week.
Or you may drive long distances all the time in
very hot, dusty weather. You may use your vehicle
in making deliveries. Or you may drive it to
work, to do errands, or in many other ways.
Because of all the different ways people use their
vehicles, maintenance needs vary. You may
need more frequent checks and replacements. So
please read the following and note how you
drive. If you have any questions on how to keep
your vehicle in good condition, see your GM
Goodwrench
®dealer.
431

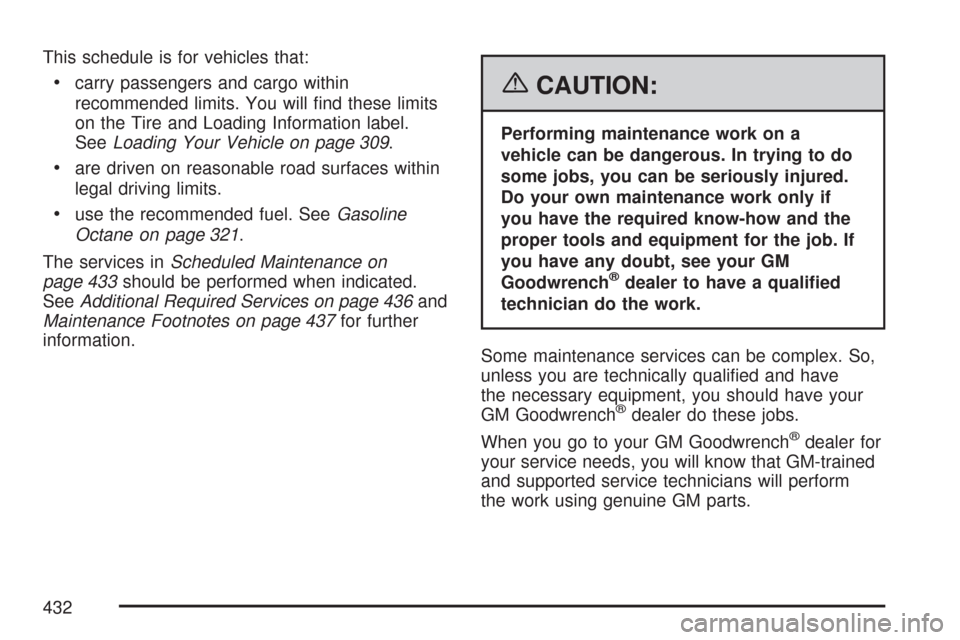

This schedule is for vehicles that:
carry passengers and cargo within
recommended limits. You will nd these limits
on the Tire and Loading Information label.
SeeLoading Your Vehicle on page 309.
are driven on reasonable road surfaces within
legal driving limits.
use the recommended fuel. SeeGasoline
Octane on page 321.
The services inScheduled Maintenance on
page 433should be performed when indicated.
SeeAdditional Required Services on page 436and
Maintenance Footnotes on page 437for further
information.
{CAUTION:
Performing maintenance work on a
vehicle can be dangerous. In trying to do
some jobs, you can be seriously injured.
Do your own maintenance work only if
you have the required know-how and the
proper tools and equipment for the job. If
you have any doubt, see your GM
Goodwrench
®dealer to have a qualied
technician do the work.
Some maintenance services can be complex. So,
unless you are technically qualied and have
the necessary equipment, you should have your
GM Goodwrench
®dealer do these jobs.
When you go to your GM Goodwrench
®dealer for
your service needs, you will know that GM-trained
and supported service technicians will perform
the work using genuine GM parts.
432
