2007 CHEVROLET CORVETTE change language

GENERAL MOTORS, GM, the GM Emblem,
CHEVROLET, the CHEVROLET Emblem,
the names CORVETTE and Z06 and the
CORVETTE Emblem are registered trademarks
of General Motors Corporation.
This manual includes the latest information at the
time it was printed. We reserve the right to
make changes after that time without further
notice. For vehicles rst sold in Canada, substitute
the name “General Motors of Canada Limited”
for Chevrolet Motor Division whenever it appears
in this manual.This manual describes features that may be
available in this model, but your vehicle may not
have all of them. For example, more than one
entertainment system may be offered or your
vehicle may have been ordered without a front
passenger or rear seats.
Keep this manual the vehicle, so it will be there if
it is needed when on the road. If the vehicle is
sold, leave this manual in it.
Canadian Owners
A French language copy of this manual can be
obtained from your dealer/retailer or from:
Helm, Incorporated
P.O. Box 07130
Detroit, MI 48207
Litho in U.S.A.
Part No. 15865975 B Second Printing
©2006 General Motors Corporation. All Rights Reserved.
3

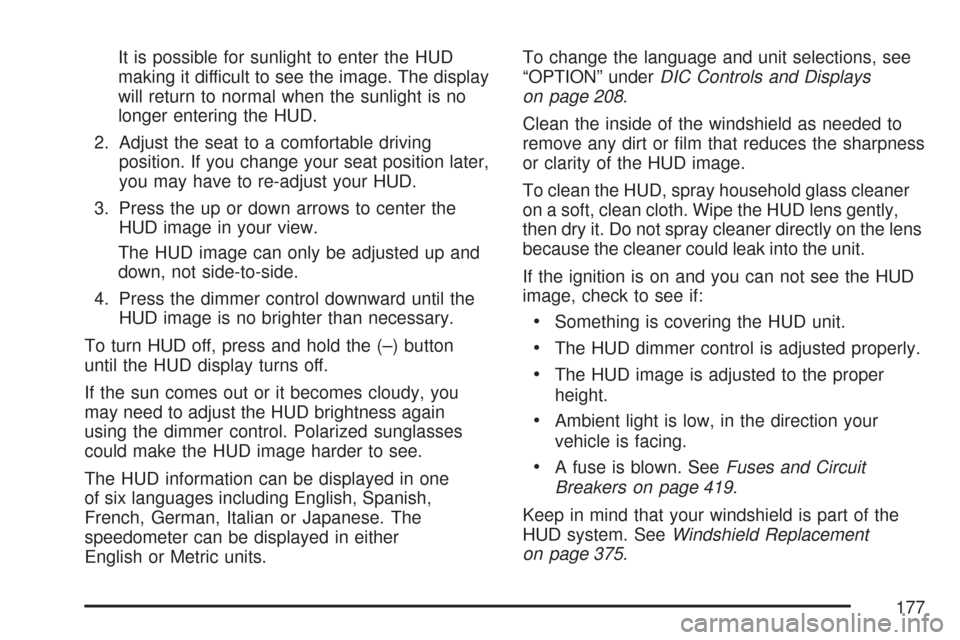

It is possible for sunlight to enter the HUD
making it difficult to see the image. The display
will return to normal when the sunlight is no
longer entering the HUD.
2. Adjust the seat to a comfortable driving
position. If you change your seat position later,
you may have to re-adjust your HUD.
3. Press the up or down arrows to center the
HUD image in your view.
The HUD image can only be adjusted up and
down, not side-to-side.
4. Press the dimmer control downward until the
HUD image is no brighter than necessary.
To turn HUD off, press and hold the (–) button
until the HUD display turns off.
If the sun comes out or it becomes cloudy, you
may need to adjust the HUD brightness again
using the dimmer control. Polarized sunglasses
could make the HUD image harder to see.
The HUD information can be displayed in one
of six languages including English, Spanish,
French, German, Italian or Japanese. The
speedometer can be displayed in either
English or Metric units.To change the language and unit selections, see
“OPTION” underDIC Controls and Displays
on page 208.
Clean the inside of the windshield as needed to
remove any dirt or lm that reduces the sharpness
or clarity of the HUD image.
To clean the HUD, spray household glass cleaner
on a soft, clean cloth. Wipe the HUD lens gently,
then dry it. Do not spray cleaner directly on the lens
because the cleaner could leak into the unit.
If the ignition is on and you can not see the HUD
image, check to see if:
Something is covering the HUD unit.
The HUD dimmer control is adjusted properly.
The HUD image is adjusted to the proper
height.
Ambient light is low, in the direction your
vehicle is facing.
A fuse is blown. SeeFuses and Circuit
Breakers on page 419.
Keep in mind that your windshield is part of the
HUD system. SeeWindshield Replacement
on page 375.
177

2(Gages):Press this button to display gage
information like oil pressure and temperature,
coolant temperature, automatic transmission uid
temperature, if equipped, battery voltage, and
front/rear tire pressures.
TRIP:Press this button to display your total and
trip distance driven, the elapsed time function,
your average speed, and the engine oil life.
OPTION:Press this button to choose personal
options that are available on your vehicle,
depending on the options your vehicle is equipped
with, such as door locks, easy entry seats, and
language.
RESET:Press this button, used along with the
other buttons, to reset system functions, select
personal options, and turn off or acknowledge
messages on the DIC.
FUEL Button
The fuel button displays average fuel economy
and instantaneous fuel economy, calculated
for your specic driving conditions, and range
information.Average Fuel Economy:The average fuel
economy is viewed as a long-term approximation
of your overall driving conditions. You should
reset the average fuel economy display every time
you refuel. If you press the RESET button in
this mode while you are driving, the system will
reset this display and begin guring fuel economy
from that point in time.
Press the fuel button to display average fuel
economy, such as:
AVERAGE FUEL ECONOMY 20.1 MPG or
AVERAGE FUEL ECONOMY 11.7 L/100 km
Instantaneous Fuel Economy:Instantaneous
fuel economy reects only the fuel economy
that the vehicle has right now and will change
frequently as driving conditions change. Unlike
average fuel economy, this menu item cannot
be reset.
Press the fuel button again to display
instantaneous fuel economy, such as:
INSTANT FUEL ECONOMY 20.1 MPG or
INSTANT FUEL ECONOMY 11.7 L/100 km
209
