2006 TOYOTA LAND CRUISER Owners Manual

335

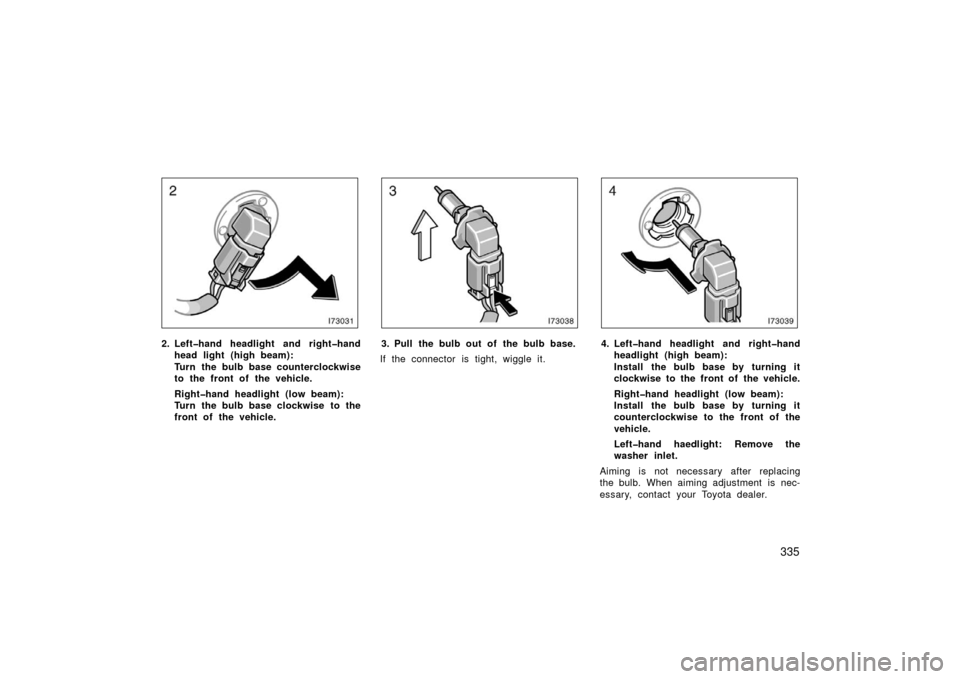

2. Lefthand headlight and righthandhead light (high beam):
Turn the bulb base counterclockwise
to the front of the vehicle.
Righthand headlight (low beam):
Turn the bulb base clockwise to the
front of the vehicle.3. Pull the bulb out of the bulb base.
If the connector is tight, wiggle it.4. Lefthand headlight and righthand headlight (high beam):
Install the bulb base by turning it
clockwise to the front of the vehicle.
Righthand headlight (low beam):
Install the bulb base by turning it
counterclockwise to the front of the
vehicle.
Lefthand haedlight: Remove the
washer inlet.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.

336
—Front fog lights

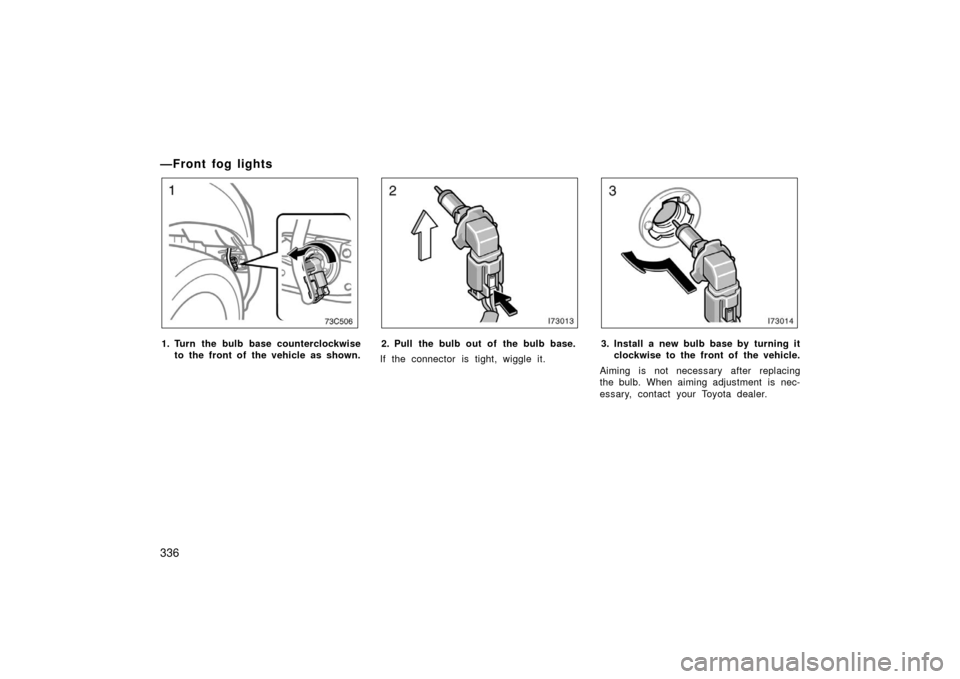

1. Turn the bulb base counterclockwiseto the front of the vehicle as shown.2. Pull the bulb out of the bulb base.
If the connector is tight, wiggle it.3. Install a new bulb base by turning it clockwise to the front of the vehicle.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.

337
If either the left or right front turn sig-
nal and front side marker light burns
out, contact your Toyota dealer.
NOTICE
Do not try to replace the front turn
signal and front side marker light
bulbs by your self. You may damage
the vehicle.

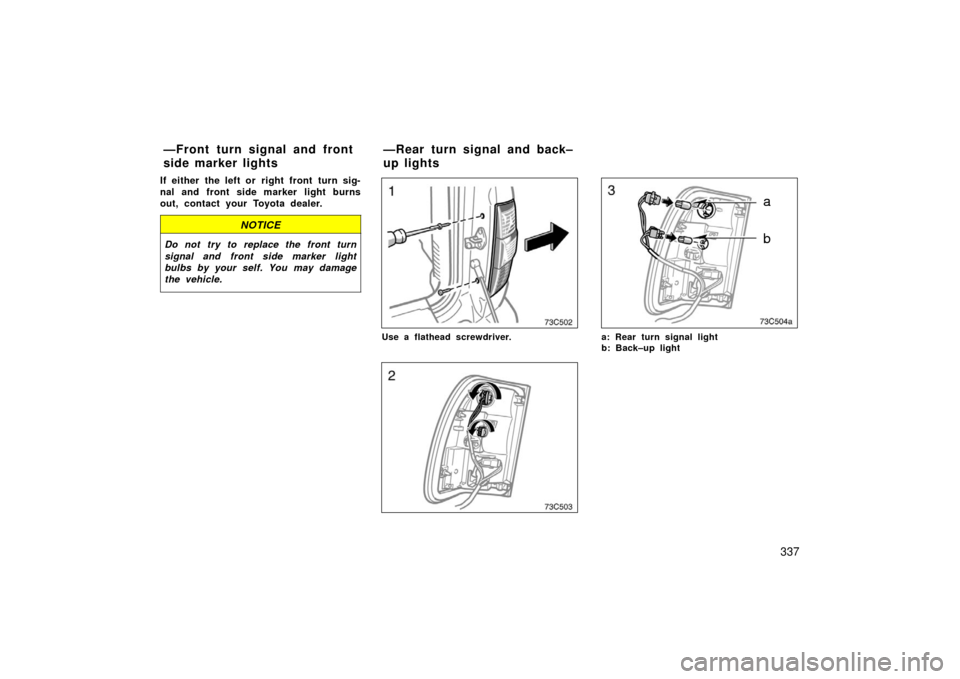

Use a flathead screwdriver.
a
b
a: Rear turn signal light
b: Back–up light
—Front turn signal and front
side marker lights—Rear turn signal and back–
up lights

338

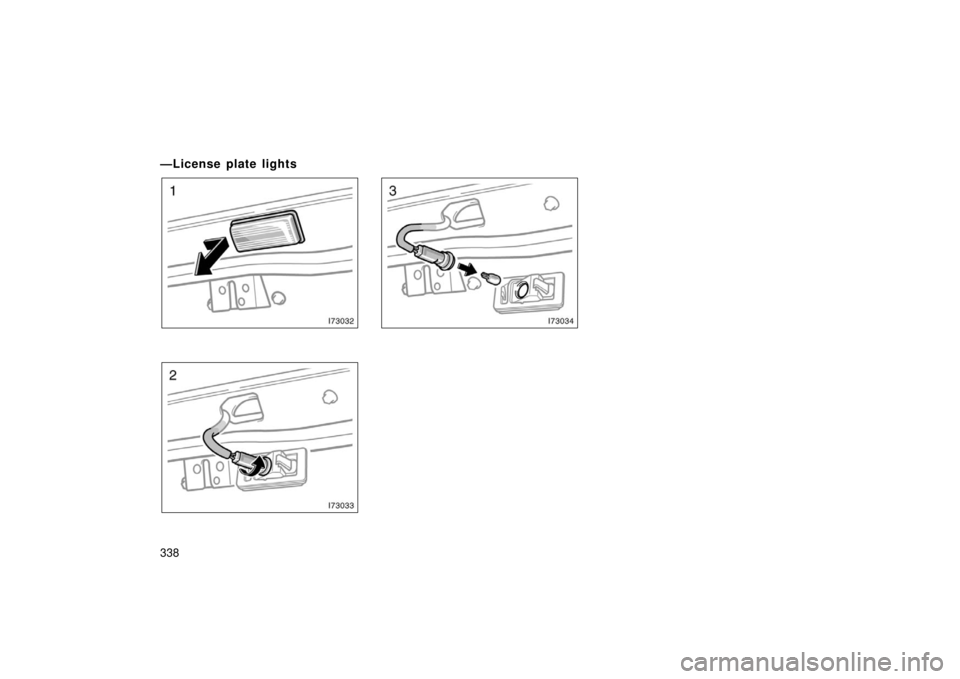

—License plate lights

339
SPECIFICATIONS
Dimensions and weightss340
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine 340
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 340
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 341
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 344
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 345
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8

340
Dimensions and weights
Overall length mm (in.) 4890 (192.5)
Overall width mm (in.) 1940 (76.4)
Overall height
∗1mm (in.) 1875 (73.8)
1845 (72.6)∗2
Wheelbase mm (in.) 2850 (112.2)
Front tread mm (in.) 1620 (63.8)
Rear tread mm (in.) 1615 (63.6)
Vehicle capacity weight
(occupants + luggage)
kg (lb.) 545 (1200)
Towing capacity
(trailer weight + cargo weight) kg (lb.) 2948 (6500)
∗1: Unladen vehicle
∗2: With active height control suspension
Engine
Model:
4.7L V8 (2UZ −FE)
Type: 8 cylinder V type, 4 cycle, gasoline
Bore and stroke, mm (in.): 94.0  84.0 (3.70  3.30)
Displacement, cm
3 (cu. in.):
4664 (284.6)
Fuel
Fuel type: Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or higher.
For improved vehicle performance, the
use of premium unleaded gasoline with
an Octane Rating of 91 (Research Oc-
tane Number 96) or higher is recom-
mended.
Fuel tank capacity, L (gal., Imp.gal.): 96 (25.4, 21.1)

341
Service specifications
ENGINE
Valve clearance (engine cold), mm (in.):Intake 0.15 – 0.25 (0.006 – 0.010)
Exhaust 0.25 – 0.35 (0.010 – 0.014)
Spark plug type: DENSO SK20R11
NGK IFR6A11
Spark plug gap, mm (in.): 1.1 (0.043)
ENGINE LUBRICATION
Oil capacity (drain and refill), L (qt.,
Imp.qt.) With filter 6.8 (7.2, 6.0)
Without filter 6.4 (6.8, 5.6)
Oil grade:
“Toyota Genuine Motor Oil” is used in
your Toyota vehicle. Use Toyota ap-
proved “Toyota Genuine Motor Oil” or
equivalent to satisfy the following grade
and viscosity.
Oil grade:
API grade, SL “Energy −Conserving” or
ILSAC multigrade engine oil Recommended viscosity:
SAE 5W
−30

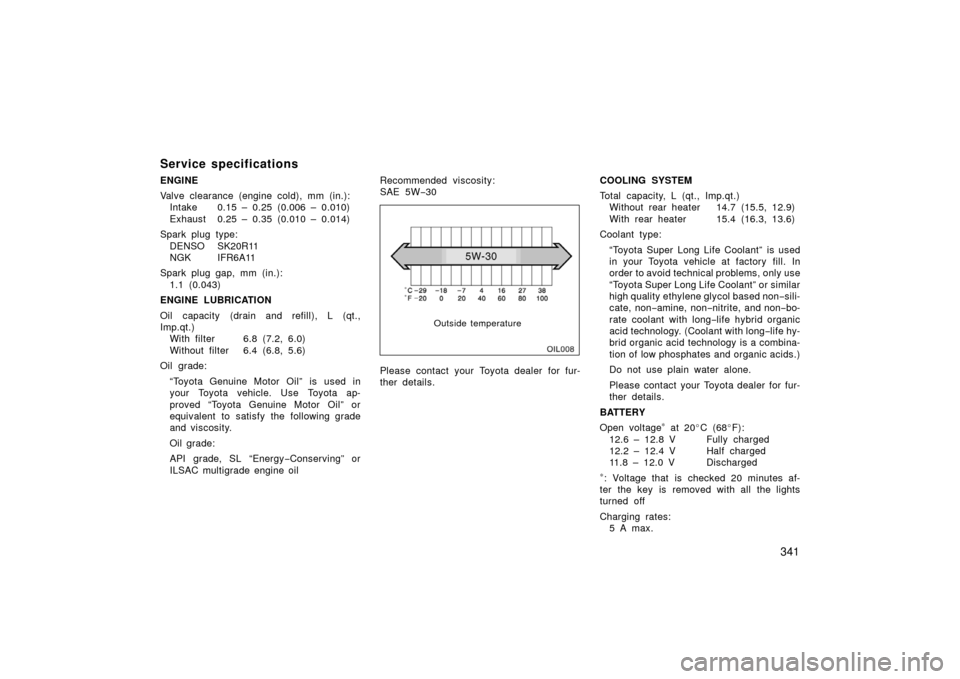

Outside temperature
Please contact your Toyota dealer for fur-
ther details. COOLING SYSTEM
Total capacity, L (qt., Imp.qt.)
Without rear heater 14.7 (15.5, 12.9)
With rear heater 15.4 (16.3, 13.6)
Coolant type:
“Toyota Super Long Life Coolant” is used
in your Toyota vehicle at factory fill. In
order to avoid technical problems, only use
“Toyota Super Long Life Coolant” or similar
high quality ethylene glycol based non −sili-
cate, non −amine, non− nitrite, and non− bo-
rate coolant with long −life hybrid organic
acid technology. (Coolant with long −life hy-
brid organic acid technology is a combina-
tion of low phosphates and organic acids.)
Do not use plain water alone.
Please contact your Toyota dealer for fur-
ther details.
BATTERY
Open voltage
∗ at 20 C (68 F):
12.6 – 12.8 V Fully charged
12.2 – 12.4 V Half charged
11.8 – 12.0 V Discharged
∗: Voltage that is checked 20 minutes af-
ter the key is removed with all the lights
turned off
Charging rates: 5 A max.

342
AUTOMATIC TRANSMISSION
Fluid capacity (drain and refill), L (qt.,
Imp.qt.) Up to 3.0 (3.2, 2.6)
Fluid type: “Toyota Genuine ATF WS”
Change automatic transmission fluid
only as necessary.
Generally, it is necessary to change au-
tomatic transmission fluid only if your
vehicle is driven under one of the Spe-
cial Operating Conditions listed in your
“Scheduled Maintenance Guide” or
“Owner ’s Manual Supplement”. When
changing the automatic transmission
fluid, use only “Toyota Genuine ATF
WS” (ATF JWS3324 or NWS9638) to aid
in assuring maximum transmission per-
formance.
Notice: Using automatic transmission
fluid other than “Toyota Genuine ATF
WS” may cause deterioration in shift
quality, locking up of your transmis-
sion accompanied by vibration, and
ultimately damage the automatic
transmission of your vehicle. TRANSFER
Oil capacity, L (qt., Imp.qt.)
1.3 (1.4, 1.1)
Oil type: Gear oil API GL −4 or GL −5
Recommended oil viscosity: SAE 75W −90
DIFFERENTIAL
Oil capacity, L (qt., Imp.qt.): Front 1.6 (1.7, 1.4)
Rear 3.3 (3.5, 2.9)
Oil type: Hypoid gear oil API GL −5
Recommended oil viscosity: Above –18 C (0 F)
SAE 90
Below –18 C (0 F)
SAE 80W or 80W −90 CHASSIS LUBRICATION
Wheel bearings:
Lithium base wheel bearing grease,
NLGI No.2
Front drive shaft thrust bushings: Synthetic oil and lithium soap base
chassis grease, NLGI No.1
Propeller shafts: SpidersLithium base chassis grease, NLGI
No.2
Slide yoke Lithium base chassis grease, NLGI
No.2 or Molybdenum—disulfide lithium
base chassis grease, NLGI No.2
