2006 TOYOTA LAND CRUISER Owners Manual

79
Make sure you have complied with
all installation instructions provided
by the child restraint manufacturer
and that the system is properly se-
cured. It is not secured properly, it
may cause death or serious injury
to the child in the event of a stop
or accident.
—Child restraint system
A child restraint system for a small
child or baby must itself be properly
restrained on the seat with the lap por-
tion of the lap/shoulder belt. You must
carefully consult the manufacturer ’s
instructions which accompany the child
restraint system.
To provide proper restraint, use a child
restraint system following the manufactur-
er ’s instructions about the appropriate age
and size of the child for the child restraint
system.
Install the child restraint system correctly
following the instructions provided by its
manufacturer. General directions are also
provided under the following illustrations.
The child restraint system should be
installed on the rear seat. According to
accident statistics, the child is safer when
properly restrained in the rear seat than
in the front seat.
When not using the child restraint system,
keep it secured with the seat belt or place
it somewhere other than the passenger
compartment. This will prevent it from in-
juring passengers in the event of a sud-
den stop or accident.Child restraint systems are classified into
the following 3 types depending on the
child’s age and size.
(A) Infant seat
(B) Convertible seat
(C) Booster seat
Install the child restraint system following
the instructions provided by its manufac-
turer.
Your vehicle has anchor brackets for se-
curing the top strap of a child restraint
system. For instructions a
bout how to use
the anchor bracket, see “Using a top
strap” on page 94.
Child restraint lower anchorages approved
for your vehicle may also be used. See
“Installation with child restraint lower an-
chorages” on page 96.
—Types of child restraint
system

80
(A) Infant seat
(B) Convertible seat
(C) Booster seat(A) INFANT SEAT INSTALLATION
An infant seat must be used in rear
facing position only.
—Installation with 2point
type seat belt

81

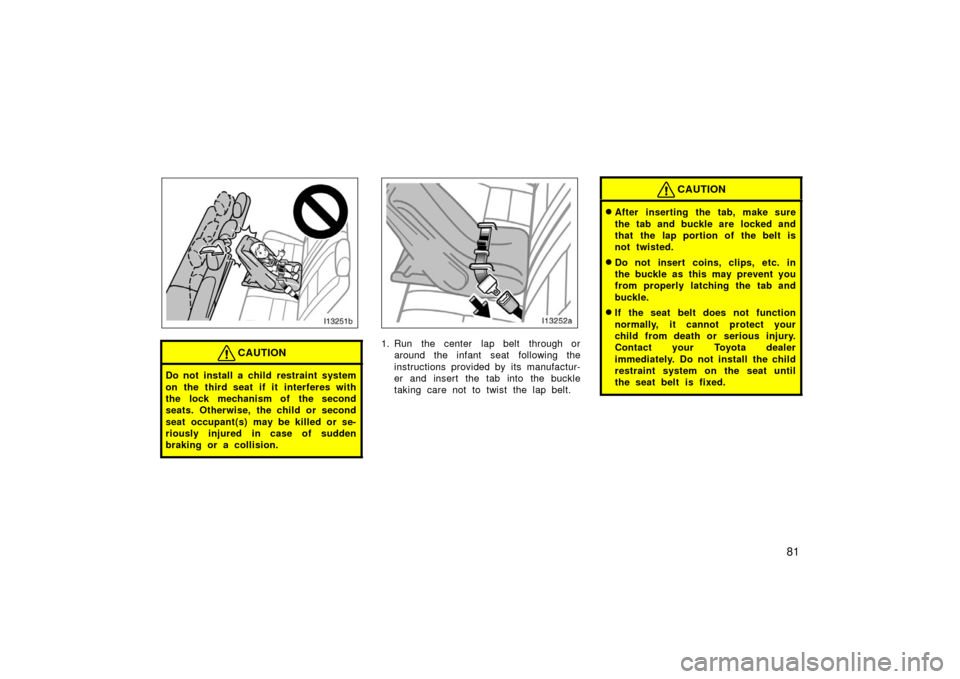

CAUTION
Do not install a child restraint system
on the third seat if it interferes with
the lock mechanism of the second
seats. Otherwise, the child or second
seat occupant(s) may be killed or se-
riously injured in case of sudden
braking or a collision.
1. Run the center lap belt through or around the infant seat following the
instructions provided by its manufactur-
er and insert the tab into the buckle
taking care not to twist the lap belt.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap portion of the belt is
not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer
immediately. Do not install the child
restraint system on the seat until
the seat belt is fixed.

82

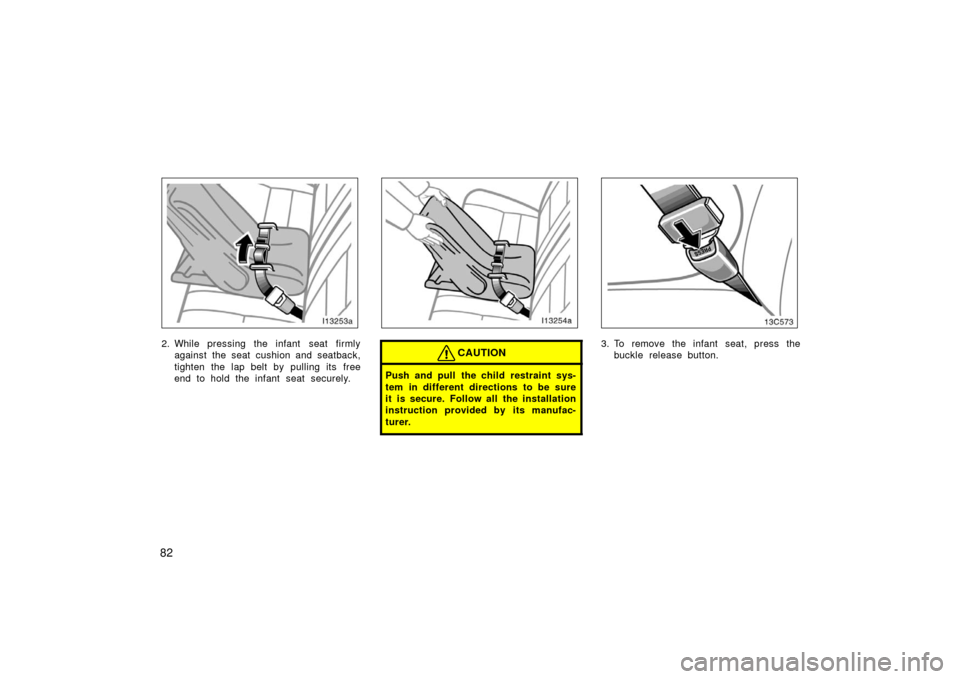

2. While pressing the infant seat firmlyagainst the seat cushion and seatback,
tighten the lap belt by pulling its free
end to hold the infant seat securely.CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instruction provided by its manufac-
turer.
3. To remove the infant seat, press thebuckle release button.

83

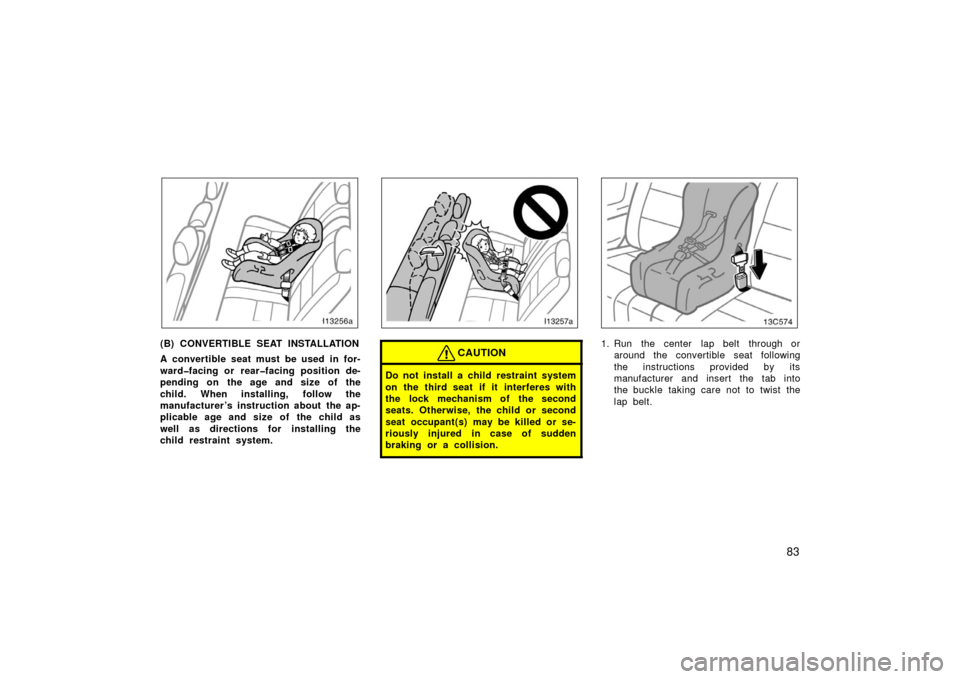

(B) CONVERTIBLE SEAT INSTALLATION
A convertible seat must be used in for-
wardfacing or rearfacing position de-
pending on the age and size of the
child. When installing, follow the
manufacturer ’s instruction about the ap-
plicable age and size of the child as
well as directions for installing the
child restraint system.CAUTION
Do not install a child restraint system
on the third seat if it interferes with
the lock mechanism of the second
seats. Otherwise, the child or second
seat occupant(s) may be killed or se-
riously injured in case of sudden
braking or a collision.
1. Run the center lap belt through or around the convertible seat following
the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
lap belt.

84

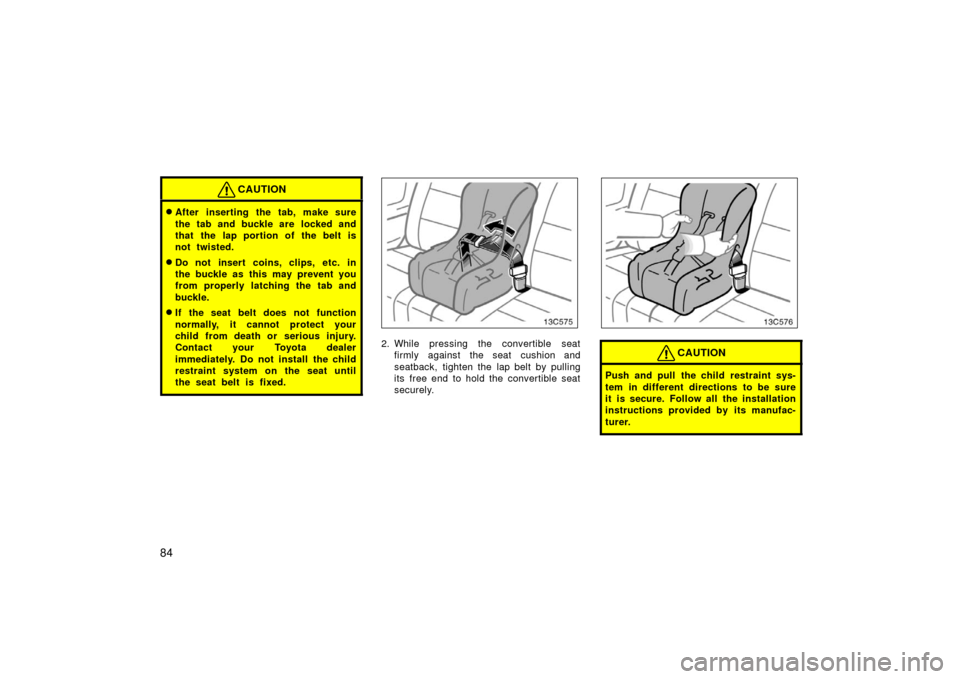

CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap portion of the belt is
not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer
immediately. Do not install the child
restraint system on the seat until
the seat belt is fixed.
2. While pressing the convertible seatfirmly against the seat cushion and
seatback, tighten the lap belt by pulling
its free end to hold the convertible seat
securely.CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.

85

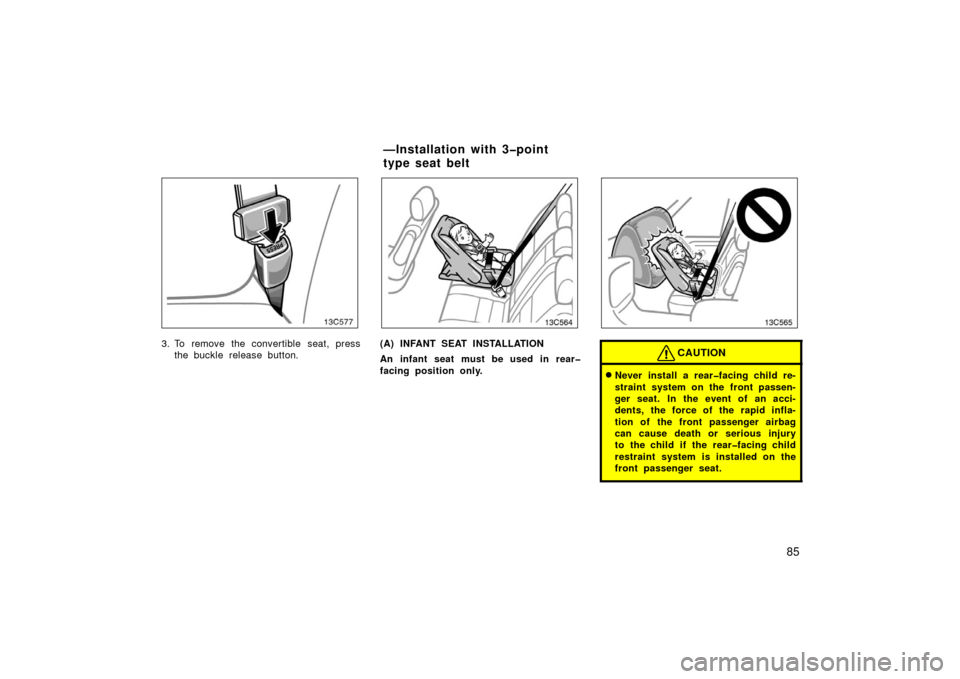

3. To remove the convertible seat, pressthe buckle release button. 13c564(A) INFANT SEAT INSTALLATION
An infant seat must be used in rear
facing position only.
13c565
CAUTION
Never install a rearfacing child re-
straint system on the front passen-
ger seat. In the event of an acci-
dents, the force of the rapid infla-
tion of the front passenger airbag
can cause death or serious injury
to the child if the rearfacing child
restraint system is installed on the
front passenger seat.
—Installation with 3point
type seat belt

86

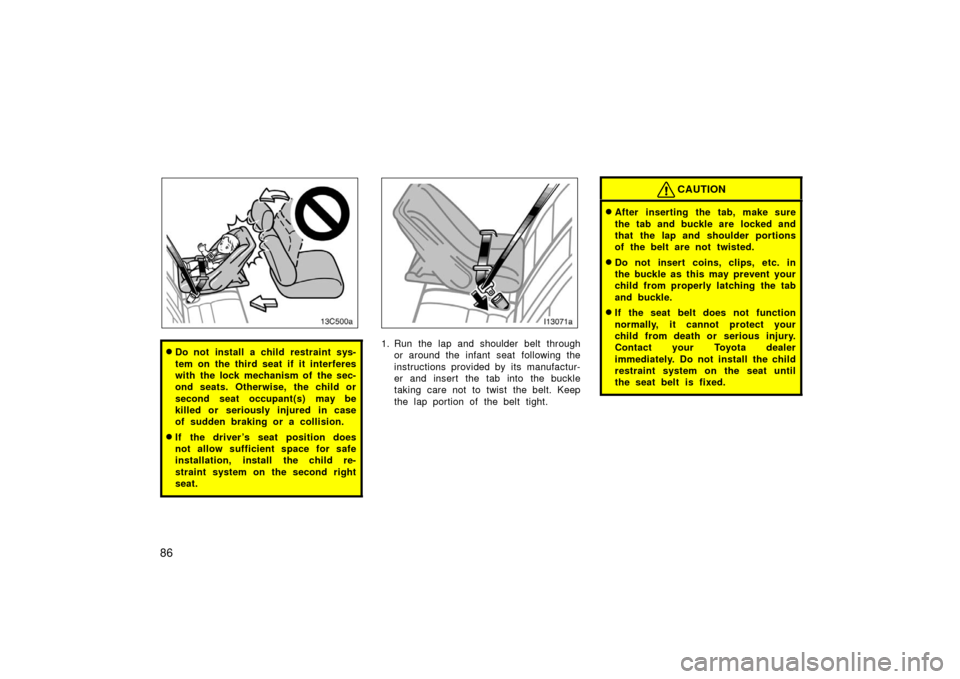

Do not install a child restraint sys-
tem on the third seat if it interferes
with the lock mechanism of the sec-
ond seats. Otherwise, the child or
second seat occupant(s) may be
killed or seriously injured in case
of sudden braking or a collision.
If the driver ’s seat position does
not allow sufficient space for safe
installation, install the child re-
straint system on the second right
seat.
1. Run the lap and shoulder belt throughor around the infant seat following the
instructions provided by its manufactur-
er and insert the tab into the buckle
taking care not to twist the belt. Keep
the lap portion of the belt tight.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer
immediately. Do not install the child
restraint system on the seat until
the seat belt is fixed.
