95

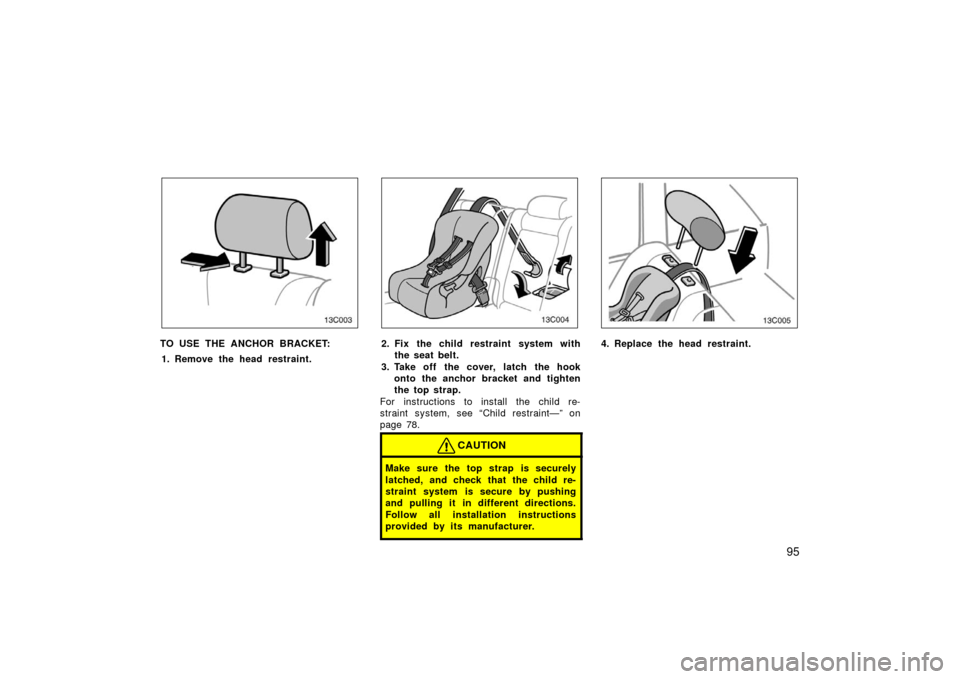

13C003
TO USE THE ANCHOR BRACKET:1. Remove the head restraint.
13C004
2. Fix the child restraint system with the seat belt.
3. Take off the cover, latch the hook onto the anchor bracket and tighten
the top strap.
For instructions to install the child re-
straint system, see “Child restraint—” on
page 78.
CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
Follow all installation instructions
provided by its manufacturer.
13C005
4. Replace the head restraint.

96
13C529
The lower anchorages for the child re-
straint system interfaced with the
FMVSS225 specification are installed in
the second seat.
The anchorages are installed in the clear-
ance between the seat cushion and seat-
back of left and center second seats.
Child restraint system interfaced with the
FMVSS213 specification can be fixed with
these anchorages. In this case, it is not
necessary to fix the child restraint system
with a seat belt on the vehicle.
13c571
Most upright
position
CHILD RESTRAINT SYSTEM INSTALLA-
TION1. Fold down the seatback and back to the most upright position until it
locks into place.
13C532f
2. Take off the cover between the seatcushion and seatback and confirm
the position of the lower anchorages
below the symbol in the seat back.
—Installation with child
restraint lower anchorages

97

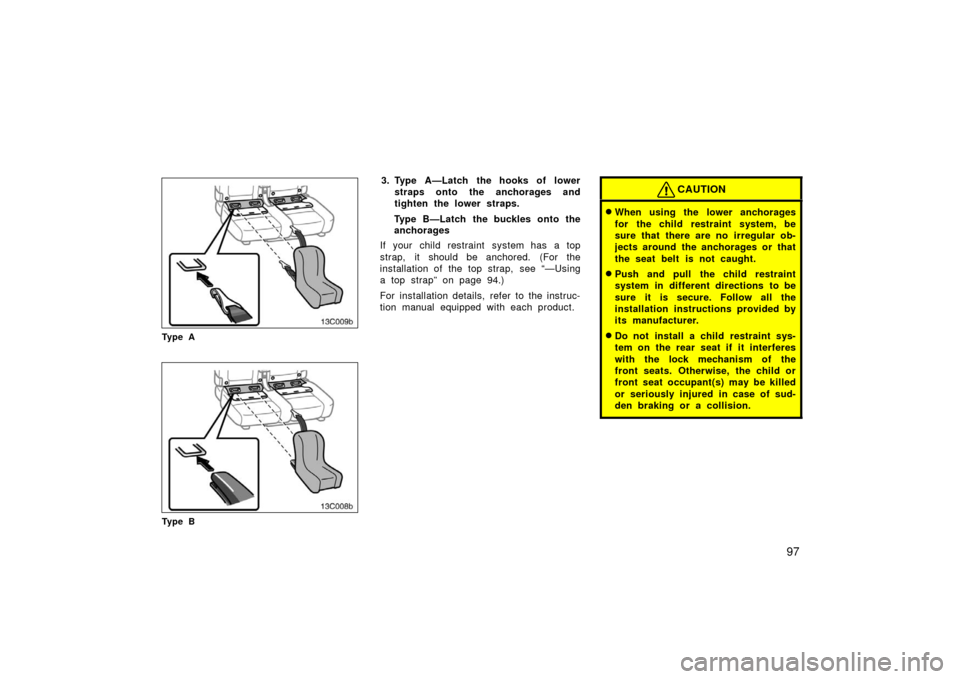

13C009b
Ty p e A
13C008b
Ty p e B
3. Type A—Latch the hooks of lowerstraps onto the anchorages and
tighten the lower straps.
Type B—Latch the buckles onto the
anchorages
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see “—Using
a top strap” on page 94.)
For installation details, refer to the instruc-
tion manual equipped with each product.CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
Do not install a child restraint sys-
tem on the rear seat if it interferes
with the lock mechanism of the
front seats. Otherwise, the child or
front seat occupant(s) may be killed
or seriously injured in case of sud-
den braking or a collision.

98

99
OPERATION OF INSTRUMENTS AND
CONTROLS
Steering wheel and Mirrors
Power tilt and telescopic steering wheel100
. . . . . . . . . . . . . . . . . . . . . . .
Outside rear view mirrors 101
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Anti −glare inside rear view mirror 102
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sun visors 107
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
SECTION 1 4

100

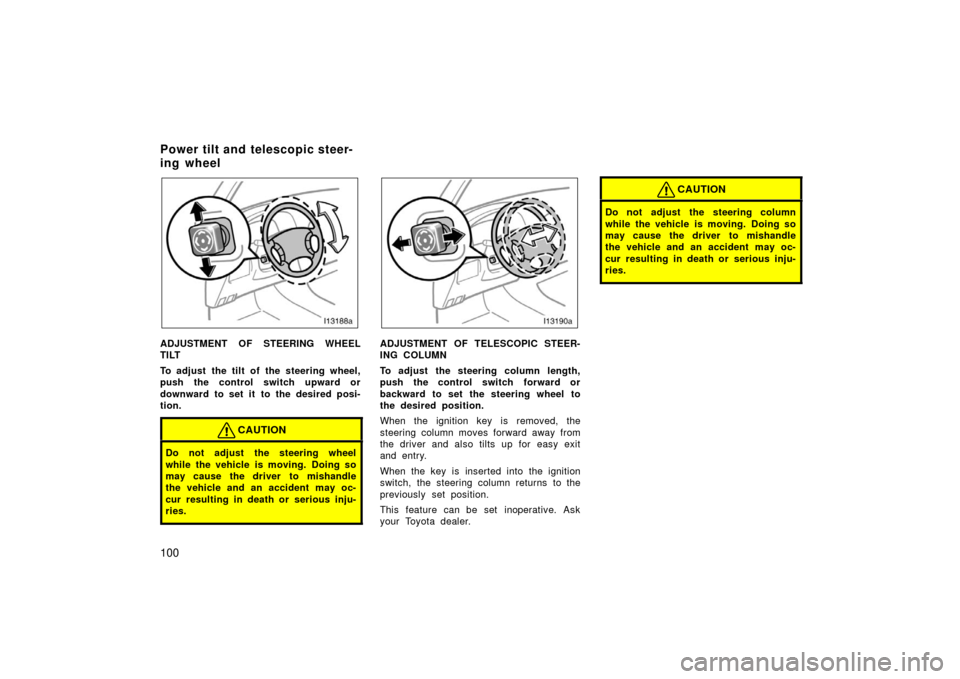

ADJUSTMENT OF STEERING WHEEL
TILT
To adjust the tilt of the steering wheel,
push the control switch upward or
downward to set it to the desired posi-
tion.
CAUTION
Do not adjust the steering wheel
while the vehicle is moving. Doing so
may cause the driver to mishandle
the vehicle and an accident may oc-
cur resulting in death or serious inju-
ries.
ADJUSTMENT OF TELESCOPIC STEER-
ING COLUMN
To adjust the steering column length,
push the control switch forward or
backward to set the steering wheel to
the desired position.
When the ignition key is removed, the
steering column moves forward away from
the driver and also tilts up for easy exit
and entry.
When the key is inserted into the ignition
switch, the steering column returns to the
previously set position.
This feature can be set inoperative. Ask
your Toyota dealer.
CAUTION
Do not adjust the steering column
while the vehicle is moving. Doing so
may cause the driver to mishandle
the vehicle and an accident may oc-
cur resulting in death or serious inju-
ries.
Power tilt and telescopic steer-
ing wheel

101
Outside rear view mirrors—
Adjust the mirror so that you can just
see the side of your vehicle in the mir-
ror.
Be careful when judging the size or dis-
tance of any object seen in the outside
rear view mirror on the passenger ’s side
because it is a convex mirror. Any object
seen in a convex mirror will look smaller
and farther away than when seen in a flat
mirror.
When you push the outside rear view mir-
ror heater switch, the heater panels in the
outside rear view mirrors will quickly clear
the mirror surface. (See “Outside rear
view mirror heaters” on page 117.)
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the
vehicle and an accident may occur
resulting in death or serious inju-
ries.
Since the mirror surfaces can get
hot, do not touch them when the
mirror heater switch is on.
To adjust a mirror, use the switches.1. Master switch—To select the mirror to be adjusted
Place the switch at “L” (left) or “R”
(right).
2. Control switch—To move the mirror Push the switch in the desired direc-
tion.
Mirrors can be adjusted when the key is
in the “ACC” or “ON” position.
—Power rear view mirror
control

102
NOTICE
If ice should jam the mirror, do not
operate the control or scrape the mir-
ror face. Use a spray deicer to free
the mirror.
—Folding rear view mirrors
The rear view mirrors can be folded
backward for parking in compact areas.
To fold the rear view mirror, push back-
ward.
CAUTION
Do not drive with the mirrors folded
backward. Both the driver and pas-
senger side rear view mirrors must
be extended and properly adjusted
before driving.
13C010b
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
Pushing the switch changes the mode
between “AUTO” and “DAY”.
The indicator comes on when the “AUTO”
mode is selected.
“DAY” mode: The mirror surface is nor-
mal.
“AUTO” mode: If the mirror detects
light from the headlights of the vehicle
behind you, the mirror surface darkens
slightly to reduce the reflected light.
Antiglare inside rear view
mirror—
