1-48 Seat, seatbelt and SRS airbags
goes out and the OFF indicator comes on.
If still the ON indicator remains illuminated
while the OFF indicator extinguishes, take
the following actions.
y Ensure that no article is placed on the
seat other than the child restraint system
and the child occupant.
y Ensure that there is no article left in the
seatback pocket.
y Ensure that the backward-forward posi-
tion and seatback of front passenger’s
seat are locked into place securely by
moving the seat back and forth. (Models
equipped with manual seats only)
If the ON indicator still illuminates while
the OFF indicator extinguishes after tak-
ing relevant corrective actions described
above, relocate the child restraint system
to the rear seat and immediately contact
your SUBARU dealer for an inspection.
NOTE When a child who has outgrown a child
restraint system or a small adult is
seated in the front passenger’s seat,
the Subaru advanced frontal airbag
system may or may not activate the
front passenger’s SRS frontal airbag
depending on the occupant’s seating
posture. If the front passenger’s SRS
frontal airbag is activated (the ON indi- cator illuminates while the OFF indica-
tor extinguish es), take the following
actions.
y Ensure that no article is placed on
the seat other than the occupant.
y Ensure that there is no article left in
the seatback pocket.
If the ON indicator still illuminates
while the OFF indicator extinguishes
despite the fact that the actions noted
above have been taken, seat the child/
small adult in the rear seat and immedi-
ately contact your SUBARU dealer for
an inspection. Even if the system has
passed the dealer inspection, it is rec-
ommended that on subsequent trips
the child/small adult always take the
rear seat.
Children who have outgrown a child re-
straint system should always wear the
seatbelt irrespective of whether the airbag
is deactivated or activated.
T Conditions in which front passen-
ger’s SRS frontal airbag is activated
The front passenger’s SRS frontal airbag
will be activated for deployment upon im-
pact when any of the following conditions
is met regarding the front passenger’s
seat.
y When the seat is occupied by an adult. y When a heavy article is placed on the
seat.
When the front passenger’s seat is occu-
pied by an adult, observe the following
precautions. Failure to do so may lessen
the load on the front passenger’s seat, de-
activating the front passenger’s SRS fron-
tal airbag despite the fact that the seat is
occupied by an adult.
y Do not allow the r ear seat occupant to
lift the front passenger’s seat cushion us-
ing his/her feet.
y Do not place any article under the front
passenger’s seat, or squeeze any article
from behind and under the seat. This may
lift the seat cushion.
y Do not squeeze any article between the
front passenger’s seat and side trim/pillar,
door or center consol e box. This may lift
the seat cushion.
V If the passenger’s frontal airbag
OFF indicator illuminates and the
ON indicator extinguishes even
when the front passenger’s seat is
occupied by an adult
This can be caused by the adult incorrect-
ly sitting in the front passenger’s seat.
Turn the ignition switch to the “OFF” posi-
tion. Ask the front passenger to set the
seatback to the upri ght position, sit up
straight in the center of the seat cushion,

Seat, seatbelt and SRS airbags
1-49
– CONTINUED –correctly fasten the seatbelt, position his/
her legs out forward, and adjust the seat
to the rearmost position. Turn the ignition
switch to the “ON” position. If the OFF in-
dicator remains illuminated while the ON
indicator remains extinguished, take the
following actions.
y Turn the ignition switch to the “OFF” po-
sition.
y Ensure that there is no article, book,
shoe, or other object trapped under the
seat, at the rear of the seat, or on the side
of the seat.
y Ensure that the backward-forward posi-
tion and seatback of front passenger’s
seat are locked into place securely by
moving the seat back and forth. (Models
equipped with manual seats only)
y Next, turn the ignition switch to the “ON”
position and wait 6 seconds to allow the
system to complete self-checking. Follow-
ing the system check, both indicators ex-
tinguish for 2 seconds. Now, the ON indi-
cator should illuminate while the OFF indi-
cator remains extinguished.
If the OFF indicator still illuminates while
the ON indicator re mains extinguished,
ask the occupant to move to the rear seat
and immediately contact your SUBARU
dealer for an inspection. T Effect vehicle modifications made
for persons with disabilities may
have on Subaru advanced frontal
airbag system operation (U.S. only)
Changing or moving any parts of the front
seats, seat belts, front bumper, front side
frame, instrument panel, combination
meter, steering whee l, steering column,
tire, suspension or floor panel can affect
the operation of the Subaru advanced air-
bag system. If you have any questions,
you may contact the following Subaru dis-
tributors:
of Columbia>
Subaru of America, Inc.
Customer Dealer Services Department
P.O. Box 6000
Cherry Hill, NJ 08034-6000
1-800-SUBARU3 (1-800-782-2783)

Schuman Carriage Motors, Inc.
1234 South Beretania Street, Honolulu, HI
96814
808-592-4497

Triple J Enterprises, Inc.
P.O. Box 6066, Tamuning, Guam 96931
671-646-9126
Trebol Subaru of Puerto Rico, Inc.
P.O. Box 11204, San Juan, Puerto Rico
00910
787-793-2828
There are currently no Subaru distributors
in any other U.S. terr itories. If you are in
such an area, please contact the Subaru
distributor or dealer from which you
bought your vehicle.

1-50 Seat, seatbelt and SRS airbags
T Operation
1) Driver’s side
2) Passenger’s side

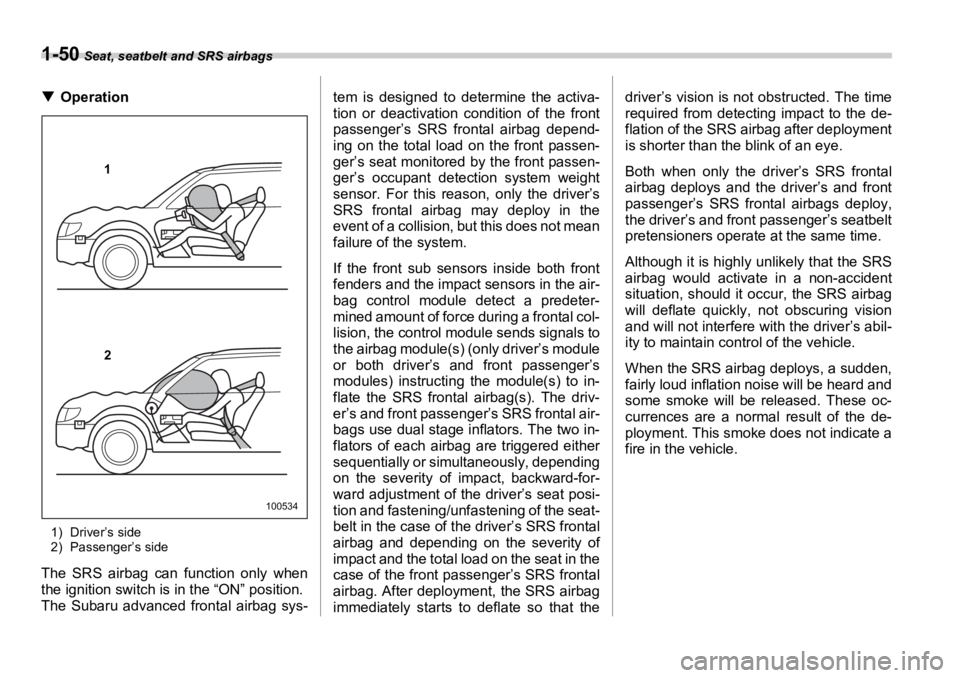

The SRS airbag can function only when
the ignition switch is in the “ON” position.
The Subaru advanced frontal airbag sys- tem is designed to determine the activa-
tion or deactivation condition of the front
passenger’s SRS frontal airbag depend-
ing on the total load on the front passen-
ger’s seat monitored by the front passen-
ger’s occupant detection system weight
sensor. For this reason, only the driver’s
SRS frontal airbag may deploy in the
event of a collision, but this does not mean
failure of the system.
If the front sub sensors inside both front
fenders and the impact sensors in the air-
bag control module detect a predeter-
mined amount of force during a frontal col-
lision, the control module sends signals to
the airbag module(s) (only driver’s module
or both driver’s and front passenger’s
modules) instructing the module(s) to in-
flate the SRS frontal airbag(s). The driv-
er’s and front passenger’s SRS frontal air-
bags use dual stage inflators. The two in-
flators of each airbag are triggered either
sequentially or simultaneously, depending
on the severity of impact, backward-for-
ward adjustment of the driver’s seat posi-
tion and fastening/unfas tening of the seat-
belt in the case of the driver’s SRS frontal
airbag and depending on the severity of
impact and the total load on the seat in the
case of the front passenger’s SRS frontal
airbag. After deployment, the SRS airbag
immediately starts to deflate so that the driver’s vision is not obstructed. The time
required from detecting impact to the de-
flation of the SRS airbag after deployment
is shorter than the blink of an eye.
Both when only the driver’s SRS frontal
airbag deploys and the driver’s and front
passenger’s SRS frontal airbags deploy,
the driver’s and front passenger’s seatbelt
pretensioners operate at the same time.
Although it is highly unlikely that the SRS
airbag would activate in a non-accident
situation, should it occur, the SRS airbag
will deflate quickly, not obscuring vision
and will not interfere with the driver’s abil-
ity to maintain control of the vehicle.
When the SRS airbag deploys, a sudden,
fairly loud inflation noise will be heard and
some smoke will be released. These oc-
currences are a normal result of the de-
ployment. This smoke does not indicate a
fire in the vehicle.1
2
100534

Seat, seatbelt and SRS airbags
1-51
– CONTINUED –The driver’s SRS frontal airbag and front
passenger’s SRS frontal airbag are de-
signed to deploy in the event of an acci-
dent involving a moderate to severe fron-
tal collision. It is ba sically not designed to
deploy in lesser frontal impacts because
the necessary protection can be achieved
by the seatbelt alone. Also, they are basi-
cally not designed to deploy in side or rear
impacts or in roll-over accidents because
deployment of only the driver’s SRS fron-
tal airbag or both driver’s and front pas-
senger’s SRS frontal airbags would not
help the occupant in those situations. The
driver’s and front passenger’s SRS frontal
airbags are designed to function on a one-
time-only basis.
SRS airbag deployment depends on the
level of force experienced in the passen-
ger compartment during a collision. That
level differs from one type of collision to
another, and it may have no bearing on the visible damage done to the vehicle it-
self.

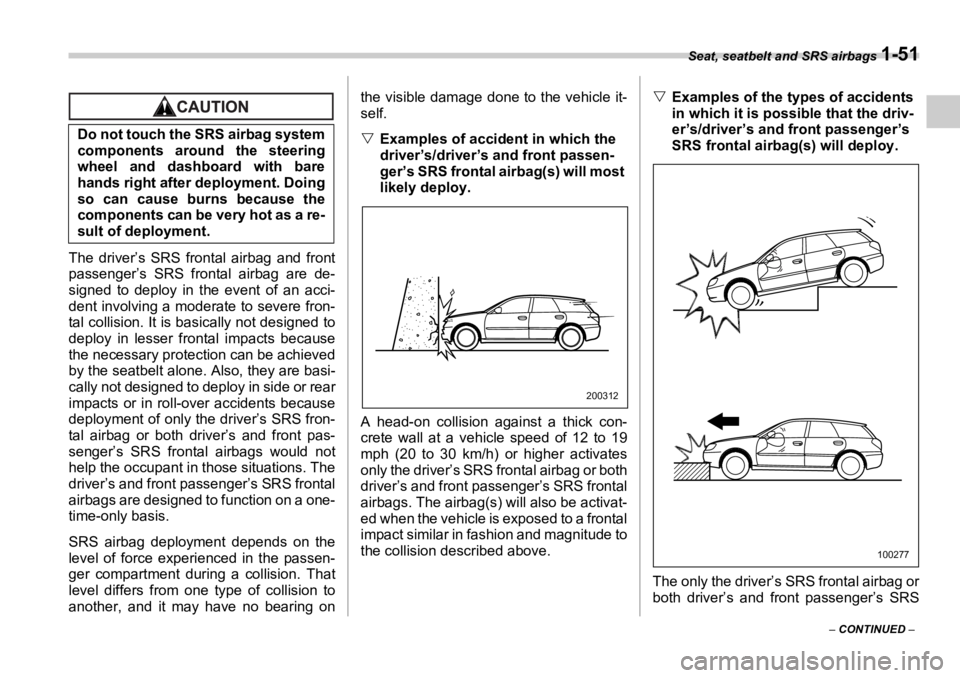

V Examples of accident in which the
driver’s/driver’s and front passen-
ger’s SRS frontal ai rbag(s) will most
likely deploy.
A head-on collision against a thick con-
crete wall at a vehicle speed of 12 to 19
mph (20 to 30 km/h) or higher activates
only the driver’s SRS frontal airbag or both
driver’s and front passenger’s SRS frontal
airbags. The airbag(s) will also be activat-
ed when the vehicle is exposed to a frontal
impact similar in fashion and magnitude to
the collision described above. V Examples of the types of accidents
in which it is possible that the driv-
er’s/driver’s and front passenger’s
SRS frontal airbag (s) will deploy.
The only the driver’s SRS frontal airbag or
both driver’s and front passenger’s SRSDo not touch the SRS airbag system
components around the steering
wheel and dashboard with bare
hands right after deployment. Doing
so can cause burns because the
components can be very hot as a re-
sult of deployment.
200312
100277

1-52 Seat, seatbelt and SRS airbags
frontal airbags may be activated when the
vehicle sustains a hard impact in the un-
dercarriage area from the road surface
(such as when the vehicle plunges into a
deep ditch, is severely impacted or
knocked hard against an obstacle on the
road such as a curb). V Examples of the types of accidents
in which deployment of the driver’s/
driver’s and front passenger’s SRS
frontal ai rbag(s) is unlikely to de-
ploy.

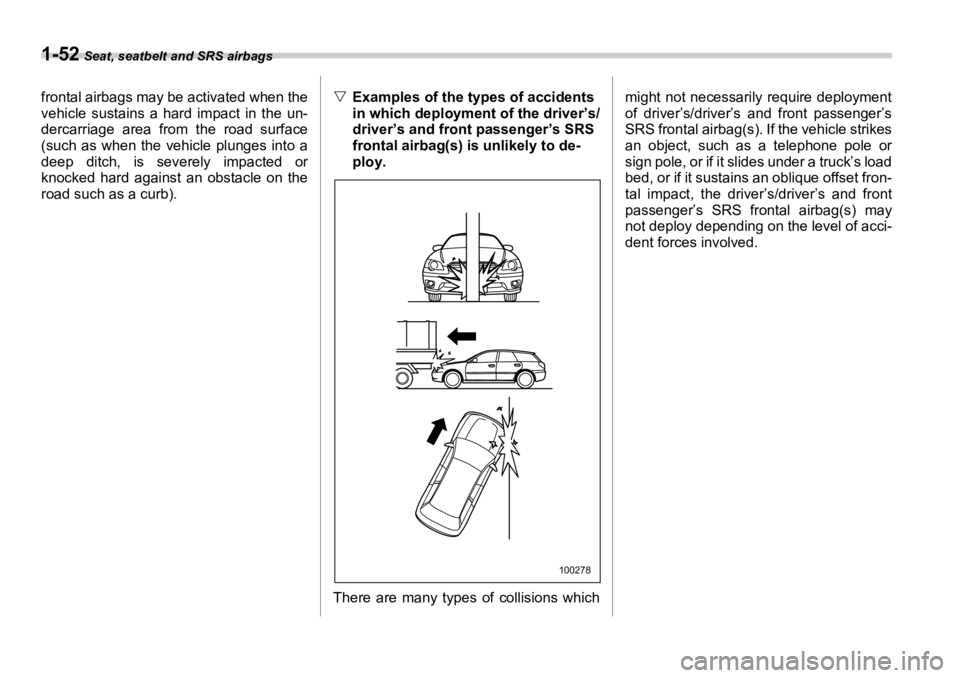

There are many types of collisions which might not necessarily require deployment
of driver’s/driver’s and front passenger’s
SRS frontal airbag(s). If the vehicle strikes
an object, such as a telephone pole or
sign pole, or if it slides under a truck’s load
bed, or if it sustains an oblique offset fron-
tal impact, the driver’s/driver’s and front
passenger’s SRS frontal airbag(s) may
not deploy depending on the level of acci-
dent forces involved.
100278

Seat, seatbelt and SRS airbags
1-53
– CONTINUED –V Examples of the types of accidents
in which the driver’s/driver’s and
front passenger’s SRS frontal air-
bag(s) will basically not deploy.
The driver’s and front passenger’s SRS
frontal airbags are designed basically not to deploy if the vehicle is struck from the
side or from behind, or if it rolls onto its
side or roof, or if it is involved in a low-
speed frontal collision.
1) First impact
2) Second impact
In an accident where the vehicle is impact-
ed more than once, the driver’s and/or
front passenger’s SRS frontal airbag(s)
will deploy only once on the first impact.
Example: In the case of a double collision,
first with another vehicle, then against a
concrete wall in immediate succession,
once either or both of the driver’s and front
passenger’s SRS frontal airbags is/are ac-
tivated on the first im pact, it/they will not
be activated on the second impact. „ SRS side airbag and SRS cur-
tain airbag The SRS side airbag is stored in the door
side of each front seat seatback, which
bears an “SRS AIRBAG” label.
In a moderate to severe side impact colli-
sion, the SRS side airbag on the impacted
side of the vehicle deploys between the
occupant and the door panel and supple-
ments the seatbelt by reducing the impact
on the occupant’s chest and waist. The
SRS side airbag operates only for front
seat occupants.
The SRS curtain airbag on each side of
the cabin is stored in the roof side (be-
tween the front pillar and a point over the
rear seat). An “SRS AIRBAG” mark is lo-
cated at the top of each center pillar.
In a moderate to severe side impact colli-
sion, the SRS curtain airbag on the im-
pacted side of the vehicle deploys be-
tween the occupant and the side window
and supplements the seatbelt by reducing
the impact on the occupant’s head.
100279 2
1 100539

1-54 Seat, seatbelt and SRS airbags

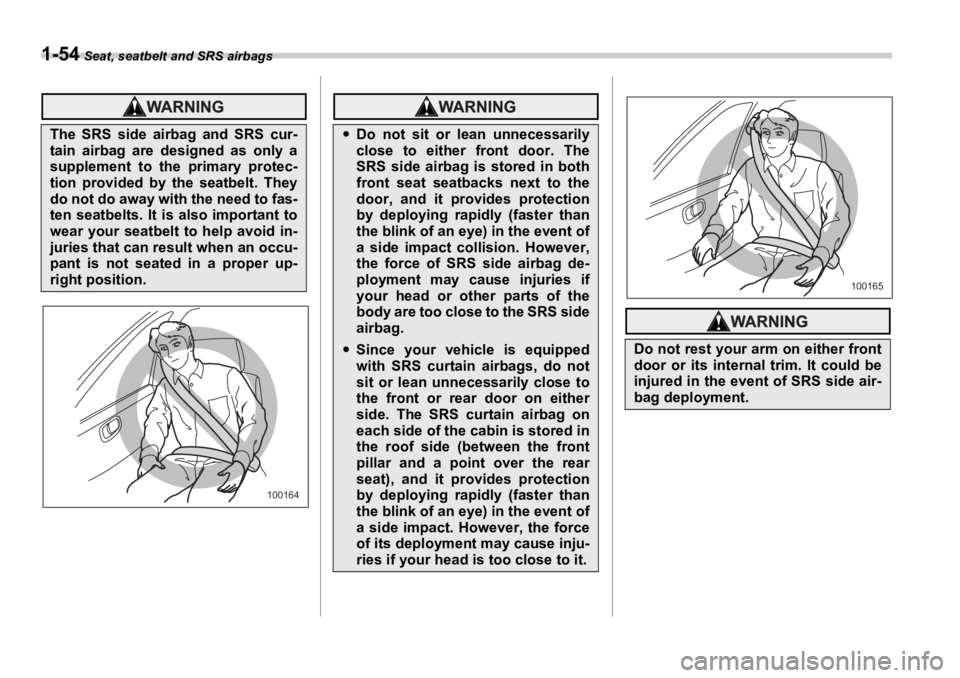

The SRS side airbag and SRS cur-
tain airbag are designed as only a
supplement to the primary protec-
tion provided by the seatbelt. They
do not do away with the need to fas-
ten seatbelts. It is also important to
wear your seatbelt to help avoid in-
juries that can result when an occu-
pant is not seated in a proper up-
right position.
100164y Do not sit or lean unnecessarily
close to either front door. The
SRS side airbag is stored in both
front seat seatbacks next to the
door, and it provides protection
by deploying rapidly (faster than
the blink of an eye) in the event of
a side impact collision. However,
the force of SRS side airbag de-
ployment may cause injuries if
your head or other parts of the
body are too close to the SRS side
airbag.
y Since your vehicle is equipped
with SRS curtain airbags, do not
sit or lean unnecessarily close to
the front or rear door on either
side. The SRS curtain airbag on
each side of the cabin is stored in
the roof side (between the front
pillar and a point over the rear
seat), and it provides protection
by deploying rapidly (faster than
the blink of an eye) in the event of
a side impact. However, the force
of its deployment may cause inju-
ries if your head is too close to it. Do not rest your arm on either front
door or its internal trim. It could be
injured in the event of SRS side air-
bag deployment. 100165

Seat, seatbelt and SRS airbags
1-55
– CONTINUED –100166

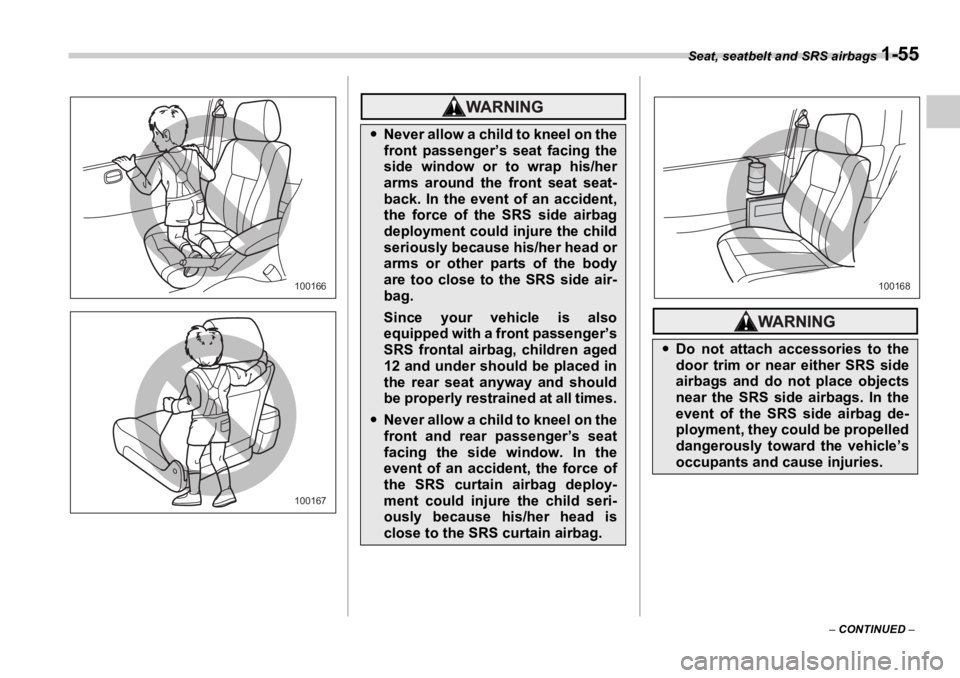

100167y Never allow a child to kneel on the
front passenger’s seat facing the
side window or to wrap his/her
arms around the front seat seat-
back. In the event of an accident,
the force of the SRS side airbag
deployment could injure the child
seriously because his/her head or
arms or other parts of the body
are too close to the SRS side air-
bag.
Since your vehicle is also
equipped with a front passenger’s
SRS frontal airbag, children aged
12 and under should be placed in
the rear seat anyway and should
be properly restrained at all times.
y Never allow a child to kneel on the
front and rear passenger’s seat
facing the side window. In the
event of an accident, the force of
the SRS curtain airbag deploy-
ment could injure the child seri-
ously because his/her head is
close to the SRS curtain airbag. y Do not attach accessories to the
door trim or near either SRS side
airbags and do not place objects
near the SRS side airbags. In the
event of the SRS side airbag de-
ployment, they could be propelled
dangerously toward the vehicle’s
occupants and cause injuries. 100168
