11 - 4 Maintenance and service
„ Before checking or servicing
in the engine compartment „ When you do checking or ser-
vicing in the engine compart-
ment while the engine is run-
ning Engine hood
To open the hood:
1. If the wiper blades are lifted off the
windshield, return them to their original
positions.

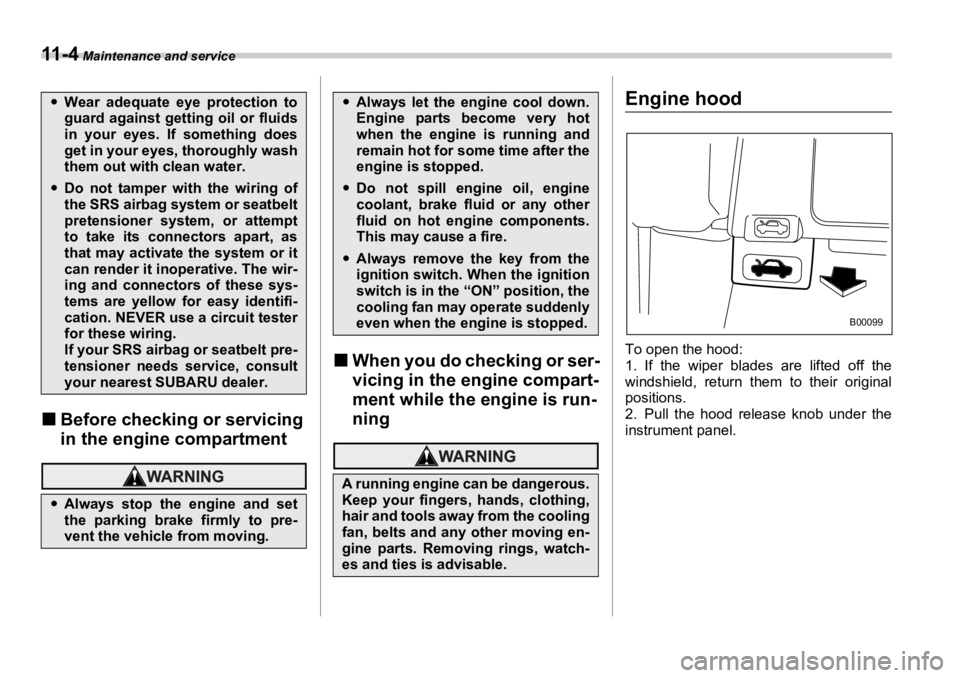

2. Pull the hood release knob under the
instrument panel.y Wear adequate eye protection to
guard against getting oil or fluids
in your eyes. If something does
get in your eyes, thoroughly wash
them out with clean water.
y Do not tamper wi th the wiring of
the SRS airbag system or seatbelt
pretensioner system, or attempt
to take its connectors apart, as
that may activate the system or it
can render it inoperative. The wir-
ing and connectors of these sys-
tems are yellow for easy identifi-
cation. NEVER use a circuit tester
for these wiring.
If your SRS airbag or seatbelt pre-
tensioner needs service, consult
your nearest SUBARU dealer.
y Always stop the engine and set
the parking brake firmly to pre-
vent the vehicle from moving. y Always let the engine cool down.
Engine parts b ecome very hot
when the engine is running and
remain hot for some time after the
engine is stopped.
y Do not spill engine oil, engine
coolant, brake fluid or any other
fluid on hot engine components.
This may cause a fire.
y Always remove the key from the
ignition switch. When the ignition
switch is in the “ON” position, the
cooling fan may operate suddenly
even when the engine is stopped.
A running engine can be dangerous.
Keep your fingers, hands, clothing,
hair and tools away from the cooling
fan, belts and any other moving en-
gine parts. Removing rings, watch-
es and ties is advisable. B00099

Maintenance and service
11 - 5

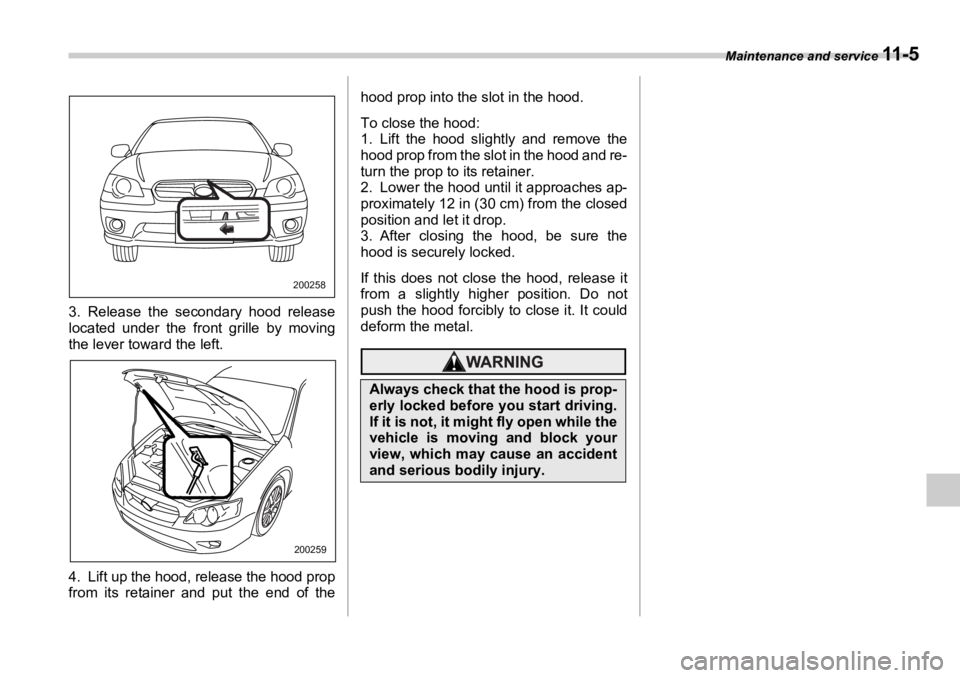

3. Release the secondary hood release
located under the fr ont grille by moving
the lever toward the left.
4. Lift up the hood, release the hood prop
from its retainer and put the end of the hood prop into the slot in the hood.
To close the hood:
1. Lift the hood slightly and remove the
hood prop from the slot in the hood and re-
turn the prop to its retainer.
2. Lower the hood until it approaches ap-
proximately 12 in (30 cm) from the closed
position and let it drop.
3. After closing the hood, be sure the
hood is securely locked.
If this does not close the hood, release it
from a slightly higher position. Do not
push the hood forcibly to close it. It could
deform the metal. 200258
200259Always check that the hood is prop-
erly locked before you start driving.
If it is not, it might fly open while the
vehicle is moving and block your
view, which may cause an accident
and serious bodily injury.

11 - 6 Maintenance and service

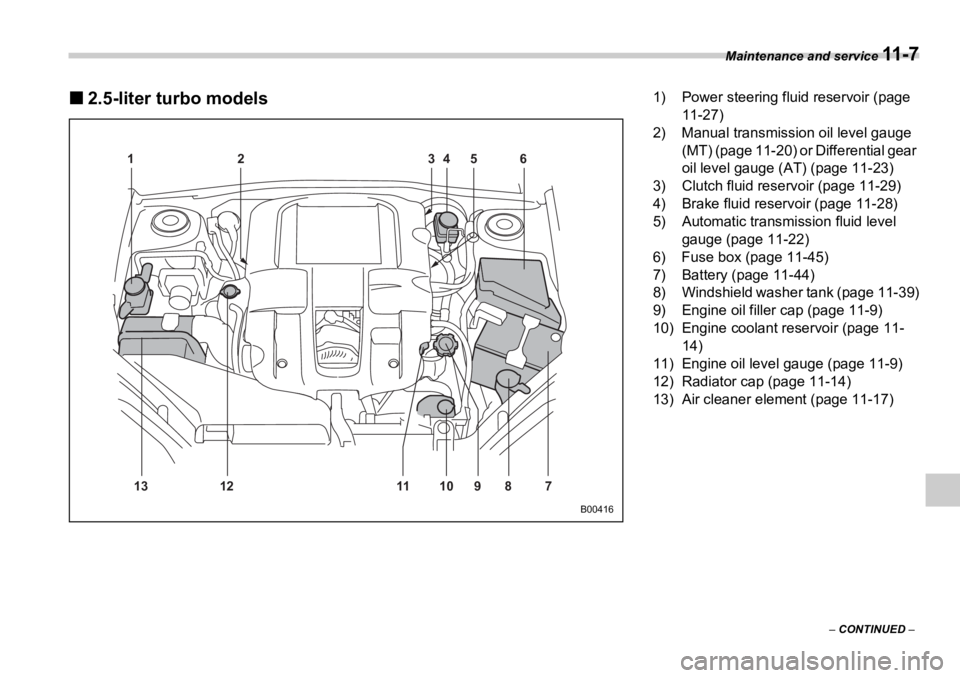

Engine compartment overview „ 2.5-liter non-turbo models 12 3 4 56
7891011
13 12 B004141) Power steering fluid reservoir (page
11-27)
2) Manual transmission oil level gauge
(MT) (page 11-20) or Differential gear
oil level gauge (AT) (page 11-23)
3) Clutch fluid reservoir (page 11-29)
4) Automatic transmi ssion fluid level
gauge (page 11-22)
5) Brake fluid reservoir (page 11-28)
6) Fuse box (page 11-45)
7) Battery (page 11-44)
8) Windshield washer tank (page 11-39)
9) Engine oil filler cap (page 11-9)
10) Engine coolant reservoir (page 11-
14)
11) Radiator cap (page 11-14)
12) Engine oil level gauge (page 11-9)
13) Air cleaner element (page 11-17)

Maintenance and service
11 - 7
– CONTINUED –„ 2.5-liter turbo models 12 4635
13 12 11 10 9 8 7 B004161) Power steering fluid reservoir (page
11-27)
2) Manual transmission oil level gauge
(MT) (page 11-20) or Differential gear
oil level gauge (AT) (page 11-23)
3) Clutch fluid reservoir (page 11-29)
4) Brake fluid reservoir (page 11-28)
5) Automatic transmission fluid level
gauge (page 11-22)
6) Fuse box (page 11-45)
7) Battery (page 11-44)
8) Windshield washer tank (page 11-39)
9) Engine oil filler cap (page 11-9)
10) Engine coolant reservoir (page 11-
14)
11) Engine oil level gauge (page 11-9)
12) Radiator cap (page 11-14)
13) Air cleaner element (page 11-17)

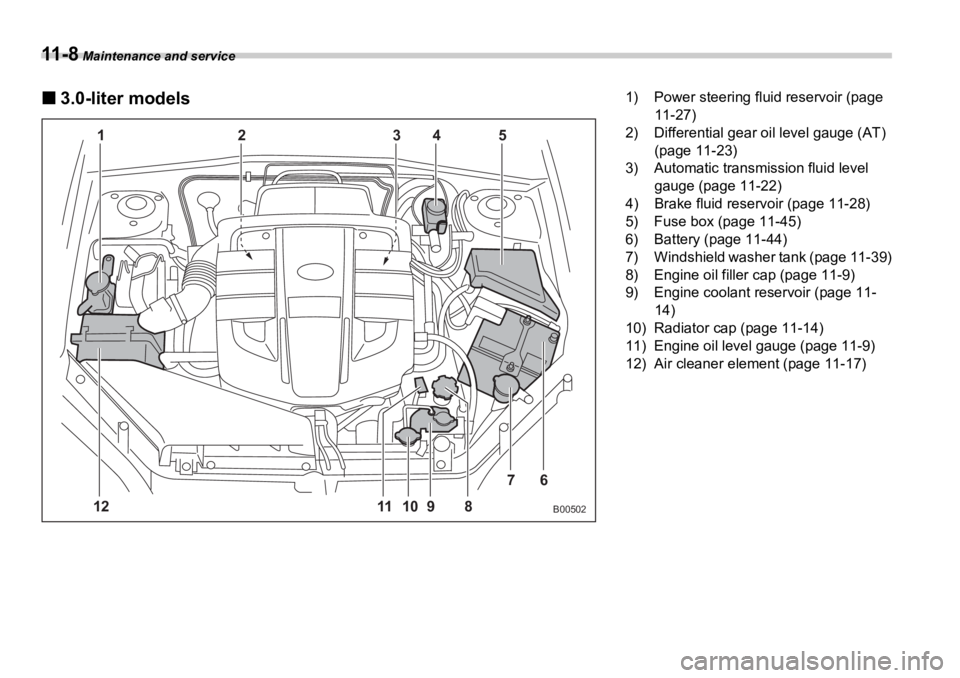

11 - 8 Maintenance and service
„ 3.0-liter models
B0050212 3 4 5
12 1011 9 8 76 1) Power steering fluid reservoir (page
11-27)
2) Differential gear oil level gauge (AT)
(page 11-23)
3) Automatic transmi ssion fluid level
gauge (page 11-22)
4) Brake fluid reservoir (page 11-28)
5) Fuse box (page 11-45)
6) Battery (page 11-44)
7) Windshield washer tank (page 11-39)
8) Engine oil filler cap (page 11-9)
9) Engine coolant reservoir (page 11-
14)
10) Radiator cap (page 11-14)
11) Engine oil level gauge (page 11-9)
12) Air cleaner element (page 11-17)

Maintenance and service
11 - 9
– CONTINUED –Engine oil „ Checking the oil levelCheck the engine oil level at each fuel
stop.
1. Park the vehicle on a level surface and
stop the engine.
2. Pull out the dipstick, wipe it clean, and
insert it again.
3. Be sure the dipstick is correctly insert-
ed until it stops with the graphic symbol
“ ” on its top appearing as shown in
the illustration. 2.5-liter models
1) Notch
2) Upper level
3) Lower level 3.0-liter models
1) Upper level
2) Lower level
4. Pull out the dipstick again and check
the oil level on it. If it is below the lower
level, add oil to bring the level up to the up-
per level.B00104 1
2
3 B00418
y Use only engine oil with the rec-
ommended grade and viscosity.
y Be careful not to spill engine oil
when adding it. If oil touches the
exhaust pipe, it may cause a bad
smell, smoke, and/or a fire. If en-
gine oil gets on the exhaust pipe,
be sure to wipe it off. 1
2 B00417

11 - 1 0 Maintenance and service
If you check the oil level just after stopping
the engine, wait a few minutes for the oil to
drain back into the oil pan before checking
the level.
To prevent overfilling the engine oil, do not
add any additional oil above the upper lev-
el when the engine is cold.
In 2.5-liter-engine models, the dipstick has
a notch above the upper level.
Just after driving or while the engine is
warm, the engine oil level reading may be
in a range between the upper level and
the notch mark. This is caused by thermal
expansion of the engine oil.
„ Changing the oil and oil filterChange the oil and oil filter according to
the maintenance schedule in the “Warran-
ty and Maintenance Booklet”.
The engine oil and oil filter must be
changed more frequently than listed in the
maintenance schedule when driving on
dusty roads, when short trips are frequent-
ly made, or when driving in extremely cold
whether.
1. Warm up the engine by letting the en-
gine idle for approximately 10 minutes to
ease draining the engine oil.
2. Park the vehicle on a level surface and
stop the engine. 3. Remove the oil filler cap.
2.5-liter models
3.0-liter models

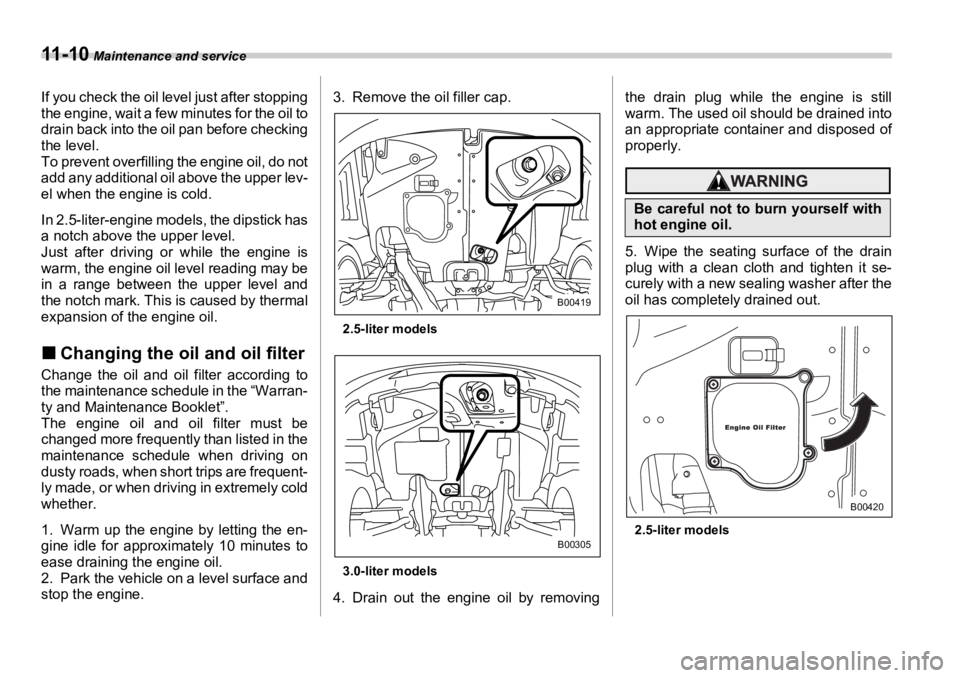

4. Drain out the engine oil by removing the drain plug while the engine is still
warm. The used oil should be drained into
an appropriate container and disposed of
properly.
5. Wipe the seating surface of the drain
plug with a clean cloth and tighten it se-
curely with a new sealing washer after the
oil has completely drained out.
2.5-liter models B00419
B00305Be careful not to burn yourself with
hot engine oil.
B00420

Maintenance and service
11 - 11
– CONTINUED –3.0-liter models

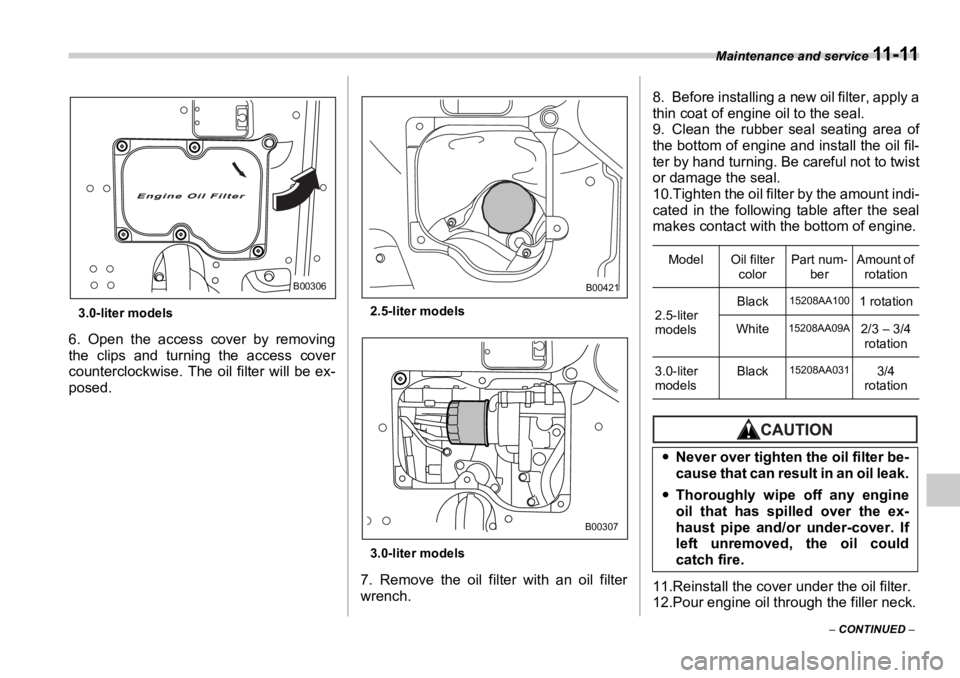

6. Open the access cover by removing
the clips and turning the access cover
counterclockwise. The oil filter will be ex-
posed. 2.5-liter models
3.0-liter models
7. Remove the oil filt er with an oil filter
wrench. 8. Before installing a new oil filter, apply a
thin coat of engine oil to the seal.
9. Clean the rubber seal seating area of
the bottom of engine an d install the oil fil-
ter by hand turning. Be careful not to twist
or damage the seal.
10.Tighten the oil filter by the amount indi-
cated in the following table after the seal
makes contact with the bottom of engine.
11.Reinstall the cover under the oil filter.
12.Pour engine oil through the filler neck.B00306
B00421
B00307Model Oil filter
color Part num-
ber Amount of
rotation
2.5-liter
models Black 15208AA100
1 rotation
White 15208AA09A
2/3 – 3/4
rotation
3.0-liter
models Black 15208AA031
3/4
rotation
y Never over tighten the oil filter be-
cause that can result in an oil leak.
y Thoroughly wipe off any engine
oil that has spilled over the ex-
haust pipe and/or under-cover. If
left unremoved, the oil could
catch fire.
