2006 SUBARU OUTBACK Owners Manual

5-12 Audio
y Press the “RPT” button
y Press the “ ” or “ ” side of the
SEEK/SCAN button
y Press the “ ” button
y Select the radio mode
y Turn off the power of the audio
equipment.
y Turn the ignition switch to the “OFF”
position.
T Scan
The scan mode lets you listen to the first
10 seconds of each track on the disc in
succession. Press the “ ” side of the
SEEK/SCAN button to start scanning
through all tracks up ward beginning with
the track following the currently selected
one. Press the “ ” side of the button to
start scanning through all tracks down- ward beginning with the track preceding
the currently selected one. After all tracks
on the disc has been scanned, normal
playback mode is restored.
To cancel a scan, press the “ ” or “ ”
side of the button again.
NOTE The scan mode will be cancelled if you
perform any of the following opera-
tions:
y Press the “RPT” button
y Press the “RDM” button
y Press the “ ” button
y Press the “ ” or “ ” side of the
TUNE/TRACK button
y Select the radio mode
y Turn off the power of the audio
equipment.
y Turn the ignition sw itch to the “OFF”
position. T To eject a disc from the player
When a disc is being played back or when
a disc is in the player, press the eject but-
ton “ ”. The disc will be ejected.
NOTE y Avoid driving the vehicle with a CD
sticking out, because vibration might
make it fall out.
y If the disc is left ejected for more
than approximately 15 seconds after
the ignition switch is turned to the
“OFF” position, a disc protection func-
tion will operate, automatically reload-
ing the disc. In this case, the disc is not
played.SEEK
SCAN 500232 500237

Audio
5-13

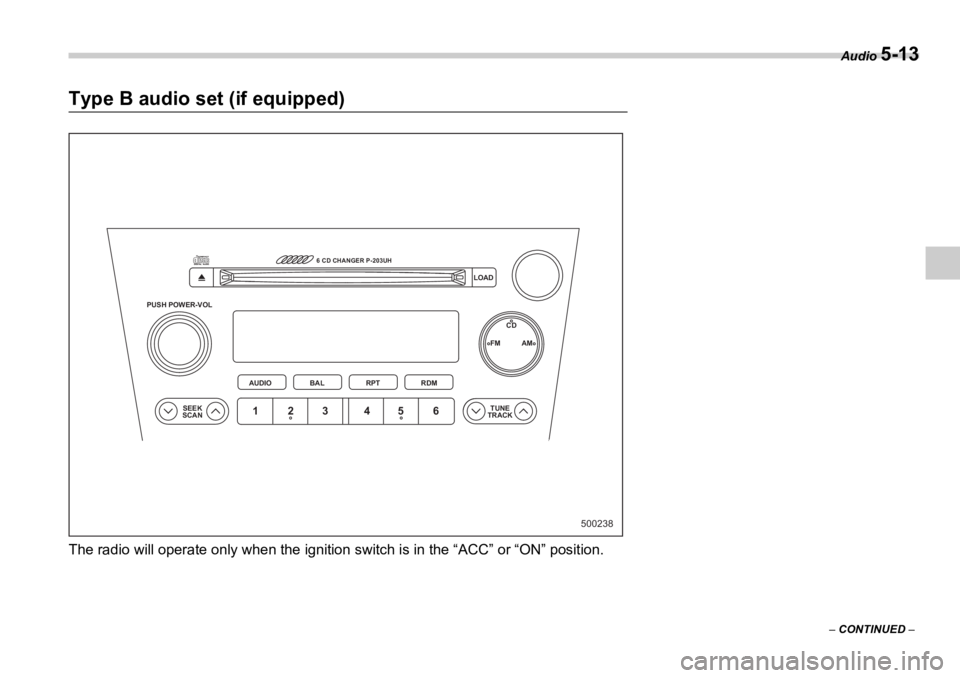

– CONTINUED –Type B audio set (if equipped)
The radio will operate only when the ignition switch is in the “ACC” or “ON” position. 500238PUSH POWER-VOL
SEEK
SCAN TUNE
TRACKAUDIO 6 CD CHANGER P-203UH
BAL RPT RDM LOAD
FM AM CD
123 456

5-14 Audio
„ Radio operationT Power switch and volume/bass/tre-
ble/fader/balance control
V Power switch and volume control
The dial is used for both power (ON/OFF)
and volume control. The radio is turned
ON and OFF by pushing the dial and the
volume is controlled by turning the dial. V Tone and balance control
The volume control dial normally functions
as a volume control. This dial becomes a
control for Bass, Midrange, Treble, Fader
or Balance when you select the appropri-
ate tone and balance control mode.
Choose desired volume level for each
mode by turning the volume control dial.
The control function returns to volume
control mode after approximately 5 sec-
onds. To change tone control modes: Each
brief press of the “AUDIO” button changes
control modes in the following sequence
starting from volume control mode. (When
the radio is first turned on, the control
mode is in the volume control.)
The “AUDIO” button is used for selecting
the following control modes:PUSH POWER-VOL
500228 PUSH ON/VOL
500045
AUDIO 500229
Volume
(VOLUME) Bass
(BASS) Midrange
(MIDDLE)
Treble
(TREBLE)

Audio
5-15
– CONTINUED –Control mode (Range of
levels)
Turn counterclockw ise Turn clockwise
Bass control (–6 to +6) For less bass sound For more bass sound
Midrange control (–6 to +6) For less midrange sound For more midrange sound
Treble control (–6 to +6) For less treble sound For more treble sound
Volume control (0 to 40) For less volume For more volume 500009
V To change balance control modes
Each brief press of the “BAL” button
changes control modes in the following
sequence starting from volume control
mode. (When the radio is turned on, the
control mode is in the volume control.)
The “BAL” button is used for selecting the
following control modes:BAL 500230
Volume
(VOLUME) Balance
(BALANCE)Fader
(FADER)

5-16 Audio
Control mode (Range of
levels)
Turn counterclockw ise Turn clockwise
Fader control (R9 to F9) To increase rear speaker volume
and decrease front speaker vol-
ume To increase front speaker volume
and decrease rear speaker vol-
ume
Balance control (L9 to R9) To increase left speaker volume
and decrease right speaker vol-
ume To increase right speaker volume
and decrease left speaker vol-
ume
Volume control (0 to 40) For less volume For more volume 500009
T FM/AM selection button (FM/AM)
Push the “FM” or “AM” button when the ra-
dio is off to turn on the radio.
Push the “FM” or “AM” button when the ra-
dio is on to select FM1, FM2 or AM recep-
tion.
T Stereo indicator
The stereo indicator “ST” will come on
when an FM stereo broadcast is received. FM AM CD 500231

Audio
5-17
– CONTINUED –T Tuning
V Manual tuning
Push the “ ” side of the TUNE/TRACK
button to increase the tuning frequency
and press the “ ” side of the button to
decrease it.
Each time the button is pressed, the fre-
quency interval can be changed between
10 KHz in the AM mode and 0.2 MHz in
the FM mode.
If you hold down the “ ” side of the but-
ton, the tuning frequency will increase
continuously, and if you hold down the
“ ” side of the button, the tuning fre-
quency will decrease continuously. Re-
lease the button when your desired fre-
quency is reached. NOTE While you are holding down either side
of the TUNE/TRACK button, the tuning
frequency will not stop changing even
if the frequency of a receivable station
is reached.
V Seek tuning
If you press the “ ” or “ ” side of the
SEEK/SCAN button and release it within
1.5 second, the radio will automatically
search for a receivable station and stop at
the first one it finds. This function may not
be available, however, when radio signals
are weak. In such a situation, perform
manual tuning to select the desired sta-
tion. V Automatic tuning (SCAN)
If you press the “ ” or “ ” side of the
SEEK/SCAN button for 1.5 second or
longer, the radio will switch to scan mode.
In this mode, the radio scans through the
radio band until a station is found. The ra-
dio will stop at the station for five seconds
while displaying the frequency, after which
scanning will continue until the entire band
has been scanned from the low end to the
high end.
Press the “ ” or “ ” side of the button
again to cancel the scan mode and to stop
on any displayed frequency.
If you hold down the “ ” side of the but-
ton, the radio will scan up the frequency
band (from low frequencies to high fre-
quencies). If you hold down the “ ” side
of the button, the radio will scan down theTUNE
TRACK 500049
SEEK
SCAN 500232
SEEK
SCAN 500232

5-18 Audio
frequency band (from high frequencies to
low frequencies).
Automatic tuning may not function proper-
ly if the station reception is weakened by
distance from the st ation or proximity to
tall buildings and hills.
T Selecting preset stations
Presetting a station wi th a preset button
allows you to select that station in a single
operation. Up to six AM, FM1 and FM2
stations each may be preset.
T How to preset stations
1. Press the “FM” or “AM” selection but-
ton to select AM, FM1 or FM2 reception.
2. Press the “ ” or “ ” side of the but-
ton or tune the radio manually until the de-
sired station frequency is displayed. 3. Press one of the preset buttons for at
least 1.5 seconds to store the frequency.
The frequency of the station will flash
once on the display at this time. If the but-
ton is pressed for less than 1.5 seconds,
the preceding selection will remain in
memory.
NOTE y If the connection between the radio
and battery is broken for any reason
such as vehicle maintenance or radio
removal, all stations stored in the pre-
set buttons are cleared. If this occurs,
it is necessary to reset the preset but-
tons.
y If a cell phone is placed near the ra-
dio, it may cause the radio to emit
noise when it receives calls. This noise
does not indicate a radio fault.
„ Built-in CD changer opera-
tion
NOTE y Make sure to always insert a disc
with the label side up. If a disc is insert-
ed with the label side down, it might be
ejected or the player might shut off.
y The player is designed to be able to
play music CD-Rs and music CD-RWs,
but it may not be able to play certain ones.
T How to insert a CD(s)
V Inserting a CD 0
1. Briefly press the “LOAD” button. If the
magazine in the player has an idle posi-
tion where you can insert a disc, the disc
number indicator associated with the idle
position will blink.
If no indicator blinks, it means that there is
no idle position in the magazine.
2. When the “LOAD” indicator flashes, in-
sert the disc. Once you have inserted the
disc, the “LOAD” indicator will go off. The
disc will then be automatically drawn in,
and the player will begin to play the first
track on the disc.
y To insert more discs in succession, re-123 456
500233
LOAD 500239

Audio
5-19
– CONTINUED –peat Steps 1 and 2. The magazine will be
loaded with discs in t he ascending order
of position number.
If you do not insert any disc in 15 seconds
after you have pressed the “LOAD” but-
ton, the player will begin to play back the
first track of the last disc you have insert-
ed.
y The disc indicator steadily lights up if a
disc is already inserted in the correspond-
ing position of the magazine.
y While the player is in the loading mode,
if you press the “FM” or “AM” button, the
player will enter the standby mode. Press
the “CD” button to start playback.
V Inserting a disc in a desired position
1. Briefly press the “LOAD” button. If the
magazine in the player has an idle posi- tion where you can insert a disc, the disc
number indicator associated with the idle
position will blink.
The positions in the magazine the indica-
tor of which steadily lights up are already
loaded with discs.
2. Press the “Disc sele ct” button at the
position where you want to insert a disc.
3. When the “LOAD” indicator flashes, in-
sert the disc. Once you have inserted the
disc, the “LOAD” indicator will go off. The
disc will then be automatically drawn in,
and the player will begin to play the first
track on the disc.
y If you wish to insert another disc, repeat
the procedure beginning with step 1.
If you do not insert any disc in 15 seconds
after you have pressed the “LOAD” but- ton, the player will begin to play back the
first track of the last disc you have insert-
ed.
y While the player is in the loading mode,
if you press the “FM” or “AM” button, the
player will enter standby mode. Press the
“CD” button to start playback.
V Loading all the magazine (Full disc
loading mode) 0
1. If you continue to press the “LOAD”
button for more than 1.5 seconds, the
player will produce beep sound and will
enter the full disc loading mode.
2. When the disc number indicator and
“ALL LOAD” indicator start flashing, insert
a disc within 15 seconds. If a disc is suc-
cessfully loaded during this period, the
disc number indicator will stop blinkingLOAD 500239 123 456
500233
LOAD 500239
