2006 SUBARU OUTBACK Owners Manual

11 - 4 4 Maintenance and service

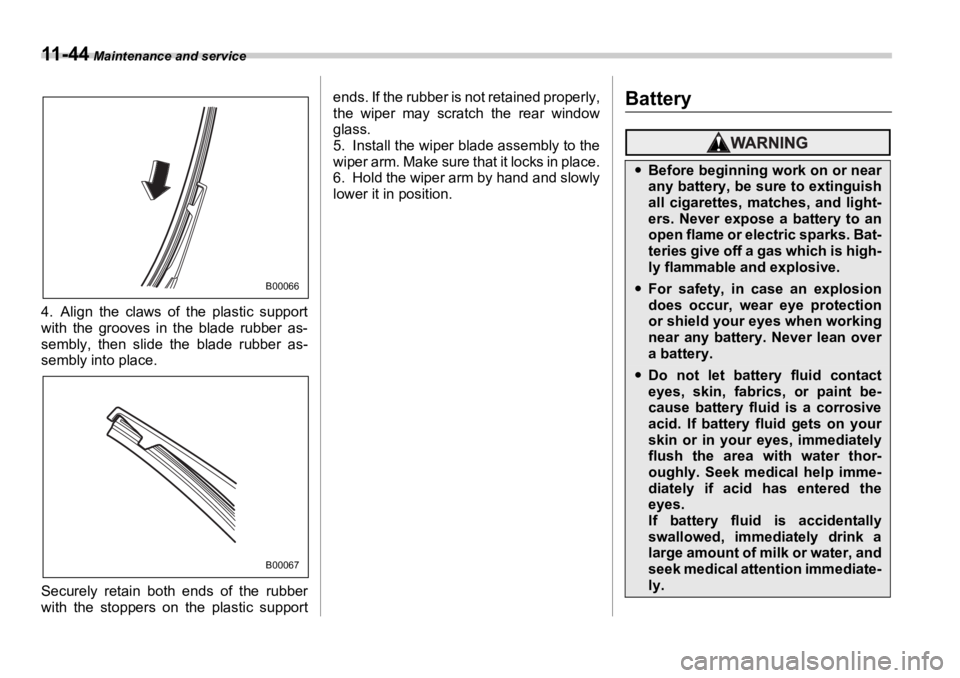

4. Align the claws of the plastic support
with the grooves in the blade rubber as-
sembly, then slide the blade rubber as-
sembly into place.
Securely retain both ends of the rubber
with the stoppers on the plastic support ends. If the rubber is not retained properly,
the wiper may scratch the rear window
glass.
5. Install the wiper blade assembly to the
wiper arm. Make sure that it locks in place.
6. Hold the wiper arm by hand and slowly
lower it in position.
BatteryB00066
B00067 y Before beginning work on or near
any battery, be su re to extinguish
all cigarettes, matches, and light-
ers. Never expose a battery to an
open flame or electric sparks. Bat-
teries give off a gas which is high-
ly flammable and explosive.
y For safety, in case an explosion
does occur, wear eye protection
or shield your eyes when working
near any battery. Never lean over
a battery.
y Do not let battery fluid contact
eyes, skin, fabrics, or paint be-
cause battery fluid is a corrosive
acid. If battery fluid gets on your
skin or in your eyes, immediately
flush the area wi th water thor-
oughly. Seek medical help imme-
diately if acid has entered the
eyes.
If battery fluid is accidentally
swallowed, immediately drink a
large amount of milk or water, and
seek medical attention immediate-
ly.

Maintenance and service
11 - 4 5
– CONTINUED –It is unnecessary to periodically check the battery fluid level or periodically refill with
distilled water.
Fuses
The fuses are designed to melt during an
overload to prevent damage to the wiring
harness and electrical equipment. The
fuses are located in two fuse boxes. One
is located under the instrument panel be-
hind the fuse box cover on the driver’s
seat side. y To lessen the risk of sparks, re-
move rings, metal watchbands,
and other metal jewelry. Never al-
low metal tools to contact the pos-
itive battery terminal and anything
connected to it WHILE you are at
the same time in contact with any
other metallic portion of the vehi-
cle because a short circuit will re-
sult.
y Keep everyone including children
away from the battery.
y Charge the battery in a well-venti-
lated area.
y Battery posts, terminals, and re-
lated accessories contain lead
and lead compounds, chemicals
known to the State of California to
cause cancer and reproductive
harm. Batteries also contain other
chemicals known to the State of
California to cause cancer. Wash
hands after handling.
Never use more than 10 amperes
when charging the battery because
it will shorten battery life. Never replace a fuse with one hav-
ing a higher rating or with material
other than a fuse because serious
damage or a fire could result.
B00130

11 - 4 6 Maintenance and service

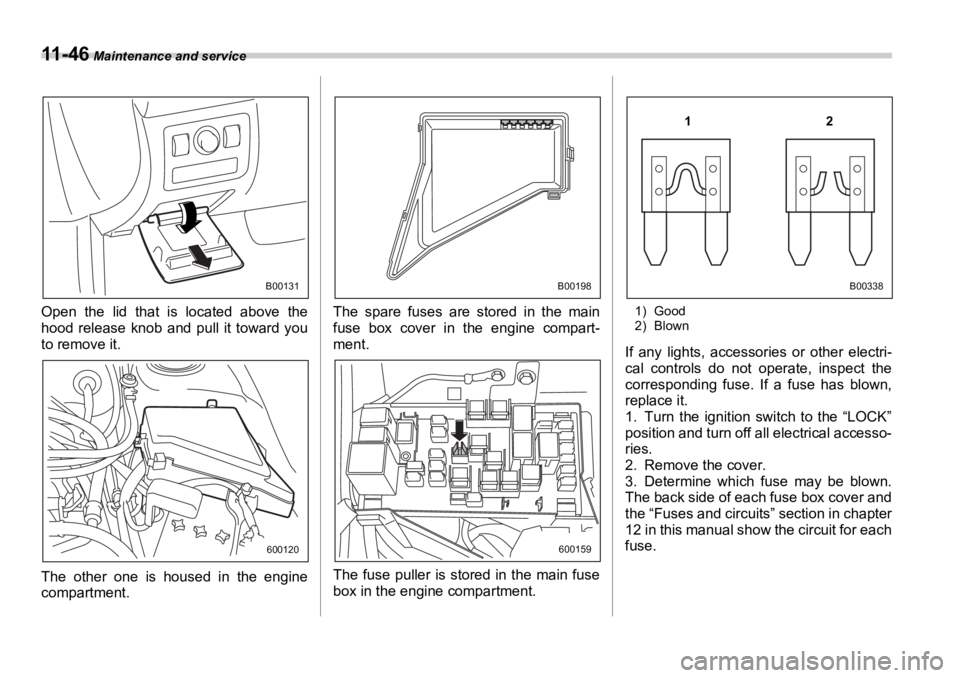

Open the lid that is located above the
hood release knob and pull it toward you
to remove it.
The other one is housed in the engine
compartment. The spare fuses are stored in the main
fuse box cover in the engine compart-
ment.
The fuse puller is stored in the main fuse
box in the engine compartment. 1) Good
2) Blown
If any lights, accessori es or other electri-
cal controls do not operate, inspect the
corresponding fuse. If a fuse has blown,
replace it.
1. Turn the ignition switch to the “LOCK”
position and turn off all electrical accesso-
ries.
2. Remove the cover.
3. Determine which fuse may be blown.
The back side of each fuse box cover and
the “Fuses and circuits” section in chapter
12 in this manual show the circuit for each
fuse.B00131
600120 B00198
60015912
B00338

Maintenance and service
11 - 4 7
4. Pull out the fuse with the fuse puller.
5. Inspect the fuse. If it has blown, re-
place it with a spare fuse of the same rat-
ing.
6. If the same fuse blows again, this indi-
cates that its system has a problem. Con-
tact your SUBARU dealer for repairs. Main fuse
Main fuse box
The main fuses are designed to melt dur-
ing an overload to prevent damage to the
wiring harness and electrical equipment.
Check the main fuses if any electrical
component fails to operate (except the
starter motor) and other fuses are good. A
melted main fuse must be replaced. Use
only replacements with the same speci-
fied rating as the melted main fuse. If a
main fuse blows after it is replaced, have
the electrical system checked by your
nearest SUBARU dealer. Installation of accessories Always consult your SUBARU dealer be-
fore installing fog lights or any other elec-
trical equipment in your vehicle. Such ac-
cessories may cause the electronic sys-
tem to malfunction if they are incorrectly
installed or if they are not suited for the ve-
hicle.600160
600120

11 - 4 8 Maintenance and service

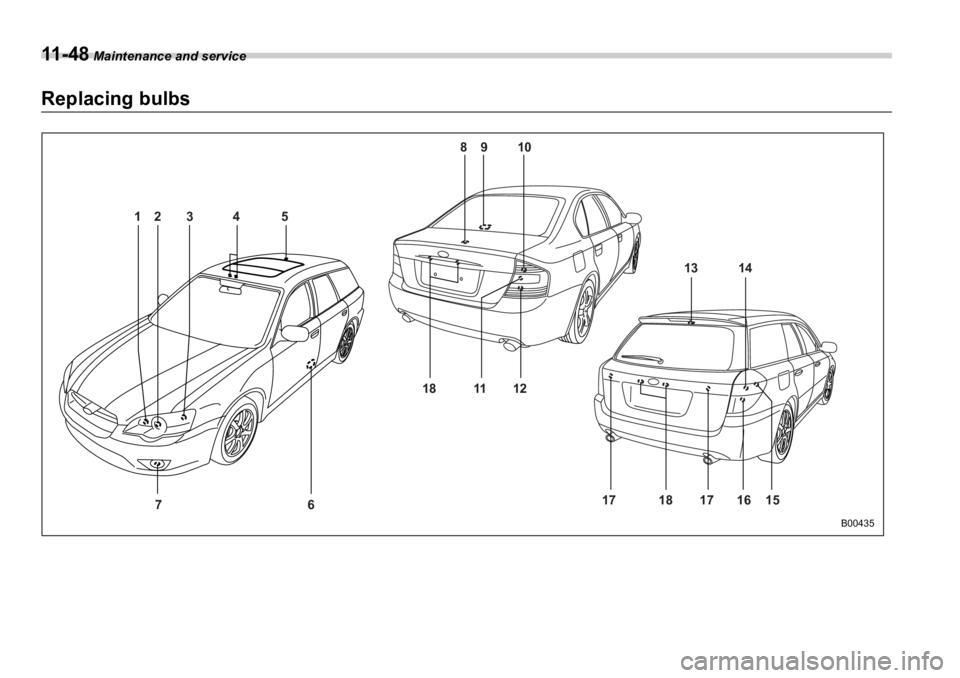

Replacing bulbs 810 9
45321
67 1817 16 15 1713 14
11 1 218
B00435

Maintenance and service
11 - 4 9
– CONTINUED –Wattage Bulb No.
1) High beam headlight 12V-60W 9005 (HB3)
2) Low beam headlight 12V-55W H7
3) Front turn signal/Parking and front
side marker light 12V-27/8W 3157A
4) Map light 12V-8W –
5) Dome light 12V-8W –
6) Door step light 12V-3.5W –
7) Front fog light
Except OUTBACK 12V-55W H3
OUTBACK 12V-51W 9006 (HB4)
8) Trunk room light (Sedan) 12V-5W –
9) High mount stop light (Sedan) 12V-21W (W21W)
10) Rear turn signal light (Sedan) 12V-21W (W21W)
11) Backup light (Sedan) 12V-16W 921
12) Brake/tail and rear side marker
light (Sedan) 12V-21/5W (W21/5W)
13) Cargo area light 12V-13W –
14) Brake/tail light (Station wagon) 12V-21/5W (W21/5W)
15) Rear side marker light (Station
wagon) 12V-5W 168
16) Rear turn signal light (Station wag-
on) 12V-21W (W21W)
17) Backup light (Station wagon) 12V-16W 921
18) Licence plate light 12V-5W 168 „ Headlight
NOTE y If headlight aiming is required, con-
sult your SUBARU de aler for proper
adjustment of the headlight aim.
y It may be difficult to replace the
bulbs. Have your SUBARU dealer re-
place the bulbs if necessary. Replace any bulb only with a new
bulb of the specified wattage. Using
a bulb of different wattage could re-
sult in a fire.
Halogen headlight bulbs become
very hot while in use. If you touch
the bulb surface with bare hands or
greasy gloves, finger prints or
grease on the bulb surface develop
into hot spots, causing the bulb to
break. If there are finger prints or
grease on the bulb surface, wipe
them away with a soft cloth mois-
tened with alcohol.

11 - 5 0 Maintenance and service

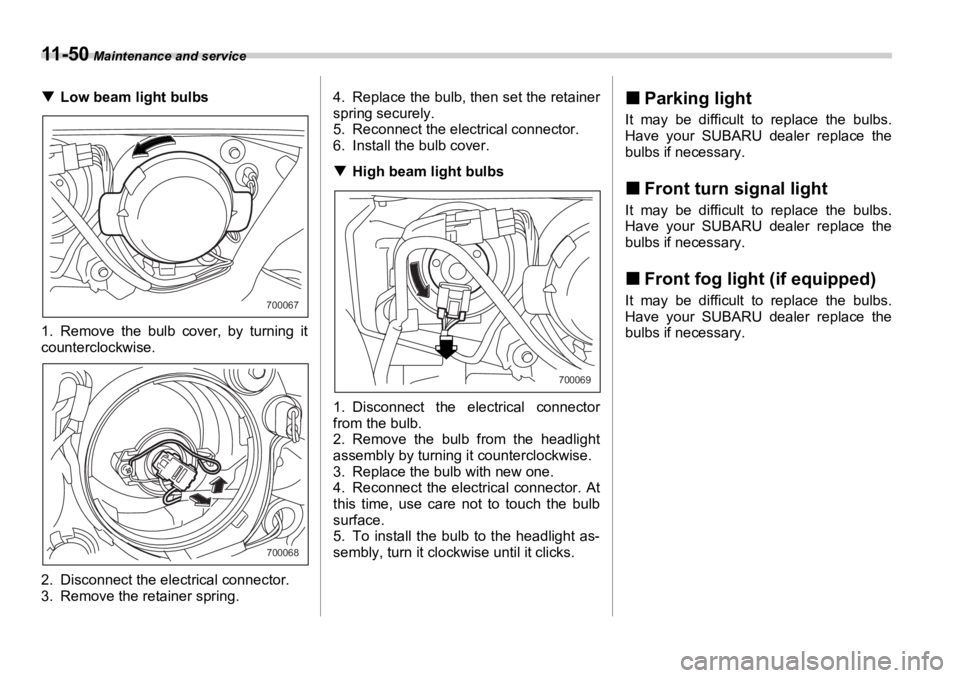

T Low beam light bulbs
1. Remove the bulb cover, by turning it
counterclockwise.
2. Disconnect the electrical connector.
3. Remove the retainer spring. 4. Replace the bulb, th en set the retainer
spring securely.
5. Reconnect the electrical connector.
6. Install the bulb cover.
T High beam light bulbs
1. Disconnect the electrical connector
from the bulb.
2. Remove the bulb from the headlight
assembly by turning it counterclockwise.
3. Replace the bulb with new one.
4. Reconnect the electrical connector. At
this time, use care not to touch the bulb
surface.
5. To install the bulb to the headlight as-
sembly, turn it clo ckwise until it clicks. „ Parking light It may be difficult to replace the bulbs.
Have your SUBARU dealer replace the
bulbs if necessary.
„ Front turn signal light It may be difficult to replace the bulbs.
Have your SUBARU dealer replace the
bulbs if necessary.
„ Front fog light (if equipped) It may be difficult to replace the bulbs.
Have your SUBARU dealer replace the
bulbs if necessary.700067
700068 700069

Maintenance and service
11 - 5 1

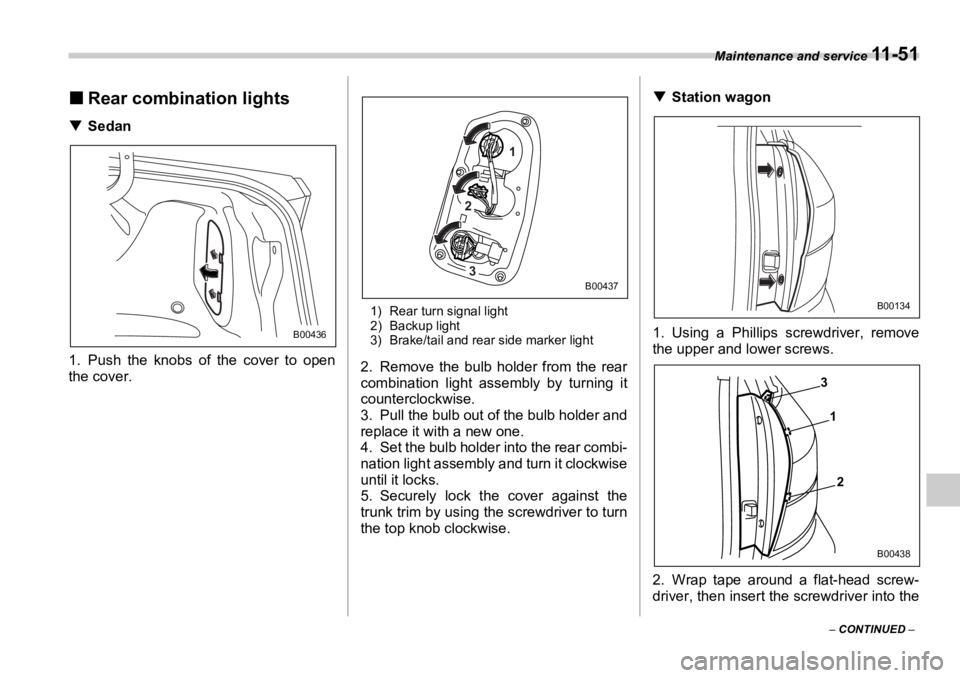

– CONTINUED –„ Rear combination lightsT Sedan
1. Push the knobs of the cover to open
the cover. 1) Rear turn signal light
2) Backup light
3) Brake/tail and rear side marker light
2. Remove the bulb holder from the rear
combination light assembly by turning it
counterclockwise.
3. Pull the bulb out of the bulb holder and
replace it with a new one.
4. Set the bulb holder into the rear combi-
nation light assembly and turn it clockwise
until it locks.
5. Securely lock the cover against the
trunk trim by using the screwdriver to turn
the top knob clockwise. T Station wagon
1. Using a Phillips screwdriver, remove
the upper and lower screws.
2. Wrap tape around a flat-head screw-
driver, then insert th e screwdriver into theB00436 1
2
3 B00437
B00134
3
21
B00438
