2006 MITSUBISHI COLT Service Repair Manual

SEAT
INTERIOR52A-7
HEIGHT ADJUSTMENT
AC208192AB
Pump type height lever
Sector gear
Pinion gear
Frame
Slide rail
Front link Rear link
The frames are connected to
the slid e rail with th e
front link a
nd rear link. When the height lever is op er
-
ated, the pin i on g ear rot a te s and engag es with the
sector gea
r . The sector gear rot a tion operate s the
rea
r link. Th e rea r link rot a tion o p e r at es t h e f r on t link,
and the
n adjust s t he seat height.

SEAT
INTERIOR52A-8
REAR SEAT
M2520007000285
AC400593

Forward folding of seatback Headrestraint
vertical adjustment
Reclining
adjustment
Slide adjustment
Rear seat
AC
The ben ch seat h a s b een inst alled for the rea r seat .
This rear seat
s ha ve th e following feature s .
•Reclining adjustment and slid e adjustment h a ve
bee
n adop ted to imp r ove amen ity .
•A large see-throu gh type for t he hea d restraint
has bee
n inst a lle d.
•The headre s traint can be adjusted u p and down.
•Foldable seat back an d tu mble mechanism have
ena
bled wide variet y of seat a rrangement.

SEAT
INTERIOR52A-9
MULTI SEAT ARRANGE
M2520008000158
This vehicles offers a wide variety of seat arrange-
ment as usage.
Item
Normal
AC206055
Flat arrangement
AC206059
Rear sea t back folded f o rward
AC206063
Re ar s e at t u mb l e d2 pa sseng ers
AC206067

SEAT BELT
INTERIOR52A-10
SEAT BELT
M2520010000575
AC601600
Seat belt warning lampSeat belt warning lampSeat belt warning lamp
One-touch push bottom type
adjustable seat belt anchorThree-point seat belt
with ELR
Seat belt retractor
with pre-tensioner
and force limiter
Buckle integrated with seat
Centre seat belt
Seat belt with ELR/ALR
switching mechanism
Seat belt retractor
AC


•An ELR three-point se at belt s used.
•Seat be lt re tracto r has a pre-te nsioner a nd force
li
mi ter .
•One-touch pu sh bu tton st yle adjust able se at belt
anchors and seat-inco
r porated buckle s ensure
opt
imu m belt fit t ing a nd placement.
•A warning lamp is included o n the combinat ion
meter to e
n cou r age th e driver to faste n the seat
belt when t
he belt is not conne cted.

•Three -point se at belt with Au tomat i c L o cking
Retractor (ALR)/ELR change
over mechanism
(LH/RH), two-point seat be
lt (Centre ) have been
in
st alled.

SEAT BELT
INTERIOR52A-11
SEAT BELT RETRACTOR WITH FORCE
LIMITER
The driver’s/front passenger’s seat belt retractor has
been equipped with a force limiter. The force limiter
is a device which operates when a predetermined
force is applied, and limits the force.
OPERATION
1. If a collision energy is transmitted to the seat belt, the ELR mechanism will oper ate to lock the seat
belt.
AC100083
Torsion bar
Spindle
Belt
AC
2.
Th en, if the en ergy increase s to a prede termined
value , the t o rsion bar will b e distorted . As th e
spind l e ro t a te s tog e ther with the torsion bar , the
seat b e lt webb ing is p u lle d out, reducing th e
imp a ct against t he occup ant s.

TRIMS
INTERIOR52A-12

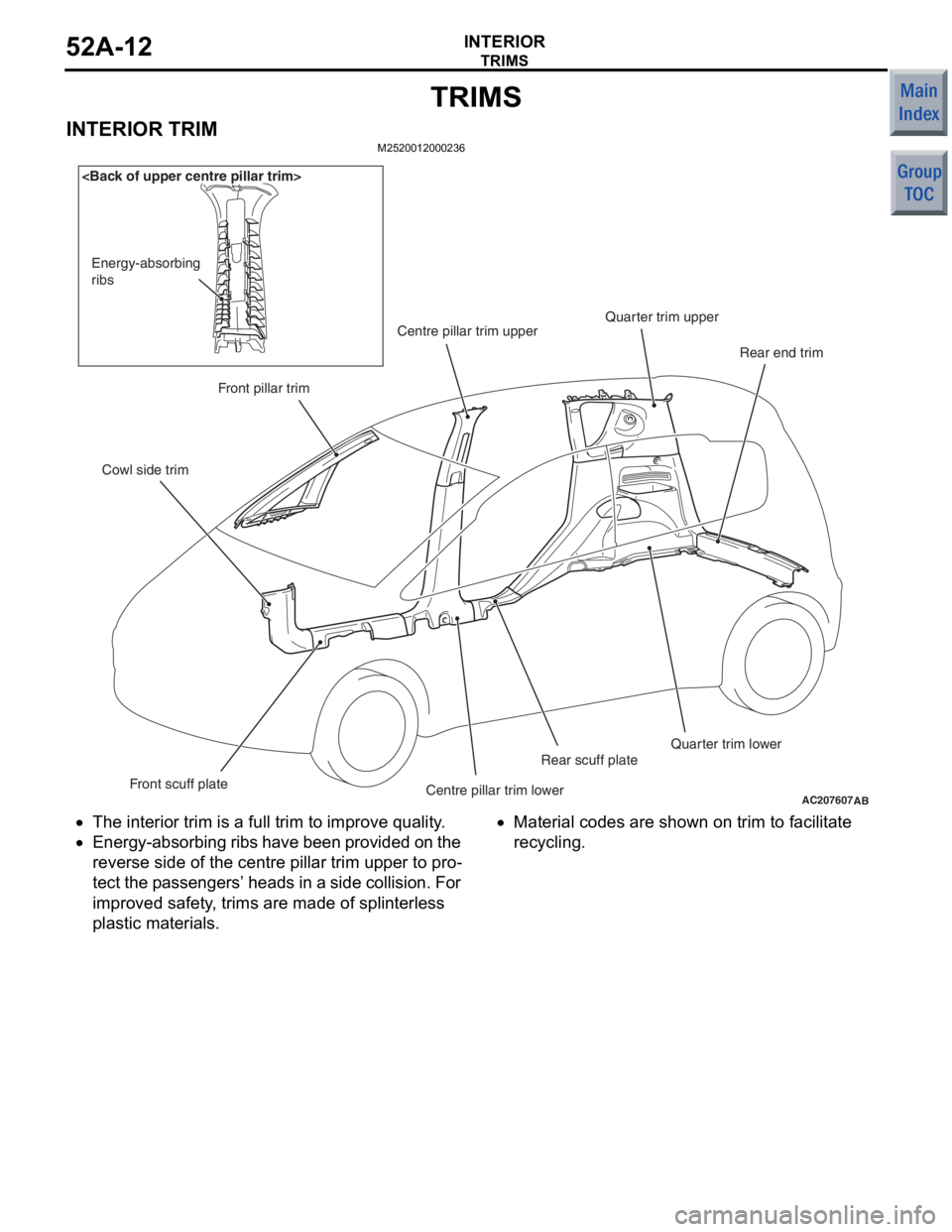

TRIMS
INTERIOR TRIMM2520012000236
AC207607
Cowl side trimFront pillar trim
Centre pillar trim upper
Front scuff plate Centre pillar trim lowerRear scuff plate
Quarter trim lower
Quarter trim upper
Rear end trim
AB

Energy-absorbing
ribs
•The interior trim is a fu ll t r im t o improve quality .
•Ener gy-absorbing ribs have b een provided on the
reverse
sid e of th e cen t re pillar trim upper to pro
-
te c t t h e p a s s e n g e rs ’ he ad s in a si de co lli si on . F o r
improved safety
, trims are made o f splinte r less
plastic materials.
•Material co des are shown on t r im t o facilit a t e
recy
cling.

TRIMS
INTERIOR52A-13
DOOR TRIM
M2520012300431
AC207418
Bottle holderDoor pocket

AC
Cloth covered part Cloth covered part
•Break-proof resin material has been used for trim
p
anels, impro v in g saf e ty .•Front door p o cket s which can accommod ate bo t-
tle holder s a nd A4-size map s have be en inst alled
for more convenie
n t use.
•Cloth covers p a rt of do or trim.

HEADLINING
INTERIOR52A-14

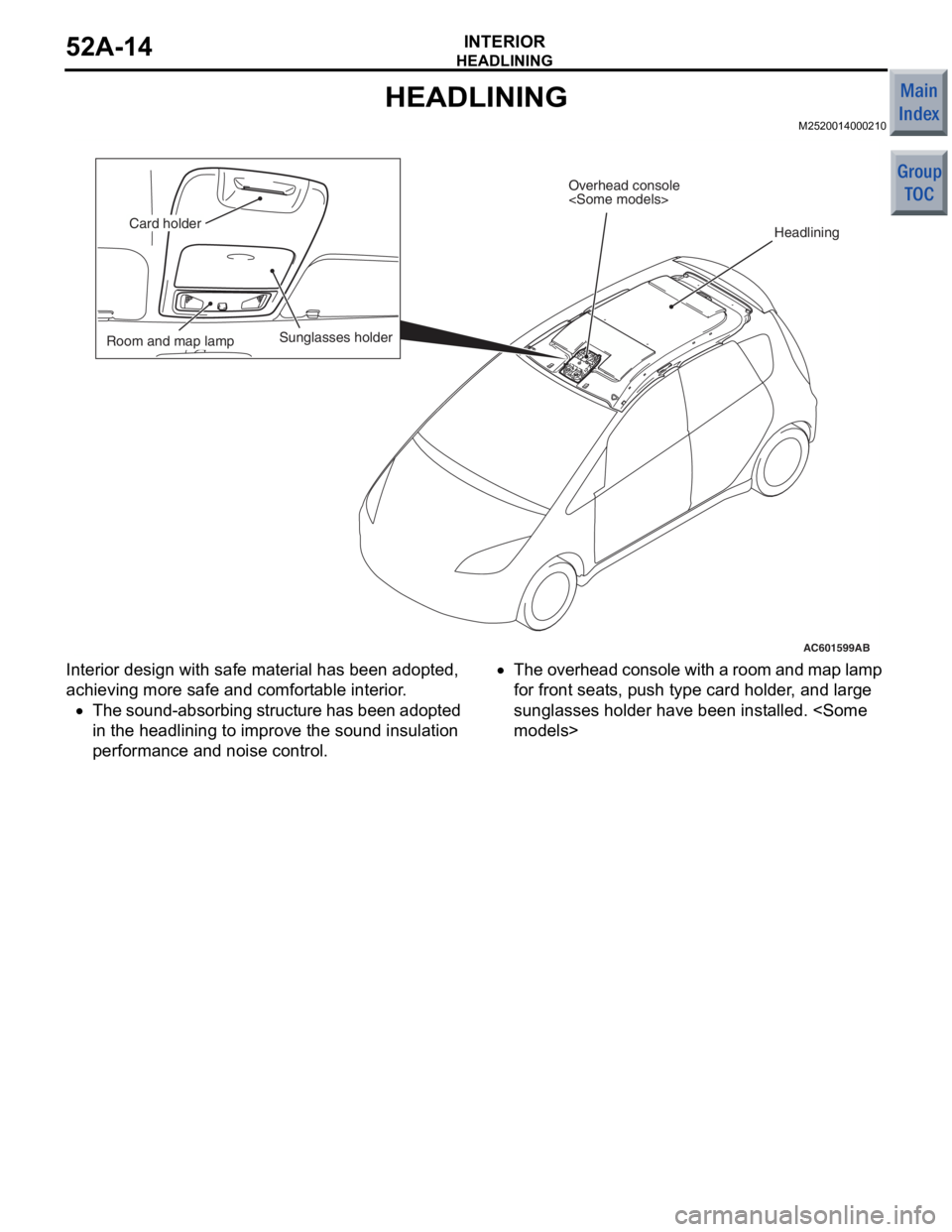

HEADLINING
M2520014000210
AC601599
Headlining
Overhead console

AB
Sunglasses holder
Card holder
Room and map lamp
Interior design with sa fe ma terial has been adopt ed,
achieving more safe and
comfort able inte rior .
•The sound-absorbing structure has been adopted
in
the he adlining to improve the soun d insula tion
perf
o rman ce a nd noise contro l.
•The overhead console with a room and map lamp
for f
r ont seat s, pu sh type card h o lder , and large
sungla
s ses ho lder h a ve been inst alled. models>
