TECHNICAL FEATURES
GENERAL00-8
SPACIOUS CABIN
M2000000400230
AC313513
8
7 2
4
3
6
1
10
9
5
AB
•S
pa cio us interior sp ace leading the comp act car
fie ld•
No.ItemDimension mm
1Front shoulder room1,340
2Interior effective length1,805
3Head roomFront920/875*
4Rear855/850*
5Hip-point heightFront325
6Rear375
7Seating ground clearanceFront600
8Rear650
9Brake pedal room900
10Hip point couple805
Seating gro und clearance of fering ea sy access
NOTE: .
•*:Vehicles with sunroo f
•Refer to P.00-31 , P.00-32 for the b ody dimensions.

TECHNICAL FEATURES
GENERAL00-9
ENGINE
M2000020000579
<4A9>
The newly-developed 4A9 engine has been installed
to realise small-size, light-weight, high-performance,
and better fuel economy with the state-of-the-art
technologies such as the aluminium die-cast cylinder
block, direct attack driven-type DOHC MIVEC, timing
chain-type cam drive, and rear exhaust.
MAJOR SPECIFICATIONS
Item4A91
Total displacement mL1,499
Bore × Stro ke mm75 × 84.8
Compression ratio10.0
Compression chamberPentroof-type
Va l v e t i m i n gIntake openingBTDC 31° − ATDC 19°
Intake closingABDC 21° − ABDC 71°
Exhaust openingBBDC 39°
Exhaust closingATDC 5°
Maximum output kW (PS)/rpm77 (105)/6,000
Maximum torque N⋅m (kg⋅m)/rpm141 (14.4)/4,000
Fuel systemElectronically controlled multipoint fuel injection
Ignition systemElectronic-controlled 4-coil
<4G1>
Based on the 4G1 engine fitted on the existing COLT,
the power performance leading the compact car field
has been secured by Turbocharger.
MAJOR SPECIFICATIONS
Item4G15 (with Intercooler Turbocharger)
Total displacement mL1,468
Bore × Stro ke mm75 × 82.0
Compression ratio9.0
Compression chamberPentroof-type
Va l v e t i m i n gIntake openingBTDC 34° − ATDC 6°
Intake closingABDC 30° − ABDC 70°
Exhaust openingBBDC 50°
Exhaust closingATDC 10°
Maximum output kW (PS)/rpm113 (154)/6,000
Maximum torque N⋅m (kg⋅m)/rpm210 (21.4)/3,500
Fuel systemElectronically controlled multipoint fuel injection
Ignition systemElectronic-controlled 4-coil

TECHNICAL FEATURES
GENERAL00-10
TRANSMISSION
M2000021000594
MANUAL TRANSMISSION
Due to the addition of vehicles with M/T, a
"GETRAG" F5MGA type <4A9 engine>, F5MGB
type<4G1 engine> transmission has been adopted.
SPECIFICATIONS
Transmission modelF5MGAF5MGB
Engine model4A914G15
Transmission type5-speed, floor-shift
Transmission gear ratio1st3.3083.538
2nd1.9131.913
3rd1.2581.344
4th0.9431.027
5th0.7630.833
Reverse3.2313.357
Final reduction ratio4.1583.737
GEARSHIFT CONTROL
AC600701
Gearshift knob
AB
Select cable
Gearshift lever assembly
Gearshift cable or
Select cable assembly
Gearshift cable
The cable type of gea r shift contro l is adop ted.

TECHNICAL FEATURES
GENERAL00-11
CVT
The F1C1A transmission is adopted for the CVT.
This transmission is basically the same as conven
-
tional transmission.
The ATF warmer (ATF cooler) is adopted.
SPECIFICATIONS
ItemSpecification
Transmission modelF1C1A
Engine model4A91
Torque converterTy p e3-element, 1-stage, 2-phase type
Lock-upProvided
Stall torque ratio2.0
Transmission typeForward automatic continuously variable (steel belt type),
1st in reverse
Gear ratioForward2.319 − 0.445
Reverse2.588
ClutchA pair of multi-plate system
BrakeA pair of multi-plate system
Manual control systemP-R-N-D-Ds-L (smart shift)
FunctionVariable speed controlYe s
Line pressure controlYe s
Direct engagement controlYe s
N-D/N-R controlYe s
Shift pattern controlYe s
Self-diagnosisYe s
FailsafeYe s
Oil pumpTy p eExternal gear pump
ConfigurationBuilt-in (chain drive)
Control methodElectronic control (INVECS-III)

TECHNICAL FEATURES
GENERAL00-12
ATF WARMER (ATF COOLER) <4A9>
AC403052AC
AT F
Engine coolant
Sectional view
ATF Warmer
(ATF Cooler)
Thermo valve
AC403006
CVT CVT CVT
Thermostat
Thermo
valve
ATF warmer (ATF cooler)ATF warmer (ATF cooler)
: Engine coolant
: ATF
85˚C or more>
Engine coolant flows through
all the sections.
75
- 85˚C>
Engine coolant flows through
the heater and the ATF warmer.
75˚C or less>
Engine coolant flows through
the heater only.
AD
: Valve open
: Valve closed
Thermostat
Thermo
valve
ATF warmer (ATF cooler)Thermo
valve
Thermostat
Radiator
Engine Heater
Radiator Engine Heater
Radiator
Engine Heater
The A TF warme r (A TF cooler) is adop ted for the
mode ls with 4A9 en gine. (the A TF cooler incorporat
-
ing the radiator is no t adopted)
At the start of runn ing, the tempe rature of th e engine
coolant rises earlier tha n that of the AT F. The A TF
war mer ut ilizes this ch aracteristic to raise the ATF
tempe rature a s ea rly a s po ssible to an a ppropriate
leve l (70
−80 °C). It also co ntrols flu id tempera ture st
ably and reduces A TF agitation resist ance to
imp rove f uel consump tion ra tio.
In addition , a thermo-valve has bee n adopted to
restrict the eng ine coolant supply to the A TF warmer
(A TF coole r) until the engine co olant temperature
reach es th e appro priat e temperature when low tem
-
perature start in winter , giving the priority to th e heat-
ing performance .

TECHNICAL FEATURES
GENERAL00-13

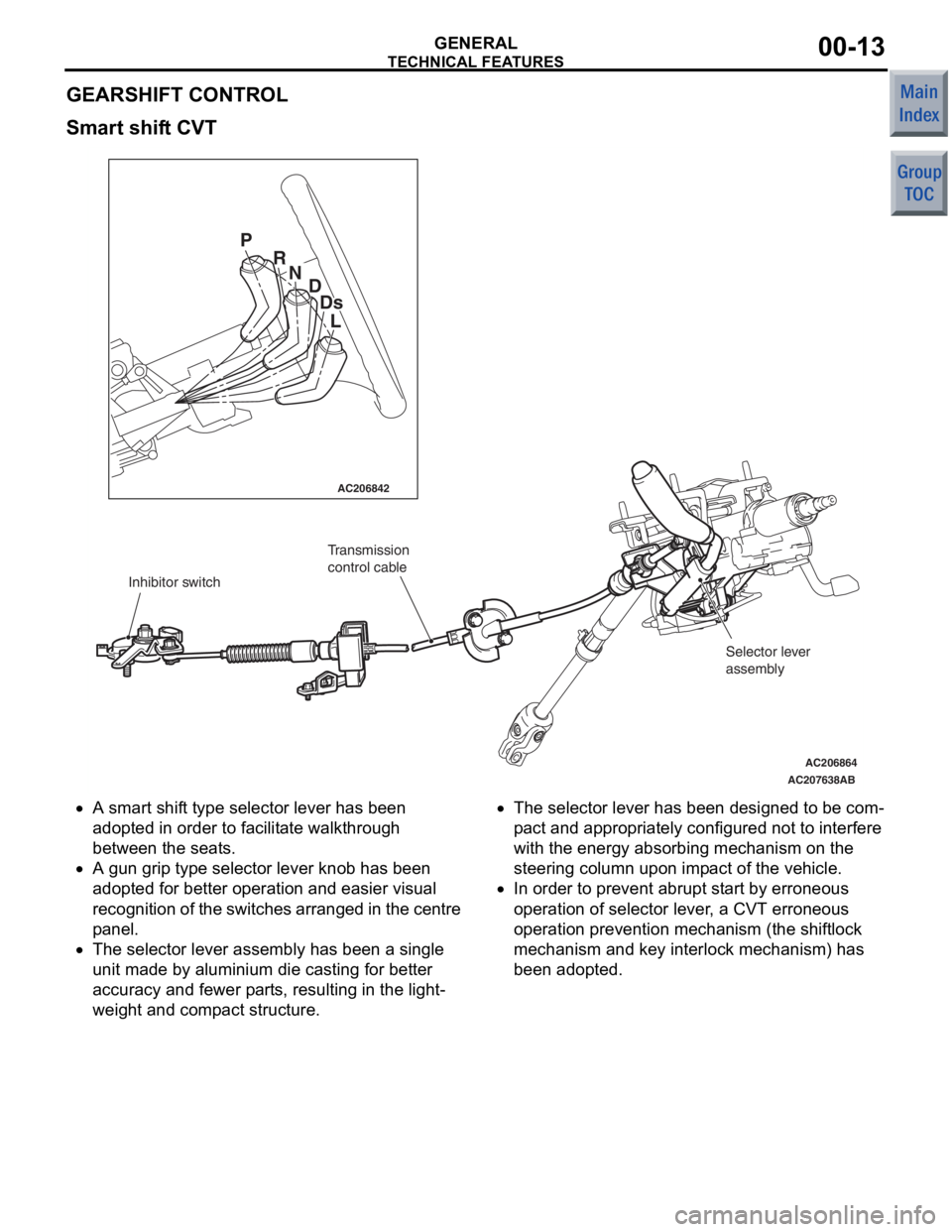

GEARSHIFT CONTROL
Smart shift CVT
AC206842
AC206864
AC207638
AB
P R
ND
Ds
L
Inhibitor switch Transmission
control cable
Selector lever
assembly
•A smart shift type selector lever h as b een
ado pted in orde r to facilitate walkthrou gh
bet wee n the seats.
•A gun grip type selector lever kno b has been
ado pted fo r better operat ion and easier visual
re cog nitio n of th e swit ches ar ra ng ed in th e ce ntre
p anel.
•The selecto r lever assembly has been a single
unit ma de by alu minium die casting f or bette r
accura cy and fewer pa rts, resu lting in the light
-
weig ht and compact struct ure.
•The selecto r lever has been designed to be com-
pa ct a nd appro priate ly configured no t to interf ere
with the en ergy absor bing mechanism on the
steerin g column upon impact of th e vehicle.
•In order to prevent abru pt st art b y erro neous
ope ration of selector lever , a CVT errone ous
ope ration preventio n mechanism (the shiftlock
m echa nis m and key interloc k mech anis m) h as
bee n adop ted.

TECHNICAL FEATURES
GENERAL00-14
SUSPENSION
M2000023000460
AC405092AB

Lower arm
Front axle No.1
crossmember Stabilizer bar
Coil spring
Strut assembly
Front axle No.1
crossmember
Lower arm Strut assembly
Coil spring
Stabilizer bar
Shock absorber Coil spring
Torsion beam
and arm assembly
<4A9> <4G1>
•The
MacPherso n Strut suspe nsio n with comp ati-
ble characteristics of high rig idity and lig ht weight
has bee n adopted for the fron t suspension to
realise suf ficien t driving comfort.
•H-shaped to rsion bea m type suspe nsion has
bee n int roduced for t he rear suspension. This
suspe nsion has larg e suspen sion stro ke and pro
-
vides suf ficient driving comfort. With it s comp act
design , spe cio us interior sp ace has been
reserved.

TECHNICAL FEATURES
GENERAL00-15
BRAKE
M2000024000270
SERVICE BRAKE
Brake system with high reliability and durability have
achieved distinguished braking performance.
AC601327AB

Brake booster (with variable
boosting mechanism)
Master cylinder Front disc brake
Hydraulic unit
(Integrated with ABS-ECU)
Rear drum brake
Brake booster (with variable
boosting mechanism)
Master cylinder
Front disc brake
Hydraulic unit
(Integrated with ABS-ECU) Rear disc brake
BRAKING PERFORMANCE
•Brake booster with 9-inch variab le amplificatio n
ratio me chanism by which greate r braking f orce
ca n be o bta ined with a less ped al pressure has
bee n inst alled (with b rake assist function).
•14-inch disc bra ke is inst alled on the front
wheels.
•15-inch disc bra ke is inst alled on the front
wheels.
•8-inch leading trailing type drum brake is installed
on the rear wheels.
•14-inch disc bra ke is inst alled on the rear
wheels.
ST ABILITY
•4-wheel anti-skid brak ing system (4ABS) is
ado pted to pre vent slippin g cause d by the vehicle
wheels locking up, in order t o maint ain a ppropri
-
ate bra kin g dist an ce, an d also t o ma inta in ve hicle
st ab ility an d steering function.
•Electronic br ake-force distribution (EBD) is
ad opted to m ain ta in th e max imu m am ount of rea r
braking force even whe n the vehicle's loa d is var
-
ie d.
•Diag onal split (X-type) brake fluid line is adopte d.
•V entilate d discs have bee n adopted to front
brakes to improve anti-fading per formance.
•A brake pe dal retraction suppression structu re
tha t restr ains the re traction of the brake pe dal
and reduces the shock to th e feet of the d rive r in
the even t of a frontal collision ha s been ado pted.
SERVICEABILITY
•Diagnosis function is adopted for the ABS system
in order t o make inspe ctio n easier .
•For the fron t disc bra kes, brake disc separate d
fron t hub is a dapted to make removal a nd instal
-
la tion easier .
•ABS-ECU and hydraulic unit have been inte-
grated to make them mor e comp act and lighte r.
