2006 MERCEDES-BENZ SPRINTER turn signal

SENTRY KEY REMOTE ENTRY MODULE (SKREEM)
CAV CIRCUIT FUNCTION
1 18YL RKE ANTENNA
2 16BR GROUND
3 16RD/YL FUSED B(+)
4 16BK/WT LEFT TURN SIGNAL
5 20DG/WT CAN C BUS (+)
6 20DG CAN C BUS (-)
7 16BK/YL FUSED IGNITION SWITCH OUTPUT (RUN-START)
8 20WT/DG K-SKREEM
9 16WT/BL/RD (EXCEPT VTSS) RKE INTERFACE
9 16WT/BL/RD (VTSS) SECURITY SYSTEM INTERFACE
10 18DG/YL TURN SIGNAL/ANTI-THEFT ALARM RELAY-LEFT/
RIGHT CONTROL
11 20BR TRANSPONDER COIL (+)
12 - TRANSPONDER COIL (-)
SHIFTER ASSEMBLY - BLACK
CAV CIRCUIT FUNCTION
1- -
2 20GY/DG/RD LAMP DRIVER
3 20BL/DG K-ABS/SHIFTER ASSEMBLY
4 18BR GROUND
5 20BK/BL/RD BRAKE LAMP SWITCH
6 20DG/WT CAN C BUS (+)
7 20DG CAN C BUS (-)
8 18BK/DG TRANSMISSION RELAY OUTPUT
9 16WT/BL/RD FUSED IGNITION SWITCH OUTPUT (RUN-START)
10 16WT/RD BACK-UP LAMP
SIREN - BLACK
CAV CIRCUIT FUNCTION
1 18RD/DG FUSED B(+)
2 18BR GROUND
3 18BK/BL SIREN SIGNAL CONTROL
8W - 80 - 76 8W-80 CONNECTOR PIN-OUTSVA

SPEAKER-RIGHT REAR
CAV CIRCUIT FUNCTION
1 16BR/GY SPEAKER-RIGHT REAR
2 16WT/GY SPEAKER-RIGHT REAR
SPEED CONTROL SWITCH
CAV CIRCUIT FUNCTION
1 18GY OFF SIGNAL
2 18BK VERIFICATION SIGNAL
3 18BL RESUME SIGNAL
4 18YL DECEL/SET SIGNAL
5 18DG ACCEL/SET SIGNAL
6 18RD S/C SWITCH 12 VOLT SUPPLY
STEERING ANGLE SENSOR
CAV CIRCUIT FUNCTION
1 20DG/WT CAN C BUS (-)
2- -
3 20DG CAN C BUS (+)
4- -
5 20BK/RD FUSED OPTIONAL EQUIPMENT RELAY OUTPUT
6 20BR GROUND
TAIL LAMP ASSEMBLY-LEFT - BLACK
CAV CIRCUIT FUNCTION
1- -
2 16GY/BK LEFT LAMP RELAY OUTPUT
3 16BK/RD BRAKE LAMP SWITCH OUTPUT
4 16WT/RD BACK-UP LAMP
5 16BK/WT LEFT TURN SIGNAL
6 16BR GROUND
8W - 80 - 78 8W-80 CONNECTOR PIN-OUTSVA

TAIL LAMP ASSEMBLY-RIGHT - BLACK
CAV CIRCUIT FUNCTION
1- -
2 16GY/RD RIGHT LAMP RELAY OUTPUT
3 16BK/RD BRAKE LAMP SWITCH OUTPUT
4 16WT/RD BACK-UP LAMP
5 16BK/DG RIGHT TURN SIGNAL
6 16BR GROUND
TCS SWITCH (ASR) - BLACK
CAV CIRCUIT FUNCTION
1 16GY/DG/RD LAMP DRIVER
2- -
3 18BK/BL TCS SWITCH (ASR) SENSE
4- -
5- -
6- -
7 16BK/BL/DG FUSED IGNITION SWITCH OUTPUT
8- -
9- -
10 16BR GROUND
TOWING/INTRUSION SENSOR ON/OFF SWITCH
CAV CIRCUIT FUNCTION
1 18GY/DG/RD LAMP DRIVER
2- -
3 18GY/YL INTRUSION SENSOR SWITCH SENSE
4 18BR GROUND
5- -
6- -
7- -
8 18GY/BR TOWING SENSOR SWITCH SENSE
9 18VT/DG TOWING/INTRUSION SENSOR INDICATOR DRIVER
10 18BR GROUND
VA8W-80 CONNECTOR PIN-OUTS 8W - 80 - 79

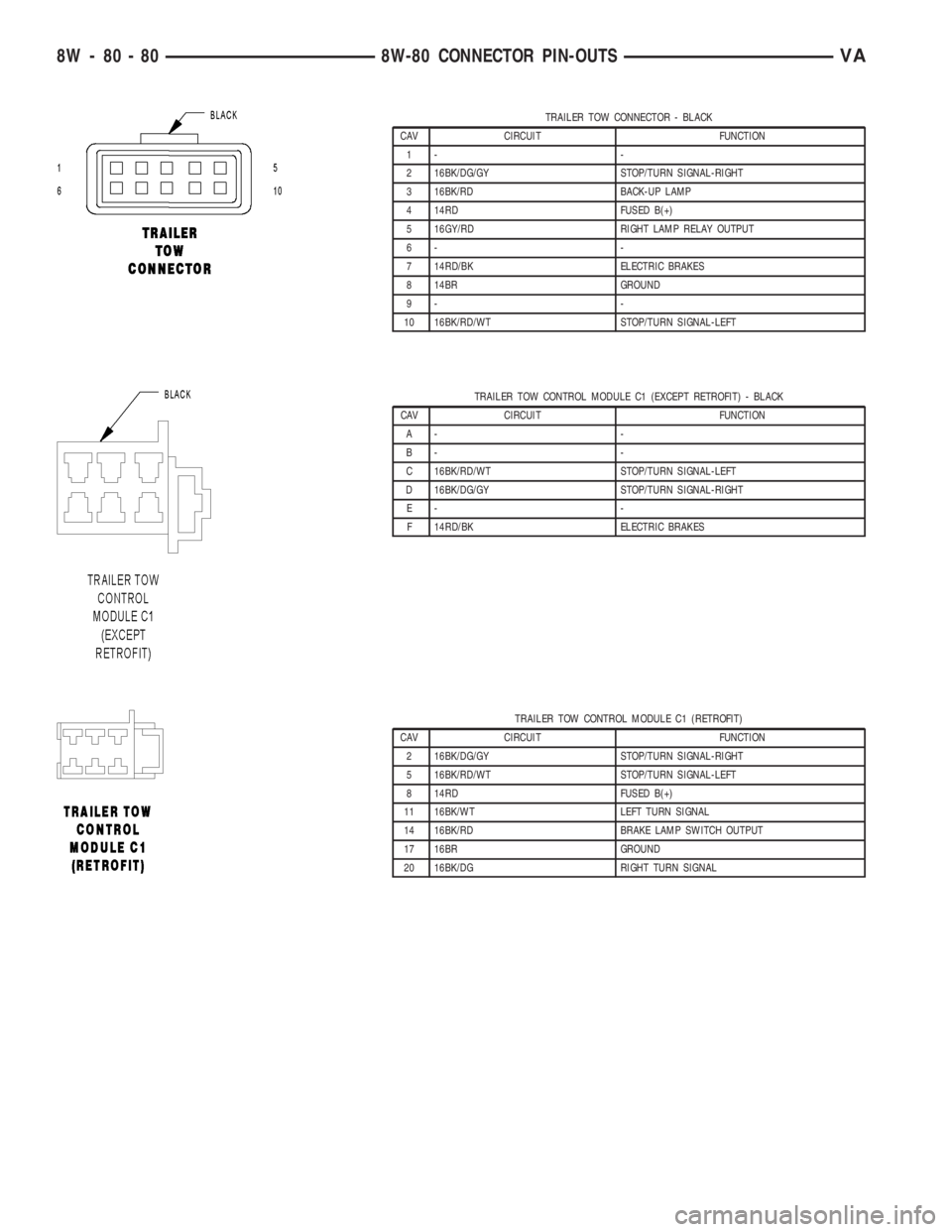

TRAILER TOW CONNECTOR - BLACK
CAV CIRCUIT FUNCTION
1- -
2 16BK/DG/GY STOP/TURN SIGNAL-RIGHT
3 16BK/RD BACK-UP LAMP
4 14RD FUSED B(+)
5 16GY/RD RIGHT LAMP RELAY OUTPUT
6- -
7 14RD/BK ELECTRIC BRAKES
8 14BR GROUND
9- -
10 16BK/RD/WT STOP/TURN SIGNAL-LEFT
TRAILER TOW CONTROL MODULE C1 (EXCEPT RETROFIT) - BLACK
CAV CIRCUIT FUNCTION
A- -
B- -
C 16BK/RD/WT STOP/TURN SIGNAL-LEFT
D 16BK/DG/GY STOP/TURN SIGNAL-RIGHT
E- -
F 14RD/BK ELECTRIC BRAKES
TRAILER TOW CONTROL MODULE C1 (RETROFIT)
CAV CIRCUIT FUNCTION
2 16BK/DG/GY STOP/TURN SIGNAL-RIGHT
5 16BK/RD/WT STOP/TURN SIGNAL-LEFT
8 14RD FUSED B(+)
11 16BK/WT LEFT TURN SIGNAL
14 16BK/RD BRAKE LAMP SWITCH OUTPUT
17 16BR GROUND
20 16BK/DG RIGHT TURN SIGNAL
8W - 80 - 80 8W-80 CONNECTOR PIN-OUTSVA

TRAILER TOW CONTROL MODULE C2 (EXCEPT RETROFIT) - BLACK
CAV CIRCUIT FUNCTION
A 16BK/RD BRAKE LAMP SWITCH OUTPUT
B 16BK/DG RIGHT TURN SIGNAL
C 16BR GROUND
D 14RD FUSED B(+)
E 16BK/WT LEFT TURN SIGNAL
F- -
TRANSMISSION CONTROL MODULE C1 - BLACK
CAV CIRCUIT FUNCTION
1 20BL K-TCM/RADIO
2- -
3- -
4- -
5- -
6- -
7- -
8- -
9- -
10 - -
23 - -
24 - -
25 - -
26 - -
27 - -
28 - -
29 16BK/DG TRANSMISSION RELAY OUTPUT
30 18BR GROUND
TRANSMISSION CONTROL MODULE C2 - BLACK
CAV CIRCUIT FUNCTION
12 20BL/GY N2 INPUT SPEED SENSOR
13 20BK/BL SENSOR SUPPLY VOLTAGE
14 16WT 1-2/4-5 SOLENOID CONTROL
15 16YL 3-4 SOLENOID CONTROL
16 16WT/BL 2-3 SOLENOID CONTROL
17 16YL/BL TCC SOLENOID CONTROL
33 20PK SENSOR GROUND
34 20GY/BL TEMPERATURE SENSOR-P/N SWITCH
35 20BL/DG N3 INPUT SPEED SENSOR
36 16BR/GY MODULATION PRESSURE SOLENOID CONTROL
37 16BK/RD SHIFT PRESSURE SOLENOID CONTROL
38 16BK SOLENOID SUPPLY VOLTAGE
H 20DG/WT CAN C BUS (+)
L 20DG CAN C BUS (-)
VA8W-80 CONNECTOR PIN-OUTS 8W - 80 - 81

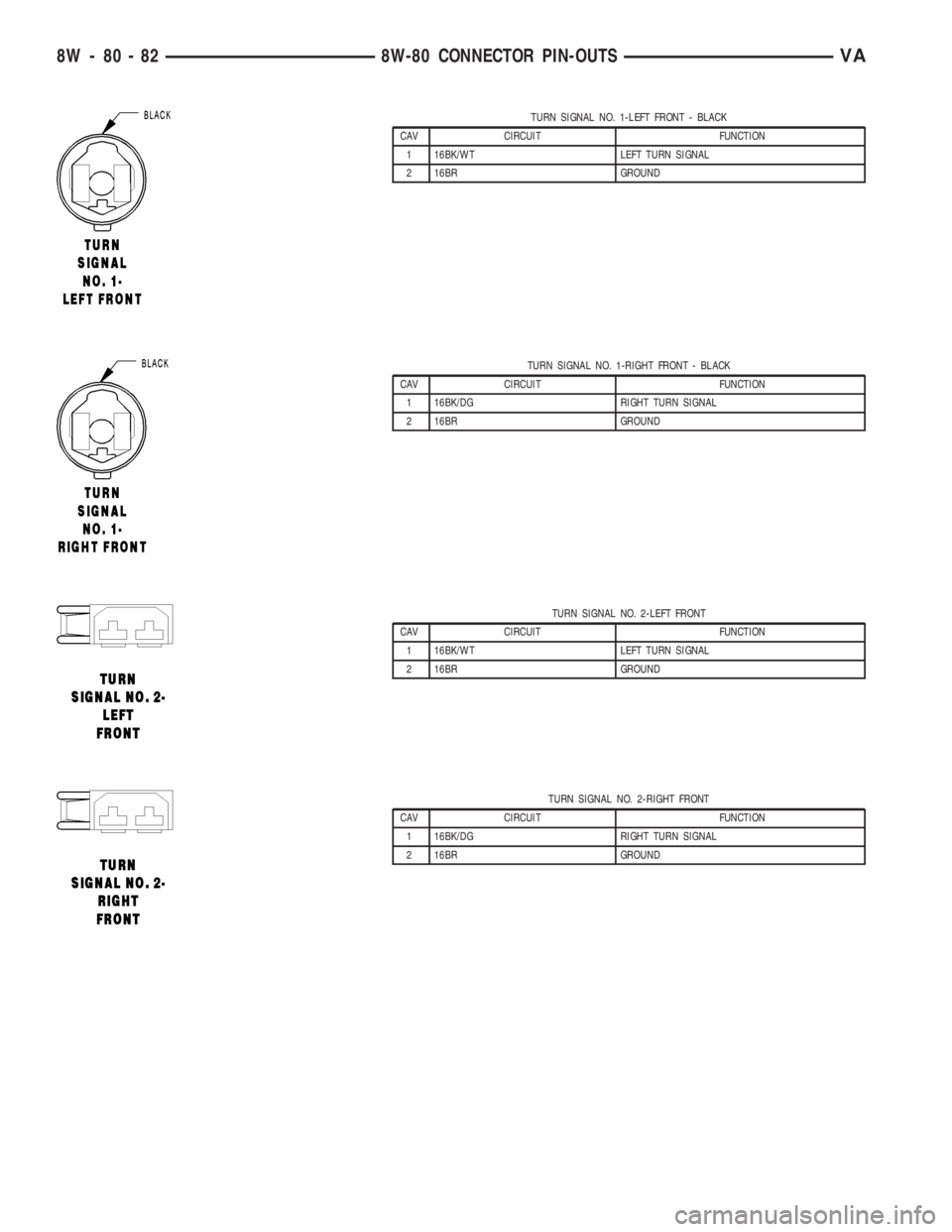

TURN SIGNAL NO. 1-LEFT FRONT - BLACK
CAV CIRCUIT FUNCTION
1 16BK/WT LEFT TURN SIGNAL
2 16BR GROUND
TURN SIGNAL NO. 1-RIGHT FRONT - BLACK
CAV CIRCUIT FUNCTION
1 16BK/DG RIGHT TURN SIGNAL
2 16BR GROUND
TURN SIGNAL NO. 2-LEFT FRONT
CAV CIRCUIT FUNCTION
1 16BK/WT LEFT TURN SIGNAL
2 16BR GROUND
TURN SIGNAL NO. 2-RIGHT FRONT
CAV CIRCUIT FUNCTION
1 16BK/DG RIGHT TURN SIGNAL
2 16BR GROUND
8W - 80 - 82 8W-80 CONNECTOR PIN-OUTSVA

CONNECTOR NAME/NUMBER COLOR LOCATION FIG.
TCS Switch (ASR) BK Center Of Instrument Panel 20
Temperature Sensor WT Center Roof A/C Unit 40
Thermotronic Control Module BK N/S
Thermotronic Diode Center Roof A/C Unit 39
Time Delay Relay Under Driver Seat N/S
Towing/Intrusion Sensor ON/OFF Switch BK Instrument Panel 20
Trailer Tow Connector Under Rear Of Vehicle N/S
Trailer Tow Control Module C1 BK Rear Of Vehicle N/S
Trailer Tow Control Module C2 BK Rear Of Vehicle N/S
Transmission Control Module C1 BK Engine Compartment 3
Transmission Control Module C2 BK Engine Compartment 3
Transmission Relay (Relay Block) In Fuse Block No.1 N/S
Transmission Solenoid Assembly BK Transmission 16
Turn Signal Lamp No.1-Left Front BK Front Of Vehicle On Left
SideN/S
Turn Signal Lamp No.1-Right Front BK Front Of Vehicle On Right
SideN/S
Turn Signal Lamp No.2-Left Front BK Front Of Vehicle On The
Left Side45
Turn Signal Lamp No.2-Right Front BK Front Of Vehicle On The
Right Side45
Turn Signal Relay (Fuse Block No.1) In Fuse Block No.1 N/S
Turn Signal/Anti-Theft Alarm Relay-Left (Re-
lay Block)BK Under Driver Seat N/S
Turn Signal/Anti-Theft Alarm Relay-Right
(Relay Block)BK Under Driver Seat N/S
Warm Air Auxiliary Heater Assembly C1 Instrument Panel 33
Warm Air Auxiliary Heater Assembly C2 Instrument Panel 33
Washer Pump Motor-Front WT Engine Compartment 25
Water Cycle Valve BK Underhood (To The Instru-
ment Panel)10
Water In Fuel Sensor Engine Compartment 14
Wheel Speed Sensor-Left Front Left Front Wheel 2
Wheel Speed Sensor-Left Rear Left Rear Wheel 2
Wheel Speed Sensor-Right Front Right Front Wheel 49
Wheel Speed Sensor-Right Rear Right Rear Wheel 49
Window Defogger Module - Rear BK Rear Of Vehicle N/S
Window Defogger Relay-Left Rear (Relay
Block)BK Under Driver Seat N/S
Window Defogger Relay-Right Rear (Relay
Block)BK Under Driver Seat N/S
Window Defogger Switch - Rear BK Instrument Panel 25
Window Defogger-Left Rear On Left Rear Window 53
Window Defogger-Right Rear On Right Rear Window 53
Wiper Motor-Front BK Underhood (To The Window) 8
VA8W-91 CONNECTOR/GROUND/SPLICE LOCATION 8W - 91 - 9

CONNECTOR NAME/NUMBER COLOR LOCATION FIG.
Wiper On/Off Relay (Fuse Block No. 1) In Fuse Block No.1 N/S
Wiper/Turn Signal/Engine Start Control Mod-
ule (In Fuse Block 1)In Fuse Block No.1 N/S
GROUNDS
GROUND NUMBER LOCATION FIG.
G100 Underhood-Left Front 52
G101 Underhood-Right Front 52
G102 Underhood-Right Front 52
G200 Engine Compartment-Left 8,10, 52
G201 Under Driver Seat 52
G202 Under Driver Seat 36, 52
G203 Dash 19, 52
G300 Right Rear-Body 52
G301 Right Rear-Body Top 52
G302 Engine Compartment-Left Front 52
G303 Left Front Instrument Panel 5
G304 Front Center Headliner 5
SPLICES
SPLICE NUMBER LOCATION FIG.
S100 Under Drivers Seat 18
S101 Instrument Panel 18
S102 Under Drivers Seat 18
S103 Under Drivers Seat 18
S104 Near Headlamp Assembly-Left 27
S105 Engine Compartment-Left 7
S106 Near Wheel 48
S108 Instrument Panel 18
S175 Engine Compartment-Left 18
S176 Engine Compartment-Left 18
S177 Engine Compartment-Left 18
S178 Engine Compartment-Left 18
S180 Left Plenum 27
S200 Engine Compartment-Left 1, 9
S201 Instrument Panel 21
S202 Instrument Panel 21
S203 Instrument Panel 18
S204 Near Brake Lamp Switch 18
S205 Instrument Panel 18
S206 Instrument Panel 18
S207 Near Time Delay Relay 18
S208 Near Time Delay Relay 18
8W - 91 - 10 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONVA
