2006 LEXUS LS430 Owners Manual

5
When trouble arises
361
5-2. Steps to take in an emergency
If the vehicle becomes stuck
CAUTION
■When removing the stuck vehicle
If you choose to rock the vehicle back and forth to free it, make sure the surround-
ing area is clear, to avoid striking other vehicles, objects or persons. The vehicle
may
also lunge forward or lunge back suddenly as it becomes free, use extreme
caution.
NOTICE
■To avoid damaging the transmission and other components
●Do not operate the selector lever while depressing the accelerator pedal.
●Avoid spinning the wheels and do not rev the engine.
●If the vehicle remains stuck after trying these procedures the vehicle may require
towing to be freed.
Carry out the following procedures if the tires spin or the vehicle becomes
stuck in mud, dirt, or snow to the extent that it cannot move.
• Stop the engine. Set the parking brake and put the transmission
selector lever in “P”.
• Remove the mud, snow, or sand from around the stuck tire.
• Place wood, stones or some other ma terial to help pr
ovide traction
under the tires.
• Restart the engine.
• Turn off the traction control system. ( P.141)
• Carefully apply the accelerator to free the vehicle.

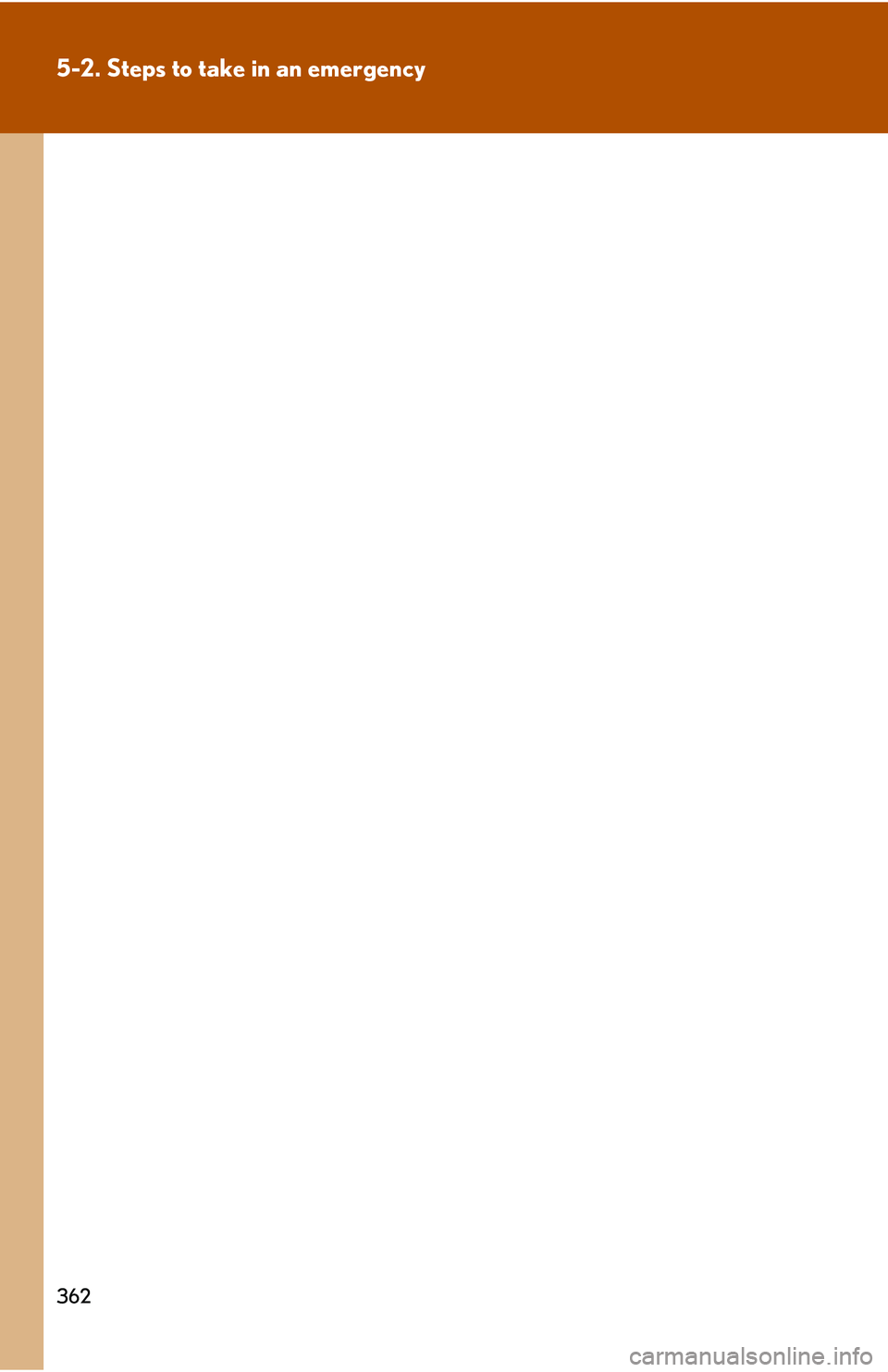

362
5-2. Steps to take in an emergency

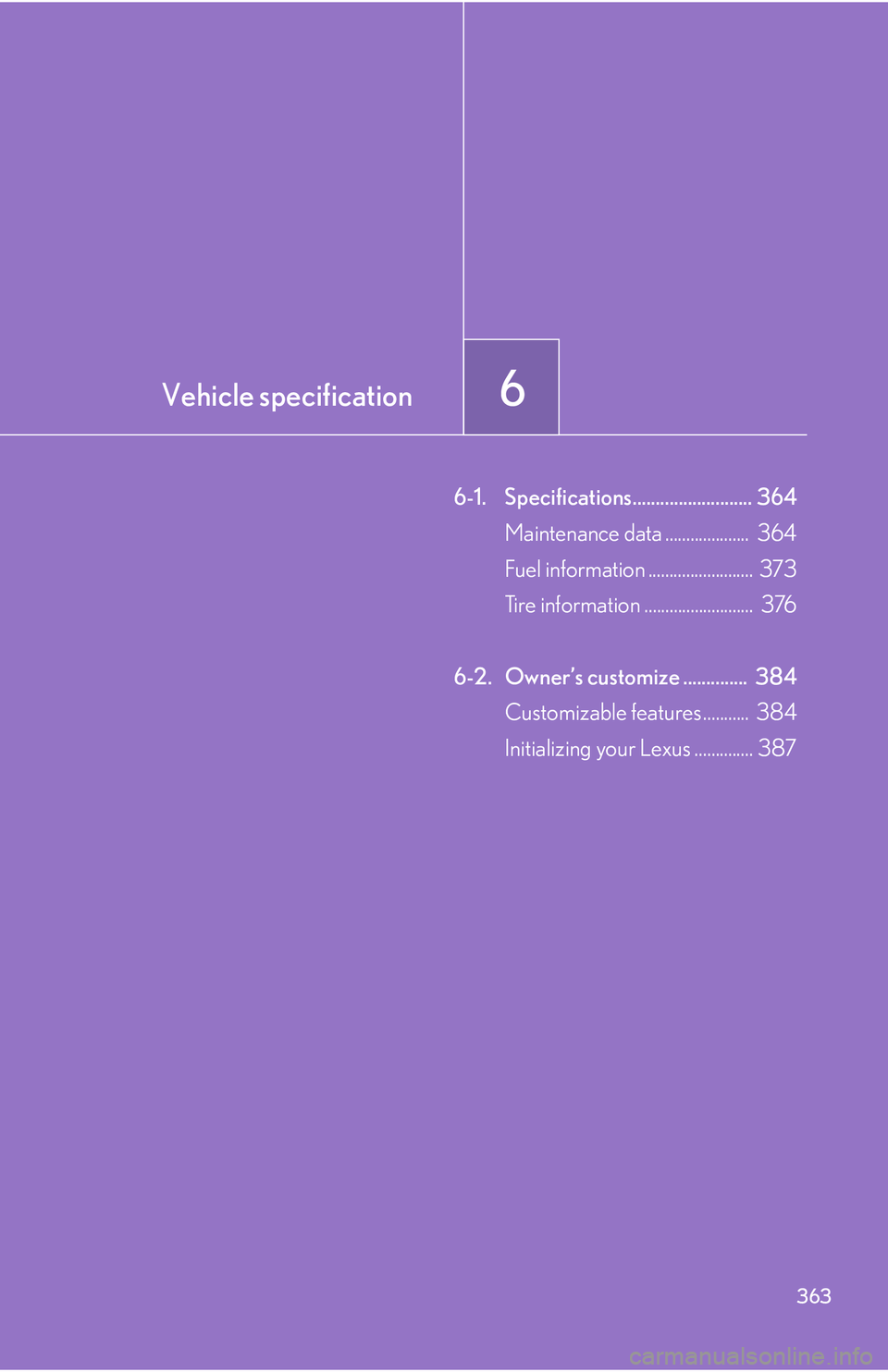

6Vehicle specification
363
6-1. Specifications.......................... 364Maintenance data .................... 364
Fuel information ......................... 373
Tire information .......................... 376
6-2. Owner’s customize .............. 384 Customizable features ........... 384
Initializing your Lexus .............. 387

364
6-1. Specifications
Maintenance data
Dimensions and weight
*Unladen vehicle
Overall length197.4 in. (5015 mm)
Overall width72.0 in. (1830 mm)
Overall height
- with electronically modulated air suspension
- without electronically modulated air suspension
57.9 in. (1470 mm)*
58.7 in. (1490 mm)*
Wheelbase115.2 in. (2925 mm)
Tr e a d
-Front 
with electronically modulated air
suspension 
without electronically modulated
air suspension
-Rear 
with electronically modulated air
suspension 
without electronically modulated
air suspension
62.0 in. (1575 mm)
61.8 in. (1570 mm)
62.0 in. (1575 mm)
61.8 in. (1570 mm)
Vehicle capacity weight (occu -
pants + luggage)900 lb. (410 kg)
Towing capacity (trailer weight +
cargo weight)2000 lb. (907 kg)

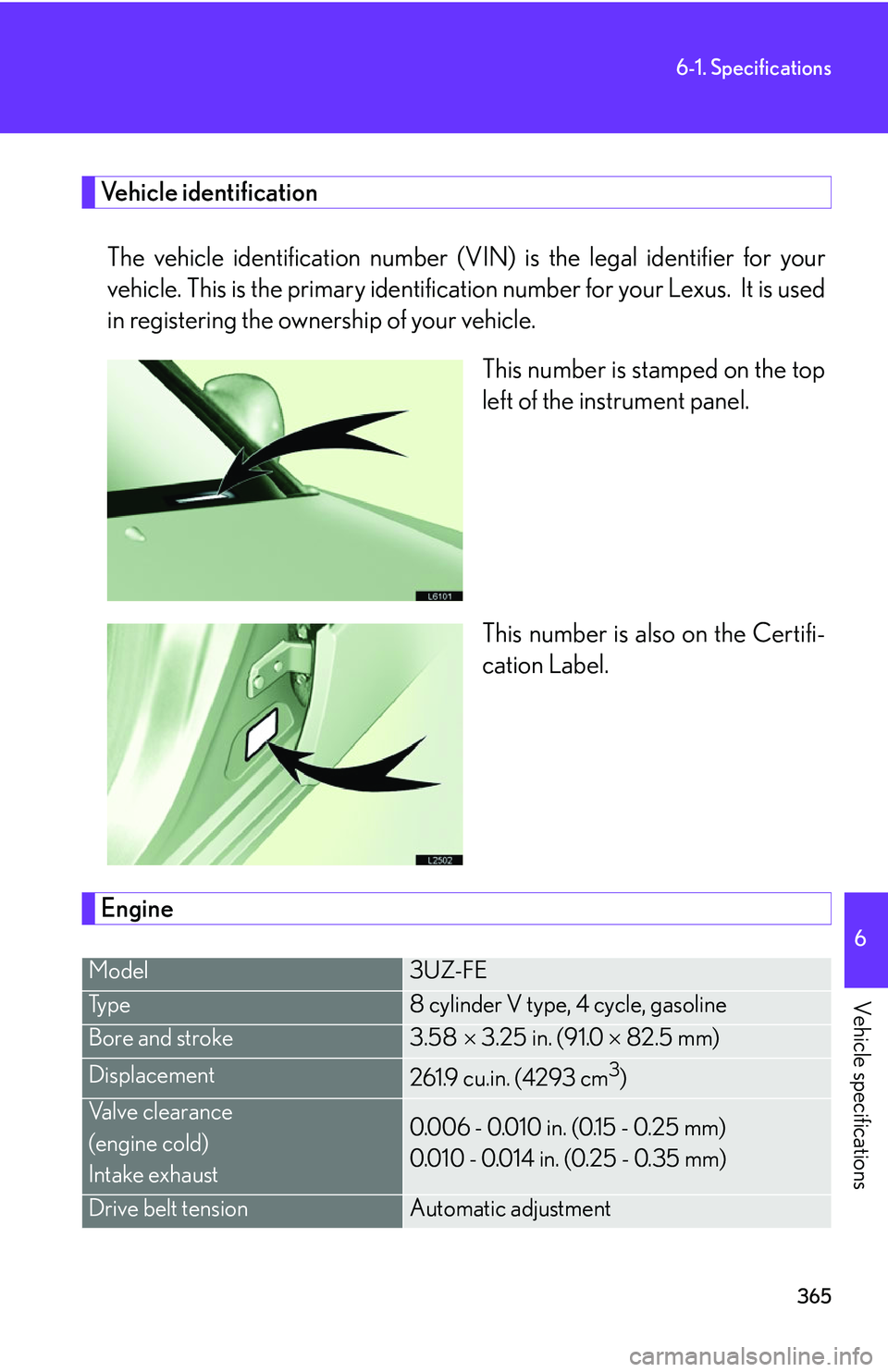

365
6-1. Specifications
6
Vehicle specifications
Vehicle identification
The vehicle identification number (VIN) is the legal identifier for your
vehicle. This is the primar y identification number for your Lexus. It is used
in registering the ownership of your vehicle.
This number is stamped on the top
lef
t of the instrument panel.
This number is also on the Certifi-
cation Label.
Engine
Model3UZ-FE
Ty p e8 cylinder V type, 4 cycle, gasoline
Bore and stroke3.58  3.25 in. (91.0  82.5 mm)
Displacement261.9 cu.in. (4293 cm3)
Valve clearance 
(engine cold) 
Intake exhaust
0.006 - 0.010 in. (0.15 - 0.25 mm) 
0.010 - 0.014 in. (0.25 - 0.35 mm)
Drive belt tensionAutomatic adjustment

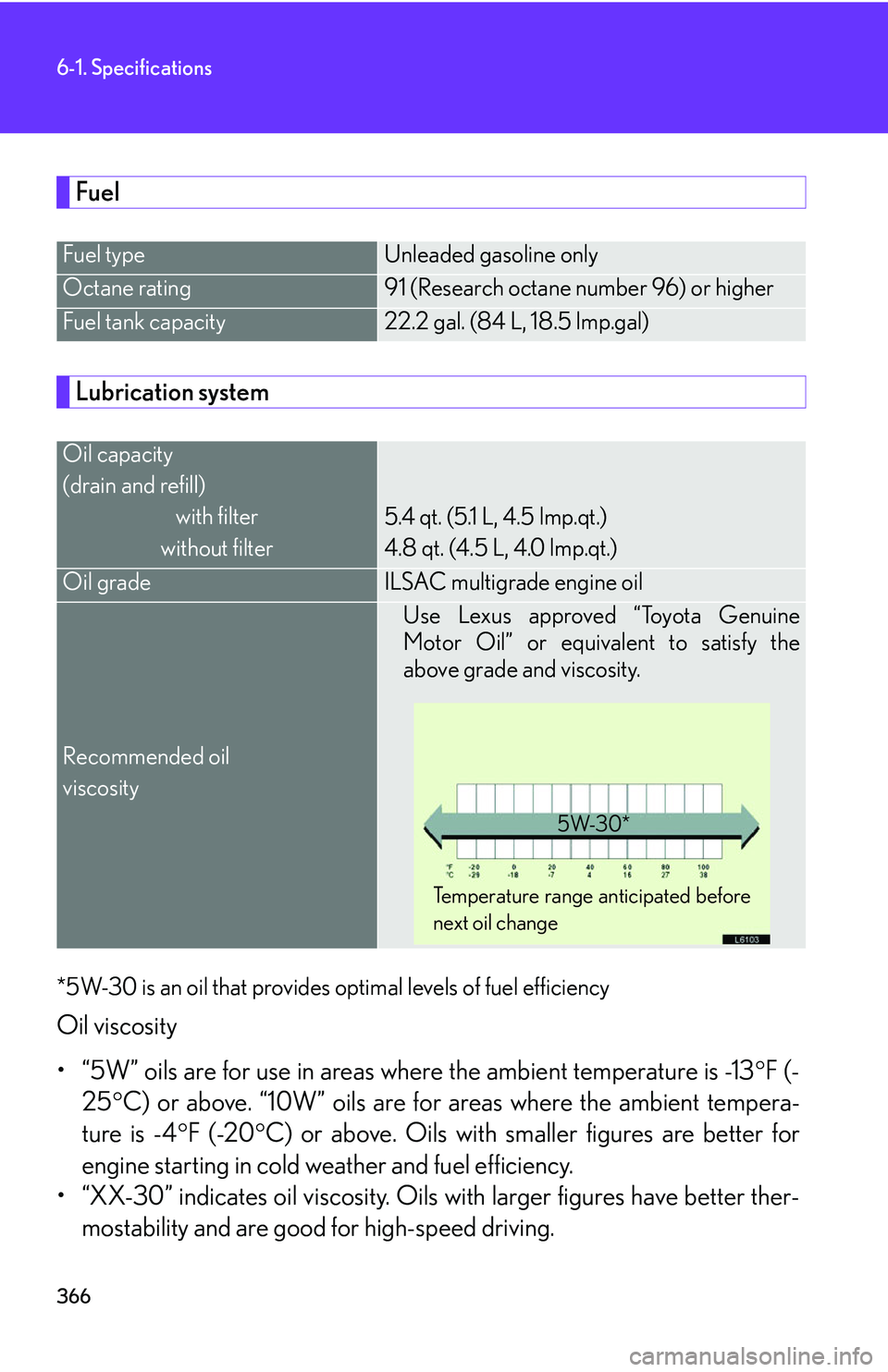

366
6-1. Specifications
Fuel
Lubrication system
*5W-30 is an oil that provides optimal levels of fuel efficiency
Oil viscosity
• “5W” oils are for use in ar
eas where the ambient temperature is -13 F (-
25 C) or above. “10W” oils are fo r areas where the ambient tempera -
ture is -4 F (-
20C) or above. Oils with smaller figures are better for
engine starting in cold we ather and fuel efficiency.
• “XX-30” indicates oil viscosity. O ils with lar
ger figures have better ther-
mostability and are good for high-speed driving.
Fuel typeUnleaded gasoline only
Octane rating91 (Research octane number 96) or higher
Fuel tank capacity22.2 gal. (84 L, 18.5 lmp.gal)
Oil capacity
(drain and refill) with filter
without filter
5.4 qt. (5.1 L, 4.5 lmp.qt.)
4.8 qt. (4.5 L, 4.0 lmp.qt.)
Oil gradeILSAC multigrade engine oil
Recommended oil 
viscosity
Use Lexus approved “Toyota Genuine
Motor Oil” or equivalent to satisfy the
above grade and viscosity.
Temperature range anticipated before
next oil change 5W-30*

367
6-1. Specifications
6
Vehicle specifications
Cooling system
Ignition system
Capacity10.0 qt. (9.5 L, 8.4 lmp.qt.)
Coolant type
Use either of the following.
• “Toyota Super Long Life Coolant”
• Similar high quality ethylene glycol based non-silicat
e, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid
organic acid technology
Do not use plain water alone.
Spark plug
-MakeDENSOSK20R11
NGKIFR6A11
- Gap0.043 in. (1.1 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not
adjust gap when tuning engine.

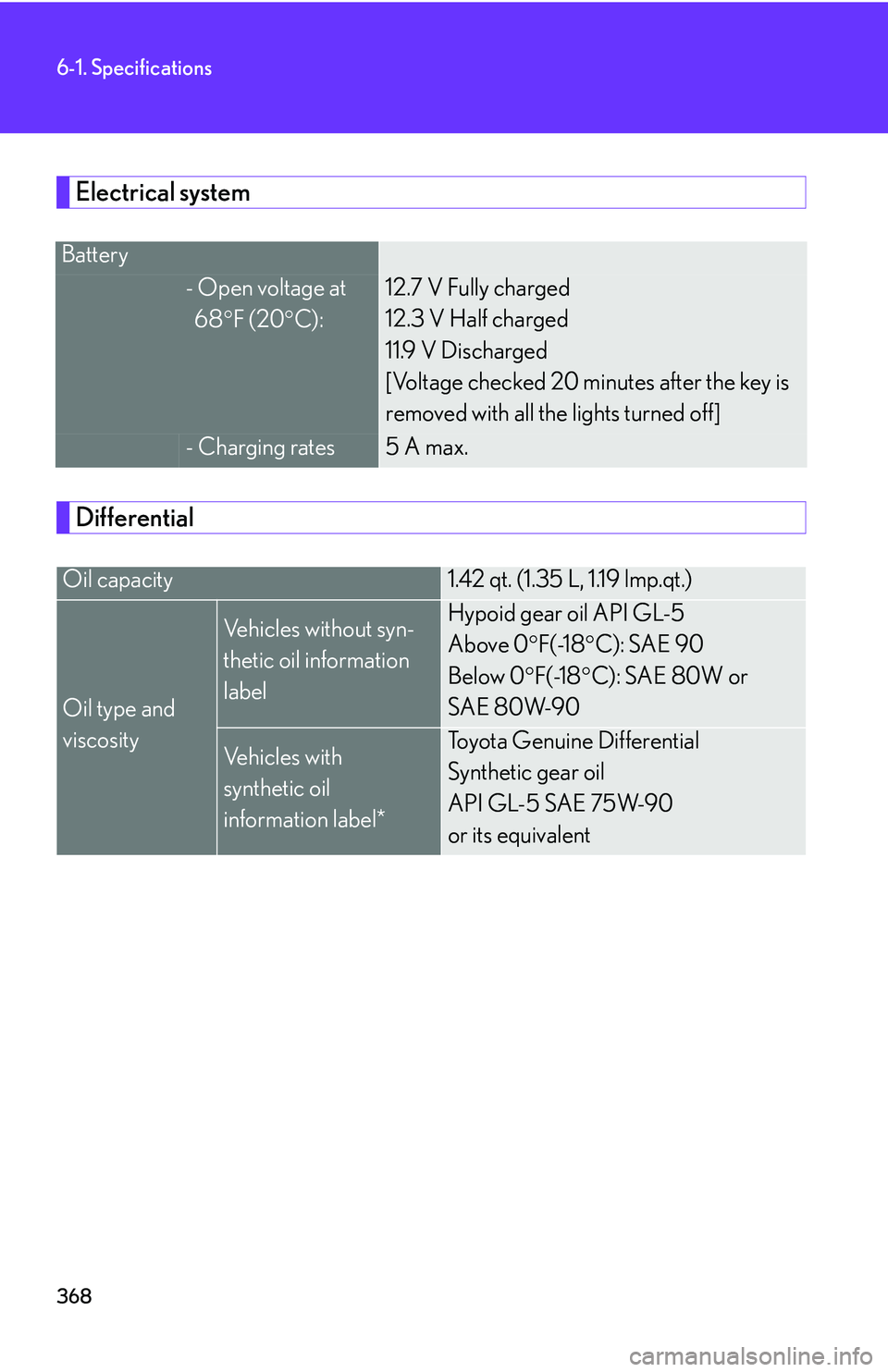

368
6-1. Specifications
Electrical system
Differential
Battery
- Open voltage at 
68F (20 C):
12.7 V Fully charged 
12.3 V Half charged 
11.9 V Discharged 
[Voltage checked 20 minutes after the key is
removed with all the lights turned off]
- Charging rates5 A max.
Oil capacity1.42 qt. (1.35 L, 1.19 lmp.qt.)
Oil type and 
viscosity
Vehicles without syn -
thetic oil information
label
Hypoid gear oil API GL-5 
Above 0 F(-
18 C): SAE 90 
Below 0 F(-
18 C): SAE 80W or 
SAE 80W-90
Vehicles with 
synthetic oil 
information label*
Toyota Genuine Differential 
Synthetic gear oil
API GL-5 SAE 75W-90 
or its equivalent
