2006 LEXUS LS430 Owners Manual

121
2-4. Using other driving systems
2
When driving
■Objects which may not be detected
●Wires or ropes.
●Objects with a surface area too small to reflect ultrasonic waves such as a
chain-link fence.
●Sound wave absorbing objects such as cotton or snow.
●Objects with a sharp edge.
●Shorter objects.
●Tall objects with the upper part projected.
■Operating condition
The ignition switch must b
e turned to ON.
■Park assist graphics (vehicles equippe d with the Navigation system) System
The park assist graphics also appear on the n
avigation display. For details, see the
separate “Navigation System Owner’s Manual”.
■Certification for the Lexus park assist system (Canada)
This ISM device complies with Canadian ICES-001.
■Failure warnings
If a system error is detected, the master warning light comes on, 5 beeps sound, the
fo
llowing warning message appears, and gr aphic information indicates the faulty
sensor. ( P.334 )
■Customization
The volume of the beeps can be changed. ( P. 3 8 4 )

122
2-4. Using other driving systems

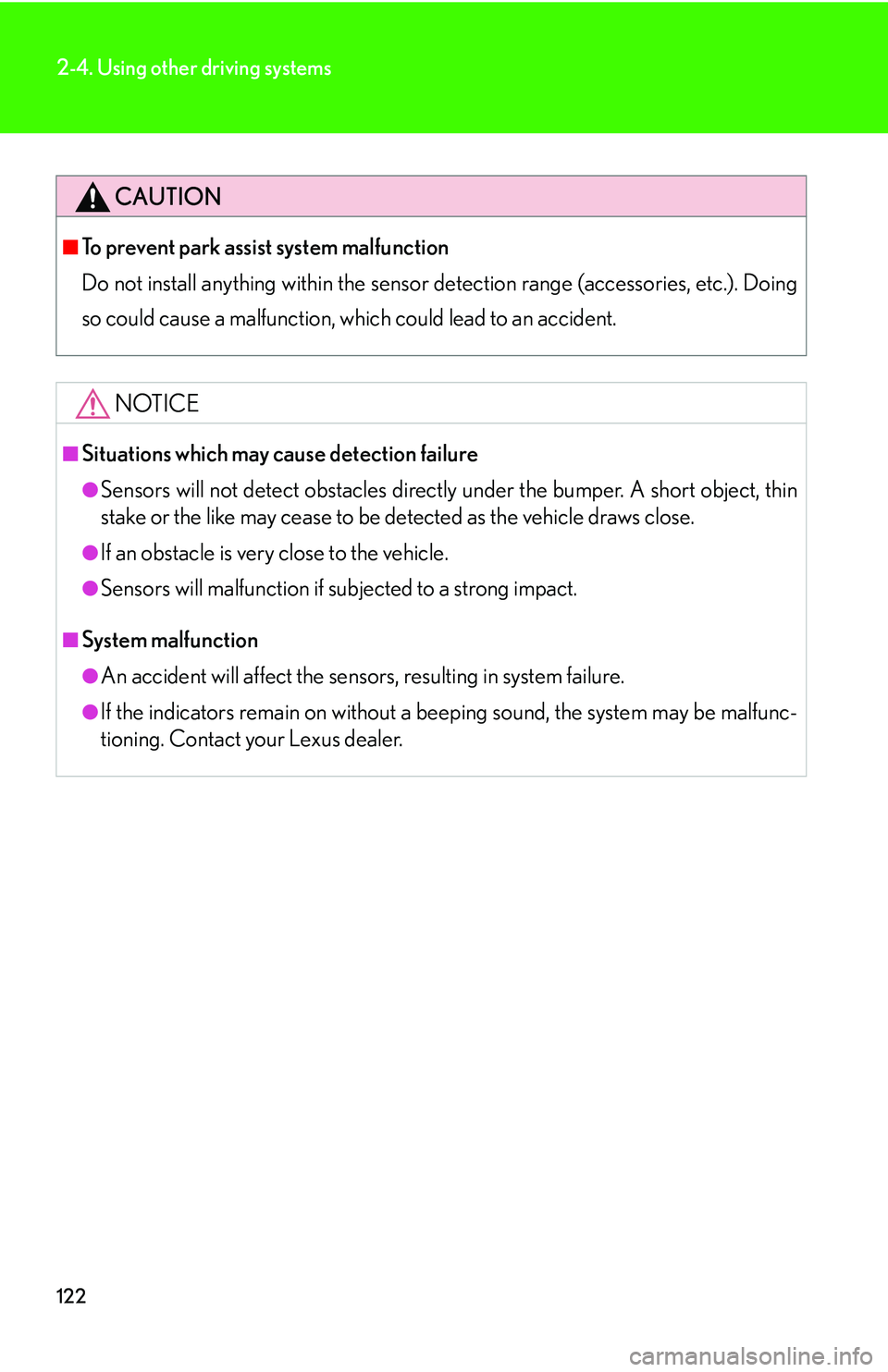

CAUTION
■To prevent park assist system malfunction
Do not install anything within the sensor detect
ion range (accessories, etc.). Doing
so could cause a malfunction, which could lead to an accident.
NOTICE
■Situations which may cause detection failure
●Sensors will not detect obstacles directly under the bumper. A short object, thin
stake or the like may cease to be detected as the vehicle draws close.
●If an obstacle is very close to the vehicle.
●Sensors will malfunction if subjected to a strong impact.
■System malfunction
●An accident will affect the sensors, resulting in system failure.
●If the indicators remain on without a beeping sound, the system may be malfunc -
tioning. Contact your Lexus dealer.

123
2-4. Using other driving systems
2
When driving
Rear view monitor system
■Displayed area
The rear view monitor system assists the driver by displaying an image of the
area behind the vehicle. The displayed image is a horizontally reversed mirror
image of the inside rear view mirror.
Rear view image is displayed when
the selector lever is in the “R” posi -
tion.
If you move the lever out of “R”
position, the screen returns to the
previous one.
The area covered by the camera is limited.
Objects which are close to either corner
of the bumper or under the bumper can-
not be seen on the screen.
The area displayed on the screen may vary
according to vehicle orientation or road
conditions.
Corner of bumper
1

124
2-4. Using other driving systems

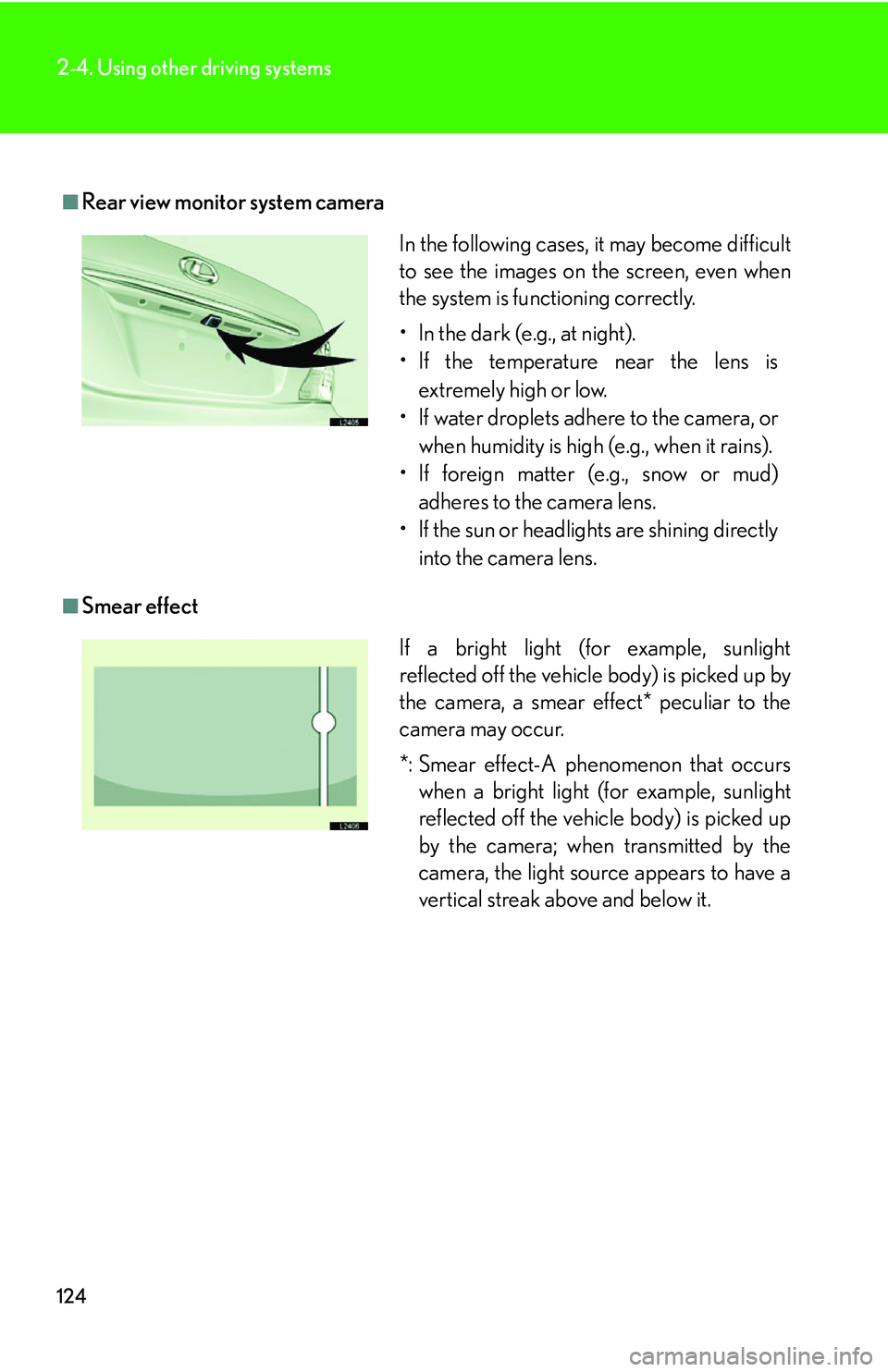

■Rear view monitor system camera
■Smear effect
In the following cases, it may become difficult
to see the images on the screen, even when
the system is functioning correctly.
• In the dark (e.g., at night).
• If the temperature near the lens is extremely high or low.
• If water droplets adhere to the camera, or when humidity is high (e.g., when it rains).
• If foreign matter (e.g., snow or mud) adheres to the camera lens.
• If the sun or headlights are shining directly
into the camera lens.
If a bright light (for example, sunlight
reflected off the vehicle body) is picked up by
the camera, a smear effect* peculiar to the
camera may occur.
*: Smear effect-A phenomenon that occurs when a bright light (for example, sunlight
reflected off the vehicle body) is picked up
by the camera; when transmitted by the
camera, the light source appears to have a
vertical streak above and below it.

125
2-4. Using other driving systems
2
When driving
CAUTION
■When using the rear view monitor system, observe these precautions to avoid an
accident that could result in death or serious injuries.
●Never depend solely on the monitor system when reversing.
●Always check visually and with the mirrors to confirm your intended path is clear.
●Depicted distances between objects and flat surfaces differ from actual dis-
tances.
●Do not use the system if the trunk is open.
■Conditions which may affect the rear view monitor system
●If the back of the vehicle is hit, the camera’s position and mounting angle may
change. See your Lexus dealer.
●Rapid temperature changes, such as when hot water is poured on the vehicle in
cold weather, may cause the system to function abnormally.
●If the camera lens is dirty, it cannot transmit a clear image. Rinse with water and
wipe with a soft cloth. If extremely dirty, wash with a mild cleanser and rinse.
●The displayed image may be darker and mo ving images may be slightly distorted
when the system is cold.

126
2-4. Using other driving systems

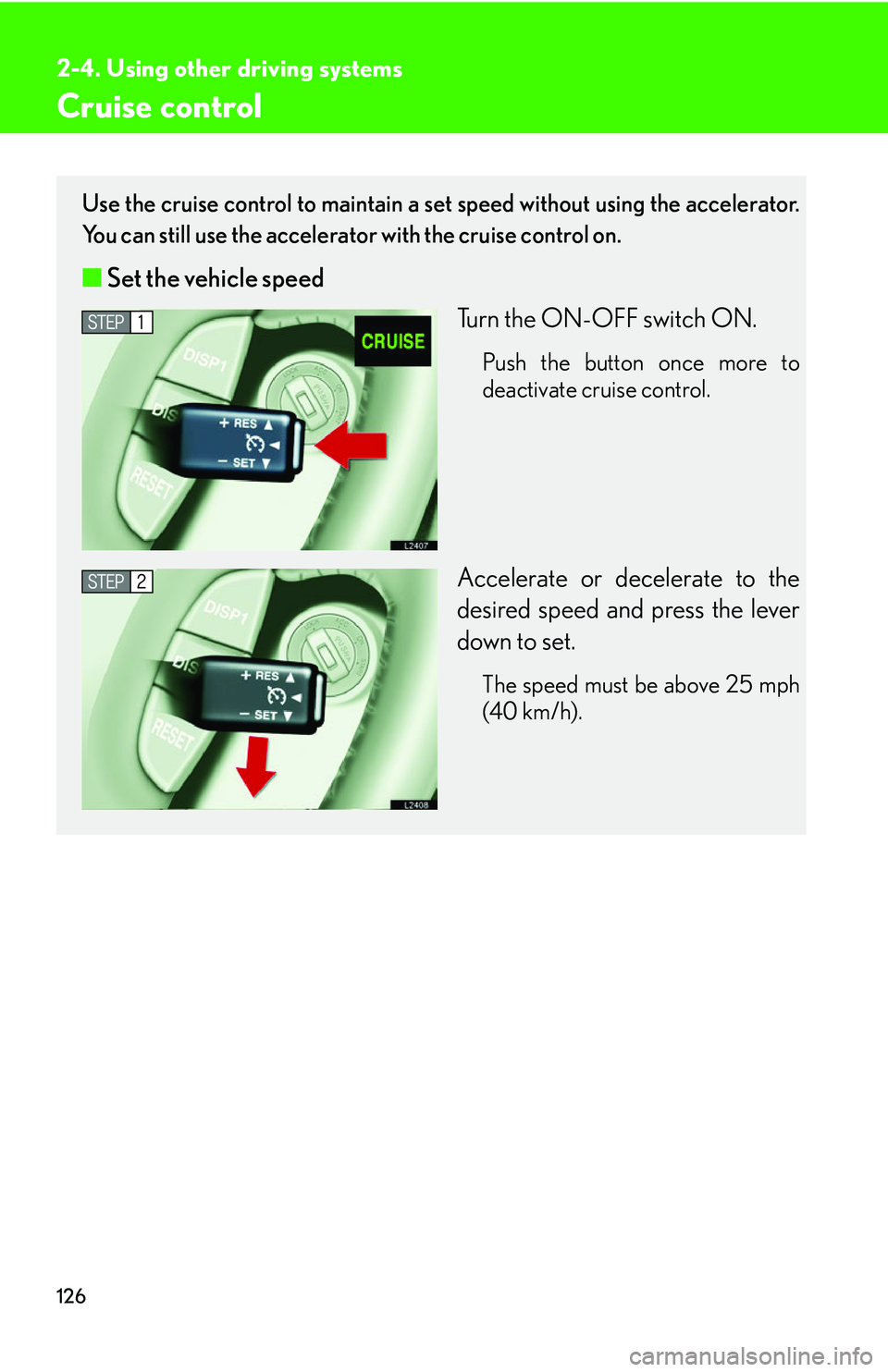

Cruise control
Use the cruise control to maintain a set speed without using the accelerator.
You can still use the accelerato r with the cruise control on.
■Set the vehicle speed
Turn the ON-OFF switch ON.
Push the button once more to
deactivate cruise control.
Accelerate or decelerate to the
desired speed and press the lever
down to set.
The speed must be above 25 mph
(40 km/h).

127
2-4. Using other driving systems
2
When driving

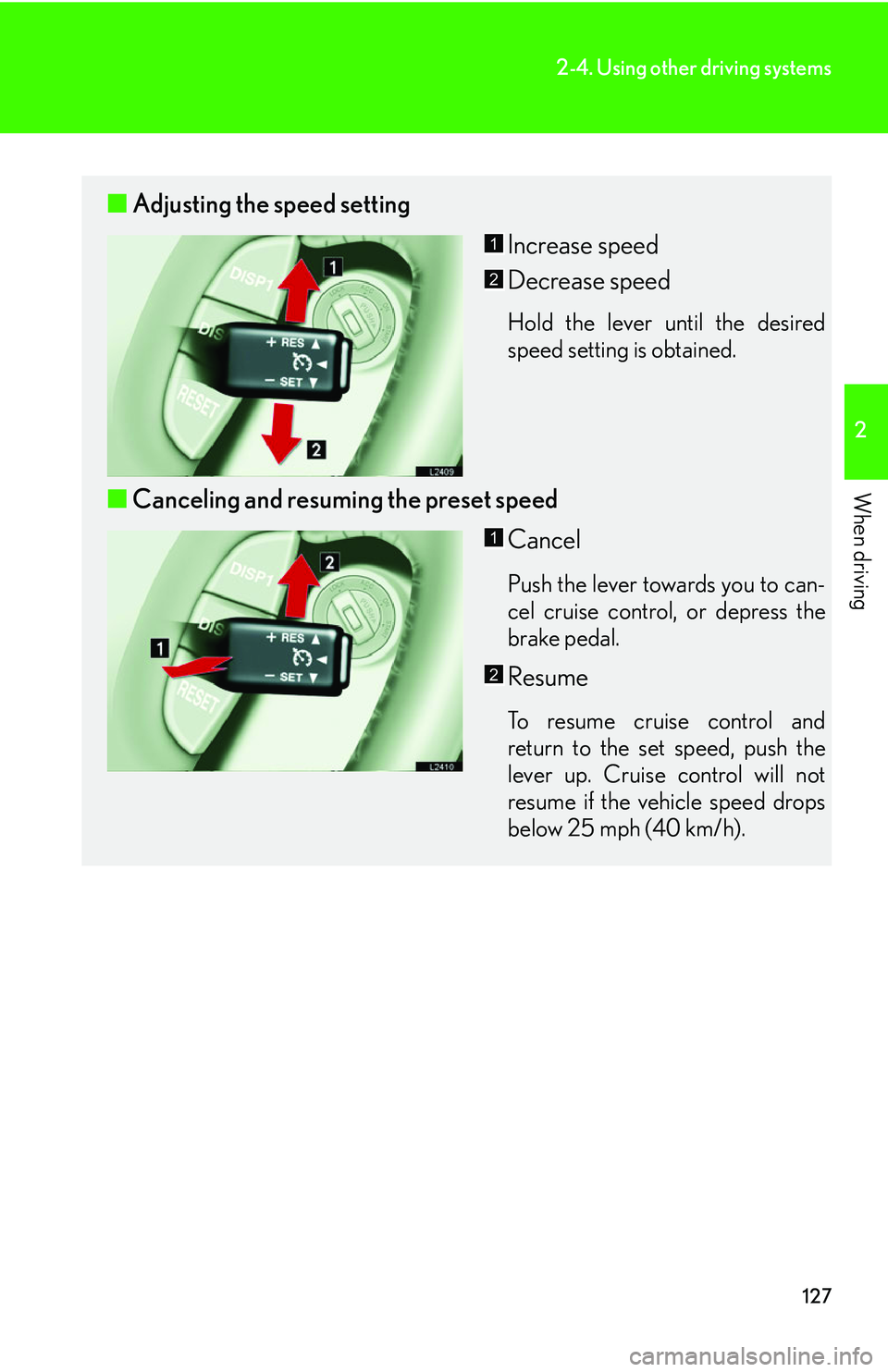

■Adjusting the speed setting
Increase speed
Decrease speed
Hold the lever until the desired
speed setting is obtained.
■Canceling and resuming the preset speed
Cancel
Push the lever towards you to can-
cel cruise control, or depress the
br
ake pedal.
Resume
To resume cruise control and
return to the set speed, push the
lever up. Cruise control will not
resume if the vehicle speed drops
below 25 mph (40 km/h).
1
2
1
2

128
2-4. Using other driving systems

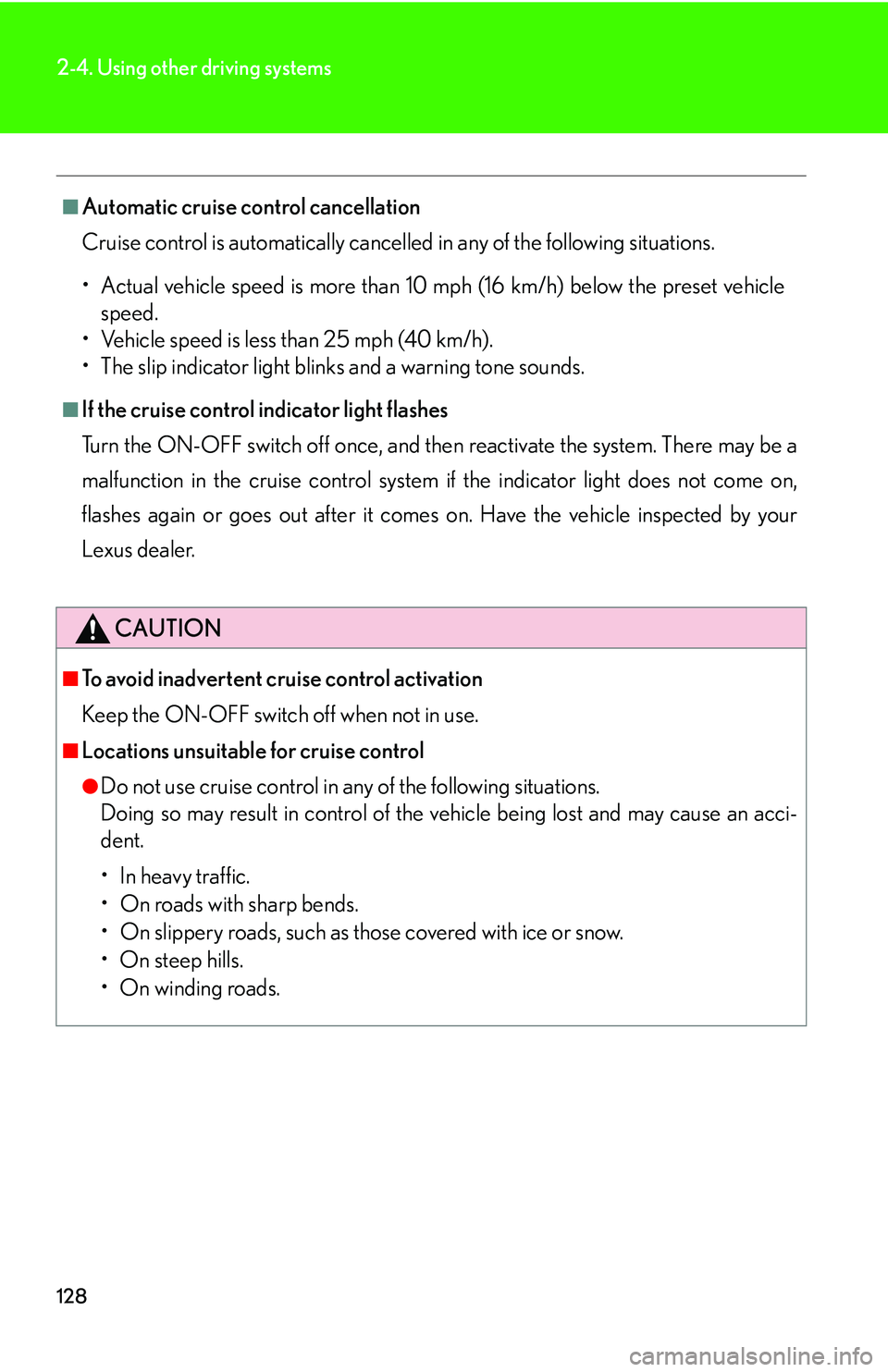

■Automatic cruise control cancellation
Cruise control is automatically cancelled
in any of the following situations.
• Actual vehicle speed is more than 10 mph
(16 km/h) below the preset vehicle
speed.
• Vehicle speed is less than 25 mph (40 km/h).
• The slip indicator light blinks and a warning tone sounds.
■If the cruise control indicator light flashes
Turn the ON-OFF switch off once, and then reactivate the system. There may be a
malfunction in the cruise control system if the indicator light does not come on,
flashes again or goes out after it comes on. Have the vehicle inspected by your
Lexus dealer.
CAUTION
■To avoid inadvertent cruise control activation
Keep the ON-OFF switch off when not in use.
■Locations unsuitable for cruise control
●Do not use cruise control in any of the following situations. 
Doing so may result in control of the v
ehicle being lost and may cause an acci -
dent.
• In heavy traffic.
• On roads with sharp bends.
• On slippery roads, such as th o
se covered with ice or snow.
• On steep hills.
• On winding roads.
