2006 LEXUS LS430 Owners Manual

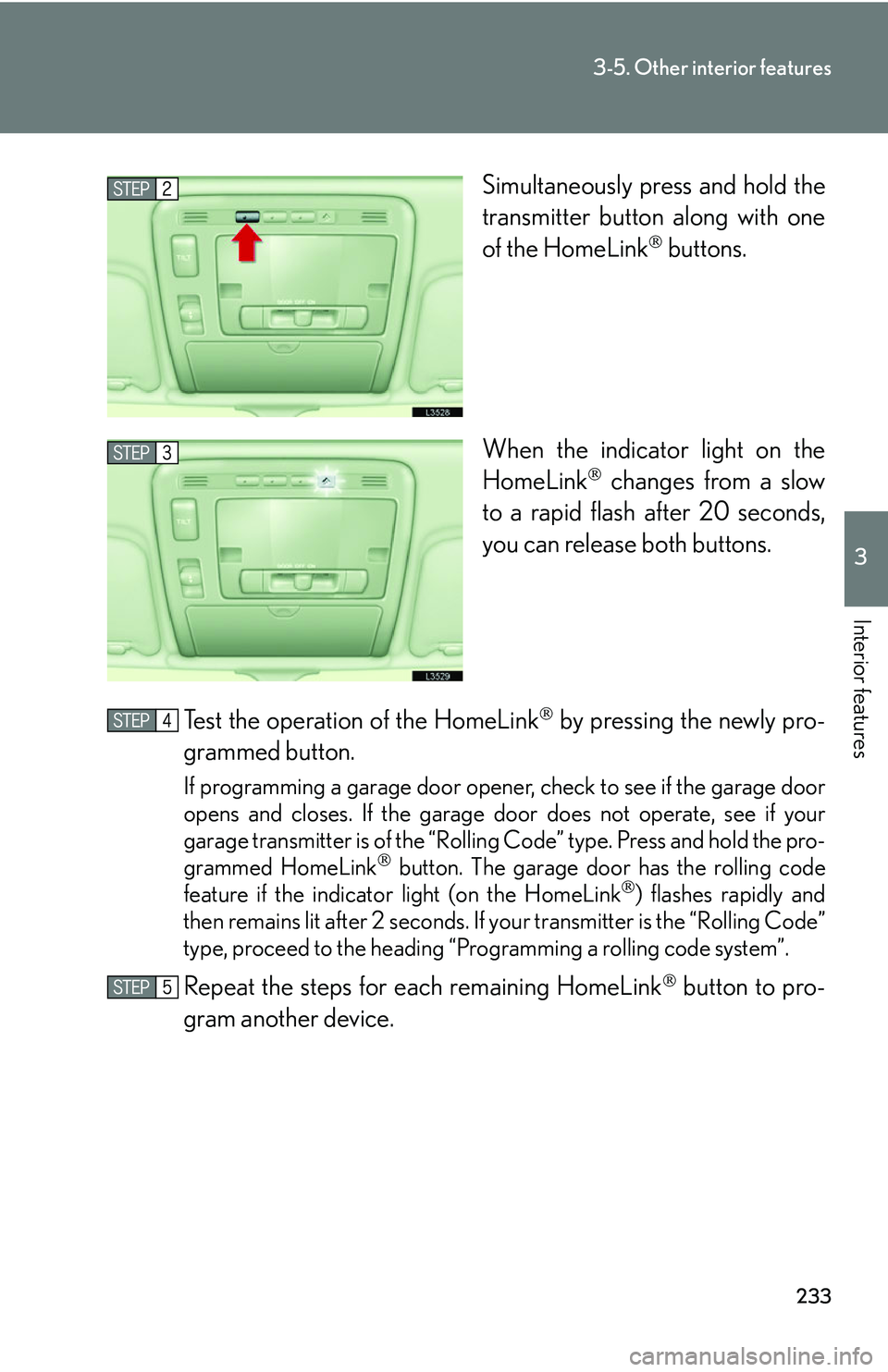

233
3-5. Other interior features
3
Interior features
Simultaneously press and hold the
transmitter button along with one
of the HomeLink
 buttons.
When the indicator light on the
Ho
meLink changes from a slow
to a rapid flash after 20 seconds,
you can release both buttons.
Test the operation of the HomeLink
 by pressing the newly pro -
grammed button.
If programming a garage door opener, check to see if the garage door
opens and closes. If the garage door does not operate, see if your
garage transmitter is of the “Rolling Code” type. Press and hold the pro-
grammed HomeLink
 button. The garage door has the rolling code
feature if the indicator light (on the HomeLink) flashes rapidly and
then remains lit after 2 seconds. If your transmitter is the “Rolling Code”
type, proceed to the heading “Pro gramming a rolling code system”.
Repeat the steps for each remaining HomeLink button to pro-
gram another device.

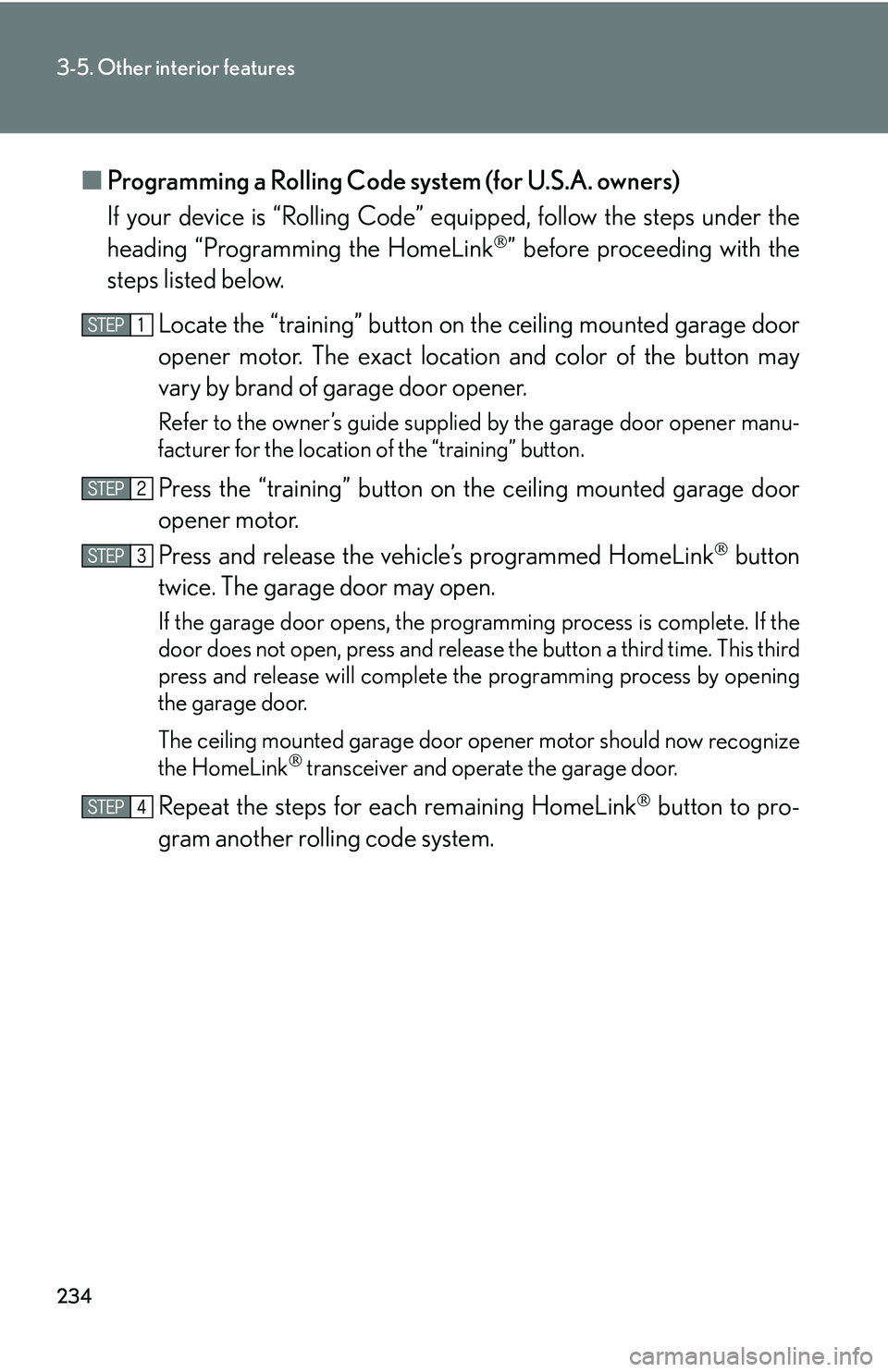

234
3-5. Other interior features
■Programming a Rolling Code system (for U.S.A. owners)
If your device is “Rolling Code” equipped, follo
w the steps under the
heading “Programming the HomeLink
” before proceeding with the
steps listed below.
Locate the “training” button on the ceiling mounted gar
age door
opener motor. The exact location and color of the button may
v

ary by brand of garage door opener.
Refer to the owner’s guide supplied by the garage door opener manu-
facturer for the location of
the “training” button.
Press the “training” button on th e ceiling mounted garage door
opener motor.
Press and release the vehi cle
’s programmed HomeLink button
twice. The garage door may open.
If the garage door opens, the programming process is complete. If the
door does not open, press and release the button a third time. This third
press and release will complete the programming process by opening
the garage door.
The ceiling mounted garage door op ener motor should no
w recognize
the HomeLink transceiver and operate the garage door.
Repeat the steps for each remaining HomeLink button to pro-
gram another rolling code system.

235
3-5. Other interior features
3
Interior features
■Programming an entrance gate (for U.S.A. owners)/Programming
all devices in the Canadian market
Point the remote control for the device 1 to 3 in. (25 to 75 mm)
from the HomeLink
 control buttons.
Keep the indicator light on the HomeLink in view while programming.
Press and hold the selected HomeLink button.
Repeatedly press and release (c y
cle) the device remote control
button every two seconds until step is complete.
When the indicator light on the HomeLink
 compatible trans -
ceiver start to flashing rapidly, release the buttons.
Press the newly programmed HomeLink
 button to see if it oper -
ates the device.
Repeat the steps for each remaining HomeLink
 button to pro -
gram another device.
■ P
rogramming other devices
To program other devices such as home security s
ystems, home door
locks or lighting, contact your auth orized Lexus dealer for assistance.
■ R
eprogramming a button
The individual HomeLink
 buttons cannot be erased but can be repro -
grammed. To reprogram a button, follo
w the “Basic programming”
instructions.
4

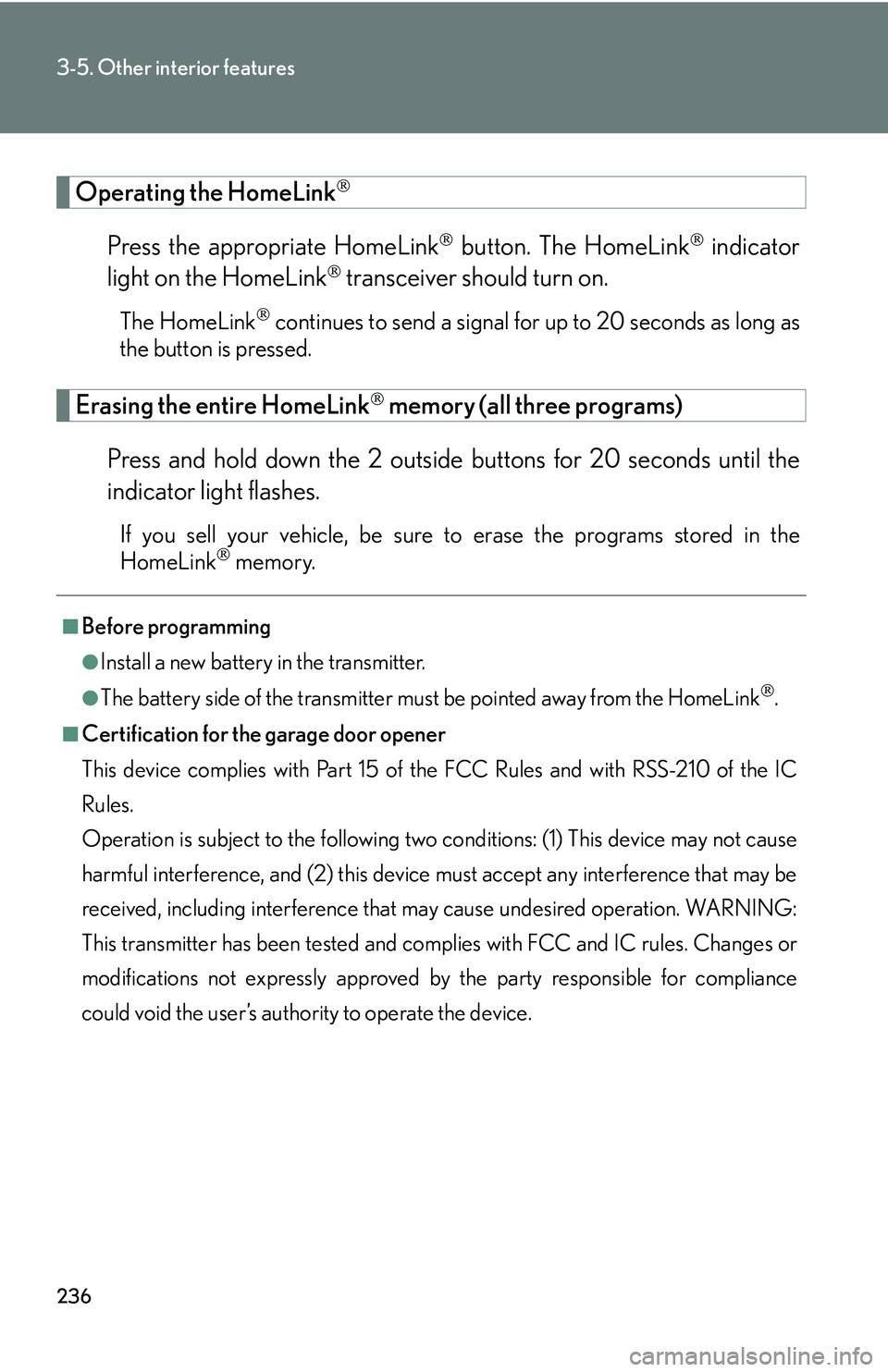

236
3-5. Other interior features
Operating the HomeLink
Press the appropriate HomeLink button. The HomeLink indicator
light on the HomeLink
 transceiver should turn on.
The HomeLink continues to send a signal for up to 20 seconds as long as
the button is pressed.
Erasing the entire HomeLink memory (all three programs)
Press and hold down the 2 outside buttons for 20 seconds until the
indicator light flashes.
If you sell your vehicle, be sure to erase the programs stored in the
HomeLink memory.
■Before programming
●Install a new battery in the transmitter.
●The battery side of the transmitter must be pointed away from the HomeLink.
■Certification for the garage door opener
This device complies with Part 15 of the F
CC Rules and with RSS-210 of the IC
Rules. 
Operation is subject to the following two co
nditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference that may be
received, including interference that may cause undesired operation. WARNING:
This transmitter has been tested and comp lies with FCC and IC rules. Changes or
modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the device.

237
3-5. Other interior features
3
Interior features
CAUTION
■When programming a garage door or other remote control device
The garage door may operate, so ensure pe
ople and objects are out of danger to
prevent potential harm.
■Conforming to federal safety standards
Do not use the HomeLink
 compatible transceiver with any garage door opener or
device that lacks the safety stop and reverse features as required by federal safety
standards. 
This includes any garage door that cannot de
tect an obstructing object. A door or
device without these featur es increases the risk of death or serious injury.

238
3-5. Other interior features
Compass (vehicles without navigation system)
The compass on the multi-information display indicates the direction in which
the vehicle is heading.
■ Operation
Turning the compass display on or off.
Push button for 1 to 2 seconds
repeatedly until the compass dis-
plays.
■ Displays and directions
DisplaysDirections
NNorth
NENortheast
EEast
SESoutheast
SSouth
SWSouthwest
WWe s t
NWNorthwest

239
3-5. Other interior features
3
Interior features
Calibrating the compass
The direction display deviates from
the true direction determined by
the earth’s magnetic field. The
amount of deviation varies accord-
ing to the geographic position of
the v
ehicle.
If you cross over a map boundary
as shown in illustration, the com -
pass will deviate.
■ Calibration
Stop the vehicle where it is safe to drive in a circle.
Push and hold the on the
steering pad for at least 6 seconds
until “DRIVE IN CIR

CLES”
appears on the display.

240
3-5. Other interior features
Drive the vehicle at 5 mph (8 km/
h) or lower in a circle until a direc-
tion is displayed.
If there is not enough space to
drive in a circle, drive around the
block until the direction is dis -
played.
■Factors affecting compass accuracy
The compass may not show the correct direction in the following conditions:
• The vehicle is stopped immediat
ely after turning.
• The vehicle is on an inclined surface.
• The vehicle is in a place where the earth’s magnetic field is subject to interfer -
ence by artificial magnetic fields 
(underground parking, under a steel tower, between buildings, roof parking,
ne
ar a crossing, near a large vehicle, etc.).
• The vehicle is magnetized. 
(There is a magnet or a metal object near the inside rear view mirror.)
• The battery has been disconnected.
• A door is open.
CAUTION
■While the vehicle is moving
Do not adjust the display. Be sure to adjust the display only when the vehicle is
stopped.
■When doing the circling calibration
Be sure to secure a wide space, and watch out for people and vehicles in the neigh -
bood. Do not violate any local traffic rule s
while performing circling calibration.
