2006 LEXUS LS430 Owners Manual

97
2-1. Driving procedures
2
When driving
NOTICE
■To prevent battery discharge
Do not leave the ignition switch in the ON
position if the engine is not running.
■When starting the engine
●Do not crank for more than 30 seconds at a time. This may overheat the starter
and wiring systems.
●Do not race a cold engine.
●If the engine becomes difficult to start or stalls frequently, have the engine
checked immediately.

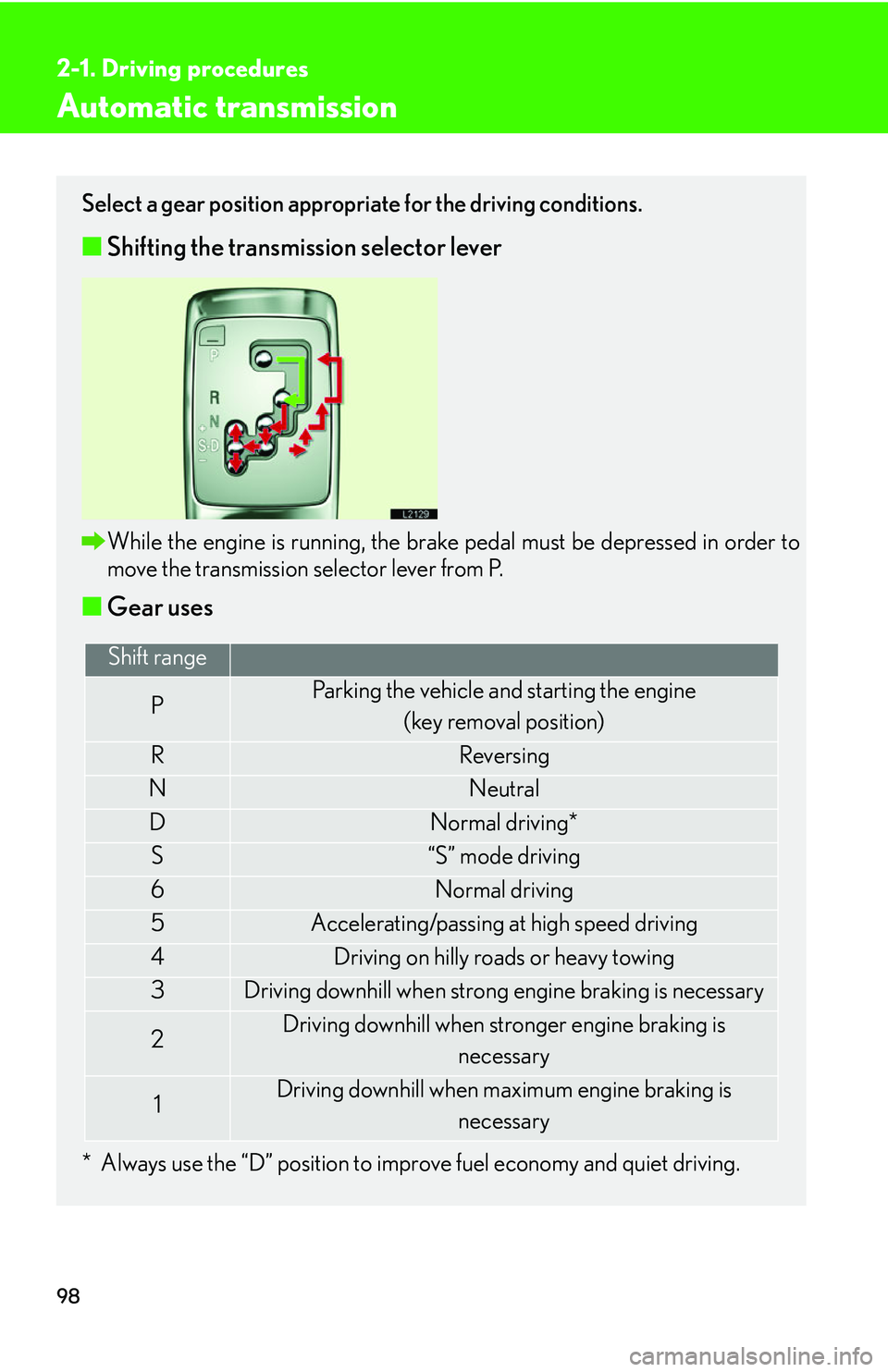

98
2-1. Driving procedures
Automatic transmission
Select a gear position appropriate for the driving conditions.
■Shifting the transmission selector lever
While the engine is running, the brake pedal must be depressed in order to
move the transmission selector lever from P.
■Gear uses
* Always use the “D” position to improve fuel economy and quiet driving.
Shift range
PParking the vehicle and starting the engine
(key removal position)
RReversing
NNeutral
DNormal driving*
S“S” mode driving
6Normal driving
5Accelerating/passing at high speed driving
4Driving on hilly roads or heavy towing
3Driving downhill when strong engine braking is necessary
2Driving downhill when stronger engine braking is necessary
1Driving downhill when maximum engine braking is
necessary

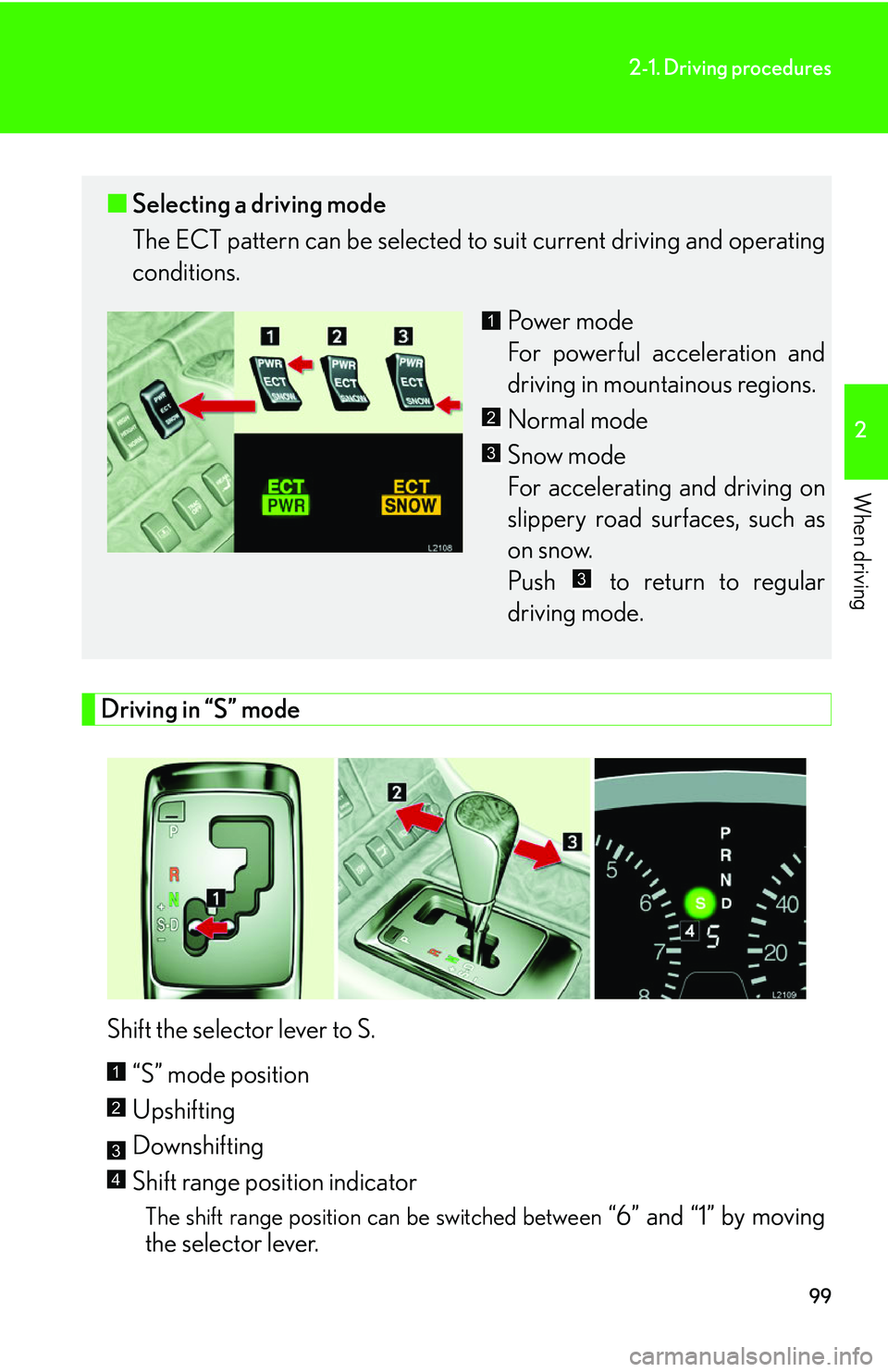

99
2-1. Driving procedures
2
When driving
Driving in “S” mode
Shift the selector lever to S. “S” mode position
Upshifting
Downshifting
Shift range position indicator
The shift range position can be switched between “6” and “1” by moving
the selector lever.
■ Selecting a driving mode
The ECT pattern can be selected to suit current driving and operating
conditions.
Power mode 
For powerful acceleration and
driving in mountainous r
egions.
Normal mode
Snow mode 
For accelerating and driving on
slipper
y road surfaces, such as
on snow. 
Push to return to regular
driving mode.
1
2
3
3
1
2
3
4

100
2-1. Driving procedures
■Downshifting restrictions in “S” mode
The selector lever cannot be down-shifted if the following speeds are exceeded. (A
buzz
er will sound twice in this situation.)
■Accelerating rapidly
Fully depress the accelerator pedal. Engine sp
eed will increase and the vehicle will
accelerate rapidly.
■When driving at a set speed using the cruise control system
Engine braking will not operate when driving in the “S” shifting mode, even if the
select
or lever is downshifted to “5” or “4”. ( P.129 )
■SNOW mode automatic deactivation
SNOW mode is automatically deactivated if the ignition switch is turned to ACC or
L

OCK after driving in SNOW mode.
■If the transmission selector le ver cannot be shifted from P.
 P.
3 5 4
■If the “S” mode indicator does not come on when the “S” mode is engaged
There may be a malfunction in the automatic transmission system. 
Have the vehicle inspected by your Lexus dealer immediately. 
(In this situation, the vehicle operates as if
the selector lever is in D.)
DownshiftingMaximum speed
mph (km/h)
D 390 (146)
3 262 (100)
2 136 (59)

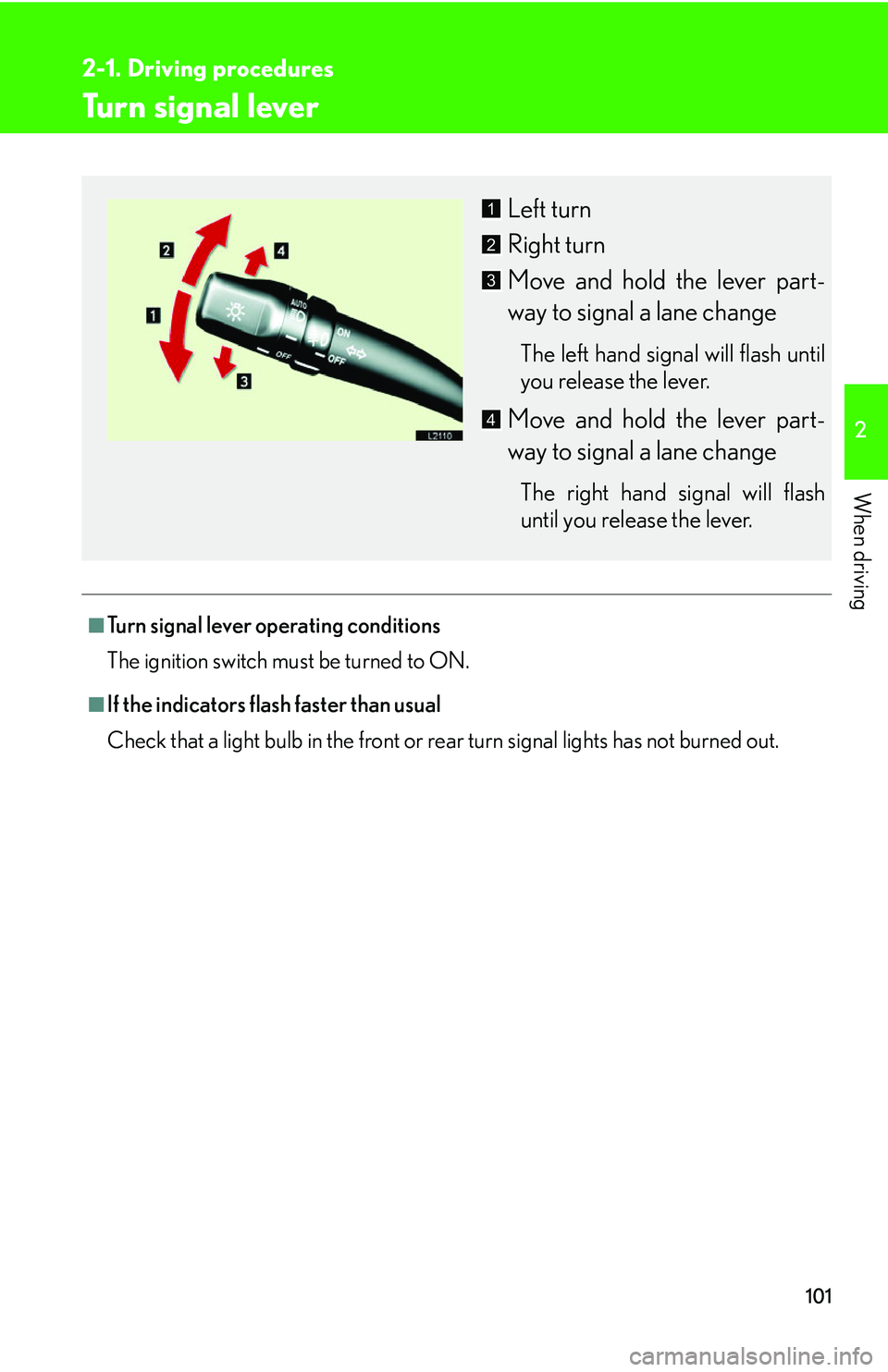

101
2-1. Driving procedures
2
When driving
Turn signal lever
■Turn signal lever operating conditions
The ignition switch must b
e turned to ON.
■If the indicators flash faster than usual
Check that a light bulb in the front or re ar
turn signal lights has not burned out.
Left turn
Right turn
Move and hold the lever part-
way to signal a lane change
The left hand signal will flash until
you release the lever.
Move and hold the lever part -
way to signal a lane change
The right hand signal will flash
until you release the lever.
1
2
3
4

102
2-1. Driving procedures
Parking brake
NOTICE
■Before driving
Fully release the parking brake. 
Driving the vehicle with the parking brake set will lead to brake components over -
heating, which may affect braking performance and increase brake wear.
Sets the parking brake
Depress the brake pedal with the
right foot and fully depress the
parking brake pedal with the left
foot.
Releases the parking brake
Pull the lever to release the park -
ing brake.
1
2

103
2
When driving
2-2. Instrument cluster
Gauges and meters
When the ignition switch is turned to ON;
Engine coolant temperature gaugeDisplays the engine coolant temperature.
Tachometer
Displays the number of engine speed in revolutions per minute.
Speedometer Displays the vehicle speed.
Fuel gauge Displays the quantity of fuel remaining in the tank.
Trip meter reset button
Resets the distance traveled to 0 mile (0 km).
Trip meter button Changes between trip meter A and B indication.
Trip meter A and trip meter B Trip meters display the distance the v
ehicle has been driven since the
meter was reset.
1
2
3
4
5
6
7

104
2-2. Instrument cluster
Instrument panel light control
The brightness of the instrument panel lights can be adjusted by turning
the instrument panel light control knob.
Darker
Brighter
Odometer
Displays the total distance the vehicle has been driven.
Multi-information display ( P.107 )
8
9
1
2
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which indi -
cates the maximum range of engine revolutions.
●The engine may be overheating if the temperature gauge is in the red zone (H).
Immediately stop the vehicle in a safe place and check the engine. ( P.359 )
