2006 LEXUS LS430 Owners Manual

241
3-5. Other interior features
3
Interior features

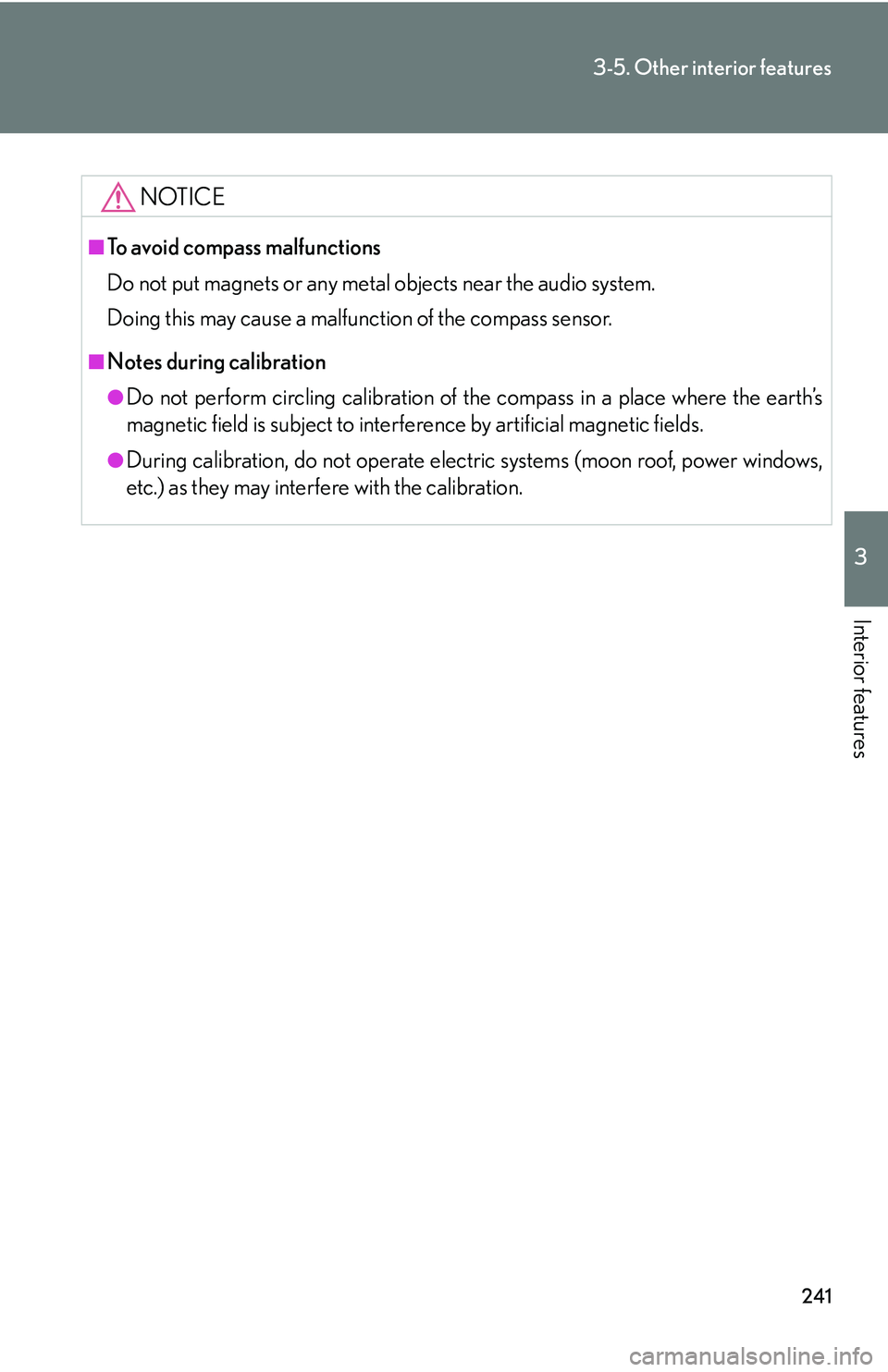

NOTICE
■To avoid compass malfunctions
Do not put magnets or any metal obje
cts near the audio system.
Doing this may cause a malfunction of the compass sensor.
■Notes during calibration
●Do not perform circling calibration of the compass in a place where the earth’s
magnetic field is subject to interference by artificial magnetic fields.
●During calibration, do not operate electr ic systems (moon roof, power windows,
etc.) as they may interfere with the calibration.

242
3-5. Other interior features

4Maintenance and care
243
4-1. Maintenance and care ........ 244
Cleaning and protecting the  vehicle exterior ........................ 244
Cleaning and protecting the  vehicle interior ......................... 247
4-2. Maintenance .......................... 250 Maintenance requirements.. 250
General maintenance............. 252
Emission inspection and 
maintenance (I/M) 
programs.................................... 255 4-3. Do-it-yourself

maintenance ......................... 256
Do-it-yourself service 
precautions .............................. 256
Hood.............................................. 260
Positioning the jack .................... 261
Engine compartment ............... 262
Tires ................................................. 278
Tire inflation pressure .............. 283
Wheels ........................................... 287
Air conditioning filters
............ 289
Wireless remote control  battery ......................................... 295
Blade fuses .................................. 298
Cartridge fuses ......................... 309
Headlight aim................................ 311
Light bulbs ..................................... 313

244
4-1. Maintenance and care

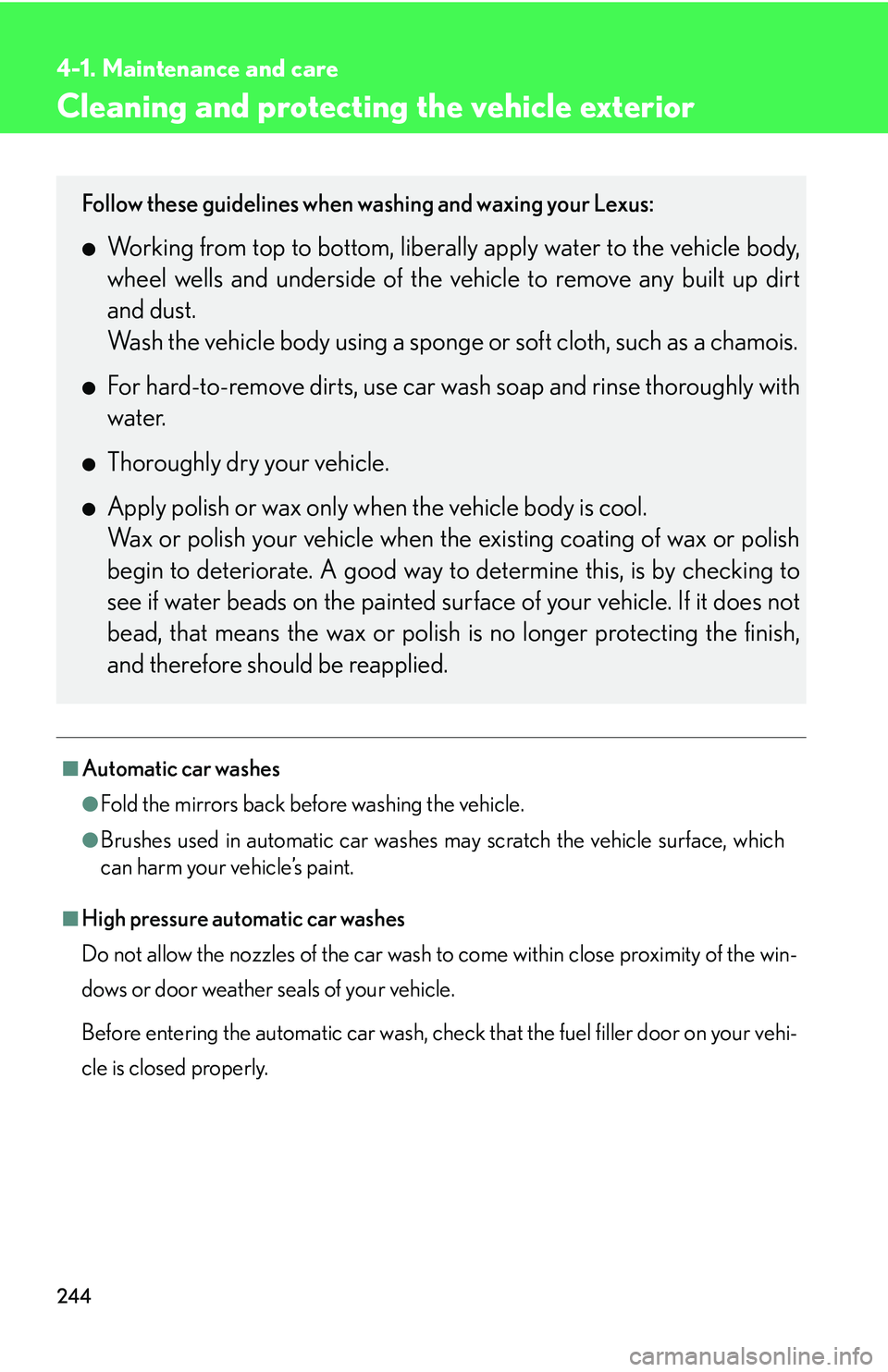

Cleaning and protecting the vehicle exterior
■Automatic car washes
●Fold the mirrors back before washing the vehicle.
●Brushes used in automatic car washes may scratch the vehicle surface, which
can harm your vehicle’s paint.
■High pressure automatic car washes
Do not allow the nozzles of the car wash to come within close proximity of the win-
dows or door weather seals of your vehicle.
Before entering the automatic car wash, check that the fuel filler door on your vehi -
cle is closed properly.
Follow these guidelines when washing and waxing your Lexus:
●Working from top to bottom, libera lly apply water to the vehicle body,
wheel wells and underside of the vehi cle to remove any built up dirt
and dust. 
Wash the vehicle body using a sponge or sof
t cloth, such as a chamois.
●For hard-to-remove dirts, use car wash soap and rinse thoroughly with
water.
●Thoroughly dry your vehicle.
●Apply polish or wax only when the vehicle body is cool. 
Wax or polish your vehicle when the e
xisting coating of wax or polish
begin to deteriorate. A good way to determine this, is by checking to
see if water beads on the painted surfac e of your vehicle. If it does not
bead, that means the wax or polish is no longer protecting the finish,
and therefore should be reapplied.

245
4-1. Maintenance and care
4
Maintenance and care

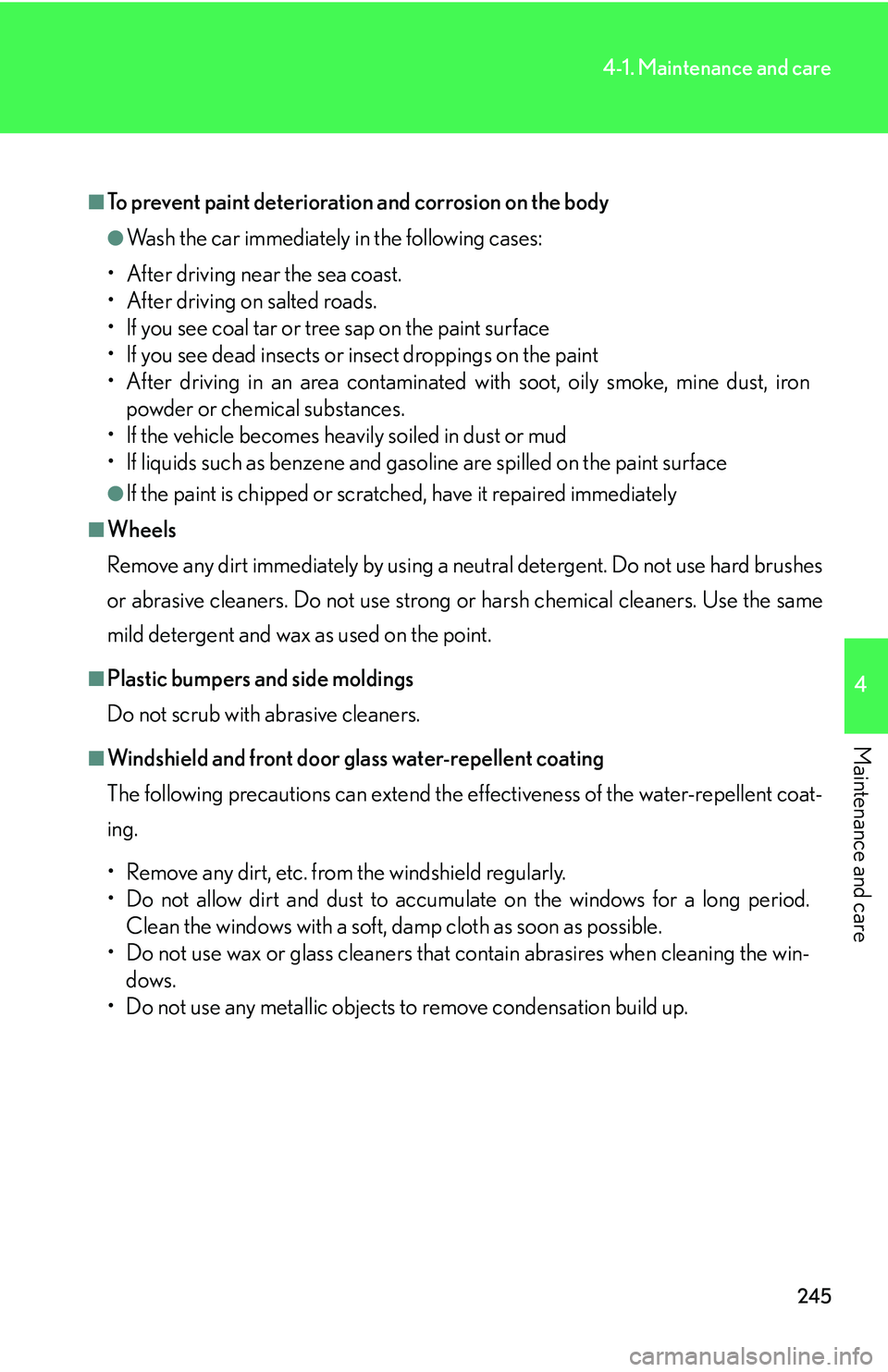

■To prevent paint deterioration and corrosion on the body
●Wash the car immediately in the following cases:
• After driving near the sea coast.
• After driving on salted roads.
• If you see coal tar or tree sap on the paint surface
• If you see dead insects or in sect dr
oppings on the paint
• After driving in an area contaminated with soot, oily smoke, mine dust, iron po
wder or chemical substances.
• If the vehicle becomes heavily soiled in dust or mud
• If liquids such as benzene and gasoline are spilled on the paint surface
●If the paint is chipped or scratched, have it repaired immediately
■Wheels
Remove any dirt immediately by using a neutral detergent. Do not use hard brushes
or

abrasive cleaners. Do not use strong or harsh chemical cleaners. Use the same
mild detergent and wax as used on the point.
■Plastic bumpers and side moldings
Do not scrub with abrasive cleaners.
■Windshield and front door glass water-repellent coating
The following precautions can extend the e
ffectiveness of the water-repellent coat-
ing.
• Remove any dirt, etc. from the windshield regularly.
• Do not allow dirt and dust to accumulate on the windows for a long period. Clean the
windows with a soft, damp cloth as soon as possible.
• Do not use wax or glass cleaners that cont
ain abrasires when cleaning the win-
dows.
• Do not use any metallic objects to remove condensation build up.

246
4-1. Maintenance and care
CAUTION
Exhaust gasses cause the exhaust pipe to become quite hot.
When washing the vehicle, be careful not to touch the pipe until it has cooled suffi-
ciently, as touching a hot exhaust pipe can cause burns.
NOTICE
■To prevent damage to the antenna
Remove the antenna before driving through an automatic car wash.
■To protect your vehicle’s painted surfaces
Do not use organic cleaners su ch
as benzene or gasoline.
■Cleaning the exterior lights
Wash carefully. Do not use organic substances or scrub the exterior light a hard
br

ush. This may damage the surfaces of the lights.

247
4-1. Maintenance and care
4
Maintenance and care

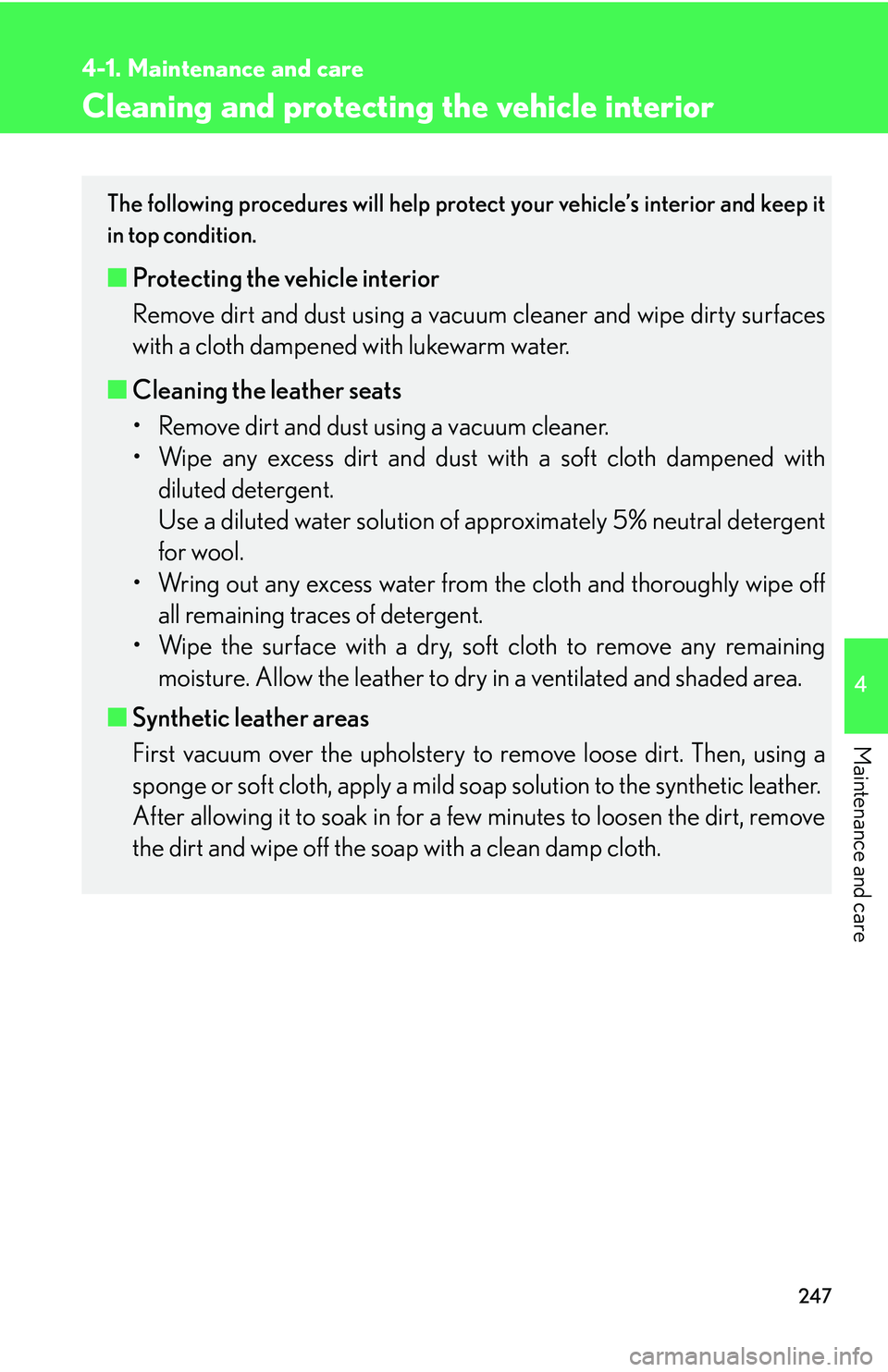

Cleaning and protecting the vehicle interior
The following procedures will help protect your vehicle’s interior and keep it
in top condition.
■Protecting the vehicle interior
Remove dirt and dust using a vacu um cleaner and wipe dir
ty surfaces
with a cloth dampened with lukewarm water.
■ Cleaning the leather seats
• Remove dirt and dust using a vacuum cleaner.
• Wipe any excess dirt and dust wi th a sof
t cloth dampened with
diluted detergent. 
Use a diluted water soluti on of appr
oximately 5% neutral detergent
for wool.
• Wring out any excess water from the cloth and thoroughly wipe off all r
emaining traces of detergent.
• Wipe the surface with a dry, soft cloth to r
emove any remaining
moisture. Allow the leather to dry in a ventilated and shaded area.
■ S
ynthetic leather areas
First vacuum over the upholstery to r
emove loose dirt. Then, using a
sponge or soft cloth, apply a mild so ap solution to the synthetic leather. 
After allowing it to soak in for a few minutes to loosen the dir
t, remove
the dirt and wipe off the soap with a clean damp cloth.

248
4-1. Maintenance and care

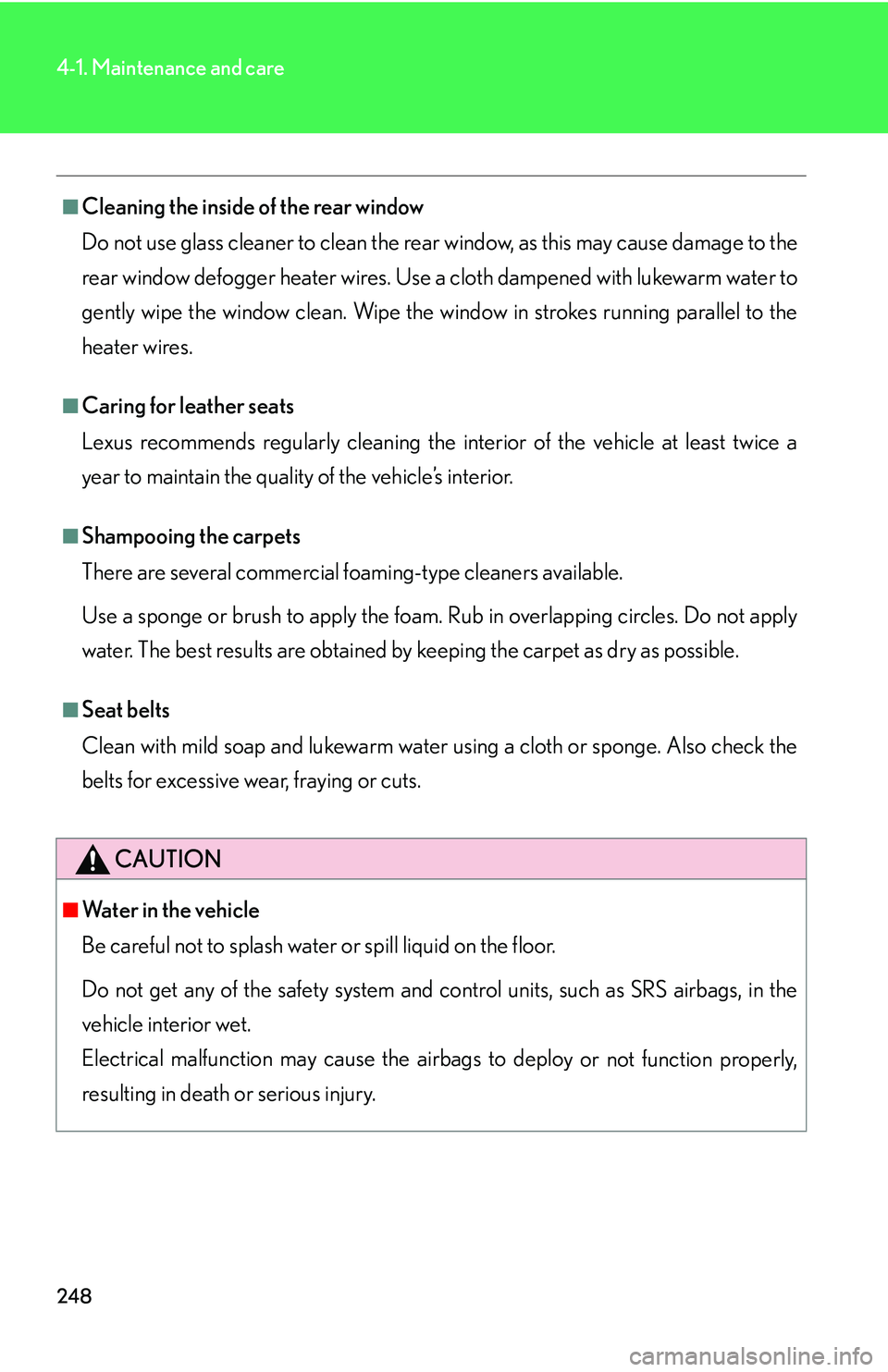

■Cleaning the inside of the rear window
Do not use glass cleaner to clean the rear window, as this may cause damage to the
r
ear window defogger heater wires. Use a cloth dampened with lukewarm water to
gently wipe the window clean. Wipe the window in strokes running parallel to the
heater wires.
■Caring for leather seats
Lexus recommends regularly cleaning the interior of the vehicle at least twice a
y
ear to maintain the quality of the vehicle’s interior.
■Shampooing the carpets
There are several commercial foaming-type cleaners available.
Use a sponge or brush to apply the foam. Rub in overlapping circles. Do not apply
w
ater. The best results are obtained by keeping the carpet as dry as possible.
■Seat belts
Clean with mild soap and lukewarm water using a cloth or sponge. Also check the
belts for excessive wear, fraying or cuts.
CAUTION
■Water in the vehicle
Be careful not to splash water or spill liquid on the floor.
Do not get any of the safety system and co ntr
ol units, such as SRS airbags, in the
vehicle interior wet. 
Electrical malfunction may cause the airbag s to deplo
y or not function properly,
resulting in death or serious injury.
