2006 LEXUS LS430 Owners Manual

209
3-5. Other interior features
3
Interior features

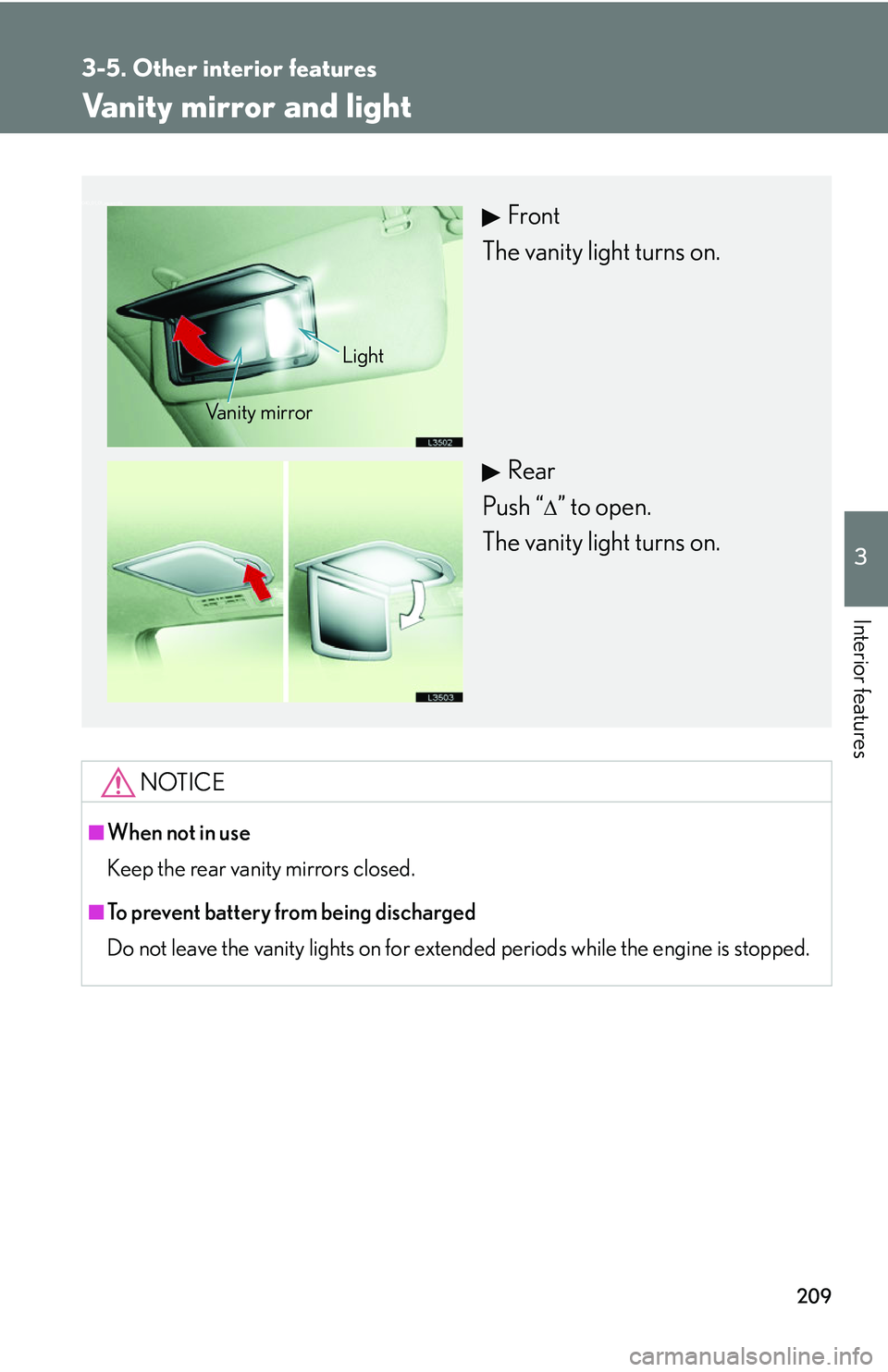

Vanity mirror and light
NOTICE
■When not in use
Keep the rear vanity mirrors closed.
■To prevent battery from being discharged
Do not leave the vanity lights on for exten
ded periods while the engine is stopped.
040_01_01_square titleFront
The vanity light turns on.
Rear
Push “
” to open.
The vanity light turns on.
Light
Va n i t y m i r r o r

210
3-5. Other interior features
Clock
■Operational condition
The ignition switch must be turned to ON or ACC for the clock to illuminate.
■Vehicles with navigation system
For clock setting, see the separate “
Navigation System Owner’s Manual.”
H button : Adjusts the hour.
M button : Adjusts the 
minutes.
:00 button : Resets the 
minutes to zero.*
*For example: 
9:30 to 9:59 displayed  10
:00
10:01 to 10:29 displayed  10
:00
1
2
3

211
3-5. Other interior features
3
Interior features

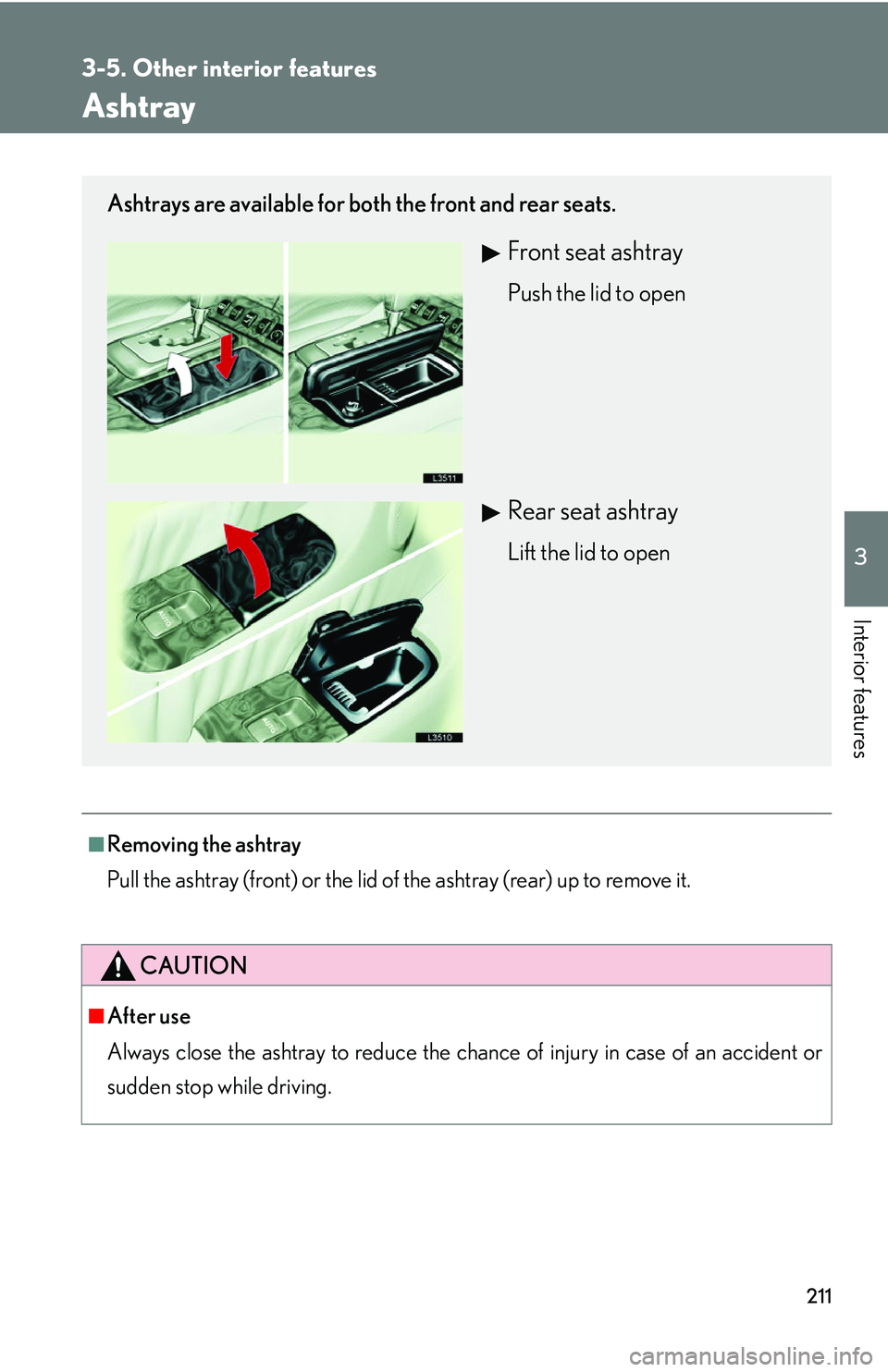

Ashtray
■Removing the ashtray
Pull the ashtray (front) or the lid of the ashtray (rear) up to remove it.
CAUTION
■After use
Always close the ashtray to reduce the chan ce
of injury in case of an accident or
sudden stop while driving.
Ashtrays are available for both the front and rear seats.
Front seat ashtray
Push the lid to open
Rear seat ashtray
Lift the lid to open

212
3-5. Other interior features

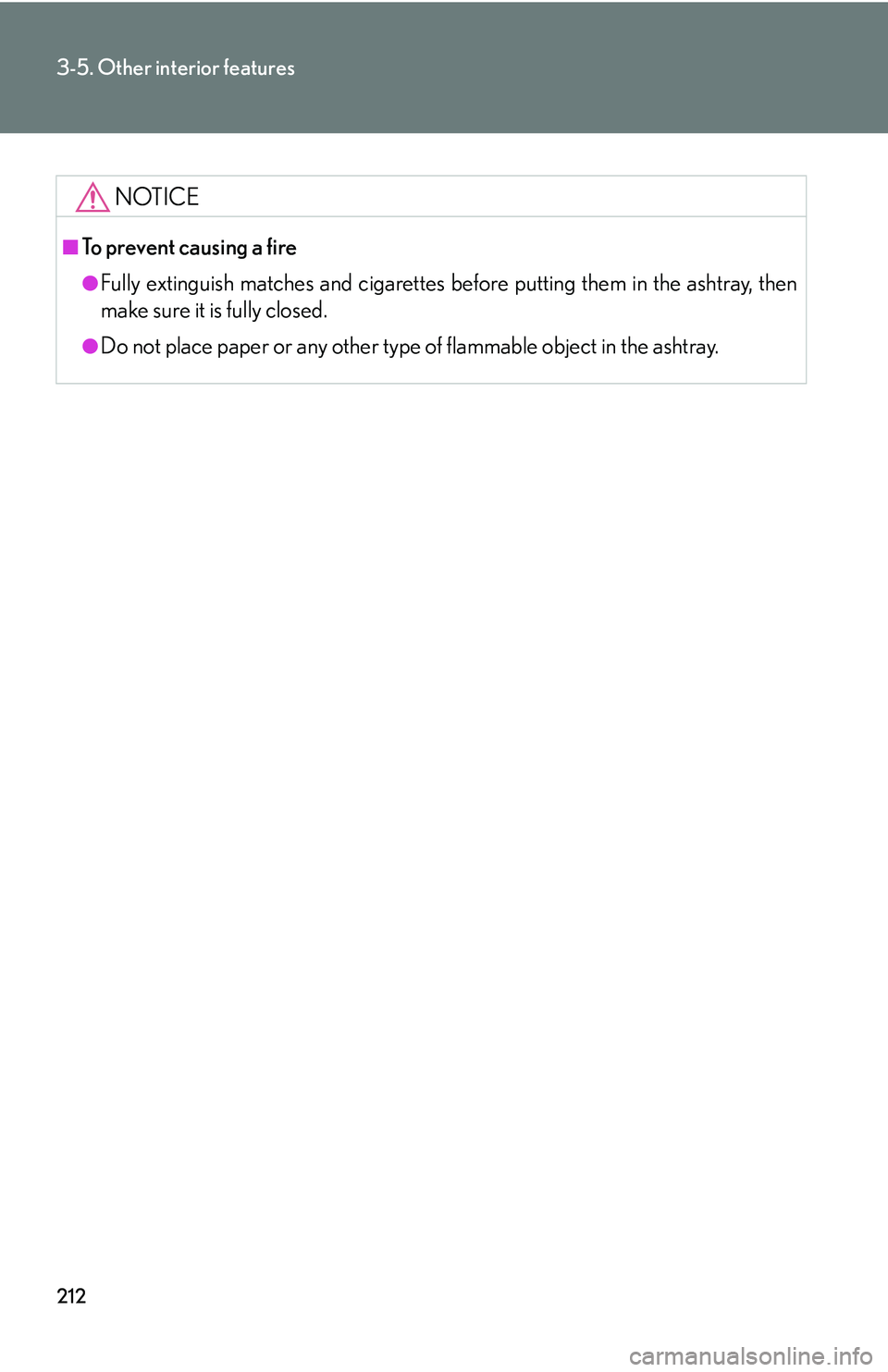

NOTICE
■To prevent causing a fire
●Fully extinguish matches and cigarettes before putting them in the ashtray, then
make sure it is fully closed.
●Do not place paper or any other type of flammable object in the ashtray.

213
3-5. Other interior features
3
Interior features

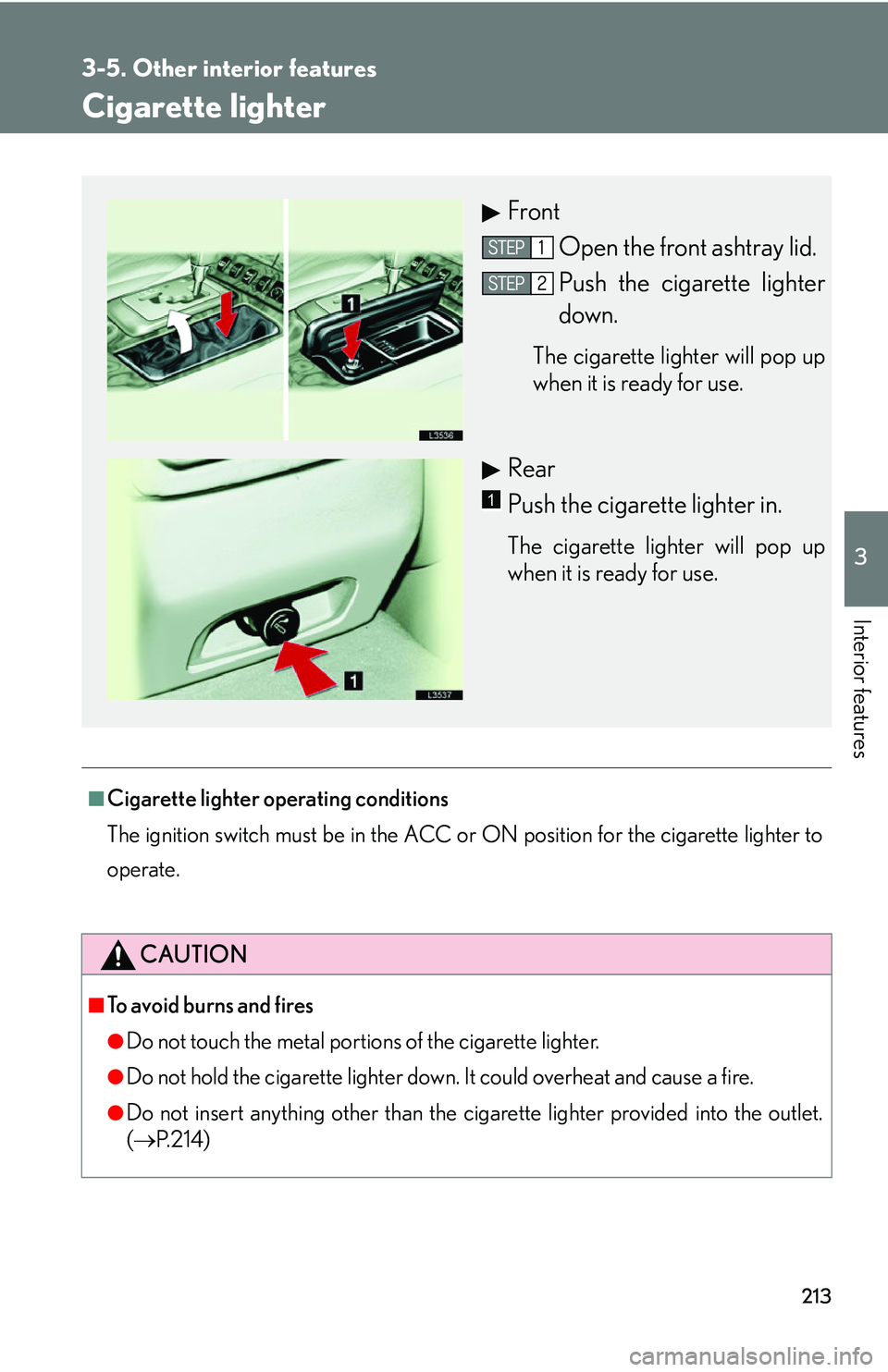

Cigarette lighter
■Cigarette lighter operating conditions
The ignition switch must be in the ACC or ON position for the cigarette lighter to
operate.
CAUTION
■To avoid burns and fires
●Do not touch the metal portio ns of the cigarette lighter.
●Do not hold the cigarette lighter down. It could overheat and cause a fire.
●Do not insert anything other than the cigarette lighter provided into the outlet.
( P.214 )
Front
Open the front ashtray lid.
Push the cigarette lighter
down.
The cigarette lighter will pop up
when it is ready for use.
Rear
Push the cigarette lighter in.
The cigarette lighter will pop up
when it is ready for use.
1

214
3-5. Other interior features

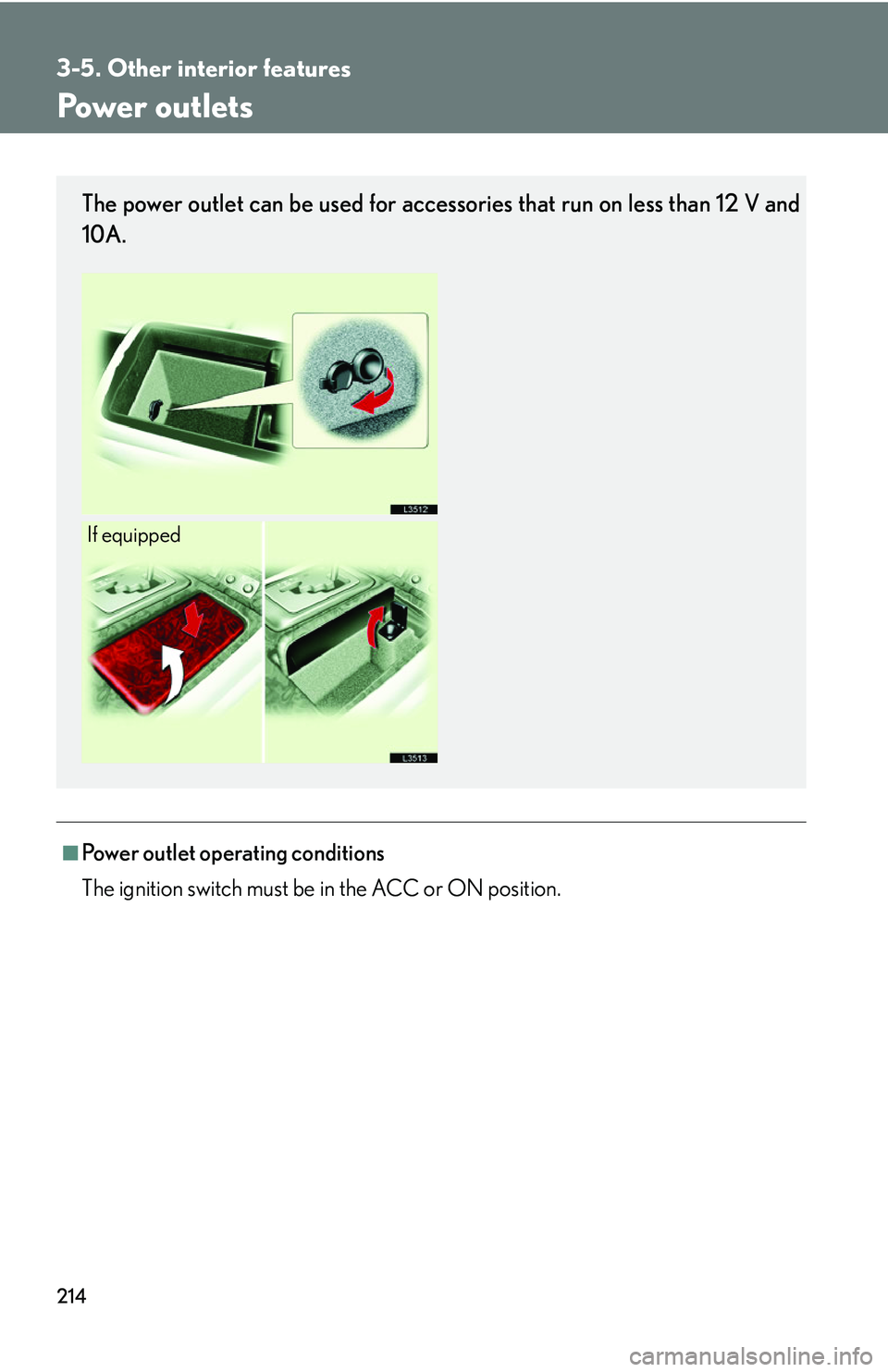

Power outlets
■Power outlet operating conditions
The ignition switch must be in
the ACC or ON position.
The power outlet can be used for accessories that run on less than 12 V and
10A.
If equipped

215
3-5. Other interior features
3
Interior features
NOTICE
■To avoid damaging the accessory outlet
Close the accessory socket lid when the accessory socket is not in use. 
Foreign objects or liquids that enter the accessory socket may case a short circuit.
■To prevent the fuse from being blown
Do not use the an accessory that uses more than 12 V 10 A.
■To prevent the battery from being discharged
Do not use the power outlet longer than necessary when the engine is not running.

216
3-5. Other interior features
Outside temperature display
Located on the instrument panel and multi-information display
■Instrument panel
Vehicles with navigation system
Vehicles without navigation
system
■ Multi-information display
Push on the steering switch
( P.107 )
