2006 KIA Sorento Owner's Manual

5. Before placing the child in the child
restraint, forcibly try to push the
seat from side to side and forward
to make sure that the seat is
securely held in place.
6. Double check that the retractor is
in the automatic locking mode by
trying to pull the shoulder portion
of the safety belt out of the retrac-
tor. If you cannot pull the belt out of
the retractor, it is in the automatic
locking mode. If you can, repeat
step 4.
To remove the child restraint, press
the release button on the buckle and
then pull the lap/shoulder belt out of
the restraint and allow the safety belt
to retract fully.Child restraint anchor position
For small children and babies, the
use of a child seat or infant seat is
strongly recommended. This child
seat or infant seat should be of
appropriate size for the child and
should be installed in accordance
with the manufacturer’s instructions.
It is further recommended that the
seat be placed in the vehicle’s rear
seat since this can make an impor-
tant contribution to safety. Your vehi-
cle is provided with three child
restraint hook holders on the floor
behind the rear seat for installing the
child seat or infant seat.KNOWING YOUR VEHICLE3-40
WARNING- Auto Lock Mode
The lap/shoulder belt automati-
cally returns to the “emergency
lock mode” whenever the belt is
allowed to retract fully. Therefore,
the preceding seven steps must
be followed each time a child
restraint is installed.
If the safety belt is not placed in
the “auto lock” mode, severe
injury or death could occur to the
child and/or other occupants in
the vehicle in a collision, since
the child restraint will not be
effectively held in place.
✽ ✽
NOTICEWhen the safety belt is allowed to
retract to its fully stowed position,
the retractor will automatically
switch from the “Auto Lock” mode
to the emergency lock mode for
normal adult usage.
WARNING- Child Restraint Placement
Never use a child restraint in
the front passenger seat. A
child in a child restraint
installed in the front passenger
seat can be severely or fatally
injured by an air bag which
could impact the child restraint
with great force when the air
bag inflates.
S2BLD303
BL-ENG (CAN)-3.qxd 7/28/05 5:52 PM Page 40

Tether anchor installation
Your vehicle is equipped with an
anchor for securing the tether strap of
a child restraint system (child seat).
The child restraint anchor fittings are
installed on the floor behind the rear
seat.Installing a Child Restraint seat ;
1. Position the child restraint seat on
the rear passenger seat cushion.
2. Route the child restraint seat teth-
er strap over the back of the seat.
For vehicles with adjustable head
restraints, route the tether strap
under the head restraint and
between the head restraint posts,
otherwise route the tether strap
over the top of the seatback.
3. Locate the correct anchor on the
floor behind the rear seat for the
selected seating position.
4. Open the tether anchor cover.
5. Clip the tether strap hook to the
tether strap hook holder.
6. Tighten the tether strap to secure
the seat.
KNOWING YOUR VEHICLE
3-41
S2BLD348
WARNING - Child Restraint
Check that the child restraint
system is secure by pushing
and pulling it in different direc-
tions. Incorrectly fitted child
restraints may swing, twist, tip
or come away causing death or
injury.
WARNING
If the tether strap is clipped
incorrectly, the child restraint
seat may not be restrained
properly in the event of a colli-
sion.
WARNING
- Child Restraint Anchorage
 Child restraint anchorages
are designed to withstand
only those loads imposed by
correctly fitted child
restraints. Under no circum-
stances are they to be used
for adult seat belts or har-
nesses or for attaching other
items or equipment to the
vehicle.
 The tether strap may not work
properly if attached some-
where other than the correct
tether anchor.
Tether anchor
cover
Tether
strap
hook
Chid restraint hook holder
BL-ENG (CAN)-3.qxd 7/28/05 5:52 PM Page 41

Child seat lower anchors
Some child seat manufacturers make
child restraint seats that are labeled as
ISOFIX or ISOFIX-compatible child
restraint seats. These seats include
two rigid or webbing mounted attach-
ments that connect to two ISOFIX
anchors at specific seating positions in
your vehicle. This type of child restraint
seat eliminates the need to use seat
belts to attach the child seat for for-
ward-facing child restraint seats.ISOFIX anchors have been provided
in your vehicle. The ISOFIX anchors
are located in the left and right out-
board rear seating positions. Their
locations are shown in the illustration.
There is no ISOFIX anchor provided
for the center rear seating position.
The ISOFIX anchors are located
between the seatback and the seat
cushion of the rear seat left and right
outboard seating positions.
Follow the child seat manufacturer’s
instructions to properly install child
restraint seats with ISOFIX or
ISOFIX-compatible attachments.Once you have installed the ISOFIX
child restraint, assure that the seat is
properly attached to the ISOFIX and
tether anchors. Also, test the child
restraint seat before you place the
child in it. Tilt the seat from side to
side. Also try to tug the seat forward.
Check to see if the anchors hold the
seat in place.KNOWING YOUR VEHICLE3-42
S2BLC354/SBGQ03102
S2BLD300
WARNING
When using the vehicle's
“ISOFIX” system to install a
child restraint system in the
rear seat, all unused vehicle
rear seat belt metal latch plates
or tabs must be latched secure-
ly in their seat belt buckles and
the seat belt webbing must be
retracted behind the child
restraint to prevent the child
from reaching and taking hold
of unretracted seat belts.
Unlatched metal latch plates or
tabs may allow the child to
reach the unretracted seat belts
which may result in strangula-
tion and a serious injury or
death to the child in the child
restraint.
BL-ENG (CAN)-3.qxd 7/28/05 5:52 PM Page 42

KNOWING YOUR VEHICLE
3-43
WARNING
If the child restraint is not
anchored properly, the risk of a
child being seriously injured or
killed in a collision greatly
increases.
(Continued)
 Do not install a child restraint
seat at the rear center seating
position using the vehicle’s
ISOFIX anchors. The ISOFIX
anchors are only provided for
the left and right outboard rear
seating positions. Do not mis-
use the ISOFIX anchors by
attempting to attach a child
restraint seat in the middle
rear seating position position
to the ISOFIX anchors. In a
crash, the child restraint seat
ISOFIX attachments may not
be strong enough to secure
the child restraint seat proper-
ly in the rear center seating
position and may break, caus-
ing serious injury or death.
(Continued)
(Continued)
 Attach the ISOFIX or ISOFIX-
compatible child restraint seat
only to the appropriate loca-
tions shown in the illustration.
 Always follow the installation
and use instructions provided
by the manufacturer of the
child restraint.
WARNING
 Do not mount more than one
child restraint to a single teth-
er or to a child restraint lower
anchorage point. The improp-
er increased load may cause
the anchorage points or tether
anchor to break, causing seri-
ous injury or death.
(Continued)
BL-ENG (CAN)-3.qxd 7/28/05 5:52 PM Page 43

KNOWING YOUR VEHICLE3-44AIRBAG - ADVANCED SUPPLEMENTAL RESTRAINT SYSTEM
SRSAIRBAG
RES
ACCELC
O
A
S
T
S
E
T
PWRS
E
E
K
CANCEL
S
R
SAIRBAG
➀Driver’s airbag
➁Front passenger’s
airbag
➃Front impact sensor
➅SRS control module
S2BLA201A/5BLA422/5BLA002/5BLD320/5BLA371/5BLA619/5BLD502/5BLC326G/5BLA370
SRSAIRBAG
➄Side impact sensor
➆Occupant classifi-
cation system
SRSAIRBAG
➂Curtain Airbag
➀
➁
➂
➃
➄
➅➆
BL-ENG (CAN)-3.qxd 7/28/05 5:52 PM Page 44

➀
Driver’s airbag
(see page 3- 48)
➁
Front passenger’s airbag
(see page 3- 49)
➂
Curtain Airbag
(see page 3- 55)
➃Front impact sensor
(see page 3- 57)
➄
Side impact sensor
(see page 3- 57)
➅
SRS Control Module
(see page 3- 57)
➆
Occupant classification system
(see page 3- 49)

Airbag inflation condition
(see page 3- 58)

Airbag non-inflation condition
(see page 3- 59)

Airbag warning light
(see page 3- 64)

Airbag service
(see page 3- 64)

Airbag warning label
(see page 3- 66)What your airbag system does
Driver’s airbag and front passenger’s
airbag are designed to supplement
the protection offered by the safety
belt in certain frontal collisions.
Likewise, curtain airbags are
designed to supplement the protec-
tion offered by the safety belt in side
collisions. Safety belts are designed
to reduce the injury of the driver or
passengers in case of light impact or
collision. However, to help reduce
impact on driver or passengers in a
serious collision, seat belts must also
be correctly worn.What your airbag system does not
do
The air bag system is designed to
supplement the protection offered by
the safety belt system. IT IS NOT A
SUBSTITUTE FOR THE SAFETY
BELT.
KNOWING YOUR VEHICLE
3-45
BL-ENG (CAN)-3.qxd 7/28/05 5:52 PM Page 45

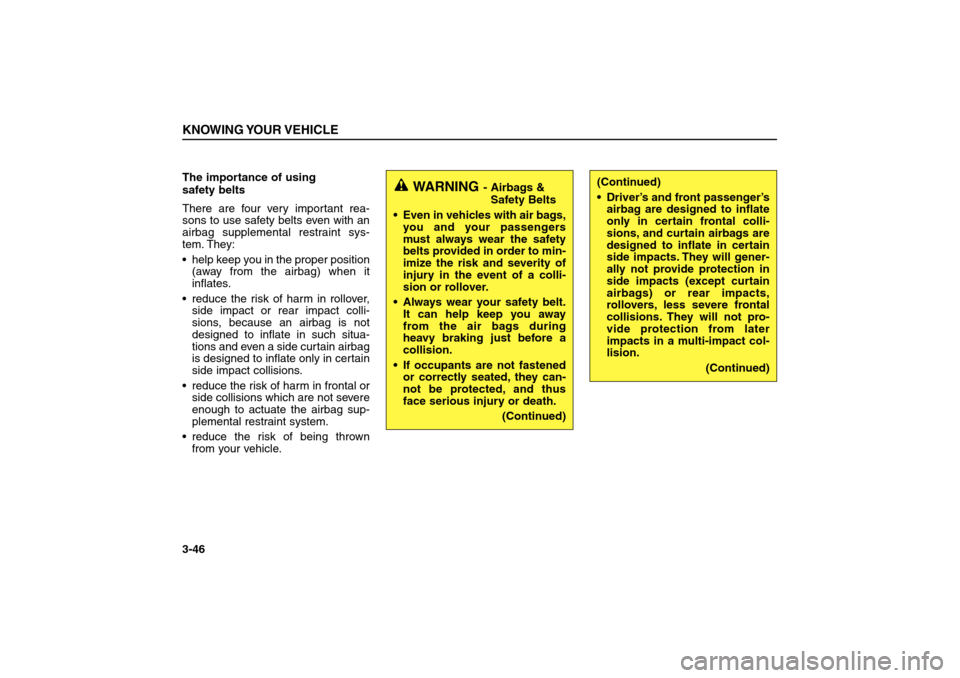

The importance of using
safety belts
There are four very important rea-
sons to use safety belts even with an
airbag supplemental restraint sys-
tem. They:
help keep you in the proper position
(away from the airbag) when it
inflates.
reduce the risk of harm in rollover,
side impact or rear impact colli-
sions, because an airbag is not
designed to inflate in such situa-
tions and even a side curtain airbag
is designed to inflate only in certain
side impact collisions.
reduce the risk of harm in frontal or
side collisions which are not severe
enough to actuate the airbag sup-
plemental restraint system.
reduce the risk of being thrown
from your vehicle.KNOWING YOUR VEHICLE3-46
WARNING
- Airbags &
Safety Belts
 Even in vehicles with air bags,
you and your passengers
must always wear the safety
belts provided in order to min-
imize the risk and severity of
injury in the event of a colli-
sion or rollover.
 Always wear your safety belt.
It can help keep you away
from the air bags during
heavy braking just before a
collision.
 If occupants are not fastened
or correctly seated, they can-
not be protected, and thus
face serious injury or death.
(Continued)
(Continued)
 Driver’s and front passenger’s
airbag are designed to inflate
only in certain frontal colli-
sions, and curtain airbags are
designed to inflate in certain
side impacts. They will gener-
ally not provide protection in
side impacts (except curtain
airbags) or rear impacts,
rollovers, less severe frontal
collisions. They will not pro-
vide protection from later
impacts in a multi-impact col-
lision.
(Continued)
BL-ENG (CAN)-3.qxd 7/28/05 5:52 PM Page 46

Airbag system components
The main components of your SRS
are:
To indicate that your vehicle is
equipped with airbags, the corre-
sponding airbag covers are marked
with “SRS AIRBAG”.
- Driver’s airbag (see page 3- 48)
- Passenger’s airbag(see page 3- 49)
- Curtain airbag (see page 3- 55)
A diagnostic system that continual-
ly monitors the system operation.
An indicator light to warn you of a
possible problem with the system.
Emergency power backup in case
your car’s electrical system is dis-
connected in a crash.The SRS uses a collection of sensors
to gather information about the dri-
ver’s and front passenger’s safety
belt usage and impact severity.
The safety belt usage sensors deter-
mine if the driver and front passen-
ger’s safety belts are fastened. These
sensors provide the ability to control
the SRS deployment based on
whether or not the safety belts are
fastened, and how severe is the
impact.
KNOWING YOUR VEHICLE
3-47
(Continued)
 If your vehicle has been sub-
jected to flood conditions
(e.g. soaked carpeting/stand-
ing water on the floor of the
vehicle, etc.) or if your vehicle
has become flood damaged in
any way, do not attempt to
start the vehicle or put the key
in the ignition before discon-
necting the battery. This may
cause airbag deployment,
which could result in serious
personal injury or death. If
flooded conditions are sub-
jected to your vehicle, before
starting the vehicle, have the
vehicle towed to an author-
ized Kia dealer for inspection
and necessary repairs.
BL-ENG (CAN)-3.qxd 7/28/05 5:52 PM Page 47
