DRIVING YOUR VEHICLE
4-55

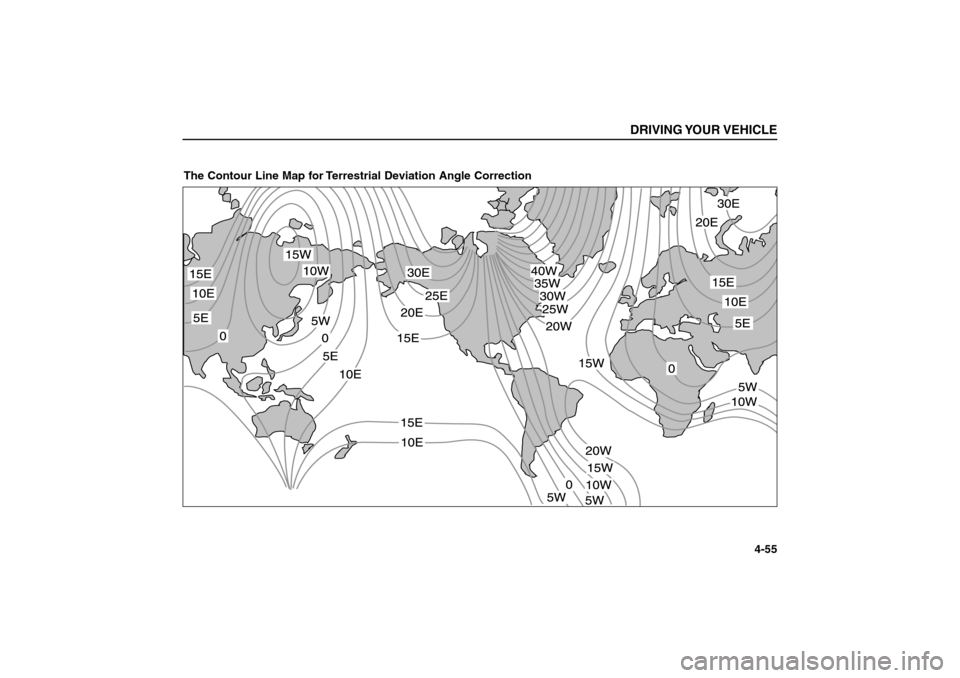

The Contour Line Map for Terrestrial Deviation Angle Correction
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 55

Relative Altimeter
The relative altimeter displays the
current altitude to an actual altitude of
+/- 9800 feet.When you want to know the altitude
difference between your starting
point and destination:
1. Press the MODE/SET button until
the current altitude displayed is 0.
2. When you arrive at your destina-
tion, the altitude displayed will be
the difference between the starting
point and destination.
3. To change the display from feet to
meters, press the UP or DOWN
button for one second.Barometer
The barometer function displays
atmospheric pressure in hectopas-
cals. 1013 hPa is equivalent to 29.92
inches of mercury, or 14.7 psi. (air
pressure at sea level). The barome-
ter range is 600 to 1100 hPa.DRIVING YOUR VEHICLE4-56
DRT ALTI BARO
E
hpa
m
ft
PUSHMODE
/SETUPDOWN
m
ft
ALTIALTI
S2BLA432
DRT ALTI BARO
E
hpa
m
ft
PUSHMODE
/SETUPDOWN
hpa
BARO
S2BLA433
✽ ✽
NOTICEThe Relative Altimeter will display
different altitude at the same place
as the atmospheric pressure varies
at one place.
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 56

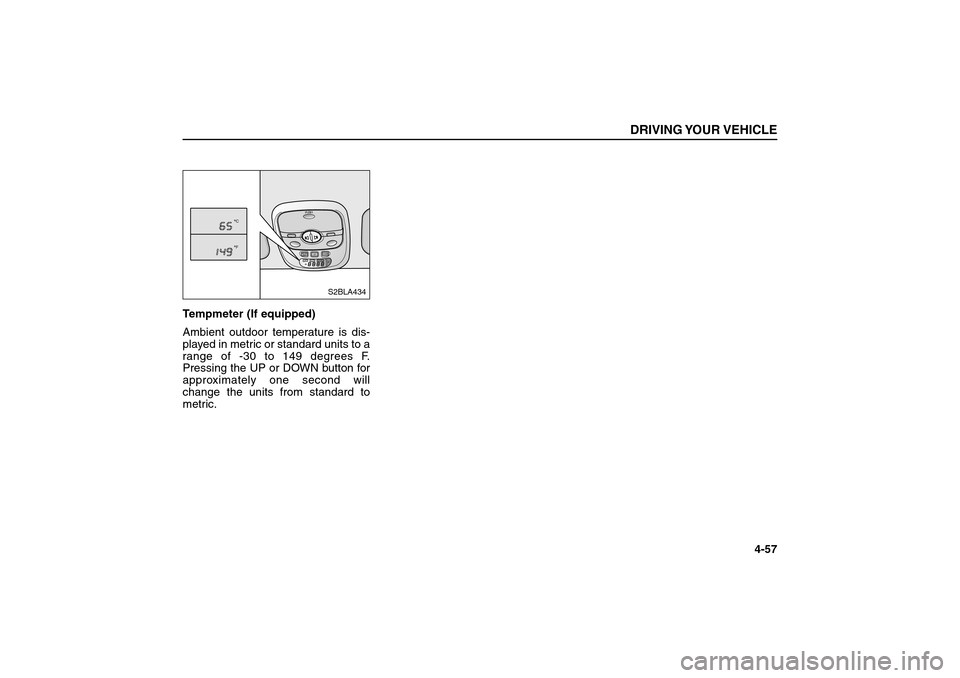

Tempmeter (If equipped)
Ambient outdoor temperature is dis-
played in metric or standard units to a
range of -30 to 149 degrees F.
Pressing the UP or DOWN button for
approximately one second will
change the units from standard to
metric.
DRIVING YOUR VEHICLE
4-57
DRT ALTI BARO
E
hpa
m
ft
PUSHMODE
/SETUPDOWN
CF
S2BLA434
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 57

LIGHTINGBattery Saver Function
The purpose of this feature is to
prevent the battery from being dis-
charged. The system automatically
turns off the small light when the
driver removes the ignition key and
opens the driver- side door.
With this feature, the taillight will be
turned off automatically if the driver
parks on the side of road at night.
If necessary, to keep the lights on
when the ignition switch is removed,
perform the following :
1) Open the driver-side door.
2) Turn the tail-lights OFF and ON
again using the light switch on the
steering column.Lighting Control
The light switch has a Headlight and
a Parklight position.
To turn the lights on, twist the knob
on the end of the control lever.Parklight position.
When the light switch is in the park-
light position, the tail, parking, license
and instrument panel lights are ON.
Headlight position.
When the light switch is in the head-
light position, the head, tail, parking,
license and instrument panel lights
are ON.DRIVING YOUR VEHICLE4-58
OFF
OFFON
OFF
S2BLA435A
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 58

Auto light position (If equipped)
When the light switch is in the auto
light position (third position), the tail-
lights and headlights will be turned
automatically ON or OFF according
to external illumination.High-Beam operation
To turn on the high-beam headlights,
push the lever away from you. Pull it
back for low beams.
The high-beam indicator will light
when the headlight high beams are
switched on.
To prevent the battery from being dis-
charged, do not leave the lights on for
a prolonged time while the engine is
not running.
DRIVING YOUR VEHICLE
4-59
A
U
T
OOFF
OFFON
AUTOOFF
S2BLA436B
S2BLC201A
A
U
TOOFF
OFFON
S2BLA436A
✽ ✽
NOTICETo ensure better control of the auto
light system, never place items on
the sensor located on the dash.
Don’t clean the sensor with a win-
dow cleaner, only use a towel damp-
ened with water. If your front wind-
shield has a coating or tint the auto
light system may not work proper-
ly.
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 59

Flashing Headlights
To flash the headlights, pull the lever
toward you. It will return to the normal
position when released. The head-
light switch does not need to be on to
use this flashing feature.Turn Signals
The ignition switch must be on for the
turn signals to function. To turn on the
turn signals, move the lever up or
down. Green arrow indicators on the
instrument panel indicate which turn
signal is operating. They will self-can-
cel after a turn is completed. If the
indicator continues to flash after a
turn, manually return the lever to the
OFF (middle) position.Lane change signals
To signal a lane change, move the
turn signal lever slightly and hold it in
position. The lever will return to the
OFF (center) position when released.
If an indicator stays on and does not
flash or if it flashes abnormally, one of
the turn signal bulbs may be burned
out and will require replacement.DRIVING YOUR VEHICLE4-60
AUTOOFF
OFFON
S2BLA438
A
U
T
OOFF
OFFONS2BLA439
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 60

Front Fog Light (If equipped)
To turn the front fog lights ON, turn
the headlights ON after starting the
engine and then turn the front fog
light switch to ON position. To turn it
OFF, turn it to OFF position or turn
the headlights OFF.Daytime Running Light
Daytime Running Lights (DRL) can
make it easier for others to see the
front of your vehicle during the day.
DRL can be helpful in many different
driving conditions, and it is especially
helpful after dawn and before sunset.
The DRL system will make your high-
beam headlights turn OFF when:
The headlight switch is ON.
The parking brake is engaged.
The engine stops.
DRIVING YOUR VEHICLE
4-61
AUTOOFF
OFFON
S2BLA440
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 61

WIPERS AND WASHERSWindshield Wipers
The ignition switch must be ON.
To turn the wipers on, move the lever
down.
- One touch wiper
INT - Intermittent wiper operation
LO - Normal wiper speed
HI - Fast wiper speed Variable Intermittent Wipers
Set the lever to the INT position and
choose the desired wiper interval by
turning the ring.One-Touch Wipers
For a single wiping cycle, push the
lever upward and release it with the
lever in the OFF position.
The wipers will operate continuously
if the lever is pushed upward and
held.DRIVING YOUR VEHICLE4-62
HIL
O
ON
INT
IN
T
OFF
O
F
F
FS
REAR
INT
TIME
PULL
S2BLA445
OFF
INT
LO
HI
HILO
ON
R
E
A
R
INT
INT
OFF
OFF
FSINT
TIME
PULL
S2BLA442A
HILO
O
N
INT
INT
OFF
OFF
FS
REAR
INT
TIME
PULL
S2BLA446
