2006 KIA Sorento Owner's Manual

For maximum defrosting, set the
temperature control knob to the
extreme right/hot position and the
fan speed control knob to the high-
est speed.
If warm air to the floor is desired
while defrosting or defogging, set
the mode selection knob to the
floor- defrost position.
Before driving, clear all snow and
ice from the windshield, rear win-
dow, outside rear view mirrors, and
all side windows.
Clear all snow and ice from the
hood and air inlet in the cowl grill to
improve heater and defroster effi-
ciency and to reduce the probabili-
ty of fogging up inside of the wind-
shield.How to cancel automatic outside
(fresh) air position in the Floor,
Floor-Defrost and Defrost posi-
tion:
When you select the Floor, Floor-
Defrost or Defrost position, the out-
side (fresh) air position will be select-
ed automatically.
If you don’t want the outside (fresh)
air position when operating in either
of these modes, you can turn off the
automatic outside (fresh) air position
by performing the following:1. Make sure the engine is running or
the ignition switch is in the ON
position.
2. Turn the fan speed control knob to
the “0”position.
3. Turn the mode selection knob to
the defrost ( ) position.
4. Push the air intake control button
( ) at least 5 times within 3 sec-
onds.
Then the indicator light on the air
intake control button will blink 3
times with 0.5 second intervals
between blinks.
If you want to return to the automatic
outside (fresh) air position, repeat the
procedure above.
DRIVING YOUR VEHICLE
4-87
PUSHMAX
A/C
PUSHMAX
A/C
S4BLA475
BL-ENG (CAN)-4.qxd 7/28/05 5:56 PM Page 87

WINDSHIELD DEFROSTING
AND DEFOGGING
(AUTOMATIC TYPE)To Defog Inside Windshield
1. Press the defrost button ( ).
2. Select desired temperature.
3. Select any fan speed except OFF
( ) position.
4. The air-conditioning will be turned
on according to the detected ambi-
ent temperature and outside
(fresh) air position will be selected.
If you don’t want the air-conditioning
or outside (fresh) air position press
the corresponding button to cancel
the operation.To Defrost Outside Windshield
1. Press the defrost button ( ).
2. Set the fan speed to the or
position.
3. Set temperature to the extreme hot
(25°C~32°C) position.
4. The air-conditioning will be turned
on according to the detected ambi-
ent temperature and outside
(fresh) air position will be selected.
If you don’t want the air-conditioning
or outside (fresh) air position press
the corresponding button to cancel
the operation.DRIVING YOUR VEHICLE4-88
S2BLA476
S2BLA477
CAUTION
Do not use defrost position
during cooling operation in
extremely humid weather. The
difference between the temper-
ature of the outside air and that
of the windshield could cause
the outer surface of the wind-
shield to fog up, causing loss of
visibility. In this case, set the
mode selection knob to the
position and fan speed control
knob to the lower speed.
BL-ENG (CAN)-4.qxd 7/28/05 5:56 PM Page 88

How to cancel forced air-condition-
ing operation and outside (fresh)
air position in floor-defrost and
defrost position ;
When you select the Floor-Defrost or
Defrost position, the system automat-
ically turns on the air-conditioning
system and the outside (fresh) air
position will be selected.
If you don’t want air-conditioning and
the outside (fresh) air position when
operating in either of these modes,
you can turn off the air-conditioning
system operation by performing the
following:1. Make sure the engine is running or
the ignition switch is in the ON
position.
2. Select the defrost position press-
ing the defrost ( ) button.
3. While holding the air conditioning
button A/C depressed, depress the
recirculated air position button
( ) at least 5 times within 3 sec-
onds.
The indicator light in the recirculat-
ed air position button ( ) will
blink 3 times with 0.5 second of
interval.
If you want to return to the automatic
air conditioning system and outside
(fresh) air position, repeat the proce-
dure above.
Follow the same procedure if you
want to cancel or return to the forced
outside (fresh) air position when you
start the engine with recirculated air
position selected manually before the
engine off.
DRIVING YOUR VEHICLE
4-89
S2BLA478
BL-ENG (CAN)-4.qxd 7/28/05 5:56 PM Page 89

5-1
DRIVING TIPSFuel Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Emission Control System . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3
Tips on Driving Your Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 5-5
Suggestions for Economical Operation . . . . . . . . . . . . . . . . 5-6
Special Driving Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8
Using Four-Wheel Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-14
Weight of the Vehicle - with and without a Trailer . . . . . . . .5-32
Trailer Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-34
Overloading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-43
Label Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-43
5
BL-ENG (CAN)-5.qxd 7/28/05 5:56 PM Page 1

FUEL REQUIREMENTSYour new Kia vehicle must use
only unleaded fuel having an
octane rating of at least 87.
Your new Kia is designed to obtain
maximum performance with
UNLEADED FUEL, as well as mini-
mize exhaust emissions and spark
plug fouling.Gasoline Containing Alcohol and
Methanol
Gasohol, a mixture of gasoline and
ethanol (also known as grain alco-
hol), and gasoline or gasohol con-
taining methanol (also known as
wood alcohol) are being marketed
along with or instead of leaded or
unleaded gasoline.
Do not use gasohol containing more
than 10% ethanol, and do not use
gasoline or gasohol containing any
methanol. Either of these fuels may
cause driveability problems and dam-
age to the fuel system.
Discontinue using gasohol of any
kind if driveability problems occur.Vehicle damage or driveability prob-
lems may not be covered by the man-
ufacturer’s warranty if they result from
the use of:
1. Gasohol containing more than
10% ethanol.
2. Gasoline or gasohol containing
methanol.
3. Leaded fuel or leaded gasohol.DRIVING TIPS5-2✽ ✽
NOTICENEVER USE LEADED FUEL. The
use of leaded fuel is detrimental to
the catalytic converter and will
damage the engine control system’s
oxygen sensor and affect emission
control.
Never add any fuel system cleaning
agents to the fuel tank other than
what Kia has specified.
(Consult an authorized Kia dealer
for details.)
✽ ✽
NOTICENever use gasohol which contains
methanol. Discontinue use of any
gasohol product which impairs dri-
veability.
BL-ENG (CAN)-5.qxd 7/28/05 5:56 PM Page 2

EMISSION CONTROL
SYSTEMThe emissions control system of your
vehicle is covered by a written limited
warranty. Please see the warranty
information contained in the Warranty
and Consumer Information Manual in
your vehicle.
Vehicle Modifications
This vehicle should not be modified.
Modification of your Kia could affect
its performance, safety or durability
and may even violate governmental
safety and emissions regulations.
In addition, damage or performance
problems resulting from any modifi-
cation may not be covered under
warranty.Engine Exhaust Gas Precautions
(Carbon Monoxide)
 Carbon monoxide can be present
with other exhaust fumes.
Therefore, if you smell exhaust
fumes of any kind inside your vehi-
cle, have it inspected and repaired
immediately by an authorized Kia
dealer. If you ever suspect exhaust
fumes are coming into your vehicle,
drive it only with all the windows
fully open. Have your vehicle
checked and repaired immediately. Do not operate the engine in con-
fined or closed areas (such as
garages) any more than what is
necessary to move the vehicle in or
out of the area.
 When the vehicle is stopped in an
open area for more than a short
time with the engine running, adjust
the heating or cooling system (as
needed) to draw outside air into the
vehicle.
 Never sit in a parked or stopped
vehicle for any extended time with
the engine running.
 When the engine stalls or fails to
start, excessive attempts to re-start
the engine may cause damage to
the emission control system.
DRIVING TIPS
5-3
WARNING
Engine exhaust gases contain
carbon monoxide (CO). Though
colorless and odorless, it is dan-
gerous and could be lethal if
inhaled. Follow the instructions
following to avoid CO poisoning.
BL-ENG (CAN)-5.qxd 7/28/05 5:56 PM Page 3

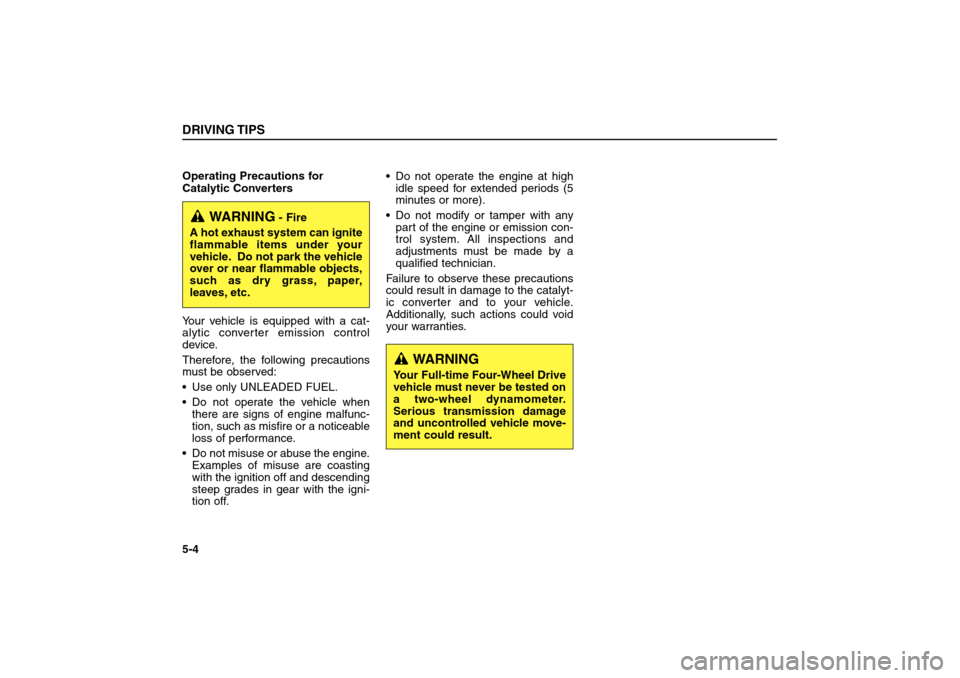

Operating Precautions for
Catalytic Converters
Your vehicle is equipped with a cat-
alytic converter emission control
device.
Therefore, the following precautions
must be observed:
 Use only UNLEADED FUEL.
 Do not operate the vehicle when
there are signs of engine malfunc-
tion, such as misfire or a noticeable
loss of performance.
 Do not misuse or abuse the engine.
Examples of misuse are coasting
with the ignition off and descending
steep grades in gear with the igni-
tion off. Do not operate the engine at high
idle speed for extended periods (5
minutes or more).
 Do not modify or tamper with any
part of the engine or emission con-
trol system. All inspections and
adjustments must be made by a
qualified technician.
Failure to observe these precautions
could result in damage to the catalyt-
ic converter and to your vehicle.
Additionally, such actions could void
your warranties.DRIVING TIPS5-4
WARNING
Your Full-time Four-Wheel Drive
vehicle must never be tested on
a two-wheel dynamometer.
Serious transmission damage
and uncontrolled vehicle move-
ment could result.
WARNING
- Fire
A hot exhaust system can ignite
flammable items under your
vehicle. Do not park the vehicle
over or near flammable objects,
such as dry grass, paper,
leaves, etc.
BL-ENG (CAN)-5.qxd 7/28/05 5:56 PM Page 4

TIPS ON DRIVING YOUR
VEHICLEBefore Entering Vehicle:
 Be sure that all windows, outside
mirror(s), and outside lights are
clean.
 Check the condition of the tires.
 Check under the vehicle for any
sign of leaks.
 Be sure there are no obstacles
behind you if you intend to back up.
Necessary Inspections
Fluid levels, such as engine oil,
engine coolant, brake/clutch fluid,
and washer fluid should be checked
on a regular basis, with the exact
interval depending on the fluid.
Further details are provided in the
“Maintenance” section.Before Starting
 Close and lock all doors.
 Position the seat so that all controls
are easily reached.
 Adjust the inside and outside
rearview mirrors.
 Be sure that all lights work.
 Check all gauges.
 Check the operation of warning
lights when the ignition switch is
turned to the ON position.
 Release the parking brake and
make sure the brake warning light
goes out.
For safe operation, be sure you are
familiar with your vehicle and its
equipment.
DRIVING TIPS
5-5
WARNING- Driving Under the
Influence of Alcohol or
Drugs
Drinking and driving is danger-
ous. Drunk driving is the num-
ber one contributor to the high-
way death toll each year. Even
a small amount of alcohol will
affect your reflexes, percep-
tions and judgement.
You are much more likely to
have a serious accident if you
drink and drive.
If you are drinking or taking
drugs, don’t drive. Do not ride
with a driver who has been
drinking or taking drugs.
Choose a designated driver or
call a cab.
Driving while under the influ-
ence of drugs is as dangerous
or more dangerous than driving
drunk.
BL-ENG (CAN)-5.qxd 7/28/05 5:56 PM Page 5
