2006 KIA Sorento Owner's Manual

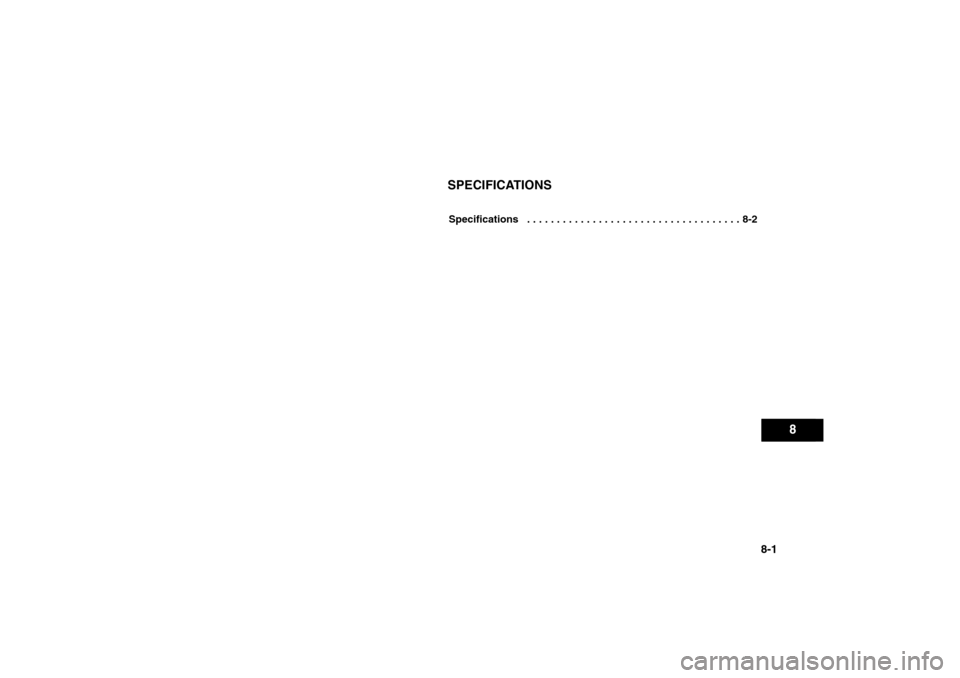

8-1
SPECIFICATIONSSpecifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
8
BL-ENG (CAN)-8.qxd 7/28/05 5:59 PM Page 1

SPECIFICATIONSThe specifications given here are for general information
only. Please check with an authorized Kia dealer for
more precise and more up-to-date information.SPECIFICATIONS8-2
Item mm (in)
Overall length w/o bumper guard 4,567 (179.8)
Overall length with bumper guard 4,625 (182.1)
Overall width w/o wide garnish 1,863 (73.3)
Overall width with wide garnish 1,884 (74.2)
Overall height w/o roof rack 1,730 (68.1)
Overall height with roof rack 1,810 (71.3)
Front tread 1,580 (62.2)
Rear tread 1,580 (62.2)
Wheelbase 2,710 (106.7)
Dimensions
Weights
Refer to the compliance label describing GVWR &
GAWR weights attached to your vehicle.
(see page 5-44, Label information)
BL-ENG (CAN)-8.qxd 7/28/05 5:59 PM Page 2

SPECIFICATIONS
8-3
Light bulbs Tires
Light Bulb Wattage
Exterior Lights
Headlights (High/Low) 55 / 55
Front turn signal / position lights 28 / 8
Front fog lights 27
Front side marker 5
Rear turn signal lights 27
Stop and tail lights 27 / 8
Back-up lights 27
License plate lights 5
High mounted stop light 5
Rear side marker 5
Interior Lights
Room lamp 10
Map lamp 10
Rear cargo area lamp 10
Door courtesy lamp 5
Vanity mirror lamp 3
Size
Tire WheelInflation Pressure
P245/70R16 7JJ×1630 psi
(210 kPa)
BL-ENG (CAN)-8.qxd 7/28/05 5:59 PM Page 3

SPECIFICATIONS8-4Engine
Electrical SystemCapacities
Item Gasoline Engine
BoreXStroke
93 mm × 85.8 mm (3.66 in × 3.38 in)
Displacement 3496 cc (213.3 cu.in)
Compression Ratio 10.0
Size Gasoline Engine
BatteryType MF 70 AH
Capacity 12V / 70AH
Alternator 13.5V / 120A
Starter 12V-1.2KW
Gap 1.0 mm ~ 1.1 mm
Spark Plug
SpecificationPFR5N-11,
RC10PYPB4
Lubricant Volume (l) Classification
Engine oilWith filter 4.3
API Service SJ, SL or above,
Without filter 4.0 ILSAC GF-3 or aboveA/T30-40LEi11.5 MOBIL D-II
Transmission
A5SR1 10.0
APOLLOIL ATF RED-1
oil
M/T
2WD 3.2
API SERVICE GL-4
4WD 2.7 SAE 75W-85 (fill for-life)
Coolant 11.0Ethylene glycol basefor aluminum radiator
Brake fluid 0.35SAE J1703, FMVSS116
DOT-3 or DOT-4
Fuel 80 -
BL-ENG (CAN)-8.qxd 7/28/05 5:59 PM Page 4

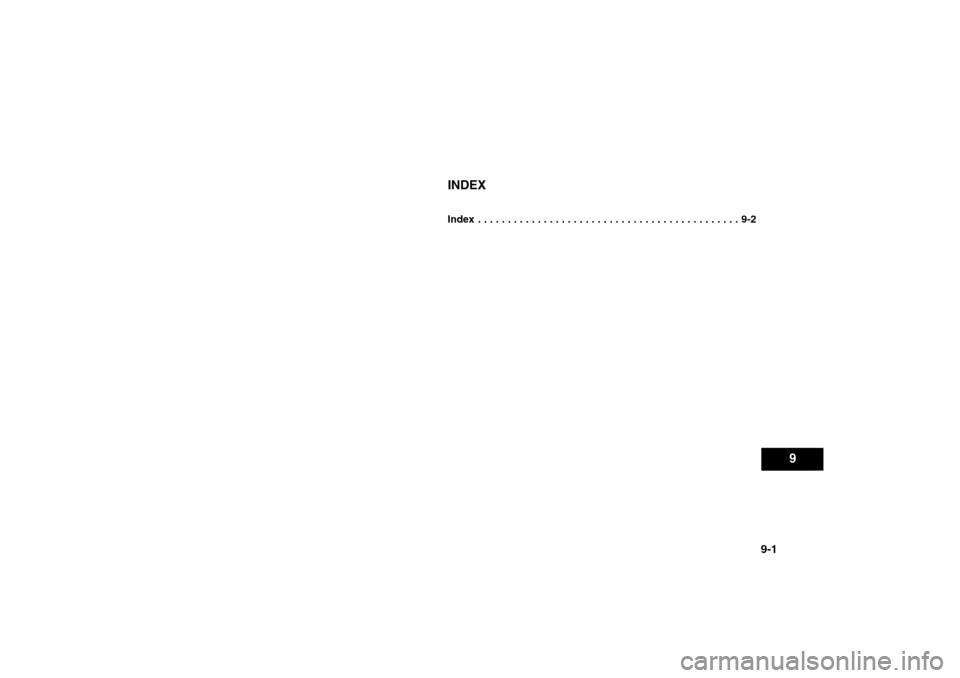

9-1
INDEX
9
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-2
BL-ENG (CAN)-9.qxd 7/28/05 5:59 PM Page 1

A
ir Bag - Supplemental Restraint System . . . . . 3-44
Air Cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-20
Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-86
Automatic Climate Control System . . . . . . . . . . . 4-79
Automatic Transmission . . . . . . . . . . . . . . . . . . . . 4-9
Automatic Transmission . . . . . . . . . . . . . . . . . . . 7-17
B
attery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-23
Brake System . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-30
Brakes and Clutch . . . . . . . . . . . . . . . . . . . . . . . 7-14
Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . . 7-33
C
ruise Control . . . . . . . . . . . . . . . . . . . . . . . . . . 4-38
Cup Holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-78
D
efroster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-65
Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
Electrical Circuit Protection . . . . . . . . . . . . . . . . . 6-7
Electrical Power Outlet . . . . . . . . . . . . . . . . . . . . 3-82
Emergency Starting . . . . . . . . . . . . . . . . . . . . . . . 6-4
Emission Control System . . . . . . . . . . . . . . . . . . . 5-3
Engine Compartment . . . . . . . . . . . . . . . . . . . . . . 7-8Engine Cooling System . . . . . . . . . . . . . . . . . . . 7-11
Engine Oil and Oil Filter . . . . . . . . . . . . . . . . . . . . 7-9
Exterior Care . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-43
Four Wheel Drive(4WD) . . . . . . . . . . . . . . . . . . . 4-20
Front Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13
Fuel Filler Lid . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-70
Fuel Requirements . . . . . . . . . . . . . . . . . . . . . . . . 5-2G
auges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-43
H
azard Warning Flasher . . . . . . . . . . . . . . . . . . 4-66
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-69
How to Use This Manual . . . . . . . . . . . . . . . . . . . .1-2
If You Have a Flat Tire . . . . . . . . . . . . . . . . . . . . 6-19
Ignition Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Immobilizer System . . . . . . . . . . . . . . . . . . . . . . . 3-3
Instrument Cluster . . . . . . . . . . . . . . . . . . . . . . . 4-41
Instrument Panel Overview . . . . . . . . . . . . . . . . . . 2-3
Interior and Exterior Overview . . . . . . . . . . . . . . . 2-2
Interior Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-47
Interior Features . . . . . . . . . . . . . . . . . . . . . . . . . 4-67
Interior Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-76
INDEX9-2
BL-ENG (CAN)-9.qxd 7/28/05 5:59 PM Page 2

K
eys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Label Information . . . . . . . . . . . . . . . . . . . . . . . . 5-41
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-58
Limited Slip Differential . . . . . . . . . . . . . . . . . . . . 4-30
Lubricant Specifications . . . . . . . . . . . . . . . . . . . 7-41
Lubricants and Fluids . . . . . . . . . . . . . . . . . . . . . 7-19
Luggage center box . . . . . . . . . . . . . . . . . . . . . . 3-88
Luggage Net . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-86M
aintenance Schedule . . . . . . . . . . . . . . . . . . . . 7-3
Maintenance Services . . . . . . . . . . . . . . . . . . . . . 7-2
Manual Climate Control System . . . . . . . . . . . . . 4-71
Manual Transmission . . . . . . . . . . . . . . . . . . . . . . 4-7
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-74
Multi-Meter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-52
O
verheating . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3
Overloading . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-43
Owner Maintenance . . . . . . . . . . . . . . . . . . . . . . . 7-7
Parking Brake . . . . . . . . . . . . . . . . . . . . . . . . . . 7-15
Power Steering . . . . . . . . . . . . . . . . . . . . . . . . . . 4-37
Power Steering . . . . . . . . . . . . . . . . . . . . . . . . . . 7-16
R
ear Hatch . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-67
Rear Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-21
Road Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
Roof Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-89
Safety Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-25
Special Driving Conditions . . . . . . . . . . . . . . . . . . 5-8
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
Starting the Gasoline Engine . . . . . . . . . . . . . . . . 4-4
Steering Wheel . . . . . . . . . . . . . . . . . . . . . . . . . . 3-72
Storage Compartment . . . . . . . . . . . . . . . . . . . . 3-80
Suggestions for Economical Operation . . . . . . . . . 5-6
Sunglass Holder . . . . . . . . . . . . . . . . . . . . . . . . . 3-79
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-83Tips on Driving Your Vehicle . . . . . . . . . . . . . . . . . 5-5
Tires and Wheels . . . . . . . . . . . . . . . . . . . . . . . . 7-26
Tonneau cover . . . . . . . . . . . . . . . . . . . . . . . . . . 3-87
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-13
Trailer Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-34U
sing Four-Wheel Drive . . . . . . . . . . . . . . . . . . . 5-14
INDEX
9-3
BL-ENG (CAN)-9.qxd 7/28/05 5:59 PM Page 3

Vehicle Break-In Process . . . . . . . . . . . . . . . . . . .1-3
Vehicle Handling Instruction . . . . . . . . . . . . . . . . . .1-3W
arnings and Indicators . . . . . . . . . . . . . . . . . . 4-45
Weight of the Vehicle - with and without a trailer .. 5-32
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10
Windshield Defrosting and Defogging
(Automatic type) . . . . . . . . . . . . . . . . . . . . . . . 4-88
Windshield Defrosting and Defogging
(Manual type) . . . . . . . . . . . . . . . . . . . . . . . . . 4-86
Wiper Blades . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-21
Wipers and Washers . . . . . . . . . . . . . . . . . . . . . 4-62
INDEX9-4
