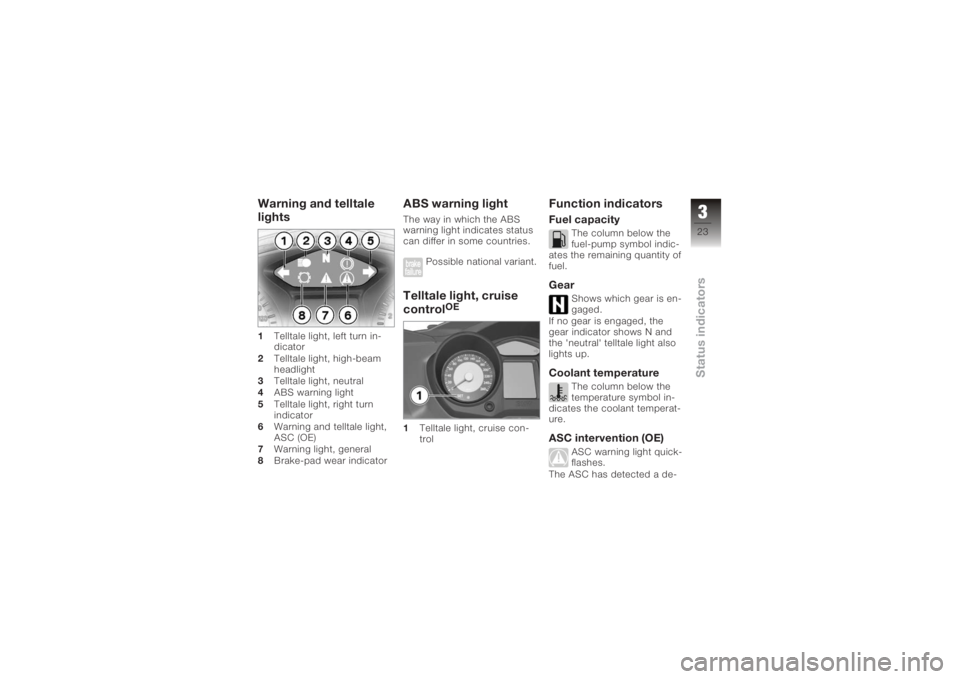

Warning and telltale
lights1Telltale light, left turn in-
dicator
2 Telltale light, high-beam
headlight
3 Telltale light, neutral
4 ABS warning light
5 Telltale light, right turn
indicator
6 Warning and telltale light,
ASC (OE)
7 Warning light, general
8 Brake-pad wear indicator
ABS warning lightThe way in which the ABS
warning light indicates status
can differ in some countries.
Possible national variant.Telltale light, cruise
control
OE
1 Telltale light, cruise con-
trol
Function indicatorsFuel capacity
The column below the
fuel-pump symbol indic-
ates the remaining quantity of
fuel.
Gear
Shows which gear is en-
gaged.
If no gear is engaged, the
gear indicator shows N and
the 'neutral' telltale light also
lights up.
Coolant temperature
The column below the
temperature symbol in-
dicates the coolant temperat-
ure.
ASC intervention (OE)
ASC warning light quick-
flashes.
The ASC has detected a de-
323zStatus indicators

gree of instability at the rear
wheel and has intervened to
reduce torque. The warning
light flashes for one second
longer than ASC intervention
lasts. This affords the rider
visual feedback on control in-
tervention even after the crit-
ical situation has been dealt
with.Warnings, generalMode of presentation
General warnings are dis-
played by means of warning
lights or by texts and symbols
in the multifunction display.
In some cases, they are ac-
companied by the 'General'
warning light showing red or
yellow. If two or more warn-
ings occur at the same time,
all the appropriate warning
lights and warning symbols
appear.
324zStatus indicators

Warnings, overview
Mode of presentation Meaning
Lights up yellowThe
EWS
warning
appears on the
display. Electronic immobiliser active ( 27)
Lights up yellow Flashes Fuel down to reserve ( 27)
Lights up red Temperature reading flashesCoolant temperature too high
( 27)
Lights up yellow Appears on the displayEngine electronics ( 28)
Flashes red Appears on the displayInsufficient engine oil pressure
( 28)
Shows accom-
panied by the
Oil
warning Engine-oil level too low ( 29)
Lights up red Appears on the displayInsufficient battery charge current
( 29)
Lights up Brake pads worn down to the wear
limit ( 30)
Lights up yellow Appears on the
display Rear light bulb defective ( 30)
325zStatus indicators

Mode of presentationMeaning
Appears on the
displayFront light bulb defective ( 30)
Lights up yellow Appears on the displayBulbs defective ( 31)
Flashes with tem-
perature reading Ice warning ( 31)
Appears on the
display, accom-
panied by the let-
ters
DWA
. Battery of anti-theft alarm (OE) weak
( 31)
Lights up yellow Appears on the display, accom-
panied by the let-
ters
DWA
.Anti-theft alarm battery flat (OE)
( 32)
326zStatus indicators

Electronic immobiliser
activeGeneral warning light
lights up yellow.
The
EWS
warning appears on
the display.
The key being used is not au-
thorised for starting, or com-
munication between key and
engine electronics is disrup-
ted.
Remove all other vehicle
keys from the same ring as
the ignition key.
Use the reserve key.
Have the defective key re-
placed, preferably by an
authorised BMW Motorrad
dealer.
Fuel down to reserve General warning light
lights up yellow. Symbol for fuel down to
reserve flashes.
Lack of fuel can result
in the engine misfiring
and cutting out unexpectedly.
Misfiring can damage the
catalytic converter; a hazard-
ous situation can result if the
engine cuts out unexpectedly.
Do not run the fuel tank dry.
The estimated residual
range appears on the
display.
The fuel tank contains no
more than the reserve quant-
ity of fuel.
Reserve fuel
4l
Refuelling ( 83) Coolant temperature too
high
General warning light
lights up red.
The temperature reading
flashes.
Continuing to ride when
the engine is overheated
could result in engine dam-
age.
You must comply with the in-
structions below.
The coolant temperature is
too high.
If possible, ride in the part-
load range to cool down the
engine.
In traffic jams, switch off the
engine, but leave the igni-
tion switched on so that the
radiator fan continues to op-
erate.
If the coolant temperature
is frequently too high, have
327zStatus indicators

the fault rectified as soon
as possible by a special-
ist workshop, preferably an
authorised BMW Motorrad
dealer.
Engine electronics General warning light
lights up yellow.
Engine electronics sym-
bol appears on the dis-
play.
The engine is running
in emergency operating
mode. Engine power might
be reduced and this can
cause hazardous situations,
particularly if you attempt to
overtake other road users.
Engine power level might be
lower than normal: adapt your
style of riding accordingly. The engine electronics control
unit has diagnosed a fault. In
exceptional cases, the engine
stops and refuses to start.
Otherwise, the engine runs in
emergency operating mode.
You can continue to ride,
but bear in mind that the
usual engine power might
not be available.
Have the fault rectified as
quickly as possible by a
specialist workshop, prefer-
ably an authorised BMW
Motorrad dealer.
Insufficient engine oil
pressure General warning light
flashes red.
Engine oil pressure sym-
bol appears on the dis-
play.
The oil pressure in the lube-
oil system is too low. Stop immediately and switch off
the engine if the warning light
shows.
The insufficient oil
pressure warning does
not fulfil the function of an
oil gauge. The only way of
checking whether the oil level
is correct is to check the oil
level indicator.
A low oil level is one reason
why a warning indicating in-
sufficient oil pressure is is-
sued.
Checking engine oil level
( 103)
If the oil level is too low: Top up the engine oil
( 105)
If the warning indicating in-
sufficient engine oil level is
issued and a check indicates
that the engine oil level is cor-
rect:
328zStatus indicators

Other engine problems
besides a low oil level
can cause the insufficient en-
gine oil pressure warning to
be issued. Continuing to ride
in these cases can cause en-
gine damage.
If this warning is issued even
though the engine oil level is
correct: do not continue to
ride.
Do not continue your jour-
ney.
Have the fault rectified as
quickly as possible by a
specialist workshop, prefer-
ably an authorised BMW
Motorrad dealer.
Engine-oil level too low Shows accompanied by
the
Oil
warning
The electronic oil-level sensor
has registered an excessively
low oil level. Dipping the oil with the dip-
stick is the only way of ascer-
taining the exact engine-oil
level. The next time you stop
for fuel:
Checking engine oil level
( 103)
If the oil level is too low:
Top up the engine oil
( 105)
The oil sensor might be
defective if the "Check oil
level" message appears even
though a check with the
dipstick reveals that the oil
level is correct. Seek the advice of a spe-
cialist workshop, preferably
an authorised BMW Motor-
rad dealer. Insufficient battery charge
current
General warning light
lights up red.
Battery charge current
symbol is displayed.
A discharged battery can
cause the engine to die
suddenly, and this could res-
ult in a dangerous situation in
traffic.
Have faults rectified as soon
as possible.
If the battery is not char-
ging, continuing to ride
can cause it to discharge
completely, in which case it
will suffer irreparable damage.
If possible, do not continue
your journey.
Battery is not being charged.
You can continue to
ride until the battery is
discharged. Bear in mind,
329zStatus indicators

however, that the engine
could cut out suddenly
and that the battery could
discharge until completely
flat, in which case it might
have suffered irreparable
damage.
Have the fault rectified as
quickly as possible by a
specialist workshop, prefer-
ably an authorised BMW
Motorrad dealer.
Brake pads worn down to
the wear limit Warning light for brake-
pad wear shows
The electric brake-pad wear
detector has registered that
the brake pads of the front or
rear brakes have worn down
to the acceptable limit. Checking brake-pad thick-
ness, front brakes ( 105) Checking brake pad thick-
ness, rear brakes ( 106)
Have worn brake pads re-
placed by a specialist work-
shop, preferably an author-
ised BMW Motorrad dealer.
Rear light bulb defective General warning light
lights up yellow.
Defective bulb symbol
with arrow pointing to
the rear appears on the dis-
play.
A defective bulb places
your safety at risk be-
cause it is easier for other
users to oversee you and
your motorcycle.
Replace defective bulbs as
soon as possible; always
carry a complete set of spare
bulbs if possible. Rear light or brake light bulb
defective.
Replacing brake-light, rear
light and rear-indicator
bulbs ( 123)
Front light bulb defective Defective bulb symbol
with arrow pointing to
the front appears on the dis-
play.
A defective bulb places
your safety at risk be-
cause it is easier for other
users to oversee you and
your motorcycle.
Replace defective bulbs as
soon as possible; always
carry a complete set of spare
bulbs if possible.
Low-beam headlight, high-
beam headlight, side-light or
turn-indicator bulb defective.
