2006 BMW MOTORRAD K 1200 GT Rider's Manual (in English)

Underneath the seat1Seat height adjuster
( 66)
2 Filler neck for engine oil
and oil dipstick ( 103)
( 105)
3 Brake-fluid reservoir, rear
( 108)
4 Helmet holder ( 68)
5 Rider's Manual
6 Toolkit ( 102)
215zGeneral views

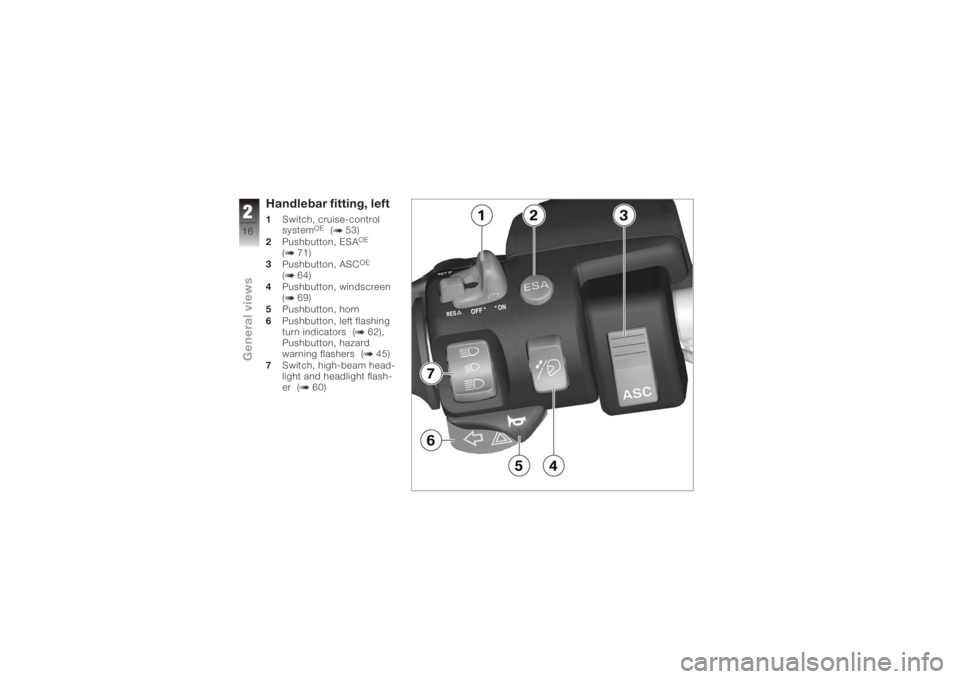

Handlebar fitting, left1Switch, cruise-control
system
OE
( 53)
2 Pushbutton, ESA
OE
( 71)
3 Pushbutton, ASC
OE
( 64)
4 Pushbutton, windscreen
( 69)
5 Pushbutton, horn
6 Pushbutton, left flashing
turn indicators ( 62),
Pushbutton, hazard
warning flashers ( 45)
7 Switch, high-beam head-
light and headlight flash-
er ( 60)
216zGeneral views

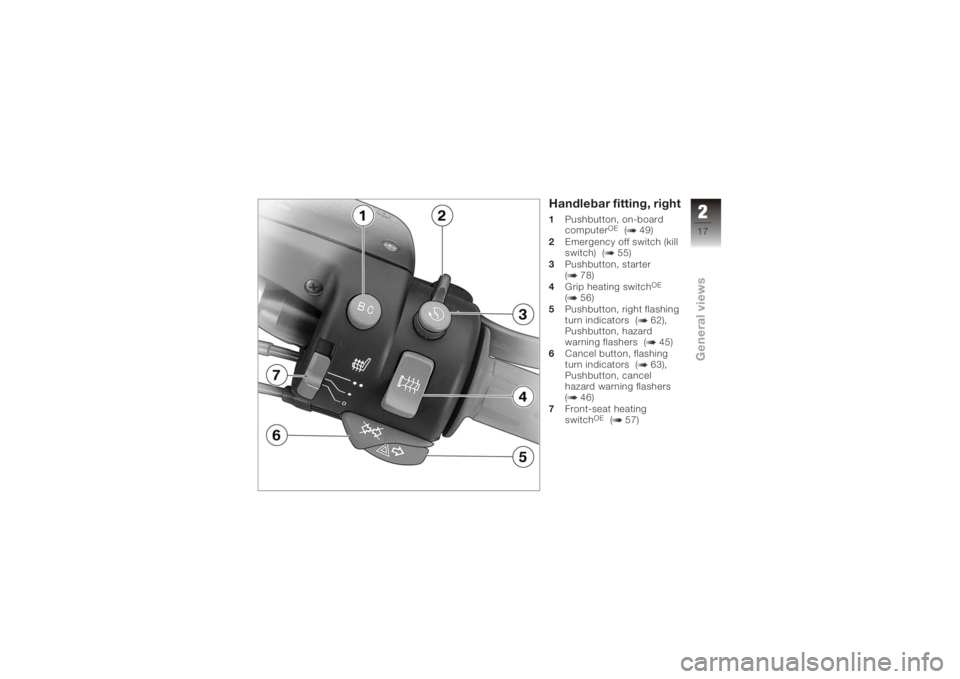

Handlebar fitting, right1Pushbutton, on-board
computer
OE
( 49)
2 Emergency off switch (kill
switch) ( 55)
3 Pushbutton, starter
( 78)
4 Grip heating switch
OE
( 56)
5 Pushbutton, right flashing
turn indicators ( 62),
Pushbutton, hazard
warning flashers ( 45)
6 Cancel button, flashing
turn indicators ( 63),
Pushbutton, cancel
hazard warning flashers
( 46)
7 Front-seat heating
switch
OE
( 57)
217zGeneral views

Instrument cluster1Speedometer
2 Warning and telltale
lights ( 23)
3 Multifunction display
4 Rev. counter
5 Telltale light, anti-theft
alarm (OE)
6 Adjuster, clock ( 47),
Display dimmer ( 47)
7 Control, odometer
( 46)
8 Sensor for instrument
cluster lighting
The instrument-cluster
lighting has automatic
day and night switchover.
218zGeneral views

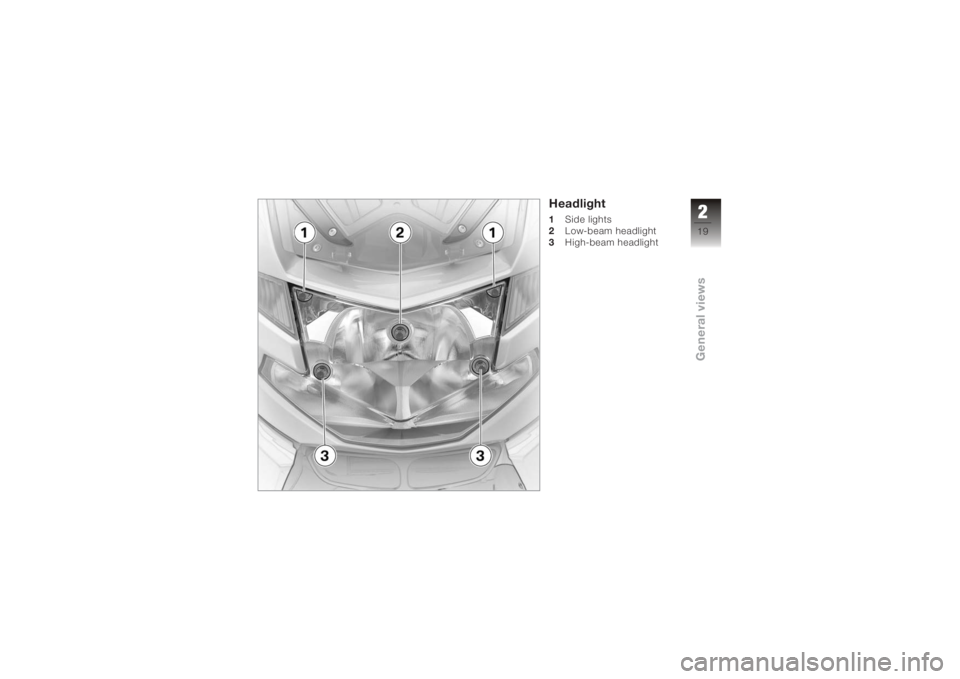

Headlight1Side lights
2 Low-beam headlight
3 High-beam headlight
219zGeneral views

220zGeneral views

Status indicators
Multifunction display . . . . . . . . . . . 22
Warning and telltale lights . . . . . . 23
ABS warning light . . . . . . . . . . . . . 23
Telltale light, cruise
control
OE
..................... 23
Function indicators . . . . . . . . . . . . 23
Warnings, general . . . . . . . . . . . . . 24
Warnings issued by the tyre
pressure monitoring system
(RDC)
OE
....................... 32
ABS warnings . . . . . . . . . . . . . . . . . 36
ASC warnings
OE
.............. 38
321zStatus indicators

Multifunction display1Fuel gauge ( 23)
2 Display, on-board com-
puter
OE
( 49), RDC
readingOE
( 48)
3 Panel for warnings
( 24)
4 Gear indicator ( 23)
5 Coolant temperature
readout ( 23)
6 Trip meter ( 46), RDC
display (motorcycles
without on-board
computer)OE
( 48)
7 Clock ( 47), Panel for
seat heatingOE
( 57),
Panel for display dimmer
( 47), Panel for ESA
OE
( 71)
8 Odometer and tripmeters
( 46)
322zStatus indicators
