19-77
ABS MODULATOR-CONTROL UNIT 25P CONNECTORMR B (RED)
9. Reconnect the ABS modulator-control unit 25Pconnector.
10. Turn the ignition switch to ON (II).
11. Clear the DTC with the HDS.
12. Turn the ignition switch to LOCK (0), then turn it to ON (II) again.
13. Check for DTCs with the HDS.
Replace the ABS modulator-control unit
(see page 19-90).
Troubleshooting is complete. 14. Disconnect the ABS modulator-control unit 25P
connector (see step 2 on page 19-90).
15. Measure the voltage between ABS modulator- control unit 25P connector terminal No. 9 and body
ground.
Check for loose terminals in the ABS
modulator-control unit 25P connector. If necessary,
substitute a known-good ABS modulator-control
unit (see page 19-90), and retest.
Repair open in the wire between the No. 3
(30 A) fuse in the under-hood fuse/relay box and
the ABS modulator-control unit.
Wire side of female terminals
I s DT C 5 1-12 i nd i cat ed ?
Is there battery voltage?
08/08/21 15:03:15 61SNR030_190_0077
ProCarManuals.com
DYNOMITE -2009-


(#' 
')
´
µ
µ
µ
µ µ
µ
µ
µ
DTC 54-04:
DTC 54-21:
YES
NO
YES
NO YES
NO
YES
NO

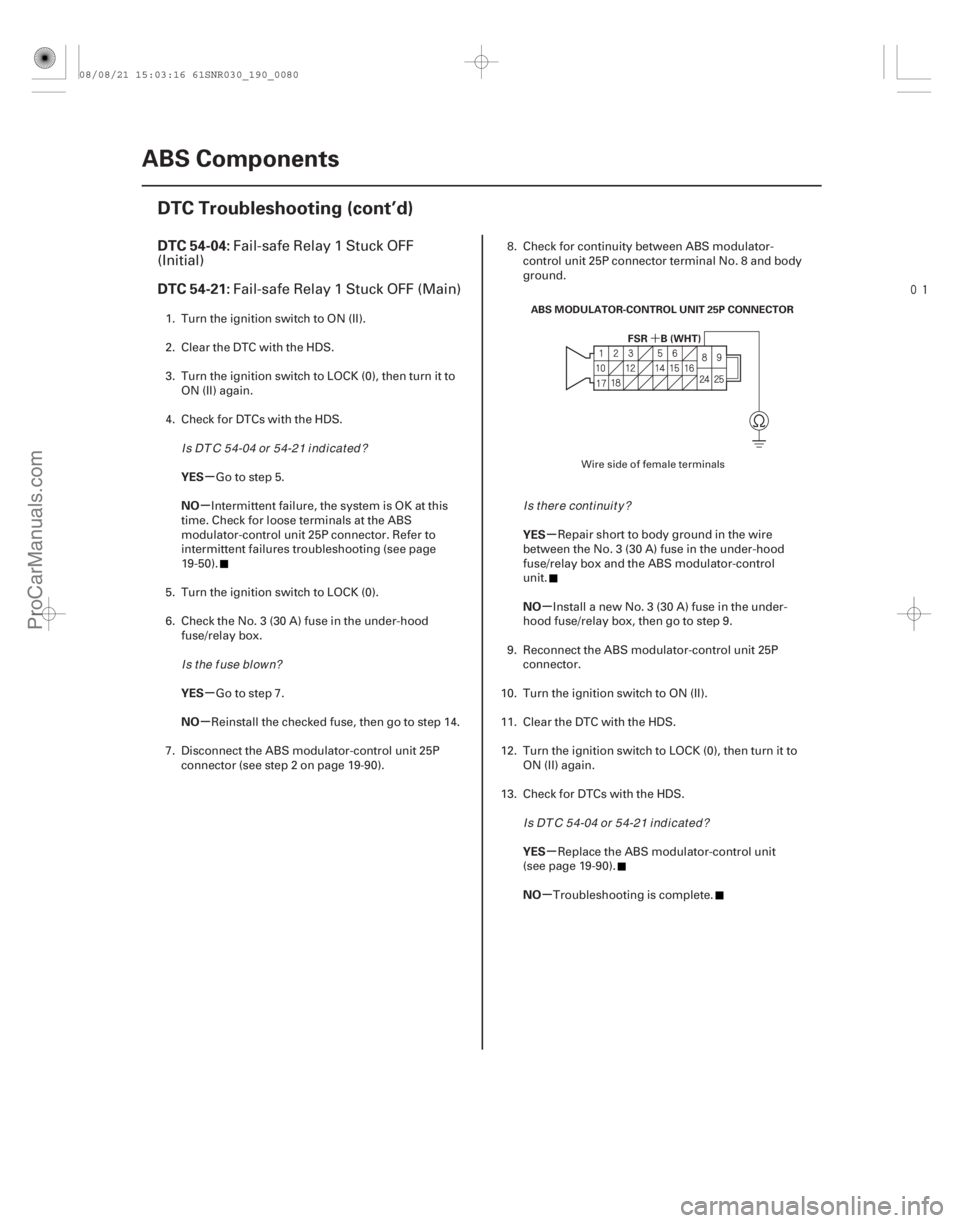

19-80ABS Components
DTC Troubleshooting (cont’d)
ABS MODULATOR-CONTROL UNIT 25P CONNECTOR
FSR B (WHT)
Fail-safe Relay 1 Stuck OFF
(Initial)
Fail-safe Relay 1 Stuck OFF (Main)
1. Turn the ignition switch to ON (II).
2. Clear the DTC with the HDS.
3. Turn the ignition switch to LOCK (0), then turn it toON (II) again.
4. Check for DTCs with the HDS.
Go to step 5.
Intermittent failure, the system is OK at this
time. Check for loose terminals at the ABS
modulator-control unit 25P connector. Refer to
intermittent failures troubleshooting (see page
19-50).
5. Turn the ignition switch to LOCK (0).
6. Check the No. 3 (30 A) fuse in the under-hood fuse/relay box.
Go to step 7.
Reinstall the checked fuse, then go to step 14.
7. Disconnect the ABS modulator-control unit 25P connector (see step 2 on page 19-90). 8. Check for continuity between ABS modulator-
control unit 25P connector terminal No. 8 and body
ground.
Repair short to body ground in the wire
between the No. 3 (30 A) fuse in the under-hood
fuse/relay box and the ABS modulator-control
unit.
Install a new No. 3 (30 A) fuse in the under-
hood fuse/relay box, then go to step 9.
9. Reconnect the ABS modulator-control unit 25P connector.
10. Turn the ignition switch to ON (II).
11. Clear the DTC with the HDS.
12. Turn the ignition switch to LOCK (0), then turn it to ON (II) again.
13. Check for DTCs with the HDS.
Replace the ABS modulator-control unit
(see page 19-90).
Troubleshooting is complete.
Wire side of female terminals
I s DT C 5 4-04 or 5 4-21 i nd i cat ed ?
Isthefuseblown? Is there continuity?
I s DT C 5 4-04 or 5 4-21 i nd i cat ed ?
08/08/21 15:03:16 61SNR030_190_0080
ProCarManuals.com
DYNOMITE -2009-


(#' 
'

)
´
µ
µ µ
µ
YES
NO YES
NO
DTC 61-01:
DTC 61-21:
DTC 61-22:
DTC 61-23:

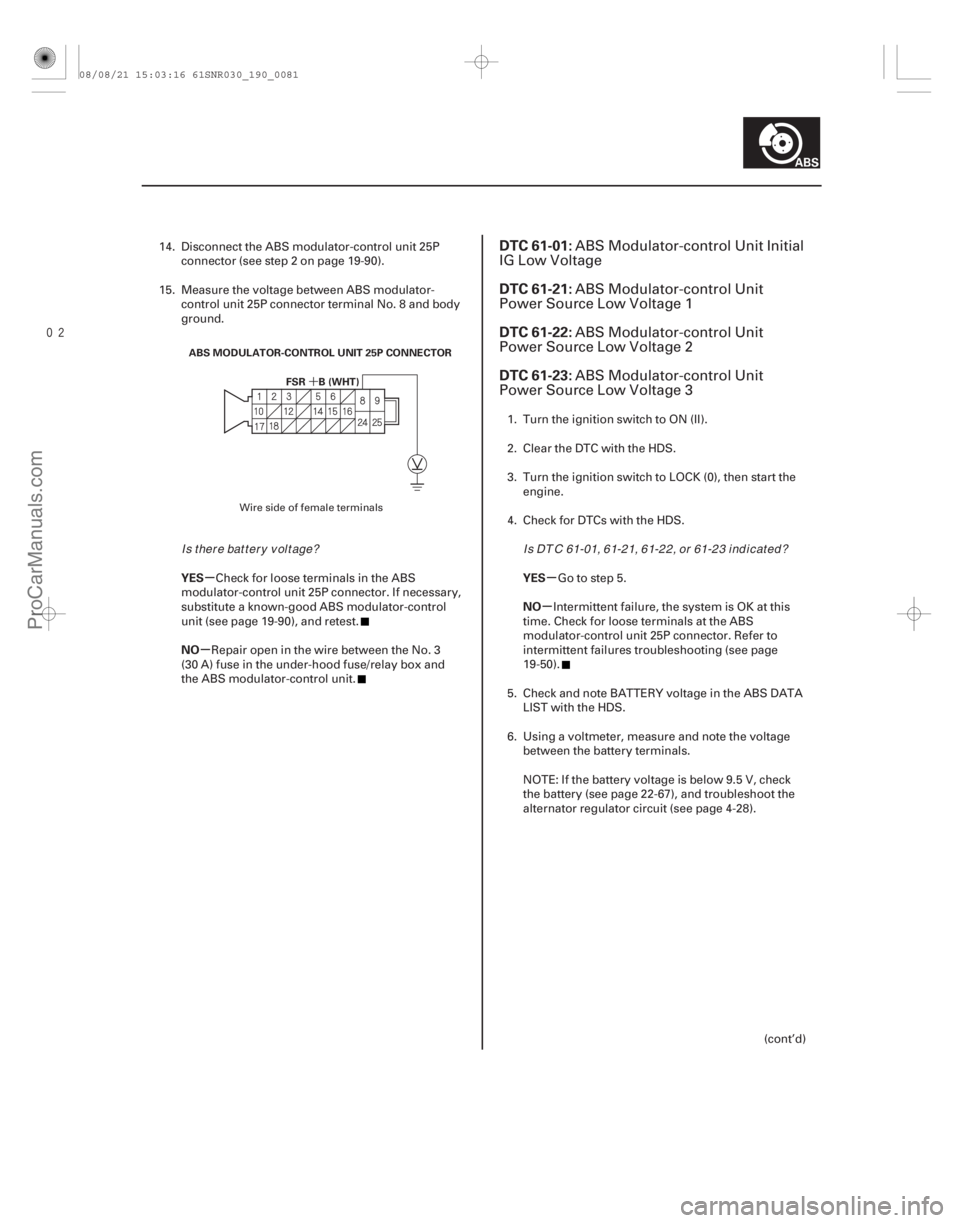

19-8119-81
ABS MODULATOR-CONTROL UNIT 25P CONNECTOR
FSR B (WHT)
14. Disconnect the ABS modulator-control unit 25Pconnector (see step 2 on page 19-90).
15. Measure the voltage between ABS modulator- control unit 25P connector terminal No. 8 and body
ground.
Check for loose terminals in the ABS
modulator-control unit 25P connector. If necessary,
substitute a known-good ABS modulator-control
unit (see page 19-90), and retest.
Repair open in the wire between the No. 3
(30 A) fuse in the under-hood fuse/relay box and
the ABS modulator-control unit. 1. Turn the ignition switch to ON (II).
2. Clear the DTC with the HDS.
3. Turn the ignition switch to LOCK (0), then start the
engine.
4. Check for DTCs with the HDS.
Go to step 5.
Intermittent failure, the system is OK at this
time. Check for loose terminals at the ABS
modulator-control unit 25P connector. Refer to
intermittent failures troubleshooting (see page
19-50).
5. Check and note BATTERY voltage in the ABS DATA LIST with the HDS.
6. Using a voltmeter, measure and note the voltage between the battery terminals.
NOTE: If the battery voltage is below 9.5 V, check
the battery (see page 22-67), and troubleshoot the
alternator regulator circuit (see page 4-28).
(cont’d)ABS Modulator-control Unit Initial
IG Low Voltage
ABS Modulator-control Unit
Power Source Low Voltage 1
ABS Modulator-control Unit
Power Source Low Voltage 2
ABS Modulator-control Unit
Power Source Low Voltage 3
Wire side of female terminals
I s t her e bat t er y v ol t age? I s DT C 61-01, 61-21, 61-22, or 61-23 i nd i cat ed ?
08/08/21 15:03:16 61SNR030_190_0081
ProCarManuals.com
DYNOMITE -2009-

Î
Î
(#'
)
µ
µ
µ
µ µ
µ
µ
µ
ABS indicator and brake system indicator do
not go off
YES
NO
YES
NO YES
NO
YES
NO
19-88ABS Components
Symptom Troubleshooting
ABS MODULATOR-CONTROL UNIT 25P CONNECTOR
IG1 (YEL)*
*1: ’06 model
*2: ’07 model (GRY)*
ABS MODULATOR-CONTROL UNIT 25P CONNECTOR
IG1 (YEL)*
*1: ’06 model
*2: ’07 model (GRY)*
1
2
12
1. Turn the ignition switch to LOCK (0).
2. Check the No. 4 (7.5 A) fuse in the under-dash fuse/ relay box.
Go to step 3.
Reinstall the checked fuse, then go to step 8.
3. Disconnect the ABS modulator-control unit 25P connector (see step 2 on page 19-90).
4. Check for continuity between ABS modulator- control unit 25P connector terminal No. 16 and
body ground.
Repair short to body ground in the wire
between the No. 4 (7.5 A) fuse in the under-dash
fuse/relay box and the ABS modulator-control
unit.
Install a new No. 4 (7.5 A) fuse in the under-
dashfuse/relaybox,thengotostep5. 5. Reconnect the ABS modulator-control unit 25P
connector.
6. Turn the ignition switch to ON (II).
7. Check the ABS indicator and the brake system indicator for several sec onds when the ignition
switch is tuned to ON (II).
Troubleshooting is complete.
Replace the ABS modulator-control unit
(see page 19-90).
8. Disconnect the ABS modulator-control unit 25P connector (see step 2 on page 19-90).
9. Turn the ignition switch to ON (II).
10. Measure the voltage between ABS modulator- control unit 25P connector terminal No. 16 and
body ground.
Go to step 11.
Repair open in the wire between the No. 4
(7.5 A) fuse in the under-dash fuse/relay box and
the ABS modulator-control unit.
11. Turn the ignition switch to LOCK (0).
Wire side of female terminals
Wire side of female terminals
Isthefuseblown?
Is there continuity? Does t he i nd i cat or s come on t hen go of f ?
Is there battery voltage?
08/08/21 15:03:17 61SNR030_190_0088
ProCarManuals.com
DYNOMITE -2009-

Î
(#'
)

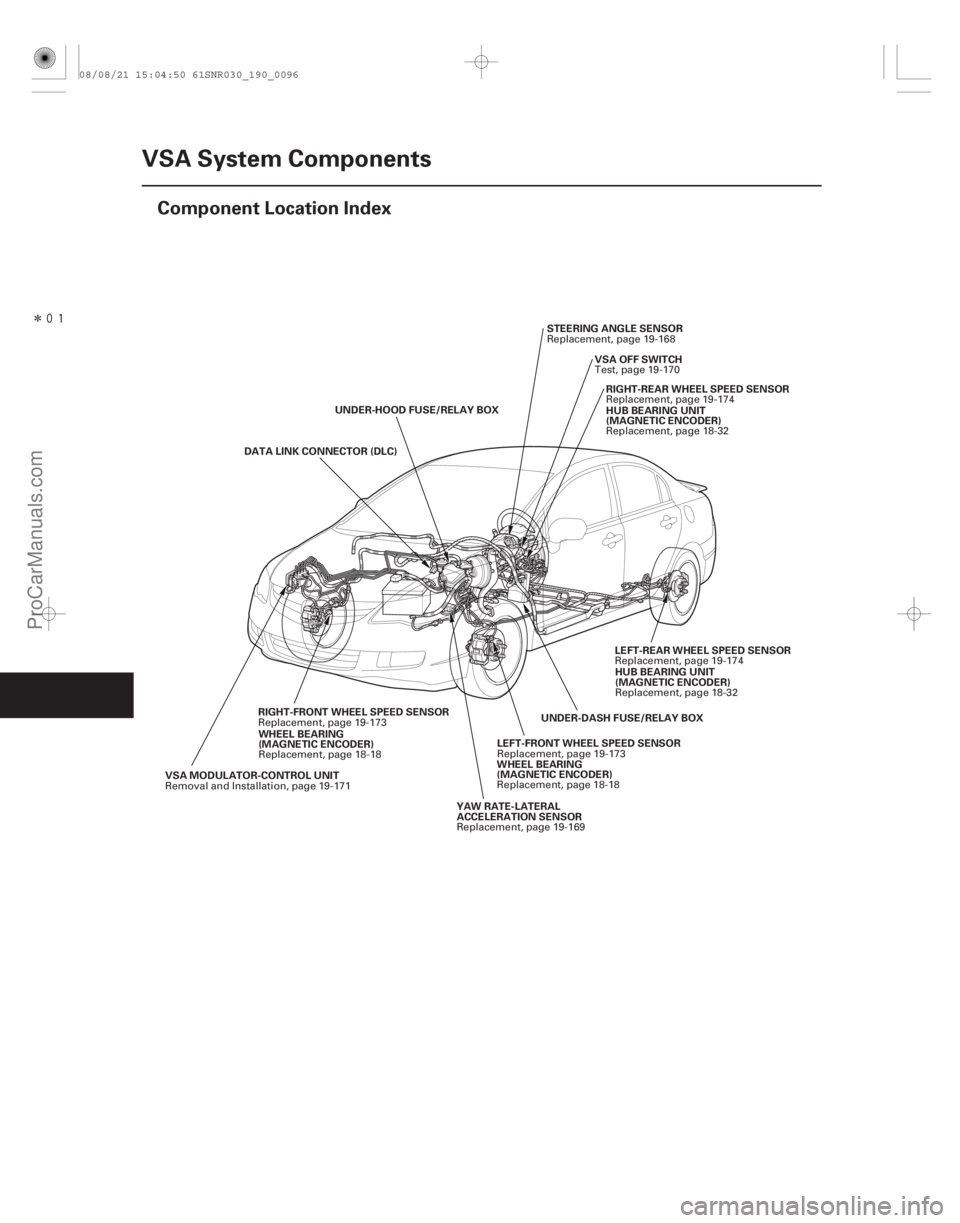

19-96VSA System Components
Component Location Index
DATA LINK CONNECTOR (DLC)
UNDER-HOOD FUSE/RELAY BOX
VSA MODULATOR-CONTROL UNIT UNDER-DASH FUSE/RELAY BOX
LEFT-FRONT WHEEL SPEED SENSOR STEERING ANGLE SENSOR
VSA OFF SWITCHRIGHT-REAR WHEEL SPEED SENSOR
YAW RATE-LATERAL
ACCELERATION SENSOR WHEEL BEARING
(MAGNETIC ENCODER) HUB BEARING UNIT
(MAGNETIC ENCODER)
RIGHT-FRONT WHEEL SPEED SENSOR WHEEL BEARING
(MAGNETIC ENCODER) LEFT-REAR WHEEL SPEED SENSOR
HUB BEARING UNIT
(MAGNETIC ENCODER)
Removal and Installation, page 19-171 Replacement, page 19-173Replacement, page 19-168
Test, page 19-170Replacement, page 19-174
Replacement, page 19-169 Replacement, page 18-18 Replacement, page 18-32
Replacement, page 19-173 Replacement, page 18-18 Replacement, page 19-174
Replacement, page 18-32
08/08/21 15:04:50 61SNR030_190_0096
ProCarManuals.com
DYNOMITE -2009-

Î(#'
)
´ ´
19-114VSA System Components
Circuit Diagram
UNDER-DASH
FUSE/RELAY BOX
No. 4 (7.5 A)
IGNITION SWITCH
IG1 HOT in ON (II) and START (III)
BRAKE PEDAL
POSITION SWITCH
Closed: Brake pedal pressed 1
2
WHTRED
YAW RATE-
LATERAL
ACCELERATION
SENSOR
WHT RED 1
3
4
YEL
5
BLK
4
2
1 VSA OFF SWITCH
WHT
WHT
RED
5
No. 3 (40 A)
No.1(100A) No.2(50A)
No. 3 (30 A)
No. 12 (15 A)
UNDER-HOOD FUSE/RELAY BOX
BATTERY
ABS
INDICATOR
BRAKE SYSTEM
INDICATOR
1
VSA ACTIVATION
INDICATOR VSA
INDICATOR
19
28
27
GAUGE CONTROL
MODULE (TACH)
BRNB
WHT
29
RED
GRN
14
RED
G501
C2 C1
E24
F16
YEL
G602
BLU
LT GRN GRYREDBRN
BLK
WHT
LT GRN GRY
H1
D8 36 D2
G502
BLK
WHT
RED
WHT
LT BLU
B
G401
BRAKE FLUID
LEVEL SWITCH
Closed: Low fluid
1 2
BLK
ORN ORN
1
PARKING
BRAKE SWITCH
Closed: Parking
brake applied DATA LINK
CONNECTOR (DLC)
ORN
IG1
6
16
4 714
08/08/21 15:04:55 61SNR030_190_0114
ProCarManuals.com
DYNOMITE -2009-


19-116VSA System Components
Circuit Diagram (cont’d)
BRAKE PEDAL POSITION
SWITCH 4P CONNECTOR
PARKING BRAKE SWITCH
1P CONNECTOR
DATA LINK CONNECTOR (DLC) VSA OFF SWITCH
5P CONNECTOR
YAW RATE-LATERAL
ACCELERATION SENSOR
5P CONNECTOR
STEERING ANGLE SENSOR
5P CONNECTOR
BRAKE FLUID LEVEL SWITCH
2P CONNECTOR
UNDER-HOOD
FUSE/RELAY BOX
CONNECTOR C (2P)
WHEEL SPEED SENSOR
2P CONNECTOR
ECM/PCM CONNECTOR A (44P)
GAUGE CONTROL MODULE (TACH) 36P CONNECTOR
VSA MODULATOR-CONTROL UNIT 37P CONNECTOR UNDER-DASH FUSE/RELAY BOX CONNECTOR F (34P)
UNDER-DASH FUSE/RELAY BOX CONNECTOR E (42P)
Wire side of female terminals
Terminal side of female terminals
08/08/21 15:04:57 61SNR030_190_0116
ProCarManuals.com
DYNOMITE -2009-

(#' 
'


)(#' 
'

)
µ
µ µ
µ
µ
µ
DTC 51-11:
DTC 51-13: DTC 51-12:
YES
NO YES
NO
YES
NO
19-13819-138VSA System Components
DTC Troubleshooting (cont’d)
Motor Lock
Motor Relay OFF Malfunction
Motor Lock Circuit Malfunction
1. Turn the ignition switch to ON (II).
2. Clear the DTC with the HDS.
3. Turn the ignition switch to LOCK (0), then turn it to
ON (II) again.
4. Wait 5 seconds.
5. Operate any one of the four solenoids, as listed, in the VSA FUNCTION TEST five times with the HDS.
-LFT FT SOLENOID
-RT FT SOLENOID
-LFT REAR SOLENOID
-RT REAR SOLENOID
6. Check for DTCs with the HDS.
Replace the VSA modulator-control unit
(see page 19-171).
Intermittent failure, the system is OK at this
time. 1. Turn the ignition switch to ON (II).
2. Clear the DTC with the HDS.
3. Turn the ignition switch to LOCK (0), then turn it to
ON (II) again.
4. Check for DTCs with the HDS.
Go to step 5.
Intermittent failure, the system is OK at this
time. Check for loose terminals at the VSA
modulator-control unit 37P connector. Refer to
intermittent failures troubleshooting (see page
19-98).
5. Turn the ignition switch to LOCK (0).
6. Check the No. 3 (30 A) fuse in the under-hood fuse/ relay box.
Go to step 7.
Reinstall the checked fuse, then go to step 14.
7. Disconnect the VSA modulator-control unit 37P connector (see step 2 on page 19-171).
I s DT C 5 1-11 or 5 1-13 i nd i cat ed ? I s DT C 5 1-12 i nd i cat ed ?
Isthefuseblown?
08/08/21 15:05:56 61SNR030_190_0138
