Tips and Precautions
Before Troubleshooting
Handling Connectors
22-3
General Troubleshooting Information
A A A
A
1. Check applicable fuses in the appropriate fuse/relay box.
2. Check the battery for damage, state of charge, and clean and tight connections.
 Do not quick-charge a battery unless the battery ground cable has been
disconnected, otherwise you will damage
the alternator diodes.
 Do not attempt to crank the engine with the battery ground cable loosely
connected or you will s everely damage the
wiring.
 Make sure the connectors are clean and have no loose wire terminals.
 Make sure multiple cavity connectors are packed with dielectric grease (except watertight connectors).
 All connectors have push-down release type locks (A).  Some connectors have a clip on their side used to
attach them to a mount bracket on the body or on
another component. This clip has a pull type lock.
 Some mounted connectors cannot be disconnected unless you first release the lock and remove the
connector from its mount bracket (A).
 Never try to disconnect connectors by pulling on their wires; pull on the connector halves instead.
 Always reinstall plastic covers.
 Before connecting connectors, make sure the terminals (A) are in place and not bent.
(cont’d)
08/08/21 14:22:04 61SNR030_220_0005
ProCarManuals.com
DYNOMITE -2009-

Î
(#')

22-7
Relay and Control Unit Locations
Engine Compartment
ABS MODULATOR-CONTROL UNIT
(’06-07 Touring and Premium models) or
VSA MODULATOR-CONTROL UNIT
(’07 TYPE S and ’08-09 models)
ECM/PCM
A/C CONDENSER FAN RELAY FAN CONTROL RELAY
BLOWER MOTOR RELAYPOWERMIRRORDEFOGGERRELAY
PGM-FI SUBRELAY
REAR WINDOW DEFOGGER RELAY
IGNITION COIL RELAY
A/C COMPRESSOR CLUTCH RELAY
UNDER-HOOD FUSE/RELAY BOX
PGM-FI MAIN RELAY 1
(FI MAIN) RADIATOR FAN RELAY
ELECTRONIC THROTTLE CONTROL
SYSTEM (ETCS) CONTROL RELAY
ELECTRICAL LOAD DETECTOR (ELD)
08/08/21 14:22:06 61SNR030_220_0009
ProCarManuals.com
DYNOMITE -2009-

Î(#')
22-8Relay and Control Unit Locations
Dashboard
GAUGE CONTROL
MODULE (TACH)
GAUGE CONTROL MODULE
(SPEEDO)
POWER WINDOW RELAY PGM-FI MAIN RELAY 2
(FUEL PUMP)
STARTER CUT RELAY
MICU
UNDER-DASH FUSE/
RELAY BOX
View of front side View of rear sideFRONT ACCESSORY POWER SOCKET RELAY
CONSOLE ACCESSORY POWER SOCKET RELAY
FOG LIGHT RELAY
(TYPE S and ’08 PREMIUMand ’09 models)
Wire colors: BLU, WHT, BLK, and PUR
Wirecolors:YEL,GRN,BLK,andPUR
Wire colors: PNK,
WHT, ORN, and WHT
08/08/21 14:22:06 61SNR030_220_0010
ProCarManuals.com
DYNOMITE -2009-

•••
•••

(#'
) Under-hood Fuse/Relay Box
Socket Ref Terminal Connects toNotes
22-58Fuse/Relay Boxes
Connector to Fuse/Relay Box Index
234
5
1 16
17 19
18
20
11
12
14
13 15
21
22
24
23
25
10 6
7
89
(View of front side) (View of back side)
A (ELD)21 3 Engine compartment wire harness (see page 22-22)
A/C compressor clutch relay 12 4
A/C condenser fan relay 3 4
B 22 1 Engine compartment wire harness (see page 22-22)
Blower motor relay 2 4
C 23 2 Engine compartment wire harness (see page 22-22)
D 25 8 Engine compartment wire harness (see page 22-22)
Diode (for A/C condenser fan) 9
Diode (for radiator fan) 8
E 24 10 Engine compartment wire harness (see page 22-22)
Electronic throttle control system
(ETCS) control relay 14 4
F 17 20 Engine compartment wire harness (see page 22-22)
Fan control relay 4 5
G 19 1 Engine compartment wire harness (see page 22-22)
H 20 1 Engine compartment wire harness (see page 22-22)
Ignition coil relay 7 4
J 16 4 Engine compartment wire harness (see page 22-22)
K 18 2 Engine compartment wire harness (see page 22-22)
PGM-FI main relay 1 (FI MAIN) 13 4
PGM-FI subrelay 6 4
Power mirror defogger relay 5 5
Radiator fan relay 15 4
Rear window defogger relay 1 4
T3 10Starter subharness (see page 22-20)
T101 11Starter subharness (see page 22-20)
08/08/21 14:23:02 61SNR030_220_0060
ProCarManuals.com
DYNOMITE -2009-

•••

(#'
) Under-dash Fuse/Relay Box
Socket Ref Terminal Connects toNotes
22-59
2
3
4
5
1
16
17
18
11
12
14
13
15
10 6
7
8
9 19
20
(View of front side) (View of back side)
A (Optional connector)
9 6 Not used
C 10 4 Dashboard wire harness (see page 22-28)
D 4 2 Dashboard wire harness (see page 22-28)
E 5 42 Floor wire harness (see page 22-34)
F 6 34 Engine compartment wire harness (see page 22-22)
G 7 21 Engine compartment wire harness (see page 22-22)
H (MICU service check connector) 8 3
J 20 4 Dashboard wire harness (see page 22-28)
K 12 8 Dashboard wire harness (see page 22-28)
M 13 10 Dashboard wire harness (see page 22-28)
Memory erase signal (MES) connector socket 11
N 14 14 Dashboard wire harness (see page 22-28)
P 19 10 Dashboard wire harness (see page 22-28)
PGM-FI main relay 2 (FUEL PUMP) 2 4
Power window relay 1 4
Q 17 16 Dashboard wire harness (see page 22-28)
R 15 20 Dashboard wire harness (see page 22-28)
Starter cut relay 3 4
S 16 20 Dashboard wire harness (see page 22-28)
T 18 34 Dashboard wire harness (see page 22-28)
08/08/21 14:24:02 61SNR030_220_0061
ProCarManuals.com
DYNOMITE -2009-

•••
•••
•••
•••
(#')
 Under-hood Fuse/Relay Box
Fuse
Number Amps Component(s) or Circuit(s) Protected
22-60Power Distribution
Fuse to Components Index
1 100 A
(BAT)Battery, Power distribution
70 A
(EPS) EPS control unit
250A (IG)Ignition switch
80 A
60 A
(OPTION) No. 5, No. 6, No. 7, No. 27, No. 28, No. 29, and No. 31 fuses (in the under-dash fuse/relay box)
330A (ABS MTR) ABS modulator-control unit , VSA modulator-control unit
30 A
40 A
(ABS FSR) ABS modulator-control unit , VSA modulator-control unit
450A (H/L)No. 18, No. 19, No. 20, and No. 21 fuses (in the under-dash fuse/relay box)
40 A
(P/W) No. 24, No. 25, No. 26, No. 30, No. 32, and No. 33 fuses (in the under-dash fuse/relay box), Power window relay
(in the under-dash fuse/relay box)
5 Not used
6 20 A A/C condenser fan motor (via A/C condenser fan relay)
7 20 A Radiator fan motor (via radiator fan relay)
8 30 A Noise condenser (via rear window defogger relay), Rear window defogger (via rear window defogger relay)
9 40 A Blower motor (via blower motor relay)
10 10 A MICU (turn signal/hazard warning lights circuit)
11 15 A A/F sensor (Sensor 1) (via PGM-FI subrelay), EVAP canister vent shut valve (via PGM-FI subrelay), PGM-FI subrelay, No. 15 fuse (in the under-hood fuse/relay box) (via PGM-FI subrelay)
12 15 A Brake lights, ECM/PCM, Horn, MICU
13 Not used
14 Not used
15 7.5 A A/C condenser fan relay
16 Not used
17 15 A Stereo amplifier
18 15 A Ignition coil relay, Ignition coils (via Ignition coil relay)
19 15 A CKP sensor (via PGM-FI main relay 1), CMP sensor B (via PGM-FI main relay 1), ECM/PCM, ETCS control relay, Injectors (via PGM-FI main relay 1), PGM-FI main relay 1 (FI MAIN), PGM-FI main relay 2 (FUEL PUMP)
20 7.5 A A/C compressor clutch (via A/C compressor clutch relay)
21 15 A ECM/PCM (via ETCS control relay)
22 7.5 A Ceiling light, Courtesy lights, Front individual map lights, Ignition key light, Trunk light, Vanity mirror lights
23 10 A Audio unit , Data link connector (DLC), Gauge control module (speedo), Gauge control module (tach), HandsFreeLink control unit , Immobilizer-keyless control unit, MICU, Moonroof switch, Navigation unit
1: ’06-07 models
2: ’08-09 models
3: ’06-07 Touring and Premium models
4: ’07 TYPE S and ’08-09 models
5: ’08-09 models
6: TYPE S model
7: Without navigation system
8: With navigation system
9: ’09 model with navigation system
1
2
34
3
4 34
6 5
7 9 8
08/08/21 14:24:02 61SNR030_220_0062
ProCarManuals.com
DYNOMITE -2009-

•••
•••´
´
•••
Under-dash Fuse/Relay Box

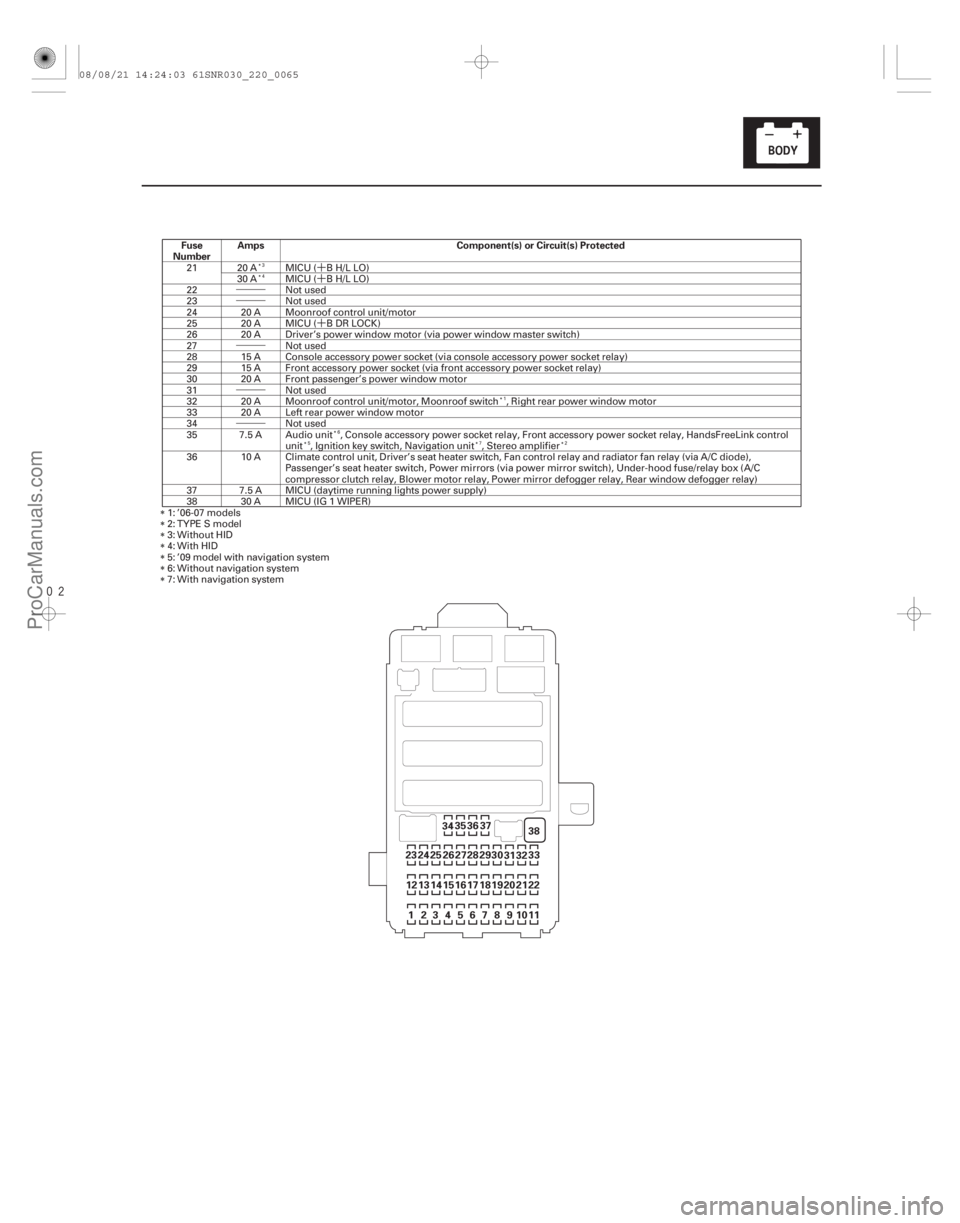

Fuse
Number Amps
Component(s) or Circuit(s) Protected
22-62Power Distribution
Fuse to Components Index (cont’d)
1 7.5 A Power mirror switch light
2 15 A ECM/PCM, Fuel pump (via PGM-FI main relay 2), Immobilizer-keyless control unit
3 10 A Alternator, CMP sensor A, ECM/PCM (via brake pedal position switch), ELD, EVAP canister purge valve, MAF
sensor/IAT sensor, Reverse lockout solenoid , Secondary HO2S (sensor 2)
4 7.5 A ABS modulator-control unit , EPS control unit, VSA modulator-control unit , Yaw rate-lateral acceleration sensor
5 15 A Seat heaters (via seat heater relays)
6 20 A Fog light relay, Fog lights (via fog light relay)
7 Not used
8 Not used
9 7.5 A ODS unit, Passenger’s airbag cutoff indicator, SRS unit
10 7.5 A Back-up light (M/T), Gauge control module (speedo), Gauge control module (tach), MICU, Shift lock solenoid (A/T), TPMS control unit
11 10 A SRS unit
12 10 A Right headlight (high beam)
13 10 A Left headlight (high beam)
14 7.5 A Audio unit light , Climate control unit light, Dash lights brightness controller and odometer select/reset switch light, Driver’s footwell light , Driver’s seat heater switch light, Glove box light, Hazard warning switch light,
Moonroof switch light, Navigation unit , Park pin switch light (A/T), Passenger’s airbag cutoff indicator light,
Passenger’s footwell light , Passenger’s seat heater switch light, Steering wheel switches light (via cable reel),
VSA OFF switch light
15 7.5 A Parking lights, Taillights, License plate lights, Side marker lights
16 10 A Right headlight (low beam) 15 A Right HID unit
17 10 A Left headlight (low beam) 15 A Left HID unit
18 20 A MICU ( B H/L HI)
19 15 A MICU ( B SMALL LT)
20 Not used
1: ’06-07 Touring and Premium models
2: ’07 TYPE S and ’08-09 models
3: ’08-09 models
4: TYPE S model
5: With HID
6: Without HID
7: TYPE S and ’08 Premium and ’09 models
8: Without navigation system
9: With navigation system
4
1 2
2
7
3
8 49
4
6
5
6
5
08/08/21 14:24:03 61SNR030_220_0064
ProCarManuals.com
DYNOMITE -2009-

´
´
•••
•••
´
•••
•••
•••

Fuse
Number Amps
Component(s) or Circuit(s) Protected
22-63
23 45
1 16 17
19
18 20
11
12 1413 15
26 27 2928 30
21 22
2423 25
36 37
38
3132
34
33
35
10
67 8
9
21 20 A MICU ( B H/L LO)
30 A MICU ( B H/L LO)
22 Not used
23 Not used
24 20 A Moonroof control unit/motor
25 20 A MICU ( B DR LOCK)
26 20 A Driver’s power window motor (via power window master switch)
27 Not used
28 15 A Console accessory power socket (via console accessory power socket relay)
29 15 A Front accessory power socket (via front accessory power socket relay)
30 20 A Front passenger’s power window motor
31 Not used
32 20 A Moonroof control unit/motor, Moonroof switch , Right rear power window motor
33 20 A Left rear power window motor
34 Not used
35 7.5 A Audio unit , Console accessory power socket relay, Front accessory power socket relay, HandsFreeLink control unit , Ignition key switch, Navigation unit , Stereo amplifier
36 10 A Climate control unit, Driver’s seat heater switch, Fan control relay and radiator fan relay (via A/C diode), Passenger’s seat heater switch, Power mirrors (via power mirror switch), Under-hood fuse/relay box (A/C
compressor clutch relay, Blower motor relay, Power mirror defogger relay, Rear window defogger relay)
37 7.5 A MICU (daytime running lights power supply)
38 30 A MICU (IG 1 WIPER)
1: ’06-07 models
2: TYPE S model
3: Without HID
4: With HID
5: ’09 model with navigation system
6: Without navigation system
7: With navigation system3
4
1
6
5 72
