2005 TOYOTA AVENSIS MOTOR

A59778M± M+
Component Side
Throttle Body
T1
B53781
Wire Harness Side
Throttle Body Connector
M±
M+
T1
A54408ECM Connector
M± M+E11
05±486
± DIAGNOSTICSSFI SYSTEM (1AZ±FSE)
AVENSIS REPAIR MANUAL (RM1018E)

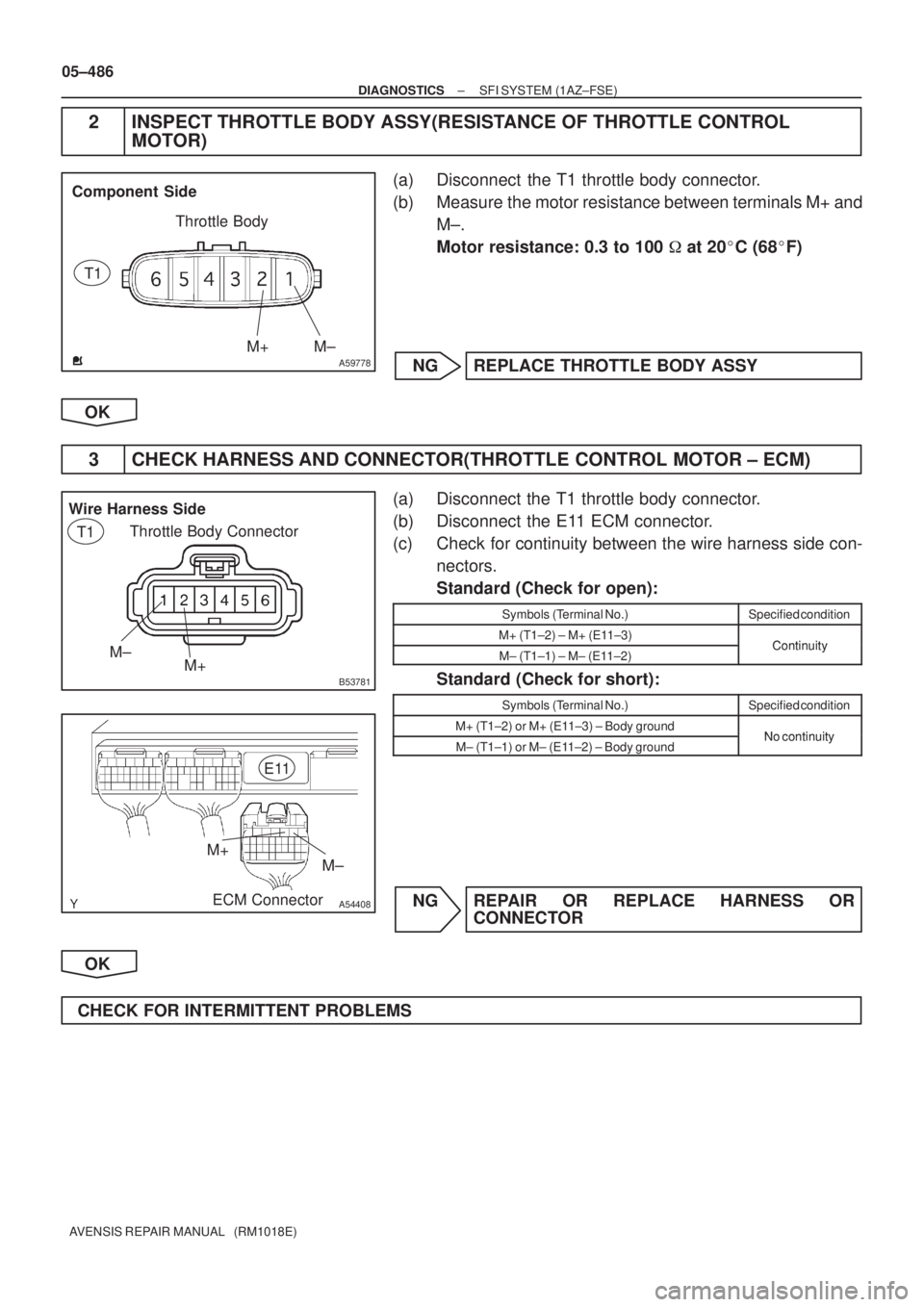

2 INSPECT THROTTLE BODY ASSY(RESISTANCE OF THROTTLE CONTROL
MOTOR)
(a) Disconnect the T1 throttle body connector.
(b) Measure the motor resistance between terminals M+ and
M±.
Motor resistance: 0.3 to 100
at 20
C (68
F)
NG REPLACE THROTTLE BODY ASSY
OK
3 CHECK HARNESS AND CONNECTOR(THROTTLE CONTROL MOTOR ± ECM)
(a) Disconnect the T1 throttle body connector.
(b) Disconnect the E11 ECM connector.
(c) Check for continuity between the wire harness side con-
nectors.
Standard (Check for open):
Symbols (Terminal No.)Specified condition
M+ (T1±2) ± M+ (E11±3)ContinuityM± (T1±1) ± M± (E11±2)Continuity
Standard (Check for short):
Symbols (Terminal No.)Specified condition
M+ (T1±2) or M+ (E11±3) ± Body groundNo continuityM± (T1±1) or M± (E11±2) ± Body groundNo continuity
NG REPAIR OR REPLACE HARNESS OR
CONNECTOR
OK
CHECK FOR INTERMITTENT PROBLEMS

031H4−02
− SERVICE SPECIFICATIONSCOOLING
03−21
AVENSIS Supplement (RM1045E)
TORQUE SPECIFICATION
2AZ−FSE:
Part TightenedN
mkgf
cmft
lbf
Water pump x Cylinder block9.09280 in.
lbf
Water pump x Water pump pulley2626519
Water inlet x Cylinder block9.09280 in.
lbf
Radiator support upper x Body1919414
Fan assy w/ motor x Radiator6.06153 in.
lbf
Radiator relay block x Radiator5.05446 in.
lbf
1CD−FTV:
Part TightenedN
mkgf
cmft
lbf
Drain plug1313310
Water pump x Cylinder block3132023
Injection pipe x Common rail
With SST
Without SST
31
34316
34723
25
Injection pipe x Injector
For used pipe With SST
Without SST
For new pipe With SST
Without SST
36
40
31
34372
408
316
34727
30
23
25
Fuel inlet pipe sub−assy x Common rail assy
With SST
Without SST
31
34316
34723
25
Fuel inlet pipe sub−assy x Injection pump
With SST
Without SST
31
34316
34723
25
Timing belt idler Sub−assy No.1 x Cylinder head3535726
Front wheel1031,05076

A19755A19802
Throttle Position Sensor ECM
Magnet
Magnet
IC No.2 IC No.1
VC
VTA1
E2 VTA2Throttle Position Sensor Output Voltage (V)
Fail Safe Angle
*1
Usable Range
Throttle Valve Opening Angle (deg)84 6.5
0 5
2.58
2.25
0.95
0.69
*1:
VTA1 VTA2
Throttle Valve Fully Opened
(Throttle Position expressed as percentage
(VTA1)64to96%)
Fail Safe Angle 7˚
(Throttle Position expressed as percentage
(VTA1) about10to16%) Throttle Valve Fully Closed
(Throttle Position expressed as percentage
(VTA1)10to24%) 05−76
− DIAGNOSTICSSFI SYSTEM (2AZ−FSE)
AVENSIS Supplement (RM1045E)
CIRCUIT DESCRIPTION
HINT:
SThis Electrical Throttle Control System (ETCS) does not use a throttle cable.
SThis throttle position sensor uses 2 hall ICs.
The throttle position sensor is mounted on the throttle body and it detects the opening angle of the throttle
valve. This sensor is electronically controlled and uses Hall−effect elements, so that accurate control and
reliability can be obtained. The throttle position sensor has 2 sensor elements / 2 signal output: VTA1and
VTA2. VTA1used to detect the throttle opening angle and VTA2 is used to detect malfunctions in VTA1. Volt-
age applied to VTA1and VTA2 change between 0V and 5V in proportion to the opening angle of the throttle
valve. There are several checks that the ECM performs to confirm proper operation of the throttle position
sensor and VTA1.
The ECM judges the current opening angle of the throttle valve from these signals input from terminals VTA1
and VTA2, and the ECM controls the throttle motor to make the throttle valve angle properly in response to
driver inputs.

−
DIAGNOSTICS SFI SYSTEM (2AZ−FSE)
05 −39
AVENSIS Supplement (RM 1045E)
DTC No.
(See Page) Memory
*
1
CHK ENG
Trouble Area
Detection Item
P0985 *4
(05 −619)
Shift Solenoid ”E” Control Circuit
Low (Shift Solenoid Valve SR)SElectronic controlled automatic transmission (ECT)ff
P0986 *4
(05 −619)
Shift Solenoid ”E” Control Circuit
High (Shift Solenoid Valve SR)SElectronic controlled automatic transmission (ECT)ff
P 1235
(05 −207)High Pressure Fuel Pump Circuit
SOpen or short in fuel pump (high pressure)
S Fuel pump (high pressure)
S ECM
ff
P2008
(05 −210)Intake Manifold Runner Control
Circuit/Open (Bank 1)SOpen of short in VSV for IACV circuit
S VSV for IACV
S ECM
ff
P2 102
(05 −214)Throttle Actuator Control Motor
Circuit LowSOpen in throttle control motor circuit
S Throttle control motor
S ECM
ff
P2 103
(05 −214)Throttle Actuator Control Motor
Circuit High
SShort in throttle control motor circuit
S Throttle control motor
S Throttle valve
S Throttle body assembly
S ECM
ff
P2 111
(05 −217)Throttle Actuator Control System
− Stuck Open
SThrottle control motor circuit
S Throttle control motor
S Throttle body
S Throttle valve
ff
P2 112
(05 −217)Throttle Actuator Control System
− Stuck Closed
SThrottle control motor circuit
S Throttle control motor
S Throttle body
S Throttle valve
ff
P2 118
(05 −219)Actuator Control Motor Current
Range/PerformanceSOpen in ETCS power source circuit
S THROTTLE fuse
S ECM
ff
P2 119
(05 −222)Throttle Actuator Control Throttle
Body Range/PerformanceSElectric throttle control system
S ECMff
P2 120
(05 −224)Throttle/Pedal Position Sensor/
Switch ”D” CircuitSAccelerator pedal position sensor
S ECMff
P2 121
(05 −232)Throttle/Pedal Position Sensor/
Switch ”D” Circuit Range/Perfor-
manceSOpen or short in accelerator pedal position sensor circuit
S Accelerator pedal position sensor
S ECM
ff
P2 122
(05 −224)Throttle/Pedal Position Sensor/
Switch ”D” Circuit Low Input
SAccelerator pedal position sensor
S Open in VCPA circuit
S VPA circuit open or ground short
S ECM
ff
P2 123
(05 −224)Throttle/Pedal Position Sensor/
Switch ”D” Circuit High InputSAccelerator pedal position sensor
S Open in EPA circuit
S ECM
ff
P2 125
(05 −224)Throttle/Pedal Position Sensor/
Switch ”E” CircuitSAccelerator pedal position sensor
S ECMff
P2 127
(05 −224)Throttle/Pedal Position Sensor/
Switch ”E” Circuit Low Input
SAccelerator pedal position sensor
S Open in VCP2 circuit
S VPA2 circuit open or ground short
S ECM
ff
P2 128
(05 −224)Throttle/Pedal Position Sensor/
Switch ”E” Circuit High InputSAccelerator pedal position sensor
S Open in EPA 2circuit
S ECM
ff
P2 135
(05 −75)Throttle Pedal Position Sensor/
Switch ”A”/”B” Voltage Correla-
tionSVTA 1and VTA2 circuits are short −circuited
S Throttle position sensor (built in throttle body)
S ECM
ff

05CDW−02
A53766
E13E12E11E10E9
05−12
− DIAGNOSTICSSFI SYSTEM (2AZ−FSE)
AVENSIS Supplement (RM1045E)
TERMINALS OF ECM
Each ECM terminal’s standard normal voltage is shown in the table below.
In the table, first follow the information under ”Condition”. Look under ”Symbols (Terminals No.)” for the termi-
nals to be inspected. The standard normal voltage between the terminals is shown under ”STD Voltage”.
Use the illustration above as a reference for the ECM terminals.
Symbols (Terminals No.)Wiring ColorTerminal DescriptionConditionSTD Voltage
BATT (E9−3)−E1(E11−1)B−Y−BR
Battery (for measuring the
battery voltage and for the
ECM memory)
Always9to14V
+BM (E10−6)−E1(E11−1)G−Y−BRPower source of throttle
motorAlways9to14V
IGSW (E9−9)−E1(E11−1)B−W−BRIgnition switchIgnition switch ON9to14V
+B (E9−1)−E1(E11−1)B−R−BRPower source of ECMIgnition switch ON9to14V
+B2 (E9−2)−E1(E11−1)B−R−BRPower source of ECMIgnition switch ON9to14V
MREL (E9−8)−E1(E11−1)GR−BREFI relayIgnition switch ON9to14V
IREL (E10−35)−E1(E11−1)V−BRINJ relayIgnition switch ON9to14V
VC (E13−18)−E2 (E13−28)R−W−BRPower source of sensor
(a specific voltage)Ignition switch ON4.5 to 5.5 V
VTA1(E13−21)−E2 (E13−28)L−W−BRThrottle position sensor
(for the engine control)Ignition switch ON, Accelerator ped-
al fully released0.4 to1.0 V
VTA1(E13−21)−E2 (E13−28)L−W−BRThrottle position sensor
(for the engine control)Ignition switch ON, Accelerator ped-
al fully depressed3.2 to 4.8 V
VTA2 (E13−31)−E2 (E13−28)B−R−BR
Throttle position sensor
(for the sensor malfunc-
tion detection)Ignition switch ON, Accelerator ped-
al fully released2.1to 3.1V
VTA2 (E13−31)−E2 (E13−28)B−R−BR
Throttle position sensor
(for the sensor malfunc-
tion detection)Ignition switch ON, Accelerator ped-
al fully depressed4.5 to 5.5 V
VPA (E9−22)−EPA (E9−28)G−Y
Accelerator pedal position
sensor (for the engine
control)Ignition switch ON, Accelerator ped-
al fully released0.5 to1.1V
VPA (E9−22)−EPA (E9−28)G−Y
Accelerator pedal position
sensor (for the engine
control)Ignition switch ON, Accelerator ped-
al fully depressed2.5 to 4.6 V
VPA2 (E9−23)−EPA2 (E9−29)W−Y
Accelerator pedal position
sensor (for the sensor
malfunction detection)Ignition switch ON, Accelerator ped-
al fully released1.5 to 2.9 V
VPA2 (E9−23)−EPA2 (E9−29)W−Y
Accelerator pedal position
sensor (for the sensor
malfunction detection)Ignition switch ON, Accelerator ped-
al fully depressed3.5 to 5.5 V
VCPA (E9−26)−EPA (E9−28)B−Y
Power source of acceler-
ator pedal position sensor
(for VPA)
Ignition switch ON4.5 to 5.5 V

−
DIAGNOSTICS SFI SYSTEM (2AZ−FSE)
05 −1 3
AVENSIS Supplement (RM 1045E)
Symbols (Terminals No.)
STD Voltage
Condition
Terminal Description
Wiring Color
VCP2 (E9 −27) −EPA2 (E9 −29)B −Y
Power source of acceler-
ator pedal position sensor
(for VPA2)
Ignition switch ON4.5 to 5.5 V
VG (E 13− 30) −EVG (E 13− 29)L− Y −GMass air flow meterIdling, P or N position, A/C switch
OFF0.5 to 3.0 V
THA (E 13− 20) −E2 (E 13− 28)GR −BRIntake air temperature
sensorIdling, Intake air temperature 20 ˚C
(68 ˚F)0.5 to 3.4 V
THW (E 13−1 9)−E2 (E 13− 28)B −W −BREngine coolant tempera-
ture sensorIdling, Coolant temperature 80 ˚C
(176˚F)0.2 to 1.0 V
#1 (E 13−1 )− E0 1(E 13− 7)
#2 (E 13− 2) −E0 1(E 13− 7)
#3 (E 13− 3) −E0 1(E 13− 7)
#4 (E 13− 4) −E0 1(E 13− 7)G −W −W −B
W −R −W −B
R −W −W −B
W −L − W −B
InjectorIgnition switch ON9to 14V
#1 (E 13−1 )− E0 1(E 13− 7)
#2 (E 13− 2) −E0 1(E 13− 7)
#3 (E 13− 3) −E0 1(E 13− 7)
#4 (E 13− 4) −E0 1(E 13− 7)G −W −W −B
W −R −W −B
R −W −W −B
W −L − W −B
InjectorIdlingPulse generation
(See page 05 −1 36)
IJF 1(E 13− 25) −E0 1(E 13− 7)R −B −W −BInjectorIdlingPulse generation
(See page 05 −1 36)
IGT 1(E 13− 8) −E1 (E 11−1 )
IGT2 (E 13− 9) −E1 (E 11−1 )
IGT3 (E 13−1 0)−E1 (E 11−1 )
IGT4 (E 13−11 )− E1 (E 11−1 )R−W −BR
P −BR
LG −B −BR
L − Y −BR
Ignition coil with igniter
(ignition signal)IdlingPulse generation
(See page 05 −1 67)
IGF 1(E 13− 24) −E1 (E 11−1 )W−R −BR
Ignition coil with igniter
(ignition confirmation sig-
nal)
Ignition switch ON4.5 to 5.5 V
IGF 1(E 13− 24) −E1 (E 11−1 )W−R −BR
Ignition coil with igniter
(ignition confirmation sig-
nal)
IdlingPulse generation
(See page 05 −1 67)
G2+ (E 11 −27) −NE −(E 11 − 24)W−RCamshaft position sensorIdlingPulse generation
(See page 05 −1 64)
NE+ (E 11 −25) −NE −(E 11 − 24)G−RCrankshaft position sen-
sorIdlingPulse generation
(See page 05 −1 60)
FPR (E 12− 7) −E0 1(E 13− 7)LG −BRFuel pump relayIgnition switch ON0−3.0 V
FC (E9 −10)−E1 (E 11−1 )G−Y −BRFuel pump controlIgnition switch ON9to 14V
M+ (E 11 −3)−ME0 1(E 11 − 4)
M − (E 11 − 2)−ME0 1(E 11 − 4)B−W −B
W −W −BThrottle motorIdlingPulse generation
OX 1A(E 12− 22) −E2 (E 13− 28)B −BRHeated oxygen sensorMaintain engine speed at 2,500 rpm
for 2 minutes after warming upPulse generation
(See page 05 −82)
OX 1B(E 12− 21)
− O1B − (E 11 − 26)B−WHeated oxygen sensorMaintain engine speed at 2,500 rpm
for 2 minutes after warming upPulse generation
(See page 05 −82)
OX2A (E 12− 23) −E2 (E 13− 28)R −BRHeated oxygen sensorMaintain engine speed at 2,500 rpm
for 2 minutes after warming upPulse generation
(See page 05 −82)
OX2B (E 12− 29)
− O2B −(E 11 − 31)R −GHeated oxygen sensorMaintain engine speed at 2,500 rpm
for 2 minutes after warming upPulse generation
(See page 05 −82)
HT 1A(E 12− 5) −E03 (E 11 −7)
HT 1B(E 12− 25) −E03 (E 11 −7)
HT2A (E 12− 4) −E03 (E 11 −7)
HT2B (E 12− 33) −E03 (E 11 −7)Y−W −B
P −W −B
L −W −B
L − B
−W −B
Heated oxygen sensor
heaterIdlingBelow 3.0 V
HT 1A(E 12− 5) −E03 (E 11 −7)
HT 1B(E 12− 25) −E03 (E 11 −7)
HT2A (E 12− 4) −E03 (E 11 −7)
HT2B (E 12− 33) −E03 (E 11 −7)Y−W −B
P −W −B
L −W −B
L − B
−W −B
Heated oxygen sensor
heaterIgnition switch ON9to 14V
KNK 1(E 12−1 )− EKNK (E 12− 2)B −WKnock sensorMaintain engine speed at 4,000 rpm
after warming upPulse generation
(See page 05 −1 56)

A71015
0
Accelerator Pedal Opening Angle (deg)125
VPA1 VPA2
5
Movable Range
Usable Range
Usable Range *1
*1
Movable Range
Usable Range
*2
Accelerator pedal released (15˚)
Accelerator pedal depressed
(about100˚)
Accelerator Pedal
Position Sensor
Output Voltage (V)
VPA2VPA1 EP2
VCP2
*1:
*
2:
EP1
0.8
105
VCP1*2
*2*1
− DIAGNOSTICSSFI SYSTEM (2AZ−FSE)
05−225
AVENSIS Supplement (RM1045E)
CIRCUIT DESCRIPTION
HINT:
SThis Electrical Throttle Control System (ETCS) does not use a throttle cable.
SThis accelerator pedal position sensor is a non−contact type.
The accelerator pedal position sensor is mounted on the accelerator pedal bracket. The accelerator pedal
position sensor has 2 sensor elements / signal output: VPA1and VPA2. VPA1is used to detect the actual
accelerator pedal angle (used for engine control) and VPA2 is used to detect malfunctions in VPA1. Voltage
change of VPA1and VPA2 change between 0V and 5V depending on the accelerator pedal angle.
The ECM monitors the accelerator pedal angle from VPA1and VPA2 signal output, and controls the throttle
motor based on these signals.

A85832
From Battery+BM
+M
−M
ME01ECM
Motor Control
Circuit Throttle Control MotorTHROTTLE fuse
− DIAGNOSTICSSFI SYSTEM (2AZ−FSE)
05−219
AVENSIS Supplement (RM1045E)
DTC P2118 THROTTLE ACTUATOR CONTROL MOTOR
CURRENT RANGE/PERFORMANCE
CIRCUIT DESCRIPTION
The Electronic Throttle Control System (ETCS) has a dedicated power supply circuit. The voltage (+BM) is
monitored and when the voltage is low (less than 4V), the ECM concludes that the ETCS has a fault and
current to the throttle control motor is cut.
When the voltage becomes unstable, the ETCS itself becomes unstable. For this reason, when the voltage
is low, the current to the motor is cut. If repairs are made and the system has returned to normal, turn the
ignition switch to OFF. The ECM then allows current to flow to the motor and the motor can be restarted.
HINT:
This Electrical Throttle Control System (ETCS) does not use a throttle cable.
DTC No.DTC Detection ConditionTrouble Area
P2118Open in ETCS power source circuit (+BM)
(1trip detection logic)SOpen in ETCS power source circuit
STHROTTLE fuse
SECM
05HIQ−01
