Spring Type Clamp
Clamp Track
D20025
CG
DLC3
TS
D30964
± INTRODUCTIONREPAIR INSTRUCTION
01±17
AVENSIS REPAIR MANUAL (RM1018E)
6. HANDLING OF HOSE CLAMPS
(a) Before removing the hose, check the depth of the insert-
ing portion and the clamp position to restore it surely.
(b) Change a deformed or dented clamp for a new one.
(c) In case of reusing a hose, attach the clamp on the clamp
track portion of the hose.
(d) For a spring type clamp, adjust it by adding force to the
arrow mark direction after the installation.
7. FOR VEHICLES EQUIPPED WITH MOBILE COMMU-
NICATION SYSTEMS
(a) Install the antenna as far away from the ECU and sensors
of the vehicle electronic systems as possible.
(b) Install an antenna feeder at least 20 cm (7.87 in.) away
from the ECU and sensors of the vehicle electronic sys-
tems. For details of the ECU and sensors locations, refer
to the section on applicable components.
(c) Prevent the antenna feeder from getting entangled with
the other wiring, and keep the antenna feeder separate
from other wiring as much as possible.
(d) Check that the antenna and feeder are correctly adjusted.
(e) Do not install any high±powered mobile communication
system.
8. FOR VEHICLES EQUIPPED WITH TRACTION CONTROL (TRC) SYSTEM
(a) NOTICES WHEN USING 2±WHEEL DRUM TESTER
(1) When using a 2±wheel drum tester such as a speedometer tester, a combination tester of
speedometer and brake, chassis dynamometer or else, always turn the TRC system off via the
TRC OFF switch before measurement.
NOTICE:
TRC system OFF condition can be confirmed by the indication, ºTRC OFFº, of the warning light in
the combination meter.
9. FOR VEHICLES EQUIPPED WITH VEHICLE SKID
CONTROL (VSC) SYSTEM
(a) NOTICES WHEN USING DRUM TESTER
(1) When using a drum tester, be sure to start the en-
gine with the ignition OFF, and connect SST to the
terminals TS and CG of the DLC3 before measure-
ment in order to prohibit the VSC operation.
SST 09843±18040
Page 49 of 5135
022KS±01
± PREPARATIONBRAKE
02±33
AVENSIS REPAIR MANUAL (RM1018E)
BRAKE
PREPARATION
SST
09023±00100Union Nut Wrench 10 mmBRAKE FLUID
BRAKE MASTER CYLINDER
SUB±ASSY
FRONT BRAKE
REAR BRAKE
BRAKE BOOSTER ASSY(LHD)
BRAKE BOOSTER ASSY(RHD)
BRAKE ACTUATOR ASSY(W/ VSC)
BRAKE ACTUATOR ASSY(W/O VSC)
09023±38400Union Nut Wrench 14mmBRAKE FLUID
BRAKE MASTER CYLINDER
SUB±ASSY
FRONT BRAKE
REAR BRAKE
BRAKE BOOSTER ASSY(LHD)
BRAKE BOOSTER ASSY(RHD)
BRAKE ACTUATOR ASSY(W/ VSC)
09214±76011Crankshaft Pulley ReplacerSKID CONTROL SENSOR
09520±00031Rear Axle Shaft PullerSKID CONTROL SENSOR
(09520±00040)ShockerSKID CONTROL SENSOR
09521±00020Drive Shaft Boot Clamping ToolSKID CONTROL SENSOR
09550±60010Differential Side Bearing
ReplacerFRONT BRAKE
(09710±06051)ReplacerREAR BRAKE
09950±00020Bearing RemoverSKID CONTROL SENSOR
Recomended Tools
09042±00010Torx Socket T30STEERING SENSOR
Page 60 of 5135
022J8±01

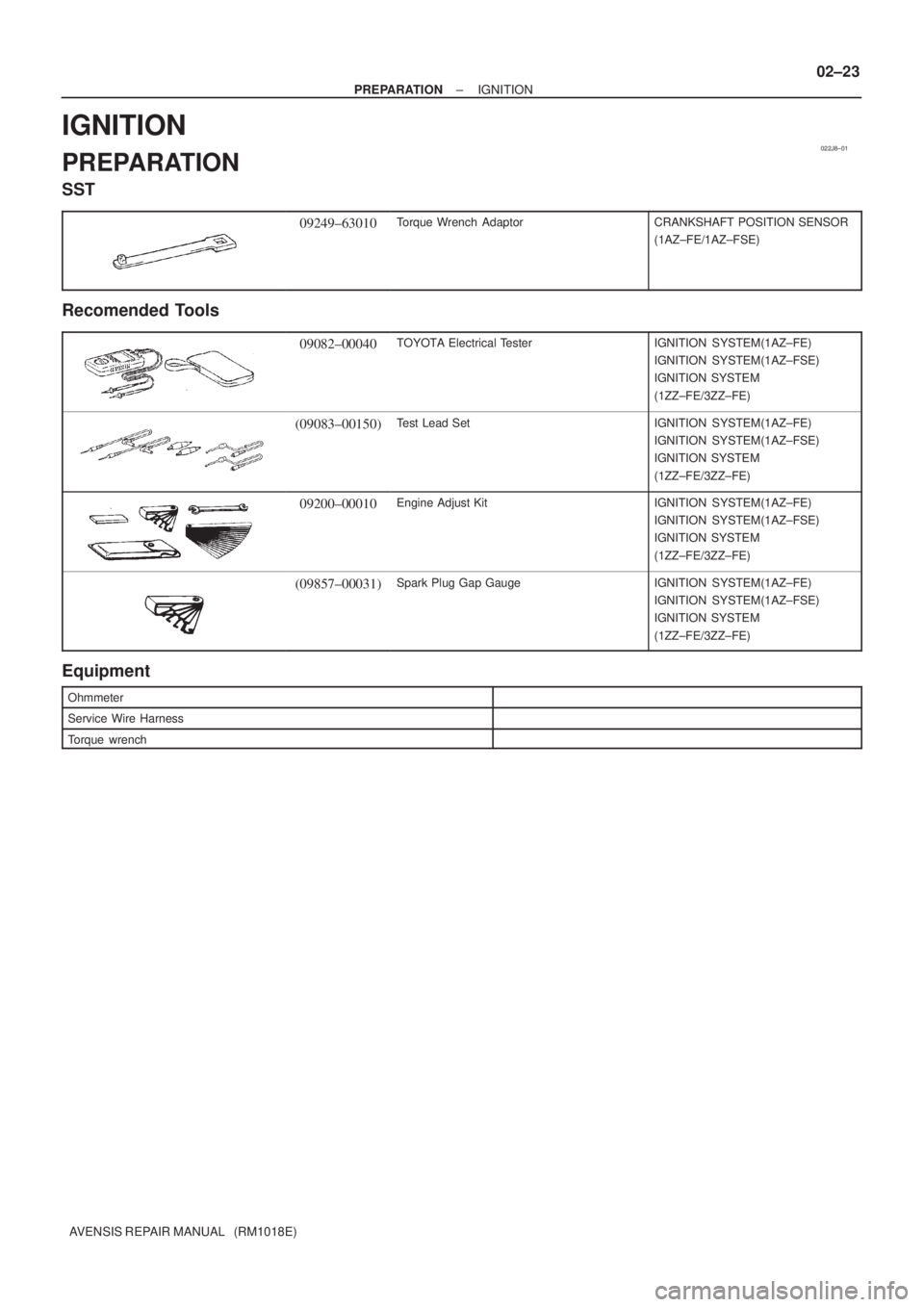

± PREPARATIONIGNITION
02±23
AVENSIS REPAIR MANUAL (RM1018E)
IGNITION
PREPARATION
SST
09249±63010Torque Wrench AdaptorCRANKSHAFT POSITION SENSOR
(1AZ±FE/1AZ±FSE)
Recomended Tools
09082±00040TOYOTA Electrical TesterIGNITION SYSTEM(1AZ±FE)
IGNITION SYSTEM(1AZ±FSE)
IGNITION SYSTEM
(1ZZ±FE/3ZZ±FE)
(09083±00150)Test Lead SetIGNITION SYSTEM(1AZ±FE)
IGNITION SYSTEM(1AZ±FSE)
IGNITION SYSTEM
(1ZZ±FE/3ZZ±FE)
09200±00010Engine Adjust KitIGNITION SYSTEM(1AZ±FE)
IGNITION SYSTEM(1AZ±FSE)
IGNITION SYSTEM
(1ZZ±FE/3ZZ±FE)
(09857±00031)Spark Plug Gap GaugeIGNITION SYSTEM(1AZ±FE)
IGNITION SYSTEM(1AZ±FSE)
IGNITION SYSTEM
(1ZZ±FE/3ZZ±FE)
Equipment
Ohmmeter
Service Wire Harness
Torque wrench
Page 70 of 5135

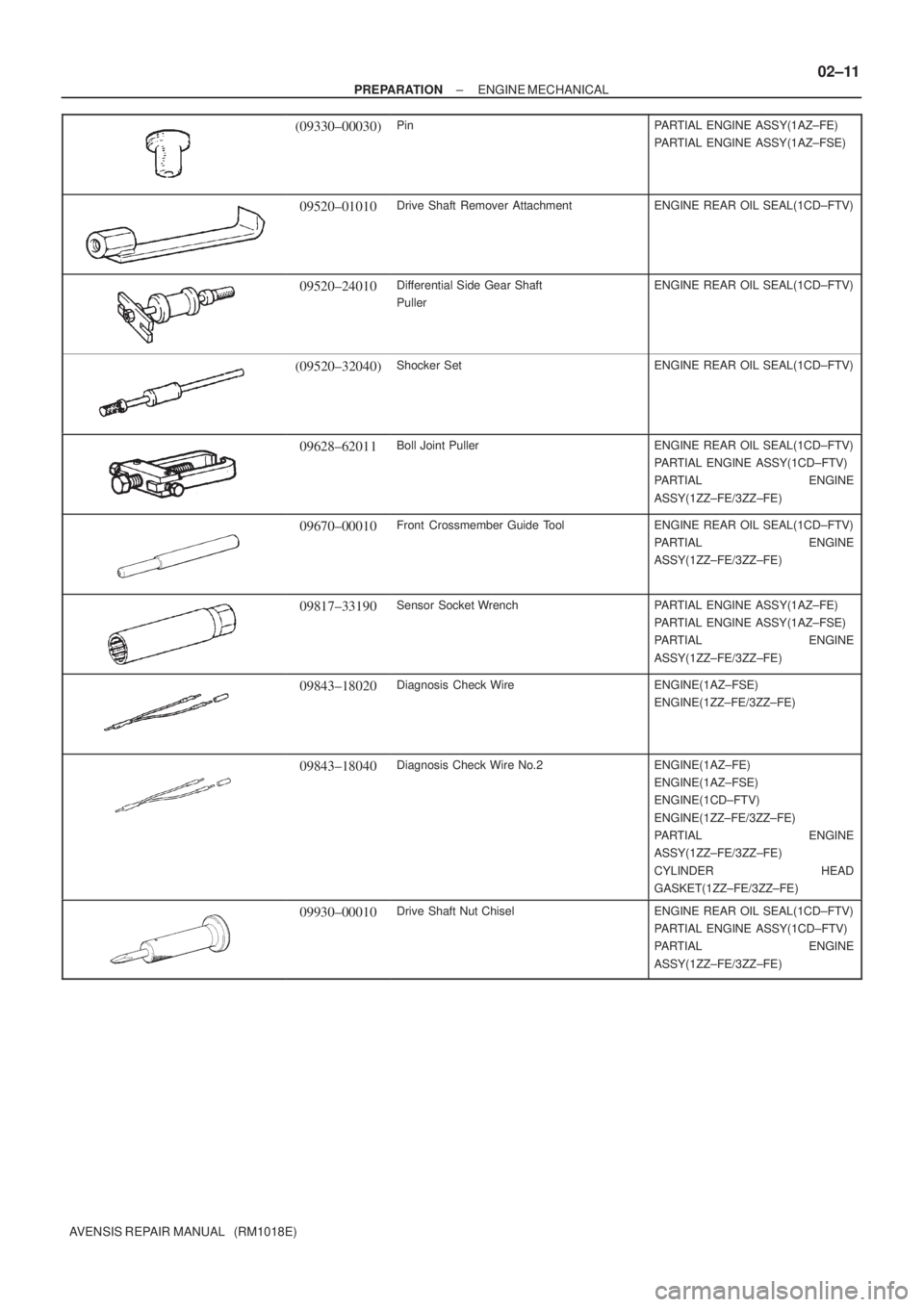

± PREPARATIONENGINE MECHANICAL
02±11
AVENSIS REPAIR MANUAL (RM1018E)
(09330±00030)PinPARTIAL ENGINE ASSY(1AZ±FE)
PARTIAL ENGINE ASSY(1AZ±FSE)
09520±01010Drive Shaft Remover AttachmentENGINE REAR OIL SEAL(1CD±FTV)
09520±24010Differential Side Gear Shaft
PullerENGINE REAR OIL SEAL(1CD±FTV)
(09520±32040)Shocker SetENGINE REAR OIL SEAL(1CD±FTV)
09628±62011Boll Joint PullerENGINE REAR OIL SEAL(1CD±FTV)
PARTIAL ENGINE ASSY(1CD±FTV)
PARTIAL ENGINE
ASSY(1ZZ±FE/3ZZ±FE)
09670±00010Front Crossmember Guide ToolENGINE REAR OIL SEAL(1CD±FTV)
PARTIAL ENGINE
ASSY(1ZZ±FE/3ZZ±FE)
09817±33190Sensor Socket WrenchPARTIAL ENGINE ASSY(1AZ±FE)
PARTIAL ENGINE ASSY(1AZ±FSE)
PARTIAL ENGINE
ASSY(1ZZ±FE/3ZZ±FE)
09843±18020Diagnosis Check WireENGINE(1AZ±FSE)
ENGINE(1ZZ±FE/3ZZ±FE)
09843±18040Diagnosis Check Wire No.2ENGINE(1AZ±FE)
ENGINE(1AZ±FSE)
ENGINE(1CD±FTV)
ENGINE(1ZZ±FE/3ZZ±FE)
PARTIAL ENGINE
ASSY(1ZZ±FE/3ZZ±FE)
CYLINDER HEAD
GASKET(1ZZ±FE/3ZZ±FE)
09930±00010Drive Shaft Nut ChiselENGINE REAR OIL SEAL(1CD±FTV)
PARTIAL ENGINE ASSY(1CD±FTV)
PARTIAL ENGINE
ASSY(1ZZ±FE/3ZZ±FE)
Page 90 of 5135
± PREPARATIONSUPPLEMENTAL RESTRAINT SYSTEM
02±53
AVENSIS REPAIR MANUAL (RM1018E)
Recomended Tools
09042±00010Torx Socket T30HORN BUTTON ASSY
SPIRAL CABLE SUB±ASSY
09070±20010Moulding RemoverAIR BAG SENSOR ASSY CENTER
Equipment
Torque wrench
Bolt Length: 35.0 mm (1.378 in.) Pitch: 1.0 mm (0.039 in.)
Diam.: 6.0 mm (0.236 in.)Airbag disposal
Tire Width: 185 mm (7.28 in.) Inner diam.: 360 mm (14.17 in.)Airbag disposal
Tire with disc wheel Width: 185 mm (7.28 in.)
Inner diam.: 360 mm (14.17 in.)Airbag disposal
Plastic bagAirbag disposal
Page 111 of 5135
031E3±02
± SERVICE SPECIFICATIONSEXHAUST
03±23
AVENSIS REPAIR MANUAL (RM1018E)
TORQUE SPECIFICATION
1ZZ±FE/3ZZ±FE:
Part TightenedNmkgfcmftlbf
Exhaust pipe assy front x Exhaust manifold4344032
Exhaust pipe assy front x Exhaust pipe assy tail4344032
Heated oxygen sensor x Exhaust pipe assy front4444933
Floor panel brace front x Body3030222
1AZ±FE/1AZ±FSE:
Part TightenedNmkgfcmftlbf
Exhaust pipe assy front x Exhaust manifold4344032
Exhaust pipe assy center x Exhaust pipe assy front4344032
Exhaust pipe assy tail x Exhaust pipe assy center4344032
Floor panel brace front x Body3030222
1CD±FTV:
Part TightenedNmkgfcmftlbf
Exhaust pipe assy front x Exhaust manifold4344032
Exhaust pipe assy front x Tail pipe assy4344032
Floor panel brace front x Body3030222
Page 113 of 5135
031H2±01
± SERVICE SPECIFICATIONSENGINE MECHANICAL
03±15
AVENSIS REPAIR MANUAL (RM1018E)
TORQUE SPECIFICATION
1ZZ±FE/3ZZ±FE:
Part TightenedNmkgfcmftlbf
Camshaft bearing cap No. 3 x Cylinder head sub±assy1313310
Camshaft bearing cap No. 1 x Cylinder head sub±assy2323517
Camshaft timing gear or sprocket x Camshaft No. 25455140
Chain tensioner assy No. 1 x Timing chain or belt cover sub±assy9.09280 in.lbf
V±ribbed belt tensioner assy x Cylinder block sub±assy6970451
V±ribbed belt tensioner assy x Cylinder head sub±assy2929621
Engine mounting insulator RH x Body5253038
Engine mounting insulator RH x Transverse engine engine mounting bracket5253038
Cylinder head cover sub±assy x Cylinder head sub±assy A
B11
9.011 2
928
80 in.lbf
Cylinder head cover sub±assy x Timing chain or belt cover sub±assy1111 28
Ignition coil assy x Cylinder head cover sub±assy9.09280 in.lbf
Engine wire x Cylinder head cover sub±assy9.09280 in.lbf
Cylinder head cover No. 2 x Cylinder head cover sub±assy7.07162 in.lbf
Engine hanger x Cylinder head sub±assy3838728
Radio setting condenser x Cylinder head sub±assy101027
Engine coolant temperature sensor x Cylinder head sub±assy2020415
Exhaust manifold x Cylinder head sub±assy3737727
Exhaust manifold heat insulator No. 1 x Exhaust manifold Bolt
Nut18
12184
12213
9
Manifold stay No. 2 x Exhaust manifold4950036
Manifold stay No. 2 x Cylinder block sub±assy4950036
Manifold stay x Exhaust manifold A4950036
Manifold stay x Cylinder block sub±assy B3737727
Transverse engine engine mounting bracket x Timing chain or belt cover
sub±assy4747935
V±ribbed idler assy No.1 x Cylinder block sub±assy39.240029
Knock sensor x Cylinder block sub±assy2020415
Crankshaft position sensor x Timing chain or belt cover9.09280 in.lbf
Camshaft position sensor x Cylinder head sub±assy9.09280 in.lbf
Water inlet x Cylinder block sub±assy1111 28
Water by±pass pipe No. 1 x Cylinder block sub±assy9.09280 in.lbf
Water by±pass pipe No. 1 x Cylinder head sub±assy9.09280 in.lbf
Oil level gage guide x Water by±pass pipe No. 11313310
Intake manifold x Cylinder head sub±assy3030622
Flywheel sub±assy x Crankshaft 1st
2nd49
Turn 90500
Turn 9036
Turn 90
Drive plate & ring gear sub±assy x Crankshaft8889765
Transverse engine engine mounting bracket front x Transverse engine en-
gine mounting insulator front5253038
Transverse engine engine mounting bracket rear x Transverse engine engine
mounting insulator rear8788764
Transverse engine engine mounting bracket LH x Transverse engine engine
mounting insulator LH8081659
Transverse engine engine mounting bracket RH x Transverse engine engine
mounting insulator RH5253038
Front suspension crossmember sub±assy x Body A
B45
133459
1,35633
98
Front suspension member brace x Body Bolt A
Bolt B133
801,356
81698
59
Page 114 of 5135
03±16
± SERVICE SPECIFICATIONSENGINE MECHANICAL
AVENSIS REPAIR MANUAL (RM1018E)Part Tightenedftlbf kgfcm Nm
Floor panel brace front x Body3030622
Battery carrier x Body12.81319
Battery x Body5.05144 in.lbf
Air cleaner case x Body5.05144 in.lbf
Air cleaner case x Transverse engine engine mounting bracket LH5.05144 in.lbf
Radiator support upper x Body1919414
Front wheel RH & LH x Front axle hub sub±assy RH & LH1031,05076
Camshaft timing gear assy x Camshaft5455140
Chain tensioner slipper x Cylinder block sub±assy1919414
Timing chain or belt cover sub±assy x Cylinder head sub±assy1313310
Timing chain or belt cover sub±assy x Cylinder block sub±assy M6
M813
19133
19410
14
Crankshaft pulley x Crankshaft1381,407102
Cylinder head sub±assy x Cylinder block sub±assy 1st
2nd49
Turn 90500
Turn 9036
Turn 90
Camshaft timing oil control valve assy x Cylinder head sub±assy9.09280 in.lbf
Chain vibration damper No. 1 x Cylinder head sub±assy9.09280 in.lbf
Chain vibration damper No. 1 x Cylinder block sub±assy9.09280 in.lbf
1AZ±FE:
Part TightenedNmkgfcmftlbf
Front wheel RH1031,05076
Drain plug (M/T)4950036
Engine hanger No.1 x Cylinder head3838728
Engine hanger No.2 x Cylinder head3838728
Engine coolant temperature sensor x Cylinder head2020815
Knock sensor x Cylinder block2020815
Engine oil pressure switch assy x Cylinder head1515311
Water by±pass pipe No.1 x Cylinder block9.09280 in.lbf
Drive shaft bearing bracket x Cylinder block5455140
V±ribbed belt tensioner assy x Timing chain cover6060744
Ignition coil assy x Cylinder head9.09280 in.lbf
Water inlet x Cylinder block9.09280 in.lbf
Exhaust manifold converter x Cylinder head3737827
Exhaust manifold stay x Exhaust manifold converter4444932
Manifold converter insulator No. 1 x Exhaust manifold converter121229
Intake manifold x Cylinder head3030622
Fly wheel (M/T) x Crank shaft1301,32796
Drive plate & ring gear (A/T) x Crankshaft981,00072
Transverse engine engine mounting bracket front x Transverse engine en-
gine mounting insulator front8788764
Transverse engine engine mounting bracket rear x Transverse engine engine
mounting insulator rear8788764
Front suspension cross member sub±assy front x Body Front
Rear45
133459
1,35633
98
Front suspension brace RH x Frame Bolt A
Bolt B133
801,356
81698
59
Front suspension brace LH x Frame Bolt A
Bolt B133
801,356
81698
59
Transverse engine engine mounting insulator LH x Engine mounting bracket
LH8788764
Transverse engine engine mounting insulator RH x Engine mounting bracket
RH5253038
