2005 TOYOTA AVENSIS code

050WZ±17
05±1190
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

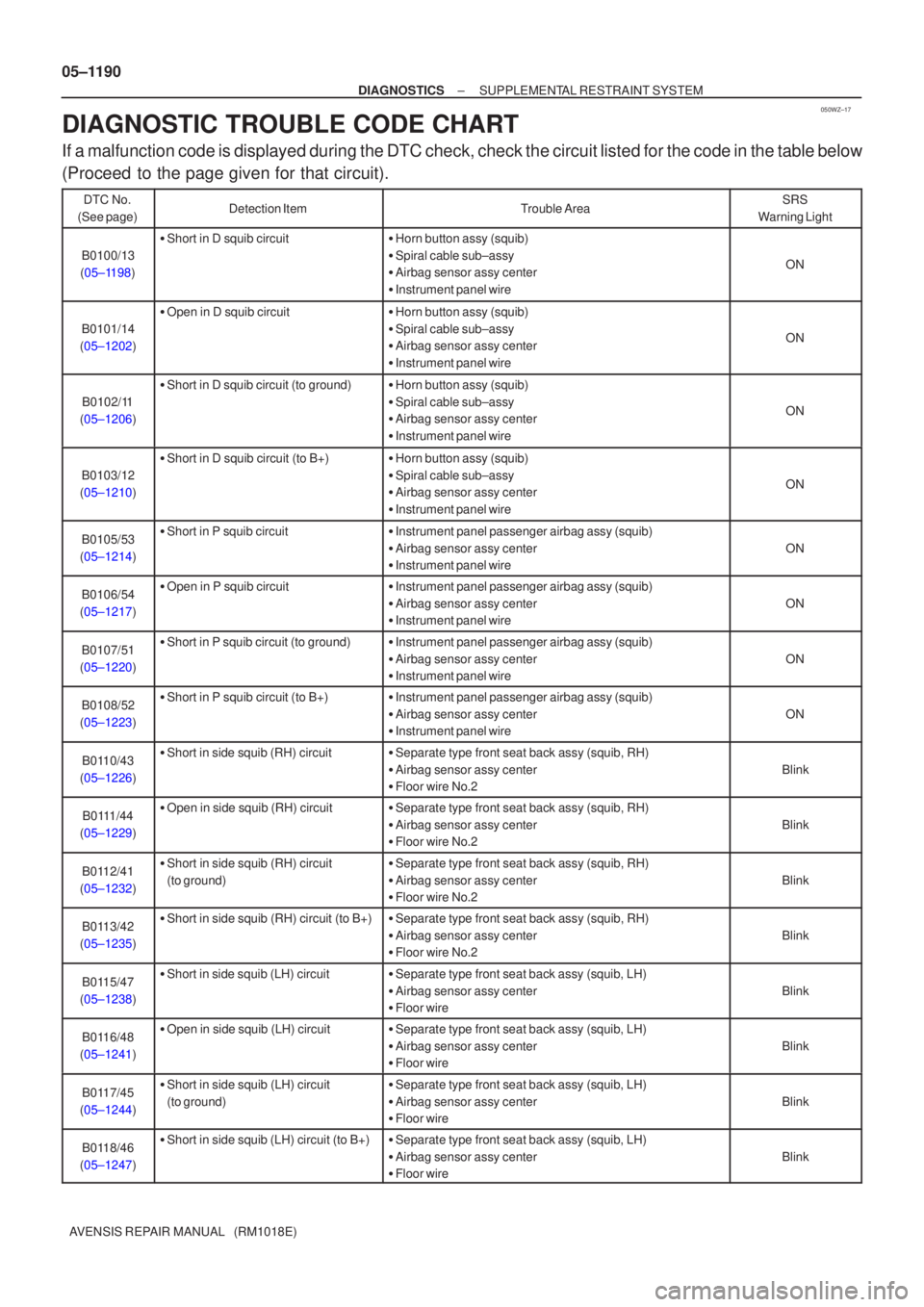

DIAGNOSTIC TROUBLE CODE CHART
If a malfunction code is displayed during the DTC check, check the circuit\
listed for the code in the table below
(Proceed to the page given for that circuit).
DTC No.
(See page)Detection ItemTrouble AreaSRS
Warning Light
B0100/13
(05±1198)

Short in D squib circuit
Horn button assy (squib)

Spiral cable sub±assy

Airbag sensor assy center

Instrument panel wire
ON
B0101/14
(05±1202)

Open in D squib circuit
Horn button assy (squib)

Spiral cable sub±assy

Airbag sensor assy center

Instrument panel wire
ON
B0102/11
(05±1206)

Short in D squib circuit (to ground)
Horn button assy (squib)

Spiral cable sub±assy

Airbag sensor assy center

Instrument panel wire
ON
B0103/12
(05±1210)

Short in D squib circuit (to B+)
Horn button assy (squib)

Spiral cable sub±assy

Airbag sensor assy center

Instrument panel wire
ON
B0105/53
(05±1214)
Short in P squib circuit
Instrument panel passenger airbag assy (squib)

Airbag sensor assy center

Instrument panel wire
ON
B0106/54
(05±1217)
Open in P squib circuit
Instrument panel passenger airbag assy (squib)

Airbag sensor assy center

Instrument panel wire
ON
B0107/51
(05±1220)
Short in P squib circuit (to ground)
Instrument panel passenger airbag assy (squib)

Airbag sensor assy center

Instrument panel wire
ON
B0108/52
(05±1223)
Short in P squib circuit (to B+)
Instrument panel passenger airbag assy (squib)

Airbag sensor assy center

Instrument panel wire
ON
B0110/43
(05±1226)
Short in side squib (RH) circuit
Separate type front seat back assy (squib, RH)

Airbag sensor assy center

Floor wire No.2
Blink
B0111/44
(05±1229)
Open in side squib (RH) circuit
Separate type front seat back assy (squib, RH)

Airbag sensor assy center

Floor wire No.2
Blink
B0112/41
(05±1232)
Short in side squib (RH) circuit
(to ground)
Separate type front seat back assy (squib, RH)

Airbag sensor assy center

Floor wire No.2
Blink
B0113/42
(05±1235)
Short in side squib (RH) circuit (to B+)
Separate type front seat back assy (squib, RH)

Airbag sensor assy center

Floor wire No.2
Blink
B0115/47
(05±1238)
Short in side squib (LH) circuit
Separate type front seat back assy (squib, LH)

Airbag sensor assy center

Floor wire
Blink
B0116/48
(05±1241)
Open in side squib (LH) circuit
Separate type front seat back assy (squib, LH)

Airbag sensor assy center

Floor wire
Blink
B0117/45
(05±1244)
Short in side squib (LH) circuit
(to ground)
Separate type front seat back assy (squib, LH)

Airbag sensor assy center

Floor wire
Blink
B0118/46
(05±1247)
Short in side squib (LH) circuit (to B+)
Separate type front seat back assy (squib, LH)

Airbag sensor assy center

Floor wire
Blink

± DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
05±1193
AVENSIS REPAIR MANUAL (RM1018E)
*1: RHD, *2: LHD, *3: w/ Curtain Shield Airbag
HINT:

When the SRS warning light remains on and the DTC is the normal code, a voltage source drop is sus-
pected.
This malfunction is not stored in memory by the airbag sensor assy center and if the power source
voltage returns to normal, the SRS warning light will automatically go off.

If a code not listed on the displayed chart, the airbag sensor assy center may be failed.

In the case of any malfunction concerning any open circuit, short to ground, or short to B+ due to any
squib, another malfunction code may not be detected. In this case, repair the malfunction currently
indicated and then perform malfunction diagnosis again. Another malfunction code may then be de-
tected.

05C5V±01
3
2
145678
910111213141516
DLC3
A04550
C93955
05±1184
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
PRE±CHECK
1.DIAGNOSIS SYSTEM
(a)Check the DLC3. (1)The vehicle's ECM conforms to ISO 9141±2 forcommunication protocol. The terminal arrangement
of the DLC3 complies with ISO 15031±3 and meets
the ISO 9141±2 format.
Terminal No.Connection/Voltage or ResistanceCondition
7Bus + Line/Pulse generationDuring Transmission
4Chassis Ground
Body Ground/1
or lessAlways
16Battery Positive
Body Ground/9 ± 14 VAlways
HINT:
If the display shows UNABLE TO CONNECT TO VEHICLE
when you connect the cable of the hand±held tester to the
DLC3, turn the ignition switch to the ON position and operate
the hand±held tester, there is a problem either on the vehicle
side or tool side.

If communication is normal when the tool is connected to
another vehicle, inspect the DLC3 on the original vehicle.

If communication is still not possible when the tool is con-
nected to another vehicle, the problem is probably in the
tool itself, so consult the Service Department listed in the
tool's instruction manual.
2.SRS WARNING LIGHT CHECK
(a)Turn the ignition switch to the ON position, and check that the SRS warning light comes on.
(b)Check that the SRS warning light goes off after approx.
6 seconds.
HINT:

When the ignition switch is ON position and the SRS
warning light remains on or flashes, the airbag sensor
assy center detects a malfunction code.

When the SRS warning light comes on even when the
ignition switch is in the LOCK position, trouble in the pow-
er source or combination meter assy is suspected. Pro-
ceed to ºSRS warning light circuit malfunction (Always
lights up, when ignition switch is LOCK position)º on page
05±1386.

When the ignition switch is turned from the LOCK to ON
position, the SRS warning light does not come on. Pro-
ceed to ºSRS warning light circuit malfunction (Does not
light up, when ignition switch is turned ON)º on page
05±1389.

H40173CG
TC
H13050
Normal Code (w/o Past Trouble Code)
Normal Code (w/ Past Trouble Code) Malfunctioning Code
(Example Code 11 and 31) 0.25
ON
OFF
0.750.25
0.25
ON
OFF
0.52.54.0
1.5 0.5 Repeat
DTC31
DTC11
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
05±1185
AVENSIS REPAIR MANUAL (RM1018E)
3.DTC CHECK (USING SST CHECK WIRE)
(a)Output the DTCs (Present trouble code).
(1)Turn the ignition switch to the ON position, and wait
for approx. 60 seconds.
(2)Using SST, connect the TC and CG of the DLC3.
SST09843±18040
NOTICE:
Pay attention to the terminal connecting position to avoid
a malfunction.
(b)Output the DTCs (Past trouble code).
(1)Using SST, connect the TC and CG of the DLC3.
SST09843±18040
NOTICE:
Pay attention to the terminal connecting position to avoid
a malfunction. (2)Turn the ignition switch to the ON position, and wait
for approx. 60 seconds.
(c)Read the DTCs. (1)Read the DTC by counting the blinking times. Forexample, the blinking patterns for normal code,
code 11 and code 31 are shown in the illustration.

Normal code indication (w/o past trouble
code)
The light blinks twice per second.

Normal code indication (w/ past trouble code)
When the past trouble code is stored in the
airbag sensor assy center, the blinks only
once a second.

Malfunction code indication
The first blinking indicates the first DTC. Se-
cond blinking occurs after 1.5±second of
pause.
If there are 2 or more codes, there will be a 2.5±second pause
between each code. After all codes are shown, there will be a
4.0±second pause, and they will all be repeated.
HINT:

If 2 or more malfunctions are found, the indication starts
from the smaller numbered code.

If DTCs are indicated without a connection of the termi-
nals, proceed to the ºTC terminal circuitº on page
05±1391.
(d) Clear the DTCs. (1) When the ignition switch is turned off, the DTCs are cleared.
HINT:
Depending on the DTC, the code might not be cleared by turning off the ignition switch. In this case, proceed
to the next step.

H43008
IG S/W
DLC3
SRS Warning Light (*)
ON
OFF
Open
Short
0.5 sec.
1.5 sec.
T1
0.25 sec.
T2 T3 T4 T5 T6 T5 T6 T5 T6 T5 T70.5 sec.0.25 sec.
CG TC
T1: 0 ±
second
T2: approx. 6 seconds
T3: 3 ± 5 seconds
T7: within 1 second
*: The past trouble code in the illustration shows DTC 21 as an example.T4: 3 ± 10 seconds
T5: 2 ± 4 seconds
T6: 1 ± 5 seconds 05±1186
± DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

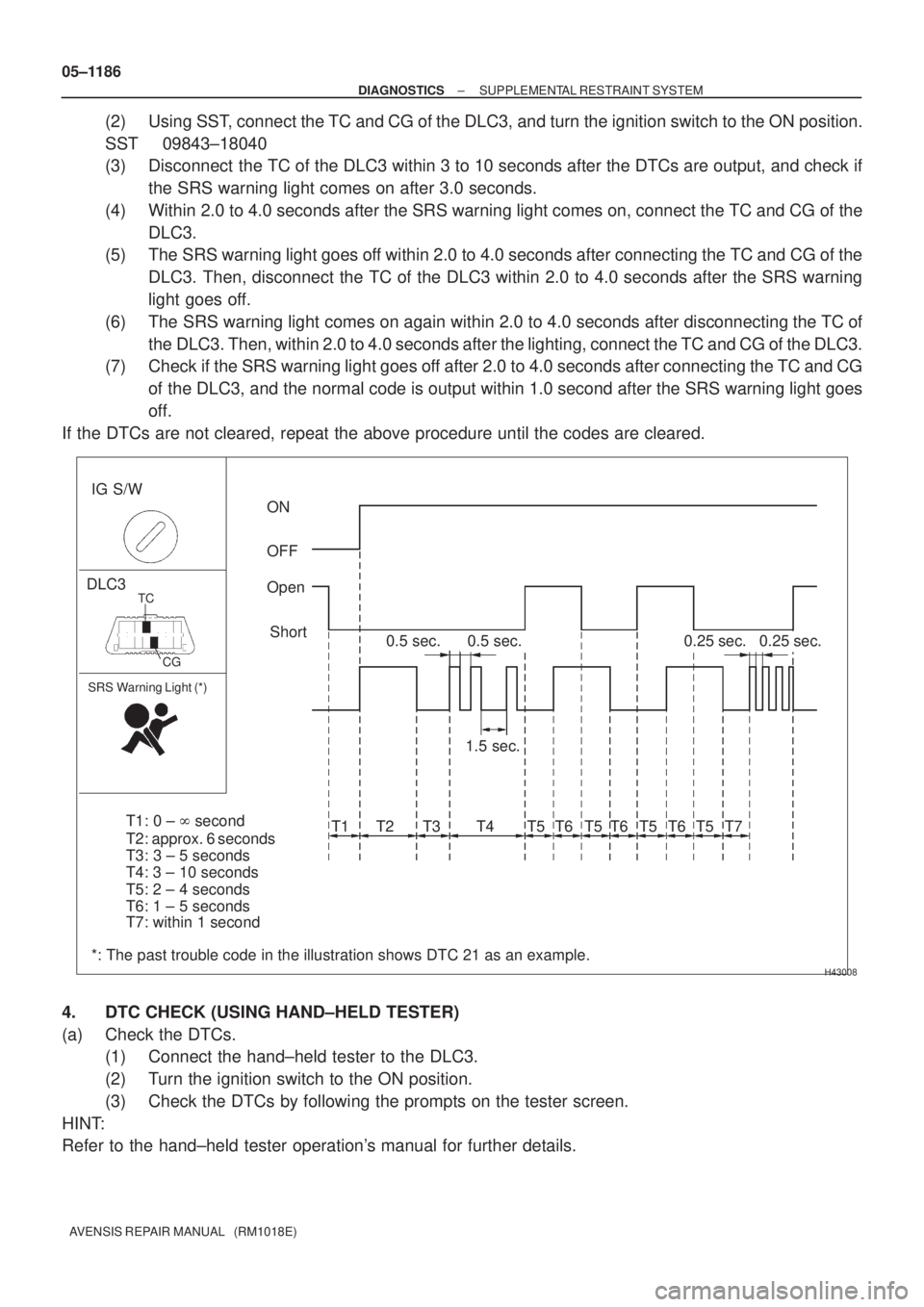

(2) Using SST, connect the TC and CG of the DLC3, and turn the ignition switch to the ON position.
SST 09843±18040
(3) Disconnect the TC of the DLC3 within 3 to 10 seconds after the DTCs are output, and check if
the SRS warning light comes on after 3.0 seconds.
(4) Within 2.0 to 4.0 seconds after the SRS warning light comes on, connect the TC and CG of the
DLC3.
(5) The SRS warning light goes off within 2.0 to 4.0 seconds after connecting the TC and CG of the
DLC3. Then, disconnect the TC of the DLC3 within 2.0 to 4.0 seconds after the SRS warning
light goes off.
(6) The SRS warning light comes on again within 2.0 to 4.0 seconds after disconnecting the TC of
the DLC3. Then, within 2.0 to 4.0 seconds after the lighting, connect the TC and CG of the DLC3.
(7) Check if the SRS warning light goes off after 2.0 to 4.0 seconds after connecting the TC and CG
of the DLC3, and the normal code is output within 1.0 second after the SRS warning light goes
off.
If the DTCs are not cleared, repeat the above procedure until the codes are cleared.
4. DTC CHECK (USING HAND±HELD TESTER)
(a) Check the DTCs.
(1) Connect the hand±held tester to the DLC3.
(2) Turn the ignition switch to the ON position.
(3) Check the DTCs by following the prompts on the tester screen.
HINT:
Refer to the hand±held tester operation's manual for further details.

050WX±16
[
]
[]
[]
H40122
Supplemental Restraint System Check SheetInspector 's
Name
Date Vehicle Brought InVIN
Production Date
Licence No.
Odometer Readingkm
Miles
Date Problem Occurred
Weather
TemperatureFine Cloudy Rainy Snowy Other
Approx.
Starting Idling
Driving Constant speed Acceleration Deceleration
Other Vehicle Operation
Road Condition
Details of Problem
Vehicle Inspection, Repair Histo-
ry Prior to Occurrence of Mal-
function (Including Supplemen-
tal Restraint System)
Diagnosis System Inspection
SRS Warning Light
Inspection
DTC Inspection1st Time
2nd TimeRemains ON Does Not Come on
Normal Code Malfunction Code Code. Customer 's Name
1st Time
2nd TimeSometimes Comes on
Remains ON Does Not Come onSometimes Comes on
Normal Code Malfunction Code Code.
± DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
05±1183
AVENSIS REPAIR MANUAL (RM1018E)

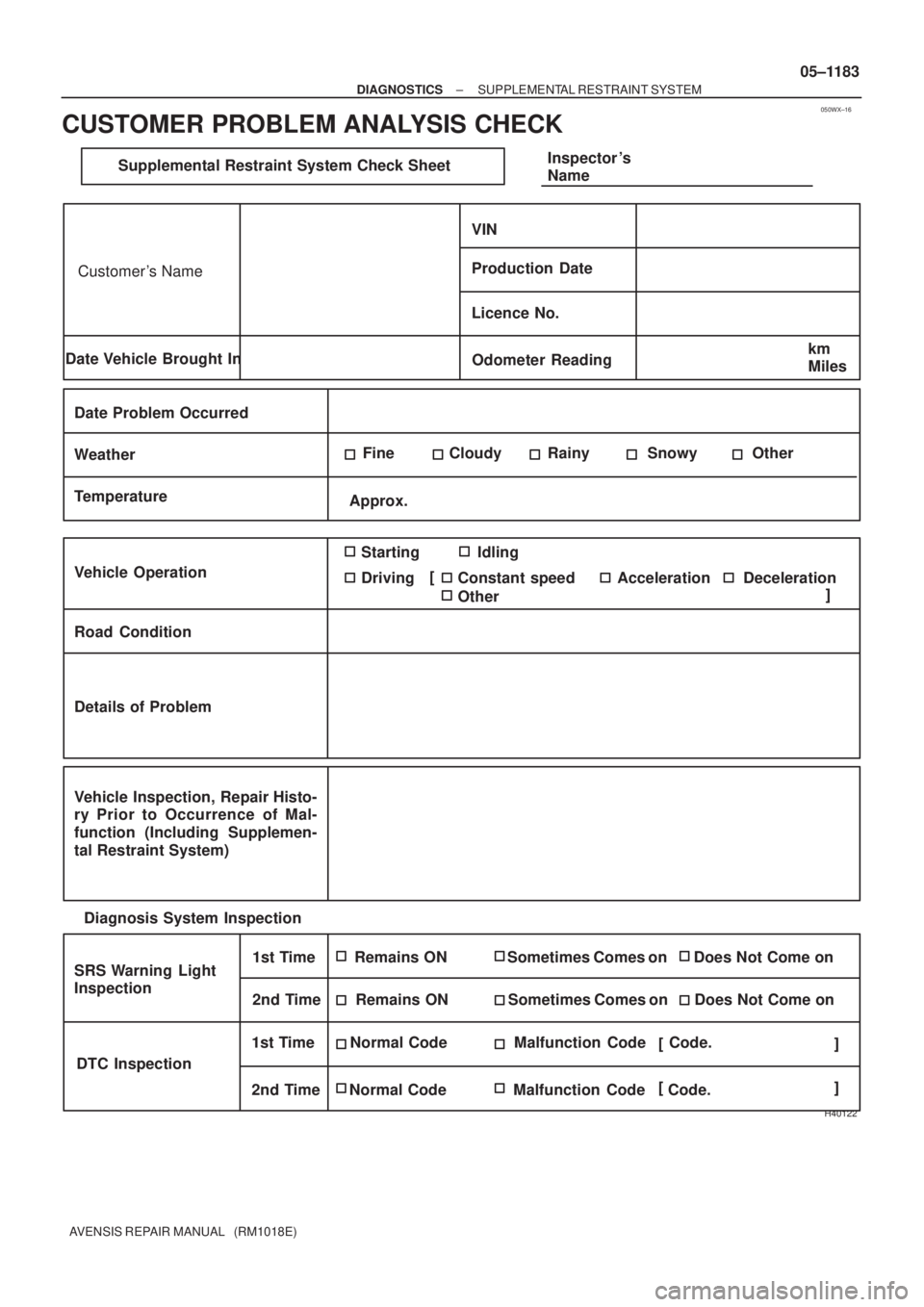

CUSTOMER PROBLEM ANALYSIS CHECK

050YF±18
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
05±1181
AVENSIS REPAIR MANUAL (RM1018E)

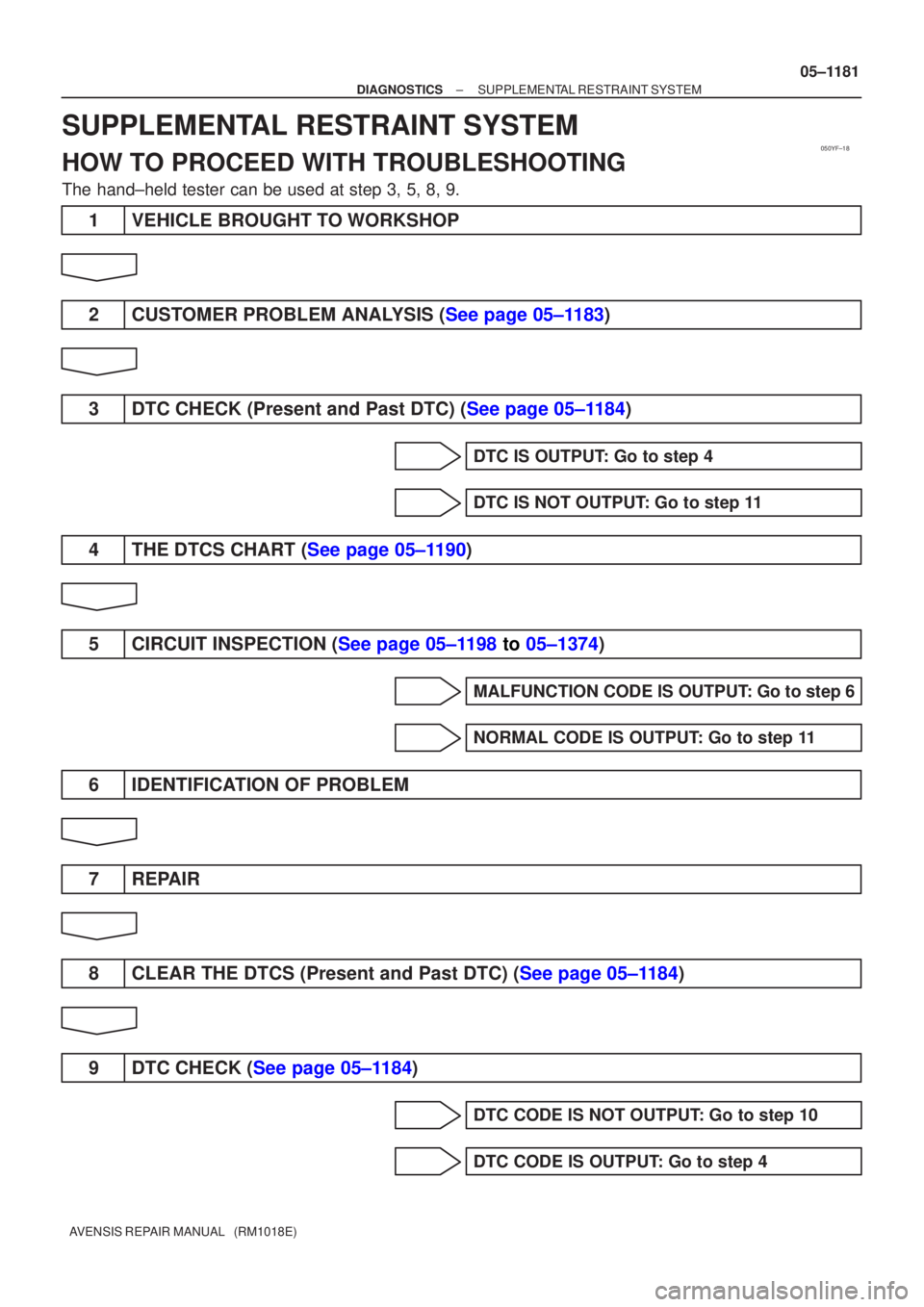

SUPPLEMENTAL RESTRAINT SYSTEM
HOW TO PROCEED WITH TROUBLESHOOTING
The hand±held tester can be used at step 3, 5, 8, 9.
1VEHICLE BROUGHT TO WORKSHOP
2CUSTOMER PROBLEM ANALYSIS (See page 05±1183)
3DTC CHECK (Present and Past DTC) (See page 05±1184)
DTC IS OUTPUT: Go to step 4
DTC IS NOT OUTPUT: Go to step 11
4THE DTCS CHART (See page 05±1190)
5CIRCUIT INSPECTION (See page 05±1198 to 05±1374)
MALFUNCTION CODE IS OUTPUT: Go to step 6
NORMAL CODE IS OUTPUT: Go to step 11
6 IDENTIFICATION OF PROBLEM
7 REPAIR
8CLEAR THE DTCS (Present and Past DTC) (See page 05±1184)
9DTC CHECK (See page 05±1184)
DTC CODE IS NOT OUTPUT: Go to step 10
DTC CODE IS OUTPUT: Go to step 4


 \bH42853

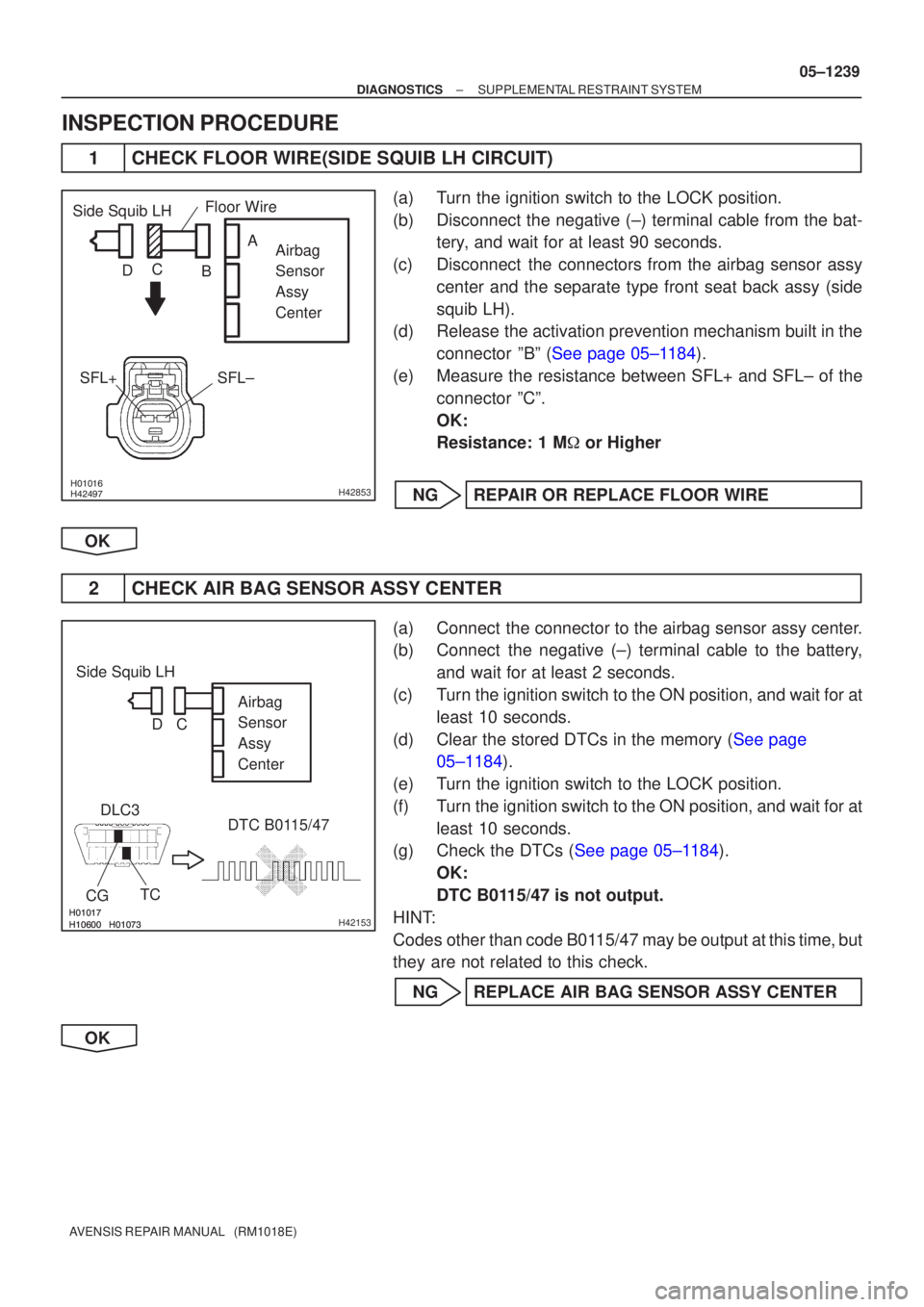

Side Squib LHAirbag
Sensor
Assy
Center
SFL±
SFL+Floor Wire
A
B
C
D














H42153
Side Squib LH
Airbag
Sensor
Assy
Center
DLC3
CG TC DTC B0115/47
C
D
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
05±1239
AVENSIS REPAIR MANUAL (RM1018E)
INSPECTION PROCEDURE
1CHECK FLOOR WIRE(SIDE SQUIB LH CIRCUIT)
(a)Turn the ignition switch to the LOCK position.
(b)Disconnect the negative (±) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c)Disconnect the connectors from the airbag sensor assy center and the separate type front seat back assy (side
squib LH).
(d)Release the activation prevention mechanism built in the
connector ºBº (See page 05±1184).
(e) Measure the resistance between SFL+ and SFL± of the connector ºCº.
OK:
Resistance: 1 M
or Higher
NG REPAIR OR REPLACE FLOOR WIRE
OK
2 CHECK AIR BAG SENSOR ASSY CENTER
(a) Connect the connector to the airbag sensor assy center.
(b) Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(c) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(d)Clear the stored DTCs in the memory (See page 05±1184).
(e) Turn the ignition switch to the LOCK position.
(f) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(g)Check the DTCs (See page 05±1184).
OK:
DTC B0115/47 is not output.
HINT:
Codes other than code B0115/47 may be output at this time, but
they are not related to this check.
NG REPLACE AIR BAG SENSOR ASSY CENTER
OK
