Page 1264 of 5135
H40979
Side Squib RHDLC3 DTC B0110/43
TC
CG Airbag
Sensor
Assy
Center
C
D
05±1228
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
3 CHECK SEPARATE TYPE FRONT SEAT BACK ASSY(SIDE SQUIB RH)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (±) terminal cable from the bat- tery, and wait for at least 90 seconds.
(c) Connect the connector to the separate type front seat back assy (side squib RH).
(d) Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(e) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(f)Clear the stored DTCs in the memory (See page 05±1184).
(g) Turn the ignition switch to the LOCK position.
(h) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(i)Check the DTCs (See page 05±1184). OK:
DTC B0110/43 is not output.
HINT:
Codes other than code B0110/43 may be output at this time, but
they are not related to this check.
NG REPLACE SEPARATE TYPE FRONT SEAT BACK ASSY
OK
USE SIMULATION METHOD TO CHECK
Page 1266 of 5135
\b
\bH40581
Airbag
Sensor
Assy
Center
P Squib
P+
P±
DLC3
CG TC DTC B0108/52
Instrument Panel Wire
SST
C
D
05±1224
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

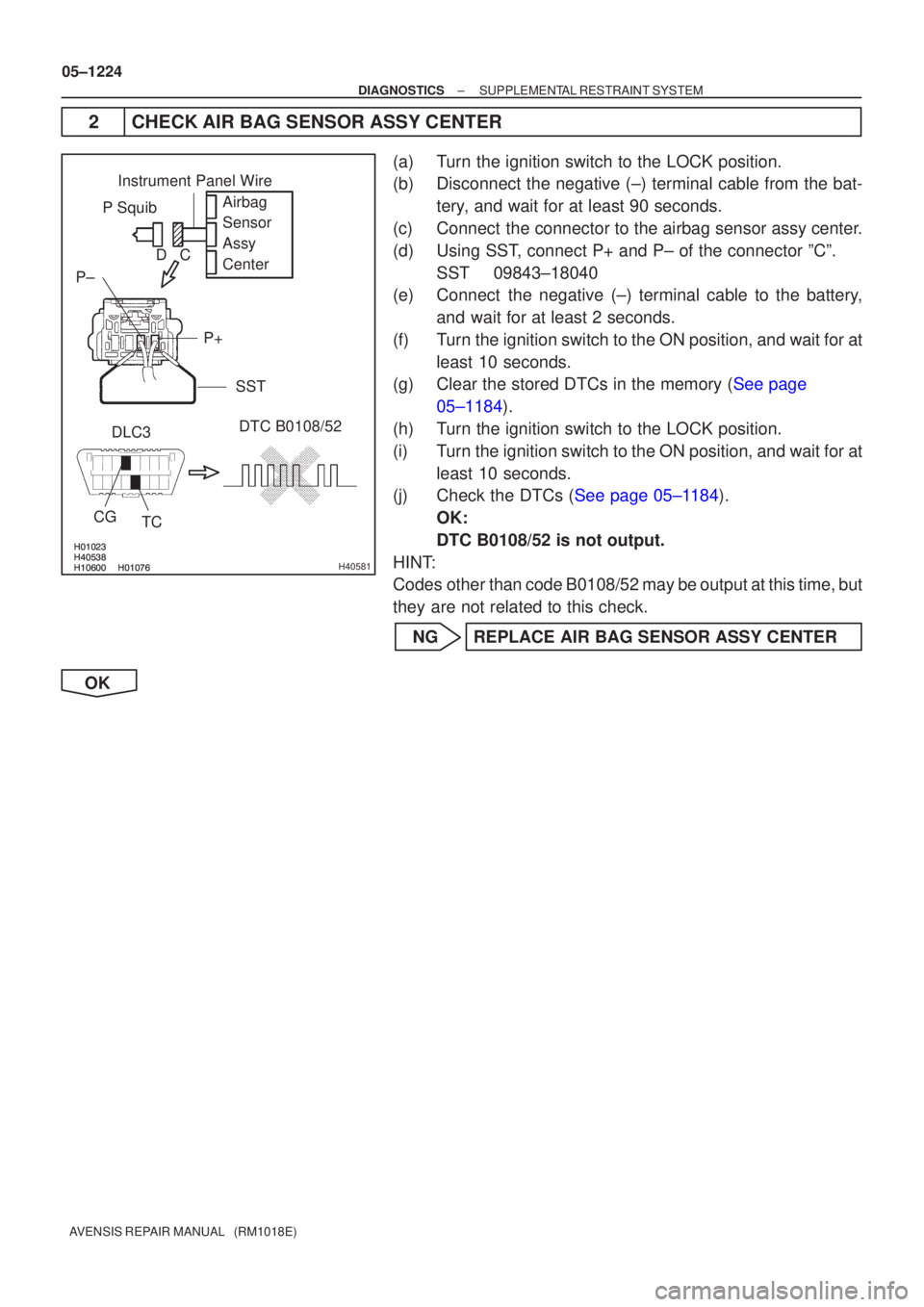

2CHECK AIR BAG SENSOR ASSY CENTER
(a)Turn the ignition switch to the LOCK position.
(b)Disconnect the negative (±) terminal cable from the bat- tery, and wait for at least 90 seconds.
(c)Connect the connector to the airbag sensor assy center.
(d)Using SST, connect P+ and P± of the connector ºCº. SST09843±18040
(e)Connect the negative (±) terminal cable to the battery,
and wait for at least 2 seconds.
(f)Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(g)Clear the stored DTCs in the memory (See page
05±1184).
(h)Turn the ignition switch to the LOCK position.
(i)Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(j)Check the DTCs (See page 05±1184).
OK:
DTC B0108/52 is not output.
HINT:
Codes other than code B0108/52 may be output at this time, but
they are not related to this check.
NG REPLACE AIR BAG SENSOR ASSY CENTER
OK
Page 1267 of 5135
H40047
P Squib
DLC3
CG TC DTC B0108/52Airbag
Sensor
Assy
Center
C
D
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
05±1225
AVENSIS REPAIR MANUAL (RM1018E)

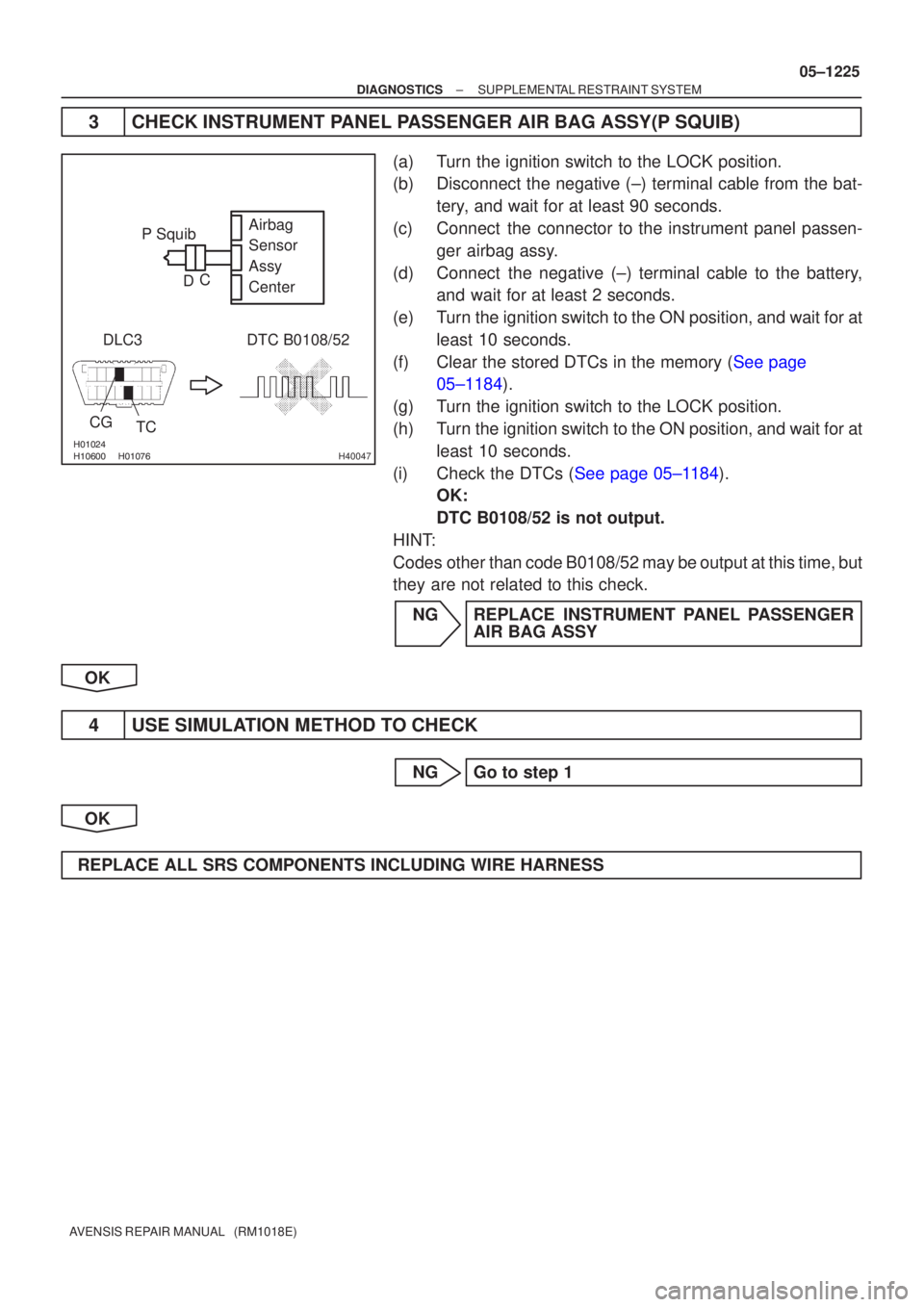

3CHECK INSTRUMENT PANEL PASSENGER AIR BAG ASSY(P SQUIB)
(a)Turn the ignition switch to the LOCK position.
(b)Disconnect the negative (±) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c)Connect the connector to the instrument panel passen- ger airbag assy.
(d)Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(e)Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(f)Clear the stored DTCs in the memory (See page 05±1184).
(g)Turn the ignition switch to the LOCK position.
(h)Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(i)Check the DTCs (See page 05±1184). OK:
DTC B0108/52 is not output.
HINT:
Codes other than code B0108/52 may be output at this time, but
they are not related to this check.
NG REPLACE INSTRUMENT PANEL PASSENGER AIR BAG ASSY
OK
4 USE SIMULATION METHOD TO CHECK
NG Go to step 1
OK
REPLACE ALL SRS COMPONENTS INCLUDING WIRE HARNESS
Page 1269 of 5135
\b
\bH40579
P SquibAirbag
Sensor
Assy
Center
DTC B0107/51
DLC3
CG TC
P±
P+
Instrument Panel Wire
SST
C
D
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
05±1221
AVENSIS REPAIR MANUAL (RM1018E)

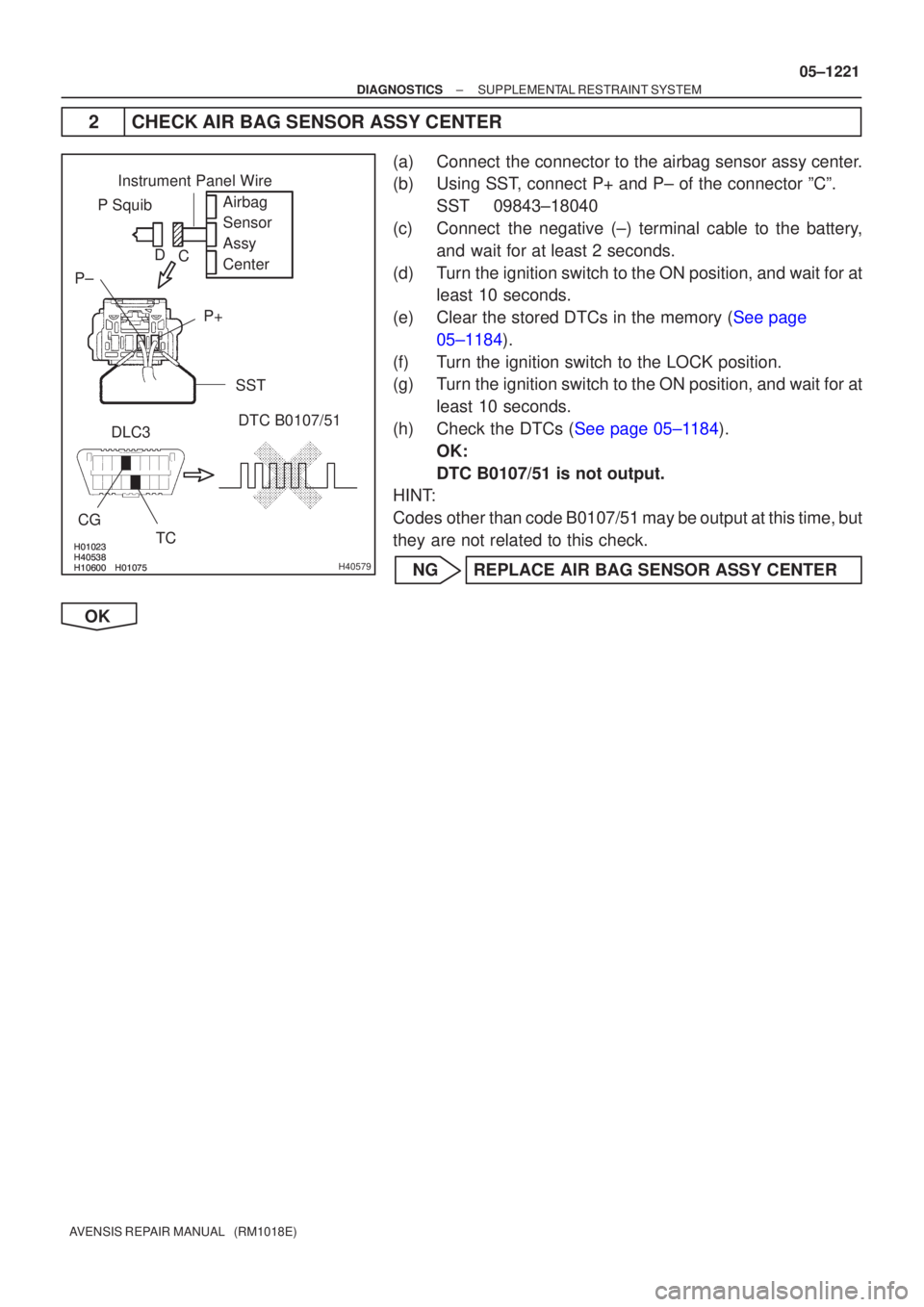

2 CHECK AIR BAG SENSOR ASSY CENTER
(a) Connect the connector to the airbag sensor assy center.
(b) Using SST, connect P+ and P± of the connector ºCº.
SST 09843±18040
(c) Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(d) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(e)Clear the stored DTCs in the memory (See page 05±1184).
(f) Turn the ignition switch to the LOCK position.
(g) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(h)Check the DTCs (See page 05±1184). OK:
DTC B0107/51 is not output.
HINT:
Codes other than code B0107/51 may be output at this time, but
they are not related to this check.
NG REPLACE AIR BAG SENSOR ASSY CENTER
OK
Page 1270 of 5135
\b\b\bH40045
P SquibDTC B0107/51
DLC3
CG TCAirbag
Sensor
Assy
Center
C
D
05±1222
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

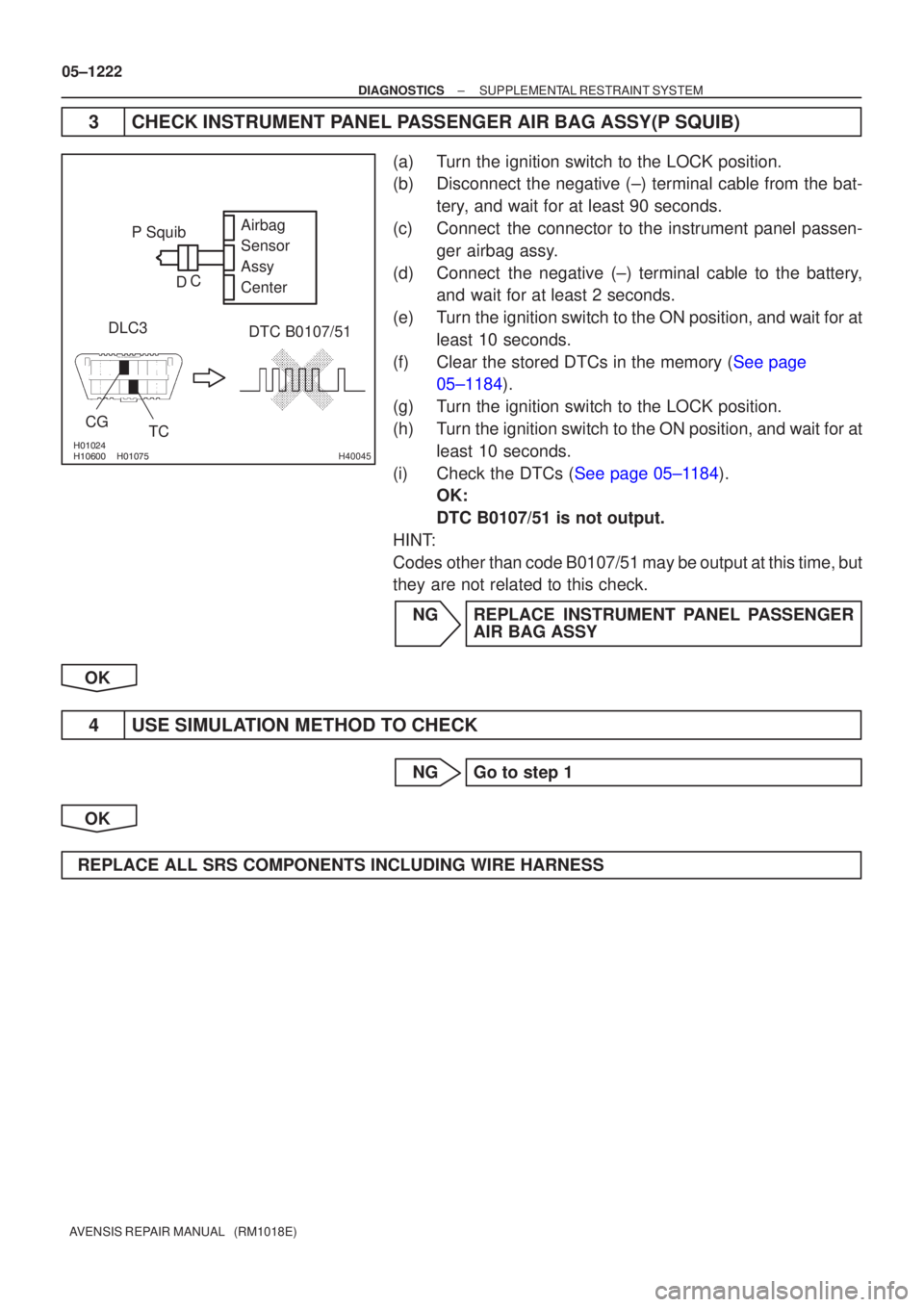

3 CHECK INSTRUMENT PANEL PASSENGER AIR BAG ASSY(P SQUIB)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (±) terminal cable from the bat- tery, and wait for at least 90 seconds.
(c) Connect the connector to the instrument panel passen- ger airbag assy.
(d) Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(e) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(f)Clear the stored DTCs in the memory (See page 05±1184).
(g) Turn the ignition switch to the LOCK position.
(h) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(i)Check the DTCs (See page 05±1184). OK:
DTC B0107/51 is not output.
HINT:
Codes other than code B0107/51 may be output at this time, but
they are not related to this check.
NG REPLACE INSTRUMENT PANEL PASSENGER AIR BAG ASSY
OK
4 USE SIMULATION METHOD TO CHECK
NG Go to step 1
OK
REPLACE ALL SRS COMPONENTS INCLUDING WIRE HARNESS
Page 1272 of 5135
\b
\b H40577
P SquibAirbag
Sensor
Assy
Center
DTC B0106/54
DLC3
CG TC
P±
P+
Instrument Panel Wire
SST
C
D
05±1218
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

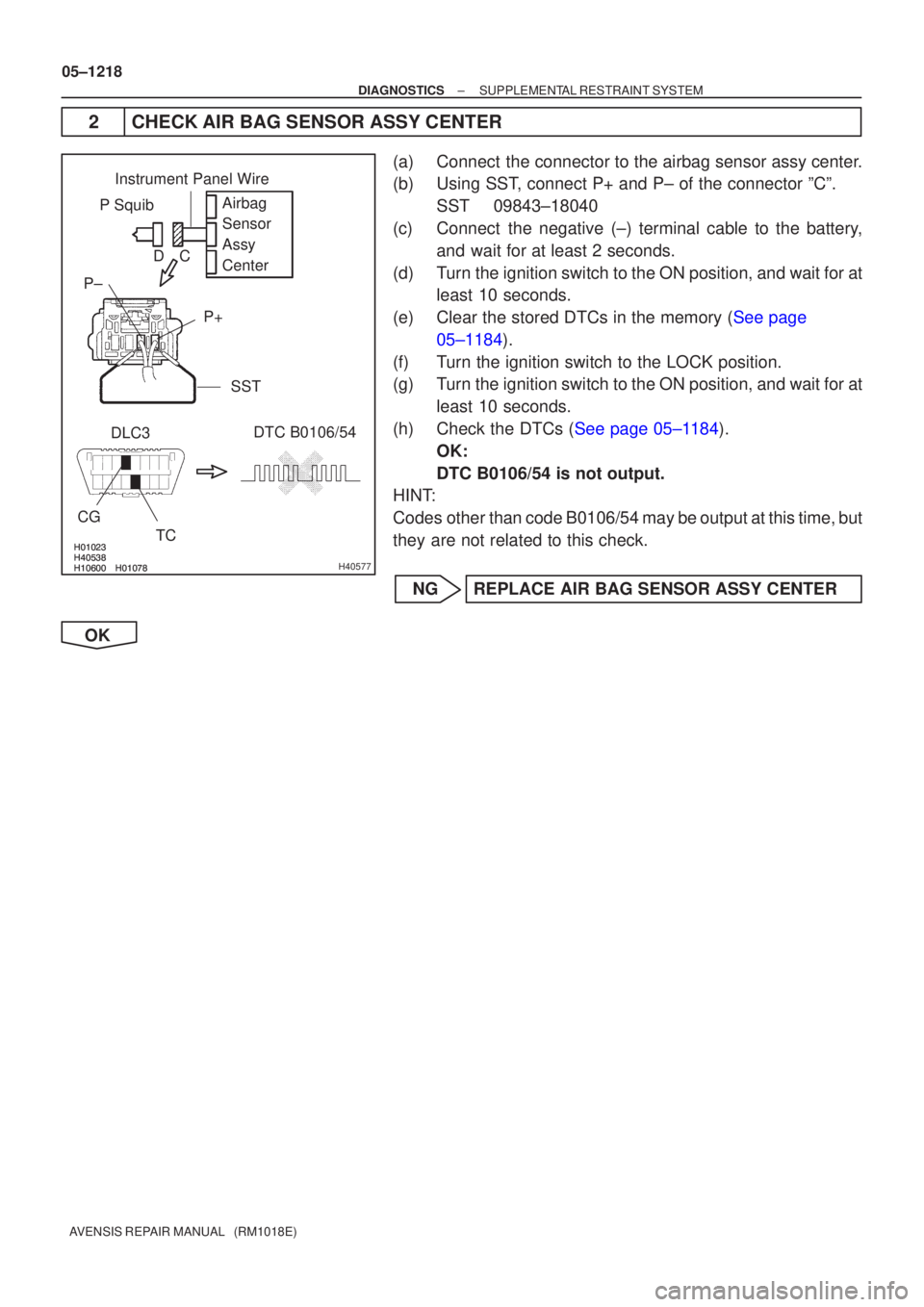

2CHECK AIR BAG SENSOR ASSY CENTER
(a)Connect the connector to the airbag sensor assy center.
(b)Using SST, connect P+ and P± of the connector ºCº. SST09843±18040
(c)Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(d)Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(e)Clear the stored DTCs in the memory (See page 05±1184).
(f) Turn the ignition switch to the LOCK position.
(g) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(h)Check the DTCs (See page 05±1184). OK:
DTC B0106/54 is not output.
HINT:
Codes other than code B0106/54 may be output at this time, but
they are not related to this check.
NG REPLACE AIR BAG SENSOR ASSY CENTER
OK
Page 1273 of 5135
\b\b\bH40043
DTC B0106/54
DLC3
CG TC
Airbag
Sensor
Assy
Center
P Squib
C
D
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
05±1219
AVENSIS REPAIR MANUAL (RM1018E)

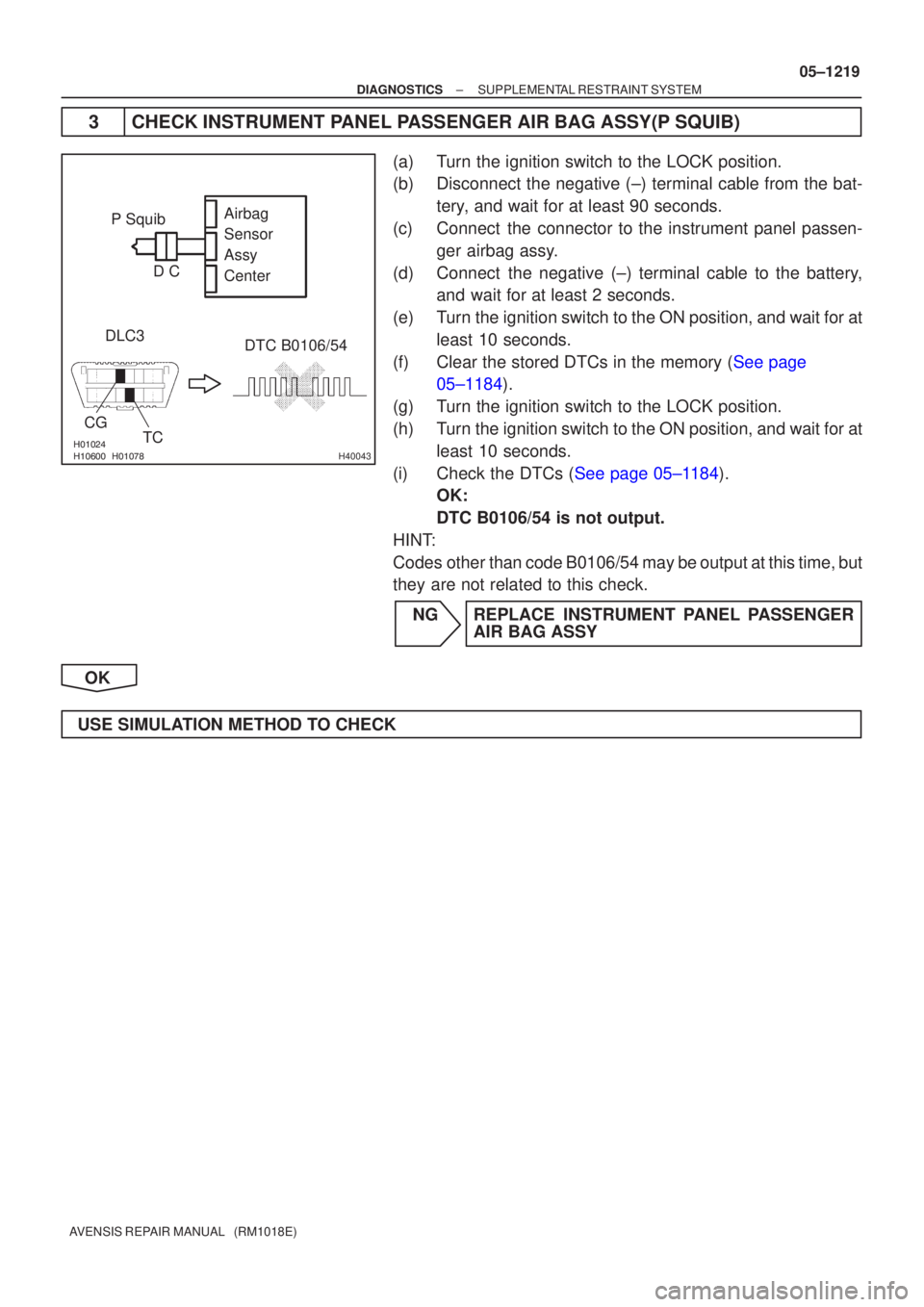

3CHECK INSTRUMENT PANEL PASSENGER AIR BAG ASSY(P SQUIB)
(a)Turn the ignition switch to the LOCK position.
(b)Disconnect the negative (±) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c)Connect the connector to the instrument panel passen- ger airbag assy.
(d)Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(e)Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(f)Clear the stored DTCs in the memory (See page 05±1184).
(g) Turn the ignition switch to the LOCK position.
(h) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(i)Check the DTCs (See page 05±1184). OK:
DTC B0106/54 is not output.
HINT:
Codes other than code B0106/54 may be output at this time, but
they are not related to this check.
NG REPLACE INSTRUMENT PANEL PASSENGER AIR BAG ASSY
OK
USE SIMULATION METHOD TO CHECK
Page 1275 of 5135
\b
\b
H40576
P SquibAirbag
Sensor
Assy
Center
P± P+
Instrument Panel Wire
A
B
C
D
\b\bH42107
P SquibAirbag
Sensor
Assy
Center
CG TC
DLC3
DTC B0105/53
C
D
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
05±1215
AVENSIS REPAIR MANUAL (RM1018E)

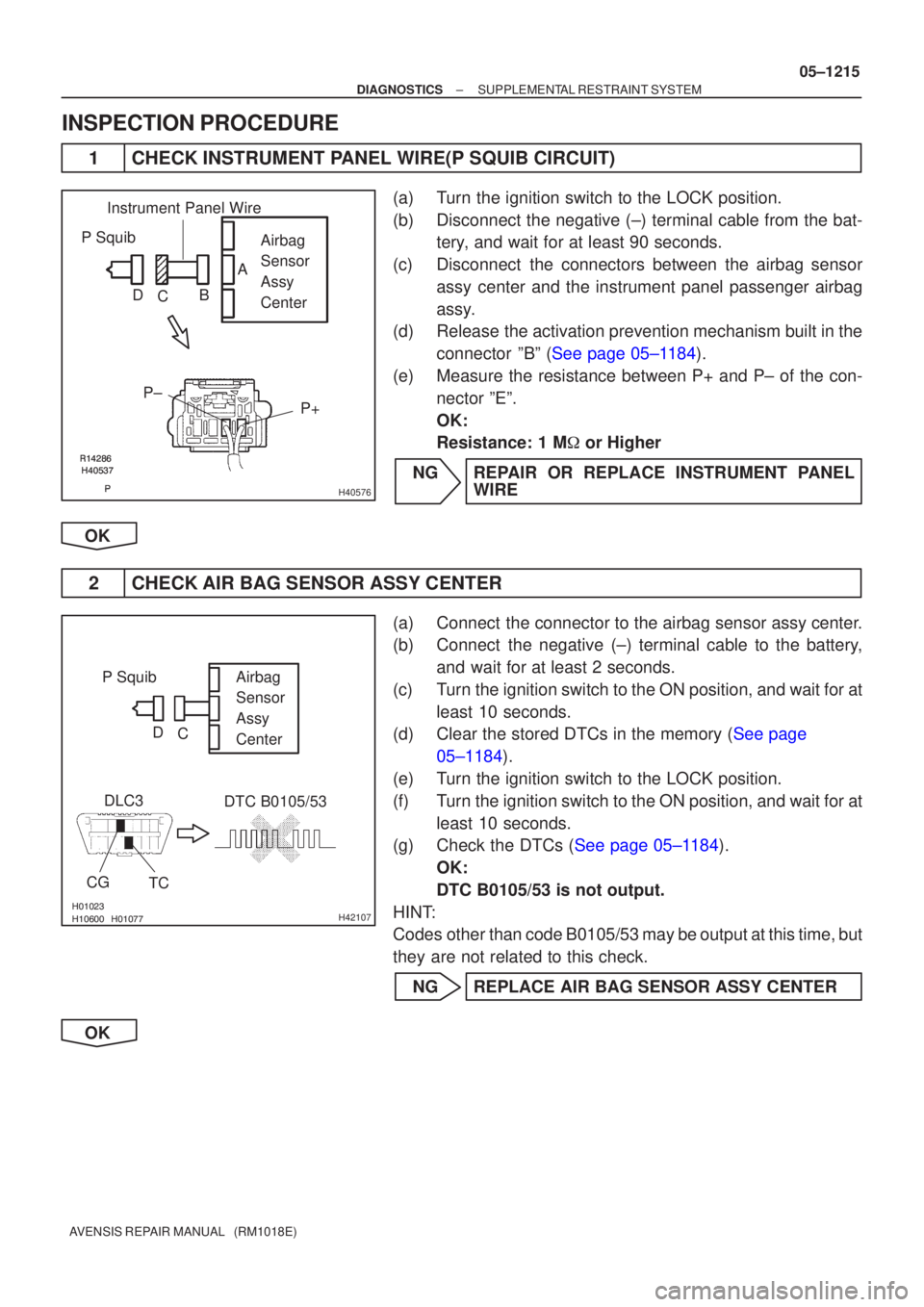

INSPECTION PROCEDURE
1CHECK INSTRUMENT PANEL WIRE(P SQUIB CIRCUIT)
(a)Turn the ignition switch to the LOCK position.
(b)Disconnect the negative (±) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c)Disconnect the connectors between the airbag sensor assy center and the instrument panel passenger airbag
assy.
(d)Release the activation prevention mechanism built in the
connector ºBº (See page 05±1184).
(e)Measure the resistance between P+ and P± of the con- nector ºEº.
OK:
Resistance: 1 M or Higher
NGREPAIR OR REPLACE INSTRUMENT PANEL WIRE
OK
2CHECK AIR BAG SENSOR ASSY CENTER
(a)Connect the connector to the airbag sensor assy center.
(b)Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(c)Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(d)Clear the stored DTCs in the memory (See page
05±1184).
(e) Turn the ignition switch to the LOCK position.
(f) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(g)Check the DTCs (See page 05±1184).
OK:
DTC B0105/53 is not output.
HINT:
Codes other than code B0105/53 may be output at this time, but
they are not related to this check.
NG REPLACE AIR BAG SENSOR ASSY CENTER
OK
