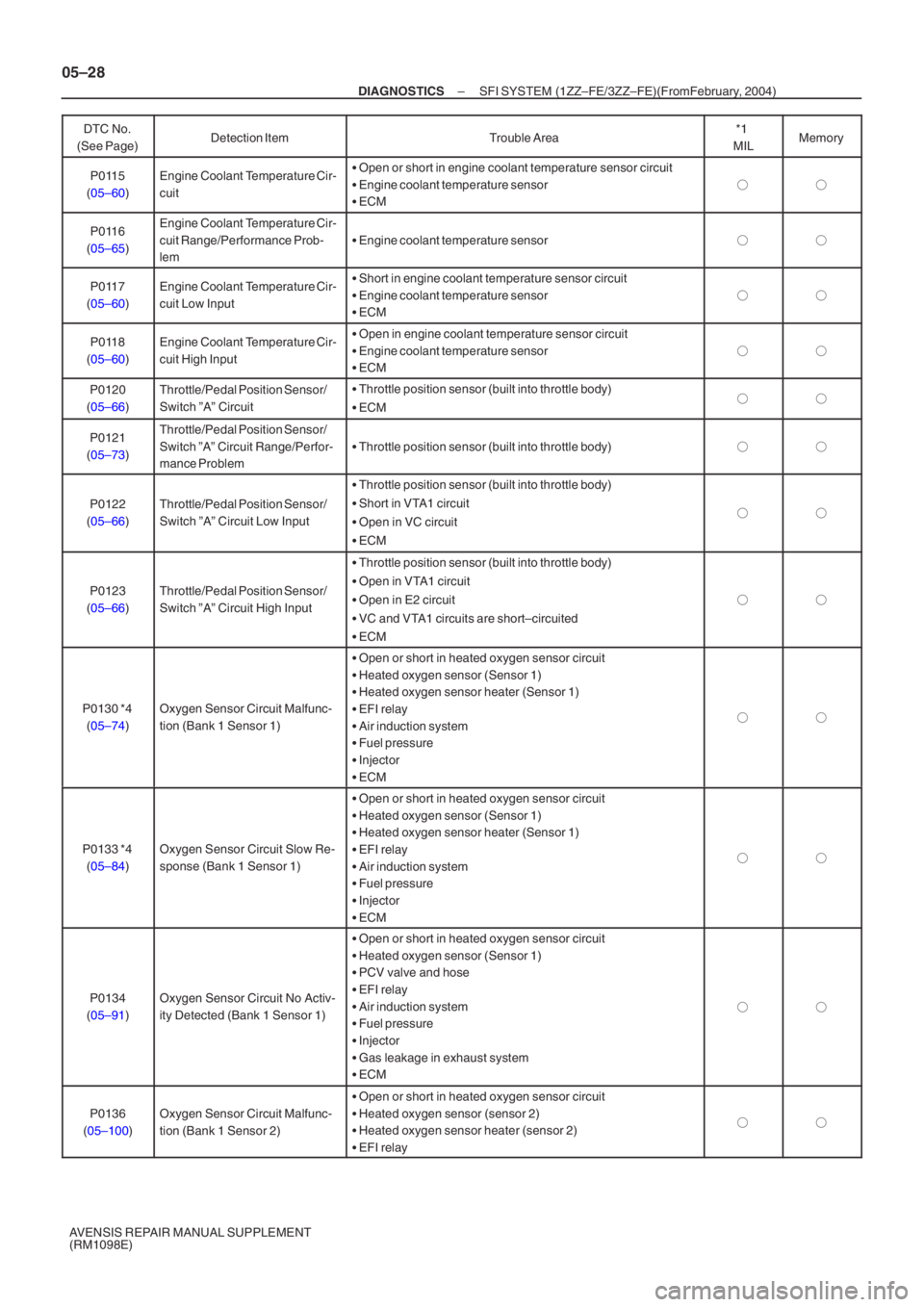

DIAGNOSTICS SFI SYSTEM (1ZZ–FE/3ZZ–FE)(From February, 2004)
AVENSIS REPAIR MANUAL SUPPLEMENT
(RM1098E) DTC No.
(See Page) Memory
*1
MIL
Trouble Area
Detection Item
P0115
( 05–60 )Engine Coolant Temperature Cir-
cuitOpen or short in engine coolant temperature sensor circuit
 Engine coolant temperature sensor
 ECM

P0116
( 05–65 )Engine Coolant Temperature Cir-
cuit Range/Performance Prob-
lem
Engine coolant temperature sensor
P0117
( 05–60 )Engine Coolant Temperature Cir-
cuit Low InputShort in engine coolant temperature sensor circuit
 Engine coolant temperature sensor
 ECM

P0118
( 05–60 )Engine Coolant Temperature Cir-
cuit High InputOpen in engine coolant temperature sensor circuit
 Engine coolant temperature sensor
 ECM

P0120
( 05–66 )Throttle/Pedal Position Sensor/
Switch ”A” CircuitThrottle position sensor (built into throttle body)
 ECM
P0121
( 05–73 )Throttle/Pedal Position Sensor/
Switch ”A” Circuit Range/Perfor-
mance Problem
Throttle position sensor (built into throttle body)
P0122
( 05–66 )Throttle/Pedal Position Sensor/
Switch ”A” Circuit Low Input
Throttle position sensor (built into throttle body)
 Short in VTA1 circuit
 Open in VC circuit
 ECM

P0123
( 05–66 )Throttle/Pedal Position Sensor/
Switch ”A” Circuit High Input
Throttle position sensor (built into throttle body)
 Open in VTA1 circuit
 Open in E2 circuit
 VC and VTA1 circuits are short–circuited
 ECM

P0130 *4
( 05–74 )Oxygen Sensor Circuit Malfunc-
tion (Bank 1 Sensor 1)
Open or short in heated oxygen sensor circuit
 Heated oxygen sensor (Sensor 1)
 Heated oxygen sensor heater (Sensor 1)
 EFI relay
 Air induction system
 Fuel pressure
 Injector
 ECM

P0133 *4
( 05–84 )Oxygen Sensor Circuit Slow Re-
sponse (Bank 1 Sensor 1)
Open or short in heated oxygen sensor circuit
 Heated oxygen sensor (Sensor 1)
 Heated oxygen sensor heater (Sensor 1)
 EFI relay
 Air induction system
 Fuel pressure
 Injector
 ECM

P0134
( 05–91 )Oxygen Sensor Circuit No Activ-
ity Detected (Bank 1 Sensor 1)
Open or short in heated oxygen sensor circuit
 Heated oxygen sensor (Sensor 1)
 PCV valve and hose
 EFI relay
 Air induction system
 Fuel pressure
 Injector
 Gas leakage in exhaust system
 ECM

P0136
( 05–100 )Oxygen Sensor Circuit Malfunc-
tion (Bank 1 Sensor 2)
Open or short in heated oxygen sensor circuit
 Heated oxygen sensor (sensor 2)
 Heated oxygen sensor heater (sensor 2)
 EFI relay


–

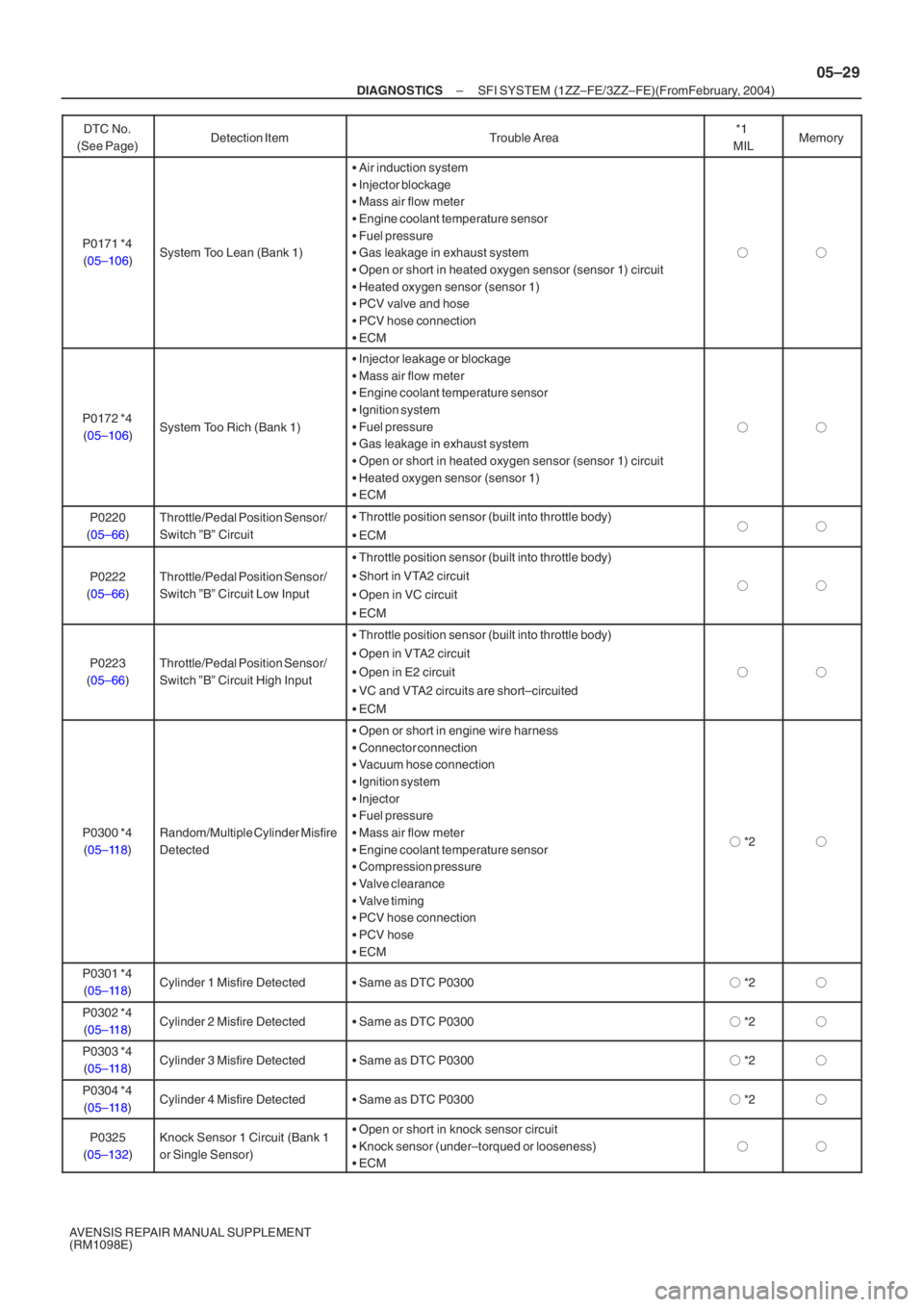

DIAGNOSTICS SFI SYSTEM (1ZZ–FE/3ZZ–FE)(From February, 2004)
05–29
AVENSIS REPAIR MANUAL SUPPLEMENT
(RM1098E)DTC No.
(See Page) Memory
*1
MIL
Trouble Area
Detection Item
P0171 *4
( 05–106 )System Too Lean (Bank 1)
Air induction system
 Injector blockage
 Mass air flow meter
 Engine coolant temperature sensor
 Fuel pressure
 Gas leakage in exhaust system
 Open or short in heated oxygen sensor (sensor 1) circuit
 Heated oxygen sensor (sensor 1)
 PCV valve and hose
 PCV hose connection
 ECM

P0172 *4
( 05–106 )System Too Rich (Bank 1)
Injector leakage or blockage
 Mass air flow meter
 Engine coolant temperature sensor
 Ignition system
 Fuel pressure
 Gas leakage in exhaust system
 Open or short in heated oxygen sensor (sensor 1) circuit
 Heated oxygen sensor (sensor 1)
 ECM

P0220
( 05–66 )Throttle/Pedal Position Sensor/
Switch ”B” CircuitThrottle position sensor (built into throttle body)
 ECM
P0222
( 05–66 )Throttle/Pedal Position Sensor/
Switch ”B” Circuit Low Input
Throttle position sensor (built into throttle body)
 Short in VTA2 circuit
 Open in VC circuit
 ECM

P0223
( 05–66 )Throttle/Pedal Position Sensor/
Switch ”B” Circuit High Input
Throttle position sensor (built into throttle body)
 Open in VTA2 circuit
 Open in E2 circuit
 VC and VTA2 circuits are short–circuited
 ECM

P0300 *4
( 05– 118 )Random/Multiple Cylinder Misfire
Detected
Open or short in engine wire harness
 Connector connection
 Vacuum hose connection
 Ignition system
 Injector
 Fuel pressure
 Mass air flow meter
 Engine coolant temperature sensor
 Compression pressure
 Valve clearance
 Valve timing
 PCV hose connection
 PCV hose
 ECM
 *2
P0301 *4
( 05– 118 )Cylinder 1 Misfire DetectedSame as DTC P0300 *2
P0302 *4
( 05– 118 )Cylinder 2 Misfire DetectedSame as DTC P0300 *2
P0303 *4
( 05– 118 )Cylinder 3 Misfire DetectedSame as DTC P0300 *2
P0304 *4
( 05– 118 )Cylinder 4 Misfire DetectedSame as DTC P0300 *2
P0325
( 05–132 )Knock Sensor 1 Circuit (Bank 1
or Single Sensor)Open or short in knock sensor circuit
 Knock sensor (under–torqued or looseness)
 ECM

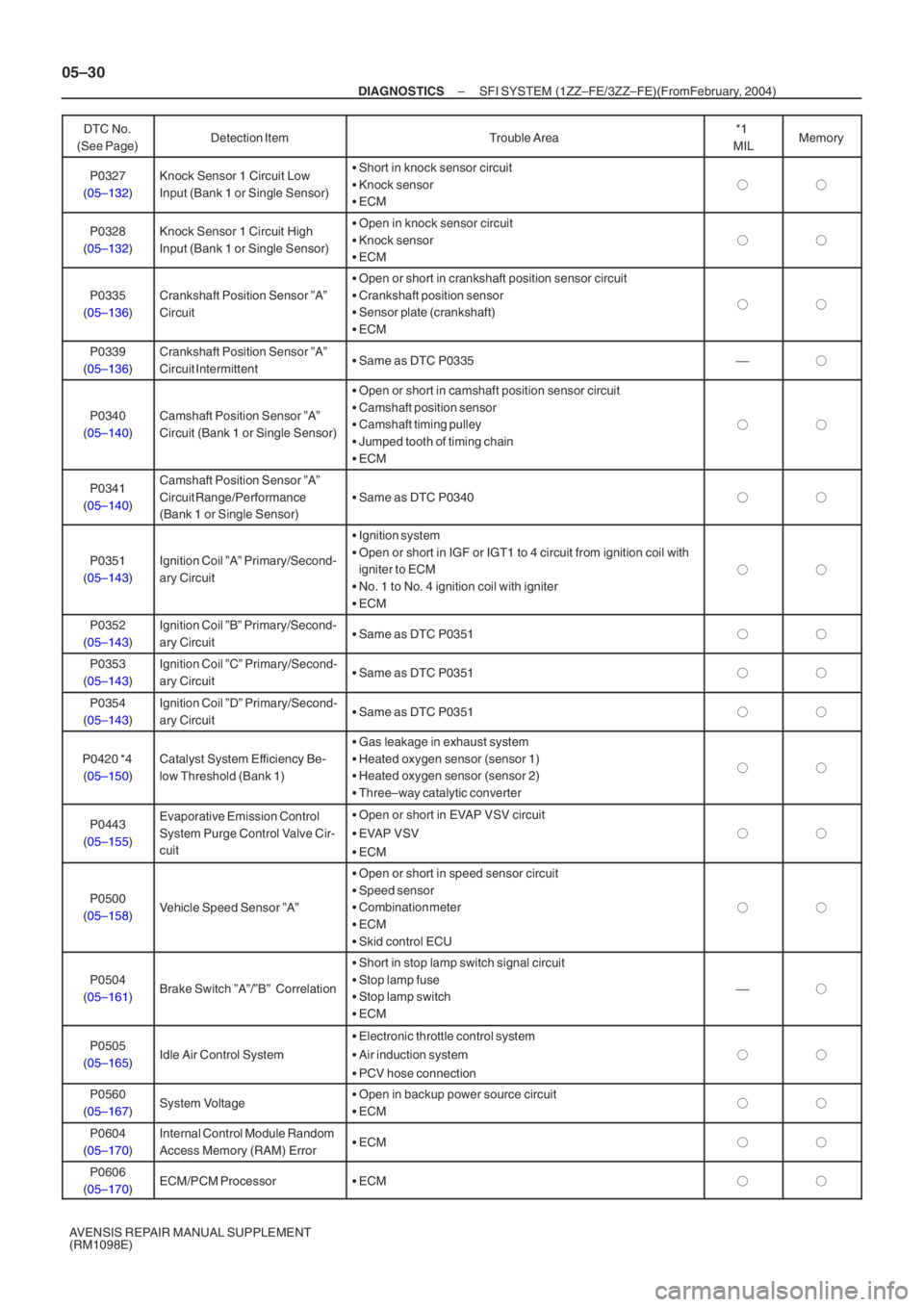

05–30
–
DIAGNOSTICS SFI SYSTEM (1ZZ–FE/3ZZ–FE)(From February, 2004)
AVENSIS REPAIR MANUAL SUPPLEMENT
(RM1098E) DTC No.
(See Page) Memory
*1
MIL
Trouble Area
Detection Item
P0327
( 05–132 )Knock Sensor 1 Circuit Low
Input (Bank 1 or Single Sensor)Short in knock sensor circuit
 Knock sensor
 ECM

P0328
( 05–132 )Knock Sensor 1 Circuit High
Input (Bank 1 or Single Sensor)Open in knock sensor circuit
 Knock sensor
 ECM

P0335
( 05–136 )Crankshaft Position Sensor ”A”
Circuit
Open or short in crankshaft position sensor circuit
 Crankshaft position sensor
 Sensor plate (crankshaft)
 ECM

P0339
( 05–136 )Crankshaft Position Sensor ”A”
Circuit IntermittentSame as DTC P0335
P0340
( 05–140 )Camshaft Position Sensor ”A”
Circuit (Bank 1 or Single Sensor)
Open or short in camshaft position sensor circuit
 Camshaft position sensor
 Camshaft timing pulley
 Jumped tooth of timing chain
 ECM

P0341
( 05–140 )Camshaft Position Sensor ”A”
Circuit Range/Performance
(Bank 1 or Single Sensor)
Same as DTC P0340
P0351
( 05–143 )Ignition Coil ”A” Primary/Second-
ary Circuit
Ignition system
 Open or short in IGF or IGT1 to 4 circuit from ignition coil with
igniter to ECM
 No. 1 to No. 4 ignition coil with igniter
 ECM

P0352
( 05–143 )Ignition Coil ”B” Primary/Second-
ary CircuitSame as DTC P0351
P0353
( 05–143 )Ignition Coil ”C” Primary/Second-
ary CircuitSame as DTC P0351
P0354
( 05–143 )Ignition Coil ”D” Primary/Second-
ary CircuitSame as DTC P0351
P0420 *4
( 05–150 )Catalyst System Efficiency Be-
low Threshold (Bank 1)
Gas leakage in exhaust system
 Heated oxygen sensor (sensor 1)
 Heated oxygen sensor (sensor 2)
 Three–way catalytic converter

P0443
( 05–155 )Evaporative Emission Control
System Purge Control Valve Cir-
cuit Open or short in EVAP VSV circuit
 EVAP VSV
 ECM

P0500
( 05–158 )Vehicle Speed Sensor ”A”
Open or short in speed sensor circuit
 Speed sensor
 Combination meter
 ECM
 Skid control ECU

P0504
( 05–161 )Brake Switch ”A”/”B” Correlation
Short in stop lamp switch signal circuit
 Stop lamp fuse
 Stop lamp switch
 ECM

P0505
( 05–165 )Idle Air Control System
Electronic throttle control system
 Air induction system
 PCV hose connection

P0560
( 05–167 )System VoltageOpen in backup power source circuit
 ECM
P0604
( 05–170 )Internal Control Module Random
Access Memory (RAM) ErrorECM
P0606
( 05–170 )ECM/PCM ProcessorECM

–

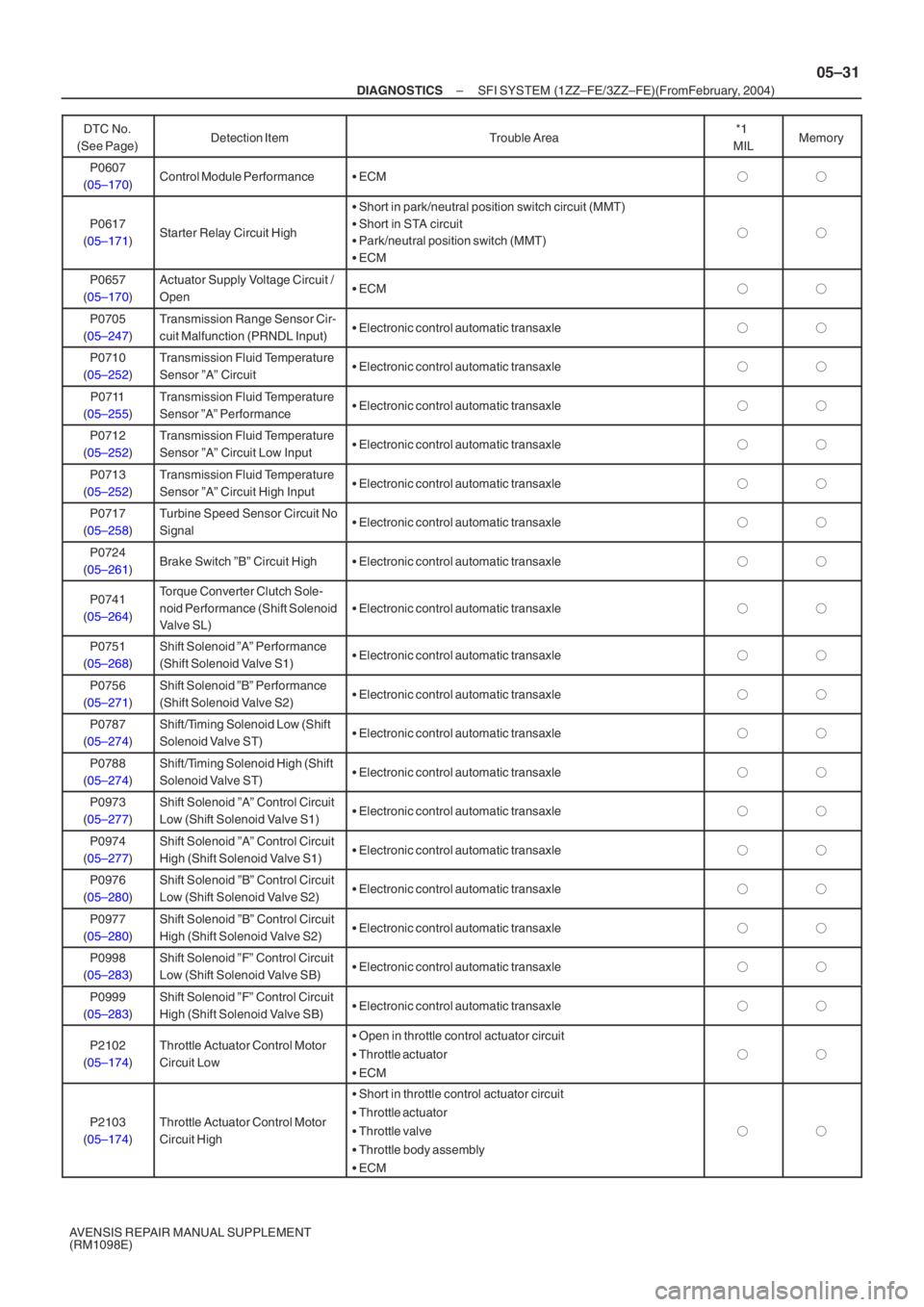

DIAGNOSTICS SFI SYSTEM (1ZZ–FE/3ZZ–FE)(From February, 2004)
05–31
AVENSIS REPAIR MANUAL SUPPLEMENT
(RM1098E)DTC No.
(See Page) Memory
*1
MIL
Trouble Area
Detection Item
P0607
( 05–170 )Control Module PerformanceECM
P0617
( 05–171 )Starter Relay Circuit High
Short in park/neutral position switch circuit (MMT)
 Short in STA circuit
 Park/neutral position switch (MMT)
 ECM

P0657
( 05–170 )Actuator Supply Voltage Circuit /
OpenECM
P0705
( 05–247 )Transmission Range Sensor Cir-
cuit Malfunction (PRNDL Input)Electronic control automatic transaxle
P0710
( 05–252 )Transmission Fluid Temperature
Sensor ”A” CircuitElectronic control automatic transaxle
P0711
( 05–255 )Transmission Fluid Temperature
Sensor ”A” PerformanceElectronic control automatic transaxle
P0712
( 05–252 )Transmission Fluid Temperature
Sensor ”A” Circuit Low InputElectronic control automatic transaxle
P0713
( 05–252 )Transmission Fluid Temperature
Sensor ”A” Circuit High InputElectronic control automatic transaxle
P0717
( 05–258 )Turbine Speed Sensor Circuit No
SignalElectronic control automatic transaxle
P0724
( 05–261 )Brake Switch ”B” Circuit HighElectronic control automatic transaxle
P0741
( 05–264 )Torque Converter Clutch Sole-
noid Performance (Shift Solenoid
Valve SL)
Electronic control automatic transaxle
P0751
( 05–268 )Shift Solenoid ”A” Performance
(Shift Solenoid Valve S1)Electronic control automatic transaxle
P0756
( 05–271 )Shift Solenoid ”B” Performance
(Shift Solenoid Valve S2)Electronic control automatic transaxle
P0787
( 05–274 )Shift/Timing Solenoid Low (Shift
Solenoid Valve ST) Electronic control automatic transaxle
P0788
( 05–274 )Shift/Timing Solenoid High (Shift
Solenoid Valve ST)Electronic control automatic transaxle
P0973
( 05–277 )Shift Solenoid ”A” Control Circuit
Low (Shift Solenoid Valve S1)Electronic control automatic transaxle
P0974
( 05–277 )Shift Solenoid ”A” Control Circuit
High (Shift Solenoid Valve S1)Electronic control automatic transaxle
P0976
( 05–280 )Shift Solenoid ”B” Control Circuit
Low (Shift Solenoid Valve S2)Electronic control automatic transaxle
P0977
( 05–280 )Shift Solenoid ”B” Control Circuit
High (Shift Solenoid Valve S2)Electronic control automatic transaxle
P0998
( 05–283 )Shift Solenoid ”F” Control Circuit
Low (Shift Solenoid Valve SB)Electronic control automatic transaxle
P0999
( 05–283 )Shift Solenoid ”F” Control Circuit
High (Shift Solenoid Valve SB)Electronic control automatic transaxle
P2102
( 05–174 )Throttle Actuator Control Motor
Circuit LowOpen in throttle control actuator circuit
 Throttle actuator
 ECM

P2103
( 05–174 )Throttle Actuator Control Motor
Circuit High
Short in throttle control actuator circuit
 Throttle actuator
 Throttle valve
 Throttle body assembly
 ECM

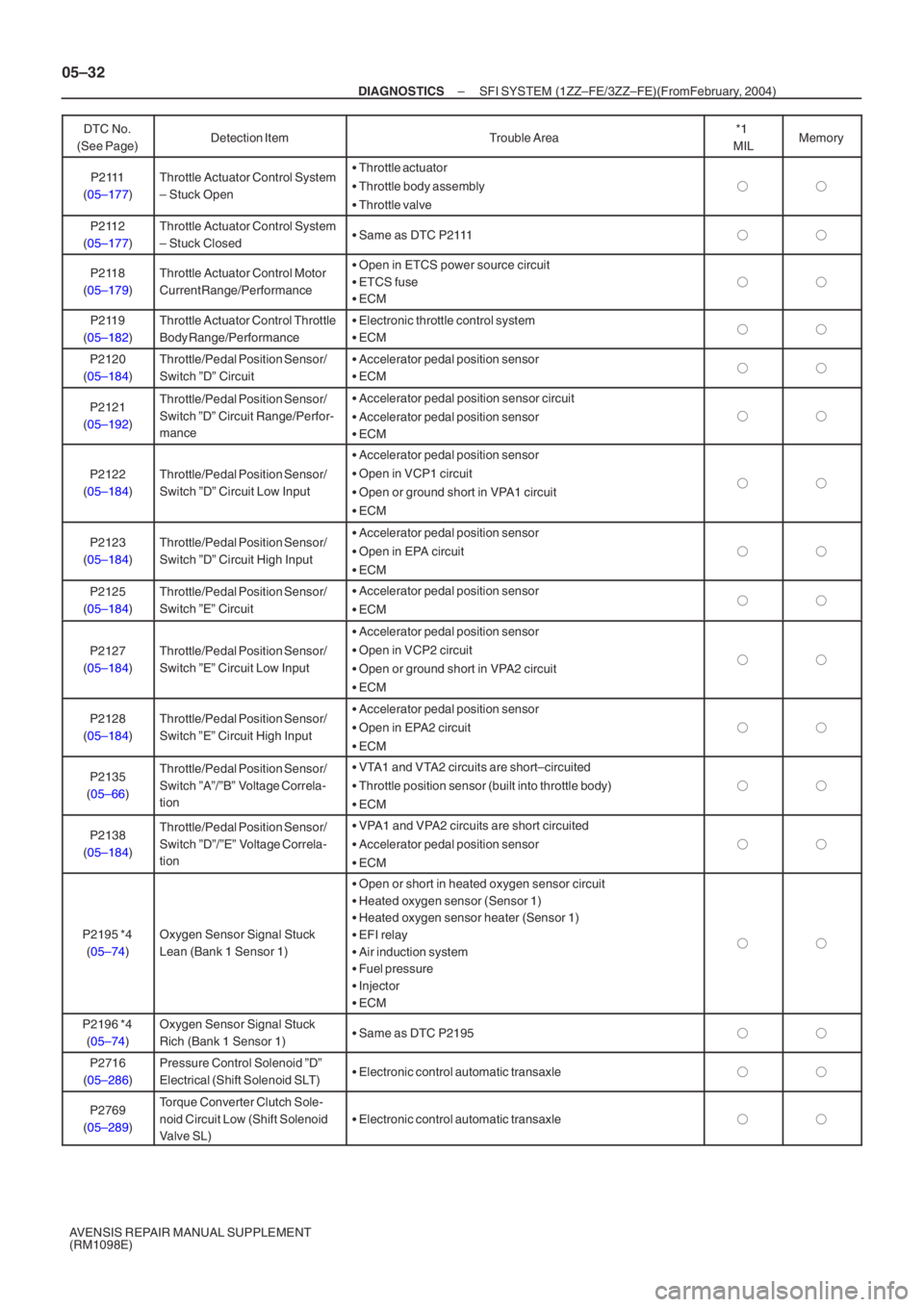

05–32
–
DIAGNOSTICS SFI SYSTEM (1ZZ–FE/3ZZ–FE)(From February, 2004)
AVENSIS REPAIR MANUAL SUPPLEMENT
(RM1098E) DTC No.
(See Page) Memory
*1
MIL
Trouble Area
Detection Item
P2111
( 05–177 )Throttle Actuator Control System
– Stuck OpenThrottle actuator
 Throttle body assembly
 Throttle valve

P2112
( 05–177 )Throttle Actuator Control System
– Stuck ClosedSame as DTC P2111
P2118
( 05–179 )Throttle Actuator Control Motor
Current Range/PerformanceOpen in ETCS power source circuit
 ETCS fuse
 ECM

P2119
( 05–182 )Throttle Actuator Control Throttle
Body Range/PerformanceElectronic throttle control system
 ECM
P2120
( 05–184 )Throttle/Pedal Position Sensor/
Switch ”D” CircuitAccelerator pedal position sensor
 ECM
P2121
( 05–192 )Throttle/Pedal Position Sensor/
Switch ”D” Circuit Range/Perfor-
manceAccelerator pedal position sensor circuit
 Accelerator pedal position sensor
 ECM

P2122
( 05–184 )Throttle/Pedal Position Sensor/
Switch ”D” Circuit Low Input
Accelerator pedal position sensor
 Open in VCP1 circuit
 Open or ground short in VPA1 circuit
 ECM

P2123
( 05–184 )Throttle/Pedal Position Sensor/
Switch ”D” Circuit High InputAccelerator pedal position sensor
 Open in EPA circuit
 ECM

P2125
( 05–184 )Throttle/Pedal Position Sensor/
Switch ”E” CircuitAccelerator pedal position sensor
 ECM
P2127
( 05–184 )Throttle/Pedal Position Sensor/
Switch ”E” Circuit Low Input
Accelerator pedal position sensor
 Open in VCP2 circuit
 Open or ground short in VPA2 circuit
 ECM

P2128
( 05–184 )Throttle/Pedal Position Sensor/
Switch ”E” Circuit High InputAccelerator pedal position sensor
 Open in EPA2 circuit
 ECM

P2135
( 05–66 )Throttle/Pedal Position Sensor/
Switch ”A”/”B” Voltage Correla-
tionVTA1 and VTA2 circuits are short–circuited
 Throttle position sensor (built into throttle body)
 ECM

P2138
( 05–184 )Throttle/Pedal Position Sensor/
Switch ”D”/”E” Voltage Correla-
tionVPA1 and VPA2 circuits are short circuited
 Accelerator pedal position sensor
 ECM

P2195 *4
( 05–74 )Oxygen Sensor Signal Stuck
Lean (Bank 1 Sensor 1)
Open or short in heated oxygen sensor circuit
 Heated oxygen sensor (Sensor 1)
 Heated oxygen sensor heater (Sensor 1)
 EFI relay
 Air induction system
 Fuel pressure
 Injector
 ECM

P2196 *4
( 05–74 )Oxygen Sensor Signal Stuck
Rich (Bank 1 Sensor 1)Same as DTC P2195
P2716
( 05–286 )Pressure Control Solenoid ”D”
Electrical (Shift Solenoid SLT)Electronic control automatic transaxle
P2769
( 05–289 )Torque Converter Clutch Sole-
noid Circuit Low (Shift Solenoid
Valve SL)
Electronic control automatic transaxle

05–192
–
DIAGNOSTICS SFI SYSTEM (1ZZ–FE/3ZZ–FE)(From February, 2004)
AVENSIS REPAIR MANUAL SUPPLEMENT
(RM1098E)

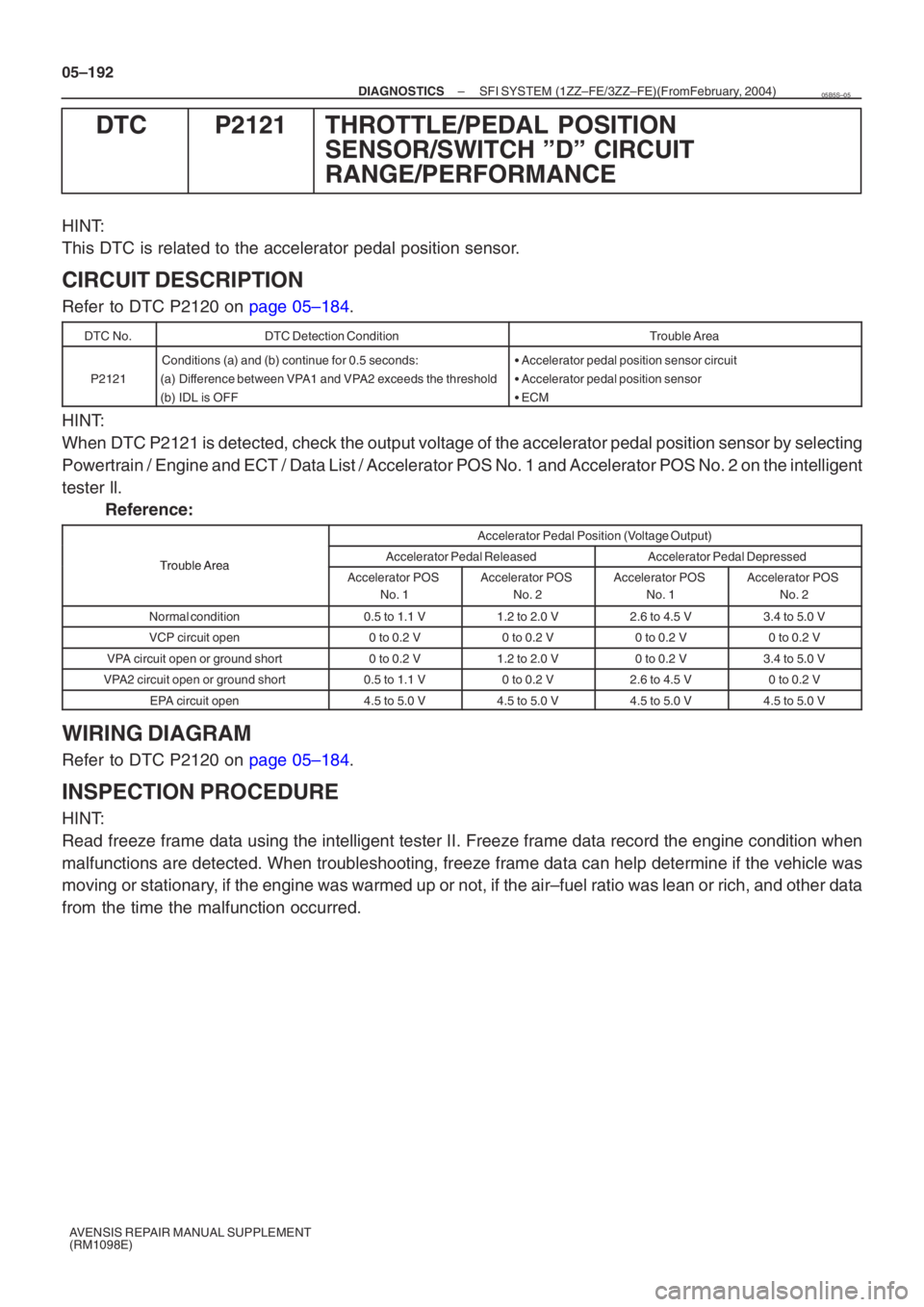

DTC P2121 THROTTLE/PEDAL POSITION SENSOR/SWITCH ”D” CIRCUIT
RANGE/PERFORMANCE
HINT:
This DTC is related to the accelerator pedal position senso r.
CIRCUIT DESCRIPTION
Refer to DTC P2120 on page 05–184.
DTC No.DTC Detection ConditionTrouble Area
P2121
Conditions (a) and (b) continue for 0.5 seconds:
(a) Difference between VPA1 and VPA2 exceeds the threshold
(b) IDL is OFF Accelerator pedal position sensor circuit
 Accelerator pedal position sensor
 ECM
HINT:
When DTC P2121 is detected, check the output voltage of the accelerator peda\
l position sensor by selecting
Powertrain / Engine and ECT / Data List / Accelerator POS No. 1 and Accelerator POS No. 2 on the int\
elligent
tester ll.
Reference:
Accelerator Pedal Position (Voltage Output)
Trouble AreaAccelerator Pedal ReleasedAccelerator Pedal DepressedTrouble AreaAccelerator POS
No. 1Accelerator POS No. 2Accelerator POS No. 1Accelerator POS No. 2
Normal condition0.5 to 1.1 V1.2 to 2.0 V2.6 to 4.5 V3.4 to 5.0 V
VCP circuit open0 to 0.2 V0 to 0.2 V0 to 0.2 V0 to 0.2 V
VPA circuit open or ground short0 to 0.2 V1.2 to 2.0 V0 to 0.2 V3.4 to 5.0 V
VPA2 circuit open or ground short0.5 to 1.1 V0 to 0.2 V2.6 to 4.5 V0 to 0.2 V
EPA circuit open4.5 to 5.0 V4.5 to 5.0 V4.5 to 5.0 V4.5 to 5.0 V
WIRING DIAGRAM
Refer to DTC P2120 on page 05–184.
INSPECTION PROCEDURE
HINT:
Read freeze frame data using the intelligent tester II. Freeze frame data record the engine condition\
when
malfunctions are detected. When troubleshooting, freeze frame data can h\
elp determine if the vehicle was
moving or stationary, if the engine was warmed up or not, if the air–fuel ratio was lean \
or rich, and other data
from the time the malfunction occurred.
05B5S–05

A84814
VCP2EP2
EP1
VCP1
Component Side (RHD):
12
5
64
3
Accelerator Pedal Position Sensor
A84814
VCP1 EP1
EP2
VCP2
12
5
64
3
Accelerator Pedal Position Sensor
Component Side (LHD):
A66060
VPA2 (+)
VPA (+)
EPA (–)
EPA2 (–)
ECM Connector
E9
–
DIAGNOSTICS SFI SYSTEM (1ZZ–FE/3ZZ–FE)(From February, 2004)
05–193
AVENSIS REPAIR MANUAL SUPPLEMENT
(RM1098E)

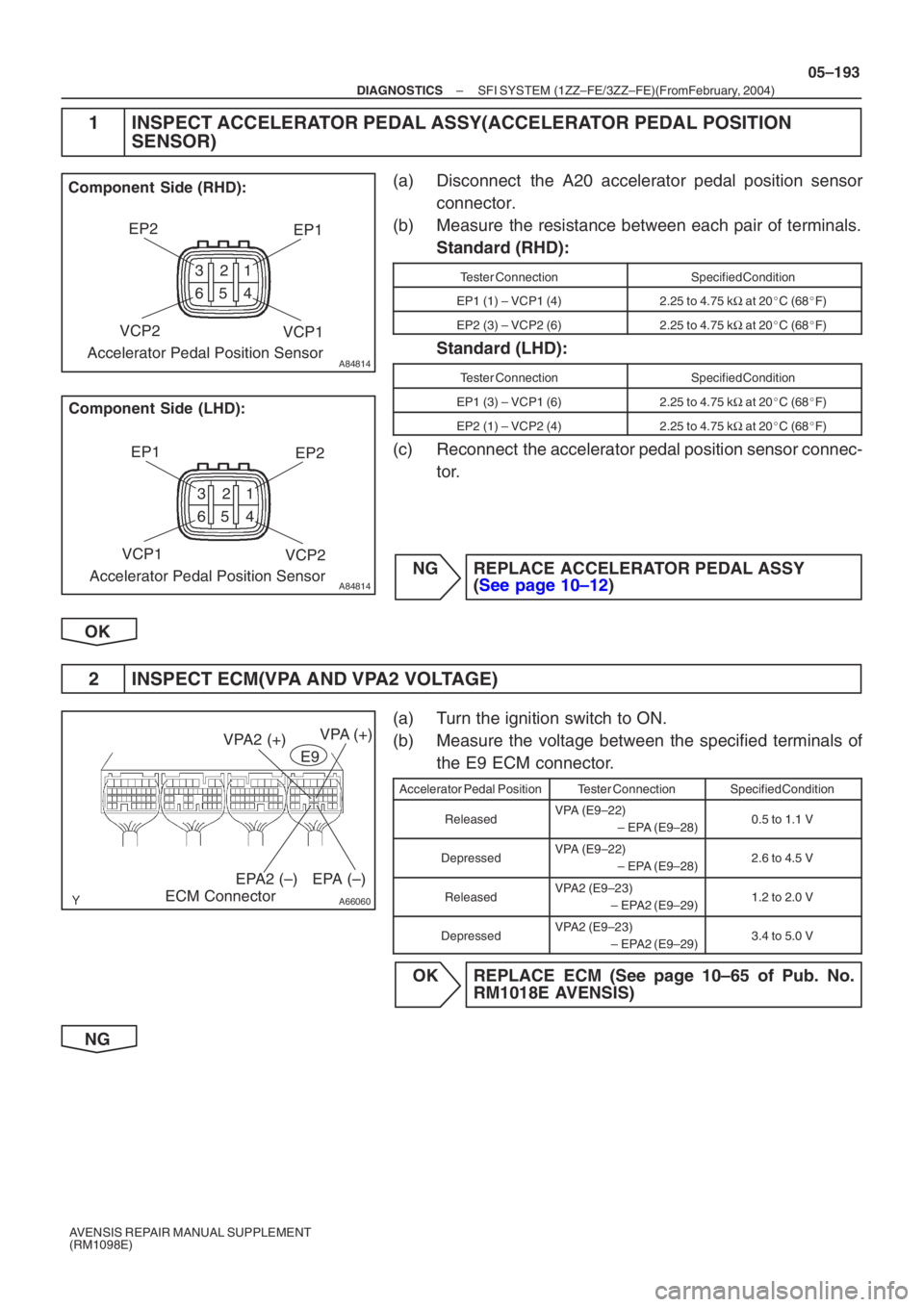

1 INSPECT ACCELERATOR PEDAL ASSY(ACCELERATOR PEDAL POSITION
SENSOR)
(a) Disconnect the A20 accelerator pedal position sensor
connector.
(b) Measure the resistance between each pair of terminals. Standard (RHD):
Tester ConnectionSpecified Condition
EP1 (1) – VCP1 (4)2.25 to 4.75 k Ω at 20 C (68 F)
EP2 (3) – VCP2 (6)2.25 to 4.75 k Ω at 20 C (68 F)
Standard (LHD):
Tester ConnectionSpecified Condition
EP1 (3) – VCP1 (6)2.25 to 4.75 k Ω at 20 C (68 F)
EP2 (1) – VCP2 (4)2.25 to 4.75 k Ω at 20 C (68 F)
(c) Reconnect the accelerator pedal position sensor connec-
tor.
NG REPLACE ACCELERATOR PEDAL ASSY (See page 10–12 )
OK
2 INSPECT ECM(VPA AND VPA2 VOLTAGE)
(a) Turn the ignition switch to ON.
(b) Measure the voltage between the specified terminals of the E9 ECM connector.
Accelerator Pedal PositionTester ConnectionSpecified Condition
ReleasedVPA (E9–22)
– EPA (E9–28)0.5 to 1.1 V
DepressedVPA (E9–22) – EPA (E9–28)2.6 to 4.5 V
ReleasedVPA2 (E9–23) – EPA2 (E9–29)1.2 to 2.0 V
DepressedVPA2 (E9–23) – EPA2 (E9–29)3.4 to 5.0 V
OK REPLACE ECM (See page 10–65 of Pub. No.RM1018E AVENSIS)
NG

A84847
EP1 EP2VPA2
VCP1 VPA1VCP2
A20
Wire Harness Side (RHD):
Front View
Accelerator Pedal Position Sensor
Connector
A84847
EP1
EP2VPA2
VCP1
VPA1
VCP2
A20
Accelerator Pedal Position Sensor
Connector
Wire Harness Side (LHD):
Front View
A81091
E9
ECM Connector VPA
VCPA
VPA2
EPA2 VCP2EPA
05–194
–
DIAGNOSTICS SFI SYSTEM (1ZZ–FE/3ZZ–FE)(From February, 2004)
AVENSIS REPAIR MANUAL SUPPLEMENT
(RM1098E)

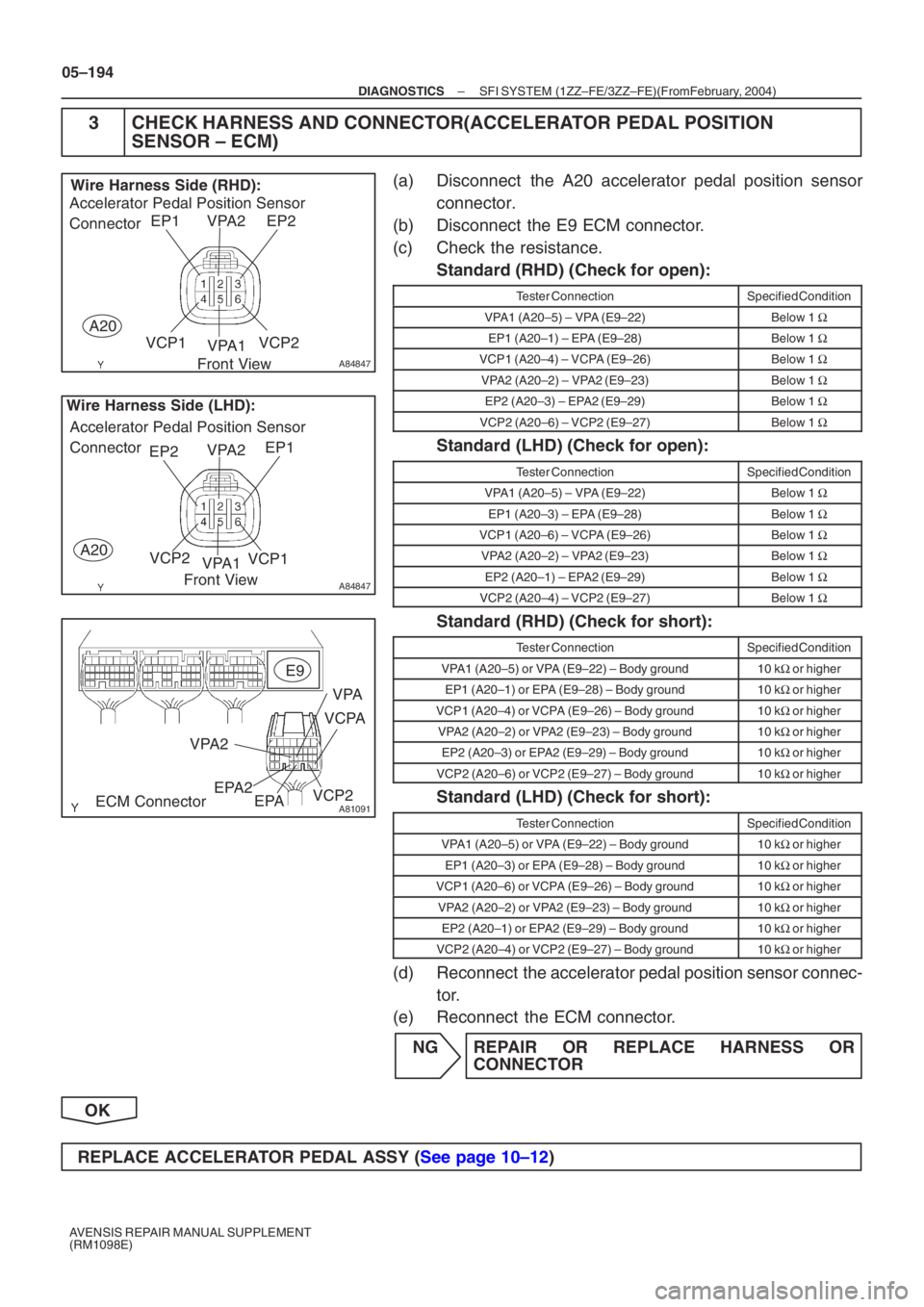

3 CHECK HARNESS AND CONNECTOR(ACCELERATOR PEDAL POSITION SENSOR – ECM)
(a) Disconnect the A20 accelerator pedal position sensor
connector.
(b) Disconnect the E9 ECM connector.
(c) Check the resistance. Standard (RHD) (Check for open):
Tester ConnectionSpecified Condition
VPA1 (A20–5) – VPA (E9–22)Below 1 Ω
EP1 (A20–1) – EPA (E9–28)Below 1 Ω
VCP1 (A20–4) – VCPA (E9–26)Below 1 Ω
VPA2 (A20–2) – VPA2 (E9–23)Below 1 Ω
EP2 (A20–3) – EPA2 (E9–29)Below 1 Ω
VCP2 (A20–6) – VCP2 (E9–27)Below 1 Ω
Standard (LHD) (Check for open):
Tester ConnectionSpecified Condition
VPA1 (A20–5) – VPA (E9–22)Below 1 Ω
EP1 (A20–3) – EPA (E9–28)Below 1 Ω
VCP1 (A20–6) – VCPA (E9–26)Below 1 Ω
VPA2 (A20–2) – VPA2 (E9–23)Below 1 Ω
EP2 (A20–1) – EPA2 (E9–29)Below 1 Ω
VCP2 (A20–4) – VCP2 (E9–27)Below 1 Ω
Standard (RHD) (Check for short):
Tester ConnectionSpecified Condition
VPA1 (A20–5) or VPA (E9–22) – Body ground10 kΩ or higher
EP1 (A20–1) or EPA (E9–28) – Body ground10 k Ω or higher
VCP1 (A20–4) or VCPA (E9–26) – Body ground10 k Ω or higher
VPA2 (A20–2) or VPA2 (E9–23) – Body ground10 k Ω or higher
EP2 (A20–3) or EPA2 (E9–29) – Body ground10 k Ω or higher
VCP2 (A20–6) or VCP2 (E9–27) – Body ground10 k Ω or higher
Standard (LHD) (Check for short):
Tester ConnectionSpecified Condition
VPA1 (A20–5) or VPA (E9–22) – Body ground10 k Ω or higher
EP1 (A20–3) or EPA (E9–28) – Body ground10 k Ω or higher
VCP1 (A20–6) or VCPA (E9–26) – Body ground10 k Ω or higher
VPA2 (A20–2) or VPA2 (E9–23) – Body ground10 k Ω or higher
EP2 (A20–1) or EPA2 (E9–29) – Body ground10 k Ω or higher
VCP2 (A20–4) or VCP2 (E9–27) – Body ground10 k Ω or higher
(d) Reconnect the accelerator pedal position sensor connec-
tor.
(e) Reconnect the ECM connector.
NG REPAIR OR REPLACE HARNESS OR CONNECTOR
OK
REPLACE ACCELER ATOR PEDAL ASSY ( See page 10–12)
