2005 TOYOTA AVENSIS sensor

//
3020
10
5
3
02040
0.1 1
0.3 0.2
0.5 2
60 80 100–20
(–4) (104) (140) (176)(32) (68) (212)
A81700
Ohmmeter
Acceptable
Temperature C ( F)
Resistance k Ω
–
DIAGNOSTICS SFI SYSTEM (1ZZ–FE/3ZZ–FE)(From February, 2004)
05–131
AVENSIS REPAIR MANUAL SUPPLEMENT
(RM1098E)
18 INSPECT ENGINE COOLANT TEMPERATURE SENSOR(RESISTANCE)
(a) Remove the engine coolant temperature sensor.
(b) Measure the resistance between the terminals.
Standard:
Tester ConnectionSpecified Condition
1 – 22.32 to 2.59 k Ω at 20 C (68 F)
1 – 20.310 to 0.326 k Ω at 80 C (176 F)
NOTICE:
When checking the engine coolant temperature sensor in
water, be careful not to allow water to get in contact with the
terminals. After the check, dry the sensor.
HINT:
Alternative procedure: Connect an ohmmeter to the installed
engine coolant temperature sensor and read the resistance.
Use an infrared thermometer to measure the engine tempera-
ture in the immediate vicinity of the sensor. Compare these val-
ues against the resistance/temperature graph. Change the en-
gine temperature (warm up or allow to cool down) and repeat
the test.
NG REPLACE ENGINE COOLANT TEMPERATURE SENSOR
OK
19 PROCEED TO STEP APPROPRIATE FOR NUMBER OF MISFIRING CYLINDERS(REFER TO RESULT OF STEP 4)
HINT:
If the result of step 4 is ”1 or 2 cylinders”, proceed to A.
If the result of step 4 is ”3 cylinders or more”, proceed to B.
B GO BACK TO STEP 4
A
CHECK FOR INTERMITTENT PROBLEMS ( See page 05–9)

A85286

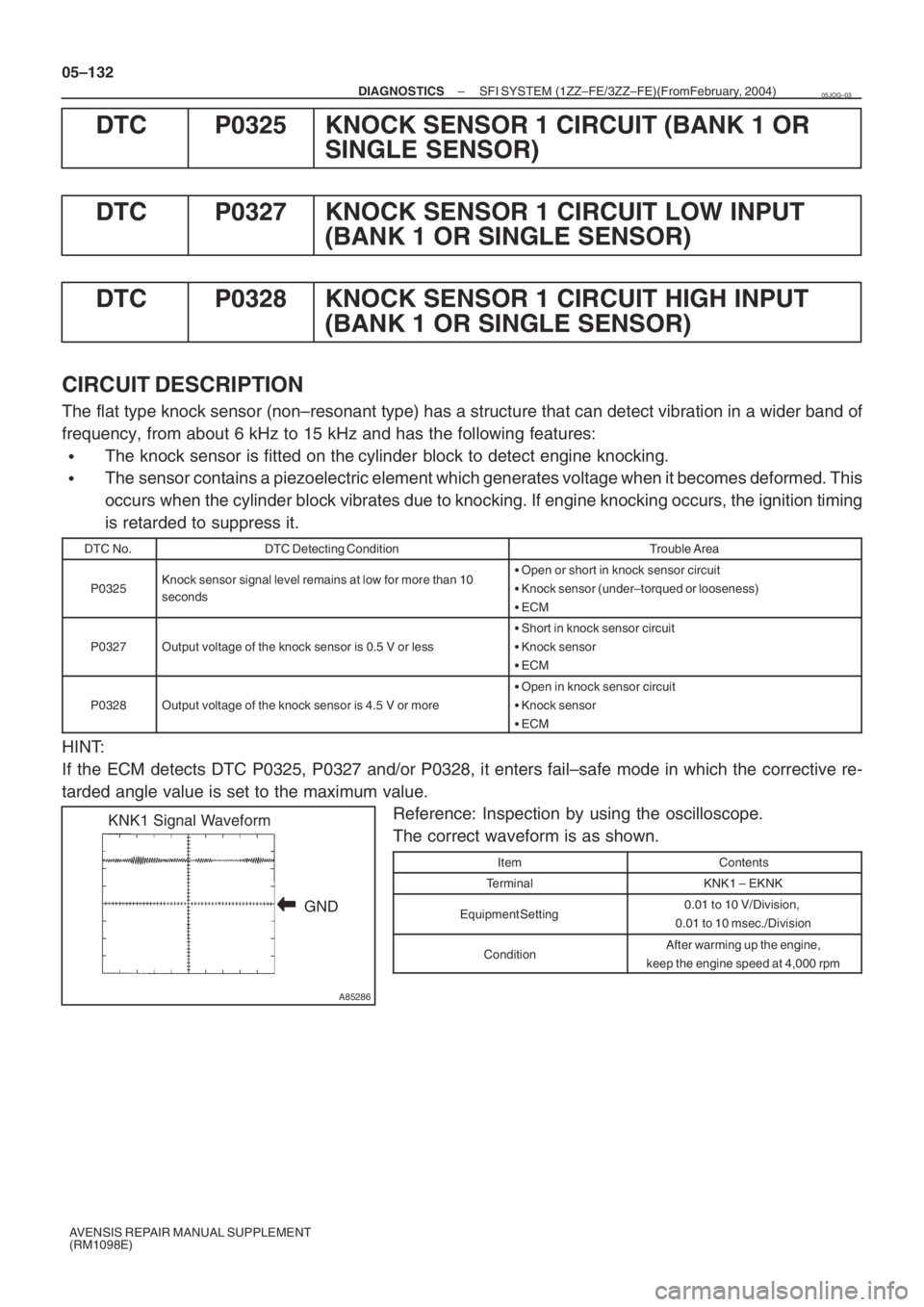

GND KNK1 Signal Waveform 05–132
– DIAGNOSTICSSFI SYSTEM (1ZZ–FE/3ZZ–FE)(From February, 2004)
AVENSIS REPAIR MANUAL SUPPLEMENT
(RM1098E)
DTC P0325 KNOCK SENSOR 1 CIRCUIT (BANK 1 OR
SINGLE SENSOR)
DTC P0327 KNOCK SENSOR 1 CIRCUIT LOW INPUT
(BANK 1 OR SINGLE SENSOR)
DTC P0328 KNOCK SENSOR 1 CIRCUIT HIGH INPUT
(BANK 1 OR SINGLE SENSOR)
CIRCUIT DESCRIPTION
The flat type knock sensor (non–resonant type) has a structure that can detect vibration in a wider band of
frequency, from about 6 kHz to 15 kHz and has the following features:
The knock sensor is fitted on the cylinder block to detect engine knocking.
The sensor contains a piezoelectric element which generates voltage when it becomes deformed. This
occurs when the cylinder block vibrates due to knocking. If engine knocking occurs, the ignition timing
is retarded to suppress it.
DTC No.DTC Detecting ConditionTrouble Area
P0325Knock sensor signal level remains at low for more than 10
secondsOpen or short in knock sensor circuit
Knock sensor (under–torqued or looseness)
ECM
P0327Output voltage of the knock sensor is 0.5 V or less
Short in knock sensor circuit
Knock sensor
ECM
P0328Output voltage of the knock sensor is 4.5 V or more
Open in knock sensor circuit
Knock sensor
ECM
HINT:
If the ECM detects DTC P0325, P0327 and/or P0328, it enters fail–safe mode in which the corrective re-
tarded angle value is set to the maximum value.
Reference: Inspection by using the oscilloscope.
The correct waveform is as shown.
ItemContents
TerminalKNK1 – EKNK
Equipment Setting0.01 to 10 V/Division,
0.01 to 10 msec./Division
ConditionAfter warming up the engine,
keep the engine speed at 4,000 rpm
05JOG–03

056IK–10
–
DIAGNOSTICS ELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U341E) (From February, 2004)05–245
AVENSIS REPAIR MANUAL SUPPLEMENT
(RM1098E)
DIAGNOSTIC TROUBLE CODE CHART
If a DTC is displayed during the DTC check, check the parts listed in the \
table below and proceed to the page
given.
HINT:

*1 :  ... MIL (Malfunction Indicator Lamp) light up

*2 : ’’ ’’ mark means ECM memorizes the malfunction code if the ECM detects the DT\
C detection
condition.

This DTC may be output when the clutch, brake and gear components etc. inside\
the automatic trans-
axle are damaged.
DTC No.
(See Page)Detection ItemTrouble AreaMIL *1Memory *2
P0500
( 05–158 )Vehicle Speed Sensor ”A”

Combination meter

Open or short in vehicle speed sensor circuit

Vehicle speed sensor

ECM

P0705
( 05–247 )Transmission Range Sensor Cir-
cuit Malfunction (PRNDL Input)
Open or short in park/neutral position switch circuit

Park/neutral position switch

ECM

P0710
( 05–252 )Transmission Fluid Temperature
Sensor ”A” Circuit
Open or short in ATF temperature sensor circuit

Transmission wire (ATF temperature sensor)

ECM

P0711
( 05–255 )Transmission Fluid Temperature
Sensor ”A” Performance
Open or short in ATF temperature sensor circuit

Transmission wire (ATF temperature sensor)

ECM

P0712
( 05–252 )Transmission Fluid Temperature
Sensor ”A” Circuit Low Input
Short in ATF temperature sensor circuit

Transmission wire (ATF temperature sensor)

ECM

P0713
( 05–252 )Transmission Fluid Temperature
Sensor ”A” Circuit High Input
Open in ATF temperature sensor circuit

Transmission wire (ATF temperature sensor)

ECM

P0717
( 05–258 )Turbine Speed Sensor Circuit No
Signal

Open or short in transmission revolution sensor NT (speed
sensor NT) circuit

Transmission revolution sensor NT (speed sensor NT)

ECM

Automatic transaxle assembly

P0724
( 05–261 )Brake Switch ”B” Circuit High

Short in stop light switch circuit

Stop light switch

ECM

P0741
( 05–264 )Torque Converter Clutch Sole-
noid Performance
(Shift Solenoid Valve SL)

Shift solenoid valve SL remains open or closed

Valve body is blocked

Shift solenoid valve SL

Torque converter clutch

Automatic transaxle (clutch, brake or gear etc.)

Line pressure is too low

ECM

P0751
( 05–268 )Shift Solenoid ”A” Performance
(Shift Solenoid Valve S1)

Shift solenoid valve S1 remains open or closed

Valve body is blocked

Shift solenoid valve S1

Automatic transaxle (clutch, brake or gear etc.)

ECM

P0756
( 05–271 )Shift Solenoid ”B” Performance
(Shift Solenoid Valve S2)

Shift solenoid valve S2 remains open or closed

Valve body is blocked

Shift solenoid valve S2

Automatic transaxle (clutch, brake or gear etc.)

ECM


05L2J–01
C95801
E13 E12 E10 E9
– DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U341E) (From February, 2004)05–233
AVENSIS REPAIR MANUAL SUPPLEMENT
(RM1098E)
TERMINALS OF ECM
1. ECM
HINT:
Each ECM terminal’s standard voltage is shown in the table below.
In the table, first follow the information under ”Condition”. Look under ”Symbols (Terminal No.)” for the termi-
nals to inspected. The standard voltage between the terminals is shown under ”Specific Condition”.
Use the illustration above as a reference for the ECM terminals.
Symbols (Terminals No.)Wiring ColorTerminal DescriptionConditionSpecified Condition
SLT+ (E12–13) –
SLT– (E12–12)P–L – PSLT solenoid signalEngine idle speedPulse generation
(See waveform 1)
THO (E12–32) – E2 (E13–28)V – BRATF temperature sensor
signalATF temperature: 115 C (239 F)
or moreBelow 1.5 V
ST (E12–20) – E1 (E13–5)R–B – BRST solenoid signalIG switch ONBelow 1 V
↑↑↑IG switch ON and R gear10 to 14 V
SL (E12–15) – E1 (E13–5)R – BRSL solenoid signalIG switch ONBelow 1 V
↑↑↑Vehicle driving under lock–up range10 to 14 V
S2 (E12–10) – E1 (E13–5)P – BRS2 solenoid signalIG switch ONBelow 1 V
↑↑↑1st or O/D gear10 to 14 V
↑↑↑2nd or 3rd gearBelow 1 V
S1 (E12–11) – E1 (E13–5)P–L – BRS1 solenoid signalIG switch ON10 to 14 V
↑↑↑1st or 2nd gear10 to 14 V
↑↑↑3rd or O/D gearBelow 1 V
SB (E12–8) – E1 (E13–5)L – BRSB solenoid signalIG switch ONBelow 1 V
NT+ (E12–26) – NT– (E12–34)B–O – BSpeed sensor (NT) signalVehicle speed 20 km/h (12 mph)Pulse generation
(See waveform 2)
SPT (E10–8) – E1 (E13–5)L – BRS shift position switch sig-
nalIG switch ON and shift lever S posi-
tion10 to 14 V
↑↑↑IG switch ON and shift lever except
S positionBelow 1 V
D (E10–10) – E1 (E13–5)LG–B – BRD shift position switch sig-
nalIG switch ON and shift lever D and
S position10 to 14 V
↑↑↑IG switch ON and shift lever except
D and S positionBelow 1 V
R (E10–11) – E1 (E13–5)R–Y – BRR shift position switch sig-
nalIG switch ON and shift lever R posi-
tion10 to 14 V
↑↑↑IG switch ON and shift lever except
R positionBelow 1 V

G31593
Warmed up
sufficiently
Approx.100 km/h
(62 mph)
Vehicle Speed
Approx. 80 km/h
(50 mph)
0
Lock–up ON
Vehicle Speed
Stop
(Idling)
Maintain a constant speed or gradual acceleration (with the throttle open)
for 3 minutes or more.
*1
Normal acceleration
through all the gears from 1st to 4th(O/D) 05–228
– DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U341E) (From February, 2004)
AVENSIS REPAIR MANUAL SUPPLEMENT
(RM1098E)
HINT:
*1: Drive at such a speed in the uppermost gear, to engage lock–up. The vehicle can be driven at a speed
lower than that in the above diagram under the lock–up condition.
NOTICE:
It is necessary to drive the vehicle for approximately 30 minutes to detect DTC P0711 (ATF tempera-
ture sensor malfunction).

05KAM–02
NE
THW
VTA1, 2
VC
SPD
STP
THONTS1
S2
SLT
SB
SL
W
SIL
TC ECMCrankshaft Position Sensor
Engine Coolant
Temperature Sensor
Throttle Position Sensor
Park/Neutral Position Switch
Speed Sensor
Skid Control ECU
Combination Meter
Input Turbine Speed Sensor
(Speed Sensor NT)
Stop Lamp Switch Assy
ATF (Automatic Transmission
Fluid) Temperature SensorShift Solenoid Valve S1
Shift Solenoid Valve S2
Shift Solenoid Valve SLT
MIL
(Malfunction Indicator Lamp)
DLC3
(Data Link Connector 3) Shift Solenoid Valve SB
Shift Solenoid Valve SL NSW
P, R, N, D
SFTU
SFTD Transmission Control Switch
(Transmission Floor Shift Assy)SPT
Kick Down SwitchKD
*1
*1: LHD
ST
Shift Solenoid Valve ST
– DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U341E) (From February, 2004)05–213
AVENSIS REPAIR MANUAL SUPPLEMENT
(RM1098E)
SYSTEM DIAGRAM
The configuration of the electronic control system in the U341E automatic transaxles is as shown in the fol-
lowing chart.

05KAK–01
– DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U341E) (From February, 2004)05–209
AVENSIS REPAIR MANUAL SUPPLEMENT
(RM1098E)
PART AND SYSTEM NAME LIST
This reference list indicates the part names used in this manual along with their definitions.
Part and system nameDefinition
Toyota HCAC system, Hydrocarbon adsorptive Catalyst
(HCAC) system, HC adsorptive three–way catalystHC adsorptive three–way catalytic converter
Variable Valve Timing sensor, VVT sensorCamshaft position sensor
Variable valve timing system, VVT systemCamshaft timing control system
Camshaft timing oil control valve, Oil control valve OCV,
VVT, VSVCamshaft timing oil control valve
Variable timing and lift, VVTLCamshaft timing and lift control
Crankshaft position sensor ”A”Crankshaft position sensor
Engine speed sensorCrankshaft position sensor
THAIntake air temperature
Knock control moduleEngine knock control module
Knock sensorEngine knock sensor
Mass or volume air flow circuitMass air flow sensor circuit
Vacuum sensorManifold air pressure sensor
Internal control module, Control module, Engine control
ECU, PCMPower train control module
FC idleDeceleration fuel cut
Idle air control valveIdle speed control
VSV for CCV, Canister close valve VSV for canister controlEvaporative emissions canister vent valve
VSV for EVAP, Vacuum switching valve assembly No. 1,
EVAP VAV, Purge VSVEvaporative emissions canister purge valve
VSV for pressure switching valve, Bypass VSVEvaporative emission pressure switching valve
Vapor pressure sensor, EVAP pressure sensor, Evaporative
emission control system pressure sensorFuel tank pressure sensor
Charcoal canisterEvaporative emissions canister
ORVR systemOn–boad refueling vapor recovery system
Intake manifold runner controlIntake manifold tuning system
Intake manifold runner valve, IMRV, IACV (runner valve)Intake manifold tuning valve
Intake control VSVIntake manifold tuning solenoid valve
AFSAir fuel ratio sensor
O2 sensorHeater oxygen sensor
Oxygen sensor pumping current circuitOxygen sensor output signal
Oxygen sensor reference ground circuitOxygen sensor signal ground
Accel position sensorAccelerator pedal position sensor
Throttle actuator control motor, Actuator control motor, Elec-
tronic throttle motor, Throttle control motorElectronic throttle actuator
Electronic throttle control system, Throttle actuator control
systemElectronic throttle control system
Throttle/pedal position sensor, Throttle/pedal position switch,
Throttle position sensor/switchThrottle position sensor
Turbo press sensorTurbocharger pressure sensor
Turbo VSVTurbocharger pressure control solenoid valve
P/S pressure switchPower–steering pressure switch
VSV for ACMActive control engine mount
Speed sensor, Vehicle speed sensor ”A”, Speed sensor for
skid control ECUVehicle speed sensor
ATF temperature sensor, Trans. fluid temp. sensor, ATF
temperature sensor ”A”Transmission fluid temperature sensor
Electronic controlled automatic transmission, ECTElectronically controlled automatic
Intermediate shaft speed sensor ”A”Couter gear speed sensor

05–210– DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U341E) (From February, 2004)
AVENSIS REPAIR MANUAL SUPPLEMENT
(RM1098E)Part and system name Definition
Output speed sensorOutput shaft speed sensor
Input speed sensor, Input turbine speed sensor ”A”, Speed
sensor (NT), Turbine speed sensorInput turbine speed sensor
PNP switch, NSWPark/neutral position switch
Pressure control solenoidTransmission pressure control solenoid
Shift solenoidTransmission shift solenoid valve
Transmission control switch, Shift lock control unitShift lock control module
Engine immobilizer system, Immobilizer systemVehicle anti–theft system
