2005 NISSAN X-TRAIL check

EM-38
[QR]
FUEL INJECTOR AND FUEL TUBE


Insert until you hear a “click” sound and actually feel the engagement.

To avoid misidentification of engagement with a similar sound, be sure to perform the next
step.
c. Before clamping fuel feed hose with hose clamps, pull quick connector hard by hand holding “A” position.
Make sure it is completely engaged (connected) so that it does not come out from fuel tube.
d. Install quick connector cap to quick connector connection. (On
both the engine side and the vehicle side)

Install so that the arrow mark on the side faces up.
CAUTION:

Make sure that quick connector and fuel tube are
securely fit into quick connector cap installation groove.

If quick connector cap cannot be installed smoothly,
quick connector may have not been installed correctly.
Check connection again.
NOTE:
There is quick connector cap for the engine side and for the
vehicle side, and they have different shapes. The figure shows engine side as an example.
8. Install fuel feed hose to hose clamp.
9. Install in the reverse order of removal after this step.
INSPECTION AFTER INSTALLATION
Check on Fuel Leaks
1. Apply fuel pressure to fuel lines with turning ignition switch “ON” (with engine stopped). Then make sure
there are no fuel leaks at connections.
NOTE:
Use mirrors for checking on invisible points.
2. Start engine. With engine speed increased, make sure again there are no fuel leaks at connections.
CAUTION:
Do not touch engine immediately after stopped as engine becomes extremely hot.
PBIC2348E

FUEL INJECTOR AND FUEL TUBE
EM-39
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

Removal and Installation (QR25DE)EBS011SY
CAUTION:
Do not remove or disassemble parts unless instructed as shown in the figure.
REMOVAL
1. Release fuel pressure. Refer to EC-49, "FUEL PRESSURE RELEASE" (WITH EURO-OBD) or EC-562,
"FUEL PRESSURE CHECK" (WITHOUT EURO-OBD).
2. Remove air cleaner case upper, mass air flow sensor and air duct assembly. Refer to EM-16, "
AIR
CLEANER AND AIR DUCT" .
3. Disconnect quick connectors at engine side and vehicle side as
follows, and remove fuel feed hose.
CAUTION:
Disconnect quick connector by using quick connector
release (special service tool), not by picking out retainer
tabs.
NOTE:
There is quick connector for the engine side and for the vehicle
side, and they have different shapes. But disconnection is same
procedure. The following procedure shows the engine side.
a. Remove quick connector cap (engine side).
1. Fuel feed hose 2. Quick connector cap (engine side) 3. Quick connector cap (vehicle side)
4. Centralized under-floor piping 5. Sub-harness 6. Fuel tube
7. O-ring (black) 8. Clip 9. Fuel injector
10. O-ring (green) 11. Insulator
PBIC2179E
PBIC2175E
KBIA0701E

EM-42
[QR]
FUEL INJECTOR AND FUEL TUBE

2. Install fuel injector to fuel tube with the following procedure:
a. Insert clip into clip mounting groove on fuel injector.

Insert clip so that lug “A” of fuel injector matches notch “A” of
clip.
CAUTION:

Do not reuse clip. Replace it with a new one.

Be careful to keep clip from interfering with O-ring. If
interference occurs, replace O-ring.
b. Insert fuel injector into fuel tube with clip attached.

Insert it while matching it to the axial center.

Insert fuel injector so that lug “B” of fuel tube matches notch
“B” of clip.

Make sure that fuel tube flange is securely fixed in flange fix-
ing groove on clip.
c. Make sure that installation is complete by making sure that fuel
injector does not rotate or come off.
3. Install fuel tube and fuel injector assembly with the following procedure:
a. Insert the tip of each fuel injector into intake manifold.
b. Tighten mounting bolts evenly in two steps in numerical order as
shown in the figure.
4. Connect sub-harness for fuel injector.
5. Install intake manifold collector. Refer to EM-21, "
Removal and Installation (QR25DE)" .
6. Note the following, and connect quick connectors at engine side and vehicle side to install fuel feed hose.
NOTE:
There is quick connector for the engine side and for the vehicle side, and they have different shapes. But
connection is same procedure. The following procedure shows the engine side.
a. Check the connection for foreign material and damage.
b. Align center to insert quick connector straightly into fuel tube.
NOTE:
The figure shows engine side as an example.

Insert fuel tube into quick connector until the top spool on fuel
tube is inserted completely and the second level spool is posi-
tioned slightly below quick connector bottom end.
CAUTION:

Hold “A” position in the figure when inserting fuel tube
into quick connector.

Carefully align center to avoid inclined insertion to pre-
vent damage to O-ring inside quick connector.

Insert until you hear a “click” sound and actually feel the engagement.
SBIA0439E
1st step
: 10.1 N·m (1.0 kg-m, 7 ft-lb)
2nd step
: 23.6 N·m (2.4 kg-m, 17 ft-lb)
KBIA0239E
KBIA0272E

FUEL INJECTOR AND FUEL TUBE
EM-43
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM


To avoid misidentification of engagement with a similar sound, be sure to perform the next
step.
c. Before clamping fuel feed hose with hose clamps, pull quick connector hard by hand holding “A” position.
Make sure it is completely engaged (connected) so that it does not come out from fuel feed tube.
d. Install quick connector cap to quick connector connection. (On
both the engine side and the vehicle side)

Install so that the arrow mark on the side faces up.
CAUTION:

Make sure that quick connector and fuel tube are
securely fit into quick connector cap installation groove.

If quick connector cap cannot be installed smoothly,
quick connector may have not been installed correctly.
Check connection again.
NOTE:
There is quick connector cap for the engine side and for the
vehicle side, and they have different shapes. The figure shows engine side as an example.
7. Install fuel feed hose to hose clamp.
8. Install in the reverse order of removal after this step.
INSPECTION AFTER INSTALLATION
Check on Fuel Leaks
1. Apply fuel pressure to fuel lines with turning ignition switch “ON” (with engine stopped). Then make sure
there are no fuel leaks at connections.
NOTE:
Use mirrors for checking on invisible points.
2. Start engine. With engine speed increased, make sure again there are no fuel leaks at connections.
CAUTION:
Do not touch engine immediately after stopped as engine becomes extremely hot.
PBIC2348E

ROCKER COVER
EM-45
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

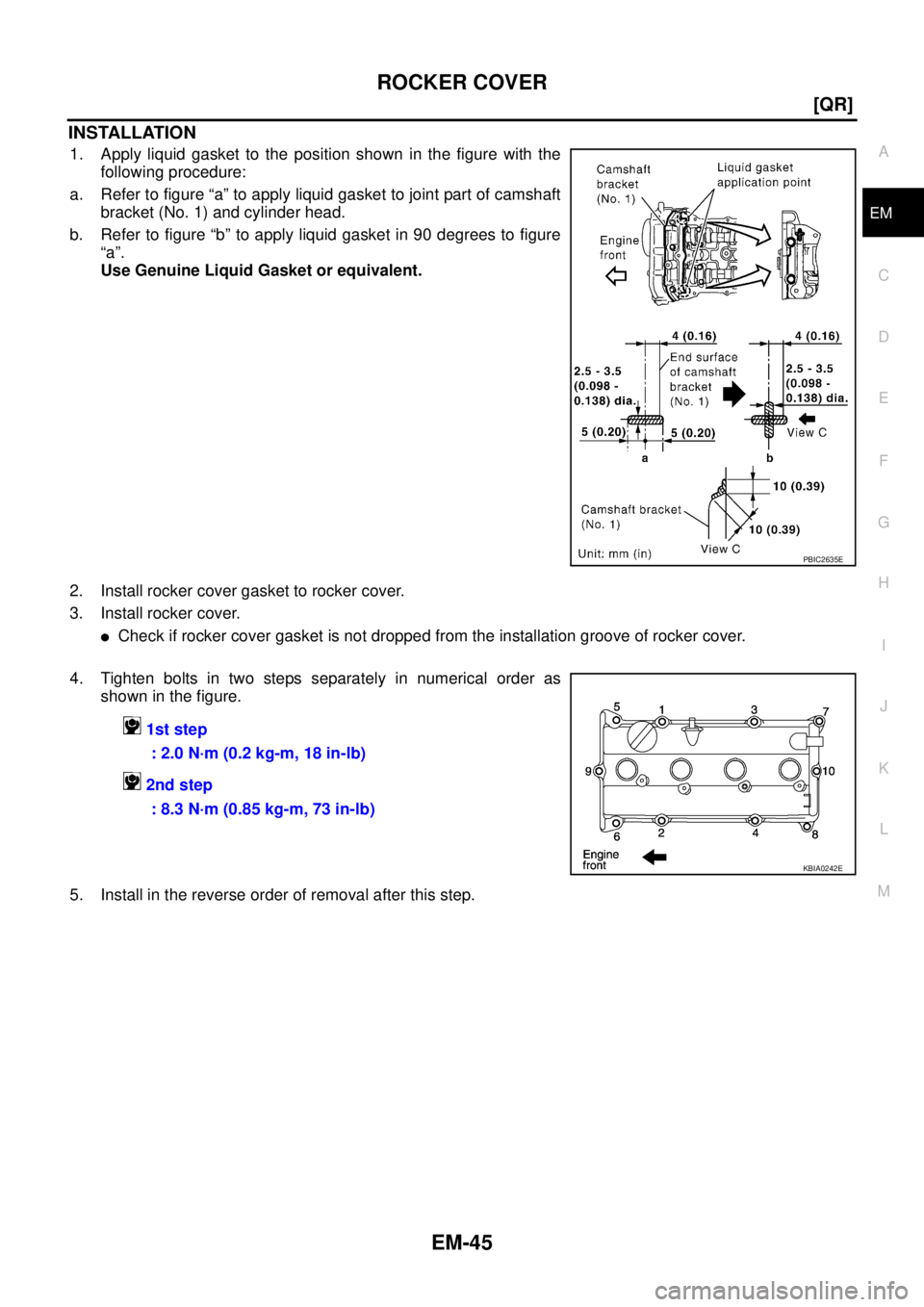

INSTALLATION
1. Apply liquid gasket to the position shown in the figure with the
following procedure:
a. Refer to figure “a” to apply liquid gasket to joint part of camshaft
bracket (No. 1) and cylinder head.
b. Refer to figure “b” to apply liquid gasket in 90 degrees to figure
“a”.
Use Genuine Liquid Gasket or equivalent.
2. Install rocker cover gasket to rocker cover.
3. Install rocker cover.

Check if rocker cover gasket is not dropped from the installation groove of rocker cover.
4. Tighten bolts in two steps separately in numerical order as
shown in the figure.
5. Install in the reverse order of removal after this step.
PBIC2635E
1st step
: 2.0 N·m (0.2 kg-m, 18 in-lb)
2nd step
: 8.3 N·m (0.85 kg-m, 73 in-lb)
KBIA0242E

EM-50
[QR]
TIMING CHAIN

a. Lift lever up, and release ratchet claw for return proof.
b. Push tensioner sleeve in, and hold it.
c. Matching the hole on lever with the one on body, insert a stopper
pin to secure tensioner sleeve.
NOTE:
Use approximately 1 mm (0.04 in) dia. hard metal pin as a stop-
per pin.
d. Remove balancer unit timing chain tensioner.
21. Remove balancer unit timing chain and crankshaft sprocket.
22. Loosen mounting bolts in reverse order as shown in the figure,
and remove balancer unit.
CAUTION:
Do not disassemble balancer unit.
NOTE:
Use TORX socket (size E14).
INSPECTION AFTER REMOVAL
Timing Chain
Check timing chain for cracks and any excessive wear at the roller
links of timing chain. Replace timing chain if necessary.
Balancer Unit Mounting Bolt Outer Diameter

Measure the outer diameters (“d1”, “d2”) at two positions as
shown in the figure.

If reduction appears in “A” range, regard it as “d2 ”.

If it exceeds the limit (large difference in dimensions), replace it
with a new one.
KBIA0121E
KBIA0122E
PBIC0282E
Limit (“d1” – “d2”) : 0.15 mm (0.0059 in)
PBIC1137E

TIMING CHAIN
EM-51
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

INSTALLATION
NOTE:
The figure shows the relationship between the mating mark on each
timing chain and that on the corresponding sprocket, with the com-
ponents installed.
1. Make sure that crankshaft key points straight up.
2. Tighten mounting bolts in numerical order as shown in figure
with the following procedure, and install balancer unit.
CAUTION:
If mounting bolts are re-used, check their outer diameter
before installation. Refer to EM-50, "
INSPECTION AFTER
REMOVAL" .
a. Apply new engine oil to threads and seat surfaces of mounting
bolts.
b. Tighten all bolts.
c. Turn all bolts 90 degrees clockwise (angle tightening).
d. Completely loosen.
CAUTION:
In this step, loosen bolts in reverse order as shown in the
figure.
e. Tighten all bolts.
f. Turn them another 90 degrees clockwise (angle tightening).
CAUTION:
Check tightening angle with an angle wrench (special service tool) or a protractor. Do not make
judgment by visual check alone.
PBIC2182E
: 48.1 N·m (4.9 kg-m, 35 ft-lb)KBIA0122E
: 0 N·m (0 kg-m, 0 ft-lb)
: 48.1 N·m (4.9 kg-m, 35 ft-lb)
KBIA0080E

EM-52
[QR]
TIMING CHAIN

3. Install crankshaft sprocket and balancer unit timing chain.

Make sure that crankshaft sprocket is positioned with mating
marks on cylinder block and crankshaft sprocket meeting at
the top.

Install it by aligning mating marks on each sprocket and bal-
ancer unit timing chain.
4. Install balancer unit timing chain tensioner.
NOTE:
Chain guide and tensioner move freely with the staking pin as
the axle. Therefore, bolt hole position of the three points could
be changed during removal. If points change, temporarily fix the
two mounting bolts on chain guide, and move tensioner to mate
the bolt holes.

Be careful not to let mating marks of each sprocket and timing
chain slip.

After installation, make sure the mating marks have not
slipped, then remove stopper pin and release tensioner
sleeve.
5. Install timing chain and related parts.

Install by aligning mating marks on each sprocket and timing
chain.

Before and after installing chain tensioner, check again to
make sure that mating marks have not slipped.

After installing chain tensioner, remove stopper pin, and make
sure that tensioner moves freely.
CAUTION:

For the following note, after the mating marks are
aligned, keep them aligned by holding them with a
hand.

To avoid skipped teeth, do not rotate crankshaft and
camshaft until front cover is installed.
NOTE:
Before installing chain tensioner, it is possible to change the
position of mating mark on timing chain for that on each
sprocket for alignment.
6. Install front oil seal to front cover. Refer to EM-67, "
Removal and Installation of Front Oil Seal" .
7. Install front cover with the following procedure:
a. Install O-rings to cylinder head and cylinder block.
PBIC2183E
KBIA0124E
PBIC2182E
