DTC P0686 ECM RELAY
EC-1247
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureEBS011CY
1. CHECK ECM OUTPUT SIGNAL CIRCUIT FOR SHORT TO GROUND
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminals 105, 113 and ground.
Refer to Wiring Diagram.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors F30, M63

Harness for open or short between ECM and ECM relay
>> Repair open circuit or short to ground or short to power in harness or connectors.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage)
105 G ECM relay (self-shutoff)[Ignition switch ON]
[Ignition switch OFF]

For a few seconds after turning ignition
switch OFFApproximately 1.2V
[Ignition switch OFF]

More than a few seconds after turning igni-
tion switch OFFBATTERY VOLTAGE
(11 - 14V)
113 G ECM relay (self-shutoff)[Ignition switch ON]
[Ignition switch OFF]

For a few seconds after turning ignition
switch OFFApproximately 1.2V
[Ignition switch OFF]

More than a few seconds after turning igni-
tion switch OFFBATTERY VOLTAGE
(11 - 14V)
11 9
120Y
RPower supply for ECM[Ignition switch ON]BATTERY VOLTAGE
(11 - 14V)
Continuity should not exist.

EC-1248
[YD (WITH EURO-OBD)]
DTC P0686 ECM RELAY

3. CHECK ECM INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM relay.
2. Check harness continuity between ECM terminal 119 and ECM
relay terminal 5, ECM terminals 120 and ECM relay terminal 7.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors F30, M63

Harness for open or short between ECM and ECM relay
>> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK ECM RELAY
Refer to EC-1248, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace ECM relay.
6. CHECK INTERMITTENT INCIDENT
Refer to EC-1045, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS011CZ
ECM RELAY
1. Apply 12V direct current between ECM relay terminals 1 and 2.
2. Check continuity between relay terminals 3 and 5, 6 and 7.
3. If NG, replace ECM relay.Continuity should exist.
PBIB1899E
Condition Continuity
12V direct current supply between ter-
minals 1 and 2Ye s
OFF No
PBIB0077E

DTC P1260 - P1267 FUEL INJECTOR ADJUSTMENT RESISTOR
EC-1253
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

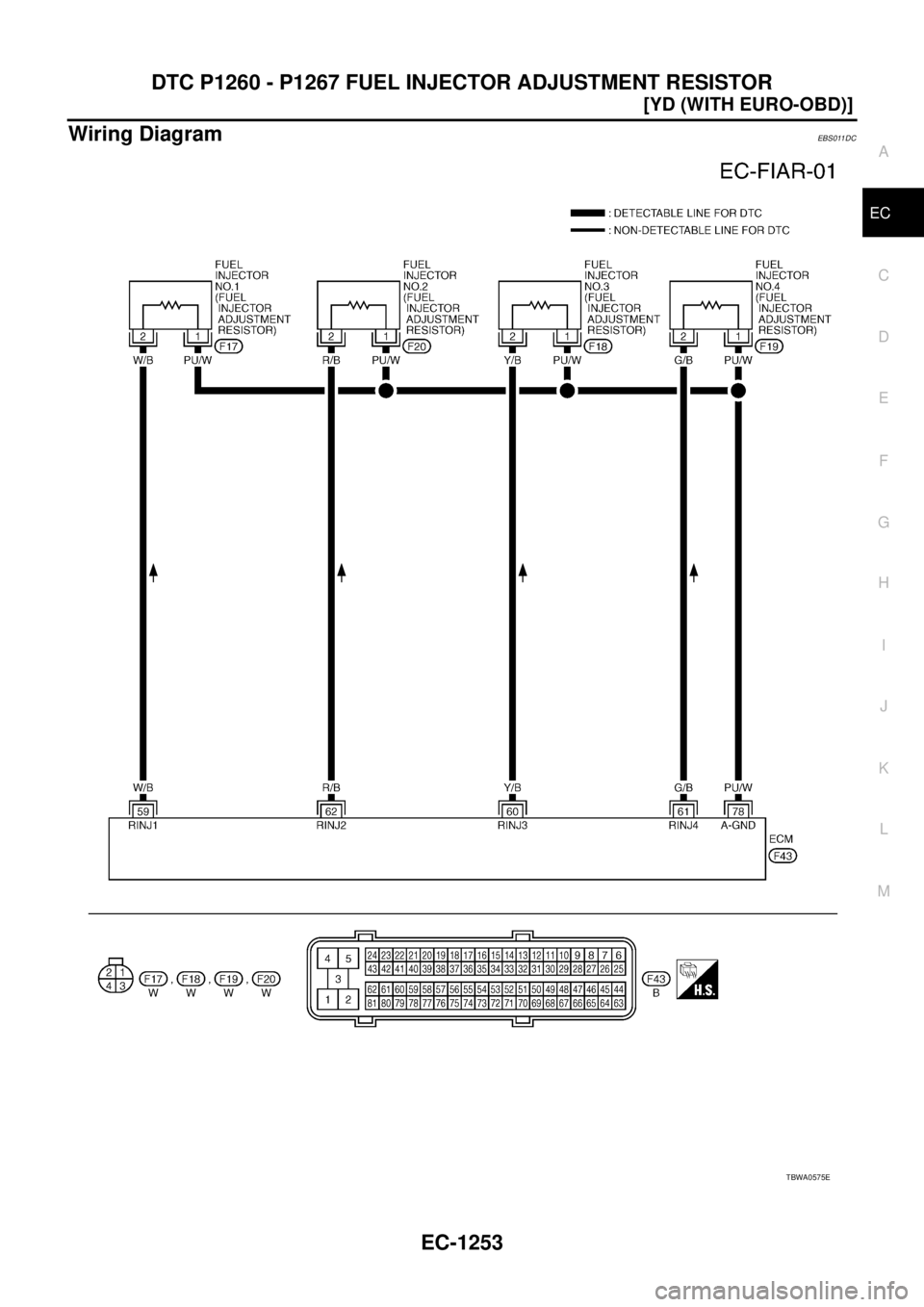

Wiring DiagramEBS011DC
TBWA0575E

DTC P1268 - P1271 FUEL INJECTOR
EC-1259
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

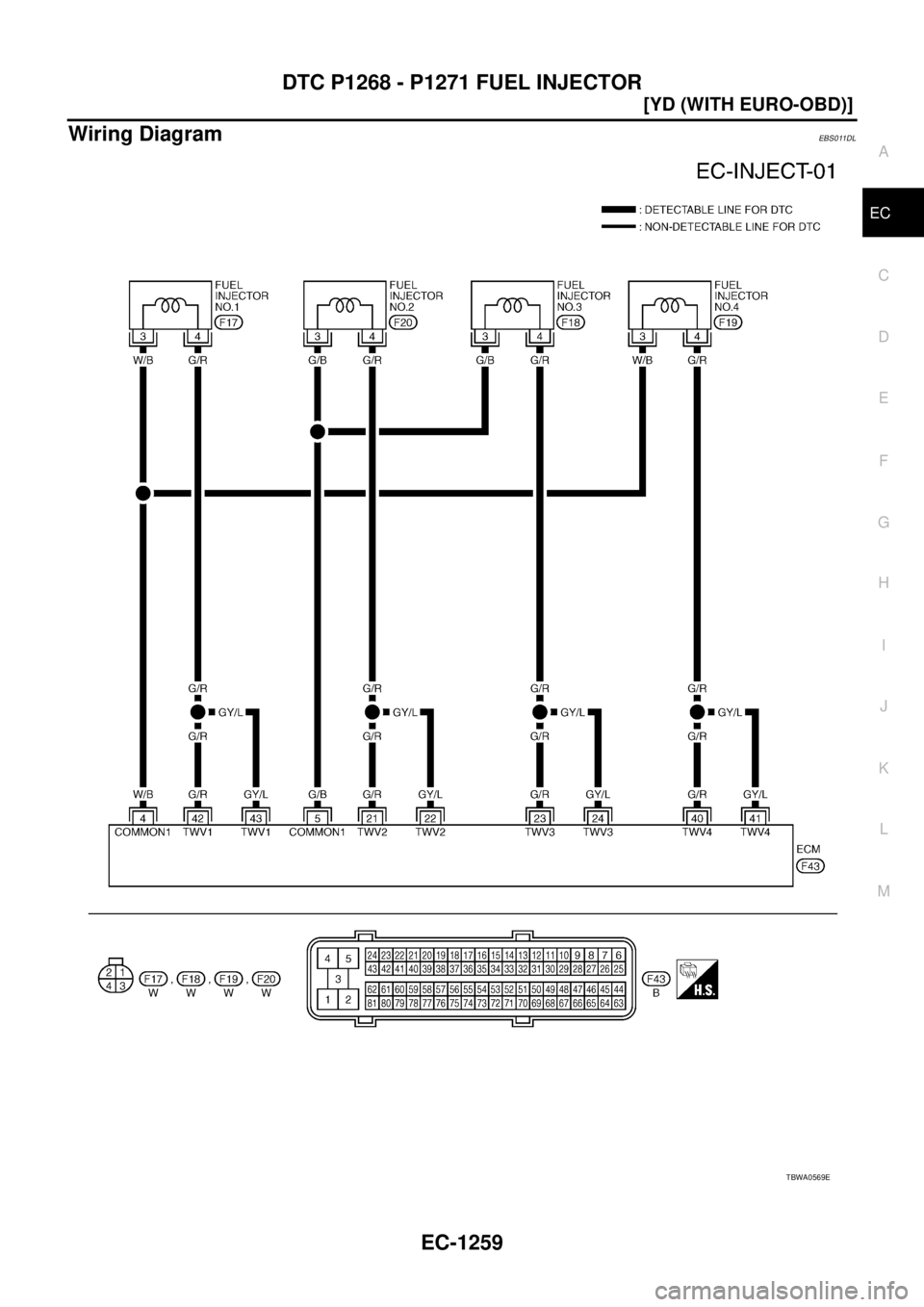

Wiring DiagramEBS011DL
TBWA0569E

DTC P1268 - P1271 FUEL INJECTOR
EC-1261
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Diagnostic ProcedureEBS011DM
1. CHECK FUEL INJECOR POWER SUPPLY CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Disconnect fuel injector harness connector.
4. Check harness continuity between the following terminals corre-
sponding to the malfunctioning cylinder. Refer to Wiring Dia-
gram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 2.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
2. CHECK ECM OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between the following terminals corresponding to the malfunctioning cylinder.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
3. CHECK FUEL INJECTOR-I
Refer to EC-1262, "
Component Inspection" .
OK or NG
OK >> GO TO 4.
NG >> Replace fuel injector.
DTCTe r m i n a l
Cylinder
ECM Fuel injector
P1268 4 3 No.1
P1269 5 3 No.2
P1270 5 3 No.3
P1271 4 3 No.4
Continuity should exist.
PBIB1896E
DTCTe r m i n a l
Cylinder
ECM Fuel injector
P1268 42, 43 4 No.1
P1269 21, 22 4 No.2
P1270 23, 24 4 No.3
P1271 40, 41 4 No.4
Continuity should exist.

DTC P1272 FUEL PUMP
EC-1265
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

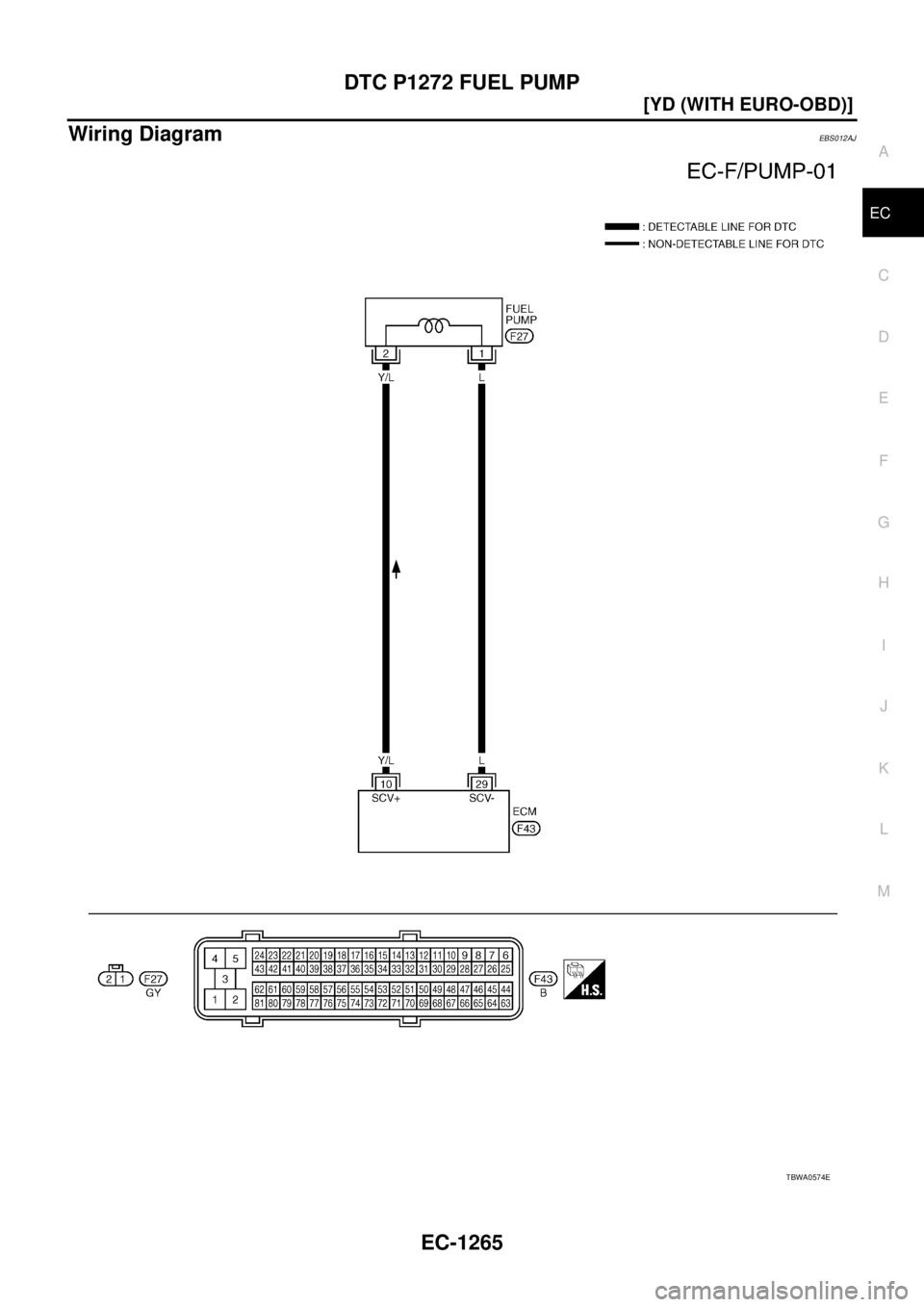

Wiring DiagramEBS012AJ
TBWA0574E

DTC P1272 FUEL PUMP
EC-1267
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

2. PERFORM FUEL PUMP LEARNING VALUE CLEARING
NOTE:
If the DTC is detected because of air mixed with fuel (i.e.: caused by lack of fuel), it may become normal by
performing following procedure.
With CONSULT-II
1. Turn ignition switch ON.
2. Perform Fuel Pump Learning value clearing. Refer to EC-994, "
Fuel Pump Learning Value Clearing" .
3. Start engine and let it idle for at least 60 seconds.
4. Select “SELF-DIAG RESULT” mode with CONSULT-II.
5. Touch “ERASE”.
6. Perform EC-1263, "
DTC Confirmation Procedure" , again.
7. Is 1st trip DTC detected again?
With GST
1. Turn ignition switch ON.
2. Perform Fuel Pump Learning value clearing. Refer to EC-994, "
Fuel Pump Learning Value Clearing" .
3. Start engine and let it idle for at least 60 seconds.
4. Select Service $04 with GST.
5. Touch “ERASE”.
6. Perform EC-1263, "
DTC Confirmation Procedure" , again.
7. Is 1st trip DTC detected again?
Ye s o r N o
Ye s > > G O T O 3 .
No >>INSPECTION END
3. CHECK FUEL PUMP POWER SUPPLY CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector and fuel pump harness
connectors.
3. Check harness continuity between ECM terminal 10 and fuel pump terminal 2.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB1943E
Continuity should exist.

EC-1268
[YD (WITH EURO-OBD)]
DTC P1272 FUEL PUMP

4. CHECK FUEL PUMP GROUND CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 29 and fuel pump terminal 1.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK FUEL PUMP
Refer to EC-1268, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> GO TO 8.
6. CHECK FUEL RAIL PRESSURE SENSOR
Refer to E C - 111 5 , "
Component Inspection" .
OK or NG
OK >> GO TO 7.
NG >> Replace fuel rail.
7. CHECK INTERMITTENT INCIDENT
Refer to EC-1045, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> GO TO 8.
NG >> Repair or replace.
8. REPLACE FUEL PUMP
1. Replace fuel pump.
2. Perform Fuel Pump Learning Value Clearing. Refer to EC-994, "
Fuel Pump Learning Value Clearing" .
>>INSPECTION END
Component InspectionEBS012AK
FUEL PUMP
1. Check continuity between fuel supply pump terminals 1 and 2.
2. If NG, replace fuel pump.Continuity should exist.
Continuity should exist.
SEF807Z
