2005 NISSAN X-TRAIL diagram

EC-1318
[YD (WITH EURO-OBD)]
BRAKE SWITCH

3. CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect stop lamp switch harness connector (1).
–ASCD brake switch harness connector (2)
–ASCD clutch switch harness connector (3)
3. Check voltage between stop lamp switch terminal 1 and ground
with CONSULT -II or tester.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING PART
Check the following.

Fuse block (J/B) connector M2

15A fuse

Harness for open or short between stop lamp switch and battery
>> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK STOP LAMP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 100 and stop lamp switch terminal 2.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
6. CHECK STOP LAMP SWITCH
Refer to EC-1320, "
Component Inspection" .
OK or NG
OK >> GO TO 14.
NG >> Replace stop lamp switch.
PBIB2878E
Voltage: Battery voltage
PBIB0117E
Continuity should exist.

EC-1320
[YD (WITH EURO-OBD)]
BRAKE SWITCH

9. DETECT MALFUNCTIONING PART
Check the following.

Fuse block (J/B) connector M2

10A fuse

Harness for open or short between ASCD clutch switch and fuse
>> Repair open circuit or short to ground or short to power in harness or connectors.
10. CHECK ASCD BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Check harness continuity between ASCD clutch switch terminal 2 and ASCD brake switch terminal 1.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 11.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
11 . CHECK ASCD CLUTCH SWITCH
Refer to EC-1320, "
Component Inspection" .
OK or NG
OK >> GO TO 14.
NG >> Replace ASCD clutch switch.
12. CHECK ASCD BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 101 and ASCD brake switch terminal 2.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 13.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
13. CHECK ASCD BRAKE SWITCH
Refer to EC-1320, "
Component Inspection" .
OK or NG
OK >> GO TO 14.
NG >> Replace ASCD brake switch.
14. CHECK INTERMITTENT INCIDENT
Refer to EC-1045, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS011G3
ASCD BRAKE SWITCH
1. Turn ignition switch OFF.Continuity should exist.
Continuity should exist.

PNP SWITCH
EC-1323
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

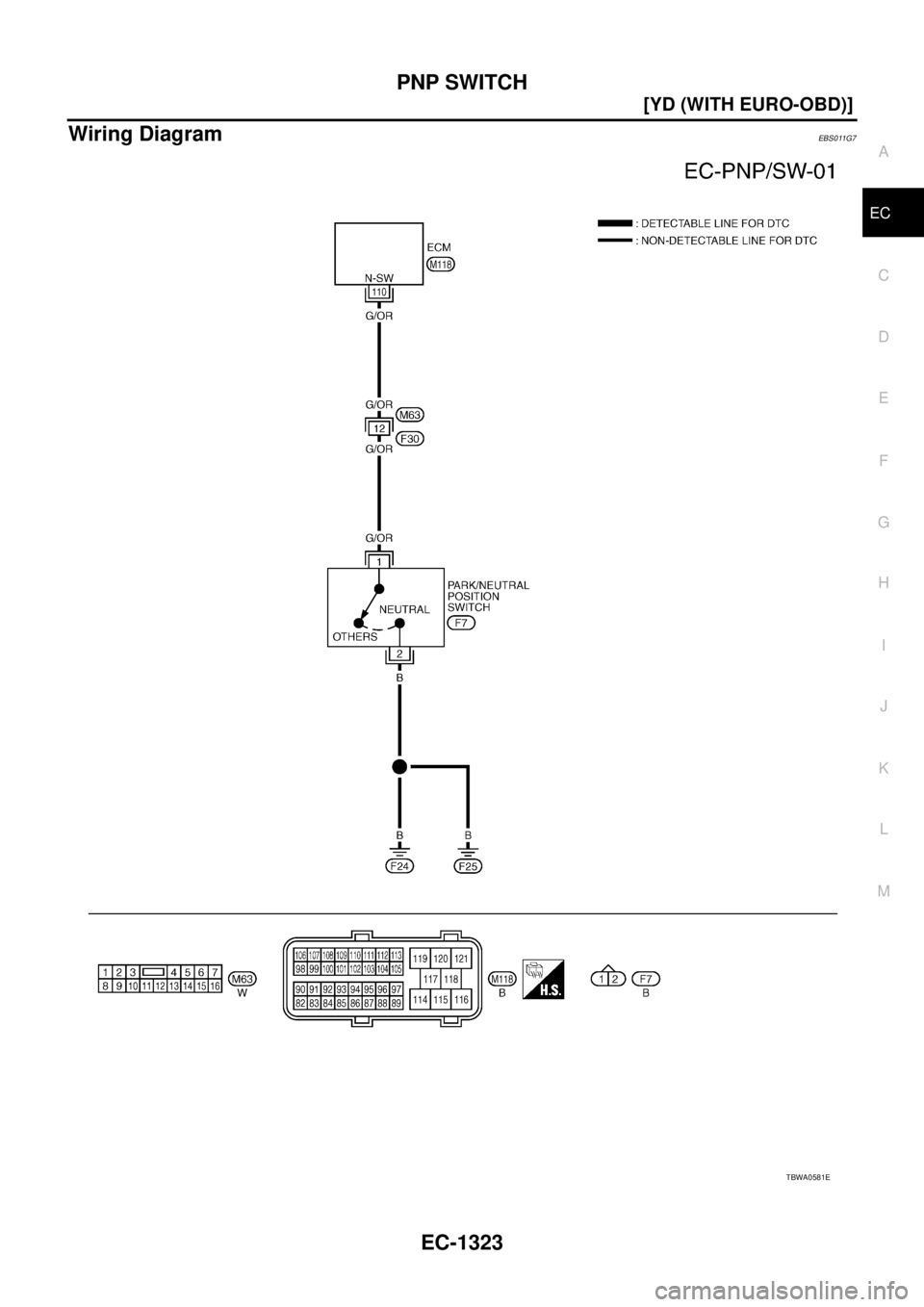

Wiring DiagramEBS011G7
TBWA0581E

PNP SWITCH
EC-1325
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

2. CHECK PNP SWITCH GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect park/neutral position (PNP) switch harness connec-
tor.
3. Check harness continuity between PNP switch terminal 2 and
ground.
Refer to Wiring Diagram.
4. Also check harness for short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to power in harness or con-
nectors.
3. CHECK PNP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 110 and PNP switch terminal 1.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors M63, F30

Harness for open or short between PNP switch and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK PARK/NEUTRAL POSITION SWITCH
Refer to MT-15, "
POSITION SWITCH" .
OK or NG
OK >> GO TO 6.
NG >> Replace park/neutral position switch.
6. CHECK INTERMITTENT INCIDENT
Refer to EC-1045, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END Continuity should exist.
PBIB1903E
Continuity should exist.

PSP SWITCH
EC-1327
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

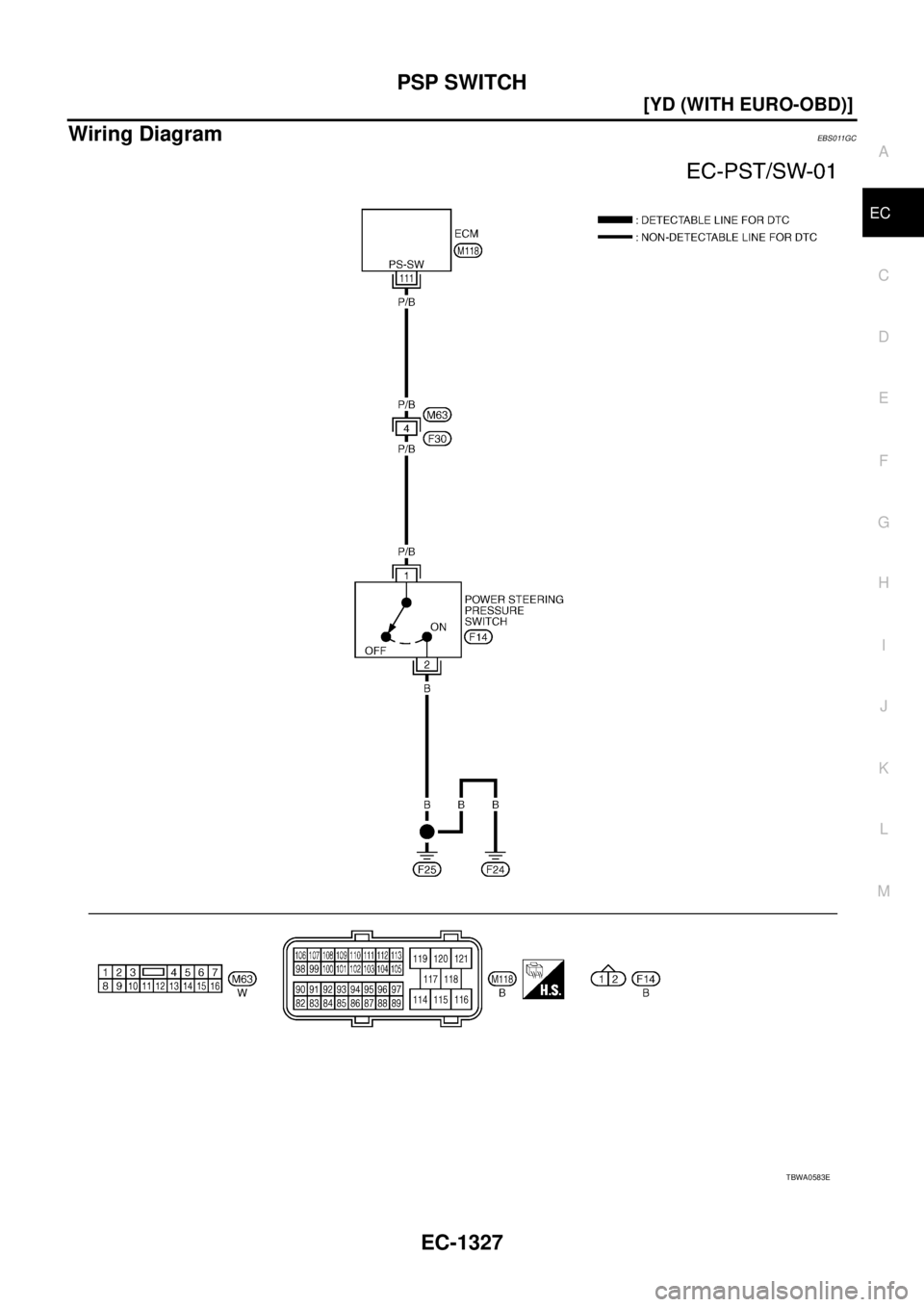

Wiring DiagramEBS011GC
TBWA0583E

PSP SWITCH
EC-1329
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

2. CHECK POWER STEERING PRESSURE SWITCH GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect power steering pressure switch harness connector.
3. Check harness continuity between power steering pressure
switch terminal 2 and ground. Refer to Wiring Diagram.
4. Also check harness for short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to power in harness or con-
nectors.
3. CHECK POWER STEERING PRESSURE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 111 and power steering pressure switch terminal 1.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors M63, F30

Harness for open and short between power steering pressure switch and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK POWER STEERING PRESSURE SWITCH
Refer to EC-1329, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace power steering pressure switch.
6. CHECK INTERMITTENT INCIDENT
Refer to EC-1045, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS011GE
POWER STEERING PRESSURE SWITCH
1. Disconnect power steering pressure switch harness connector and then start engine.Continuity should exist.
PBIB1904E
Continuity should exist.

EC-1332
[YD (WITH EURO-OBD)]
FUEL TRANSPORT PUMP

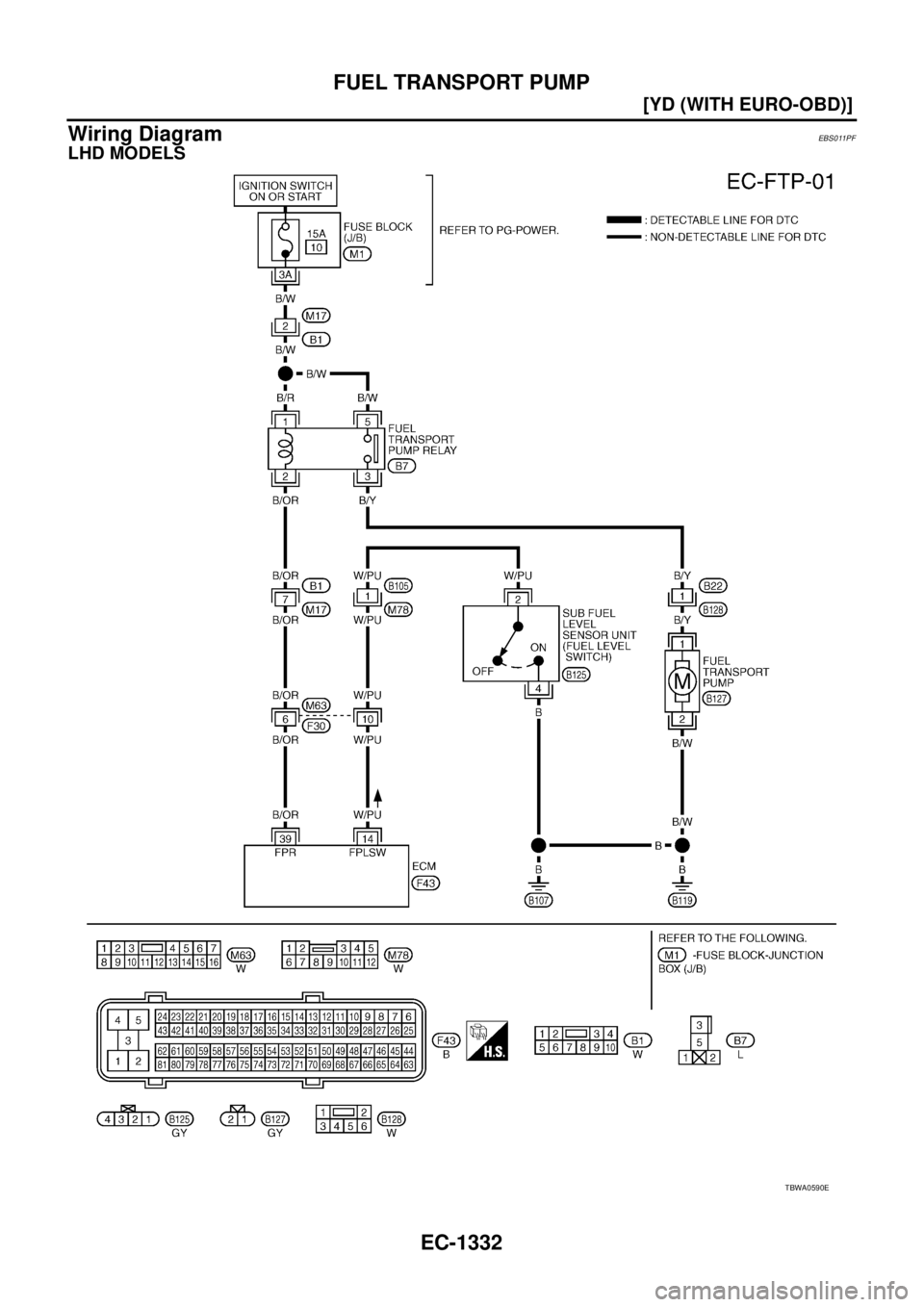

Wiring DiagramEBS011PF
LHD MODELS
TBWA0590E

EC-1336
[YD (WITH EURO-OBD)]
FUEL TRANSPORT PUMP

5. CHECK FUEL TRANSPORT PUMP POWER SUPPLY AND GROUND CIRCUIT FOR OPEN AND
SHORT
1. Turn ignition switch OFF.
2. Disconnect fuel transport pump harness connector.
3. Check harness continuity between fuel transport pump relay ter-
minal 3 and fuel transport pump terminal 1 and between fuel
transport pump terminal 2 and ground. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6. DETECT MALFUNCTIONING PART
Check the following.

Harness connector B22, B128

Harness for open or short between fuel transport pump relay and fuel transport pump

Harness for open or short between fuel transport pump and ground
>> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK FUEL TRANSPORT PUMP RELAY OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 39 and fuel transport pump relay terminal 2. Refer to
Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 9.
NG >> GO TO 8.
8. DETECT MALFUNSTIONING PART
Check the following.

Harness connector M17, B1 (LHD models)

Harness connector M18, B2 (RHD models)

Harness connector M63, F30

Harness for open or short between ECM and fuel transport pump relay
>> Repair open circuit or short to ground or short to power in harness or connectors.
9. CHECK FUEL TRANSPORT PUMP RELAY
Refer to EC-1338, "
Component Inspection" .
OK or NG
OK >> GO TO 10.
NG >> Replace fuel transport pump relay.Continuity should exist.
PBIB1931E
Continuity should exist.
