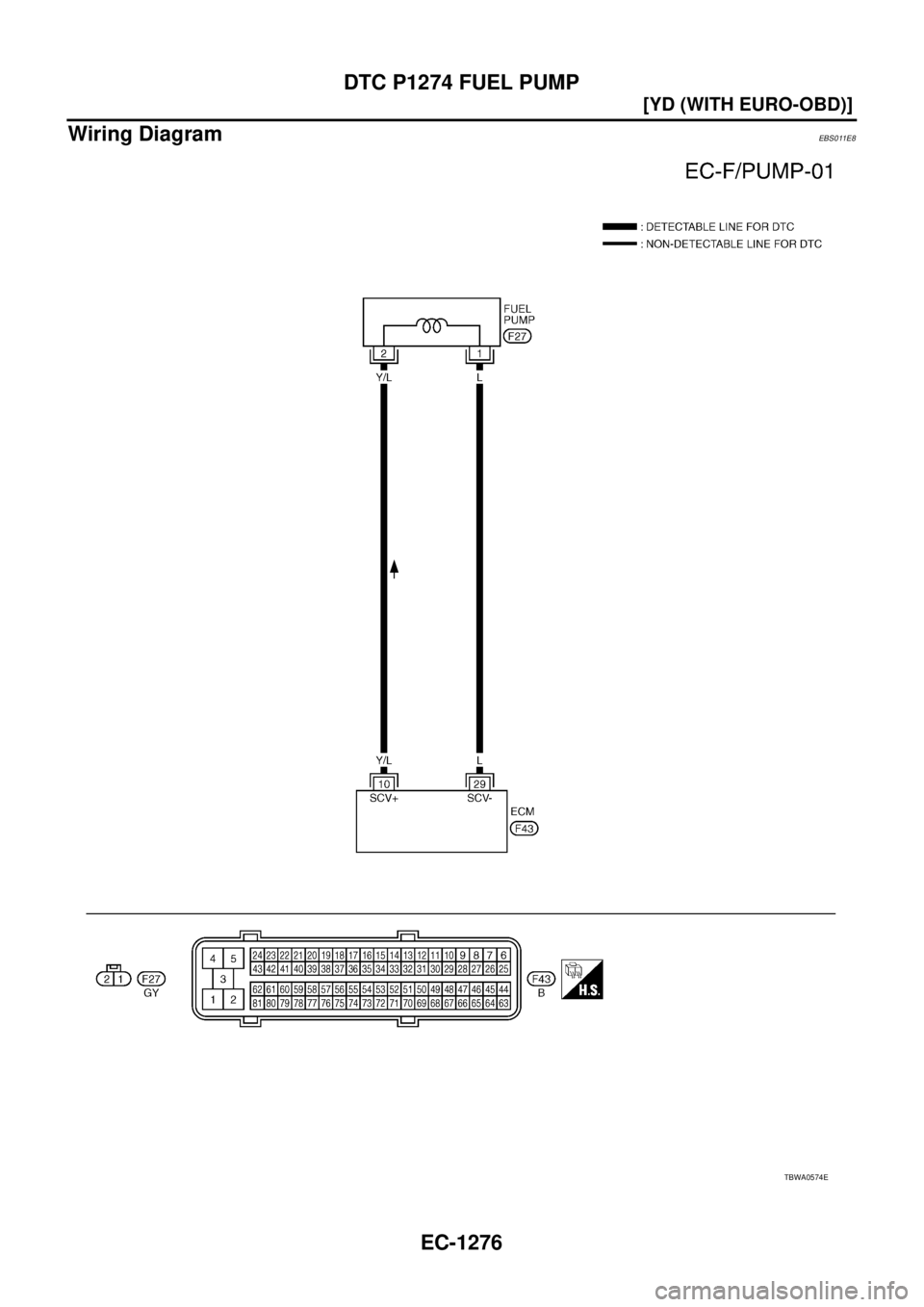

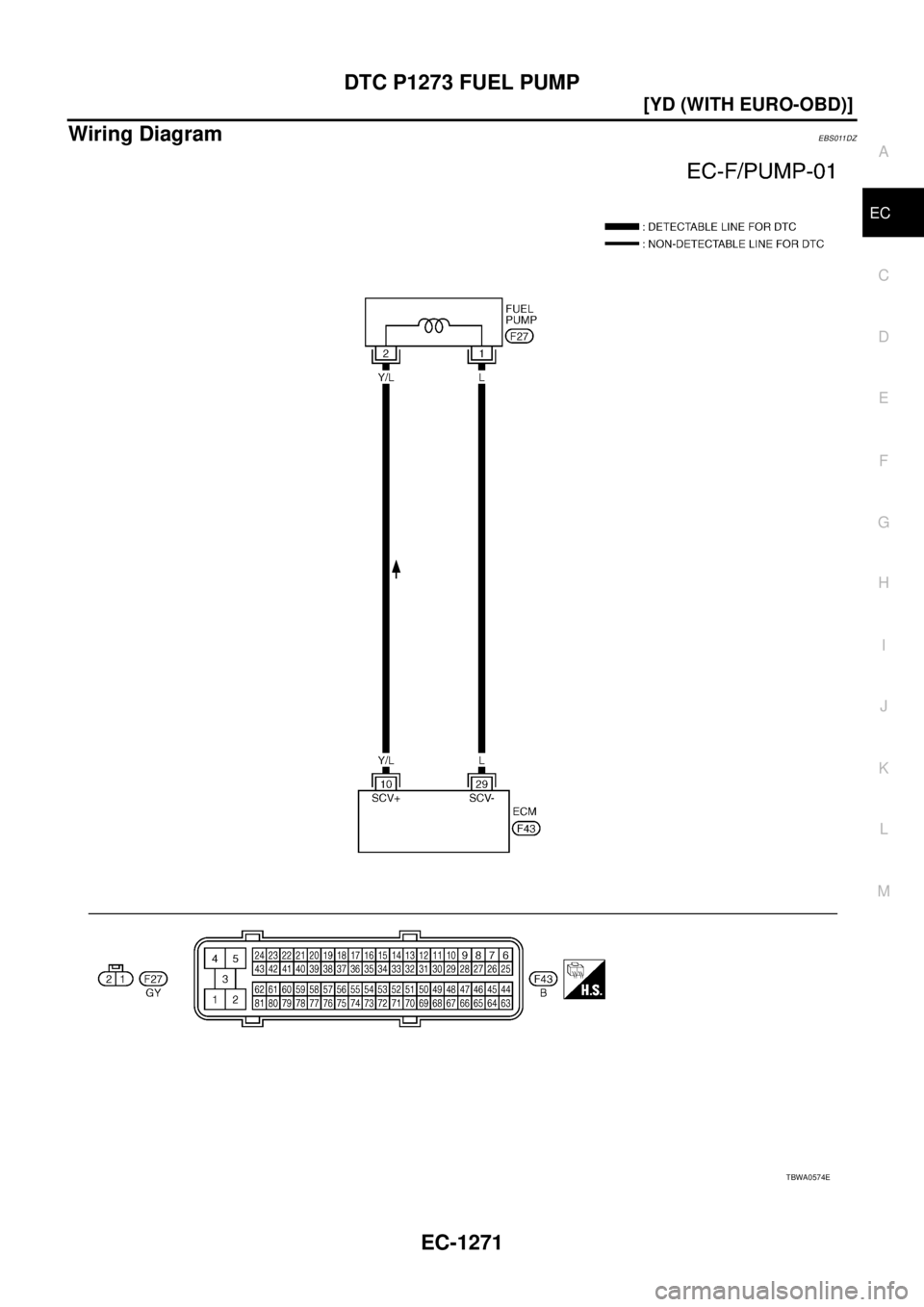

Wiring DiagramEBS011DZ
TBWA0574E

DTC P1273 FUEL PUMP
EC-1273
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

2. PERFORM FUEL PUMP LEARNING VALUE CLEARING
NOTE:
If the DTC is detected because of air mixed with fuel (i.e.: caused by lack of fuel), it may become normal by
performing following procedure.
With CONSULT-II
1. Turn ignition switch ON.
2. Perform Fuel Pump Learning value clearing. Refer to EC-994, "
Fuel Pump Learning Value Clearing" .
3. Start engine and let it idle for at least 60 seconds.
4. Select “SELF-DIAG RESULT” mode with CONSULT-II.
5. Touch “ERASE”.
6. Perform EC-1270, "
DTC Confirmation Procedure" , again.
7. Is 1st trip DTC detected again?
With GST
1. Turn ignition switch ON.
2. Perform Fuel Pump Learning value clearing. Refer to EC-994, "
Fuel Pump Learning Value Clearing" .
3. Start engine and let it idle for at least 60 seconds.
4. Select Service $04 with GST.
5. Touch “ERASE”.
6. Perform EC-1270, "
DTC Confirmation Procedure" , again.
7. Is 1st trip DTC detected again?
Ye s o r N o
Ye s > > G O T O 3 .
No >>INSPECTION END
3. CHECK FUEL PUMP POWER SUPPLY CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector and fuel pump harness
connectors.
3. Check harness continuity between ECM terminal 10 and fuel
pump terminal 2.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
4. CHECK FUEL PUMP GROUND CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 29 and fuel pump terminal 1.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
Continuity should exist.
PBIB1943E
Continuity should exist.

EC-1276
[YD (WITH EURO-OBD)]
DTC P1274 FUEL PUMP

Wiring DiagramEBS011E8
TBWA0574E

EC-1278
[YD (WITH EURO-OBD)]
DTC P1274 FUEL PUMP

Diagnostic ProcedureEBS011E9
1. CHECK ECM OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector and fuel pump harness
connectors.
3. Check harness continuity between ECM terminal 10 and fuel
pump terminal 2.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 2.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
2. CHECK FUEL PUMP GROUND CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 29 and fuel pump terminal 1.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
3. CHECK FUEL RAIL PRESSURE SENSOR
Refer to E C - 111 5 , "
Component Inspection" .
OK or NG
OK >> GO TO 4.
NG >> Replace fuel rail.
4. CHECK FUEL PUMP
Refer to EC-1279, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5. REPLACE FUEL PUMP
1. Replace fuel pump.
2. Perform Fuel Pump Learning Valve Clearing. Refer to EC-994, "
Fuel Pump Learning Value Clearing" .
>>INSPECTION END
6. CHECK INTERMITTENT INCIDENT
Refer to EC-1045, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END Continuity should exist.
PBIB1943E
Continuity should exist.

DTC P1275 FUEL PUMP
EC-1281
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Wiring DiagramEBS011EH
TBWA0574E

DTC P1275 FUEL PUMP
EC-1283
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Diagnostic ProcedureEBS011EI
1. CHECK ECM OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector and fuel pump harness
connectors.
3. Check harness continuity between ECM terminal 10 and fuel
pump terminal 2.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 2.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
2. CHECK FUEL PUMP GROUND CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 29 and fuel pump terminal 1.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
3. CHECK FUEL RAIL PRESSURE SENSOR
Refer to E C - 111 5 , "
Component Inspection" .
OK or NG
OK >> GO TO 4.
NG >> Replace fuel rail.
4. CHECK FUEL PUMP
Refer to EC-1284, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5. REPLACE FUEL PUMP
1. Replace fuel pump.
2. Perform Fuel Pump Learning Valve Clearing. Refer to EC-994, "
Fuel Pump Learning Value Clearing" .
>>INSPECTION END
6. CHECK INTERMITTENT INCIDENT
Refer to EC-1045, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END Continuity should exist.
PBIB1943E
Continuity should exist.

DTC P2135 APP SENSOR
EC-1287
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

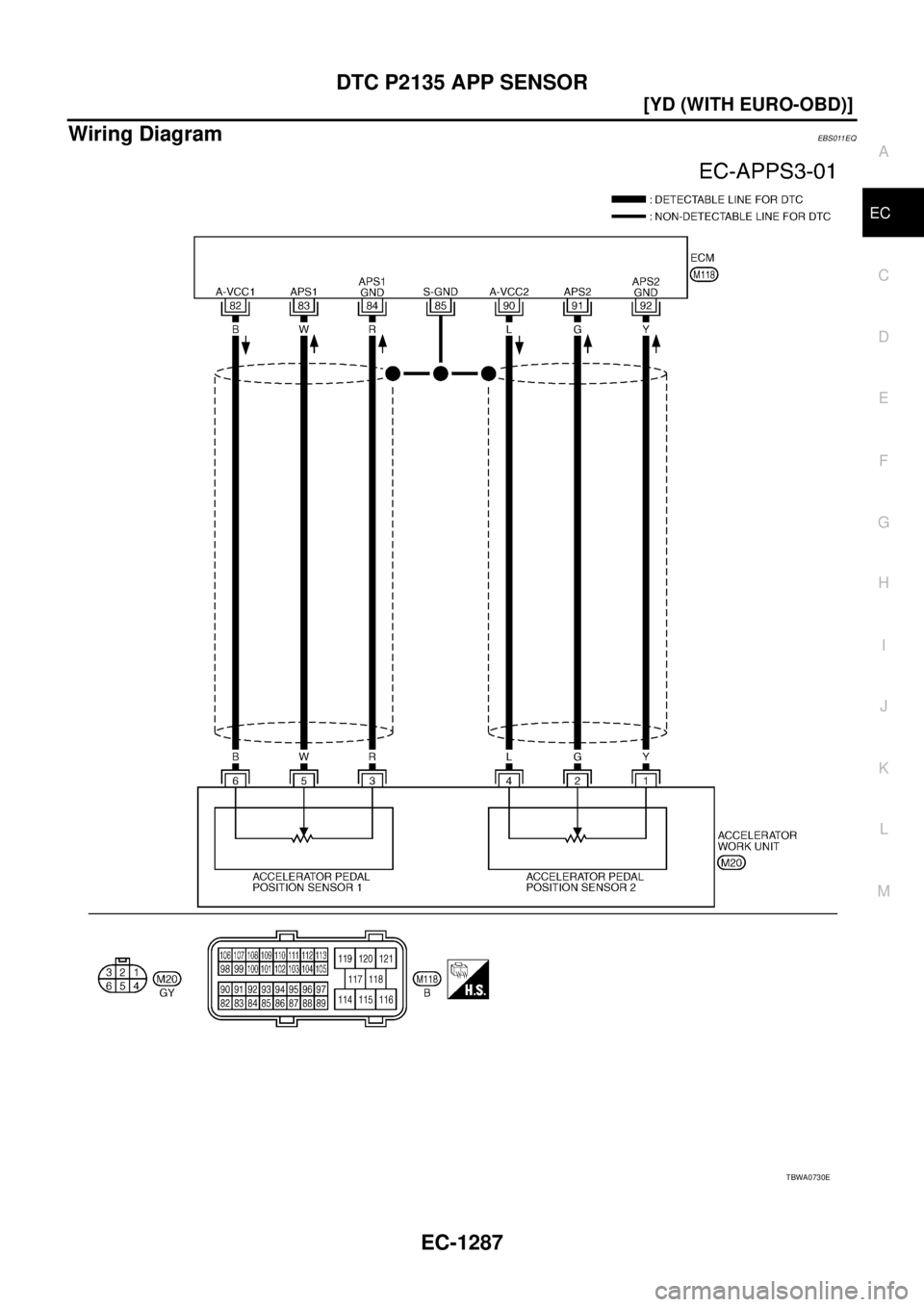

Wiring DiagramEBS011EQ
TBWA0730E

EC-1290
[YD (WITH EURO-OBD)]
DTC P2135 APP SENSOR

2. CHECK APP SENSOR POWER SUPPLY CIRCUIT
1. Disconnect accelerator pedal position (APP) sensor harness
connector.
2. Turn ignition switch ON.
3. Check voltage between APP sensor terminals 4, 6 and ground
with CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
3. CHECK APP SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between APP sensor terminals 3 and ECM terminal 84, APP sensor terminal 1
and ECM terminal 92.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK APP SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 83 and APP sensor terminal 5, ECM terminal 91 and
APP sensor terminal 2.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK APP SENSOR
Refer to EC-1291, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace accelerator pedal assembly.
PBIB1893E
Voltage: Approximately 5.3V
PBIB0560E
Continuity should exist.
Continuity should exist.
