DTC P0336 CKP SENSOR

Wiring DiagramEBS011B8
TBWA0570E

DTC P0336 CKP SENSOR
EC-1167
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

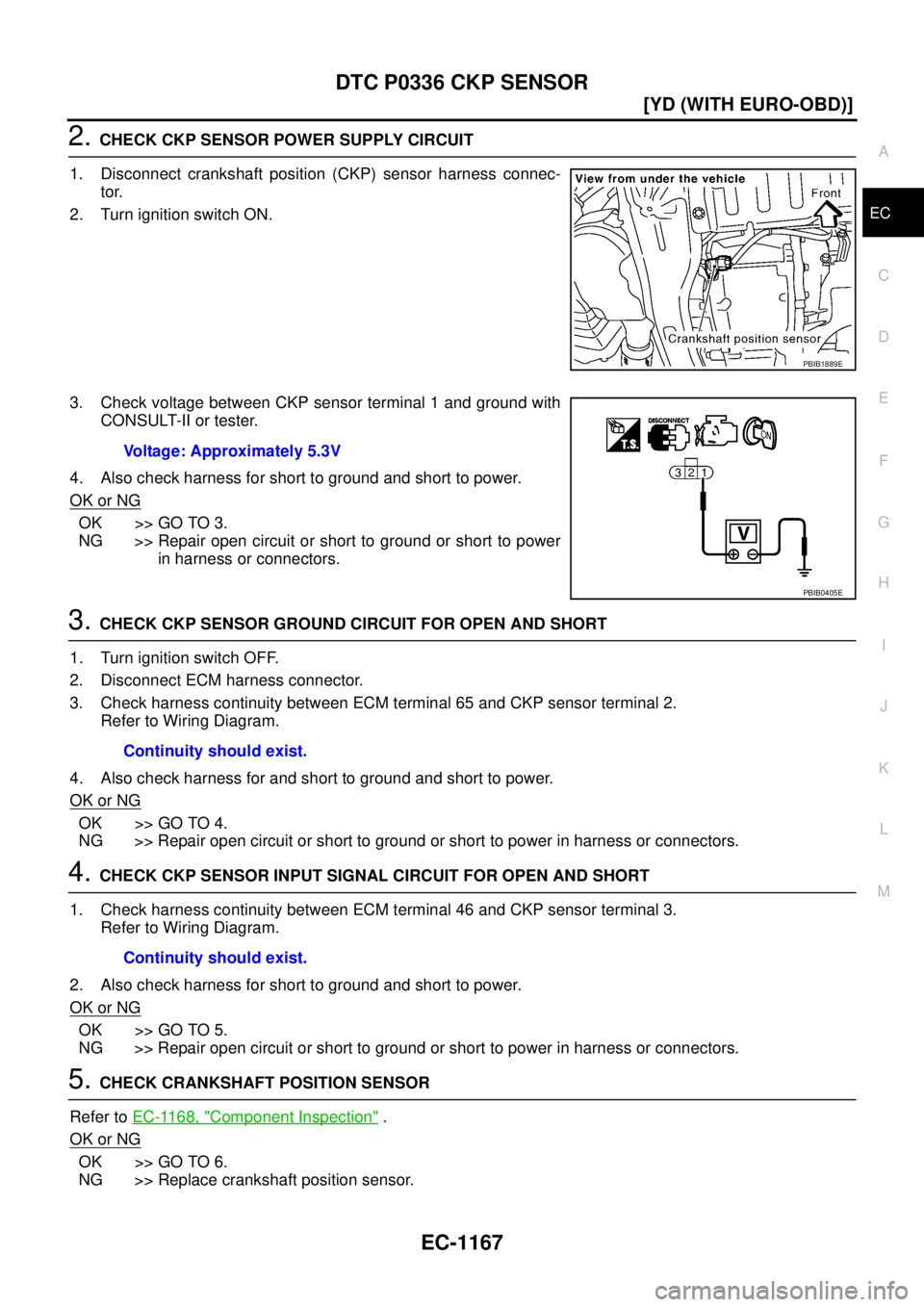

2. CHECK CKP SENSOR POWER SUPPLY CIRCUIT
1. Disconnect crankshaft position (CKP) sensor harness connec-
tor.
2. Turn ignition switch ON.
3. Check voltage between CKP sensor terminal 1 and ground with
CONSULT-II or tester.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
3. CHECK CKP SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 65 and CKP sensor terminal 2.
Refer to Wiring Diagram.
4. Also check harness for and short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK CKP SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 46 and CKP sensor terminal 3.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK CRANKSHAFT POSITION SENSOR
Refer to EC-1168, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace crankshaft position sensor.
PBIB1889E
Voltage: Approximately 5.3V
PBIB0405E
Continuity should exist.
Continuity should exist.

EC-1170
[YD (WITH EURO-OBD)]
DTC P0340 CMP SENSOR

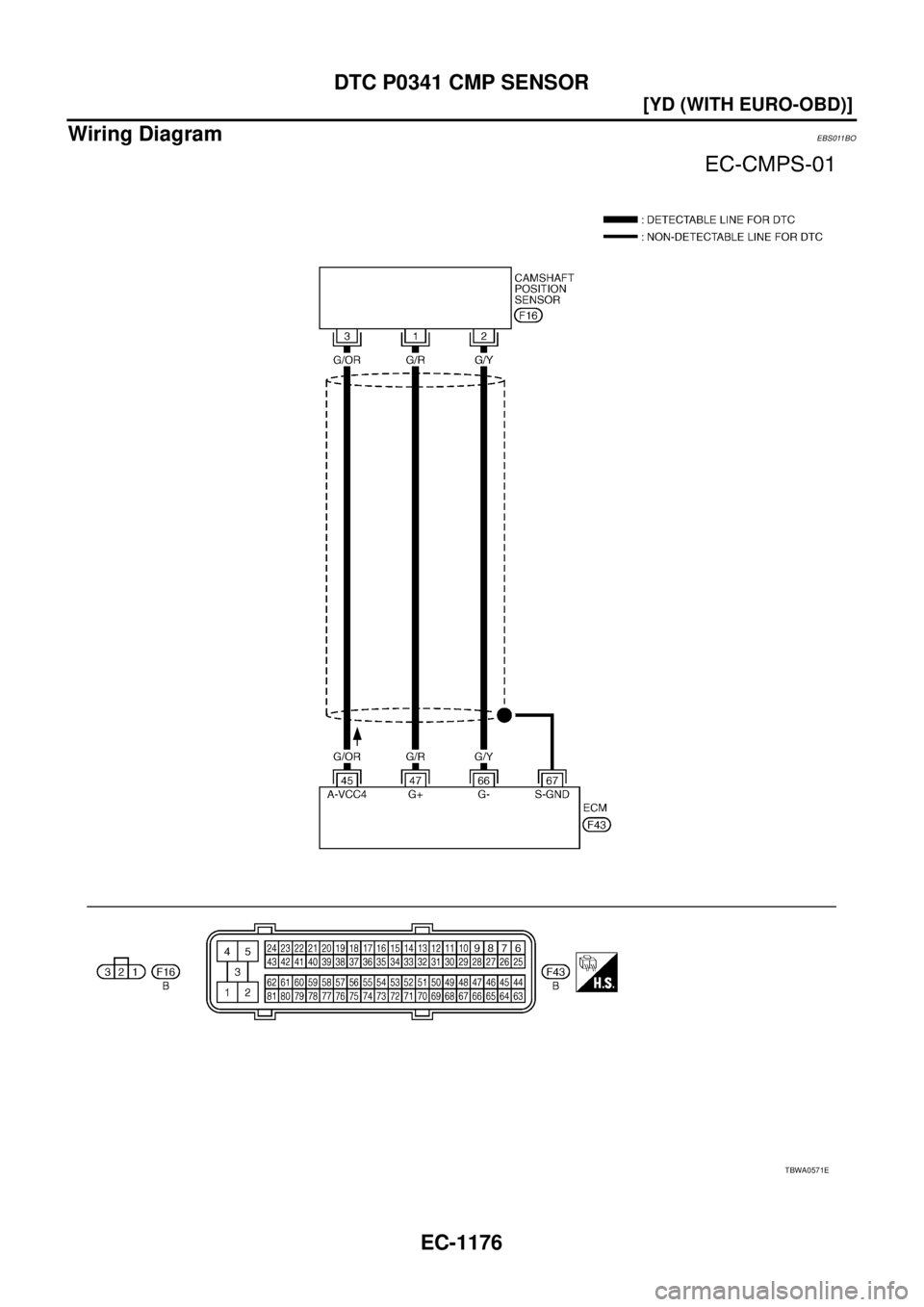

Wiring DiagramEBS011BG
TBWA0571E

DTC P0340 CMP SENSOR
EC-1173
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

3. CHECK CMP SENSOR POWER SUPPLY CIRCUIT
1. Disconnect camshaft position (CMP) sensor harness connector.
2. Turn ignition switch ON.
3. Check voltage between CMP sensor terminal 3 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
4. CHECK CMP SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 66 and CMP sensor terminal 2.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK CMP SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 47 and CMP sensor terminal 1.
Refer to Wiring Diagram.
2. Also check harness for short to ground or short to power.
OK or NG
OK >> GO TO 6.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
6. CHECK CAMSHAFT POSITION SENSOR
Refer to EC-1174, "
Component Inspection" .
OK or NG
OK >> GO TO 7.
NG >> Replace camshaft position sensor.
PBIB1890E
Voltage: Approximately 5.3V
MBIB1010E
Continuity should exist.
Continuity should exist.

EC-1176
[YD (WITH EURO-OBD)]
DTC P0341 CMP SENSOR

Wiring DiagramEBS011BO
TBWA0571E

DTC P0341 CMP SENSOR
EC-1179
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

3. CHECK CMP SENSOR POWER SUPPLY CIRCUIT
1. Disconnect camshaft position (CMP) sensor harness connector.
2. Turn ignition switch ON.
3. Check voltage between CMP sensor terminal 3 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
4. CHECK CMP SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 66 and CMP sensor terminal 2.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK CMP SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 47 and CMP sensor terminal 1.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
6. CHECK CAMSHAFT POSITION SENSOR
Refer to EC-1181, "
Component Inspection" .
OK or NG
OK >> GO TO 7.
NG >> Replace camshaft position sensor.
PBIB1890E
Voltage: Approximately 5.3V
MBIB1010E
Continuity should exist.
Continuity should exist.

DTC P0380 GLOW RELAY
EC-1183
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

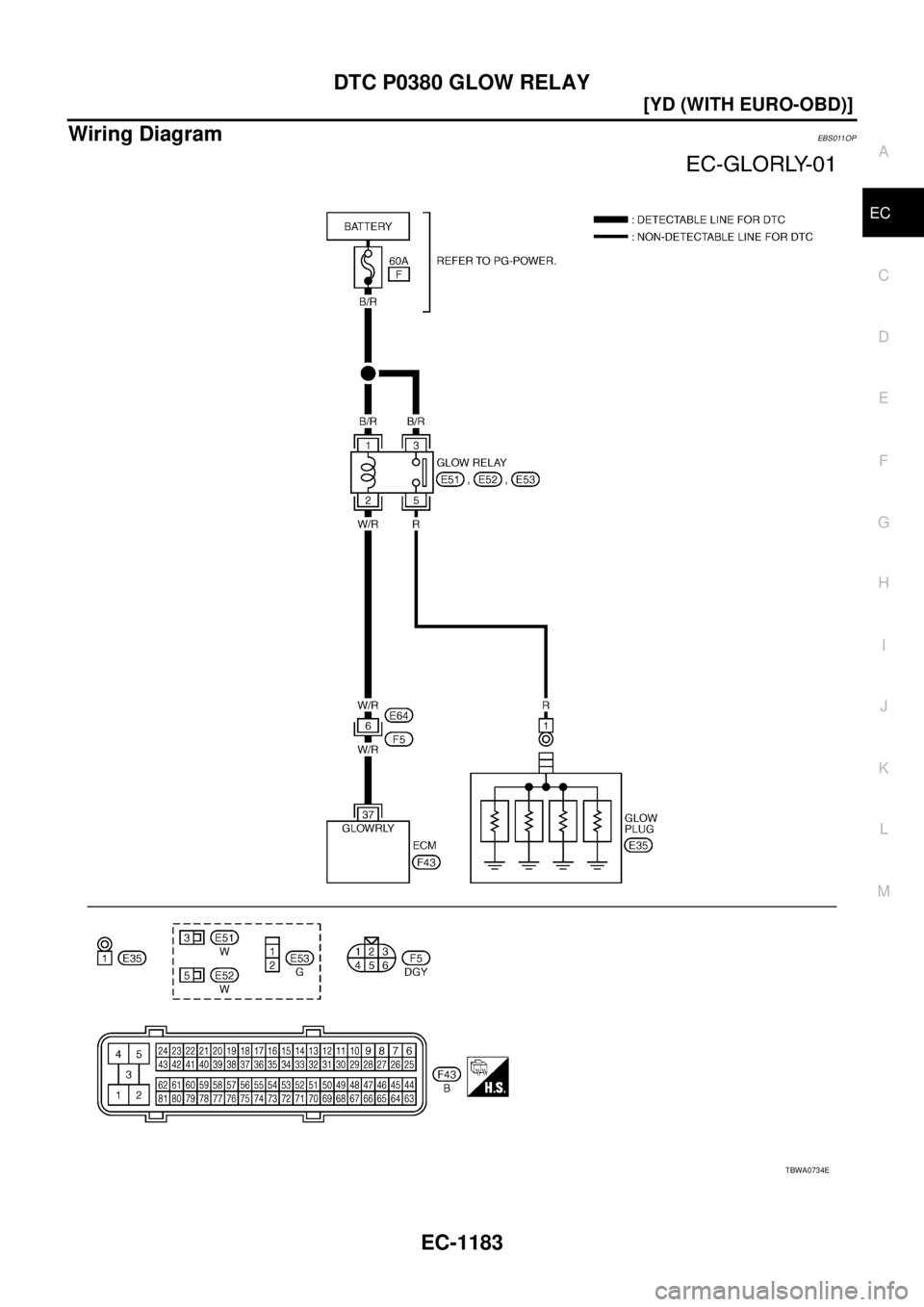

Wiring DiagramEBS011OP
TBWA0734E

EC-1184
[YD (WITH EURO-OBD)]
DTC P0380 GLOW RELAY

Diagnostic ProcedureEBS011OQ
1. CHECK GLOW RELAY POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect glow relay.
3. Check voltage between ECM relay terminals 1, 3 and ground
with CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2. DETECT MALFUNCTIONING PART
Check the following.

60A fusible link

Harness for open and short between glow relay and battery
>> Repair open circuit or short to ground or short to power in harness or connectors.
3. CHECK GLOW RELAY OUTPUT SIGNAL CIRCUIT FOR SHORT TO GROUND
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 37 and glow relay terminal 2.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E64, F5

Harness for open and short between glow relay and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB1934E
Voltage: Battery voltage
PBIB1413E
Continuity should exist.
