2005 NISSAN X-TRAIL diagram

EC-1294
[YD (WITH EURO-OBD)]
DTC P2146, P2149 FUEL INJECTOR POWER SUPPLY

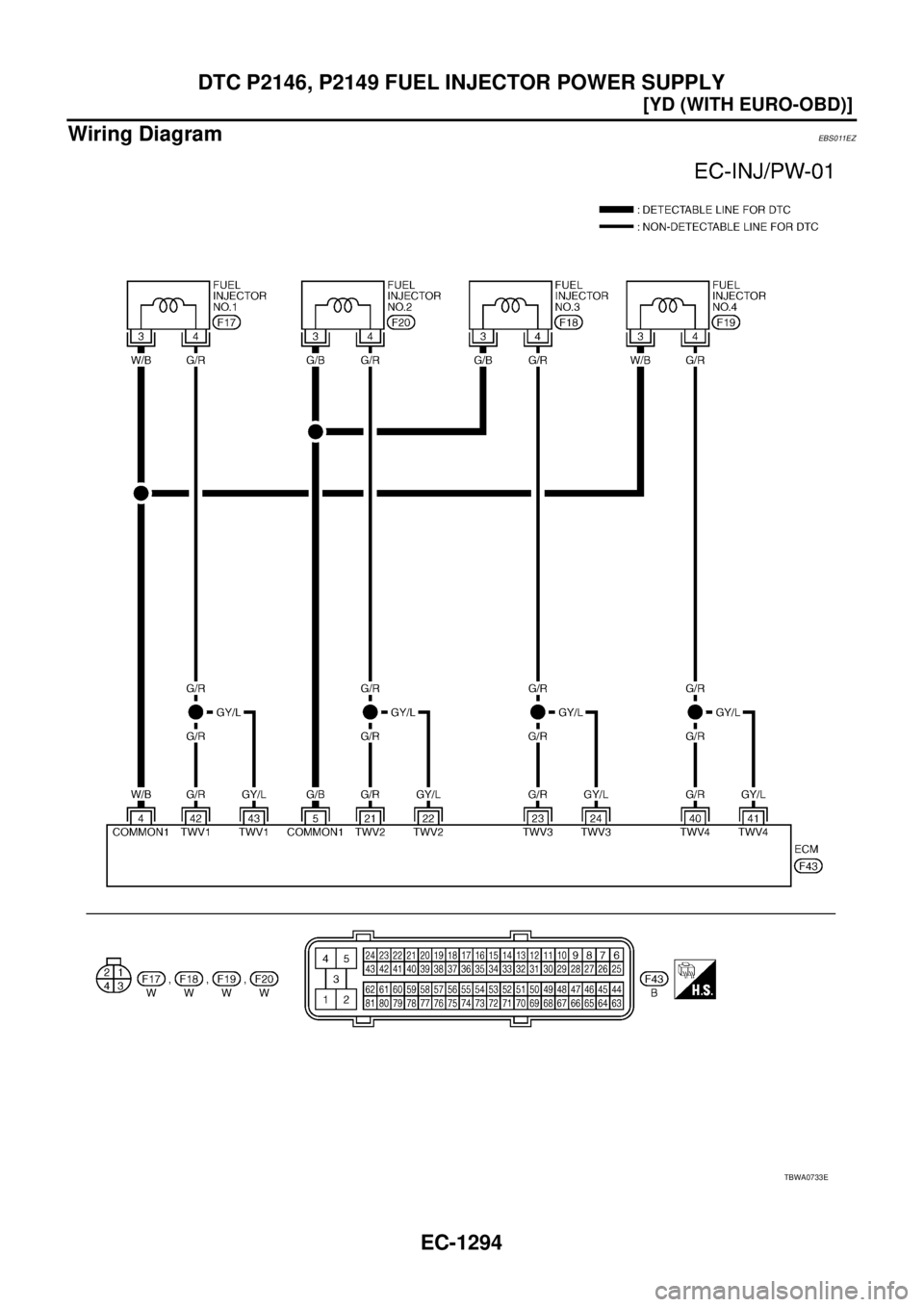

Wiring DiagramEBS011EZ
TBWA0733E

EC-1296
[YD (WITH EURO-OBD)]
DTC P2146, P2149 FUEL INJECTOR POWER SUPPLY

Diagnostic ProcedureEBS011F0
1. CHECK FUEL INJECOR POWER CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Disconnect fuel injector harness connector.
4. Check harness continuity between the following terminals corre-
sponding to the malfunctioning cylinder.
Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 2.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
2. CHECK INTERMITTENT INCIDENT
Refer to EC-1045, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Terminal
Cylinder
ECM Fuel injector
43No.1
53No.2
53No.3
43No.4
Continuity should exist.
PBIB1896E

EC-1298
[YD (WITH EURO-OBD)]
DTC P2147, P2148 FUEL INJECTOR CIRCUIT

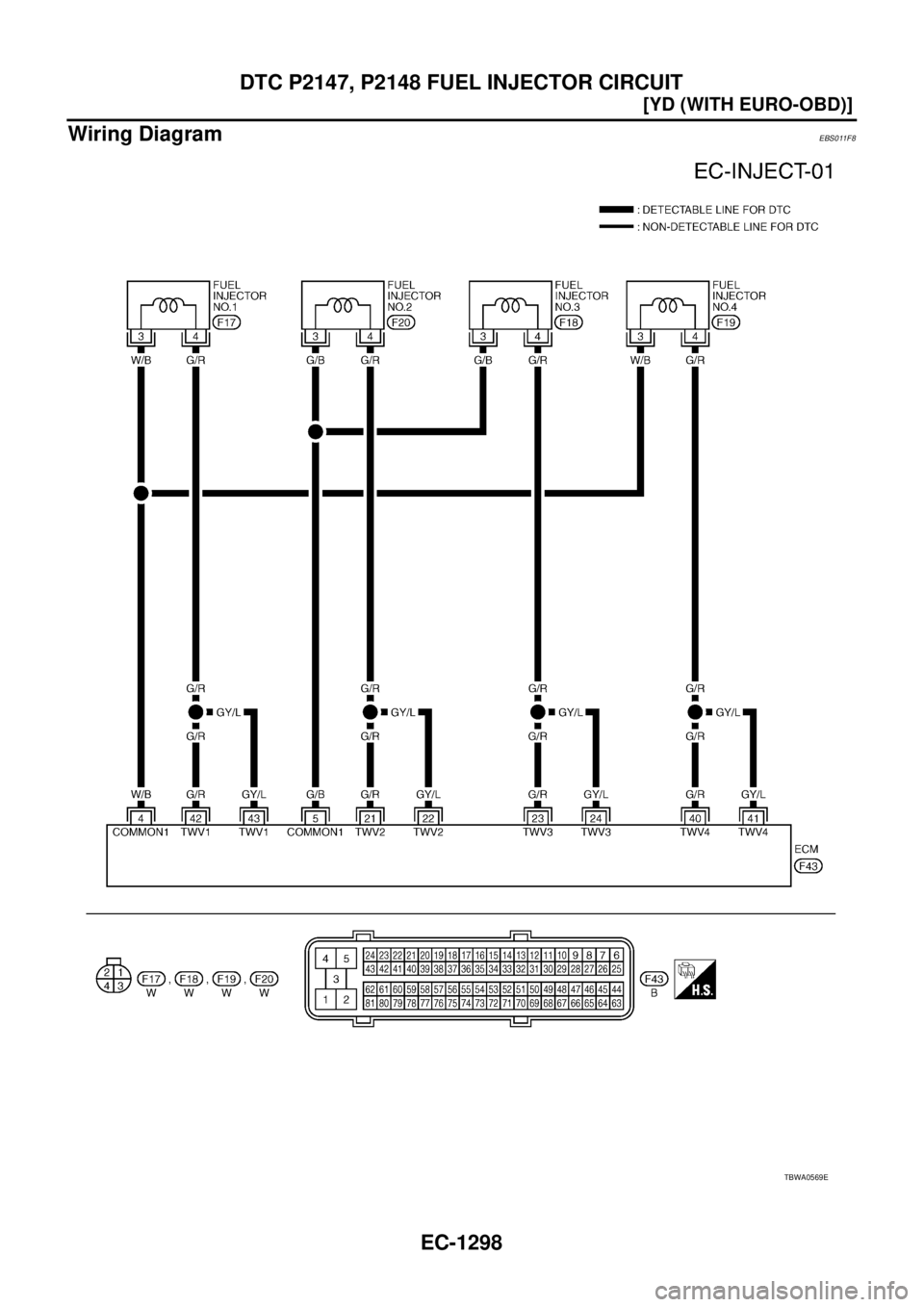

Wiring DiagramEBS011F8
TBWA0569E

DTC P2147, P2148 FUEL INJECTOR CIRCUIT
EC-1301
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

2. CHECK ECM OUTPUT SIGNAL CIRCUIT FOR OPEN OR SHORT
1. Disconnect fuel injector harness connector.
2. Disconnect ECM harness connector.
3. Check harness continuity between the following terminals corre-
sponding to the malfunctioning cylinder.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace.
3. CHECK FUEL INJECTOR
Refer to EC-1301, "
Component Inspection" .
OK or NG
OK >> GO TO 4.
NG >> Replace fuel injector.
4. CHECK INTERMITTENT INCIDENT
Refer to EC-1045, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS011FA
FUEL INJECTOR
1. Disconnect fuel injector.
CylinderTerminal
Continuity
Fuel injector ECM
No.1342, 43 Should not exist
4 Should exist
442,43 Should exist
4 Should not exist
No.2321, 22 Should not exist
5 Should exist
421, 22 Should exist
5 Should not exist
No.3323, 24 Should not exist
5 Should exist
423, 24 Should exist
5 Should not exist
No.4340, 41 Should not exist
4 Should exist
440, 41 Should exist
4 Should not exist
PBIB1896E

EC-1306
[YD (WITH EURO-OBD)]
GLOW CONTROL SYSTEM

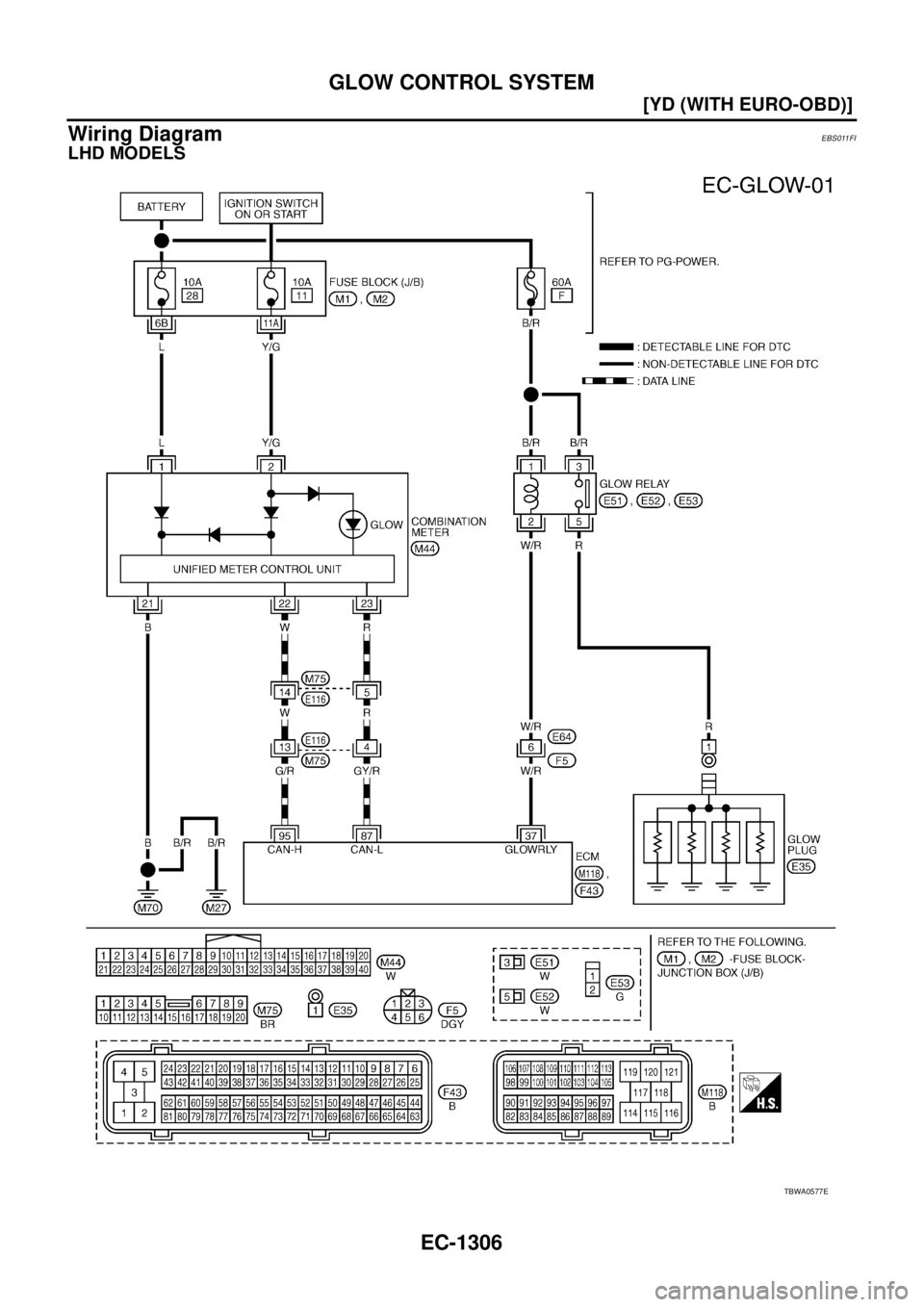

Wiring DiagramEBS011FI
LHD MODELS
TBWA0577E

EC-1310
[YD (WITH EURO-OBD)]
GLOW CONTROL SYSTEM

6. CHECK COMBINATON METER OPERATION
Does combination meter operate normally?
Ye s o r N o
Yes >> GO TO 14.
No >> Check combination meter circuit. Refer to DI-4, "
COMBINATION METERS" .
7. CHECK GLOW RELAY POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect glow relay.
3. Check voltage between glow relay terminals 1, 3 and ground
with CONSULT-II or tester.
OK or NG
OK >> GO TO 9.
NG >> GO TO 8.
8. DETECT MALFUNCTIONING PART
Check the following.

60A fusible link

Harness for open or short between glow relay and battery
>> Repair harness or connectors.
9. CHECK GLOW RELAY OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 37 and glow relay terminal 2.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 11.
NG >> GO TO 10.
MBIB0078E
Voltage: Battery voltage
PBIB1413E
Continuity should exist.

GLOW CONTROL SYSTEM
EC-1311
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

10. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E64, F5

Harness for open or short between glow relay and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
11 . CHECK HARNESS CONTINUITY BETWEEN GLOW RELAY AND GLOW PLUG FOR OPEN AND
SHORT
1. Disconnect glow plug harness connector.
2. Check harness continuity between glow relay terminal 5 and glow plug harness connector.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 12.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
12. CHECK GLOW RELAY
Refer to EC-1312, "
Component Inspection" .
OK or NG
OK >> GO TO 13.
NG >> Replace glow relay.
13. CHECK GLOW PLUG
Refer to EC-1312, "
Component Inspection" .
OK or NG
OK >> GO TO 14.
NG >> Replace glow plug.
14. CHECK INTERMITTENT INCIDENT
Refer to EC-1045, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END Continuity should exist.

EC-1314
[YD (WITH EURO-OBD)]
BRAKE SWITCH

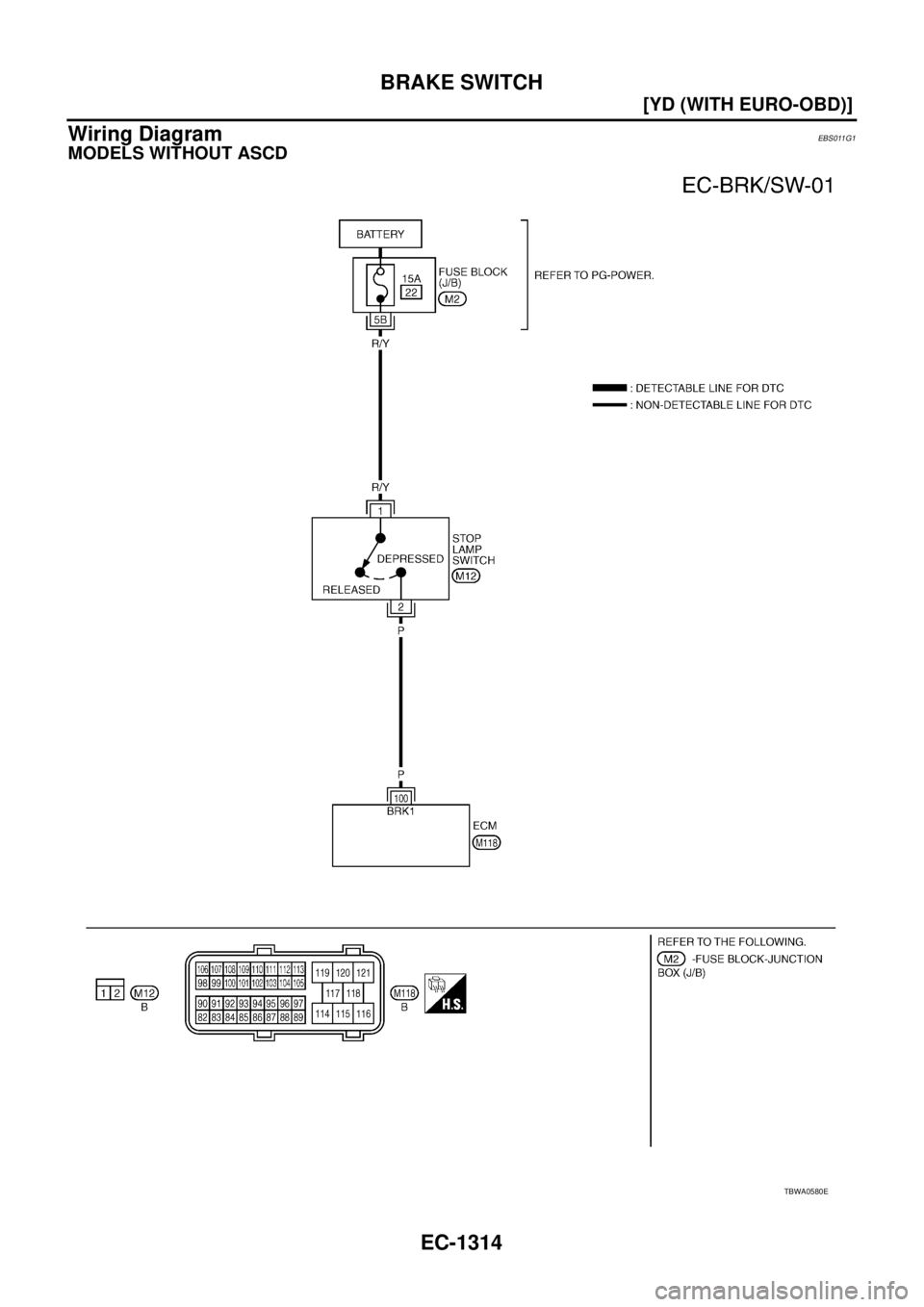

Wiring DiagramEBS011G1
MODELS WITHOUT ASCD
TBWA0580E
