2005 NISSAN X-TRAIL Engine cooling system

CO-10
[QR]
ENGINE COOLANT

4. Check drained engine coolant for contaminants such as rust, corrosion or discoloration. If contaminated,
flush the engine cooling system. Refer to CO-10, "
FLUSHING COOLING SYSTEM" .
REFILLING ENGINE COOLANT
1. Install reservoir tank if removed, and radiator drain plug.
CAUTION:
Be sure to clean drain plug and install with new O-ring.

If water drain plug on cylinder block is removed, close and tighten it. Refer to EM-89, "CYLIN-
DER BLOCK" .
2. Make sure that each hose clamp has been firmly tightened.
3. Fill radiator and reservoir tank to specified level.

Pour engine coolant through engine coolant filler neck
slowly of less than 2 (1-3/4 lmp qt) a minute to allow air
in system to escape.

Use Genuine NISSAN Anti-freeze Coolant or equivalent
mixed with water (distilled or demineralized). Refer to
MA-17, "
RECOMMENDED FLUIDS AND LUBRICANTS".
4. Install radiator cap.
5. Warm up until opening thermostat and water control valve. Standard for warming-up time is approximately
10 minutes at 3,000 rpm.

Make sure thermostat opening condition by touching radiator hose (lower) to see a flow of warm water.
CAUTION:
Watch water temperature gauge so as not to overheat the engine.
6. Stop the engine and cool down to less than approximately 50°C (122°F).

Cool down using fan to reduce the time.

If necessary, refill radiator up to filler neck with engine coolant.
7. Refill reservoir tank to “MAX” level line with engine coolant.
8. Repeat steps 3 through 6 two or more times with radiator cap installed until the engine coolant level no
longer drops.
9. Check cooling system for leaks with the engine running.
10. Warm up the engine, and check for sound of engine coolant flow while running the engine from idle up to
3,000 rpm with heater temperature controller set at several position between “COOL” and “WARM”.

Sound may be noticeable at heater unit.
11. Repeat step 10 three times.
12. If sound is heard, bleed air from cooling system by repeating step 3 through 6 until the engine coolant
level no longer drops.
FLUSHING COOLING SYSTEM
1. Install reservoir tank if removed, and radiator drain plug.Engine coolant capacity
(with reservoir tank at “MAX” level)
: Approx. 7.1 (6-1/4 lmp qt)
SMA182B
Reservoir tank capacity (at “MAX” level)
: 0.7 (5/8 lmp qt)
SMA412B

CO-28
[YD22DDTi]
OVERHEATING CAUSE ANALYSIS

OVERHEATING CAUSE ANALYSISPFP:00012
Troubleshooting ChartEBS00BAW
Symptom Check items
Cooling sys-
tem parts
malfunctionPoor heat transferWater pump malfunction Worn or loose drive belt
— Thermostat stuck closed —
Damaged finsDust contamination or
paper clogging
Physical damage
Clogged radiator cooling
tubeExcess foreign material
(rust, dirt, sand, etc.)
Reduced air flowCooling fan does not oper-
ateRefer to DTC in EC1217
(cooling system)
— High resistance to fan rota-
tion
Fan assembly
Damaged fan blades
Damaged radiator shroud — — —
Improper engine coolant
mixture ratio—— —
Poor engine coolant quality — Engine coolant density —
Insufficient engine coolantEngine coolant leaksCooling hoseLoose clamp
Cracked hose
Water pump Poor sealing
Radiator capLoose
Poor sealing
RadiatorO-ring for damage, deterio-
ration or improper fitting
Cracked radiator tank
Cracked radiator core
Reservoir tank Cracked reservoir tank
Overflowing reservoir tankExhaust gas leaks into
cooling systemCylinder head deterioration
Cylinder head gasket dete-
rioration

CO-32
[YD22DDTi]
ENGINE COOLANT

ENGINE COOLANTPFP:KQ100
InspectionEBS00BAY
LEVEL CHECK

Check if the reservoir tank engine coolant level is within “MIN” to
“MAX” when engine is cool.

Adjust engine coolant level as necessary.
CHECKING RADIATOR SYSTEM FOR LEAKS

To check for leaks, apply pressure to the cooling system with the
radiator cap tester (commercial service tool) and the radiator
cap tester adapter (special service tool).
WARNING:
Do not remove radiator cap when engine is hot. Serious
burns could occur from high pressure engine coolant
escaping from radiator.
CAUTION:
Higher test pressure than specified may cause radiator
damage.
NOTE:
In a case that engine coolant decreases, replenish radiator with engine coolant.

If anything is found, repair or replace damaged parts.
Changing Engine CoolantEBS00BAZ
WARNING:

To avoid being scalded, do not change engine coolant when engine is hot.

Wrap a thick cloth around cap and carefully remove radiator cap. First, turn radiator cap a quarter
of a turn to release built-up pressure. Then turn the cap all the way.
DRAINING ENGINE COOLANT
1. Remove engine undercover.
2. Open radiator drain plug at the bottom of radiator, and remove
radiator cap.
CAUTION:

Be careful not to allow engine coolant to contact drive
belts.

Cover the exhaust tube heat shield to prevent from
splashing engine coolant.
When draining all engine coolant in the system, open water drain plug on engine cylinder block. Refer
to EM-231, "
DISASSEMBLY".
3. Remove reservoir tank, drain engine coolant, then clean reservoir tank.
4. Check drained engine coolant for contaminants such as rust, corrosion or discoloration.
SMA412B
Testing pressure:
157 kPa (1.57 bar, 1.6 kg/cm
2 , 23 psi)
SLC134B
PBIC0236E

ENGINE COOLANT
CO-33
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
CO

If contaminated, flush engine cooling system. Refer to CO-34, "FLUSHING COOLING SYSTEM" .
REFILLING ENGINE COOLANT
1. Install reservoir tank, and radiator drain plug.
CAUTION:
Be sure to clean radiator drain plug and install with new O-ring.

If water drain plug on cylinder block is removed, close and tighten it. Refer to EM-235, "ASSEM-
BLY" .
2. Remove air relief plug.
3. Fill radiator and reservoir tank to the specified level.

Pour engine coolant through engine coolant filler neck
slowly of less than 2 (1-3/4 lmp qt) a minute to allow air
in system to escape.

Use Genuine Nissan Anti-freeze Coolant or equivalent
mixed with water (distilled or demineralized). Refer to
MA-17, "
RECOMMENDED FLUIDS AND LUBRICANTS".

When engine coolant overflows air relief hole, install air relief
plug with new copper washer.
4. Install radiator cap.
5. Warm up until opening thermostat and water control valve. Standard for warming-up time is approximately
10 minutes at 3,000 rpm.

Make sure thermostat opening condition by touching radiator hose (lower) to see a flow of warm water.
CAUTION:
Watch water temperature gauge so as not to overheat engine.
6. Stop engine and cool down to less than approximately 50°C(122°F).

Cool down using a fan to reduce the time.

If necessary, refill radiator up to filler neck with engine coolant.
7. Refill reservoir tank to “MAX” level line with engine coolant.
8. Repeat steps 3 through 6 two or more times with radiator cap installed until engine coolant level no longer
drops.
9. Check cooling system for leaks with engine running.
PBIC3608E
Engine coolant capacity
(with reservoir tank at “MAX” level)
: Approx. 9.5 (8-3/8 lmp qt)
SMA182B
Reservoir tank capacity (at “MAX” level)
: 0.7 (5/8 lmp qt)
Air relief plug
: 7.4 N·m (0.75 kg-m, 65 in-lb)
SMA412B

CO-34
[YD22DDTi]
ENGINE COOLANT

10. Warm up engine, and check for sound of engine coolant flow while running engine from idle up to 3,000
rpm with heater temperature controller set at several position between “COOL” and “WARM”.

Sound may be noticeable at heater unit.
11. Repeat step 10 three times.
12. If sound is heard, bleed air from cooling system by repeating steps 3 through 6 until engine coolant level
no longer drops.
FLUSHING COOLING SYSTEM
1. Install reservoir tank if removed, and radiator drain plug.
CAUTION:
Be sure to clean drain plug and install with new O-ring.

If water drain plug on cylinder block is removed, close and tighten it. Refer to EM-235, "ASSEM-
BLY" .
2. Fill radiator with water until water spills from the air relief hole, then close air relief plug. Fill radiator and
reservoir tank with water and reinstall radiator cap.
3. Run engine and warm it up to normal operating temperature.
4. Rev engine two or three times under no-load.
5. Stop engine and wait until it cools down.
6. Drain water from the system. Refer to CO-32, "
DRAINING ENGINE COOLANT" .
7. Repeat steps 1 through 6 until clear water begins to drain from radiator.

RADIATOR
CO-35
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
CO

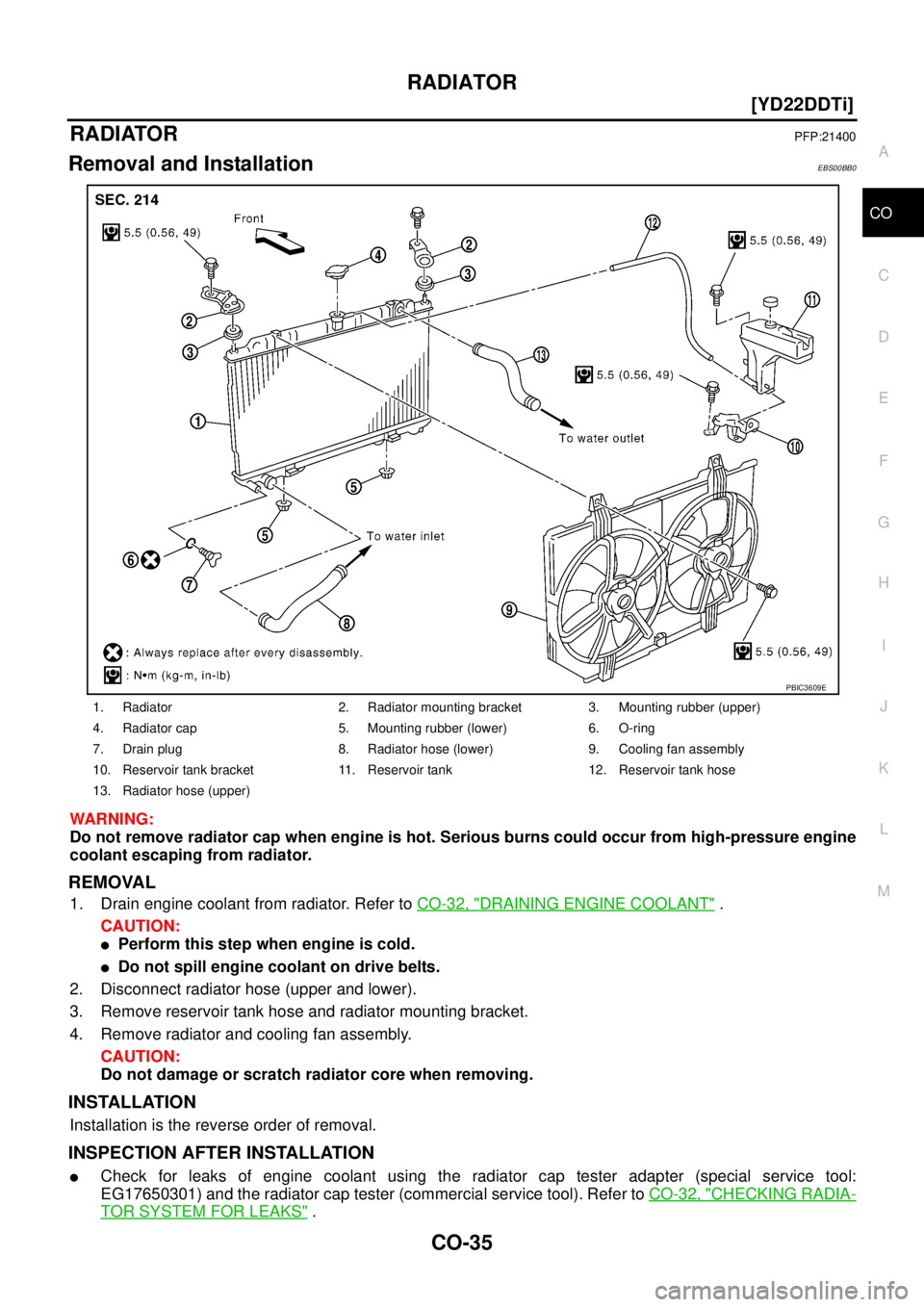

RADIATORPFP:21400
Removal and InstallationEBS00BB0
WARNING:
Do not remove radiator cap when engine is hot. Serious burns could occur from high-pressure engine
coolant escaping from radiator.
REMOVAL
1. Drain engine coolant from radiator. Refer to CO-32, "DRAINING ENGINE COOLANT" .
CAUTION:

Perform this step when engine is cold.

Do not spill engine coolant on drive belts.
2. Disconnect radiator hose (upper and lower).
3. Remove reservoir tank hose and radiator mounting bracket.
4. Remove radiator and cooling fan assembly.
CAUTION:
Do not damage or scratch radiator core when removing.
INSTALLATION
Installation is the reverse order of removal.
INSPECTION AFTER INSTALLATION

Check for leaks of engine coolant using the radiator cap tester adapter (special service tool:
EG17650301) and the radiator cap tester (commercial service tool). Refer to CO-32, "
CHECKING RADIA-
TOR SYSTEM FOR LEAKS" .
1. Radiator 2. Radiator mounting bracket 3. Mounting rubber (upper)
4. Radiator cap 5. Mounting rubber (lower) 6. O-ring
7. Drain plug 8. Radiator hose (lower) 9. Cooling fan assembly
10. Reservoir tank bracket 11. Reservoir tank 12. Reservoir tank hose
13. Radiator hose (upper)
PBIC3609E

EC-34
[QR (WITH EURO-OBD)]
ENGINE CONTROL SYSTEM

System ChartEBS010L8
*1: This sensor is not used to control the engine system under normal conditions.
*2: This input signal is sent to the ECM through CAN communication line.
*3: This output signal is sent from the ECM through CAN communication line.
*4: For models with ESP
*5: For models without ESP
*6: For QR25DE engine modelsInput (Sensor) ECM Function Output (Actuator)

Camshaft position sensor (PHASE)

Crankshaft position sensor (POS)

Mass air flow sensor

Engine coolant temperature sensor

Heated oxygen sensor 1

Throttle position sensor

Accelerator pedal position sensor

Park/neutral position (PNP) switch

Intake air temperature sensor

Power steering pressure sensor

Ignition switch

Battery voltage

Knock sensor

Refrigerant pressure sensor

Stop lamp switch

Heated oxygen sensor 2*1

TCM (Transmission control module)*2

ESP/TCS/ABS control unit*2 *4

ABS actuator and electric unit
(control unit)*2 *5

Air conditioner switch

Wheel sensor*2

Electrical load signal

ASCD steering switch*6

ASCD brake switch*6

ASCD clutch switch*6

Stop lamp switchFuel injection & mixture ratio control Fuel injector
Electronic ignition system Power transistor
Fuel pump control Fuel pump relay
On board diagnostic system
MI (On the instrument panel)*
3
Heated oxygen sensor 1 heater control Heated oxygen sensor 1 heater
Heated oxygen sensor 2 heater control Heated oxygen sensor 2 heater
EVAP canister purge flow controlEVAP canister purge volume control
solenoid valve
Air conditioning cut control Air conditioner relay
Power valve control*
6VIAS control solenoid valve
ASCD vehicle speed control*
6Electric throttle control actuator
Cooling fan control Cooling fan relay

EC-78
[QR (WITH EURO-OBD)]
TROUBLE DIAGNOSIS

Fail-Safe ChartEBS010LR
When the DTC listed bellow is detected, the ECM enters fail-safe mode and the MI lights up.
When there is an open circuit on MI circuit, the ECM can not warn the driver by lighting up MI when there is
trouble on engine control system.
Therefore, when electrical controlled throttle and part of ECM related diagnoses are continuously detected as
NG for 5 trips, ECM warns the driver that engine control system has trouble and MI circuit is open by means of
operating fail-safe function.
The fail-safe function also operates when above diagnoses except MI circuit are detected and demands the
driver to repair the trouble.
DTC No. Detected items Engine operating condition in fail-safe mode
P0102
P0103Mass air flow sensor circuit Engine speed will not rise more than 2,400 rpm due to the fuel cut.
P0117
P0118Engine coolant tempera-
ture sensor circuitEngine coolant temperature will be determined by ECM based on the time after turning
ignition switch ON or START.
CONSULT-II displays the engine coolant temperature decided by ECM.
ConditionEngine coolant temperature decided
(CONSULT-II display)
Just as ignition switch is turned ON or START 40°C (104°F)
More than approx. 4 minutes after ignition ON
or START80°C (176°F)
Except as shown above40 - 80°C (104 - 176°F)
(Depends on the time)
When the fail-safe system for engine coolant temperature sensor is activated, the cooling
fan operates while engine is running.
P0122
P0123
P0221
P0222
P2135Throttle position sensor The ECM controls the electric throttle control actuator in regulating the throttle opening in
order for the idle position to be within +10 degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal
condition.
So, the acceleration will be poor.
P1121 Electric throttle control
actuator(When electric throttle control actuator does not function properly due to the return spring
malfunction:)
ECM controls the electric throttle actuator by regulating the throttle opening around the
idle position. The engine speed will not rise more than 2,000 rpm.
(When throttle valve opening angle in fail-safe mode is not in specified range:)
ECM controls the electric throttle control actuator by regulating the throttle opening to 20
degrees or less.
(ECM detect the throttle valve is stuck open:)
While the vehicle is driving, it slows down gradually by fuel cut. After the vehicle stops, the
engine stalls.
The engine can restart in N or P position (A/T), neutral position (M/T) and engine speed
will not exceed 1,000 rpm or more.
P1122 Electric throttle control
functionECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (approx. 5 degrees) by the return spring.
P1124
P1126Throttle control motor relay ECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (approx. 5 degrees) by the return spring.
P1128 Throttle control motor ECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (approx. 5 degrees) by the return spring.
P1229 Sensor power supply ECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (approx. 5 degrees) by the return spring.
P2122
P2123
P2127
P2128
P2138Accelerator pedal position
sensorThe ECM controls the electric throttle control actuator in regulating the throttle opening in
order for the idle position to be within +10 degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal
condition.
So, the acceleration will be poor.
Engine operating condition in fail-safe mode Engine speed will not rise more than 2,500 rpm due to the fuel cut
